Overview

EN IEC 60695-2-13:2021 (IEC 60695-2-13) defines the Glow‑wire Ignition Temperature (GWIT) test method for solid electrical insulating materials and other solid materials. This standardized glow‑wire test determines the temperature at which a material does not ignite (or sustain flaming for longer than 5 s) under contact with an electrically heated wire. GWIT results are used in material preselection and fire‑hazard assessment for electrotechnical products.

Key topics and technical requirements

• Scope and purpose: Material ignitability testing using a glowing/hot‑wire to simulate overheated metal parts or fault conditions.
• GWIT definition: The GWIT is the temperature that is 25 K (or 30 K) above the maximum test temperature determined during the procedure where the specimen does not ignite or sustain flaming >5 s for any single flame event and is not totally consumed.
• Test specimens: Preparation, dimensions and acceptable formulation ranges (density, melt flow, filler, colour) are specified to ensure repeatability.
• Apparatus and verification: Use of the glow‑wire apparatus and temperature‑measuring system verification consistent with IEC 60695‑2‑10.
• Conditioning and test conditions: Standardized specimen conditioning and controlled testing atmosphere for reproducible results.
• Test procedure: Initial and stepped test temperatures, observation times and ignition criteria are given to determine GWIT across a series of specimens.
• Observations, evaluation and reporting: Criteria for pass/fail, how to derive GWIT from test outcomes, and required information for the test report.

Practical applications

• Material selection and ranking for electrical insulation, housings, connectors and components where contact with overheated parts is a risk.
• Input to fire‑hazard preselection processes (used together with GWFI results) to help reduce end‑product testing.
• Support for designers and safety engineers aiming to limit ignition risk and confine fire within enclosures of electrotechnical equipment.
• Use in conformity assessment, product safety documentation and supply‑chain material qualification.

Who should use this standard

• Manufacturers of plastics, polymers and insulating materials
• Independent test laboratories and certification bodies
• Product safety and compliance engineers in electronics and electrical sectors
• Standards and technical committees preparing safety publications (in line with IEC Guide 104)

Related standards

• IEC 60695-2-10 (glow‑wire apparatus and common test procedure)
• IEC 60695-2-12 (GWFI - glow‑wire flammability index for materials)
• IEC 60695-2-11 (glow‑wire flammability tests for end products)
• IEC 60695-1-30 (preselection procedure)
• IEC 60695-4, ISO 13943, ISO 291, ISO 294/295 (conditioning and terminology)

Keywords: Glow‑wire ignition temperature, GWIT, IEC 60695‑2‑13, fire hazard testing, glow‑wire test, electrical insulating materials, flammability testing.

Standards Content (Sample)

SLOVENSKI STANDARD
01-december-2021
Nadomešča:
SIST EN 60695-2-13:2011
SIST EN 60695-2-13:2011/A1:2014
Preskušanje požarne ogroženosti - 2-13. del: Preskusne metode z žarilno žico -
Preskusna metoda za materiale: temperatura vžiga žareče žice (GWIT) (IEC 60695-
2-13:2021)
Fire hazard testing - Part 2-13: Glowing/hot-wire based test methods - Glow-wire ignition
temperature (GWIT) test method for materials (IEC 60695-2-13:2021)
Prüfungen zur Beurteilung der Brandgefahr - Teil 2-13: Prüfverfahren mit dem Glühdraht
- Prüfung mit dem Glühdrat zur Entzündbarkeit (GWIT) von Werkstoffen (IEC 60695-2-
13:2021)
Essais relatifs aux risques du feu - Partie 2-13: Essais au fil incandescent/chauffant -
Méthode d'essai de température d'allumage au fil incandescent (GWIT) pour matériaux
(IEC 60695-2-13:2021)
Ta slovenski standard je istoveten z: EN IEC 60695-2-13:2021
ICS:
13.220.40 Sposobnost vžiga in Ignitability and burning
obnašanje materialov in behaviour of materials and
proizvodov pri gorenju products
29.020 Elektrotehnika na splošno Electrical engineering in
general
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN IEC 60695-2-13

NORME EUROPÉENNE
EUROPÄISCHE NORM
October 2021
ICS 13.220.40; 29.020 Supersedes EN 60695-2-13:2010 and all of its
amendments and corrigenda (if any)
English Version
Fire hazard testing - Part 2-13: Glowing/hot-wire based test
methods - Glow-wire ignition temperature (GWIT) test method
for materials
(IEC 60695-2-13:2021)
Essais relatifs aux risques du feu - Partie 2-13: Essais au fil Prüfungen zur Beurteilung der Brandgefahr - Teil 2-13:
incandescent/chauffant - Méthode d'essai de température Prüfverfahren mit dem Glühdraht - Prüfung mit dem
d'allumage au fil incandescent (GWIT) pour matériaux Glühdrat zur Entzündbarkeit (GWIT) von Werkstoffen
(IEC 60695-2-13:2021) (IEC 60695-2-13:2021)
This European Standard was approved by CENELEC on 2021-09-28. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2021 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 60695-2-13:2021 E

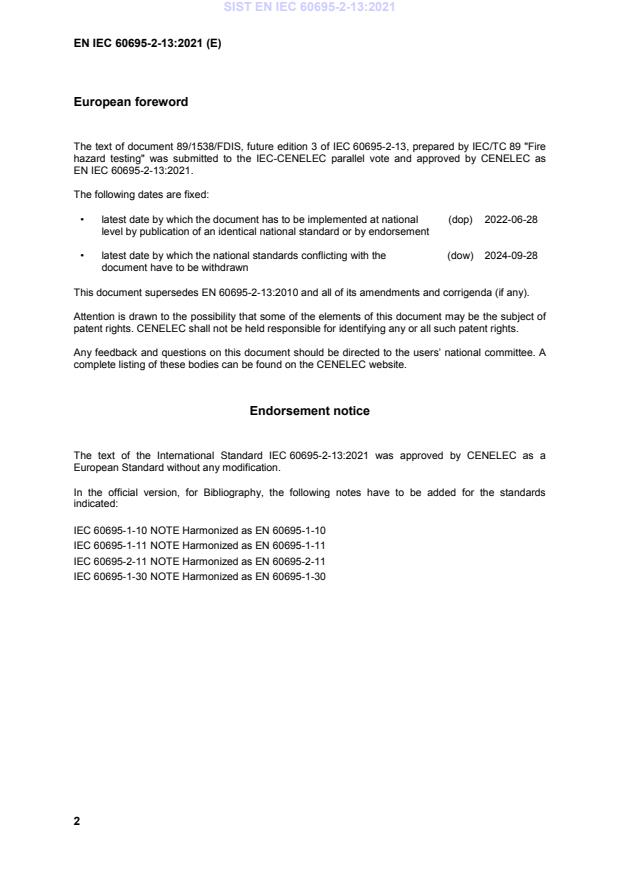

European foreword
