SIST EN 14399-5:2015

High-strength structural bolting assemblies for preloading - Part 5: Plain washers

This European Standard specifies, together with EN 14399 1 and EN 14399 2, hardened and tempered plain washers intended for bolting assemblies with large series hexagon high-strength structural bolts and nuts with threads from M12 to M36 inclusive. Washers according to this standard can be applied under the nut only.
Washers according to this standard are not intended to be used in direct contact with oversized or slotted holes.
NOTE   Attention is drawn to the importance of ensuring that the washers are correctly used if satisfactory results are to be obtained. For recommendations concerning proper application, reference to EN 1090-2 is made.

Hochfeste vorspannbare Garnituren für Schraubverbindungen im Metallbau - Teil 5: Flache Scheiben

Diese Europäische Norm legt, zusammen mit EN 14399-1 und EN 14399-2, Anforderungen für vergütete flache Scheiben, welche für die Ver¬wendung mit hochfesten Sechskantschrauben und  muttern mit großer Schlüsselweite für den Metallbau mit Gewindegrößen von M12 bis M36 vorgesehen sind, fest. Scheiben nach dieser Norm können nur unter der Mutter verwendet werden.
Scheiben nach dieser Norm sind nicht dafür vorgesehen in direktem Kontakt mit übergroßen Löchern oder Langlöchern verwendet zu werden.
ANMERKUNG   Es wird darauf hingewiesen, dass zufriedenstellende Ergebnisse nur dann erzielt werden, wenn sichergestellt ist, dass die Scheiben sachgerecht eingesetzt werden. Für Empfehlungen zur richtigen Anwendung wird auf EN 1090-2 verwiesen.

Boulonnerie de construction métallique à haute résistance apte à la précontrainte - Partie 5: Rondelles plates

La présente Norme européenne, avec l’EN 14399-1 et l’EN 14399-2, spécifie les exigences applicables aux rondelles plates trempées et revenues destinées à être assemblées avec des vis et écrous hexagonaux de construction métallique à haute résistance à surplat de série large et de diamètre de filetage de M12 à M36 inclus. Les rondelles conformes à la présente norme peuvent uniquement être utilisées sous l'écrou.
Les rondelles conformes à la présente norme ne sont pas destinées à être utilisées en contact direct avec des trous oblongs ou de grande dimension.
NOTE   Il est important de s’assurer que les rondelles soient utilisées de façon correcte afin d’obtenir un résultat satisfaisant. Pour les recommandations relatives à la bonne utilisation, se référer à l’EN 1090-2.

Visokotrdnostne strukturne vijačne zveze za prednapetje - 5. del: Ploščate podložke

Ta dokument skupaj s standardom EN 14399-1 določa ojačane in kaljene ploščate podložke, namenjene za zveze z velikimi vrstami visokotrdnostnih strukturnih vijakov s šestrobo glavo in šestrobimi maticami z navoji od M12 do vključno M36. Podložke po tem standardu se lahko uporabljajo samo pod matico.
OPOMBA: Opozoriti je treba na pomembnost zagotavljanja pravilne uporabe podložk za dosego zadovoljivih rezultatov. Za priporočila glede pravilne uporabe je naveden standard EN 1090-2.

General Information

• Status: Published
• Public Enquiry End Date: 30-Oct-2014
• Publication Date: 23-Mar-2015
• ICS: 21.060.30 - Washers, locking elements
• Technical Committee: ISEL - Mechanical elements
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 17-Mar-2015
• Due Date: 22-May-2015
• Completion Date: 24-Mar-2015
• Directive: 97/23/EC - Directive 97/23/EC of the European Parliament and of the Council of 29 May 1997 on the approximation of the laws of the Member States concerning pressure equipment
• Ref Project: EN 14399-5:2015 - High-strength structural bolting assemblies for preloading - Part 5: Plain washers

Relations

• Replaces: SIST EN 14399-5:2005/AC:2006 - High-strength structural bolting assemblies for preloading - Part 5: Plain washers
• Effective Date: 01-May-2015
• Replaces: SIST EN 14399-5:2005 - High-strength structural bolting assemblies for preloading - Part 5: Plain washers
• Effective Date: 01-May-2015

Overview

SIST EN 14399-5:2015 is a European Standard developed by CEN, specifying the requirements for high-strength plain washers used in structural bolting assemblies designed for preloading. These washers are hardened and tempered plain washers intended for use with large-series hexagon high-strength structural bolts and nuts with thread sizes from M12 to M36 inclusive. This standard forms part 5 of the EN 14399 series, which addresses various components of bolting assemblies.

The standard details the technical conditions for washers applied exclusively under nuts and excludes their use in direct contact with oversized or slotted holes. Proper application guidelines reference EN 1090-2 to ensure reliable performance. SIST EN 14399-5:2015 supersedes the previous 2005 edition, introducing updated marking and dimensional specifications to optimize safety, functionality, and manufacturing feasibility.

Key Topics

• Scope and Application
  Specifies hardened and tempered plain washers for hexagon high-strength bolts and nuts, suitable for preloading in structural steel assemblies. Washers are used only under the nut to distribute load pressure evenly and prevent damage to assembly components.

• Dimensions and Tolerances
  Defines precise washer dimensions (inner diameter d1, outer diameter d2, thickness h) for sizes M12 to M36, based on large-series hexagonal bolt standards but adjusted for structural uses. Detailed dimensional tables ensure compatibility with bolts and nuts while preventing stress concentrations.

• Material and Mechanical Properties
  Washers must be made from steel with a hardness range of 300 HV to 370 HV. They undergo heat treatment (hardened and tempered) to guarantee strength and durability under high preload conditions.

• Marking and Identification
  Washers are marked with at least a manufacturer’s identification and the letter “H” (for hardened). Optional markings "HR" or "HV" indicate compatibility with specific bolting system types. Larger diameter washers for HRD nuts are marked "HD". Markings are indented on one bearing face for traceability.

• Coating and Surface Finish
  Washers may be supplied uncoated (“as processed”), hot-dip galvanized according to EN ISO 10684, or with other coatings agreed upon by purchaser and supplier. Cadmium coatings are prohibited. Attention to proper coatings is critical to avoid hydrogen embrittlement and maintain bolt functionality.

• Assembly Compatibility
  EN 14399-5 complements other parts of the EN 14399 series addressing bolts, nuts, tightening procedures, and preloading suitability (e.g., EN 14399-1, EN 14399-2). The standard emphasizes avoiding mixing components from different systems (HR, HV, HRC) to maintain ductility and assembly performance.

Applications

• Structural Steel Construction
  Used in building frameworks, bridges, towers, and other load-bearing steel structures requiring high-strength bolted connections with controlled preload.

• Preloaded Bolted Assemblies
  Essential for applications needing reliable clamping force and resistance to fatigue, slip, and loosening, such as in seismic zones or dynamic load environments.

• Heavy Machinery and Infrastructure
  Applicable wherever large-series fasteners are used for heavy steel components, including cranes, industrial plants, and transportation infrastructure.

• Compliance with Execution Standards
  Supports compliance with EN 1090-2 for execution of steel structures, ensuring structural integrity and safety through standardized bolting components.

Related Standards

• EN 14399-1 - General requirements for high-strength structural bolting assemblies
• EN 14399-2 - Suitability and testing for preload capability
• EN 14399-3 & EN 14399-4 - Bolts and nuts for systems HR and HV respectively
• EN 14399-6 - Plain chamfered washers
• EN 14399-7 to EN 14399-10 - Other bolting systems and components including countersunk bolts, fit bolts, direct tension indicators, and calibrated preload assemblies
• EN 1090-2 - Technical execution requirements for steel structures
• EN ISO 4759-3 - Tolerances for plain washers for bolts and nuts
• EN ISO 10684 - Hot-dip galvanized coatings for fasteners

---

SIST EN 14399-5:2015 ensures that plain washers used in high-strength structural bolting assemblies meet stringent quality and performance criteria essential for the safety and durability of preloaded steel connections. Adherence to this standard optimizes assembly integrity, load distribution, and long-term reliability in demanding construction and engineering applications.

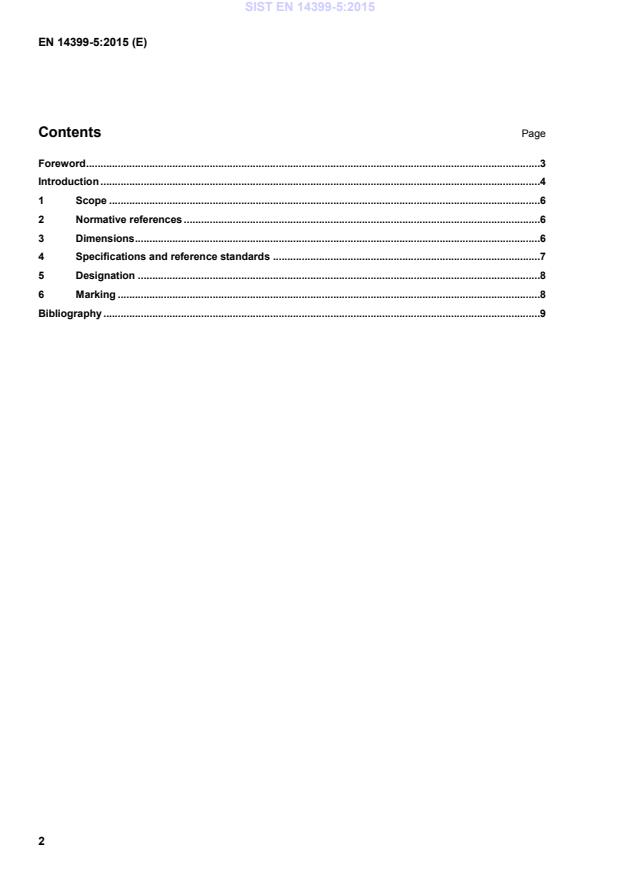

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.SRGORåNHHochfeste vorspannbare Garnituren für Schraubverbindungen im Metallbau - Teil 5: Flache ScheibenBoulonnerie de construction métallique à haute résistance apte à la précontrainte - Partie 5: Rondelles platesHigh-strength structural bolting assemblies for preloading - Part 5: Plain washers21.060.30Podložke, varovalni elementiWashers, locking elementsICS:Ta slovenski standard je istoveten z:EN 14399-5:2015SIST EN 14399-5:2015en,fr,de01-maj-2015SIST EN 14399-5:2015SLOVENSKI
STANDARDSIST EN 14399-5:2005/AC:2006SIST EN 14399-5:20051DGRPHãþD

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 14399-5
February 2015 ICS 21.060.30 Supersedes EN 14399-5:2005English Version
High-strength structural bolting assemblies for preloading - Part 5: Plain washers
Boulonnerie de construction métallique à haute résistance apte à la précontrainte - Partie 5 : Rondelles plates
Hochfeste vorspannbare Garnituren für Schraubverbindungen im Metallbau - Teil 5: Flache Scheiben This European Standard was approved by CEN on 18 October 2014.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2015 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 14399-5:2015 ESIST EN 14399-5:2015
...
