SIST EN 14399-6:2015
(Main)High-strength structural bolting assemblies for preloading - Part 6: Plain chamfered washers
High-strength structural bolting assemblies for preloading - Part 6: Plain chamfered washers
This document specifies, together with EN 14399-1, hardened and tempered plain washers with chamfer intended for assembly with large series hexagon high-strength structural bolts and nuts with thread sizes from M12 to M36 inclusive.
NOTE Attention is drawn to the importance of ensuring that the washers are correctly used if satisfactory results are to be obtained. For recommendations concerning proper application, reference to EN 1090-2 is made.
Hochfeste vorspannbare Garnituren für Schraubverbindungen im Metallbau - Teil 6: Flache Scheiben mit Fase
Dieses Dokument beschreibt, zusammen mit EN 14399-1, vergütete flache Scheiben mit Fase, welche für die Verwendung mit hochfesten vorspannbaren Sechskantschrauben und muttern mit großer Schlüsselweite für den Metallbau mit Gewindegrößen von M12 bis M36 vorgesehen sind.
ANMERKUNG Damit zufriedenstellende Ergebnisse erreicht werden können, ist auf die korrekte Anwendung der Scheiben besondere Aufmerksamkeit zu richten. Für Empfehlungen zur korrekten Anwendung wird auf EN 1090-2 hin-gewiesen.
Boulonnerie de construction métallique à haute résistance apte à la précontrainte - Partie 6: Rondelles plates chanfreinées
Le présent document, avec l’EN 14399-1, spécifie les exigences applicables aux rondelles plates chanfreinées trempées et revenues destinées à être assemblées avec des vis et écrous hexagonaux de construction métallique à haute résistance à surplat de série large et de diamètre de filetage de M12 à M36 inclus.
NOTE Il est important de s’assurer que les rondelles soient utilisées de façon correcte afin d’obtenir un résultat satisfaisant. Pour les recommandations relatives à la bonne utilisation, se référer à l’EN 1090-2.
Visokotrdnostne strukturne vijačne zveze za prednapetje - 6. del: Ploščate posnete podložke
Ta dokument skupaj s standardom EN 14399-1 določa ojačane in kaljene ploščate posnete podložke, namenjene za zveze z velikimi vrstami visokotrdnostnih strukturnih vijakov s šestrobo glavo in šestrobimi maticami z velikostmi navojev od M12 do vključno M36.
OPOMBA: Opozoriti je treba na pomembnost zagotavljanja pravilne uporabe podložk za dosego zadovoljivih rezultatov. Za priporočila glede pravilne uporabe je naveden standard EN 1090-2.
General Information
Relations
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.SRGORåNHHochfeste vorspannbare Garnituren für Schraubverbindungen im Metallbau - Teil 6: Flache Scheiben mit FaseBoulonnerie de construction métallique à haute résistance apte à la précontrainte - Partie 6: Rondelles plates chanfreinéesHigh-strength structural bolting assemblies for preloading - Part 6: Plain chamfered washers21.060.30Podložke, varovalni elementiWashers, locking elementsICS:Ta slovenski standard je istoveten z:EN 14399-6:2015SIST EN 14399-6:2015en,fr,de01-maj-2015SIST EN 14399-6:2015SLOVENSKI
STANDARDSIST EN 14399-6:2005/AC:2006SIST EN 14399-6:20051DGRPHãþD
SIST EN 14399-6:2015
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 14399-6
February 2015 ICS 21.060.30 Supersedes EN 14399-6:2005English Version
High-strength structural bolting assemblies for preloading - Part 6: Plain chamfered washers
Boulonnerie de construction métallique à haute résistance apte à la précontrainte - Partie 6 : Rondelles plates chanfreinées
Hochfeste vorspannbare Garnituren für Schraubverbindungen im Metallbau - Teil 6: Flache Scheiben mit Fase This European Standard was approved by CEN on 18 October 2014.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2015 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 14399-6:2015 ESIST EN 14399-6:2015

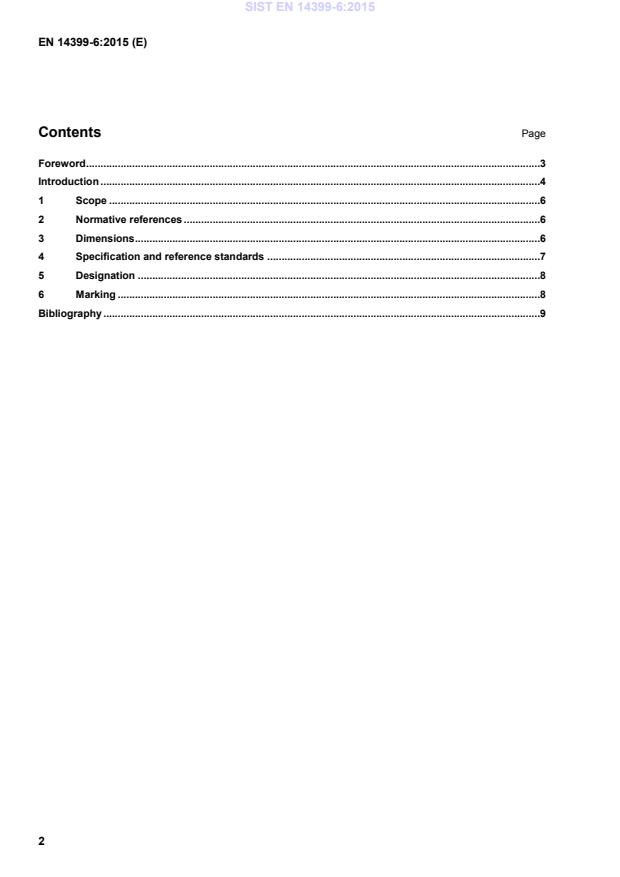

EN 14399-6:2015 (E) 2 Contents Page Foreword .3 Introduction .4 1 Scope .6 2 Normative references .6 3 Dimensions .6 4 Specification and reference standards .7 5 Designation .8 6 Marking .8 Bibliography .9
SIST EN 14399-6:2015
EN 14399-6:2015 (E) 3 Foreword This document (EN 14399-6:2015) has been prepared by Technical Committee CEN/TC 185 “Fasteners”, the secretariat of which is held by DIN. This European Standard shall be given the status of a national standard, either by publication of an identical text or by endorsement, at the latest by August 2015 and conflicting national standards shall be withdrawn at the latest by November 2016. Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights. This document supersedes EN 14399-6:2005. In comparison with EN 14399-6:2005, the following modifications have been made: — Table 1 containing the overview of the composition of bolting assemblies and component marking has been added; — specifications for the marking of washers have been revised. EN 14399 consists of the following parts, under the general title High-strength structural bolting assemblies for preloading: — Part 1: General requirements; — Part 2: Suitability for preloading; — Part 3: System HR — Hexagon bolt and nut assemblies; — Part 4: System HV — Hexagon bolt and nut assemblies; — Part 5: Plain washers; — Part 6: Plain chamfered washers; — Part 7: System HR — Countersunk head bolt and nut assemblies; — Part 8: System HV — Hexagon fit bolt and nut assemblies; — Part 9: System HR or HV — Direct tension indicators for bolt and nut assemblies; — Part 10: System HRC — Bolt and nut assemblies with calibrated preload. According to the CEN-CENELEC Internal Regulations, the national standards organizations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.
SIST EN 14399-6:2015
EN 14399-6:2015 (E) 4 Introduction This document on structural bolting reflects the situation in Europe where two technical solutions exist to achieve the necessary ductility of bolt/nut/washer(s) assemblies. These solutions consist of two different systems (HR and HV) of bolt/nut/washer assemblies, see Table 1. Both systems are well proven and it is the responsibility of the experts using structural bolting whether they use the one or the other system. It is, however, important for the performance of the assembly to avoid mixing up the components of both systems. Therefore, bolts and nuts for both systems are standardized in one single part of this European Standard each and the marking of the components of the same system is uniform. Preloaded bolted assemblies are very sensitive to differences in manufacture and lubrication. Therefore, it is important that the bolting assemblies are supplied by one manufacturer who is always responsible for the functionality of the bolting assemblies. For the same reason it is important that coating of the bolting assemblies is under the control of one manufacturer. Beside the mechanical properties of the components, the functionality of the bolting assemblies requires that the specified preload can be achieved if the bolting ass
...
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.SRGORåNHHochfeste vorspannbare Garnituren für Schraubverbindungen im Metallbau - Teil 6: Flache Scheiben mit FaseBoulonnerie de construction métallique à haute résistance apte à la précontrainte - Partie 6: Rondelles plates chanfreinéesHigh-strength structural bolting assemblies for preloading - Part 6: Plain chamfered washers21.060.30Podložke, varovalni elementiWashers, locking elementsICS:Ta slovenski standard je istoveten z:FprEN 14399-6kSIST FprEN 14399-6:2014en,fr,de01-oktober-2014kSIST FprEN 14399-6:2014SLOVENSKI
STANDARD
kSIST FprEN 14399-6:2014
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
FINAL DRAFT
FprEN 14399-6
July 2014 ICS 21.060.30 Will supersede EN 14399-6:2005English Version
High-strength structural bolting assemblies for preloading - Part 6: Plain chamfered washers
Boulonnerie de construction métallique à haute résistance apte à la précontrainte - Partie 6 : Rondelles plates chanfreinées
Hochfeste vorspannbare Garnituren für Schraubverbindungen im Metallbau - Teil 6: Flache Scheiben mit Fase This draft European Standard is submitted to CEN members for formal vote. It has been drawn up by the Technical Committee CEN/TC 185.
If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are aware and to provide supporting documentation.
Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without notice and shall not be referred to as a European Standard.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2014 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. FprEN 14399-6:2014 EkSIST FprEN 14399-6:2014
FprEN 14399-6:2014 (E) 2 Contents Page Foreword .3 Introduction .4 1 Scope .6 2 Normative references .6 3 Dimensions .6 4 Specification and reference standards .7 5 Designation .8 6 Marking .8 Bibliography .9
kSIST FprEN 14399-6:2014
FprEN 14399-6:2014 (E) 3 Foreword This document (FprEN 14399-6:2014) has been prepared by Technical Committee CEN/TC 185 “Fasteners”, the secretariat of which is held by DIN. This document is currently submitted to the Formal Vote. This document will supersede EN 14399-6:2005. EN 14399 consists of the following parts, under the general title High-strength structural bolting assemblies for preloading: — Part 1: General requirements; — Part 2: Suitability for preloading; — Part 3: System HR — Hexagon bolt and nut assemblies; — Part 4: System HV — Hexagon bolt and nut assemblies; — Part 5: Plain washers; — Part 6: Plain chamfered washers; — Part 7: System HR — Countersunk head bolt and nut assemblies; — Part 8: System HV — Hexagon fit bolt and nut assemblies; — Part 9: System HR or HV — Direct tension indicators for bolt and nut assemblies; — Part 10: System HRC — Bolt and nut assemblies with calibrated preload. kSIST FprEN 14399-6:2014
FprEN 14399-6:2014 (E) 4 Introduction This document on structural bolting reflects the situation in Europe where two technical solutions exist to achieve the necessary ductility of bolt/nut/washer(s) assemblies. These solutions consist of two different systems (HR and HV) of bolt/nut/washer assemblies, see Table 1. Both systems are well proven and it is the responsibility of the experts using structural bolting whether they use the one or the other system. It is, however, important for the performance of the assembly to avoid mixing up the components of both systems. Therefore, bolts and nuts for both systems are standardized in one single part of this European Standard each and the marking of the components of the same system is uniform. Preloaded bolted assemblies are very sensitive to differences in manufacture and lubrication. Therefore it is important that the bolting assemblies are supplied by one manufacturer who is always responsible for the functionality of the bolting assemblies. For the same reason it is important that coating of the bolting assemblies is under the control of one manufacturer. Beside the mechanical properties of the components, the functionality of the bolting assemblies requires that the specified preload can be achieved if the bolting assemblies are tightened with a suitable procedure. For this purpose a test method for the suitability of the bolting assemblies for preloading was created, which will demonstrate whether the functionality of the bolting assemblies is fulfilled. It should be pointed out that compared to ISO 272 the widths across flats (large series) for M12 and M20 have been changed to 22 mm and 32 mm respectively. These changes are justified by the following
...
