SIST EN ISO 15027-3:2013
(Main)Immersion suits - Part 3: Test methods (ISO 15027-3:2012)
Immersion suits - Part 3: Test methods (ISO 15027-3:2012)
This part of ISO 15027 specifies the test methods for constant wear suits, including helicopter transit suits, and abandonment suits. Requirements for constant wear suits are given in ISO 15027-1:2012 and requirements for abandonment suits are given in ISO 15027‑2:2012.
Schutzkleidung gegen Unterkühlung im Wasser - Teil 3: Prüfverfahren (ISO 15027-3:2012)
Diese Norm legt die Prüfverfahren für Kälteschutzanzüge und Seenot-Kälteschutzanzüge fest. Hinsichtlich der Anforderungen an Kälteschutzanzüge siehe ISO/DIS 15027-1:2010 und hinsichtlich der Anforderungen an Seenot-Kälteschutzanzüge siehe ISO/DIS 15027-2:2010.
Combinaisons de protection thermique en cas d'immersion - Partie 3: Méthodes d'essai (ISO 15027-3:2012)
L'ISO 15027‑3:2012 spécifie les méthodes d'essai qui s'appliquent aux combinaisons de port permanent, y compris aux combinaisons pour passagers d'hélicoptère et aux combinaisons d'abandon.
Les exigences concernant les combinaisons de port permanent sont données dans l'ISO 15027‑1:2012 et les exigences concernant les combinaisons d'abandon sont données dans l'ISO 15027‑2:2012.
Potopne obleke - 3. del: Preskusne metode (ISO 15027-3:2012)
Ta del standarda ISO 15027 določa preskusne metode za stalno nošene obleke, vključno z oblekami za helikopterski prevoz, in reševalne obleke. Zahteve za stalno nošene obleke so navedene v standardu ISO 15027-1:2012, zahteve za reševalne obleke pa v standardu ISO 15027-2:2012.
General Information
Relations
Standards Content (Sample)
SLOVENSKI STANDARD
SIST EN ISO 15027-3:2013
01-marec-2013
1DGRPHãþD
SIST EN ISO 15027-3:2002
Potopne obleke - 3. del: Preskusne metode (ISO 15027-3:2012)
Immersion suits - Part 3: Test methods (ISO 15027-3:2012)
Schutzkleidung gegen Unterkühlung im Wasser - Teil 3: Prüfverfahren (ISO 15027-
3:2012)
Combinaisons de protection thermique en cas d'immersion - Partie 3: Méthodes d'essai
(ISO 15027-3:2012)
Ta slovenski standard je istoveten z: EN ISO 15027-3:2012
ICS:
13.340.10 Varovalna obleka Protective clothing
SIST EN ISO 15027-3:2013 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
SIST EN ISO 15027-3:2013
---------------------- Page: 2 ----------------------
SIST EN ISO 15027-3:2013
EUROPEAN STANDARD
EN ISO 15027-3
NORME EUROPÉENNE
EUROPÄISCHE NORM
November 2012
ICS 13.340.10 Supersedes EN ISO 15027-3:2002
English Version
Immersion suits - Part 3: Test methods (ISO 15027-3:2012)
Combinaisons de protection thermique en cas d'immersion Schutzkleidung gegen Unterkühlung im Wasser - Teil 3:
- Partie 3: Méthodes d'essai (ISO 15027-3:2012) Prüfverfahren (ISO 15027-3:2012)
This European Standard was approved by CEN on 31 October 2012.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same
status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United
Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2012 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 15027-3:2012: E
worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
SIST EN ISO 15027-3:2013
EN ISO 15027-3:2012 (E)

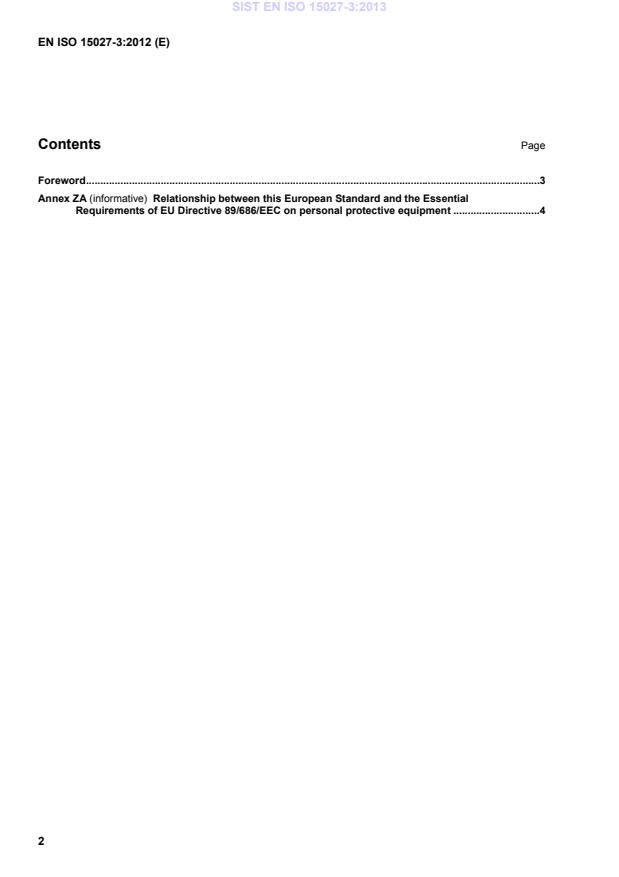

Contents Page
Foreword .3
Annex ZA (informative) Relationship between this European Standard and the Essential
Requirements of EU Directive 89/686/EEC on personal protective equipment .4
2
---------------------- Page: 4 ----------------------
SIST EN ISO 15027-3:2013
EN ISO 15027-3:2012 (E)
Foreword
This document (EN ISO 15027-3:2012) has been prepared by Technical Committee CEN/TC 162 “Protective
clothing including hand and arm protection and lifejackets", the secretariat of which is held by DIN, in
collaboration with Technical Committee ISO/TC 188 "Small craft".
This European Standard shall be given the status of a national standard, either by publication of an identical
text or by endorsement, at the latest by May 2013, and conflicting national standards shall be withdrawn at the
latest by May 2013.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN ISO 15027-3:2002.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association, and supports essential requirements of EU Directive.
For relationship with EU Directive, see informative Annex ZA, which is an integral part of this document.
According to the CEN/CENELEC Internal Regulations, the national standards organisations of the following
countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech
Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece,
Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,
Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.
3
---------------------- Page: 5 ----------------------
SIST EN ISO 15027-3:2013
EN ISO 15027-3:2012 (E)
Annex ZA
(informative)
Relationship between this European Standard and the Essential
Requirements of EU Directive 89/686/EEC on personal protective
equipment
This European Standard has been prepared under a mandate given to CEN by the European Commission
and the European Free Trade Association to provide a means of conforming to Essential Requirements of the
New Approach Directive 89/686/EEC on the approximation of the laws of the Member States relating to
personal protective equipment.
Once this standard is cited in the Official Journal of the European Union under that Directive and has been
implemented as a national standard in at least one Member State, compliance with the normative clauses of
this standard confers, within the limits of the scope of this standard, a presumption of conformity with the
relevant Essential Requirements of that Directive and associated EFTA regulations.
WARNING — Other requirements and other EU Directives may be applicable to the product(s) falling
within the scope of this standard.
4
---------------------- Page: 6 ----------------------
SIST EN ISO 15027-3:2013
INTERNATIONAL ISO
STANDARD 15027-3
Second edition
2012-11-01
Immersion suits —
Part 3:
Test methods
Combinaisons de protection thermique en cas d’immersion —
Partie 3: Méthodes d’essai
Reference number
ISO 15027-3:2012(E)
©
ISO 2012
---------------------- Page: 7 ----------------------
SIST EN ISO 15027-3:2013
ISO 15027-3:2012(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2012
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means,
electronic or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or ISO’s
member body in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Published in Switzerland
ii © ISO 2012 – All rights reserved
---------------------- Page: 8 ----------------------
SIST EN ISO 15027-3:2013
ISO 15027-3:2012(E)
Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Testing of the device . 1
3.1 General . 1
3.2 Sampling . 2
3.3 Human test subjects . 2
3.4 Fuel resistance test . 3
3.5 Flammability test . 3
3.6 Rotating shock bin test . 4
3.7 Leakage measurement . 5
3.8 Thermal test . 7
3.9 Temperature cycling test .10
3.10 Ergonomic performance testing .10
Annex A (normative) Test results — Uncertainty of measurement .16
Bibliography .17
© ISO 2012 – All rights reserved iii
---------------------- Page: 9 ----------------------
SIST EN ISO 15027-3:2013
ISO 15027-3:2012(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the International
Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 15027-3 was prepared by the European Committee for Standardization (CEN) Technical Committee
CEN/TC 162, Protective clothing including hand and arm protection and lifejackets, in collaboration with
Technical Committee ISO/TC 188, Small craft, Subcommittee SC 1, Personal safety equipment, in accordance
with the Agreement on technical cooperation between ISO and CEN (Vienna Agreement).
This second edition cancels and replaces the first edition (ISO 15027-3:2002), which has been technically revised.
The main technical changes are:
a) clarification that test subjects are human test subjects;
b) addition of two sites for skin temperature measurement;
c) revision of field of vision test;
d) merger of 3.10 and 3.11 into one clause and renumbering of consecutive clauses;
e) mean body temperature deleted;
f) clarification that underclothing shall be specified by the manufacturer
g) revision of requirements regarding the testing of a Class D suit.
ISO 15027 consists of the following parts, under the general title Immersion suits:
— Part 1: Constant wear suits, requirements including safety
— Part 2: Abandonment suits, requirements including safety
— Part 3: Test methods
iv © ISO 2012 – All rights reserved
---------------------- Page: 10 ----------------------
SIST EN ISO 15027-3:2013
INTERNATIONAL STANDARD ISO 15027-3:2012(E)
Immersion suits —
Part 3:
Test methods
1 Scope
This part of ISO 15027 specifies the test methods for constant wear suits, including helicopter transit suits, and
abandonment suits.
Requirements for constant wear suits are given in ISO 15027-1:2012 and requirements for abandonment suits
are given in ISO 15027-2:2012.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced document
(including any amendments) applies.
EN 590, Automotive fuels — Diesel — Requirements and test methods
ISO 811, Textile fabrics — Determination of resistance to water penetration — Hydrostatic pressure test
ISO 12402 (all parts), Personal flotation devices
ISO 13935-2, Textiles — Seam tensile properties of fabrics and made-up textile articles — Part 2: Determination
of maximum force to seam rupture using the grab method
ISO 15027-1:2012, Immersion suits — Part 1: Constant wear suits, requirements including safety
ISO 15027-2:2012, Immersion suits — Part 2: Abandonment suits, requirements including safety
3 Testing of the device
3.1 General
Requirements, for which no special test methods are given in this part of ISO 15027, shall be tested in one of
the following ways:
a) by tests referred to in ISO 15027-1 and ISO 15027-2; or
b) by measurement; or
c) by visual assessment; or
d) by functional test.
Prior to testing, materials and components shall be conditioned for (24 ± 0,1) h under standard atmosphere.
The temperature cycling test and the rotating shock bin test shall be carried out as pre-conditioning before any
other tests are carried out.
© ISO 2012 – All rights reserved 1
---------------------- Page: 11 ----------------------
SIST EN ISO 15027-3:2013
ISO 15027-3:2012(E)
3.2 Sampling
Where materials and components are common to a range of suits, it is permitted to test just one sample of each
material or component, unless specified otherwise by the relevant test procedure.
3.3 Human test subjects
3.3.1 Instruction and selection
All human test subjects shall be familiar with the use of the suit under test. They shall be informed and instructed
on the potential hazards of the tests. The human test subjects shall have a medical check-up to prove their
medical fitness for completing the test. See also 3.8.
NOTE Attention is drawn to the principles of the Declaration of Helsinki (World Medical Association, 1964) as
amended at Edinburgh 2000.
3.3.2 Number and sizes of human test subjects
Where tests call for the use of human test subjects, unless otherwise specified, six people shall be used, each
wearing a suit of a size category suitable for their build. Their body sizes shall be within the heights and masses
shown in Table 1.
Table 1 — Human test subject sizes
Height Mass
mm kg
1 person under 60
1 400 to 1 600
1 person over 60
1 person under 70
> 1 600 to 1 800
1 person over 70
1 person under 80
> 1 800
1 person over 80
3.3.3 Gender of human test subjects
At least one and not more than three of the persons should be females.
3.3.4 Fitness of human test subjects
The persons complying with the criteria of 3.3.1 shall be capable of relaxing when in water out of their depth,
be able to swim for 20 min and cover a distance of 350 m with the aid of an approved personal flotation device
as recommended by the manufacturer and, after sufficient rest, board the platform specified in 3.10.6.6.
3.3.5 Dress of human test subjects
Throughout the following tests, unless otherwise specified, the underclothing specified by the manufacturer
or, if not specified by the manufacturer, the standard underclothing according to 3.8.1.3 shall be worn by each
human test subject.
3.3.6 Pass/fail criteria
All samples shall pass all objective tests for the entire device to meet the requirements of ISO 15027-1:2012
or ISO 15027-2:2012. However, due to the high variability between human test subjects and the difficulty in
assessing some subjective measures, it is permitted that a device does not completely meet the requirements
1)
of the following subjective tests in a single sample and in no more than one human test subject. In these
1) For the purpose of this clause, “subjective tests” includes all tests that require the participation of human test subjects.
2 © ISO 2012 – All rights reserved
---------------------- Page: 12 ----------------------
SIST EN ISO 15027-3:2013
ISO 15027-3:2012(E)
circumstances, two other human test subjects within the same weight category and with the same gender,
wearing the same size of suit should be subjected to the same test and before the same test panel as at 3.10.3.
If this additional test is still not clearly passed as required in ISO 15027-1:2012 or ISO 15027-2:2012, then the
device shall be deemed to have failed, whilst if it is clearly passed by the additional two subjects, the test panel
may deem that the device has passed the test overall.
3.4 Fuel resistance test
Place three samples each of all exterior fabrics, typical seams, apertures and components in a suitable
container and submerge them under a 100 mm head of diesel according to EN 590 at a temperature of
(20 ± 2) °C for 24 h. After removal from the container, remove the surface oil by wiping. Subject the samples to
a hydrostatic test according to ISO 811 with a speed of 10 cm/min until 1 000 mm water head and then carry
out a tensile seam strength test according to ISO 13935-2.
3.5 Flammability test
3.5.1 Principle
The test suit is passed over a test pan with burning test fuel to determine if the suit burns or continues to melt
after removal.
3.5.2 Apparatus
Test pan, (300 ± 20) mm × (350 ± 20) mm × (65 ± 5) mm.
Test fuel: petrol or n-heptane.
3.5.3 Sampling
One suit system shall be subjected to the flammability test.
3.5.4 Procedure
Place the test pan in a draught-free area so that the suit, which is folded so that the neck part and feet are even,
travels freely across the diagonal distance of the test pan.
Fill the test pan with water to a depth of 10 mm, followed by enough petrol or n-heptane to make a minimum
total depth of 40 mm.
Ignite the petrol or n-heptane and allow to burn freely for 30 s.
Drape the suit over a suitable hanger, folded at the waist with the front outward. The bottom of the suit shall be
(250 ± 20) mm from the top edge of the test pan, see Figure 1. Secure loose parts above the lower part of the suit.
Then expose the suit with a constant speed of 0,29 m/s through the flames for 2 s. The suit shall start and finish
the test 2 m away from the closest edge of the test pan.
3.5.5 Evaluation
It shall be reported if the suit is destroyed by the flames. It shall be reported whether the suit sustains burning
or continues melting 6 s after being removed from the flames.
© ISO 2012 – All rights reserved 3
---------------------- Page: 13 ----------------------
SIST EN ISO 15027-3:2013
ISO 15027-3:2012(E)
Dimensions in millimetres
Key
1 suit
2 test pan
a
Start.
b
Finish.
Figure 1 — Flammability test
3.6 Rotating shock bin test
3.6.1 General
The rotating shock bin test shall be carried out as a preconditioning before all other tests.
3.6.2 Apparatus
The equipment used shall be that shown in Figure 2, consisting of a box of specific design made from plywood
board, the inside surface of which shall be coated with hard plastic laminate or similar. The bearing of the bin
shall be in the centre of the mass and permit the bin to be rotated freely.
3.6.3 Procedure
Place a test sample in the bin through a flush panel in one of the bin’s faces, then close and secure it. The bin
shall be operated for a total of 150 rotations at a steady rate of 6 rotations per minute.
4 © ISO 2012 – All rights reserved
---------------------- Page: 14 ----------------------
SIST EN ISO 15027-3:2013
ISO 15027-3:2012(E)
3.6.4 Evaluation
On completion of the rotations, the test sample shall be removed from the bin and examined by the panel for
signs of wear and tear, and for any signs that the thermal insulation material has migrated.
Dimensions in millimetres
Figure 2 — Design of rotation shock bin apparatus
3.7 Leakage measurement
3.7.1 Leakage measurement for jumping
3.7.1.1 Clean the suit samples in accordance with the manufacturer’s cleaning instructions to condition
them prior to leakage measurement and thermal testing. The number of cleaning cycles recommended by the
manufacturer or five cleaning cycles shall be undertaken.
NOTE The amount of leakage will be used as the threshold value for the thermal test.
© ISO 2012 – All rights reserved 5
---------------------- Page: 15 ----------------------
SIST EN ISO 15027-3:2013
ISO 15027-3:2012(E)
3.7.1.2 Each human test subject shall wear the suit system with the standard underclothing as specified by
the manufacturer or, if not specified by the manufacturer, the standard underclothing according to 3.8.1.3. The
human test subject shall carefully enter the pool using the pool ladder and remain there for 2 min in order to
completely pre-wet the suit. The suit shall be vented of excess air prior to this test according to the instructions
of the manufacturer. If a PFD is not required and there is an inflatable element on the suit, it shall not be inflated
for this test.
3.7.1.3 The human test subject shall then climb out using the pool ladder, crouch, stretch, shake limbs and
then stand to permit excess water to run off the exterior of the suit and to remove the water from all trapped
areas. After 1 min the human test subject shall be weighed, in order to establish the human test subject’s gross
weight before the leak test starts. The weighing scales shall have a capacity up to 150 kg, and a resolution of
0,02 kg or better.
3.7.1.4 Immediately after the “pre-wetting” and weighing, a PFD shall be donned and inflated if required. The
human test subject shall then cover the mouth and nose with one hand and cross the other arm over the top,
grasping the shoulder of the suit or of the PFD. The human test subject shall then jump vertically, feet first, into
+ 05,
the pool from a height of (,45 )m .
0
3.7.1.5 After the jump, the human test subject shall climb out using the pool ladder, remove the PFD if used,
crouch, stretch, shake limbs and then stand to remove free water from all trapped areas. After 1 min the human
test subject shall be weighed again. The increase in weight shall be recorded, to be used together with the
amount of leakage from swimming (see 3.7.2.4) as the amount of leakage for the thermal test according to 3.8.
The suit shall then be removed to record the location of leakage in the suit and the areas of wetted underclothing.
3.7.2 Leakage measurement for swimming
3.7.2.1 Following the leakage measurement for jumping, the human test subject shall re-don the suit system
using a dry set of underclothing and vent the suit. The human test subject shall then carefully enter the pool
using the pool ladder and remain there for 2 min in order to completely pre-wet the suit.
3.7.2.2 The human test subject shall then climb out using the pool ladder, crouch, stretch, shake limbs and
then stand to permit excess water to run off the exterior of the suit and to remove the water from all trapped
areas. After 1 min the human test subject shall be weighed in order to establish the human test subject’s gross
weight before the swim starts.
3.7.2.3 Immediately after the “pre-wetting” and weighing, any hand protection provided with the suit shall be
donned and a PFD shall be donned and inflated if required. The human test subject shall then carefully re-enter
the pool using the pool ladder and swim on the back for 20 min, covering a distance of at least 350 m in this
time. The hands and arms shall be kept in the water even if not being used for propulsion.
3.7.2.4 After the swim, the human test subject shall climb out using the pool ladder, remove the hand protection
and PFD if used, crouch, stretch, shake limbs and then stand to remove free water from all trapped areas. After
1 min the human test subject shall be weighed again. The increase in weight shall be recorded, to be used
together with the amount of leakage from jumping (see 3.7.1.5) as the amount of leakage for the thermal test
according to 3.8. The suit shall then be removed to record the location of leakage in the suit and the areas of
wetted underclothing.
6 © ISO 2012 – All rights reserved
---------------------- Page: 16 ----------------------
SIST EN ISO 15027-3:2013
ISO 15027-3:2012(E)
3.8 Thermal test
3.8.1 Using a thermal manikin
3.8.1.1 General
The test house shall validate that the thermal manikin used is able to provide thermal insulation values for
immersion suits which are within ± 10 % of the values obtained from human subject testing of the suits.
NOTE The validation should be accompanied by an exchange of experience between the manikin testing laboratories,
round robin testing, and the correlation of results between the tests with human subject and manikin.
3.8.1.2 Apparatus
A thermal manikin shall be constructed so that it
a) has a surface area and shape similar to that of a 50th percentile man and at least 9 segments representing
the head, upper torso, right and left arms, hip, right and left thigh, and right and left lower legs;
b) can be dressed in the underclothing specified by the manufacturer or in standard underclothing
according to 3.8.1.3;
c) is capable of being heated to and controlled at a programmable uniform temperature in each segment;
d) can control and measure temperatures and power inputs and calculate, record and present the parameters;
e) can be immersed to the neck in water without causing failure in the electrical system if water leaks inside
the outer clothing;
f) can be calibrated both in and out of the water;
g) shows reproducible results with less than ± 4 % variance for three tests on the same suit system.
3.8.1.3 Standard underclothing
The underclothing to be worn in connection with the suit system shall be specified by the manufacturer. If not
specified by the manufacturer, the following standard underclothing shall be used for testing.
a) For class A suit systems:
— underwear (short-sleeved, short-legged);
— long-sleeved shirt;
— trousers (not woollen);
— woollen socks;
— appropriate footwear (if the suit is used with footwear).
The thermal insulation of the dry standard underclothing shall be no more than 1 clo measured with the
thermal manikin in air.
b) For class B, C and D suit systems: as for class A, with the addition of two woollen long-sleeved pullovers.
The underclothing shall be in good condition and shall not be altered by use or otherwise damaged. The size
of each piece of underclothing shall be suitable for the individual human test subject.
3.8.1.4 Procedure
The thermal protection provided by a suit system shall be assessed by measurement of the effective insulation
of the whole suit system and associated underclothing placed on a thermal manikin and immersed in calm but
© ISO 2012 – All rights reserved 7
---------------------- Page: 17 ----------------------
SIST EN ISO 15027-3:2013
ISO 15027-3:2012(E)
circulated water. The suit shall be filled with the amount of leakage determined according to 3.7.1 and 3.7.2. The
immersed position shall be defined by using a male human test subject of approximately a 50th percentile size
and having an in-water weight of (55 ± 10) N, to correlate the tests with the tests using human test subjects.
Both tests shall show equivalent results.
The in-water weight of this male human test subject wearing a swim suit is taken with the tip of the chin and
bottom of the ear lobes touching the water at the bottom of the normal breathing cycle. The in-water weight is
the highest repeated value out of 10 readings or the third highest value if none is repeated.
3.8.2 Using human test subjects
3.8.2.1 Human test subjects
Human test subjects shall be volunteers meeting the requirements in 3.3.2 and shall have signed an informed
consent form. Children (person aged 16 years or younger) are not allowed to undergo thermal tests.
Due to the nature of this test, different human test subjects to those used in the other tests may be used. Each
human test subject shall be familiarized with the test procedure, medically screened, and their fat content shall
be measured prior to the start of the test. Each human test subject shall not be more than 10 % overweight or
underweight for his height and physical type as determined by a physician or physiologist or from published
physiological data. Each human test subject shall have had a normal night’s sleep before the test, a well-
balanced meal 1 h to 5 h before the test, and no alcoholic beverages for 24 h prior to the test. In addition to
the suit system, each human test subject shall wear the underclothing specified by the manufacturer or, if not
specified by the manufacturer, the standard underclothing according to 3.8.1.3.
The testing laboratory has to take care of the safety of the human test subjects by medical check-up, monitoring
and reporting the test by a physician or physiologist. The preparation, the test and the follow-up have to be
supervised by a physician or physiologist exp
...
SLOVENSKI STANDARD
oSIST prEN ISO 15027-3:2010
01-september-2010
Potopne obleke - 3. del: Preskusne metode (ISO/DIS 15027-3:2010)
Immersion suits - Part 3: Test methods (ISO/DIS 15027-3:2010)
Schutzkleidung gegen Unterkühlung im Wasser - Teil 3: Prüfverfahren (ISO/DIS 15027-
3:2010)
Combinaisons de protection thermique en cas d'immersion - Partie 3: Méthodes d'essai
(ISO/DIS 15027-3:2010)
Ta slovenski standard je istoveten z: prEN ISO 15027-3
ICS:
13.340.10 Varovalna obleka Protective clothing
oSIST prEN ISO 15027-3:2010 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
oSIST prEN ISO 15027-3:2010
---------------------- Page: 2 ----------------------
oSIST prEN ISO 15027-3:2010
EUROPEAN STANDARD
DRAFT
prEN ISO 15027-3
NORME EUROPÉENNE
EUROPÄISCHE NORM
June 2010
ICS 13.340.10 Will supersede EN ISO 15027-3:2002
English Version
Immersion suits - Part 3: Test methods (ISO/DIS 15027-3:2010)
Combinaisons de protection thermique en cas d'immersion Schutzkleidung gegen Unterkühlung im Wasser - Teil 3:
- Partie 3: Méthodes d'essai (ISO/DIS 15027-3:2010) Prüfverfahren (ISO/DIS 15027-3:2010)
This draft European Standard is submitted to CEN members for parallel enquiry. It has been drawn up by the Technical Committee
CEN/TC 162.
If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations which
stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other language
made by translation under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the
same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland,
Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are aware and to
provide supporting documentation.
Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without notice and
shall not be referred to as a European Standard.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2010 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN ISO 15027-3:2010: E
worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
oSIST prEN ISO 15027-3:2010
prEN ISO 15027-3:2010 (E)
Contents Page
Foreword .3
2
---------------------- Page: 4 ----------------------
oSIST prEN ISO 15027-3:2010
prEN ISO 15027-3:2010 (E)
Foreword
This document (prEN ISO 15027-3:2010) has been prepared by Technical Committee CEN/TC 162
“Protective clothing including hand and arm protection and lifejackets", the secretariat of which is held by DIN,
in collaboration with Technical Committee ISO/TC 188 "Small craft".
This document is currently submitted to the parallel Enquiry.
This document will supersede EN ISO 15027-3:2002.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association, and supports essential requirements of EU Directive(s).
3
---------------------- Page: 5 ----------------------
oSIST prEN ISO 15027-3:2010
---------------------- Page: 6 ----------------------
oSIST prEN ISO 15027-3:2010
DRAFT INTERNATIONAL STANDARD ISO/DIS 15027-3
ISO/TC 188 Secretariat: SIS
Voting begins on: Voting terminates on:
2010-06-03 2010-11-03
INTERNATIONAL ORGANIZATION FOR STANDARDIZATION • МЕЖДУНАРОДНАЯ ОРГАНИЗАЦИЯ ПО СТАНДАРТИЗАЦИИ • ORGANISATION INTERNATIONALE DE NORMALISATION
Immersion suits —
Part 3:
Test methods
Combinaisons de protection thermique en cas d'immersion —
Partie 3: Méthodes d'essai
[Revision of first edition (ISO 15027-3:2002)]
ICS 13.340.10
ISO/CEN PARALLEL PROCESSING
This draft has been developed within the European Committee for Standardization (CEN), and processed
under the CEN-lead mode of collaboration as defined in the Vienna Agreement.
This draft is hereby submitted to the ISO member bodies and to the CEN member bodies for a parallel
five-month enquiry.
Should this draft be accepted, a final draft, established on the basis of comments received, will be
submitted to a parallel two-month approval vote in ISO and formal vote in CEN.
To expedite distribution, this document is circulated as received from the committee secretariat.
ISO Central Secretariat work of editing and text composition will be undertaken at publication
stage.
Pour accélérer la distribution, le présent document est distribué tel qu'il est parvenu du
secrétariat du comité. Le travail de rédaction et de composition de texte sera effectué au
Secrétariat central de l'ISO au stade de publication.
THIS DOCUMENT IS A DRAFT CIRCULATED FOR COMMENT AND APPROVAL. IT IS THEREFORE SUBJECT TO CHANGE AND MAY NOT BE
REFERRED TO AS AN INTERNATIONAL STANDARD UNTIL PUBLISHED AS SUCH.
IN ADDITION TO THEIR EVALUATION AS BEING ACCEPTABLE FOR INDUSTRIAL, TECHNOLOGICAL, COMMERCIAL AND USER PURPOSES, DRAFT
INTERNATIONAL STANDARDS MAY ON OCCASION HAVE TO BE CONSIDERED IN THE LIGHT OF THEIR POTENTIAL TO BECOME STANDARDS TO
WHICH REFERENCE MAY BE MADE IN NATIONAL REGULATIONS.
RECIPIENTS OF THIS DRAFT ARE INVITED TO SUBMIT, WITH THEIR COMMENTS, NOTIFICATION OF ANY RELEVANT PATENT RIGHTS OF WHICH
THEY ARE AWARE AND TO PROVIDE SUPPORTING DOCUMENTATION.
©
International Organization for Standardization, 2010
---------------------- Page: 7 ----------------------
oSIST prEN ISO 15027-3:2010
ISO/DIS 15027-3
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but shall
not be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In
downloading this file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat
accepts no liability in this area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation
parameters were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In the
unlikely event that a problem relating to it is found, please inform the Central Secretariat at the address given below.
Copyright notice
This ISO document is a Draft International Standard and is copyright-protected by ISO. Except as permitted
under the applicable laws of the user's country, neither this ISO draft nor any extract from it may be
reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, photocopying,
recording or otherwise, without prior written permission being secured.
Requests for permission to reproduce should be addressed to either ISO at the address below or ISO's
member body in the country of the requester.
ISO copyright office
Case postale 56 CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.org
Web www.iso.org
Reproduction may be subject to royalty payments or a licensing agreement.
Violators may be prosecuted.
©
ii ISO 2010 – All rights reserved
---------------------- Page: 8 ----------------------
oSIST prEN ISO 15027-3:2010
ISO/DIS 15027-3
Contents Page
Foreword .iv
1 Scope.1
2 Normative references.1
3 Testing of the device.1
3.1 General .1
3.2 Sampling.1
3.3 Test subjects.2
3.3.1 Instruction and selection.2
3.3.2 Number and sizes of subjects.2
3.3.3 Gender of subjects.2
3.3.4 Fitness of subjects.2
3.3.5 Dress of subjects.2
3.3.6 Pass/fail criteria.2
3.4 Fuel resistance test.3
3.5 Flammability test .3
3.5.1 Principle .3
3.5.2 Apparatus.3
3.5.3 Sampling .3
3.5.4 Procedures.3
3.5.5 Evaluation .3
3.6 Rotating shock bin testing .4
3.6.1 Apparatus.4
3.6.2 Procedure.4
3.6.3 Evaluation .4
3.7 Leakage measurement.5
3.7.1 Leakage measurement for jumping.5
3.7.2 Leakage measurement for swimming .6
3.8 Thermal test .6
3.8.1 Using a thermal manikin.6
3.8.2 Using human subjects .7
3.9 Temperature cycling testing .9
3.10 Performance testing.10
3.10.1 Sampling.10
3.10.2 Test in conjunction with other items.10
3.10.3 Procedure.10
3.11 Ergonomic factors.10
3.11.1 General.10
3.11.2 Donning .11
3.11.3 Walking.11
3.11.4 Climbing.12
3.11.5 Dexterity .12
3.11.6 In-water and vision test.14
3.11.7 Helicopter transit suits.15
Annex A (normative) Test results — Uncertainty of measurement.17
Annex ZA (informative) Relationship between this standard and the Essential Requirements of
EU Directive 89/686/EEC.18
Bibliography.19
© ISO 2010 – All rights reserved iii
---------------------- Page: 9 ----------------------
oSIST prEN ISO 15027-3:2010
ISO/DIS 15027-3
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies
(ISO member bodies). The work of preparing International Standards is normally carried out through ISO
technical committees. Each member body interested in a subject for which a technical committee has been
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 2.
The main task of technical committees is to prepare International Standards. Draft International Standards
adopted by the technical committees are circulated to the member bodies for voting. Publication as an
International Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 15027-3 was prepared by Technical Committee ISO/TC 188, Small crafts, Subcommittee SC , and by
Technical Committee CEN/TC 162, Protective clothing including hand and arm protection and lifejackets in
collaboration.
This second edition cancels and replaces the first edition (EN ISO 15027-3:2002), which has been technically
revised.
ISO 15027 consists of the following parts, under the general title Immersion suits:
⎯ Part 1: Constant wear suits, requirements including safety (ISO/DIS 15027-1:2010)
⎯ Part 2: Abandonment suits, requirements including safety (ISO/DIS 15027-2:2010)
⎯ Part 3: Test methods (ISO/DIS 15027-3:2010)
iv © ISO 2010 – All rights reserved
---------------------- Page: 10 ----------------------
oSIST prEN ISO 15027-3:2010
DRAFT INTERNATIONAL STANDARD ISO/DIS 15027-3
Immersion suits —
Part 3:
Test methods
1 Scope
This standard specifies the test methods for constant wear suits and abandonment suits.
For requirements for constant wear suits see ISO/DIS 15027-1:2010 and for requirements for abandonment
suits see ISO/DIS 15027-2:2010.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
EN 590, Automotive fuels — Diesel — Requirements and test methods
ISO 811, Textile fabrics – Determination of resistance to water penetration – Hydrostatic pressure test
ISO/DIS 15027-1:2010, Immersion suits — Part 1: Constant wear suits, requirements including safety
ISO/DIS 15027-2:2010, Immersion suits — Part 2: Abandonment suits, requirements including safety
3 Testing of the device
3.1 General
Requirements, for which no special test methods are given in this document, shall be tested in one of the
following ways:
a) by tests referred to in ISO 15027-1 and ISO 15027-2; or
b) by measurement; or
c) by visual assessment; or
d) by functional test.
Prior to testing materials and components shall be conditioned for (24 ± 0,1) h under standard atmosphere.
3.2 Sampling
Where materials and components are common to a range of suits, it shall be permitted to test just one sample
of each material or component, unless specified otherwise by the relevant test procedure.
© ISO 2010 – All rights reserved 1
---------------------- Page: 11 ----------------------
oSIST prEN ISO 15027-3:2010
ISO/DIS 15027-3
3.3 Test subjects
3.3.1 Instruction and selection
All test persons shall be familiar with the use of the suit under test. They shall be informed and instructed on
the potential hazards of the tests. The subjects shall have a medical check-up to prove their medical fitness
for completing the test. See also 3.8.
NOTE Attention is drawn to the principles of the Declaration of Helsinki (World Medical Association, 1964) as
amended at Edinburgh 2000.
3.3.2 Number and sizes of subjects
Where tests call for the use of human subjects, unless otherwise specified, 6 people shall be used, each
wearing a suit of a size category suitable for their build. Their body sizes shall be within the heights and
masses shown in Table 1.
Table 1 — Subject sizes
Height Mass
mm kg
1 person under 60
1 400 to 1 600
1 person over 60
1 person under 70
> 1 600 to 1 800
1 person over 70
1 person under 80
> 1 800
1 person over 80
3.3.3 Gender of subjects
At least one and not more than two of the persons should be females.
3.3.4 Fitness of subjects
The persons complying with the criteria of 3.3.1 should be capable of relaxing when in water out of their depth,
be able to swim for 20 min and cover a distance of 350 m with the aid of an approved PFD as recommended
by the manufacturer and, after sufficient rest, board the platform specified in 3.11.6.2.
3.3.5 Dress of subjects
Throughout the following tests, unless otherwise specified, the test clothing described in 3.8.1.3 shall be worn
by each subject.
3.3.6 Pass/fail criteria
All samples shall pass all objective tests for the entire device to meet the requirements of
ISO/DIS 15027-1:2010 or ISO/DIS 15027-2:2010. However, for subjective test due to the high variability
between subjects and the difficulty in assessing some subjective measures, it is permitted that a device does
not completely meet the requirements of the following subjective tests in a single sample and in no more than
in one test subject. In these circumstances, two other subjects within the same weight category and with the
same gender, should be subjected to the same test and before the same test panel as at 3.10.3. If this
additional test is still not clearly passed as required in ISO/DIS 15027-1:2010 or ISO/DIS 15027-2:2010, then
the device shall be deemed to have failed, whilst if it is clearly passed, the test panel may deem that the
device has passed the test overall.
2 © ISO 2010 – All rights reserved
---------------------- Page: 12 ----------------------
oSIST prEN ISO 15027-3:2010
ISO/DIS 15027-3
3.4 Fuel resistance test
Place three samples each of all exterior fabrics, typical seams, apertures and components in a suitable
container and submerge them under a 100 mm head of diesel fuel according to EN 590 at a temperature of
(20 ± 2) °C for 24 h. After removal from the container, remove the surface oil by wiping. Subject the samples
to a hydrostatic test according to ISO 811 with a speed of 10 cm H O/min until 1 000 mm water head and then
2
carry out a tensile seam strength test according to ISO 13935-2.
3.5 Flammability test
3.5.1 Principle
The test suit is passed over a test pan with burning test fuel. It shall be noted if the suit burns or continues to
melt after removal.
3.5.2 Apparatus
Test pan, (300 ± 20) mm x (350 ± 20) mm x (65 ± 5) mm.
Test fuel, diesel fuel according to EN 590.
3.5.3 Sampling
One suit system shall be subjected to the fire test.
3.5.4 Procedures
Place the test pan in a draught-free area so that the suit, which is folded, so that the neck part and feet are
even, travels freely across the diagonal distance of the test pan.
Fill the test pan with water to a depth of 10 mm, followed by enough petrol to make a minimum total depth of
40 mm.
Ignite the petrol or n-heptane and allow to burn freely for 30 s.
Drape the suit over a suitable hanger, folded at the waist with the front outward. The bottom of the suit shall
be (250 ± 20) mm from the top edge of the test pan, see Figure 1. Secure loose parts above the lower part of
the suit.
Then move the suit with a constant speed through the flames for 2 s. The suit shall start and finish the test
2 m away from the closest edge of the test pan.
3.5.5 Evaluation
It shall be reported whether the suit sustains burning or continues melting 6 s after being removed from the
flames.
© ISO 2010 – All rights reserved 3
---------------------- Page: 13 ----------------------
oSIST prEN ISO 15027-3:2010
ISO/DIS 15027-3
Dimensions in millimetres
Key
a
start
b
finish
1 suit
2 test pan
Figure 1 — Flammability test
3.6 Rotating shock bin testing
3.6.1 Apparatus
The equipment used shall be that shown in Figure 2, consisting of a box of specific design made from plywood
board, the inside surface of which shall be coated with hard plastic laminate or similar. The bearing of the bin
shall be in the centre of the mass and permit the bin to be rotated freely.
3.6.2 Procedure
Place a test sample in the bin through a flush panel in one of the bin's faces, then close and secure it. The bin
shall be rotated for a total of 150 revolutions at a steady rate of 6 revolutions per minute.
3.6.3 Evaluation
On completion of the rotations, the test sample shall be removed from the bin and examined by the panel for
functional integrity.
4 © ISO 2010 – All rights reserved
---------------------- Page: 14 ----------------------
oSIST prEN ISO 15027-3:2010
ISO/DIS 15027-3
Dimensions in millimetres
Figure 2 — Design of rotation shock bin apparatus
3.7 Leakage measurement
3.7.1 Leakage measurement for jumping
3.7.1.1 Clean the suit to condition it prior to leakage measurement and thermal testing. The test sample
shall undergo 5 cycles according to the cleaning specification of the manufacturer.
NOTE The amount of leakage will be used as the threshold value for the thermal test.
3.7.1.2 Each test subject, wearing test clothing, the suit system and a PFD if required, shall enter the
pool and remain there for 2 min in order to completely pre-wet the suit. The suit shall be vented of excess air
prior to this test according to the instructions of the manufacturer. If a PFD is not required and there is an
inflatable element on the suit, it shall not be inflated for this test.
3.7.1.3 The subject shall then climb out and stand for 1 min to permit excess water to run off the exterior
of the suit and to remove the water from all trapped areas. The subject shall then be weighed in order to
establish the subject's gross weight before the leak tests starts.
© ISO 2010 – All rights reserved 5
---------------------- Page: 15 ----------------------
oSIST prEN ISO 15027-3:2010
ISO/DIS 15027-3
3.7.1.4 Immediately after the "pre-wetting" and weighing, cross one arm over the top of the shoulder or of
the PFD and cover the mouth and nose with the other hand and then jump vertically, feet first, into the pool
+ 0,5
from a minimum height of (4,5 ) m. The lifejacket, if needed, shall be inflated prior to this test.
0
3.7.1.5 After the jump the subject shall climb out and stand for 1 min to remove free water from all
trapped areas and be weighed again. The increase of weight shall be recorded and to be used as the amount
of leakage for the thermal test according to 3.8.
3.7.2 Leakage measurement for swimming
After jumping and weighing the subject shall swim on the back for 20 min, covering a distance of at least
350 m in this time. The hands and arms shall be kept in the water even if not being used for propulsion. The
increase of weight during the swim shall be measured in the similar method as described in 3.7.1.
3.8 Thermal test
3.8.1 Using a thermal manikin
3.8.1.1 General
The test house shall validate that the thermal manikin used is able to provide thermal insulation values ((Unit))
for immersion suits which are within +/- 10% of the values obtained from human subject testing of the suits.
The validation should be accompanied by an exchange of experience between the manikin testing
laboratories, round robin testing, and the correlation of results between the tests with human subject and
manikin.
3.8.1.2 Apparatus
A thermal manikin shall be constructed so that it
a) has a surface area and shape similar to that of a 50th percentile man and at least 9 segments
representing the head, upper torso, right and left arms, hip, right and left thigh, and right and left lower legs;
b) can be dressed in representative test clothing;
c) is capable of being heated to and controlled at a programmable uniform temperature in each segment;
d) can control and measure temperatures and power inputs and calculate, record and present the
parameters;
e) can be immersed to the neck in water without causing failure in the electrical system if water leaks inside
the outer clothing;
f) can be calibrated both in and out of the water.
g) shows reproducible results with less than ± 4 % variance for three tests on the same suit system.
3.8.1.3 Test clothing
The garments to be tested in connection with the immersion suit shall be specified by the manufacturer or
shall consist of:
a) For class A suit systems
⎯ underwear (short-sleeved, short-legged)
6 © ISO 2010 – All rights reserved
---------------------- Page: 16 ----------------------
oSIST prEN ISO 15027-3:2010
ISO/DIS 15027-3
⎯ long-sleeved shirt;
⎯ trousers (not woollen);
⎯ woollen socks;
⎯ appropriate footwear (if the suit is used with footwear).
The thermal insulation of the dry standard test clothing shall be no more than 1 Clo measured with the thermal
manikin.
b) For class B, C and D suit systems, two woollen long sleeved pullovers shall be worn additionally.
The test clothing shall be in good condition and shall not be altered by use or otherwise damaged. The size of
each piece of test clothing shall be suitable for the individual test subject.
3.8.1.4 Procedure
The thermal protection provided by a suit system shall be assessed by measurement of the effective
insulation of the whole suit system and associated test clothing placed on a thermal manikin and immersed in
calm but circulated water. The suit shall be filled with the amount of leakage determined according to 3.7.1.
The immersed position shall be defined by using a male human subject of approximately a 50th percentile
size and having an in-water weight of 55 N +/- 10 N, to correlate the tests with the tests using test subjects.
Both tests shall show equivalent results.
The in-water weight
...
