SIST EN 302 190 V1.1.1:2006

• Abstract:

  This European Standard (Telecommunications series) has been produced by ECMA on behalf of its members and those of the European Telecommunications Standards Institute (ETSI). It specifies the interface and protocol for simple wireless communication between close coupled devices, and it refers the NFCIP-1 test method standards. These Near Field Communication (NFC) devices communicate with transfer rates of 106 kbps, 212 kbps and 424 kbps. The present document allows, but does not specify, applications in network products and consumer equipment. The present document endorses International Standard ISO/IEC 18092.

• Status: Published
• Publication Date: 28-Feb-2006
• ICS: 35.100.10 - Physical layer
• Technical Committee: SS EIT - Technical Board for the electrotechnical, information technology and telecommunications fields
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 01-Mar-2006
• Due Date: 01-Mar-2006
• Completion Date: 01-Mar-2006
• Ref Project: ETSI EN 302 190 V1.1.1 (2005-06) - Near Field Communication; Interface and Protocol (NFCIP-1) [ISO/IEC 18092 (2004) modified]

SIST EN 302 190 V1.1.1:2006 is the Slovenian adoption of ETSI EN 302 190 V1.1.1, a European telecommunications standard for Near Field Communication (NFC). It specifies the interface and protocol for simple wireless communication between close coupled devices, with transfer rates of 106 kbps, 212 kbps and 424 kbps, and it is aimed at implementations that follow the endorsed ISO/IEC 18092 (2004) text with agreed modifications. For engineers, quality managers and buyers, it is the reference to use when NFCIP-1 behavior and conformity need to be aligned to the ETSI-endorsed version.

What does SIST EN 302 190 V1.1.1:2006 specify?

SIST EN 302 190 V1.1.1:2006 specifies the NFCIP-1 interface and protocol for short-range communication between close coupled devices. The standard also ties that interface to test method standards, so it is not only about how devices talk, but also how conformance is checked.

The scope says the standard allows, but does not specify, applications in network products and consumer equipment. In practice, that means the document gives the communication basis, while product application decisions remain with the implementer.

The document is organized as a European Standard with a foreword, an endorsement notice, clause-by-clause modifications to the base text, and a history section. The modified text keeps the structure of ISO/IEC 18092 while pointing readers to ETSI test method documents.

What are the key requirements of SIST EN 302 190 V1.1.1:2006?

SIST EN 302 190 V1.1.1:2006 makes conformance depend on both the base NFCIP-1 requirements and the named test methods. Clause 2 is the key conformity statement, and Clause 3 controls how the references are read.

• Conforming implementations must pass all normative tests and meet the requirements tied to the referenced test method standards. In practice, this means conformance is verified against specific test documents, not by informal compatibility claims.
• Conforming implementations must implement both the Active and Passive communication modes. For a product team, this means one mode alone is not enough for conformity.
• The standard keeps the other requirements of ISO/IEC 18092 in force. This matters because the EN is an endorsed and modified version of the international text, not a separate standalone profile.
• Clause 3 states how references are interpreted. Specific references stay tied to the cited edition, while non-specific references follow the latest version, so implementers must check which standards are locked and which can move forward.
• Clause 3 adds ETSI TS 102 346, "NFCIP-1; RF interface test methods", and ETSI TS 102 394, "NFCIP-1 - Protocol Test Methods", as normative references. These are the practical test documents used when checking radio interface behavior and protocol behavior.
• Throughout the text, ISO/IEC 22536 is replaced by ETSI TS 102 346 and ISO/IEC 23917 is replaced by ETSI TS 102 394. This gives the ETSI version a clear conformity path for testing.
• The standard identifies NFC operation at 106 kbps, 212 kbps and 424 kbps. For product planning, those are the transfer rates to design and test against when working to this standard.

What terms does SIST EN 302 190 V1.1.1:2006 define?

• Near Field Communication (NFC) - the short-range communication family covered by the standard.
• Near Field Communication Interface and Protocol-1 (NFCIP-1) - the interface and protocol profile specified for communication between close coupled devices.
• Close coupled devices - devices intended for simple wireless communication over very short range.
• Active communication mode - one of the two communication modes that conforming implementations must support.
• Passive communication mode - the other required communication mode for conforming implementations.
• Normative tests - the tests that must be passed to claim conformance to the standard.

Who uses SIST EN 302 190 V1.1.1:2006?

SIST EN 302 190 V1.1.1:2006 is used by NFC device designers, protocol engineers and test laboratories working on close coupled wireless products. It is also relevant for compliance teams that need a testable basis for conformance claims.

Manufacturers of network products and consumer equipment use it when deciding how NFCIP-1 is implemented in a product. Buyers and quality managers use it to compare supplier claims against the required communication modes and referenced test methods.

What changed in SIST EN 302 190 V1.1.1:2006 from the previous edition?

SIST EN 302 190 V1.1.1:2006 endorses ISO/IEC 18092 (2004) with agreed modifications. The listed changes require both Active and Passive communication modes, add ETSI TS 102 346 and ETSI TS 102 394 as normative references, replace the ISO/IEC test-method references with those ETSI documents, and replace the wording "this International Standard" with "the present document" throughout the text.

Which standards are used with SIST EN 302 190 V1.1.1:2006?

• ISO/IEC 18092 (2004) - the base NFCIP-1 text that this EN endorses.
• ISO/IEC 22536 - the original RF interface test-method reference in the underlying text, replaced in this EN by ETSI TS 102 346.
• ISO/IEC 23917 - the original protocol test-method reference in the underlying text, replaced in this EN by ETSI TS 102 394.
• ETSI TS 102 346 - the NFCIP-1 RF interface test methods used for conformity checking.
• ETSI TS 102 394 - the NFCIP-1 protocol test methods used for conformity checking.

What does the SIST EN 302 190 V1.1.1:2006 document contain?

SIST EN 302 190 V1.1.1:2006 contains the endorsed European text, the foreword, the intellectual property rights notice, the national transposition dates, and the endorsement notice that maps the ISO/IEC wording into the ETSI version. It also contains the specific replacement text for Clause 2 and Clause 3, plus the reference substitution table used throughout the document.

The document explains how modified text is marked, using sidebars and, where needed, underlining and strike-out. For implementers and auditors, that makes it easier to see exactly what changed in the endorsed version.

SLOVENSKI STANDARD
01-marec-2006
Komunikacija sosednjega polja – Vmesnik in protokol (NFCIP-1) [ISO/IEC 18092
(2004), spremenjen]
Near Field Communication; Interface and Protocol (NFCIP-1) [ISO/IEC 18092 (2004)
modified]
Ta slovenski standard je istoveten z: EN 302 190 Version 1.1.1
ICS:
35.100.10 )L]LþQLVORM Physical layer
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

European Standard (Telecommunications series)

Near Field Communication;
Interface and Protocol (NFCIP-1)
[ISO/IEC 18092 (2004) modified]

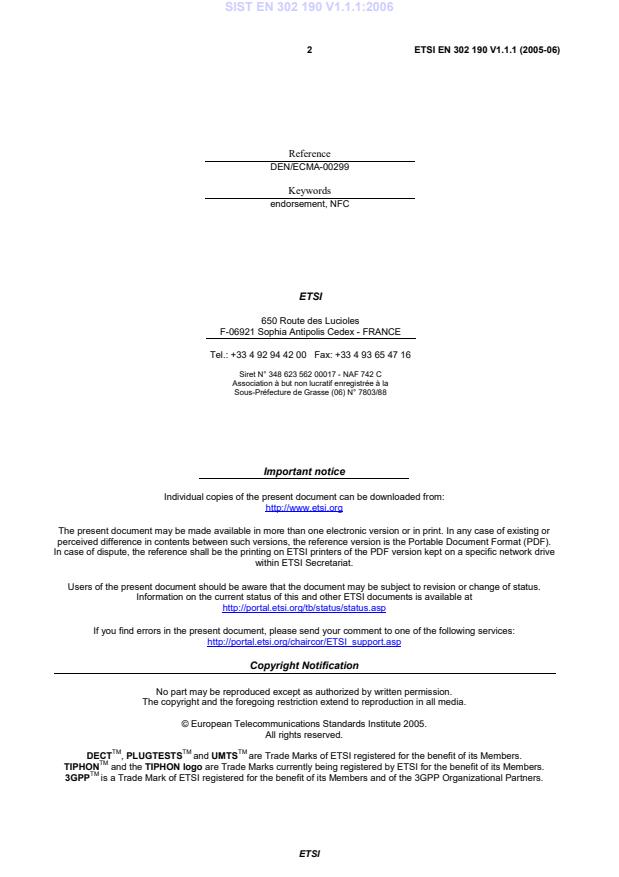

2 ETSI EN 302 190 V1.1.1 (2005-06)

Reference
DEN/ECMA-00299
Keywords
endorsement, NFC
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: [phone]  Fax: [phone]

Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88

Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.

© European Telecommunications Standards Institute 2005.
All rights reserved.
TM TM TM
DECT , PLUGTESTS and UMTS are Trade Marks of ETSI registered for the benefit of its Members.
TM
TIPHON and the TIPHON logo are Trade Marks currently being registered by ETSI for the benefit of its Members.
TM
3GPP is a Trade Mark of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners.
ETSI
3 ETSI EN 302 190 V1.1.1 (2005-06)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://webapp.etsi.org/IPR/ho
...
