Bright steel products - Technical delivery conditions - Part 3: Free-cutting steels

This part of EN 10277 applies to bright steel bars in the drawn, turned or ground condition, in straight lengths of free-cutting steels. This EN 10277-3 is complemented by EN 10277-1.

Blankstahlerzeugnisse - Technische Lieferbedingungen - Teil 3: Automatenstähle

Dieser Teil der EN 10277 gilt für gerichteten und abgelängten Blankstahl im gezogenen, geschälten oder
geschliffenen Zustand aus Automatenstählen.
Diese EN 10277-3 wird vervollständigt durch EN 10277-1.

Produits en acier transformés à froid - Conditions techniques de livraison - Partie 3: Aciers de décolletage

La présente partie de l’EN 10277 s’applique aux barres en acier de décolletage, transformées à froid, à l’état étiré, écroûté galeté ou rectifié, en longueurs droites.
La présente norme EN 10277-3 est complétée par l’EN 10277-1.

Svetli jekleni izdelki - Tehnični dobavni pogoji - 3. del: Avtomatna jekla

General Information

Status
Withdrawn
Publication Date
26-Mar-2008
Withdrawal Date
03-Jul-2018
Technical Committee
Current Stage
9900 - Withdrawal (Adopted Project)
Start Date
02-Jul-2018
Due Date
25-Jul-2018
Completion Date
04-Jul-2018

Relations

Buy Standard

Standard
EN 10277-3:2008
English language
9 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day
Draft
prEN 10277-3:2006
English language
9 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Blankstahlerzeugnisse - Technische Lieferbedingungen - Teil 3: AutomatenstähleProduits en acier transformés à froid - Conditions techniques de livraison - Partie 3: Aciers de décolletageBright steel products - Technical delivery conditions - Part 3: Free-cutting steels77.140.01Železni in jekleni izdelki na splošnoIron and steel products in generalICS:Ta slovenski standard je istoveten z:EN 10277-3:2008SIST EN 10277-3:2008en,fr,de01-maj-2008SIST EN 10277-3:2008SLOVENSKI
STANDARDSIST EN 10277-3:20001DGRPHãþD



SIST EN 10277-3:2008



EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 10277-3March 2008ICS 77.140.10; 77.140.60Supersedes EN 10277-3:1999
English VersionBright steel products - Technical delivery conditions - Part 3:Free-cutting steelsProduits en acier transformés à froid - Conditionstechniques de livraison - Partie 3: Aciers de décolletageBlankstahlerzeugnisse - Technische Lieferbedingungen -Teil 3: AutomatenstähleThis European Standard was approved by CEN on 4 February 2008.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the CEN Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as theofficial versions.CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2008 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 10277-3:2008: ESIST EN 10277-3:2008

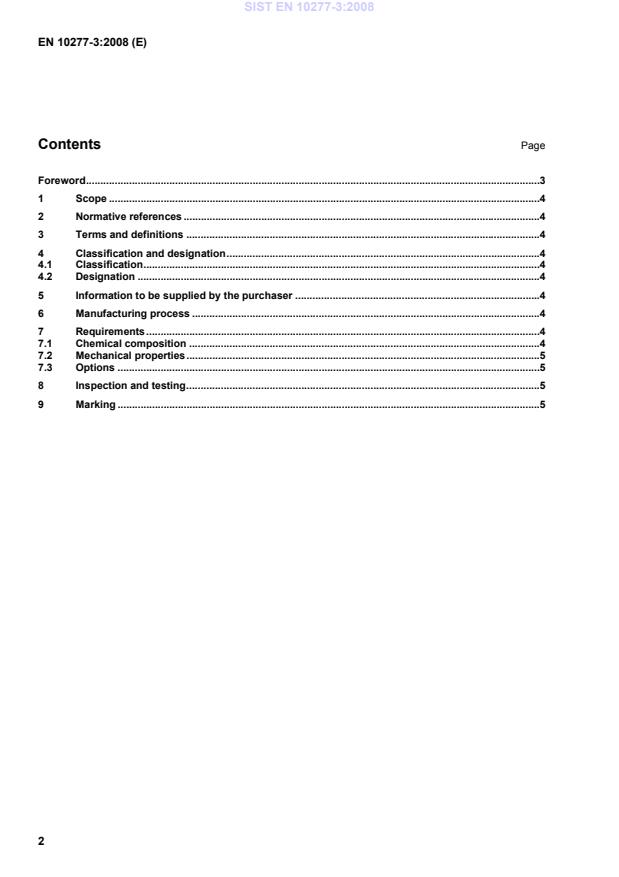

EN 10277-3:2008 (E) 2 Contents Page Foreword.3 1 Scope.4 2 Normative references.4 3 Terms and definitions.4 4 Classification and designation.4 4.1 Classification.4 4.2 Designation.4 5 Information to be supplied by the purchaser.4 6 Manufacturing process.4 7 Requirements.4 7.1 Chemical composition.4 7.2 Mechanical properties.5 7.3 Options.5 8 Inspection and testing.5 9 Marking.5
SIST EN 10277-3:2008



EN 10277-3:2008 (E) 3 Foreword This document (EN 10277-3:2008) has been prepared by Technical Committee ECISS/TC 23 “Steels for heat treatment, alloy steels and free-cutting steels - Qualities and dimensions”, the secretariat of which is held by DIN. This European Standard shall be given the status of a national standard, either by publication of an identical text or by endorsement, at the latest by September 2008, and conflicting national standards shall be withdrawn at the latest by September 2008. Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights. This document supersedes EN 10277-3:1999. According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and the United Kingdom. This European Standard EN 10277 'Bright steel products - Technical delivery conditions' is subdivided as follows: Part 1: General; Part 2: Steels for general engineering purposes; Part 3: Free-cutting steels; Part 4: Case hardening steels; Part 5: Steels for quenching and tempering. During the preparation of the first edition of this European Standard there were not enough statistical data available concerning mechanical properties of bright bar products. Since then it has been recognized that the proof strength values in the cold drawn condition were too high. In addition, cyclic stresses that occur during straightening can reduce the proof strength (Bauschinger's effect), which was not taken into account when drafting the first edition of this standard. In this second edition the proof strength values of non-alloy and alloy grades in condition +QT+C in parts 3 and 5 have been adjusted downwards compared to the first edition.
Furthermore for this part the tensile strength values of 36SMn(PB)14 and 38SMn(Pb)28 in condition +C and for 35S(Pb)20 in condition +QT+C were amended in the table for mechanical properties for steels for quenching and tempering.
SIST EN 10277-3:2008



EN 10277-3:2008 (E) 4 1 Scope This part of EN 10277 applies to bright steel bars in the drawn, turned or ground condition, in straight lengths of free-cutting steels. This EN 10277-3 is complemented by EN 10277-1. 2 Normative references The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 10087, Free-cutting steels - Technical delivery conditions for semi-finished products, hot-rolled bars and rods EN 10277-1, Bright steel products - Technical delivery conditions - Part 1: General 3 Terms and definitions For the purposes of this European Standard the terms and definitions given in EN 10277-1 apply. 4 Classification and designation 4.1 Classification All steels specified in this European Standard are classified as non-alloy quality steels.
4.2 Designation See EN 10277-1. 5 Information to be supplied by the purchaser See EN 10277-1. 6 Manufacturing process See EN 10277-1. 7 Requirements 7.1 Chemical composition 7.1.1 Cast analysis The chemical composition of the steel acc
...

SLOVENSKI oSIST prEN 10277-3:2006

PREDSTANDARD
may 2006
Svetli jekleni izdelki – Tehnični dobavni pogoji – 3. del: Avtomatna jekla
Bright steel products - Technical delivery conditions - Part 3: Free-cutting steels
ICS 77.140.60 Referenčna številka
oSIST prEN 10277-3:2006(en)
©  Standard je založil in izdal Slovenski inštitut za standardizacijo. Razmnoževanje ali kopiranje celote ali delov tega dokumenta ni dovoljeno

---------------------- Page: 1 ----------------------
EUROPEAN STANDARD
DRAFT
prEN 10277-3
NORME EUROPÉENNE
EUROPÄISCHE NORM
February 2006
ICS 77.140.10; 77.140.60 Will supersede EN 10277-3:1999
English Version
Bright steel products - Technical delivery conditions - Part 3:
Free-cutting steels
Produits en acier transformés à froid - Conditions Blankstahlerzeugnisse - Technische Lieferbedingungen -
techniques de livraison - Partie 3 : Aciers de décolletage Teil 3: Automatenstähle
This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee ECISS/TC 23.
If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations which
stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other language
made by translation under the responsibility of a CEN member into its own language and notified to the Management Centre has the same
status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania,
Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are aware and to
provide supporting documentation.
Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without notice and
shall not be referred to as a European Standard.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2006 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 10277-3:2006: E
worldwide for CEN national Members.

---------------------- Page: 2 ----------------------
prEN 10277-3:2006 (E)
Contents Page
Foreword.3
1 Scope.4
2 Normative references.4
3 Terms and definitions .4
4 Classification and designation.4
4.1 Classification.4
4.2 Designation.4
5 Information to be supplied by the purchaser .4
6 Manufacturing process.4
7 Requirements.5
7.1 Chemical composition.5
7.2 Mechanical properties.5
7.3 Options.5
8 Inspection and testing.5
9 Marking.5

2

---------------------- Page: 3 ----------------------
prEN 10277-3:2006 (E)
Foreword
This document (prEN 10277-3:2006) has been prepared by Technical Committee ECISS/TC 23 “Steels for
heat treatment, alloy steels and free-cutting steels - Qualities and dimensions”, the secretariat of which is held
by DIN.
This document is currently submitted to the CEN Enquiry.
This document will supersede EN 10277-3:1999.
This European Standard prEN 10277:2006 'Bright steel products - Technical delivery conditions' is subdivided
as follows:
Part 1: General;
Part 2: Steels for general engineering purposes;
Part 3: Free-cutting steels;
Part 4: Case hardening steels;
Part 5: Steels for quenching and tempering.
3

---------------------- Page: 4 ----------------------
prEN 10277-3:2006 (E)
1 Scope
1.1 This part of prEN 10277:2006 applies to bright steel bars in the drawn, turned or ground condition, in
straight lengths of free-cutting steels.
1.2 This prEN 10277-3:2006 is complemented by prEN 10277-1:2006.
2 Normative references
The following referenced documents are indispensable for the application of this document. For dated
references, only the edition cited applies. For undated references, the latest edition of the referenced
document (including any amendments) applies.
EN 10087, Free-cutting steels - Technical delivery conditions for semi-finished products, hot-rolled bars and
rods
prEN 10277-1:2006, Bright steel products - Technical delivery conditions - Part 1: General
3 Terms and definitions
For the purposes of this European Standard the terms and definitions given in prEN 10277-1:2006 apply.
4 Classification and designation
4.1 Classification
All steels specified in this European Standard are classified as non-alloy quality steels.
4.2 Designation
See prEN 10277-1:2006.
5 Information to be supplied by the purchaser
See prEN 10277-1:2006.
6 Manufacturing process
See prEN 10277-1:2006.
4

---------------------- Page: 5 ----------------------
prEN 10277-3:2006 (E)
7 Requirements
7.1 Chemical composition
7.1.1 Cast analysis
The chemical composition of the steel according to the cast analysis shall be as specified in Table 1.
7.1.2 Product analysis
The permissible deviations from the chemical composition as specified in Table 1 for cast analysis and the
product analysis of the steel shall be as specified in Table 2.
7.2 Mechanical properties
The mechanical properties shall be as specified
 in Table 3 for steels not intended for heat treatment,
 in Table 4 for case-hardening steels,
 in Table 5 for direct-hardening steels.
7.3 Options
See annex B of prEN 10277-1:2006.
8 Inspection and testing
See prEN 10277-1:2006.
9 Marking
See prEN 10277-1:2006.
5

---------------------- Page: 6 ----------------------
prEN 10277-3:2006 (E)

Table 1 — Steel grades and chemical composition (cast analysis)
a
Designation
Chemical composition
...
