General Information

• Status: Published
• Publication Date: 27-Nov-2007
• ICS: 29.140.10 - Lamp caps and holders
• Technical Committee: IESV - Lamps and related equipment
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 26-Nov-2007
• Due Date: 31-Jan-2008
• Completion Date: 28-Nov-2007
• Directive: 2006/95/EC - Directive 2006/95/EC of the European Parliament and of the Council of 12 December 2006 on the harmonisation of the laws of Member States relating to electrical equipment designed for use within certain voltage limits (codified version)
• Directive: 73/23/EEC - Electrical equipment designed for use within certain voltage limits
• Ref Project: EN 60061-4:1992/A11:2007 - Lamp caps and holders together with gauges for the control of interchangeability and safety - Part 4: Guidelines and general information

Relations

• Amends: SIST EN 60061-4:1999 - Lamp caps and holders together with gauges for the control of interchangeability and safety -- Part 4: Guidelines and general information
• Effective Date: 01-Jan-2008

Overview

EN 60061-4:1992/A11:2007 (IEC 60061-4:1990/A11:2007) is Part 4 of the IEC/CENELEC series covering lamp caps and holders together with gauges for the control of interchangeability and safety. This amendment provides guidelines and general information to support the dimensional, safety and interchangeability aspects of lamp caps, bases and lampholders. The full, up-to-date text is available through the IEC 60061 Database (subscription required).

Key Topics

This part is a guidance sheet that complements the dimensional and test requirements in the IEC 60061 series. Key technical topics and requirements included or referenced in the amendment are:

• International designation of lamp caps and holders - guidance on naming and referencing fits.
• New cap/base fits and non‑proliferation policy - principles to avoid unnecessary proliferation of incompatible fits.
• Creepage distances and clearances for caps on finished lamps - electrical safety considerations.
• Multi‑purpose adapters and retention of caps in holders - mechanical and safety guidance for adapters and cap retention.
• Lampholder/connector guidance and gauges in IEC Publication 60061 - use and recommended tolerances for gauges used to check interchangeability.
• Expression “solder” in lamp cap sheets - terminology clarification relevant to manufacturing and testing.
• Conformity testing during manufacture - guidance on factory-level checks.
• Guidelines for new fits in general lighting - basic principles to prevent unsafe replacements (for example, ELV fits should not be usable with higher-voltage halogen or discharge lamps without undue force).
• Fit/safety systems for common caps (examples noted: E27, E14) and dimensioning systems for specific capped tubular fluorescent lamps (G5, G13), plus combination lamp/starter holder concepts.

Applications

EN 60061-4:2007 is practical guidance for:

• Lamp and lampholder manufacturers designing caps, holders and gauges.
• Luminaire (fixture) designers and OEMs ensuring safe mechanical and electrical interfaces.
• Test laboratories and quality departments implementing conformity testing during manufacture.
• Regulatory and standards bodies referencing interchangeability and safety principles.
• Procurement and product managers assessing compatibility risks when introducing new lamp types or adapters.

Who Should Use It

• Product designers and engineers in lighting and electrical equipment sectors
• Compliance and safety engineers
• Test houses and quality assurance teams
• Standardization committees and technical assessors

Related Standards

• IEC/EN 60061 series (full dimensional and test requirements)
• IEC 60432-3 and IEC 60598-1 (referenced safety requirements for lamps and luminaires)

Note: For complete normative text, figures and the latest amendments, subscribe to the IEC 60061 Database or obtain the official EN/IEC publication.

Standards Content (Sample)

SLOVENSKI STANDARD
01-januar-2008
Vznožki in okovi žarnic in sijalk skupaj s kalibri za kontrolo medsebojne
zamenljivosti in varnosti - 4. del: Smernice in splošne informacije (IEC 60061-
4:1990/A11:2007)
Lamp caps and holders together with gauges for the control of interchangeability and
safety - Part 4: Guidelines and general information (IEC 60061-4:1990/A11:2007)
Lampensockel und -fassungen sowie Lehren zur Kontrolle der Austauschbarkeit und
Sicherheit - Teil 4: Leitfaden und allgemeine Informationen (IEC 60061-
4:1990/A11:2007)
Culots de lampes et douilles ainsi que calibres pour le contrôle de l'interchangeabilité et
de la sécurité - Partie 4: Guide et information générale (IEC 60061-4:1990/A11:2007)
Ta slovenski standard je istoveten z: EN 60061-4:1992/A11:2007
ICS:
29.140.10 Grla in držala žarnic Lamp caps and holders
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 60061-4/A11
NORME EUROPÉENNE
November 2007
EUROPÄISCHE NORM
ICS 29.140.10
English version
Lamp caps and holders together with gauges
for the control of interchangeability and safety -
Part 4: Guidelines and general information
(IEC 60061-4:1990/A11:2007)
Culots de lampes et douilles  Lampensockel und -fassungen
ainsi que calibres pour le contrôle sowie Lehren zur Kontrolle
de l'interchangeabilité et de la sécurité - der Austauschbarkeit und Sicherheit -
Partie 4: Guide et information générale Teil 4: Leitfaden
(CEI 60061-4:1990/A11:2007) und allgemeine Informationen
(IEC 60061-4:1990/A11:2007)
This amendment A11 modifies the European Standard EN 60061-4:1992; it was approved by CENELEC on
2007-11-01. CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which
stipulate the conditions for giving this amendment the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This amendment exists in three official versions (English, French, German). A version in any other language
made by translation under the responsibility of a CENELEC member into its own language and notified to the
Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Cyprus, the
Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,
Sweden, Switzerland and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Central Secretariat: rue de Stassart 35, B - 1050 Brussels

© 2007 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 60061-4:1992/A11:2007 E

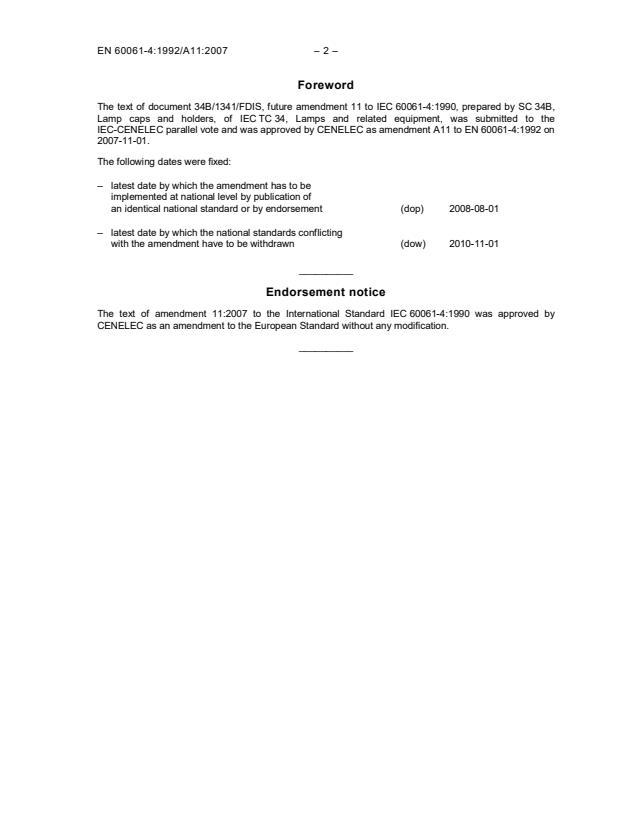

Foreword
The text of document 34B/1341/FDIS, future amendment 11 to IEC 60061-4:1990, prepared by SC 34B,
Lamp caps and holders, of IEC TC 34, Lamps and related equipment, was submitted to the
IEC-CENELEC parallel vote and was approved by CENELEC as amendment A11 to EN 60061-4:1992 on
2007-11-01.
The following dates were fixed:
– latest date by which the amendment has to be
implemented at national level by publication of
an identical national standard or by endorsement (dop) 2008-08-01
– latest date by which the national standards conflicting
with the amendment have to be withdrawn (dow) 2010-11-01
__________
Endorsement notice
The text of amendment 11:2007 to the International Standard IEC 60061-4:1990 was approved by
CENELEC as an amendment to the European Standard without any modification.
__________
NORME CEI
INTERNATIONALE IEC
INTERNATIONAL
60061-4
STANDARD
AMENDEMENT 11
AMENDMENT 11
2007-10
Amendement 11
Culots de lampes et douilles ainsi que calibres

pour le contrôle de l'interchangeabilité
et de la sécurité –
Quatrième partie:
Guide et information générale
Amendment 11
Lamp caps and holders together with
gauges for the control of interchangeability
and safety –
Part 4:
Guidelines and general information

Les feuilles de cet amendement sont à insérer dans la
CEI 60061-4 (1990)
The sheets contained in this amendment are to be inserted
in IEC 60061-4 (1990)
© IEC 2007 Droits de reproduction réservés ⎯ Copyright - all rights reserved
International Electrotechnical Commission, 3, rue de Varembé, PO Box 131, CH-1211 Geneva 20, Switzerland
Telephone: [phone] Telefax: [phone] E-mail: [e-mail] Web: www.iec.ch
CODE PRIX
Commission Electrotechnique Internationale
C
PRICE CODE
International Electrotechnical Commission
МеждународнаяЭлектротехническаяКомиссия
Pour prix, voir catalogue en vigueur
For price, see current catalogue

NORME CEI
INTERNATIONALE IEC
INTERNATIONAL
60061-4
STANDARD
Première édition
First edition
1990-11
Modifiée selon les Compléments:

Amended in accordance with Supplements:

A(1992), B(1994), C(1994), D(1995), et les amendements/amendments
5(1998), 6(2000), 7(2002), 8(2003), 9(2005), 10(2006) et/and 11(2007)

Culots de lampes et douilles ainsi que calibres
pour le contrôle de l'interchangeabilité
et de la sécurité –
Quatrième partie:
Guide et information générale
Lamp caps and holders together with
gauges for the control of interchangeability
and safety –
Part 4:
Guidelines and general information

© IEC 2007 Droits de reproduction réservés ⎯ Copyright - all rights reserved
Aucune partie de cette publication ne peut être reproduite ni No part of this publication may be reproduced or utilized in
utilisée sous quelque forme que ce soit et par aucun procédé, any form or by any means, electronic or mechanical,
électronique ou mécanique, y compris la photocopie et les including photocopying and microfilm, without permission in
microfilms, sans l'accord écrit de l'éditeur. writing from the publisher.
International Electrotechnical Commission, 3, rue de Varembé, PO Box 131, CH-1211 Geneva 20, Switzerland
Telephone: [phone] Telefax: [phone] E-mail: [e-mail] Web: www.iec.ch
Commission Electrotechnique Internationale
International Electrotechnical Commission
МеждународнаяЭлектротехническаяКомиссия

60061-4 Amend.11 © CEI/IEC:2007 – 3 –

SOMMAIRE CONTENTS
Pages Page
AVANT-PROPOS. 4 FOREWORD. 5
INTRODUCTION. 6 INTRODUCTION . 7

Feuilles Sheet
Désignation internationale des culots de International designation of lamp caps and
lampes et des douilles . 7007-1-4 holders. 7007-1-4
Nouveaux assemblages culot(socle)/ New cap(base)/holder fits; requirements
douille; prescriptions de sécurité améliorée. 7007-4-1 for increased safety. 7007-4-1
Politique sur la prolifération des Non-proliferation policy lamp cap/holder
assemblages culot/douille. 7007-5-1 fits. 7007-5-1
Lignes de fuite et distances dans l'air pour Creepage distances and clearances for
culots sur lampes terminées . 7007-6-2 caps on finished lamps . 7007-6-2
Adaptateurs multiusage . 7007-7-1 Multi-purpose adapters . 7007-7-1
Indications sur le maintien des culots dans Guidelines for the retention of caps
les douilles. 7007-8-1 in holders. 7007-8-1
Douille/connecteur. 7007-9-1 Lampholder/connector . 7007-9-1
Calibres de la Publication 60061 de l
...
