SIST EN 1790:2013
(Main)Road marking materials - Preformed road markings
Road marking materials - Preformed road markings
This European Standard specifies construction products which are white and yellow, removable or non-removable, preformed road marking materials, under the form of tape, cold plastic, thermoplastics with or without drop-on materials, to be used for permanent and/or temporary road markings in circulation areas. Other products and colours intended for road markings are not covered in this European Standard. This European Standard also gives specifications for the evaluation of conformity for white and yellow, removable or non-removable, preformed road materials under the form of tape, cold plastic, thermoplastics with or without drop-on materials to be used for permanent and/or temporary road markings in circulation areas including type testing and factory production control. This European Standard includes an Annex ZA for tapes, preformed cold plastic road marking and thermoplastic road marking with and without drop-on materials with the clauses addressing the provisions of the EU Construction Product Directive for permanent road marking.
Straßenmarkierungsmaterialien - Vorgefertigte Markierungen
Die von dieser Europäischen Norm abgedeckten und festgelegten Bauprodukte sind weiß oder gelbe, demarkierbare oder nicht demarkierbare vorgefertigte Straßenmarkierungsmaterialien in Form von Markierungsfolien, Kaltplastikmarkierungen oder Heißplastikmarkierungen mit oder ohne Nachstreumittel, die als dauerhafte oder vorübergehende Markierungen auf Verkehrsflächen verwendet werden. Andere Produkte oder Farben, die für Straßenmarkierungen verwendet werden, werden in dieser Europäischen Norm nicht behandelt.
Diese Europäische Norm enthält auch Festlegungen für die Bewertung der Konformität von weißen oder gelben, demarkierbaren oder nicht demarkierbaren vorgefertigten Straßenmarkierungsmaterialien in Form von Markierungsfolien, Kaltplastikmarkierungen oder Heißplastikmarkierungen mit oder ohne Nachstreumittel, die als dauerhafte oder vorübergehende Markierungen auf Verkehrsflächen verwendet werden, einschließlich der Erstprüfung und der werkseigenen Produktionskontrolle.
Ferner enthält diese Europäische Norm einen Anhang ZA für Markierungsfolien, vorgefertigte Kaltplastikmarkierungen und Heißplastikmarkierungen ohne Nachstreumittel mit Abschnitten, die die Bestimmungen der EU-Bauproduktenrichtlinie für dauerhafte Straßenmarkierungsmaterialien betreffen.
Für vorgefertigte Heißplastikmarkierungen mit Nachstreumitteln gilt FprEN 1871:2012, Anhang ZA.
Produits de marquage routier - Marquages routiers préformés
Cette Norme européenne spécifie les produits de construction qui sont blancs et jaunes, enlevables ou non, sous forme de bandes préfabriquées multicouches, d’enduits à froid ou d’enduits à chaud avec ou sans produits de saupoudrage, destinés au marquage routier permanent et/ou temporaire dans les zones de circulation. Les autres produits et couleurs destinés au marquage routier ne sont pas couverts dans la présente Norme européenne.
La présente Norme européenne fournit également des spécifications pour l'évaluation de la conformité des produits routiers préfabriqués blancs et jaunes, enlevables ou non, sous forme de bandes préfabriquées multicouches, d’enduits à froid et d’enduits à chaud avec ou sans produits de saupoudrage, destinés au marquage routier permanent et/ou temporaire dans les zones de circulation.
La présente Norme européenne comprend une Annexe ZA pour les bandes préfabriquées multicouches, les bandes préfabriquées en enduit à froid et les bandes préfabriquées en enduit à chaud avec et sans produits de saupoudrage, avec les articles concernant les dispositions de la Directive UE Produits de Construction pour le marquage routier permanent.
Materiali za označevanje vozišča - Predoblikovane oznake
Ta evropski standard določa gradbene proizvode, ki so beli in rumeni, odstranljivi ali ne, predoblikovani materiali za označevanje cestišča, in sicer v obliki traku, hladne plastike, termoplastike z materiali za posipanje ali brez, ki se uporabljajo za začasne in/ali trajne cestne oznake na območjih gibanja. Drugi proizvodi in barve, namenjeni za cestne oznake, niso zajeti v tem evropskem standardu. Ta evropski standard določa tudi specifikacije za vrednotenje skladnosti za bele in rumene, odstranljive ali ne, predoblikovane materiale za označevanje cestišča, in sicer v obliki traku, hladne plastike, termoplastike z materiali za posipanje ali brez, ki se uporabljajo za začasne in/ali trajne cestne oznake na območjih gibanja, vključno s tipskim preskušanjem in kontrolo proizvodnje v obratu. Ta evropski standard vključuje dodatek ZA za trakove, predoblikovane cestne oznake iz hladne plastike in termoplastične cestne oznake z materiali za posipanje in brez, pri čemer točke obravnavajo določbe Direktive EU o gradbenih proizvodih za trajne cestne oznake.
General Information
Relations
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Straßenmarkierungsmaterialien - Vorgefertigte MarkierungenProduits de marquage routier - Marquages routiers préformésRoad marking materials - Preformed road markings93.080.20Materiali za gradnjo cestRoad construction materialsICS:Ta slovenski standard je istoveten z:EN 1790:2013SIST EN 1790:2013en,fr,de01-december-2013SIST EN 1790:2013SLOVENSKI
STANDARDSIST EN 1790:19991DGRPHãþD
SIST EN 1790:2013
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 1790
October 2013 ICS 93.080.20 Supersedes EN 1790:1998English Version
Road marking materials - Preformed road markings
Produits de marquage routier - Marquages routiers préfabriqués
Straßenmarkierungsmaterialien - Vorgefertigte Markierungen This European Standard was approved by CEN on 5 April 2013.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2013 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 1790:2013: ESIST EN 1790:2013

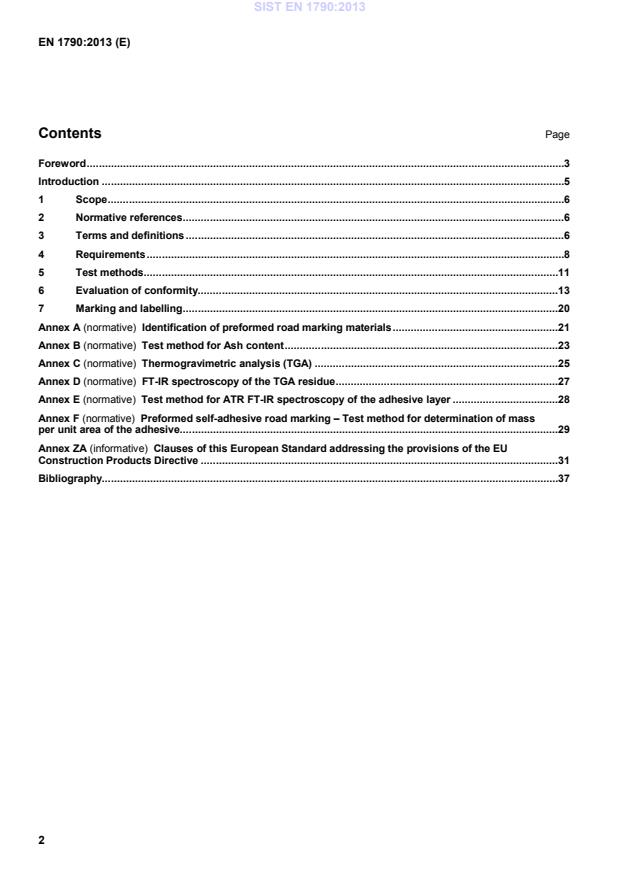

EN 1790:2013 (E) 2 Contents Page Foreword . 3 Introduction . 5 1 Scope . 6 2 Normative references . 6 3 Terms and definitions . 6 4 Requirements . 8 5 Test methods . 11 6 Evaluation of conformity. 13 7 Marking and labelling . 20 Annex A (normative)
Identification of preformed road marking materials . 21 Annex B (normative)
Test method for Ash content . 23 Annex C (normative)
Thermogravimetric analysis (TGA) . 25 Annex D (normative)
FT-IR spectroscopy of the TGA residue . 27 Annex E (normative)
Test method for ATR FT-IR spectroscopy of the adhesive layer . 28 Annex F (normative)
Preformed self-adhesive road marking – Test method for determination of mass per unit area of the adhesive . 29 Annex ZA (informative)
Clauses of this European Standard addressing the provisions of the EU Construction Products Directive . 31 Bibliography. 37
SIST EN 1790:2013
EN 1790:2013 (E) 3 Foreword This document (EN 1790:2013) has been prepared by Technical Committee CEN/TC 226 “Road equipment”, the secretariat of which is held by AFNOR. This European Standard shall be given the status of a national standard, either by publication of an identical text or by endorsement, at the latest by April 2014, and conflicting national standards shall be withdrawn at the latest by July 2015. Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights. This document supersedes EN 1790:1998. This document has been prepared under a mandate given to CEN by the European Commission and the European Free Trade Association, and supports essential requirements of EU Directive(s). For relationship with the Construction Product Directive (89/106/EEC), see informative Annex ZA, which is an integral part of this document. Compared with the previous version, the following changes have been introduced: Scope updated; references updated (Clause 2) and terms and definitions added (Clause 3); requirements updated by making reference to EN 1436, EN 1824 and EN 13197; test methods updated by making reference to EN 1436, EN 1824 and EN 13197; evaluation of conformity (Clause 6) amended; Annexes A to F amended; Annex ZA introduced. This European Standard belongs to the following package of inter-related European Standards:
EN 1790, Road marking materials
Preformed road markings (the present document), EN 1824, Road marking materials
Road trials, prEN 1871:2008, Road marking materials
Paint, cold plastic and thermoplastic marking materials – Physical properties, EN 12802, Road marking materials Laboratory methods for identification, EN 13197, Road marking materials Wear simulator Turntable, EN 13212, Road marking materials Requirements for factory production control, EN 13459, Road marking materials
Sampling from storage and testing. SIST EN 1790:2013
EN 1790:2013 (E) 4 According to the CEN-CENELEC Internal Regulations, the national standards organisations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.
SIST EN 1790:2013
EN 1790:2013 (E) 5 Introduction A particular category of road marking materials, used for horizontal signalisation, are preformed, i.e. manufactured products in sheet form, ready for use on the road. They can be applied by means of adhesives, pressure or heat, with or without the use of a primer. Preformed road marking materials can be linear, in pieces of a certain length or in rolls. They can also be cut out in the form of symbols or signs or parts of them, making it possible to assemble them on the road to achieve the desired shape. Preformed road marking materials can be designed for use as permanent or temporary road markings. In both cases, they can be applied with a view to later removal and therefore the specific property of "removability" can be required. Preformed road marking products are defined as Tape, preformed Cold Plastic road marking or preformed Thermoplastic road marking with or without drop-on materials. Except for Thermoplastic road markings with drop-on materials, all the other type of products are fully finished during manufacturing and do not change significantly their properties during application.
They are completely covered by this standard. Thermoplastic road markings with drop-on materials need the addition of drop-on materials during application on the road and therefore they are in some way similar to the thermoplastic products covered by prEN 1871:2008. This standard provides all the relevant information and cross references to prEN 1871:2008 in order to cover these kinds of products. SIST EN 1790:2013
EN 1790:2013 (E) 6 1 Scope This European Standard specifies construction products which are white and yellow, removable or non-removable, preformed road marking materials, under the form of tape, cold plastic, thermoplastics with or without drop-on materials, to be used for permanent and/or temporary road markings in circulation areas. Other products and colours intended for road markings are not covered in this European Standard. This European Standard also gives specifications for the evaluation of conformity for white and yellow, removable or non-removable, preformed road materials under the form of tape, cold plastic, thermoplastics with or without drop-on materials to be used for permanent and/or temporary road markings in circulation areas including type testing and factory production control. This European Standard includes an Annex ZA for tapes, preformed cold plastic road marking and thermoplastic road marking with and without drop-on materials with the clauses addressing the provisions of the EU Construction Product Directive for permanent road marking. 2 Normative references The following documents, in whole or in part, are normatively referenced in this document and are indispensable for its application. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 1436:2007+A1:2008, Road marking materials Road marking performance for road users
EN 1824:2011, Road marking materials Road trials prEN 1871:2008, Road marking materials Paint, cold plastic and thermoplastic marking materials Physical properties EN 12802, Road marking materials Laboratory methods for identification EN 13197:2011, Road marking materials Wear simulator Turntable EN 13212:2011, Road marking materials Requirements for factory production control EN 13459, Road marking materials Sampling from storage and testing EN ISO 4892-3, Plastics Methods of exposure to laboratory light sources Part 3: Fluorescent UV lamps (ISO 4892-3) EN ISO 11358, Plastics Thermogravimetry (TG) of polymers General principles (ISO 11358) 3 Terms and definitions For the purposes of this document, the following terms and definitions apply. 3.1 preformed road marking factory produced road marking system (or product), in sheet or roll form, capable of being applied to the substrate with adhesive, primer, pressure, heat or a combination of these 3.1.1
tape preformed multilayer road marking, capable of adapting itself to the texture of the substrate, which may be precoated with pressure-sensitive adhesive, capable of being stuck to the substrate without heating the material, while the photometric, colorimetric and skid resistance characteristics are not significantly modified during application SIST EN 1790:2013
EN 1790:2013 (E) 7 3.1.2 preformed cold plastic road marking preformed road marking made of cold plastic marking material as defined in prEN 1871:2008, applied to the substrate by means of an adhesive, while the photometric, colorimetric and skid resistance characteristics are not significantly modified during application 3.1.3 preformed thermoplastic road marking without drop-on materials “pre-beaded” preformed road marking made of thermoplastic marking material as defined in prEN 1871:2008, applied to the substrate by heating the material at melting temperature and without addition of any retroreflective and/or anti-skid materials during application 3.1.4 preformed thermoplastic road marking with drop-on materials preformed road marking made of thermoplastic road marking material as defined in prEN 1871:2008, applied to the substrate by heating the material at melting temperature and with addition of retroreflective and/or anti-skid materials during application 3.2 removability characteristic of a preformed road marking capable of being removed, intact or in large pieces, without leaving permanent marks that could confuse the road user during different weather conditions 3.3 adhesive substance which is used to bond the preformed road marking to the substrate and the application of which may require heating 3.4 base road marking material paint, a thermoplastic or a cold plastic with a unique identification, which may, or may not, include premix glass beads Note 1 to entry: This definition is relevant only for preformed thermoplastic road marking with drop-on materials as defined in 3.1.4. 3.5 road marking assembly base road marking material together with the precise application instructions including the identification of the manufacturer, dosages, types and proportions of drop-on materials needed to build up the applied road markings, every change to which is a new assembly and is identified with the name of the base road marking material followed by the word assembly and a correlative number
EXAMPLE Thermo AX – Assembly 1; Thermo AX – assembly 2, etc. Note 1 to entry: This definition is relevant only for preformed thermoplastic road marking with drop-on materials as defined in 3.1.4. 3.6 structured road marking products road marking product without areas of regular dimensions and tap surfaces, which has flat areas of a maximum width of 75,7 mm a maximum length of 125 mm at the top of the structure Note 1 to entry: The areas can be crossed by gaps that take up minimum 25 % of the total surface area and have widths of minimum 5 mm. The areas can have ridges or edges of blocks with a height of minimum 1,2 mm. 3.7 non-structured road marking products road marking product with areas of regular dimensions and tap surfaces, which has flat areas of a minimum width of 75,7 mm a minimum length of 125 mm at the top of the structure SIST EN 1790:2013
EN 1790:2013 (E) 8 Note 1 to entry: The areas can be crossed by gaps that take up maximum 25 % of the total surface area and have widths of maximum 5 mm. The areas can have ridges or edges of blocks with a height of maximum 1,2 mm. Note 2 to entry: Additional materials to those described in 3.1 to 3.3 can include, if recommended by the manufacturer, primers which are liquid products which may contain solids and liquid additives suspended in an organic solvent or in water. The solids comprise inorganic and/or organic fillers, pigments and additives. The content of volatile organic solvents is not limited.
Primers are used to precoat road surfaces before the road marking system is applied. They improve the adhesion of the road marking and protect against disintegration, discolouring, etc. caused by incompatible compounds in the road surface. 4 Requirements 4.1 Tape, Preformed Cold Plastic Road Marking and Preformed Thermoplastic Road Marking without drop-on Materials 4.1.1 General The requirements are meant as characteristics of the materials as fully finished products. They are therefore intended as laboratory requirements. 4.1.2 Day-time visibility (reflection in daylight or under road lighting)
Day-time visibility represents the brightness of a road marking as seen by driver’s vehicles in typical or average daylight or under road lighting. It shall be measured either by the coefficient of luminance under diffuse illumination (Qd), expressed in mcd·m-2·lx-1 or by the luminance factor (). a) When luminance coefficient under diffuse illumination Qd is measured, the preformed road marking material is tested in accordance with 5.2.2 a) and shall comply with classes Q1 to Q5 of EN 1436:2007+A1:2008, Table 1.
b) When luminance factor
is measured, the preformed road marking material is tested in accordance with 5.2.2 b), and shall comply with Table 1: Table 1 Classes of luminance factor β in dry conditions Type and colour Class
Luminance factor β Permanent
White and yellow
White
Yellow
B0 B5 B3
No value requested
≥ 0,60 ≥ 0,40 Temporary
White and yellow
White
Yellow
B0 B6 B3
No value requested
≥ 0,70 ≥ 0,40
4.1.3 Night-time visibility (retroreflection under vehicle headlamp illumination)
Night-time visibility represents the brightness of a road marking as seen by driver’s vehicles under the illumination by the driver’s own headlamp. The result is expressed by the coefficient of retroreflected luminance in mcd·m-2·lx-1. The coefficient of retroreflected luminance on dry conditions changes during wetness or during rain. Retroreflected luminance during wetness or during rain only applies for road markings type II. a) When preformed road marking material is tested on dry conditions, in accordance with 5.2.3 a), the coefficient of the retroreflected luminance RL shall comply with classes R1 to R5 of EN 1436:2007+A1:2008, Table 3 (only for retroreflective road marking products). SIST EN 1790:2013
EN 1790:2013 (E) 9 b) When preformed road marking material is tested during wetness in accordance with 5.2.3 b), the coefficient of the retroreflected luminance RL shall comply with classes RW1 to RW6 of EN 1436:2007+A1:2008, Table 4 (only for type II road marking products). c) When preformed road marking material is tested during rain in accordance with 5.2.3 c), the coefficient of the retroreflected luminance RL shall comply with classes RR1 to RR6 of EN 1436:2007+A1:2008, Table 5 (only for type II road marking products). 4.1.4 Day-time visibility (Colour in daylight or under road lighting) Day-time visibility shall be defined by means of (x,y) chromaticity co-ordinates. When a white preformed road marking is tested in accordance with 5.2.4, the x, y chromaticity co-ordinates shall lie within the region defined by the corner points given in EN 1436:2007+A1:2008, Table 6 for white road markings. When a yellow preformed road marking is tested in accordance with 5.2.4, the x, y chromaticity co-ordinates shall lie within the region Y2 defined by the corner points given in EN 1436:2007+A1:2008, Table 6 for yellow road markings. 4.1.5 Skid resistance SRT value (only for non-structured road marking products) Skid resistance represents the energy loss caused by the friction of a rubber slider over a specified length of a road marking surface in wet conditions. The result is expressed in SRT (Skid Resistance Tester) units. Measured on samples in the laboratory according to 5.2.5, the skid resistance of preformed materials shall be in accordance with classes S1 to S5 of EN 1436:2007+A1:2008, Table 7 except for structured road marking assemblies.
4.1.6 Removability
Removability, as defined in 3.2, shall be tested in order to evaluate whether the preformed road marking material is entirely removable without leaving permanent marks that could confuse the road user during the different weather conditions. The removability of preformed road markings cannot be determined in the laboratory and shall therefore be tested on the road, in accordance with 5.2.6. 4.1.7 Resistance to UV exposure
UV resistance shall be checked in accordance with 5.2.7. The chromaticity co-ordinates of preformed materials after UV exposure shall comply with the region for white road markings of Table 6 and with region Y2 for yellow road markings in EN 1436:2007+A1:2008, Table 6, respectively for white and yellow preformed road marking. The preformed materials shall be classified in accordance with Table 2, where ∆β is the difference between the luminance factor before and after UV exposure. Table 2 Classes of UV resistance
Colour Class ∆β White and yellow UV0 No value requested White and yellow UV2 ≤ 0,10
4.2 Preformed Thermoplastic Road Marking with drop-on Materials Requirements for these products are defined in prEN 1871:2008, 4.2.1 (Test before heat stability for base road marking materials) and in prEN 1871:2008, M.3.2.2 (Night- and Day-time Visibility and Skid Resistance). Test methods are defined in 5.3 of this European Standard. SIST EN 1790:2013
EN 1790:2013 (E) 10 4.3 Durability 4.3.1 General Durability represents the capability of the preformed road marking material to achieve a certain level of performance for each characteristic after being submitted to road trials and/or wear simulator. The information corresponding to the durability method Road trials or Wear Simulator shall include the specific test conditions applicable to the test.
The following performance characteristics of the road marking assemblies are tested by road trial or wear simulator: Retroreflection under vehicle headlamp illumination (see 4.1.3): coefficient of retroreflected luminance RL expressed as class R on dry conditions (only for retroreflective road marking products); coefficient of retroreflected luminance RL expressed as class RW during wetness (only for Type II road marking products) and/or; coefficient of retroreflected luminance RL expressed as class RR during rain (only for Type II road marking products); Reflection in daylight or under road lighting (see 4.1.2 and 4.1.4): luminance coefficient under diffuse illumination (Qd) or luminance factor (); chromaticity co-ordinates (x,y); Skid Resistance (SRT vale) (only for non-structured road markings) (see 4.1.5). 4.3.2 Durability on road trials When a road marking product to be used for permanent road marking is tested according to 5.4.2, the road marking product shall be exposed to at least roll-over class P1 of EN 1824:2011, Table 3. In the case of road trial with studded tyres, class P0 applies and the actual value of wheel passages (to the nearest thousand wheel passages) shall be stated in the test report. When a road marking product to be used for temporary road marking is tested according to 5.4.2, the road marking product shall be exposed to at least roll-over classes T0; T1 or T2 of Table 3 of EN 1824:2011. For the requirements of the road marking product specified in 4.1 and 4.2, the results are expressed in terms of a class (with the exception of the colour for which pass/fail criteria is used) for the corresponding roll-over class (P) and accompanied by studded tyres (Y/N). 4.3.3 Durability of on wear simulator - turntable When a road marking product to be used for permanent road marking is tested according to 5.4.3, the road marking product shall be exposed to at least traffic class P4 of EN 13197:2011, Table 4.
When a road marking product to be used for temporary road marking is tested according to 5.4.3, the road marking product shall be exposed to at least traffic class P1 of EN 13197:2011, Table 4. For the requirements of the road marking product specified in 4.1 and 4.2, the results are expressed in terms of a class (with the exception of the colour for which pass/fail criteria is used) for the corresponding roll-over class (P). SIST EN 1790:2013
EN 1790:2013 (E) 11 5 Test methods 5.1 Preparation 5.1.1 General If not specified in the relevant test method, samples representative of each component of the material shall be taken from storage in accordance with EN 13459. Smaller representative samples, of sufficient quantity to carry out all the tests required, could be taken from the larger samples. 5.1.2 Preparation of samples of Tape, Preformed Cold Plastic Road Marking and Preformed Thermoplastics Road Marking without drop-on Materials For preformed materials cut in symbols, legends or other special shapes, where lengths of at least 1 m cannot be sampled, an equivalent area of at least 0,75 m², with a minimum width of 0,15 m and a length suitable for the tests mentioned in 5.2 shall be sampled. 5.1.3 Preparation of samples of Preformed Thermoplastics Road Marking with drop-on Materials If not specified in the relevant test method, sampling shall be made according to EN 13459. 5.2 Test methods for Tape, Preformed Cold Plastic Road Marking and Preformed Thermoplastics Road Marking without drop-on Materials 5.2.1 General The requirements of 4.1 apply to the products as they leave the manufacturing site and are therefore intended as laboratory requirements. NOTE These parameters are not to be confused with the initial measurements, applied for durability purpose, which are carried out in accordance with EN 1824:2011, Table 4, for initial measurements column or after 10 000 wheel passages according to EN 13197. They indicate the performances of the road marking material measured after a short period subsequent to its application.
5.2.2 Day-time visibility (reflection in daylight or under road lighting) Day-time visibility may be measured either by: a) the coefficient of luminance under diffuse illumination (Qd), expressed in mcd·m-2·lx-1 according to EN 1436:2007+A1:2008, Annex A; or b) the luminance factor (), according to EN 1436:2007+A1:2008, Annex C. 5.2.3 Night-time visibility (retroreflection under vehicle headlamp illumination) Night-time visibility can be measured in different conditions as follows: a) coefficient of retroreflected luminance in dry conditions (R), in accordance with EN 1436:2007+A1:2008, Annex B; b) coefficient of retroreflected luminance with wetness (RW) in accordance with EN 1436:2007+A1:2008, Annex B; c) coefficient of retroreflected luminance during rain (RR) in accordance with EN 1436:2007+A1:2008, Annex B. SIST EN 1790:2013
EN 1790:2013 (E) 12 5.2.4 Day-time visibility (Colour in daylight or under road lighting) Day-time visibility shall be tested in accordance with EN 1436:2007+A1:2008, Annex C. 5.2.5 Skid resistance SRT value (only for non-structured road marking products) Skid resistance shall be tested in accordance with EN 1436:2007+A1:2008, Annex D. 5.2.6 Removability The removability of preformed road markings cannot be determined in the laboratory and shall therefore be tested on the road, in accordance with EN 1824:2011, Annex F. 5.2.7 Resistance to UV exposure The samples shall be tested in accordance with EN ISO 4892-3 for 168 h under lamp type II (UVB - 313) in cycles of 8 h of radiation at (60 ± 2) °C and 4 h of condensation at (50 ± 2) °C. 5.3 Test method for Preformed Thermoplastics Road Marking with drop-on Materials For these products, the general provisions in Clause 4 of prEN 1871:2008 as well as the test methods defined in 4.2 (thermoplastic marking material) of prEN 1871:2008 and M.3.2.2 (Night- and Day-time Visibility and Skid Resistance) of prEN 1871:2008 apply. 5.4 Durability 5.4.1 General Test methods for determining the following performance characteristics of the road marking products are stated in 5.4.2 and 5.4.3 below: Retroreflection under vehicle headlamp illumination (see 4.1.3): coefficient of retroreflected luminance RL expressed as class R on dry conditions (only for retroreflective road marking products); coefficient of retroreflected luminance RL expressed as class RW during wetness (only for Type II road marking products) and/or; coefficient of retroreflected luminance RL expressed as class RR during rain (only for Type II road marking products); Reflection in daylight or under road lighting (see 4.1.2 and 4.1.4): luminance coefficient under diffuse illumination (Qd) or luminance factor (); chromaticity co-ordinates (x,y); Skid Resistance (SRT vale) (only for non-structured road markings) (see 4.1.5). 5.4.2 Durability on road trials Durability on road trials shall be tested in accordance with EN 1824. Testing conditions shall be reported as in EN 1824:2011, Clause 8, for the required roll-over classes (P). For studded tyres roll-over class P0 the report shall include the actual value of wheel passages (to the nearest thousand wheel passages). SIST EN 1790:2013
EN 1790:2013 (E) 13 5.4.3 Durability on wear simulator: turntable Durability on the wear simulator shall be tested in accordance with EN 13197. Testing conditions shall be reported as in EN 13197:2011, Clause 9 for the required traffic classes (P). 6 Evaluation of conformity 6.1 General The compliance of preformed road marking materials to the requirements of this standard and with the stated values (including classes) shall be demonstrated by: initial type testing and type testing, factory production control by the manufacturer, including product assessment. The manufacturer shall always retain the overall control and shall have the necessary means to take responsibility for the product. 6.2 Initial type testing and Type Testing 6.2.1 General Initial type testing and type testing shall be performed to demonstrate compliance with this European Standard. All essential characteristics for which the manufacturer declares performances are subject to Initial Type Testing. In addition, the need to perform Type Tests applies to all other characteristics included in a standard when the manufacturer claims compliance, unless the standard gives provisions (e.g. use of previously existing data, CWFT and conventionally accepted performance) for declaring performances without performing tests. Tests previously performed in accordance with the provisio
...
SLOVENSKI STANDARD
kSIST FprEN 1790:2012
01-december-2012
0DWHULDOL]DR]QDþHYDQMHYR]LãþD3UHGREOLNRYDQHR]QDNH
Road marking materials - Preformed road markings
Straßenmarkierungsmaterialien - Vorgefertigte Markierungen
Produits de marquage routier - Marquages routiers préformés
Ta slovenski standard je istoveten z: FprEN 1790
ICS:
93.080.20 Materiali za gradnjo cest Road construction materials
kSIST FprEN 1790:2012 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
kSIST FprEN 1790:2012
---------------------- Page: 2 ----------------------
kSIST FprEN 1790:2012
EUROPEAN STANDARD
FINAL DRAFT
FprEN 1790
NORME EUROPÉENNE
EUROPÄISCHE NORM
October 2012
ICS 93.080.20 Will supersede EN 1790:1998
English Version
Road marking materials - Preformed road markings
Produits de marquage routier - Marquages routiers Straßenmarkierungsmaterialien - Vorgefertigte
préformés Markierungen
This draft European Standard is submitted to CEN members for unique acceptance procedure. It has been drawn up by the Technical
Committee CEN/TC 226.
If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations which
stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other language
made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United
Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are aware and to
provide supporting documentation.
Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without notice and
shall not be referred to as a European Standard.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2012 CEN All rights of exploitation in any form and by any means reserved Ref. No. FprEN 1790:2012: E
worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
kSIST FprEN 1790:2012
FprEN 1790:2012 (E)
Contents Page
Foreword . 3
Introduction . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Requirements . 7
5 Test methods . 10
6 Evaluation of conformity . 12
7 Marking and labelling . 19
Annex A (normative) Identification of preformed road marking materials . 20
Annex B (normative) Test method for Ash content . 22
Annex C (normative) Thermogravimetric analysis (TGA). 24
Annex D (normative) FT-IR spectroscopy of the TGA residue . 26
Annex E (normative) Test method for ATR FT-IR spectroscopy of the adhesive layer . 27
Annex F (normative) Preformed self-adhesive road marking – Test method for determination of mass
per unit area of the adhesive . 28
Annex ZA (informative) Clauses of this European Standard addressing the provisions of the EU
Construction Products Directive . 30
Bibliography . 37
2
---------------------- Page: 4 ----------------------
kSIST FprEN 1790:2012
FprEN 1790:2012 (E)
Foreword
This document (FprEN 1790:2012) has been prepared by Technical Committee CEN/TC 226 “Road equipment”,
the secretariat of which is held by AFNOR.
This document is currently submitted to the UAP.
This document will supersede EN 1790:1998.
This document has been prepared under a mandate given to CEN by the European Commission and the European
Free Trade Association, and supports essential requirements of EU Directive(s).
For relationship with the Construction Product Directive (89/106/EEC), see informative Annex ZA, which is an
integral part of this document.
This European Standard belongs to the following package of inter-related European Standards:
EN 1790, Road marking materials ― Preformed road markings,
EN 1824, Road marking materials ― Road trials,
FprEN 1871, Road marking materials ― Paint, thermoplastic and cold plastic materials – Specifications,
EN 12802, Road marking materials ― Laboratory methods and identification,
EN 13197, Road marking materials ― Turntable wear simulators,
EN 13212, Road marking materials ― Requirements for factory production control,
EN 13459, Road marking materials ― Sampling and testing.
3
---------------------- Page: 5 ----------------------
kSIST FprEN 1790:2012
FprEN 1790:2012 (E)
Introduction
A particular category of road marking materials, used for horizontal signalisation, are preformed, i.e. manufactured
products in sheet form, ready for use on the road. They can be applied by means of adhesives, pressure or heat,
with or without the use of a primer. Preformed road marking materials can be linear, in pieces of a certain length or
in rolls. They can also be cut out in the form of symbols or signs or parts of them, making it possible to assemble
them on the road to achieve the desired shape.
Preformed road marking materials can be designed for use as permanent or temporary road markings. In both
cases they can be applied with a view to later removal and therefore the specific property of "removability" can be
required.
Preformed road marking products are defined as Tape, preformed Cold Plastic road marking or preformed
Thermoplastic road marking with or without drop-on materials.
Except for Thermoplastic road markings with drop-on materials, all the other type of products are fully finished
during manufacturing and do not change significantly their properties during application.
They are completely covered by this standard.
Thermoplastic road markings with drop-on materials need the addition of drop-on materials during application on
the road and therefore they are in some way similar to thermoplastic products covered by EN 1871.
This standard provides all the relevant information and cross references to EN 1871 in order to cover this kind of
products.
4
---------------------- Page: 6 ----------------------
kSIST FprEN 1790:2012
FprEN 1790:2012 (E)
1 Scope
The construction products covered and specified on this European Standard are white and yellow, removable or
non-removable, preformed road marking materials, under the form of tape, cold plastic, thermoplastics with or
without drop-on materials, to be used for permanent and/or temporary road markings in circulation areas. Other
products and colours intended for road markings are not covered in this European Standard
This European Standard gives also specifications for the evaluation of conformity for white and yellow, removable
or non-removable, preformed road materials under the form of tape, cold plastic, thermoplastics with or without
drop-on materials to be used for permanent and/or temporary road markings in circulation areas including type
testing and factory production control.
This European Standard also includes an Annex ZA for tapes, preformed cold plastic road marking and
thermoplastic road marking without drop-on materials with the clauses addressing the provisions of the EU
Construction Product Directive for permanent road marking.
For preformed Thermoplastic road marking with drop-on materials, FprEN 1871:2012, Annex ZA, applies.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are indispensable
for its application. For dated references, only the edition cited applies. For undated references, the latest edition of
the referenced document (including any amendments) applies.
EN 1436:2007+A1:2008, Road marking materials Road marking performance for road users
EN 1824:2011, Road marking materials Road trials
FprEN 1871:2012, Road marking materials Paint, thermoplastic and cold plastic materials Specifications
EN 12802, Road marking materials Laboratory methods and identification
EN 13197:2011, Road marking materials Wear simulator Turntable
EN 13459, Road marking materials Sampling from storage and testing
EN ISO 4892-3, Plastics Methods of exposure to laboratory light sources Part 3: Fluorescent UV lamps
(ISO 4892-3)
EN ISO 11358, Plastics Thermogravimetry (TG) of polymers General principles (ISO 11358)
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
3.1
preformed road marking
factory produced road marking system (or product), in sheet or roll form, capable of being applied to the substrate
with adhesive, primer, pressure, heat or a combination of them
3.1.1
tape
preformed multilayer road marking, capable of adapting itself to the texture of the substrate, which may be
precoated with pressure-sensitive adhesive, capable of being stuck to the substrate without heating the material,
while the photometric, colorimetric and skid resistance characteristics are not significantly modified during
application
5
---------------------- Page: 7 ----------------------
kSIST FprEN 1790:2012
FprEN 1790:2012 (E)
3.1.2
preformed cold plastic road marking
preformed road marking made of cold plastic marking material as defined in FprEN 1871:2012, applied to the
substrate by means of an adhesive, while the photometric, colorimetric and skid resistance characteristics are not
significantly modified during application
3.1.3
preformed thermoplastic road marking without drop-on materials
“pre-beaded” preformed road marking made of thermoplastic marking material as defined in FprEN 1871:2012,
applied to the substrate by heating the material at melting temperature and without addition of any retroreflective
and/or anti-skid materials during application
3.1.4
preformed thermoplastic road marking with drop-on materials
preformed road marking made of thermoplastic road marking material as defined in FprEN 1871:2012, applied to
the substrate by heating the material at melting temperature and with addition of retroreflective and/or anti-skid
materials during application
3.2
removability
characteristic of a preformed road marking capable of being removed, intact or in large pieces, without leaving
permanent marks that could confuse the road user during different weather conditions
3.3
adhesive
substance which is used to bond the preformed road marking to the substrate and the application of which may
require heating
3.4
base road marking material
according to FprEN 1871:2012, 3.4, paint, a thermoplastic or acold plastic with a unique identification, which may,
or may not, include premix glass beads
Note 1 to entry: This definition is relevant only for preformed thermoplastic road marking with drop-on materials as defined in
3.1.4.
3.5
road marking assembly
according FprEN 1871:2012, 3.5, base road marking material together with the precise application instructions
including the identification of the manufacturer, dosages, types and proportions of drop-on materials needed to
build up the applied road markings, every change to which is a new assembly and is identified with the name of the
base road marking material followed by the word assembly and a correlative number
EXAMPLE Thermo AX – Assembly 1; Thermo AX – assembly 2, etc.
Note 1 to entry: This definition is relevant only for preformed thermoplastic road marking with drop-on materials as defined in
3.1.4.
3.6
structured road marking products
road marking product without areas of regular dimensions and tap surfaces, which has flat areas of a maximum
width of 75,7 mm a maximum length of 125 mm at the top of the structure
Note 1 to entry: The areas may be crossed by gaps that take up minimum 25 % of the total surface area and have widths of
minimum 5 mm. The areas may have ridges or edges of blocks with a height of minimum 1,2 mm.
3.7
non structured road marking products
road marking product with areas of regular dimensions and tap surfaces, which has flat areas of a minimum width
of 75,7 mm a minimum length of 125 mm at the top of the structure
6
---------------------- Page: 8 ----------------------
kSIST FprEN 1790:2012
FprEN 1790:2012 (E)
Note 1 to entry: The areas may be crossed by gaps that take up maximum 25 % of the total surface area and have widths of
maximum 5 mm. The areas may have ridges or edges of blocks with a height of maximum 1,2 mm.
Note 2 to entry: Additional materials to those described in 3.1 to 3.3 can include, if recommended by the manufacturer,
primers which are liquid products which may contain solids and liquid additives suspended in an organic solvent or in water. The
solids comprise inorganic and/or organic fillers, pigments and additives. The content of volatile organic solvents is not limited.
Primers are used to precoat road surfaces before the road marking system is applied. They improve the adhesion of the road
marking and protect against disintegration, discolouring, etc. caused by incompatible compounds in the road surface.
4 Requirements
4.1 Tape, Preformed Cold Plastic Road Marking and Preformed Thermoplastic Road Marking
without drop-on Materials
4.1.1 General
The requirements are meant as characteristics of the materials as fully finished products. They are therefore
intended as laboratory requirements.
4.1.2 Day-time visibility (reflection in daylight or under road lighting)
It represents the brightness of a road marking as seen by driver’s vehicles in typical or average daylight or under
road lighting. It shall be measured either by the coefficient of luminance under diffuse illumination (Qd), expressed
-2 -1
in mcd·m ·lx or by the luminance factor (β).
a) When luminance coefficient under diffuse illumination Qd is measured, the preformed road marking material is
tested in accordance with 5.2.2 a) and shall comply with classes Q1 to Q5 of EN 1436:2007+A1:2008, Table 1.
b) When luminance factor β is measured, the preformed road marking material is tested in accordance with 5.2.2
b), and shall comply with Table 1:
Table 1 Classes of luminance factor ββββ in dry conditions
Type and colour Class
Luminance factor β
Permanent
White and yellow B0 No value requested
White B5
≥ 0,60
Yellow B3
≥ 0,40
Temporary
White and yellow B0 No value requested
White B6
≥ 0,70
Yellow B3
≥ 0,40
4.1.3 Night-time visibility (retroreflection under vehicle headlamp illumination)
It represents the brightness of a road marking as seen by driver’s vehicles under the illumination by the driver’s
-2 -1
own headlamp. The result is expressed by the coefficient of retroreflected luminance in mcd·m ·lx .
The coefficient of retroreflected luminance on dry conditions changes during wetness or during rain. Retroreflected
luminance during wetness or during rain only applies for road markings type II.
a) When preformed road marking material is tested on dry conditions, in accordance with 5.2.3 a), the coefficient
of the retroreflected luminance R shall comply with classes R1 to R5 of EN 1436:2007+A1:2008, Table 3 (only
L
for retroreflective road marking products).
7
---------------------- Page: 9 ----------------------
kSIST FprEN 1790:2012
FprEN 1790:2012 (E)
b) When preformed road marking material is tested during wetness in accordance with 5.2.3 b), the coefficient of
the retroreflected luminance R shall comply with classes RW1 to RW6 of EN 1436:2007+A1:2008, Table 4
L
(only for type II road marking products).
c) When preformed road marking material is tested during rain in accordance with 5.2.3 c), the coefficient of the
retroreflected luminance R shall comply with classes RR1 to RR6 of EN 1436:2007+A1:2008, Table 5 (only
L
for type II road marking products).
4.1.4 Day-time visibility (Colour in daylight or under road lighting)
It shall be defined by means of (x,y) chromaticity co-ordinates.
When a white preformed road marking is tested in accordance with 5.2.4, the x, y chromaticity co-ordinates shall lie
within the region defined by the corner points given in EN 1436:2007+A1:2008, Table 6 for white road markings.
When a yellow preformed road marking is tested in accordance with 5.2.4, the x, y chromaticity co-ordinates shall
lie within the region Y2 defined by the corner points given in EN 1436:2007+A1:2008, Table 6 for yellow road
markings.
4.1.5 Skid resistance SRT value (only for non-structured road marking products)
It represents the energy loss caused by the friction of a rubber slider over a specified length of a road marking
surface in wet conditions. The result is expressed in SRT (Skid Resistance Tester) units.
Measured on samples in the laboratory according to 5.2.5, the skid resistance of preformed materials shall be in
accordance with classes S1 to S5 of EN 1436:2007+A1:2008, Table 7 except for structured road marking
assemblies.
4.1.6 Removability
Removability, as defined in 3.2, shall be tested in order to evaluate if the preformed road marking material is
entirely removable without leaving permanent marks that could confuse the road user during the different weather
conditions.
The removability of preformed road markings cannot be determined in the laboratory and shall therefore be tested
on the road, in accordance with 5.2.6.
4.1.7 Resistance to UV exposure
UV resistance shall be checked in accordance with 5.2.7. The chromaticity co-ordinates of preformed materials
after UV exposure shall comply with the region for white road markings of Table 6 and with region Y2 for yellow
road markings in EN 1436:2007+A1:2008, Table 6, respectively for white and yellow preformed road marking.
The preformed materials shall be classified in accordance with Table 2, where ∆β is the difference between the
luminance factor before and after UV exposure.
Table 2 Classes of UV resistance
Colour Class
∆β
White and yellow UV0 No value requested
White and yellow UV2
≤ 0,10
4.2 Preformed Thermoplastic Road Marking with drop-on Materials
Requirements for these products are defined in FprEN 1871:2012, 4.2.2.2 (Test before heat stability for base road
marking materials) and in FprEN 1871:2012, 4.3 (Requirements for road marking assemblies).
Test methods are defined in 5.3.
8
---------------------- Page: 10 ----------------------
kSIST FprEN 1790:2012
FprEN 1790:2012 (E)
4.3 Durability
4.3.1 General
Durability represents the capability of the preformed road marking material to achieve a certain level of
performance for each characteristic after being submitted to road trials and/or wear simulator.
The information corresponding to the durability method (Road trials or Wear Simulator shall include the specific test
conditions applicable to the test.
The following performance characteristics of the road marking assemblies are tested by road trial or wear
simulator:
Retroreflection under vehicle headlamp illumination (see 4.1.3):
coefficient of retroreflected luminance R expressed as class R on dry conditions (only for retroreflective
L
road marking products);
coefficient of retroreflected luminance R expressed as class RW during wetness (only for Type II road
L
marking products) and/or;
coefficient of retroreflected luminance R expressed as class RR during rain (only for Type II road marking
L
products);
Reflection in daylight or under road lighting (see 4.1.2 and 4.1.4):
luminance coefficient under diffuse illumination (Qd) or luminance factor (ɴ);
chromaticity co-ordinates (x,y);
skid Resistance (SRT vale) (only for non-structured road markings) (see 4.1.5).
4.3.2 Durability on road trials
When a road marking product to be used for permanent road marking is tested according to 5.4.1, the results shall
comply, at least, with roll-over class P1 of EN 1824:2011, Table 3. In the case of road trial with studded tyres class
P0 applies and the actual value of wheel passages (to the nearest thousand wheel passages) shall be stated in the
test report.
When a road marking product to be used for temporary road marking is tested according to 5.4.1, the results shall
comply with roll-over classes T0; T1 or T2 of Table 3 of EN 1824:2011, Table 3.
For the requirements of the road marking product specified in 4.1 and 4.2, the results are expressed in terms of a
class (with the exception of the colour for which pass/fail criteria is used) for the corresponding roll-over class (P)
and accompanied by studded tyres (Y/N).
4.3.3 Durability of on wear simulator - turntable
When a road marking product to be used for permanent road marking is tested according to 5.4.2, the results shall
comply, at least, with traffic class P4 of EN 13197:2011, Table 4.
When a road marking product to be used for temporary road marking is tested according to 5.4.2, the results shall
comply, at least, with traffic class P1 of EN 13197:2011, Table 4.
For the requirements of the road marking product specified in 4.1 and 4.2, the results are expressed in terms of a
class (with the exception of the colour for which pass/fail criteria is used) for the corresponding roll-over class (P).
9
---------------------- Page: 11 ----------------------
kSIST FprEN 1790:2012
FprEN 1790:2012 (E)
5 Test methods
5.1 General
If not specified in the relevant test method, samples representative of each component of the material shall be
taken from storage in accordance with EN 13459.
Smaller representative samples, of sufficient quantity to carry out all the tests required, could be taken from the
larger samples.
5.1.1 Preparation of samples of Tape, Preformed Cold Plastic Road Marking and Preformed
Thermoplastics Road Marking without drop-on Materials
For preformed materials cut in symbols, legends or other special shapes, where lengths of at least 1 m cannot be
sampled, an equivalent area of at least 0,75 m², with a minimum width of 0,15 m and a length suitable for the tests
mentioned in 5.2 shall be sampled.
5.1.2 Preparation of samples of Preformed Thermoplastics Road Marking with drop-on Materials
If not specified in the relevant test method, sampling shall be made according to EN 13459.
5.2 Test methods for Tape, Preformed Cold Plastic Road Marking and Preformed
Thermoplastics Road Marking without drop-on Materials
5.2.1 General
The requirements of 4.1 apply to the products as they leave the manufacturing site and are therefore intended as
laboratory requirements.
NOTE These parameters are not to be confused with the initial measurements, applied for durability purpose, which are
carried out in accordance with EN 1824:2011, Table 4, for initial measurements column or after 10 000 wheel passages
according to EN 13197:2011. They indicate the performances of the road marking material measured after a short period
following subsequent to its application.
5.2.2 Day-time visibility (reflection in daylight or under road lighting)
It may be measured either by:
-2 -1
a) the coefficient of luminance under diffuse illumination (Qd), expressed in mcd·m ·lx according to
EN 1436:2007+A1:2008, Annex A;
or
b) by the luminance factor (β), according to EN 1436:2007+A1:2008, Annex C.
5.2.3 Night-time visibility (retroreflection under vehicle headlamp illumination)
It can be measured in different conditions as follows:
a) coefficient of retroreflected luminance in dry conditions (R), in accordance with EN 1436:2007+A1:2008, Annex
B;
b) coefficient of retroreflected luminance with wetness (RW) in accordance with EN 1436:2007+A1:2008, Annex
B;
c) coefficient of retroreflected luminance during rain (RR) in accordance with EN 1436:2007+A1:2008, Annex B.
5.2.4 Day-time visibility (Colour in daylight or under road lighting)
It shall be tested in accordance with EN 1436:2007+A1:2008, Annex C.
10
---------------------- Page: 12 ----------------------
kSIST FprEN 1790:2012
FprEN 1790:2012 (E)
5.2.5 Skid resistance SRT value (only for non-structured road marking products)
It shall be tested in accordance with EN 1436:2007+A1:2008, Annex D.
5.2.6 Removability
The removability of preformed road markings cannot be determined in the laboratory and shall therefore be tested
on the road, in accordance with EN 1824:2011, Annex F.
5.2.7 Resistance to UV exposure
The samples shall be tested in accordance with EN ISO 4892-3 for 168 h under lamp type II (UVB - 313) in cycles
of 8 h of radiation at 60 °C ± 2 °C and 4 h of condensation at 50 °C ± 2 °C.
5.3 Test method for Preformed Thermoplastics Road Marking with drop-on Materials
For these products, general provisions in 5.1 and methods defined in 5.2.2.2 (base road marking materials) and 5.3
(road marking assembly) of FprEN 1871:2012 apply.
5.4 Durability
5.4.1 General
Test methods for determining the following performance characteristics of the road marking products are stated in
5.4.1 and 5.4.2 below:
Retroreflection under vehicle headlamp illumination (see 4.1.3):
coefficient of retroreflected luminance R expressed as class R on dry conditions (only for retroreflective
L
road marking products);
coefficient of retroreflected luminance R expressed as class RW during wetness (only for Type II road
L
marking products) and/or;
coefficient of retroreflected luminance R expressed as class RR during rain (only for Type II road marking
L
products);
Reflection in daylight or under road lighting (see 4.1.2 and 4.1.4):
luminance coefficient under diffuse illumination (Qd) or luminance factor (ɴ);
chromaticity co-ordinates (x,y);
Skid Resistance (SRT vale) (only for non-structured road markings) (see 4.1.5).
5.4.2 Durability on road trials
It shall be tested in accordance with EN 1824. Testing conditions shall be reported as in EN 1824:2011, Clause 8,
for the required roll-over classes (P). For studded tyres roll-over class P0 the report shall include the actual value of
wheel passages (to the nearest thousand wheel passages).
5.4.3 Durability on wear simulator: turntable
It shall be tested in accordance with EN 13197. Testing conditions shall be reported as in EN 13197:2011, Clause
9 for the required traffic classes (P).
11
---------------------- Page: 13 ----------------------
kSIST FprEN 1790:2012
FprEN 1790:2012 (E)
6 Evaluation of conformity
6.1 General
The compliance of preformed road marking materials to the requirements of this standard and with the stated
values (including classes) shall be demonstrated by:
initial type testing and type testing,
factory production control by the manufacturer, including product assessment.
The manufacturer shall always retain the overall control and shall have the necessary means to take responsibility
for the product.
6.2 Initial type testing and Type Testing
6.2.1 General
Initial type testing and type testing shall be performed to demonstrate compliance with this European Standard.
All essential characteristics for which the manufacturer declares performances are subject to Initial Type Testing. In
addition, the need to perform Type Tests applies to all other characteristics included in a standard when the
manufacturer claims compliance, unless the standard gives provisions (e.g. use of previously existing data, CWFT
and conventionally accepted performance) for declaring performances w
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
