SIST HD 361 S4:2020
(Main)System for cable designation
System for cable designation
This document details a designation system for harmonised power cables and cords according to EN 50525 (series), EN 50214, EN 50618 and EN 50620.
NOTE The use of the system for Recognised National Types of cable or cord has been withdrawn by CLC/TC 20. For non-harmonised cables National Committees are permitted to use any designation that does not conflict with this HD, but see Tables 2 and 4 for recommendations.
System für Typkurzzeichen von isolierten Leitungen
Système de désignation de câbles
Le présent document concerne un système de désignation des types harmonisés de câbles d’énergie et de cordons conformes aux EN 50525 (série), EN 50214, EN 50618 et EN 50620.
NOTE L’utilisation de ce système pour les câbles ou cordons de types nationaux reconnus a été supprimée par le CLC/TC 20. Pour les câbles non harmonisés, les Comités nationaux ont la permission d’utiliser toute désignation qui ne soit pas en contradiction avec le présent HD, mais il y a lieu de consulter les recommandations des Tableaux 2 et 4.
Sistem označevanja kablov
General Information
Relations
Standards Content (Sample)
SLOVENSKI STANDARD
SIST HD 361 S4:2020
01-december-2020
Nadomešča:
SIST HD 361 S3:1999
SIST HD 361 S3:1999/A1:2006
Sistem označevanja kablov
System for cable designation
System für Typkurzzeichen von isolierten Leitungen
Système de désignation de câbles
Ta slovenski standard je istoveten z: HD 361 S4:2020
ICS:
29.060.20 Kabli Cables
SIST HD 361 S4:2020 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
SIST HD 361 S4:2020
---------------------- Page: 2 ----------------------
SIST HD 361 S4:2020
HARMONIZATION DOCUMENT HD 361 S4
DOCUMENT D'HARMONISATION
HARMONISIERUNGSDOKUMENT
September 2020
ICS 29.060 Supersedes HD 361 S3:1999 and all of its amendments
and corrigenda (if any)
English Version
System for cable designation
Système de désignation de câbles System für Typkurzzeichen von isolierten Leitungen
This Harmonization Document was approved by CENELEC on 2020-08-31. CENELEC members are bound to comply with the
CEN/CENELEC Internal Regulations which stipulate the conditions for implementation of this Harmonization Document at national level.
Up-to-date lists and bibliographical references concerning such national implementations may be obtained on application to the CEN-
CENELEC Management Centre or to any CENELEC member.
This Harmonization Document exists in three official versions (English, French, German).
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2020 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. HD 361 S4:2020 E
---------------------- Page: 3 ----------------------
SIST HD 361 S4:2020
HD 361 S4:2020 (E)

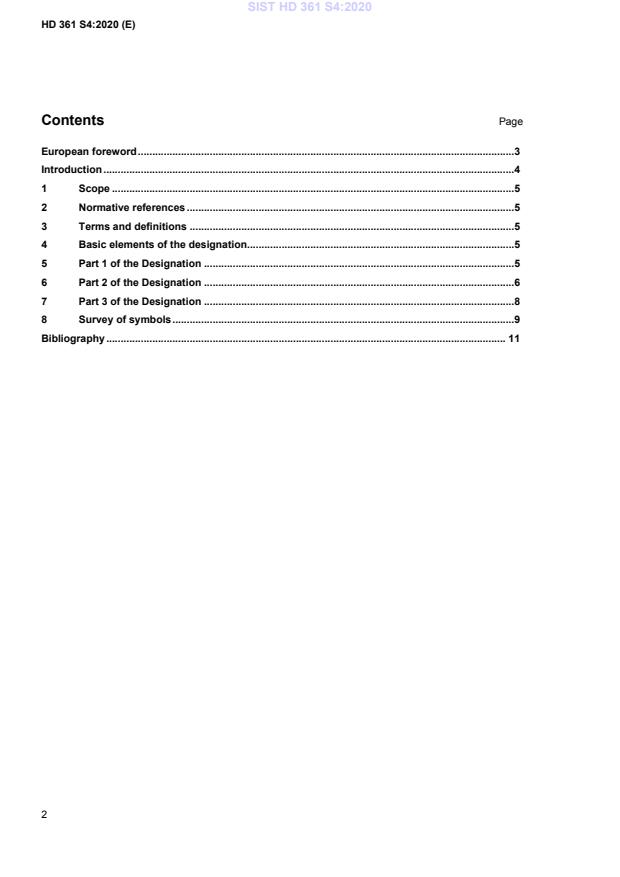

Contents Page
European foreword .3
Introduction .4
1 Scope .5
2 Normative references .5
3 Terms and definitions .5
4 Basic elements of the designation.5
5 Part 1 of the Designation .5
6 Part 2 of the Designation .6
7 Part 3 of the Designation .8
8 Survey of symbols .9
Bibliography . 11
2
---------------------- Page: 4 ----------------------
SIST HD 361 S4:2020
HD 361 S4:2020 (E)
European foreword
This document (HD 361 S4:2020) has been prepared by CLC/TC 20 “Electric cables”.
The following dates are fixed:
• latest date by which this document has (dop) 2021-08-31
to be implemented at national level by
publication of an identical national
standard or by endorsement
• latest date by which the national (dow) 2023-08-31
standards conflicting with this document
have to be withdrawn
This document supersedes HD 361 S3:1999 and all of its amendments and corrigenda (if any).
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
3
---------------------- Page: 5 ----------------------
SIST HD 361 S4:2020
HD 361 S4:2020 (E)
Introduction
HD 361 was adopted by CENELEC on 18 November 1976. A second edition was published in 1986. The third
edition (1999) restricted the rated voltage of cables covered by this HD to an upper limit of 450/750V, and to
harmonized cables and cords or Recognized National Types (RNT).
This fourth edition incorporates amendment HD 361 S3:1999/A1:2006 to HD 361 S3:1999, which recognized
the discontinuation of the system of RNT, and expands the cable types to include EN 50618 and EN 50620.
The incorporation of the former raises the upper voltage limit to 1000/1000 V.
4
---------------------- Page: 6 ----------------------
SIST HD 361 S4:2020
HD 361 S4:2020 (E)
1 Scope
This document details a designation system for harmonized power cables and cords according to EN 50525
(series), EN 50214, EN 50618 and EN 50620.
NOTE The use of the system for Recognized National Types of cable or cord has been withdrawn by CLC/TC 20. For
non-harmonized cables, National Committees are permitted to use any designation that does not conflict with this HD, but
see Tables 2 and 4 for recommendations.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
EN 60228, Conductors of insulated cables (IEC 60228)
IEC 60050-461, International Electrotechnical Vocabulary (IEV) - Part 461: Electric cables
3 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 60050-461 apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at http://www.electropedia.org/
— ISO Online browsing platform: available at https://www.iso.org/obp
4 Basic elements of the designation
The cable designation shall be composed of three parts indicating the essential characteristics of a cable
(Table 1).
Table 1 — Basic elements of the cable description
Part Basic elements of the description See Table(s)
1 Relationship to Standards 2
Rated voltage 3
2 Construction of the cable, generally in a radial sequence and 4 to 7
starting with the insulation material; then after a dash,
Material and form of conductor(s) 8 and 9
3 Number and size of conductors 10
Part 1 and Part 2 of the designation are generally written without a space and constitute the « type designation »
of a cable or cord.
Part 3 of the designation constitutes specific information on the number and size of conductors, when required.
A survey of symbols and their sequence in the cable designation is given in Clause 8.
5 Part 1 of the Designation
Part 1 of the designation covers the relationship to standards and the rated voltages. The details are given in
Table 2 and Table 3
5
---------------------- Page: 7 ----------------------
SIST HD 361 S4:2020
HD 361 S4:2020 (E)
Table 2 — Relationship to standards
Symbol Relationship of cable to standards
H Cable conforming with harmonized standards
– Non-harmonized cable
National Committees may use any symbol or system that does not conflict with HD 361. If
the system laid down by HD 361 is used for non-harmonized cables, it is recommended
not to use a prefix symbol.
Table 3 — Rated Voltage
Symbol Value Uo/U
01 100/100 V
03 300/300 V
05 300/500 V
07 450/750 V
a)
1
1000/1000 V
a)
At present, the rated voltage is limited to PV-cables acc. to EN 50618.
6 Part 2 of the Designation
Part 2 of the des
...
SLOVENSKI STANDARD
oSIST prHD 361 S4:2019
01-november-2019
Sistem označevanja kablov
System for cable designation
System für Typkurzzeichen von isolierten Leitungen
Système de désignation de câbles
Ta slovenski standard je istoveten z: prHD 361 S4
ICS:
29.060.20 Kabli Cables
oSIST prHD 361 S4:2019 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
oSIST prHD 361 S4:2019
---------------------- Page: 2 ----------------------
oSIST prHD 361 S4:2019
HARMONIZATION DOCUMENT DRAFT
prHD 361 S4
DOCUMENT D'HARMONISATION
HARMONISIERUNGSDOKUMENT
September 2019
ICS 29.060 Will supersede HD 361 S3:1999 and all of its
amendments and corrigenda (if any)
English Version
System for cable designation
Système de désignation de câbles System für Typkurzzeichen von isolierten Leitungen
This draft Harmonization Document is submitted to CENELEC members for enquiry.
Deadline for CENELEC: 2019-12-06.
It has been drawn up by CLC/TC 20.
If this draft becomes a Harmonization Document, CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations
which stipulate the conditions for implementation of this Harmonization Document on a national level.
This draft Harmonization Document was established by CENELEC in three official versions (English, French, German).
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are aware and to
provide supporting documentation.
Warning : This document is not a Harmonization Document. It is distributed for review and comments. It is subject to change without notice
and shall not be referred to as a Harmonized Document.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2019 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Project: 68663 Ref. No. prHD 361 S4 E
---------------------- Page: 3 ----------------------
oSIST prHD 361 S4:2019
prHD 361 S4:2019 (E)
Contents Page
European foreword .3
Introduction .4
1 Scope .5
2 Normative references .5
3 Terms and definitions .5
4 Basic elements of the designation.5
5 Part 1 of the Designation .5
6 Part 2 of the Designation .6
7 Part 3 of the Designation .8
8 Survey of symbols .9
Bibliography . 12
2
---------------------- Page: 4 ----------------------
oSIST prHD 361 S4:2019
prHD 361 S4:2019 (E)
European foreword
This document (prHD 361 S4:2019) has been prepared by CLC/TC 20 “Electric cables”.
This document is currently submitted to the Enquiry.
The following dates are proposed:
• latest date by which the existence of this document has to be (doa) dor + 6 months
announced at national level
• latest date by which this document has to be implemented at (dop) dor + 12 months
national level by publication of an identical national standard
or by endorsement
• latest date by which the national standards conflicting with (dow) dor + 36 months
this document have to be withdrawn (to be confirmed or
modified when voting)
This document will supersede HD 361 S3:1999 and all of its amendments and corrigenda (if any).
3
---------------------- Page: 5 ----------------------
oSIST prHD 361 S4:2019
prHD 361 S4:2019 (E)
Introduction
HD 361 was adopted by CENELEC on 18 November 1976. A second edition was published in 1986. The third
edition (1999) restricted the rated voltage of cables covered by this HD to an upper limit of 450/750V, and to
harmonised cables and cords on recognised National Types.
This fourth edition implements amendment A1 to HD 361 S3:1999 and expands the cable types to EN 50618
and EN 50620.
4
---------------------- Page: 6 ----------------------
oSIST prHD 361 S4:2019
prHD 361 S4:2019 (E)
1 Scope
This document details a designation system for harmonised power cables and cords according to EN 50525
(series), EN 50214, EN 50618 and EN 50620.
NOTE The use of the system for Recognised National Types of cable or cord has been withdrawn by CLC/TC 20. For
non-harmonised cables National Committees are permitted to use any designation that does not conflict with this HD, but
see Tables 2 and 4 for recommendations.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
EN 60228, Conductors of insulated cables (IEC 60228)
IEC 60050-461, International Electrotechnical Vocabulary (IEV) - Part 461: Electric cables
3 Terms and definitions
For the purposes of this document, the terms and definitions given in IEC 60050-461 apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at http://www.electropedia.org/
— ISO Online browsing platform: available at http://www.iso.org/obp
4 Basic elements of the designation
The cable designation shall be composed of three parts indicating the essential characteristics of a cable
(Table 1).
Table 1 — Basic elements of the cable description
Part Basic elements of the description See Table(s)
1 Relationship to Standards 2
Rated voltage 3
2 Construction of the cable, generally in a radial sequence and 4 to 7
starting with the insulation material; then after a dash,
Material and form of conductor(s) 8 and 9
3 Number and size of conductors 10
Part 1 and Part 2 of the designation are generally written without a space and constitute the « type designation »
of a cable or cord.
Part 3 of the designation constitutes specific information on the number and size of conductors, when required.
A survey of symbols and their sequence in the cable designation is given in Clause 8.
5 Part 1 of the Designation
Part 1 of the designation covers the relationship to standards and the rated voltages. The details are given in
Table 2 and Table 3
5
---------------------- Page: 7 ----------------------
oSIST prHD 361 S4:2019
prHD 361 S4:2019 (E)
Table 2 — Relationship to standards
Symbol Relationship of cable to standards
H Cable conforming with harmonized standards
a Non-harmonized cable
a National Committees may use any symbol or system that does not conflict with HD 361.
If the system laid down by HD 361 is used for non-harmonized cables it is
recommended not to use a prefix symbol.
Table 3 — Rated Voltage
Symbol Value U /U
0
01 100/100 V;
03 300/300 V
05 300/500 V
07 450/750 V
a
1
1000/1000 V
a
At present, the rated voltage is limited to PV-cables acc. to EN 50618.
6 Part 2 of the Designation
Part 2 of the designation relates to the insulation and non-metallic sheathing materials (Table 4), metallic
coverings (Table 5),
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
