SIST EN 1983:2014

Industrial valves - Steel ball valves

This European Standard specifies requirements for industrial steel ball valves having flanged, threaded, socket welding or butt welding ends. The DN range is:
- DN 4 ; DN 6 ; DN 8 ; DN 10 ; DN 15 ; DN 20 ; DN 25 ; DN 32 ; DN 40 ; DN 50 ; DN 65 ; DN 80 ; DN 100 ; DN 125 ; DN 150 ; DN 200 ; DN 250 ; DN 300 ; DN 350 ; DN 400 ; DN 450 ; DN 500 ; DN 550 ; DN 600 ; DN 650 ; DN 700 ; DN 750 ; DN 800 ; DN 850 ; DN 900.
The PN and Class ranges are:
- PN 6 ; PN 10 ; PN 16 ; PN 25 ; PN 40 ; PN 63 ; PN 100 ;
- Class 150 ; Class 300 ; Class 600 ; Class 900 ; Class 1 500 ; Class 2 500 ; Class 4 500.
This European Standard applies to steel ball valves mainly used for industrial and general purpose applications. However, they can be used for other applications provided the requirements of the relevant performance standard are met.

Industriearmaturen - Kugelhähne aus Stahl

Diese Europäische Norm legt Anforderungen an industrielle Kugelhähne aus Stahl mit Flansch-, Gewinde-, Schweißmuffen- oder Anschweißenden fest.
Der Bereich der Nennweiten ist:
-   DN 4; DN 6; DN 8; DN 10; DN 15; DN 20; DN 25; DN 32; DN 40; DN 50; DN 65; DN 80; DN 100; DN 125; DN 150; DN 200; DN 250; DN 300; DN 350; DN 400; DN 450; DN 500; DN 550; DN 600; DN 650; DN 700; DN 750; DN 800; DN 850; DN 900.
Die PN- und Class-Bereiche sind:
-   PN 6; PN 10; PN 16; PN 25; PN 40; PN 63; PN 100;
-   Class 150; Class 300; Class 600; Class 900; Class 1 500; Class 2 500; Class 4 500.
Diese Europäische Norm gilt für Kugelhähne aus Stahl, die vorwiegend für industrielle und allgemeine Anwendungsfälle verwendet werden. Sie können jedoch auch für andere Anwendungsfälle verwendet werden, sofern die Anforderungen der jeweiligen Gebrauchstauglichkeitsnorm eingehalten werden.

Robinetterie industrielle - Robinets à tournant sphérique en acier

La présente Norme européenne prescrit les spécifications relatives aux robinets à tournant sphérique industriels en acier à extrémités à bride, extrémités filetées, extrémités à emboîter et à souder ou extrémités à souder en bout.
La gamme de DN est la suivante :
-   DN 4 ; DN 6 ; DN 8 ; DN 10 ; DN 15 ; DN 20 ; DN 25 ; DN 32 ; DN 40 ; DN 50 ; DN 65 ; DN 80 ; DN 100 ; DN 125 ; DN 150 ; DN 200 ; DN 250 ; DN 300 ; DN 350 ; DN 400 ; DN 450 ; DN 500 ; DN 550 ; DN 600 ; DN 650 ; DN 700 ; DN 750 ; DN 800 ; DN 850 ; DN 900.
Les gammes de PN et Class sont :
-   PN 6 ; PN 10 ; PN 16 ; PN 25 ; PN 40 ; PN 63 ; PN 100 ;
-   Class 150 ; Class 300 ; Class 600 ; Class 900 ; Class 1500 ; Class 2500 ; Class 4500.
La présente Norme européenne s’applique aux robinets à tournant sphérique en acier essentiellement utilisés pour des applications industrielles et générales. Ces appareils de robinetterie peuvent toutefois être utilisés pour d’autres applications pour autant que les spécifications de la norme de performance pertinente soient respectées.

Industrijski ventili - Jekleni krogelni ventili

Ta evropski standard določa zahteve za industrijske jeklene krogelne ventile, ki imajo prirobne, navojne, obojno varjene ali soležno varjene zaključke. Razpon DN je:
– DN 4; DN 6; DN 8; DN 10; DN 15; DN 20; DN 25; DN 32; DN 40; DN 50; DN 65; DN 80; DN 100; DN 125; DN 150; DN 200; DN 250; DN 300; DN 350; DN 400; DN 450; DN 500; DN 550; DN 600; DN 650; DN 700; DN 750; DN 800; DN 850; DN 900.
Razponi PN in razredov so:
– PN 6; PN 10; PN 16; PN 25; PN 40; PN 63; PN 100;
– razred 150; razred 300; razred 600; razred 900; razred 1500; razred 2500; razred 4500.
Ta evropski standard se uporablja za jeklene krogelne ventile, ki se uporabljajo zlasti za industrijske in splošne namene. Vendar se lahko uporabljajo za druge namene, če so izpolnjene zahteve ustreznega standarda zmogljivosti.

General Information

• Status: Published
• Publication Date: 05-Dec-2013
• ICS: 23.060.20 - Ball and plug valves
• Technical Committee: IHPV - Hydraulics and pneumatics
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 22-Nov-2013
• Due Date: 27-Jan-2014
• Completion Date: 06-Dec-2013
• Directive: 2014/68/EU - Directive 2014/68/EU of the European Parliament and of the Council of 15 May 2014 on the harmonisation of the laws of the Member States relating to the making available on the market of pressure equipment
• Directive: 97/23/EC - Directive 97/23/EC of the European Parliament and of the Council of 29 May 1997 on the approximation of the laws of the Member States concerning pressure equipment
• Mandate: M/071 - Mandate to CEN for standardization in the field of Pressure equipment
• Ref Project: EN 1983:2013 - Industrial valves - Steel ball valves

Relations

• Replaces: SIST EN 1983:2006 - Industrial valves - Steel ball valves
• Effective Date: 01-Jan-2014

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Industrijski ventili - Jekleni krogelni ventiliIndustriearmaturen - Kugelhähne aus StahlRobinetterie industrielle - Robinets à tournant sphérique en acierIndustrial valves - Steel ball valves23.060.20Zapirni ventili (kroglasti in pipe)Ball and plug valvesICS:Ta slovenski standard je istoveten z:EN 1983:2013SIST EN 1983:2014en,fr,de01-januar-2014SIST EN 1983:2014SLOVENSKI
STANDARDSIST EN 1983:20061DGRPHãþD



SIST EN 1983:2014



EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 1983
August 2013 ICS 23.060.20 Supersedes EN 1983:2006English Version
Industrial valves - Steel ball valves
Robinetterie industrielle - Robinets à tournant sphérique en acier
Industriearmaturen - Kugelhähne aus Stahl This European Standard was approved by CEN on 25 July 2013.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2013 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 1983:2013: ESIST EN 1983:2014

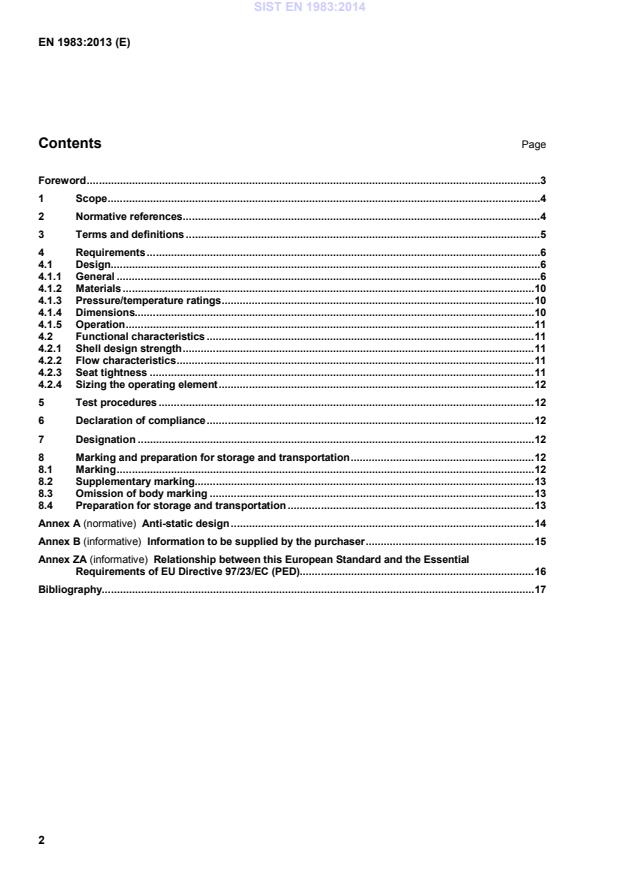

EN 1983:2013 (E) 2 Contents Page Foreword . 3 1 Scope . 4 2 Normative references . 4 3 Terms and definitions . 5 4 Requirements . 6 4.1 Design . 6 4.1.1 General . 6 4.1.2 Materials . 10 4.1.3 Pressure/temperature ratings . 10 4.1.4 Dimensions. 10 4.1.5 Operation . 11 4.2 Functional characteristics . 11 4.2.1 Shell design strength . 11 4.2.2 Flow characteristics . 11 4.2.3 Seat tightness . 11 4.2.4 Sizing the operating element . 12 5 Test procedures . 12 6 Declaration of compliance . 12 7 Designation . 12 8 Marking and preparation for storage and transportation . 12 8.1 Marking . 12 8.2 Supplementary marking . 13 8.3 Omission of body marking . 13 8.4 Preparation for storage and transportation . 13 Annex A (normative)
Anti-static design . 14 Annex B (informative)
Information to be supplied by the purchaser . 15 Annex ZA (informative)
Relationship between this European Standard and the Essential Requirements of EU Directive 97/23/EC (PED). 16 Bibliography. 17
SIST EN 1983:2014



EN 1983:2013 (E) 3 Foreword This document (EN 1983:2013) has been prepared by Technical Committee CEN/TC 69 “Industrial valves”, the secretariat of which is held by AFNOR. This European Standard shall be given the status of a national standard, either by publication of an identical text or by endorsement, at the latest by February 2014, and conflicting national standards shall be withdrawn at the latest by February 2014. Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights. This document has been prepared under a mandate given to CEN by the European Commission and the European Free Trade Association, and supports essential requirements of EU Directive(s). For relationship with EU Directive(s), see informative Annex ZA, which is an integral part of this document. This document supersedes EN 1983:2006. The most significant changes with respect to the previous version are the following:  the normative references have been updated in Clause 2 and throughout the text;  a reference to EN 13445-3 was added in 4.1.1.3 (design of the body) and in 4.2.1 (shell design strength);  the compulsory markings in 8.1 were updated. According to the CEN-CENELEC Internal Regulations, the national standards organisations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom. SIST EN 1983:2014



EN 1983:2013 (E) 4 1 Scope This European Standard specifies requirements for industrial steel ball valves having flanged, threaded, socket welding or butt welding ends. The DN range is:  DN 4 ; DN 6 ; DN 8 ; DN 10 ; DN 15 ; DN 20 ; DN 25 ; DN 32 ; DN 40 ; DN 50 ; DN 65 ; DN 80 ; DN 100 ; DN 125 ; DN 150 ; DN 200 ; DN 250 ; DN 300 ; DN 350 ; DN 400 ; DN 450 ; DN 500 ; DN 550 ; DN 600 ; DN 650 ; DN 700 ; DN 750 ; DN 800 ; DN 850 ; DN 900. The PN and Class ranges are:  PN 6 ; PN 10 ; PN 16 ; PN 25 ; PN 40 ; PN 63 ; PN 100 ;  Class 150 ; Class 300 ; Class 600 ; Class 900 ; Class 1 500 ; Class 2 500 ; Class 4 500. This European Standard applies to steel ball valves mainly used for industrial and general purpose applications. However, they can be used for other applications provided the requirements of the relevant performance standard are met. 2 Normative references The following documents, in whole or in part, are normatively referenced in this document and are indispensable for its application. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 19:2002, Industrial valves — Marking of metallic valves EN 558, Industrial valves — Face-to-face and centre-to-face dimensions of metal valves for use in flanged pipe systems — PN and Class designated valves EN 736-1:1995, Valves — Terminology — Part 1: Definition of types of valves EN 736-2:1997, Valves — Terminology — Part 2: Definition of components of valves EN 736-3:2008, Valves — Terminology — Part 3: Definition of terms EN 1092-1, Flanges and their joints — Circular flanges for pipes, valves, fittings and accessories, PN designated — Part 1: Steel flanges EN 1503-1, Valves — Materials for bodies, bonnets and covers — Part 1: Steels specified in European Standards EN 1503-2, Valves — Materials for bodies, bonnets and covers — Part 2: Steels other than those specified in European Standards EN 1515-1, Flanges and their joints — Bolting — Part 1: Selection of bolting EN 1515-2, Flanges and their joints — Bolting — Part 2: Classification of bolt materials for steel flanges, PN designated EN 1759-1, Flanges and their joint — Circular flanges for pipes, valves, fittings and accessories, Class designated — Part 1: Steel flanges, NPS 1/2 to 24 SIST EN 1983:2014



EN 1983:2013 (E) 5 EN 12266-1, Industrial valves — Testing of metallic valves — Part 1: Pressure tests, test procedures and acceptance criteria — Mandatory requirements EN 12266-2:2012, Industrial valves — Testing of metallic valves — Part 2: Tests, test procedures and acceptance criteria — Supplementary requirements EN 12516-1:2005,1) Industrial valves — Shell design strength — Part 1: Tabulation method for steel valve shells EN 12516-2:2004, Industrial valves — Shell design strength — Part 2: Calculation method for steel valve shells EN 12516-3:2002, Valves — Shell design strength — Part 3: Experimental method EN 12570, Industrial valves — Method for sizing the operating element EN 12627, Industrial valves — Butt welding ends for steel valves EN 12760, Valves — Socket welding ends for steel valves EN 12982:2009, Industrial valves — End-to-end and centre-to-end dimensions for butt welding end valves EN 13445-3:2009,2) Unfired pressure vessels — Part 3: Design EN ISO 228-1, Pipe threads where pressure-tight joints are not made on the threads — Part 1: Dimensions, tolerances and designation (ISO 228-1) EN ISO 5211, Industrial valves — Part-turn valve actuator attachments (ISO 5211) EN ISO 10497:2010, Testing of valves — Fire type-testing requirements (ISO 10497:2010) ISO 7-1, Pipe threads where pressure-tight joints are made on the threads — Part 1: Dimensions, tolerances and designation ASME B1.20.1, Pipe Threads, General Purpose (Inch) ASME B16.34, Valves — Flanged Threaded, and Welding End 3 Terms and definitions For the purposes of this document, the terms and definitions given in EN 736-1:1995, EN 736-2:1997 and EN 736-3:2008 and the following apply. 3.1 effective diameter manufactured minimum diameter through the flow passage of the valve in the fully open position
1) EN 12516-1:2005 is impacted by the corrigendum EN 12516-1:2005/AC:2007. 2) EN 13445-3:2009 is impacted by the stand-alone amendment EN 13445-3:2009/A1:2012. SIST EN 1983:2014



EN 1983:2013 (E) 6 4 Requirements 4.1 Design 4.1.1 General 4.1.1.1 Flow passage Valves shall be full bore or reduced bore pattern (see Figure 1).
a) Full bore pattern b) Reduced bore pattern Figure 1 — Valve patterns 4.1.1.2 Size and pressure designation The range of nominal sizes and pressure designations covered by each type of body end connection shall be as specified in Tables 1 to 3. Table 1 — Ball valves with flanged and butt welding ends Size PN Class DN 8 to DN 900 PN 10 to PN 100 Class 150 Class 300 Class 600 DN 8 to DN 600 - Class 900 DN 8 to DN 400 - Class 1 500 DN 8 to DN 50
Class 2 500 NOTE Sizes DN 8, DN 550, DN 650, DN 750 and DN 850 are not applicable to flanged valves.
Table 2 — Ball valves with socket weld ends Size PN Class DN 8 to DN 100 PN 10 - DN 8 to DN 50 PN 16 to PN 100 -
SIST EN 1983:2014



EN 1983:2013 (E) 7 Table 3 — Ball valves with threaded ends Size PN Class DN 4 to DN 100 PN 6 to PN 25 Class 150 DN 4 to DN 50 PN 40 to PN 100 Class 300 to Class 2 500 DN 4 to DN 10 - Class 4 500
Typical ball valve construction features are illustrated in Figure 2.
a) Type of ball
b) Type of body Key 1 seat support 2 trunnion support 3 sealed 4 one piece body - axial entry (insert) 5 to
...
