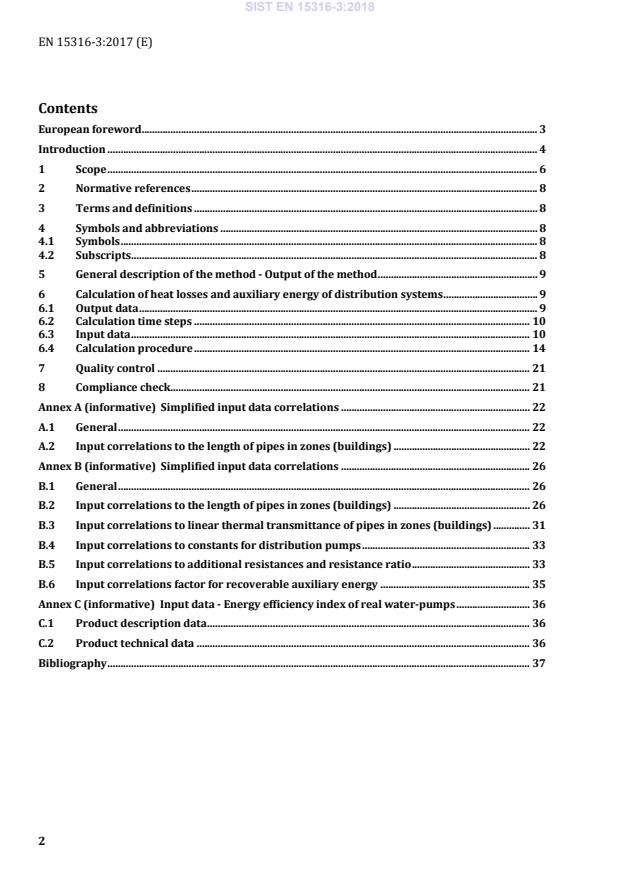

EN 15316-3:2017 (E) 2 Contents European foreword . 3 Introduction . 4 1 Scope . 6 2 Normative references . 8 3 Terms and definitions . 8 4 Symbols and abbreviations . 8 4.1 Symbols . 8 4.2 Subscripts . 8 5 General description of the method - Output of the method . 9 6 Calculation of heat losses and auxiliary energy of distribution systems . 9 6.1 Output data . 9 6.2 Calculation time steps . 10 6.3 Input data . 10 6.4 Calculation procedure . 14 7 Quality control . 21 8 Compliance check. 21 Annex A (informative)
Simplified input data correlations . 22 A.1 General . 22 A.2 Input correlations to the length of pipes in zones (buildings) . 22 Annex B (informative)
Simplified input data correlations . 26 B.1 General . 26 B.2 Input correlations to the length of pipes in zones (buildings) . 26 B.3 Input correlations to linear thermal transmittance of pipes in zones (buildings) . 31 B.4 Input correlations to constants for distribution pumps . 33 B.5 Input correlations to additional resistances and resistance ratio . 33 B.6 Input correlations factor for recoverable auxiliary energy . 35 Annex C (informative)
Input data - Energy efficiency index of real water-pumps . 36 C.1 Product description data . 36 C.2 Product technical data . 36 Bibliography . 37
SIST EN 15316-3:2018
EN 15316-3:2017 (E) 3 European foreword This document (EN 15316-3:2017) has been prepared by Technical Committee CEN/TC 228 “Heating systems and water based cooling systems in buildings”, the secretariat of which is held by DIN. This document supersedes EN 15316-2-3:2007 and EN 15316-3-2:2007. This European Standard shall be given the status of a national standard, either by publication of an identical text or by endorsement, at the latest by October 2017, and conflicting national standards shall be withdrawn at the latest by October 2017. This document has been prepared under a mandate given to CEN by the European Commission and the European Free Trade Association. Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CEN shall not be held responsible for identifying any or all such patent rights. According to the CEN-CENELEC Internal Regulations, the national standards organisations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom. SIST EN 15316-3:2018
EN 15316-3:2017 (E) 4 Introduction This standard is part of a package developed to support EPBD directive implementation, hereafter called “EPB set of standards”. All EPB standards follow specific rules to ensure overall consistency, unambiguity and transparency. All EPB standards provide a certain flexibility with regard to the methods, the required input data and references to other EPB standards, by the introduction of a normative template in Annex A and Annex B with informative default choices. For the correct use of this standard a normative template is given in Annex A to specify these choices. Informative default choices are provided in Annex B. CEN/TC 228 deals with heating systems in buildings. Subjects covered by TC 228 are: — energy performance calculation for heating systems; — inspection of heating systems; — design of heating systems; — installation and commissioning of heating systems This standard specifies the heat flux from distribution systems in space heating systems, space cooling systems and domestic hot water systems. This standard also specifies the auxiliary energy for pumps in space heating systems, space cooling systems and domestic hot water systems. This standard was developed during the first EPBD mandate and the first version was published in 2008 in two different parts – space heating systems and domestic hot water systems. This standard is dealing with both earlier standards (EN 15316-2-3 and EN 15316-3-2) and added space cooling systems. The revision concerned mainly unique calculation methods for the water-based distribution systems for the heat flux as well as for the auxiliary energy of pumps. The standard was updated to cover hourly/monthly/yearly time-step. Use by or for regulators: In case the standard is used in the context of national or regional legal requirements, mandatory choices may be given at national or regional level for such specific applications. These choices (either the informative default choices from Annex B or choices adapted to national / regional needs, but in any case following the template of this Annex A) can be made available as national annex or as separate (e.g. legal) document (national data sheet). NOTE So in this case: - the regulators will specify the choices; - the individual user will apply the standard to assess the energy performance of a building, and thereby use the choices made by the regulators,. Topics addressed in this standard can be subject to public regulation. Public regulation on the same topics can override the default values in Annex B of this standard. Public regulation on the same topics can even, for certain applications, override the use of this standard. Legal requirements and choices are in general not published in standards but in legal documents. In order to avoid double publications and difficult updating of double documents, a national annex may refer to the legal texts where national choices have been made by public authorities. Different national annexes or national data sheets are possible, for different applications. SIST EN 15316-3:2018
EN 15316-3:2017 (E) 5 It is expected, if the default values, choices and references to other EPB standards in Annex B are not followed due to national regulations, policy or traditions, that: — national or regional authorities prepare data sheets containing the choices and national or regional values, according to the model in Annex A. In this case the national annex (e.g. NA) refers to this text; — or, by default, the national standards body will consider the possibility to add or include a national annex in agreement with the template of Annex A, in accordance to the legal documents that give national or regional values and choices. Further target groups are parties wanting to motivate their assumptions by classifying the building energy performance for a dedicated building stock. SIST EN 15316-3:2018
EN 15316-3:2017 (E) 6 1 Scope This European Standard covers energy performance calculation of water based distribution systems for space heating, space cooling and domestic hot water. This European Standard deals with the heat flux from the distributed water to the space and the auxiliary energy of the related pumps. The heat flux and the auxiliary energy for pumps can be calculated at any time-step (hour, month and year). The input and output data are mean values of the time step. Instead of calculating the energy performance of water based distribution systems it is also possible to use measurements as long as they are following the timesteps of the whole performance calculation or can divided in those timesteps. Table 1 shows the relative position of this standard within the set of EPB standards in the context of the modular structure as set out in EN ISO 52000-1:2017. NOTE 1 In CEN ISO/TR 52000-2:2017 the same table can be found, with, for each module, the numbers of the relevant EPB standards and accompanying technical reports that are published or in preparation. NOTE 2 The modules represent EPB standards, although one EPB standard may cover more than one module and one module may be covered by more than one EPB standard, for instance a simplified and a detailed method respectively. See also Clause 2 and Tables A.1 and B.1. SIST EN 15316-3:2018
EN 15316-3:2017 (E) 7 Table 1 — Position of this standard, within the modular structure of the set of EPB standards Overarching
Building (as such) Technical Building Systems
Descriptions
Descriptions
Descriptions Heating Cooling Ventilation Humidification Dehumidification Domestic Hot water Lighting Building automation and control Electricity
production sub1
M1 sub1 M2 sub1
M3 M4 M5 M6 M7 M8 M9 M10 M11 1 General
1 General 1 General 15316–1
15316–1
2 Common terms and definitions; symbols, units and subscripts
2 Building Energy Needs 2 Needs
12831–3 ?
3 Applications
3 (Free) Indoor Conditions without
Systems 3 Maximum Load and Power 12831–1
12831–3
4 Ways to Express Energy
Performance
4 Ways to Express Energy Performance 4 Ways to Express Energy Performance 15316–1
15316–1
5 Building
Functions and Building Boundaries
5 Heat Transfer by Transmission 5 Emission and control 15316–2 15316–2
6 Building Occupancy and Operating Conditions
6 Heat Transfer by Infiltration and Ventilation 6 Distribution and control 15316–3 15316–3
15316–3
7 Aggregation of Energy Services and Energy Carriers
7 Internal
Heat Gains 7 Storage and control 15316–5
15316–5
15316–4-3
8 Building Partitioning
8 Solar
Heat Gains 8 Generation
8–1 Combustion boilers 15316–4-1
15316–4-1
8–2 Heat pumps 15316–4-2 15316–4-2
15316–4-2
8–3 Thermal solar Photovoltaics 15316–4-3
15316–4-3
15316–4-3
8–4 On-site cogeneration 15316–4-4
15316–4-4
15316–4-4
8–5 District heating and cooling 15316–4-5 15316–4-5
15316–4-5
8–6 Direct electrical heater 15316–4-6
15316–4-6
8–7 Wind turbines
15316–4-7
8–8 Radiant heating, stoves 15316–4-8
9 Calculated Energy Performance
9 Building Dynamics (thermal mass) 9 Load dispatching and operating conditions
10 Measured
Energy
Performance
10 Measured Energy Performance 10 Measured Energy Performance 15378–3
15378–3
11 Inspection
11 Inspection 11 Inspection 15378–1
15378–1
12 Ways to Express Indoor Comfort
12 – 12 BMS
13 External Environment Conditions
14 Economic Calculation 15459–1
NOTE The shaded modules are not applicable SIST EN 15316-3:2018
EN 15316-3:2017 (E) 8 2 Normative references The following documents, in whole or in part, are normatively referenced in this document and are indispensable for its application. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 15232-1, Energy Performance of Buildings - Energy performance of buildings - Part 1: Impact of Building Automation, Controls and Building Management - Modules M10-4,5,6,7,8,9,10 EN ISO 7345:1995, Thermal insulation - Physical quantities and definitions (ISO 7345:1987) EN ISO 52000-1:2017, Energy performance of buildings — Overarching EPB assessment – Part 1: General framework and procedures (ISO 52000-1:2017) 3 Terms and definitions For the purposes of this document, the terms and definitions given in EN ISO 7345:1995, EN ISO 52000-1:2017, and the following specific definitions apply. 3.1 tapping profile depending on the definition in M8-3 3.2 setback mode operation Mode for pumps at the end of scheduled usage time 3.3 boost mode operation Mode for pumps before the begin of scheduled usage time 4 Symbols and abbreviations 4.1 Symbols For the purposes of this document, the symbols given in EN ISO 52000-1:2017 and the specific symbols listed in Table 2 apply Table 2 — Symbols and units Symbol Name of quantity Unit nTap Tapping profile 1/h
Mean part load in a time step -
Expenditure energy factor - 4.2 Subscripts For the purposes of this European Standard, the subscripts given in EN ISO 52000-1:2017, and the specific subscripts listed in Table 3 apply. Table 3 — Subscripts boost Boost heating dis Distribution WX,dis Operation mode setb Setback mode dis Distribution WX,dis Operation mode SIST EN 15316-3:2018
EN 15316-3:2017 (E) 9 nom nominal heat loss dis Distribution Qw,dis,nom
stub open circuited stubs dis Distribution QW,dis,stub
5 General description of the method - Output of the method This method covers the calculation of
« thermal loss of the distribution system for space heating, space cooling and domestic hot water in the zone;
« recoverable thermal loss for space heating, space cooling and domestic hot water in the zone;
« auxiliary energy demand of distribution systems;
« recoverable auxiliary energy in the zone for space heating, space cooling and domestic hot water in the zone;
« recovered auxiliary energy in the fluid in the zone for space heating, space cooling and domestic hot water in the zone. The time step of the output can be according to the time-step of the input values: — hourly; — monthly; — yearly. All input and output values are mean values in the corresponding time step. Because of summarized time steps with the same boundary conditions the bin-method is also valid. 6 Calculation of heat losses and auxiliary energy of distribution systems 6.1 Output data The output data of this method are listed in Table 4: Table 4 — Output data of this method: Description Symbol Unit Validity interval Intended destination module Varying Temperature of DHW ÍWend °C 30.70 M8–1 YES Thermal loss of the distribution system for heating in the zone QH,dis,ls kWh
rå » M3–1 Yes Thermal loss of the distribution system for cooling in the zone QC,dis,ls kWh
rå » M4–1 Yes Thermal loss of the distribution system for DHW in the zone QW,dis,ls kWh
rå » M3–1 Yes Recoverable thermal loss of the distribution system for heating in the zone QH,dis,rbl kWh
rå » M3–1 Yes Recoverable thermal loss of the QC,dis,rbl kWh
rå » M4–1 Yes SIST EN 15316-3:2018
EN 15316-3:2017 (E) 10 distribution system for cooling in the zone Recoverable thermal loss of the distribution system for DHW in the zone QW,dis,rbl kWh
rå » M3–1 Yes Auxiliary energy for distribution system heating in the zone WH,dis kWh
rå » M3–1 Yes Auxiliary energy for distribution system cooling in the zone WC,dis kWh
rå » M4–1 Yes Auxiliary energy for distribution system DHW in the zone WW,dis kWh
rå » M3–1 Yes Recoverable auxiliary energy for distribution system heating in the zone QH,dis,rbl kWh
rå » M3t1 Yes Recoverable auxiliary energy for distribution system cooling in the zone QC,dis,rbl kWh
rå » M4t1 Yes Recoverable auxiliary energy for distribution system DHW in the zone QW,dis,rbl kWh
rå » M3t1 Yes Recovered auxiliary energy for distribution system heating in the zone QH,dis,rvd kWh
rå » M3t1 Yes Recovered auxiliary energy for distribution system cooling in the zone QC,dis,rvd kWh
rå » M4t1 Yes Recovered auxiliary energy for distribution system DHW in the zone QW,dis,rvd kWh
rå » M3t1 Yes 6.2 Calculation time steps The methods described in paragraph 6 are suitable for the following calculation time steps: — hourly — monthly — yearly For this method, the output time step is the same as the input time-step. This method does not take into account any dynamic effect. 6.3 Input data 6.3.1 Product technical data (quantitative) According to the EU-Regulations circulation pumps (wet running meter) are certified with an energy efficiency index EEI (see Table 5). The EEI-value is determined by a measurement procedure. If the EEI of a real pump is known it can be taken into account.
Other circulation pumps are not included in this regulation. SIST EN 15316-3:2018
EN 15316-3:2017 (E) 11 Table 5 — Product technical input data list Characteristics Symbol Catalogue
unit Computed Unit Validity interval Ref. Varying Energy efficiency index EEI
- 0…1
YES Default data are given in Annex B. 6.3.2 Configuration and system design data 6.3.2.1 Process design The input data of the process design are listed in Table 6: Table 6 — Process design input data list Process design
Tapping profile ntap 1/h number of operations of circulation pump nnom 1/d average hot water temperature in circulation system without operation ÍW,avg °C resistance ratio of components in the piping system fcomp - pressure loss per length RHCW,max kPa/m pressure losses of additional resistances ,HCWaddp∆ kPa Length of pipes L m Equivalent length of pipes (for valves, hangers etc.) Lequi m 6.3.2.2 Controls This identifier (see Table 7) indicates how the pump is controlled. Table 7 — Identifiers for pump control Identifier Code Meaning HEAT_DISTR_CTRL_PMP 0 Uncontrolled HEAT_DISTR_CTRL_PMP 1 On-off mode HEAT_DISTR_CTRL_PMP 2 Multi-stage-control HEAT_DISTR_CTRL_PMP 3 Variable Speed control based on p∆ -constant HEAT_DISTR_CTRL_PMP 4 Variable Speed control based on p∆ -variable In this standard it is distinguished only between the codes 0, 3 and 4 because codes 1 and 2 are dealing with the energy demand and not with the type of operation. This identifier (see Table 8) indicates how the pump is operating in intermittent control of emission and/or distribution SIST EN 15316-3:2018
EN 15316-3:2017 (E) 12 Table 8 — Identifiers for pump control (intermittent) Identifier Code Meaning HEAT_DISTR_CTRL 0 No automatic control HEAT_DISTR_CTRL 1 Fixed time program HEAT_DISTR_CTRL 2 control with optimum start/stop HEAT_DISTR_CTRL 3 Control with demand evaluation In this standard it is distinguished only between the codes 0, 2 / 3. Code 1 is dealing with the energy demand. The values are corresponding to EN 15232-1. The identifier for pump selection in the design process (see Table 9) takes into account whether the pump is selected with its working point at the design point or not. Different from design point is also be used for existing pumps. Table 9 — Identifiers for pump selection Identifier Code Meaning PUMP_DISTR_SEL 1 When selection at design point PUMP_DISTR_SEL 2 When selection different from design point SIST EN 15316-3:2018
EN 15316-3:2017 (E) 13 6.3.3 Operating or boundary conditions Required operating conditions data for this calculation procedure are listed in Table 10. Table 10 — Operating conditions data list Name Symbol Unit Range Origin Module Varying Operating conditions
Input temperature of the heating circuit ÍH,in °C 0.110 M3–5 YES Flowrate in the heating circuit HV=m3/h
rå »
YES Mean part load of heating circuit H,dis - 0.1
YES Input temperature of the cooling circuit ÍC,in °C 0.110 M4–5 YES Flowrate in the cooling circuit CV=m3/h
rå »
YES Mean part load of cooling circuit C,dis=- 0.1
YES Temperature of DHW ÍW °C 30.70 M8–1 YES Temperature difference between hot water tapping temperature to the return temperature in a circulation loop system ÍW °C 1…20
YES Flowrate in the DHW circulation system WV m3/h
rå »
YES calculation interval tci h 1…8760 M1–9 YES total time operation top h 0…8760 M1–6 YES Surrounding zone temperature in the calculation interval at heating period Íah,H °C
«40…+40 M2–2 YES Surrounding zone temperature in the calculation interval at cooling period Íah,C °C
«40…+40 M2–2 YES Surrounding zone temperature in the calculation interval at DHW period Íamb,W °C
«40…+40 M2–2 YES operation time of the distribution system THCW,op=h 0.8760 M2–2 YES SIST EN 15316-3:2018
EN 15316-3:2017 (E) 14 6.3.4 Constants and physical data Table 11 indicates constants and physical data. Table 11 — Constants and physical data Name Symbol Unit Value
cw ®w kWh/(m3·K) 1,15 Specific heat of water cw
sá s x ub s r «3 Density of water w kg/m3 990 6.4 Calculation procedure 6.4.1 Applicable time step The procedure can be used with the following time steps: — hourly; — monthly; — yearly. The bin-method can also be used because in this method only identical time steps are summarized. No dynamic effects are explicitly taken into account because there are no significant time constants. This procedure is not suitable for dynamic simulations. 6.4.2 Operating conditions calculation 6.4.3 Heat loss calculation The heat loss calculation of a distribution system is based on the mean water supply temperature, the surrounding temperature in a space, the thermal transmittance of the pipes, the length of the pipes and the operation time. The mean water temperature in the distribution systems ÍX,mean for space heating and space cooling is given by: ,,HC,mean2HCinHCoutϑϑϑ+==[°C]==(1Φ=where=ÍHC,mean [°C] mean water temperature in the distribution system at time step ÍHC,in [°C] input water temperature in the emission system at time step ÍHC,out [°C] output water temperature in the emission system at time step The mean water temperature in the distribution system W,mean for DHW is given by: W,mean2WWϑϑϑ∆=−=[°C]==(2Φ=SIST EN 15316-3:2018
EN 15316-3:2017 (E) 15 where ÍW [°C] hot water temperature at time step Wϑ∆=[°C] temperature difference between hot water tapping temperature to the return temperature in a circulation loop system at time stepawhile The linear thermal transmittance
for insulated pipes in air with a total heat transfer coefficient including convection and radiation at the outside is given by: 11ln2aDiaaddhdπλΨ=⋅+⋅⋅=
(3) where di, da [m] the inner diameter (without insulation) and outer diameter (with insulation) of the pipe ha [W/(m2K] outer total surface coefficient of heat transfer (convection and radiation) (see Annex B) D [W/mK] thermal conductivity of insulation For embedded pipes the linear thermal transmittance em
is given by: 1114lnln2emaDiemadzddπλλΨ=⋅⋅+⋅=
(4) where z [m] the depth of pipe from surface em [W/(mK] thermal conductivity of embedded material For non-insulated pipes the linear thermal transmittance non is given by: ,,,11ln2nonpaPpiapaddhdπλΨ=⋅+⋅⋅=
(5) where dp,i, dp,a [m] the inner and outer diameter of the pipe P [W/mK] thermal conductivity of the pipe material As an approximation the linear thermal transmittance non is given by: ,nonapahdπΨ=⋅⋅=
(6) The thermal loss for a distribution system QX,dis,ls for space heating, space cooling and DHW with a circulation loop in a zone during operation time is given by: (Φ(Φ,,,,,,011000HCWoptHCWdislsjHCWmeanHCWambjequicijjQLLtϑϑ=Ψ⋅−⋅+⋅∑∑=[kWh]==(7Φ=SIST EN 15316-3:2018
EN 15316-3:2017 (E) 16 where j [-] index for zone (unconditioned or conditioned) ÍHCW,amb,j [°C] surrounding temperature in the zone at time step L [m] length of the pipe in the zone (unconditioned or conditioned) Lequi [m] equivalent length of pipe in the zone (unconditioned or conditioned) for valves, hangers etc. tci [h] calculation time step tHCW,op [h] total operation time for space heating, space cooling and circulation loop of DHW The additional thermal loss for distribution pipes with open circuited stubs QW,dis,stub per time step during operation (tapping) is given by: (Φ,,,,,,,WdislsstubWdisstubwWWambjciQmctϑϑ=⋅⋅−⋅ [kWh]
(8) where cW [kWh/kgK] specific heat of water mW,dis,stub [kg/h] mass flow of hot water in open circuited stubs per time step The mass flow of hot water in open circuited stubs mw,dis,stub during operation (tapping) is given by: ,,,WdisstubstubjWtapjjmVnρ=⋅⋅∑ [kg/h]
(9) where V [m3] Volume of pipes in open circuited stubs per zone W [kg/m3] density of water ntap,j [1/h] number of tapings per zone and time step The thermal loss in circulation systems without operation Qw,dis,nom is calculated according to Formula (7) where the mean water temperature at operation time is substituted by the average hot water temperature W,avg in the circulation system without operation at time step. (Φ(Φ,,,,,,011000WoptWdisnomjWavgWambjequicijjQLLtϑϑ=Ψ⋅−⋅+⋅∑∑=[kWh]==(10Φ=where=ÍW,avg [°C] average hot water temperature in circulation system without operation at time step The hot water temperature after a tapping during a time without operation W,dis,atap is given by: (Φ,,,,,,,,iCWdisatapiWahjWavgbeginWambjeϑϑϑϑ−=+−⋅=[°C]==(11Φ=where=Ci [-] Exponent in pipe section i (see Formula 13) SIST EN 15316-3:2018
EN 15316-3:2017 (E) 17 The exponent Ci for the calculation of the temperature drop after a tappi
...
