SIST EN 16228-7:2014+A1:2022
(Main)Drilling and foundation equipment - Safety - Part 7: Interchangeable auxiliary equipment
Drilling and foundation equipment - Safety - Part 7: Interchangeable auxiliary equipment
This European Standard, together with part 1, deals with all significant hazards for interchangeable auxiliary equipment when they are used as intended and under the conditions of misuse which are reasonably foreseeable by the manufacturer associated with the whole life time of the machine (see Clause 4).
The requirements of this part are complementary to the common requirements formulated in EN 16228-1:2014+A1:2021.
This document does not repeat the requirements from EN 16228-1:2014+A1:2021, but adds or replaces the requirements for application for interchangeable auxiliary equipment.
This document specifies the specific safety requirements for interchangeable auxiliary equipment to be used in drilling and foundation operations, connected with drilling and foundation equipment, agricultural equipment and/or earth moving machinery when they are used as intended and under the conditions of misuse which are reasonably foreseeable by the manufacturer.
Interchangeable auxiliary equipment includes pile installation and extraction equipment, impact hammers, extractors, vibrators, deep vibrators, static pile pushing/pulling devices, rotary percussion hammers, rotary drilling drives, drill mast equipment such as leaders equipped with a drill stem and gears attached to the boom of an excavator and casing oscillators/rotators.
Diaphragm wall cutting tools are dealt with in EN 16228-5:2014+A1:2021.
Geräte für Bohr- und Gründungsarbeiten - Sicherheit - Teil 7: Auswechselbare Zusatzausrüstungen
Diese Europäische Norm behandelt zusammen mit Teil 1 alle wesentlichen Gefährdungen für auswechsel¬bare Zusatzausrüstungen, wenn sie bestimmungsgemäß und unter den Bedingungen der Fehlanwendung, die vernünftigerweise vom Hersteller vorhersehbar sind und mit der gesamten Lebensdauer der Maschine in Verbindung stehen, verwendet werden (siehe Abschnitt 4).
Die Anforderungen in diesem Teil gelten zusätzlich zu den in EN 16228-1:2014 gestellten gemeinsamen Anforderungen.
Das vorliegende Dokument wiederholt nicht die Anforderungen von EN 16228-1, sondern ergänzt oder ersetzt die Anforderungen für die Anwendung von auswechselbaren Zusatzausrüstungen.
Dieses Dokument legt die besonderen Sicherheitsanforderungen für auswechselbare Zusatzausrüstungen fest, die bei Bohr- und Gründungsarbeiten im Zusammenhang mit Geräten für Bohr- und Gründungsarbeiten, landwirtschaftlichen Geräten und/oder Erdbaumaschinen zu verwenden sind, wenn sie bestimmungsgemäß und unter den Bedingungen der Fehlanwendung, die vernünftigerweise vom Hersteller vorhersehbar sind, verwendet werden.
Auswechselbare Zusatzausrüstungen umfassen Ramm- und Zieheinrichtungen, Schlaghämmer, Ziehhämmer, Rüttler, Tiefenrüttler, statische Ramm-/Zieheinrichtungen, Drehschlagbohrhämmer, Drehbohrantriebe, Bohr-mastausstattung wie Mäkler, die mit Bohrgestänge und Getriebe ausgerüstet und am Ausleger eines Baggers angebracht sind, sowie oszillierende/durchdrehende Verrohrungsmaschinen.
Schlitzwandschneidwerkzeuge werden in EN 16228-5 behandelt.
Machines de forage et de fondation - Sécurité - Partie 7 : Équipements complémentaires interchangeables
La présente Norme européenne traite, avec la partie 1, de tous les phénomènes dangereux significatifs liés aux équipements interchangeables, lorsqu'ils sont utilisés normalement et dans les conditions de mauvaise utilisation raisonnablement prévisibles par le fabricant associés à toute la durée de vie des machines (voir Article 4).
Les prescriptions figurant dans la présente partie viennent en complément des prescriptions communes spécifiées dans l’EN 16228-1:2014+A1:2021.
Le présent document ne répète pas les prescriptions de l’EN 16228-1:2014+A1:2021, mais ajoute ou remplace les prescriptions applicables aux équipements interchangeables.
Le présent document spécifie les prescriptions de sécurité particulières relatives aux équipements interchangeables à utiliser lors des opérations de forage et de fondation et qui sont montés sur les machines de forage et de fondation, les machines agricoles et/ou engins de terrassement, lorsqu'ils sont utilisés normalement et dans les conditions prévues par le fabricant.
Les équipements interchangeables comprennent les machines de fonçage et d’arrachage de pieux, les moutons, les extracteurs, les vibro-fonceurs, les vibreurs de fond, les dispositifs statiques de fonçage/arrachage de pieux, les marteaux rotatifs à percussion, les systèmes d'entraînement pour forage par rotation, les équipements de mât de forage tels que les mâts de guidage équipés d'une tige de forage et les mécanismes fixés à la flèche d'une pelle et les oscillateurs/entraîneurs en rotation du tubage.
Les outils pour parois moulées sont traités dans l’EN 16228-5:2014+A1:2021.
Oprema za vrtanje in temeljenje - Varnost - 7. del: Zamenljiva pomožna oprema
Ta evropski standard skupaj s 1. delom obravnava vsa večja tveganja za zamenljivo pomožno opremo, če se uporablja v skladu s predvidenim namenom in pod pogoji nepravilne uporabe, ki jih je razumno predvidel proizvajalec, v zvezi s celotno življenjsko dobo opreme (glej točko 4).
Zahteve iz tega dela dopolnjujejo splošne zahteve, navedene v standardu EN 16228-1:2014+A1:2021.
Ta dokument ne ponavlja zahtev iz standarda EN 16228-1:2014+A1:2021, temveč dodaja ali nadomešča zahteve za uporabo zamenljive pomožne opreme.
Ta dokument določa posebne varnostne zahteve za zamenljivo pomožno opremo, ki se uporablja za vrtanje in temeljenje, povezano z opremo za vrtanje in temeljenje, kmetijsko opremo in/ali opremo za zemeljska dela, če se uporablja v skladu s predvidenim namenom in pod pogoji nepravilne uporabe, ki jih je razumno predvidel proizvajalec.
Zamenljiva pomožna oprema zajema opremo za namestitev in ekstrakcijo pilotov, udarne vrtalnike, ekstraktorje, vibratorje, globoke vibratorje, naprave za potiskanje/vlečenje statičnih pilotov, rotacijska udarna kladiva, rotacijske vrtalne pogone, vrtalno opremo, kot so vodila, opremljena z vrtalnikom, ter oprema, pritrjena na roko bagra in oscilatorje/rotatorje v ohišju.
Rezalna orodja za izdelavo membranskih sten so obravnavana v standardu EN 16228-5:2014+A1:2021.
General Information
Relations
Standards Content (Sample)

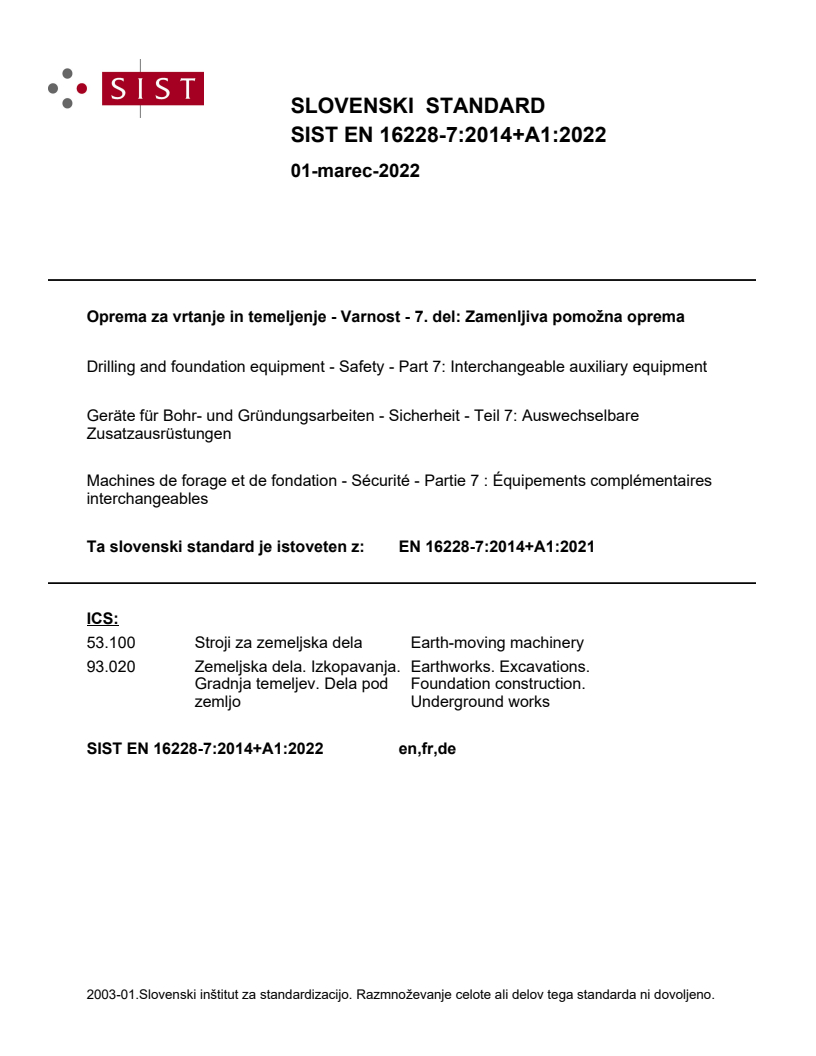

SLOVENSKI STANDARD
SIST EN 16228-7:2014+A1:2022
01-marec-2022
Oprema za vrtanje in temeljenje - Varnost - 7. del: Zamenljiva pomožna oprema
Drilling and foundation equipment - Safety - Part 7: Interchangeable auxiliary equipment
Geräte für Bohr- und Gründungsarbeiten - Sicherheit - Teil 7: Auswechselbare
Zusatzausrüstungen
Machines de forage et de fondation - Sécurité - Partie 7 : Équipements complémentaires
interchangeables
Ta slovenski standard je istoveten z: EN 16228-7:2014+A1:2021
ICS:
53.100 Stroji za zemeljska dela Earth-moving machinery
93.020 Zemeljska dela. Izkopavanja. Earthworks. Excavations.
Gradnja temeljev. Dela pod Foundation construction.
zemljo Underground works
SIST EN 16228-7:2014+A1:2022 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
SIST EN 16228-7:2014+A1:2022
---------------------- Page: 2 ----------------------
SIST EN 16228-7:2014+A1:2022

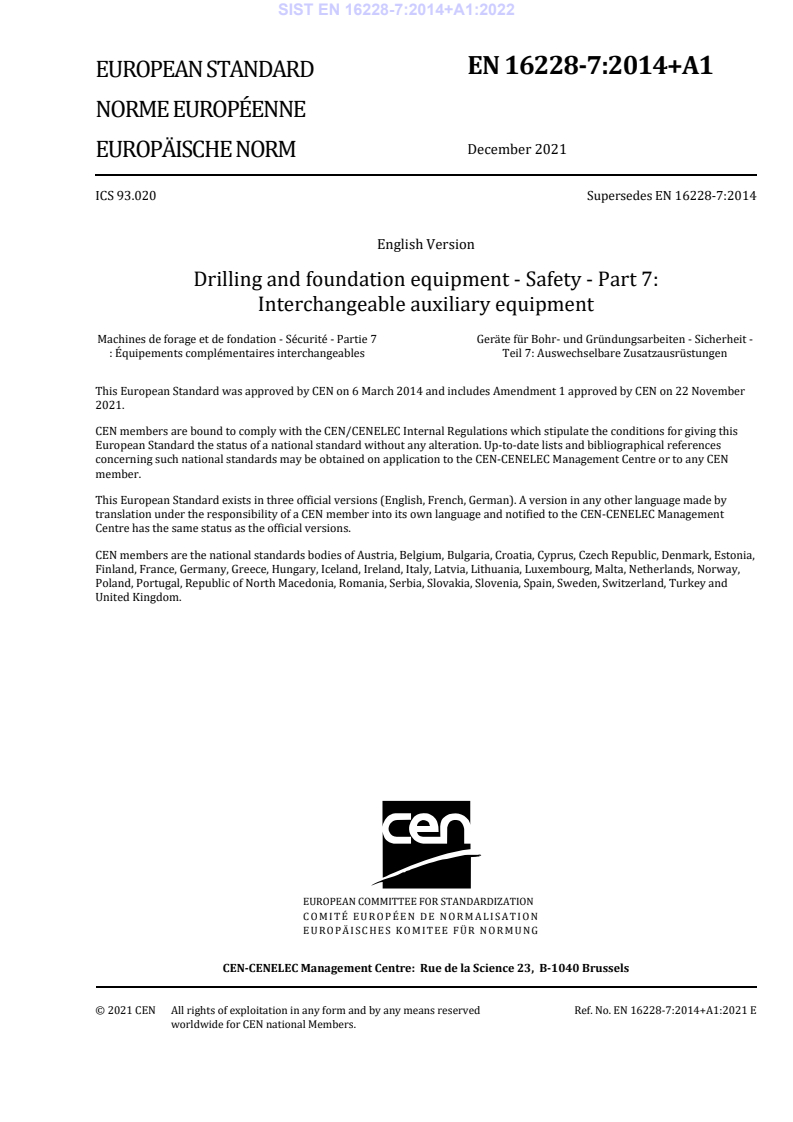

EN 16228-7:2014+A1
EUROPEAN STANDARD
NORME EUROPÉENNE
December 2021
EUROPÄISCHE NORM
ICS 93.020 Supersedes EN 16228-7:2014
English Version
Drilling and foundation equipment - Safety - Part 7:
Interchangeable auxiliary equipment
Machines de forage et de fondation - Sécurité - Partie 7 Geräte für Bohr- und Gründungsarbeiten - Sicherheit -
: Équipements complémentaires interchangeables Teil 7: Auswechselbare Zusatzausrüstungen
This European Standard was approved by CEN on 6 March 2014 and includes Amendment 1 approved by CEN on 22 November
2021.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2021 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 16228-7:2014+A1:2021 E
worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
SIST EN 16228-7:2014+A1:2022
EN 16228-7:2014+A1:2021 (E)

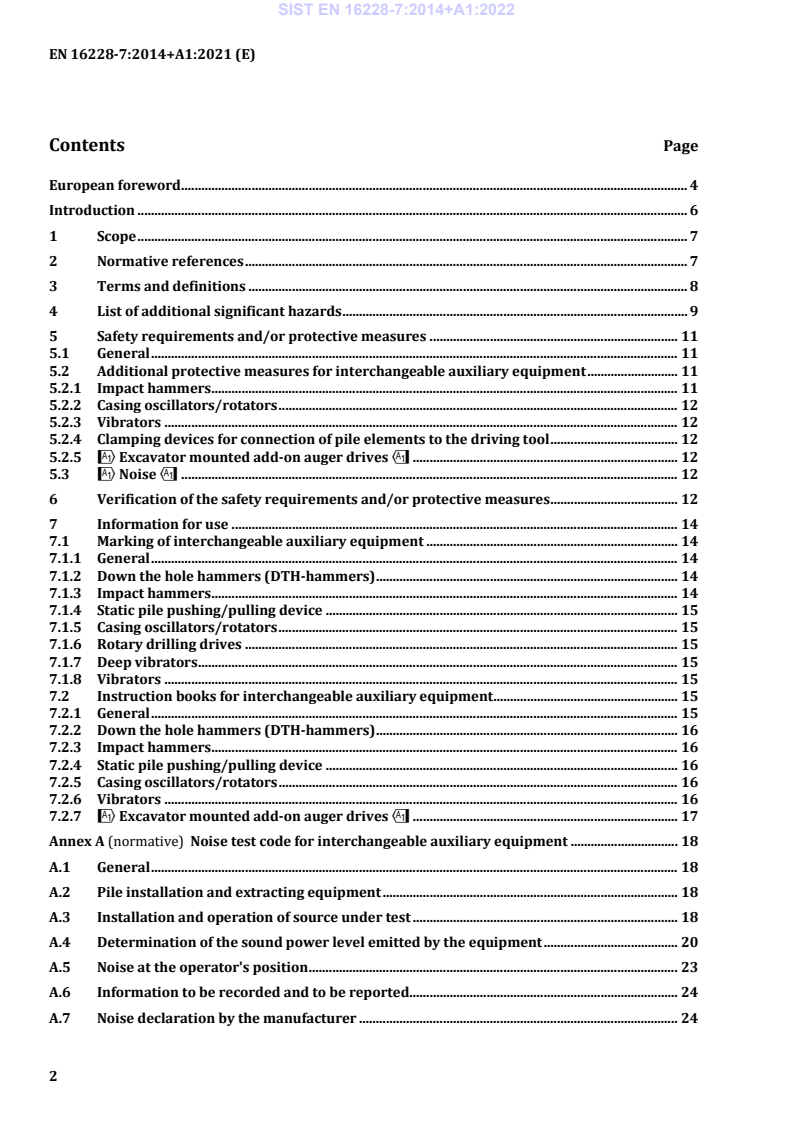

Contents Page
European foreword . 4
Introduction . 6
1 Scope . 7
2 Normative references . 7
3 Terms and definitions . 8
4 List of additional significant hazards . 9
5 Safety requirements and/or protective measures . 11
5.1 General . 11
5.2 Additional protective measures for interchangeable auxiliary equipment . 11
5.2.1 Impact hammers . 11
5.2.2 Casing oscillators/rotators . 12
5.2.3 Vibrators . 12
5.2.4 Clamping devices for connection of pile elements to the driving tool . 12
5.2.5 !Excavator mounted add-on auger drives" . 12
5.3 !Noise" . 12
6 Verification of the safety requirements and/or protective measures . 12
7 Information for use . 14
7.1 Marking of interchangeable auxiliary equipment . 14
7.1.1 General . 14
7.1.2 Down the hole hammers (DTH-hammers) . 14
7.1.3 Impact hammers . 14
7.1.4 Static pile pushing/pulling device . 15
7.1.5 Casing oscillators/rotators . 15
7.1.6 Rotary drilling drives . 15
7.1.7 Deep vibrators . 15
7.1.8 Vibrators . 15
7.2 Instruction books for interchangeable auxiliary equipment . 15
7.2.1 General . 15
7.2.2 Down the hole hammers (DTH-hammers) . 16
7.2.3 Impact hammers . 16
7.2.4 Static pile pushing/pulling device . 16
7.2.5 Casing oscillators/rotators . 16
7.2.6 Vibrators . 16
7.2.7 !Excavator mounted add-on auger drives" . 17
Annex A (normative) Noise test code for interchangeable auxiliary equipment . 18
A.1 General . 18
A.2 Pile installation and extracting equipment . 18
A.3 Installation and operation of source under test . 18
A.4 Determination of the sound power level emitted by the equipment . 20
A.5 Noise at the operator's position . 23
A.6 Information to be recorded and to be reported . 24
A.7 Noise declaration by the manufacturer . 24
2
---------------------- Page: 4 ----------------------
SIST EN 16228-7:2014+A1:2022
EN 16228-7:2014+A1:2021 (E)
Annex ZA (informative) !Relationship between this European Standard and the essential
requirements of Directive2006/42/EC aimed to be covered" . 25
Bibliography . 28
3
---------------------- Page: 5 ----------------------
SIST EN 16228-7:2014+A1:2022
EN 16228-7:2014+A1:2021 (E)
European foreword
This document (EN 16228-7:2014+A1:2021) has been prepared by Technical Committee CEN/TC 151
“Construction equipment and building material machines - Safety”, the secretariat of which is held by
DIN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by June 2022 and conflicting national standards shall be
withdrawn at the latest by June 2022.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes !EN 16228-7:2014".
This document includes Amendment 1 approved by CEN on 22 November 2021.
The start and finish of text introduced or altered by amendment is indicated in the text by tags !".
This document has been prepared under a Standardization Request given to CEN by the European
Commission and the European Free Trade Association, and supports essential requirements of EU
Directive(s) / Regulation(s).
For relationship with EU Directive(s) / Regulation(s), see informative Annex ZA, which is an integral
part of this document.
This European Standard is divided into several parts and covers drilling and foundation equipment.
Part 1 contains requirements that are/may be common to all drilling and foundation equipment. Other
parts contain additional requirements for specific machines that supplement or modify the
requirements of part 1. Compliance with the clauses of part 1 together with those of a relevant specific
part of this standard giving requirements for a particular machine provides one means of conforming
with the essential health and safety requirements of the Directive concerned.
When a relevant specific part does not exist, part 1 can help to establish the requirements for the
machine, but will not by itself provide a means of conforming to the relevant essential health and safety
requirements of the Directive.
This European Standard, EN 16228, Drillling and foundation equipment – Safety, consists of the
following parts:
— Part 1: Common requirements
— !Part 2: Mobile drill rigs for civil and geotechnical engineering in soil or soil and rock mixture"
— Part 3: Horizontal directional drilling equipment (HDD)
— Part 4: Foundation equipment
— Part 5: Diaphragm walling equipment
— Part 6: Jetting, grouting and injection equipment
4
---------------------- Page: 6 ----------------------
SIST EN 16228-7:2014+A1:2022
EN 16228-7:2014+A1:2021 (E)
— Part 7: Interchangeable auxiliary equipment
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,
Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of
North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the
United Kingdom.
5
---------------------- Page: 7 ----------------------
SIST EN 16228-7:2014+A1:2022
EN 16228-7:2014+A1:2021 (E)
Introduction
This European Standard is a type C standard as stated in EN ISO 12100.
The machinery concerned and the extent to which hazards are covered are indicated in the scope of this
standard.
When provisions of this type C standard are different from those which are stated in type A or B
standards, the provisions of this type C standard take precedence over the provisions of the other
standards, for drilling and foundation equipment that have been designed and built according to the
provisions of this type C standard.
6
---------------------- Page: 8 ----------------------
SIST EN 16228-7:2014+A1:2022
EN 16228-7:2014+A1:2021 (E)
1 Scope
This European Standard, together with part 1, deals with all significant hazards for interchangeable
auxiliary equipment when they are used as intended and under the conditions of misuse which are
reasonably foreseeable by the manufacturer associated with the whole life time of the machine (see
Clause 4).
The requirements of this part are complementary to the common requirements formulated in !EN
16228-1:2014+A1:2021".
This document does not repeat the requirements from !EN 16228-1:2014+A1:2021", but adds or
replaces the requirements for application for interchangeable auxiliary equipment.
This document specifies the specific safety requirements for interchangeable auxiliary equipment to be
used in drilling and foundation operations, connected with drilling and foundation equipment,
agricultural equipment and/or earth moving machinery when they are used as intended and under the
conditions of misuse which are reasonably foreseeable by the manufacturer.
Interchangeable auxiliary equipment includes pile installation and extraction equipment, impact
hammers, extractors, vibrators, deep vibrators, static pile pushing/pulling devices, rotary percussion
hammers, rotary drilling drives, drill mast equipment such as leaders equipped with a drill stem and
gears attached to the boom of an excavator and casing oscillators/rotators.
Diaphragm wall cutting tools are dealt with in !EN 16228-5:2014+A1:2021".
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
!EN 16228-1:2014+A1:2021", Drilling and foundation equipment — Safety — Part 1: General
requirements
!EN 16228-2:2014+A1:2021", Drilling and foundation equipment — Safety — !Part 2: Mobile
drill rigs for civil and geotechnical engineering in soil or soil and rock mixture"
!EN 16228-3:2014+A1:2021", Drilling and foundation equipment — Safety — Part 3: Horizontal
directional drilling equipment (HDD)
!EN 16228-4:2014+A1:2021", Drilling and foundation equipment — Safety — Part 4: Foundation
equipment
!EN 16228-5:2014+A1:2021", Drilling and foundation equipment — Safety — Part 5: Diaphragm
walling equipment
!EN 16228-6:2014+A1:2021", Drilling and foundation equipment — Safety — Part 6: Jetting,
grouting and injection equipment
EN ISO 3744:2010, Acoustics — Determination of sound power levels and sound energy levels of noise
sources using sound pressure — Engineering methods for an essentially free field over a reflecting plane
(ISO 3744:2010)
EN ISO 11201:2010, Acoustics — Noise emitted by machinery and equipment — Determination of
emission sound pressure levels at a work station and at other specified positions in an essentially free field
over a reflecting plane with negligible environmental corrections (ISO 11201:2010)
7
---------------------- Page: 9 ----------------------
SIST EN 16228-7:2014+A1:2022
EN 16228-7:2014+A1:2021 (E)
EN ISO 11203:2009, Acoustics — Noise emitted by machinery and equipment — Determination of
emission sound pressure levels at a work station and at other specified positions from the sound power
level (ISO 11203:1995)
EN ISO 12100:2010, Safety of machinery — General principles for design — Risk assessment and risk
reduction (ISO 12100:2010)
3 Terms and definitions
For the purposes of this document, the terms and definitions given in EN ISO 12100:2010,
!EN 16228-1:2014+A1:2021" and the following apply.
NOTE Examples are given in Annex A of !EN 16228–1:2014+A1:2021".
3.1
rotary percussion hammers
equipment to drill holes into the ground, where the rotary drive has an additional impact hammer
Note 1 to entry: The rotary percussion hammer can be mounted at the end of the drill stem outside the hole on
the leader of the drilling and foundation equipment. The range of the impact frequencies is usually between 20 Hz
and 60 Hz.
3.2
down the hole hammers (DTH-hammers)
device in which the percussion mechanism is located directly behind the drill bit
Note 1 to entry: The drill pipes transmit the necessary feed force and rotation to hammer and bit plus
compressed air or fluids for the hammer and flushing of cuttings. The drill pipes are added to the drill string
successively behind the hammer as the hole gets deeper. The hammer piston strikes the impact surface of the bit
directly, while the hammer casing gives straight and stable guidance of the drill bit. This means that the impact
energy does not have to pass through any joints at all. The impact energy therefore is not lost in joints allowing for
much deeper percussion drilling.
3.3
impact hammer
leader-guided or free-riding equipment to drive pile-elements by high-force striking action into the
ground
Note 1 to entry: The equipment can be actuated by hydraulic or pneumatic energy, or by internal combustion,
e.g. diesel hammer or a free falling weight lifted by a winch.
3.4
static pile pushing/pulling device
equipment to push or pull piles, mostly sheet piles, into or out of the ground or vice versa, by static
pushing pulling forces, which are commonly actuated by hydraulic energy
Note 1 to entry: The equipment is fastened via clamps to more than one pile and is pushing/pulling one pile
with the actuator und using the other clamps as thrust bearing. This equipment can be mounted on a leader of a
drilling and foundation equipment or can be self-riding on top of the piles.
3.5
sonic drilling device
equipment which superposes rotary drilling with vibrations at a high frequency
Note 1 to entry: The vibrations are mostly generated within the drill head and can be controlled by the operator
to suit the specific conditions of the soil/rock geology. Resonance magnifies the amplitude of the drill bit, which
8
---------------------- Page: 10 ----------------------
SIST EN 16228-7:2014+A1:2022
EN 16228-7:2014+A1:2021 (E)
fluidizes the soil particles at the bit face, generating a fast and easy penetration through most geological
formations. The frequencies used with this method are normally between 50 Hz and 120 Hz. This equipment can
be connected at the leader of a drilling and foundation equipment.
3.6
casing oscillator/rotator
equipment to drive in or push out casings with great diameters by low-speed rotation and high
push/pull force
Note 1 to entry: This equipment can be connected to the undercarriage of the drilling and foundation
equipment. Some types of casing oscillator/rotator can be used as standalone equipment, controlled from the
operator’s position of the drilling and foundation equipment, or by an extra operator at the casing
oscillator/rotator. In case of combination with the undercarriage, the drilling and foundation equipment has to be
able to resist the reaction forces coming from the torque and the pushing/pulling forces of the casing
oscillator/rotator. The movement of the clamp system holding the casing can be intermittent, changing the
moving direction after each movement interval or can be a more or less turning movement in one direction.
3.7
rotary drilling drives
equipment to actuate the rotating drilling stem, which is normally mounted at a leader or mast
Note 1 to entry: Rotary drilling drives are rotating the drill stem continuously in one direction.
3.8
deep vibrator
equipment to densify the soil by using a vertical into the ground driven lance, which is driven by an
unbalanced mass at the bottom part of the lance
Note 1 to entry: The hole which is generated by densifying the ground is filled with soil improving material such
as gravel. This material can be fed by a special material tube alongside the deep vibrator or by filling the emerging
hole with gravel by loaders. The apparatus can be rope suspended or guided on a leader or mast. The vibrations
are normally generated by hydraulic or electric power and have a usual range between 25 Hz and 60 Hz.
3.9
vibrators
equipment to install or extract piling elements by high-frequency oscillation into or out of the ground
Note 1 to entry: The force is generated by vibrations, which have a usual range between 20 Hz and 50 Hz. These
vibrations will soften the ground; the weight or pull down or pulling force will move the elements. The vibrations
are generated by unbalanced weights, which are driven by hydraulic or electric power. Vibrators can be mounted
at the leader of a piling rig or can be free riding at top of the element, suspended by a rope or connected to a
cardan/universal joint to the carrier machine.
3.10
connection of parts
installation of interchangeable equipment onto drilling and foundation equipment, earth-moving or
agricultural equipment
4 List of additional significant hazards
Clause 4 of !EN 16228-1:2014+A1:2021" applies with the following additional Table 1.
Table 1 of !EN 16228-1:2014+A1:2021" and the additional Table 1 in this document contain all
hazards, (hazardous situations and events), identified by risk assessments as significant for
interchangeable auxiliary equipment and which require action to eliminate or reduce risk.
9
---------------------- Page: 11 ----------------------
SIST EN 16228-7:2014+A1:2022
EN 16228-7:2014+A1:2021 (E)
Hazards generally occur under the following conditions:
a) in transportation to and from the work site;
b) in rigging and dismantling on the work site;
c) in service on the work site;
d) when moving between pile positions on the work site;
e) out of service on the work site;
f) in storage at the plant depot or on the work site;
g) maintenance.
!Table 1 — List of additional significant hazards and associated requirements
No. Hazard Relevant
clause(s) in this
standard
1 Mechanical hazards
1.1 Generated by machine parts or work pieces, e.g. by:
1.1.1 Mass and stability 5.2.1, 5.2.3, 5.2.4
1.1.2 Mass and velocity 5.2.1
1.1.3 Inadequacy of mechanical strength 5.2.1, 5.2.3, 5.2.4,
7.2.4
1.2 Accumulation of energy inside the machinery, e.g. by:
1.2.1 Fluids under pressure 5.2.4
1.3 Elementary forms of mechanical hazards
1.3.1 Crushing 5.2.3, 5.2.4, 7.2.6
1.3.2 Cutting or severing 5.2.2
1.3.3 Impact 5.2.1
2 Processed materials and substances, used materials, fuels
2.1 Hazards from contact with harmful fluids, gases, mists, fumes 5.2.1
and dusts
3 Unexpected start-up, unexpected overrun/overspeed (or any
similar malfunction) from:
3.1 Other external influences (gravity, wind, etc.) 5.2.1, 5.2.3, 5.2.4
4 Hazards generated by noise, resulting in:
4.1 Hearing losses and physiological disorders 5.3, Annex A
4.2 Accidents due to interference with speech communication and 5.3, Annex A
warning signals
5 Loss of stability/overturning of machinery 5.2.1
10
---------------------- Page: 12 ----------------------
SIST EN 16228-7:2014+A1:2022
EN 16228-7:2014+A1:2021 (E)
No. Hazard Relevant
clause(s) in this
standard
6 Relating to the travelling function
6.1 Uncontrolled movement of machine when starting the engine 5.2.2, 7.2.5
6.2 Movement without an operator at the driving position 5.2.2
6.3 Excessive oscillations when moving 5.2.2
6.4 Insufficient ability of machinery to be slowed down, stopped 5.2.2
and immobilized
7 Mechanical hazards at the work position
— fall of objects, penetration by object; 5.2.1, 5.2.3, 5.2.4
— contact of persons with machine parts or tools (pedestrian 5.2.2
control).
8 Vibration at the driving position 5.2.3
9 Mechanical hazards and events
9.1 From load falls, collision, machine tipping caused by:
9.1.1 Lack of stability 5.2.1
9.1.2 Uncontrolled loading; overloading; overturning moment 5.2.1
exceeded
9.1.3 Unexpected/unintended movement of loads 5.2.3, 5.2.4
9.1.4 Inadequate holding devices/accessories 5.2.3, 5.2.4
9.2 From insufficient mechanical strength of parts 5.2.1, 5.2.3, 5.2.4
"
5 Safety requirements and/or protective measures
5.1 General
The final combination of interchangeable auxiliary equipment with drilling and foundation equipment
and/or earth-moving machinery shall fulfil the requirements of !EN 16228-1:2014+A1:2021 to
EN 16228-6:2014+A1:2021", where applicable.
!Interchangeable auxiliary equipment of drilling and foundation equipment shall comply with the
requirements of EN 16228-1:2014+A1:2021, except as modified or replaced by the requirements of this
part. In addition, interchangeable auxiliary equipment having no mobility nor lifting function, the
corresponding clauses of EN 16228-1:2014+A1:2021 do not apply, e.g. 5.7, 5.10.2, 5.16.3, 5.2.3.6.6,
5.2.3.6.7."
!deleted text"
5.2 Additional protective measures for interchangeable auxiliary equipment
5.2.1 Impact hammers
A device to control and limit the striking energy of impact type hammers/extractors shall be installed.
The exhaust channel for diesel hammers shall lead to upwards opening.
11
---------------------- Page: 13 ----------------------
SIST EN 16228-7:2014+A1:2022
EN 16228-7:2014+A1:2021 (E)
5.2.2 Casing oscillators/rotators
The controls (including emergency stop) shall stay at the operator’s position, or if there is a separate
control station, there shall be an additional emergency stop at the operator’s position.
5.2.3 Vibrators
Suspension devices of vibrators shall isolate the transmission of vibrations to the carrier machine.
The maximum allowable pulling force shall be clearly marked on the vibrator.
In case of failure or breakage of the spring elements, a connection between vibrator and suspension
device shall remain in order to prevent broken parts falling down.
5.2.4 Clamping devices for connection of pile elements to the driving tool
The clamping force of the clamping device for vibrators shall be in any operating condition at least
1,2 times the actual vertical force.
This condition is deemed to be met when the clamping force is at least 1,2 times the theoretical
maximum centrifugal force under no load.
The clamping force for static pile pushing or pulling devices shall be at least 2 times the maximum
pulling force.
The pressure developed in the hydraulic system shall provide at least the required minimum clamping
force, and a device shall be included in the system for maintaining automatically the hydraulic pressure
at the minimum required value as long as the clamp is closed.
All clamp systems shall have a protective device which prevents clamps from being unintentionally
opened during operation.
Clamps shall have a safety device (e.g. check valve) maintaining them in the closed position even in case
of total loss of pressure in the hydraulic lines.
!The clamp hydraulic cylinder pressure shall be indicated on a pressure gauge or an indication
device.
Clamping devices shall be made such that they facilitate the pitching of the pile into the gap of the
clamping device, e.g. by guiding plates or chamfers at the open end of the gap.
Interchangeable equipment equipped with a clamping device for driving sheet piles or piles shall be
fitted with an anchoring point to which a device (e.g. rope or chain) can be attached to secure the sheet
piles or piles. This does not apply to cast in situ system."
5.2.5 !Excavator mounted add-on auger drives
Add-on auger drives mounted on the boom of an excavator are excluded from the requirement of
guarding the auger. EN 16228-1:2014+A1:2021, 5.23.2 does not apply."
5.3 !Noise
EN 16228-1:2014+A1:2021, 5.27.2 applies with the addition of specific test code specified in
Annex A."
6 Verification of the safety requirements and/or protective measures
Safety requirements and/or protective measures of Cla
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
