SIST EN 50290-2-21:2002/A1:2008

Communication cables -- Part 2-21: Common design rules and construction - PVC insulation compounds

Gives specific requirements for PVC insulation compounds used for communication cables.

Kommunikationskabel -- Teil 2-21: Gemeinsame Regeln für Entwicklung und Konstruktion - PVC-Isoliermischungen

Câbles de communication -- Partie 2-21: Règles de conception communes et construction - Mélanges en PVC pour enveloppes isolantes

Komunikacijski kabli - 2-21. del: Skupna pravila za načrtovanje in konstrukcija - Izolacijske PVC zmesi

Podaja specifične zahteve za izolacijske PVC zmesi, ki se uporabljajo za komunikacijske kable.

General Information

• Status: Published
• Publication Date: 04-Dec-2007
• ICS: 29.035.20 - Plastics and rubber insulating materials
• ICS: 33.120.10 - Coaxial cables. Waveguides
• Technical Committee: MOC - Mobile Communications
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 26-Nov-2007
• Due Date: 31-Jan-2008
• Completion Date: 05-Dec-2007
• Directive: 2006/95/EC - Directive 2006/95/EC of the European Parliament and of the Council of 12 December 2006 on the harmonisation of the laws of Member States relating to electrical equipment designed for use within certain voltage limits (codified version)
• Directive: 2014/35/EU - Directive 2014/35/EU of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to the making available on the market of electrical equipment designed for use within certain voltage limits
• Ref Project: EN 50290-2-21:2001/A1:2007 - Communication cables - Part 2-21: Common design rules and construction - PVC insulation compounds

Relations

• Amends: SIST EN 50290-2-21:2002 - Communication cables - Part 2-21: Common design rules and construction - PVC insulation compounds
• Effective Date: 01-Feb-2008
• Corrected By: SIST EN 50290-2-21:2002/A1:2008/AC:2016 - Communication cables - Part 2-21: Common design rules and construction - PVC insulation compounds
• Effective Date: 19-Jan-2016

Overview

EN 50290-2-21:2001/A1:2007 (CENELEC) covers common design rules and construction requirements for PVC insulation compounds used in communication cables. This amendment (A1, approved 2007-03-01) updates the original part by introducing a new high‑temperature PVC grade (Grade TI55) and clarifying requirements such as lead‑free limits. The standard is intended for manufacturers, designers and test laboratories working with cable insulation materials in telecom and data applications.

Key topics and technical requirements

• Scope and purpose: Defines mechanical, thermal and electrical performance criteria for PVC insulation compounds intended for communication cables, and specifies test methods.
• New grade TI55: Introduced for cables with a maximum rated temperature of 90 °C (can exceed to 105 °C with reduced lifetime). Typical TI55 requirements include:
  • Tensile strength (median, min): 15 MPa
  • Elongation at break (median, min): 150%
  • Ageing regime: 140 ±2 °C for 14 × 24 h
  • Heat shock: 150 °C for 6 h, no cracks
  • Pressure (high temperature) test at 90 ±2 °C
  • Low temperature behaviour: bend test at −15 ±2 °C, no cracks
  • Volume resistivity and thermal stability values specified where applicable
• Lead‑free requirement: If lead‑free PVC is required, lead content shall be < 400 ppm, measured in accordance with EN 50414.
• Referenced test standards: Uses EN 60811 series for mechanical, ageing, heat shock, pressure and shrinkage tests; EN 50414 for lead measurement; and annexes for electrical tests (volume resistivity).
• Performance matrix: The standard provides a table of characteristic limits for different PVC grades (TI51–TI55), covering maximum rated temperature, density, hardness, tensile/elongation, loss of mass after ageing, heat shock, pressure test, low temperature behaviour, volume resistivity, thermal stability, shrinkage and dielectric constant (when required).

Applications and practical value

• Guides cable designers and compound formulators in selecting PVC materials that meet required mechanical, thermal and electrical performance for telecom and data cables.
• Used by manufacturers to specify insulation compounds and by test laboratories to verify compliance using EN 60811 test methods.
• Useful for procurement/specification writers and compliance officers to ensure materials meet European harmonized criteria for reliable service life at rated temperatures (including higher‑temperature applications).
• Relevant in projects where high temperature performance or lead‑free materials are required (e.g., indoor/outdoor telecommunication cabling, industrial data networks).

Related standards

• EN 50290-2-21:2001 (original)
• EN 60811 series (material test methods referenced throughout)
• EN 50414 (lead measurement in plastics)

Keywords: EN 50290-2-21:2001/A1:2007, communication cables, PVC insulation compounds, PVC Grade TI55, CENELEC, EN 60811, lead‑free PVC.

Standards Content (Sample)

SLOVENSKI STANDARD
01-februar-2008
.RPXQLNDFLMVNLNDEOLGHO6NXSQDSUDYLOD]DQDþUWRYDQMHLQNRQVWUXNFLMD
,]RODFLMVNH39&]PHVL
Communication cables - Part 2-21: Common design rules and construction - PVC
insulation compounds
Kommunikationskabel - Teil 2-21: Gemeinsame Regeln für Entwicklung und Konstruktion
- PVC-Isoliermischungen
Câbles de communication - Partie 2-21: Regles de conception communes et construction
- Mélanges en PVC pour enveloppes isolantes
Ta slovenski standard je istoveten z: EN 50290-2-21:2001/A1:2007
ICS:
29.035.20
33.120.10
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 50290-2-21/A1
NORME EUROPÉENNE
June 2007
EUROPÄISCHE NORM
ICS 29.035.20; 33.120.10
English version
Communication cables -
Part 2-21: Common design rules and construction -
PVC insulation compounds
Câbles de communication -  Kommunikationskabel -
Partie 2-21: Règles de conception Teil 2-21: Gemeinsame Regeln
communes et construction - für Entwicklung und Konstruktion -
Mélanges en PVC PVC-Isoliermischungen
pour enveloppes isolantes
This amendment A1 modifies the European Standard EN 50290-2-21:2001; it was approved by CENELEC on
2007-03-01. CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which
stipulate the conditions for giving this amendment the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This amendment exists in three official versions (English, French, German). A version in any other language
made by translation under the responsibility of a CENELEC member into its own language and notified to the
Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Cyprus, the
Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,
Sweden, Switzerland and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Central Secretariat: rue de Stassart 35, B - 1050 Brussels

© 2007 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 50290-2-21:2001/A1:2007 E

Foreword
This amendment to the European Standard EN 50290-2-21:2001 was prepared by the Technical
Committee CENELEC TC 46X, Communication cables.
The text of the draft was submitted to the Unique Acceptance Procedure and was approved by CENELEC
as amendment A1 to EN 50290-2-21:2001 on 2007-03-01.
The following dates were fixed:
– latest date by which the amendment has to be
implemented at national level by publication of
(dop) 2008-03-01
an identical national standard or by endorsement
– latest date by which the national standards conflicting
(dow) 2010-03-01
with the amendment have to be withdrawn

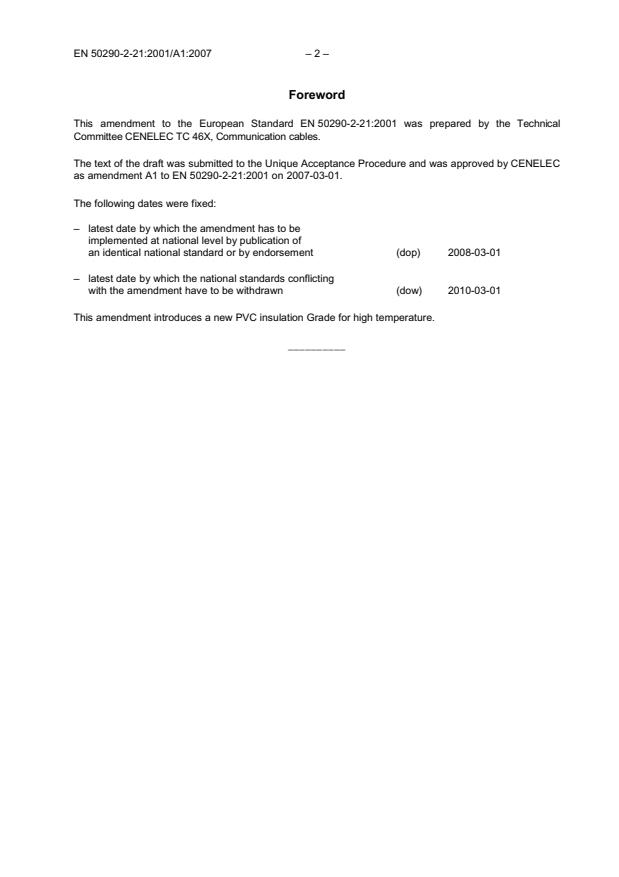

This amendment introduces a new PVC insulation Grade for high temperature.
