SIST EN 50290-2-36:2016

Communication cables - Part 2-36: Common design rules and construction - Crosslinked Silicone rubber insulation compound

This Part 2-36 of EN 50290 gives specific requirements for crosslinked Silicone rubber compound (SiR) to be used for the insulation of fire resistant cables.
It is essential to read this European Standard in conjunction with Part 2-20 of EN 50290 and other applicable product standards.
Using raw material and type test data as outlined in this standard, the raw material supplier will have sufficient data to demonstrate compliance and warrant that the material is suitable for the specified application.
This part 2-36 of EN 50290 describes the compound type as given in Table 1.

Kommunikationskabel - Teil 2-36: Gemeinsame Regeln für Entwicklung und Konstruktion - Vernetzte Silikongummi-Isoliermischung

Dieser Teil 2-36 der EN 50290 legt spezifische Anforderungen für vernetzte Silikongummi-Isoliermischungen für die Isolierung von flammwidrigen Kabeln fest.
Diese Europäische Norm ist zusammen mit EN 50290-2 20, den Produktnormen EN 50288-7, EN 61158 und anderen zutreffenden Produktnormen zu lesen.
Die Verwendung der Prüfwerte der Rohstoffe und der Daten von Typprüfungen wie in dieser Norm beschrieben, stellt dem Lieferanten der Rohstoffe ausreichende Daten zur Verfügung, um die Nachweise der Übereinstimmung mit den Anforderungen zu erbringen und um zu garantieren, dass das Material für die festgelegte Anwendung geeignet ist.
Dieser Teil 2-36 der EN 50290 beschreibt die Mischungstypen nach Tabelle 1.

Câbles de communication - Partie 2-36: Règles de conception communes et construction - Mélange de caoutchouc silicone réticulé pour enveloppes isolantes

La présente partie 2-36 de l'EN 50290 fournit les exigences spécifiques relatives au mélange de caoutchouc silicone (SiR: Silicone Rubber) réticulé destiné à être utilisé pour l'isolation des câbles résistants au feu.
Il est indispensable de lire la présente Norme européenne conjointement avec la Partie 2-20 de l'EN 50290 et d'autres normes de produit applicables.
En utilisant les données relatives aux matières premières et aux essais de type, telles qu'énoncées dans la présente norme, le fournisseur de matières premières dispose de données suffisantes pour en démontrer la conformité et garantir que le matériau convient pour l'application spécifiée.
La présente partie 2-36 de l'EN 50290 décrit le type de mélange donné dans le Tableau 1.

Komunikacijski kabli - 2-36. del: Skupna pravila za snovanje in konstruiranje - Izolacijska zmes iz zamrežene silikonske gume

Ta del 2-36 standarda EN 50290 podaja posebne zahteve za zmes iz zamrežene silikonske gume
(SiR), ki se uporablja za izolacijo ognjevzdržnih kablov.
Pomembno je, da se ta evropski standard bere v povezavi z delom 2-20 standarda EN 50290 in drugimi
veljavnimi standardi za proizvode.
Z uporabo podatkov o surovini in tipskem preskušanju, kot je opisano v tem standardu, bo imel dobavitelj surovine
dovolj podatkov, da dokaže skladnost in jamči, da je material ustrezen za opredeljeno
uporabo.

General Information

• Status: Published
• Public Enquiry End Date: 31-May-2016
• Publication Date: 28-Aug-2016
• ICS: 29.035.20 - Plastics and rubber insulating materials
• ICS: 33.120.10 - Coaxial cables. Waveguides
• Technical Committee: MOC - Mobile Communications
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 24-Aug-2016
• Due Date: 29-Oct-2016
• Completion Date: 29-Aug-2016
• Ref Project: EN 50290-2-36:2016 - Communication cables - Part 2-36: Common design rules and construction - Crosslinked Silicone rubber insulation compound

Overview

EN 50290-2-36:2016 defines specific requirements for crosslinked silicone rubber (SiR) compounds intended for the insulation of fire-resistant communication cables. This Part 2-36 must be read together with EN 50290-2-20 and other applicable product standards. The standard sets compound and cable test expectations and clarifies the data a raw material supplier should provide to demonstrate suitability and compliance.

Key details from the standard include:

• Compound type: Crosslinked SiR with a maximum operating temperature of 180 °C (Table 1).
• Supplier responsibility: Compound suppliers provide granule or moulded plaque test data so cable manufacturers can include the material in supply specifications.

Key Topics

The standard focuses on measurable properties and required test methods. Important topics covered are:

• Compound test requirements (Table 2)

  • Corrosivity of gases (EN 60754-2): pH ≥ 4.3 and conductivity ≤ 10 μS/mm.
  • Halogen acid content (EN 60754-1, EN 60684-2): HCl/HBr ≤ 0.5%, HF ≤ 0.1%.
  • Density (EN 60811-606): to be reported by the supplier.

• Cable-level tests (Table 3)

  • Mechanical properties before ageing (EN 60811-501): tensile strength median ≥ 5 MPa, elongation at break median ≥ 150%.
  • After thermal ageing (EN 60811-401; ageing 200 ±3 °C for 10 × 24 h): tensile strength median ≥ 4 MPa, elongation ≥ 120%.
  • Hot set (EN 60811-507; 250 ±3 °C, 15 min, 20 ±0.5 N/cm²): elongation under load max 100%, residual elongation max 25%.

• Normative references: EN 50290-2-20, EN 60684-2, EN 60754-1/2, EN 60811-series and other IEC-derived test methods.

Applications

This standard is intended for:

• Manufacturers and formulators of SiR insulation compounds for fire-resistant communication and coaxial cables.
• Cable designers and OEMs who need to specify insulation materials with verified thermal stability, low corrosivity, and defined mechanical performance after ageing.
• Raw material suppliers that must supply test reports and guaranteed values so cable makers can include the compound in product specifications.

Practical benefits include consistent material selection, reduced risk of corrosive combustion products in service, and documented evidence to support regulatory and contract compliance.

Related Standards

EN 50290-2-36:2016 is part of the EN 50290 family and references several test method standards that are essential for application:

• EN 50290-2-20 - Common design rules and construction - General
• EN 60684-2, EN 60754-1, EN 60754-2 - Gas evolution and halogen/acid tests
• EN 60811-401 / -501 / -507 / -606 - Non-metallic materials test methods (thermal ageing, mechanical, hot set, density)

For procurement and compliance, always specify the referenced test methods and report the compound values listed in Tables 2 and 3. Any deviations or HSE issues should be identified by the raw material supplier and resolved with the cable manufacturer in accordance with EN 50290-2-20.

Standards Content (Sample)

SLOVENSKI STANDARD
01-oktober-2016
Komunikacijski kabli - 2-36. del: Skupna pravila za snovanje in konstruiranje -
Izolacijska zmes iz zamrežene silikonske gume
Communication cables - Part 2-36: Common design rules and construction - Crosslinked
Silicone rubber insulation compound
Câbles de communication - Partie 2-36: Règles de conception communes et construction
- Mélange de caoutchouc silicone réticulé pour enveloppes isolantes
Ta slovenski standard je istoveten z: EN 50290-2-36:2016
ICS:
29.035.20 3ODVWLþQLLQJXPHQLL]RODFLMVNL Plastics and rubber insulating
PDWHULDOL materials
33.120.10 Koaksialni kabli. Valovodi Coaxial cables. Waveguides
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN 50290-2-36

NORME EUROPÉENNE
EUROPÄISCHE NORM
August 2016
ICS 33.120.10; 29.035.20
English Version
Communication cables - Part 2-36: Common design rules and
construction - Crosslinked Silicone rubber insulation compound
Câbles de communication - Partie 2-36: Règles de Kommunikationskabel - Teil 2-36: Gemeinsame Regeln für
conception communes et construction - Mélange de Entwicklung und Konstruktion - Vernetzte Silikongummi-
caoutchouc silicone réticulé pour enveloppes isolantes Isoliermischung
This European Standard was approved by CENELEC on 2016-07-22. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2016 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 50290-2-36:2016 E

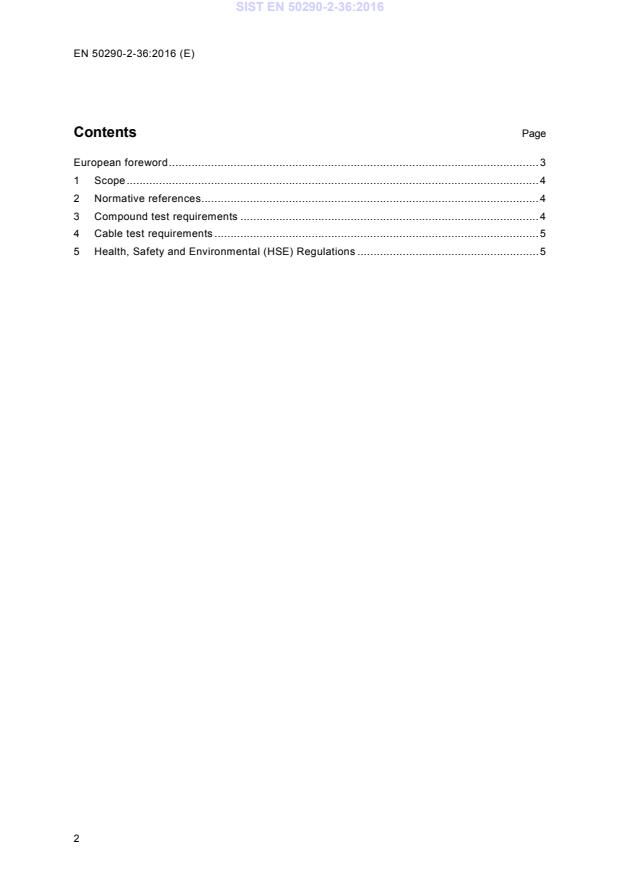

Contents Page
European foreword . 3
1 Scope . 4
2 Normative references. 4
3 Compound test requirements . 4
4 Cable test requirements . 5
5 Health, Safety and Environmental (HSE) Regulations . 5

European foreword
This document (EN 50290-2-36:2016) has been prepared by CLC/TC 46X, "Communication cables".
The following dates are fixed:
• latest date by which this document has (dop) 2017-07-22
to be implemented at national level by
publication of an identical national
standard or by endorsement
• latest date by which the national (dow) 2019-07-22
standards conflicting with this
document have to be withdrawn
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such
patent rights.
1 Scope
This Part 2-36 of EN 50290 gives specific requirements for crosslinked Silicone rubber compound
(SiR) to be used for the insulation of fire resistant cables.
It is essential to read
...
