SIST EN 61034-1:2005/A1:2014

Measurement of smoke density of cables burning under defined conditions - Part 1: Test apparatus

This part of IEC 61034 provides details of the test apparatus to be used for measuring smoke emission when electric or optical fibre cables are burnt under defined conditions, for example, a few cables burnt horizontally. The light transmittance (l t ) under flaming combustion and smouldering conditions can be used as a means of comparing different cables or complying with specific requirements.

Messung der Rauchdichte von Kabeln und isolierten Leitungen beim Brennen unter definierten Bedingungen - Teil 1: Prüfeinrichtung

Mesure de la densité de fumées dégagées par des câbles brûlant dans des conditions définies - Partie 1: Appareillage d'essai

Merjenje gostote dima pri gorenju kablov pri določenih pogojih - 1. del: Preskusni aparat - Dopolnilo A1 (IEC 61034-1:2005/A1:2013)

Amandma A1: 2014 je dodatek k standardu SIST EN 61034-1: 2005
Ta del standarda IEC 61034 določa podrobnosti preskusnega aparata za merjenje emisij dima pri gorenju električnih ali optičnih kablov pod določenimi pogoji, na primer pri vodoravnem gorenju manjšega števila kablov. Prepustnost svetlobe (l t) pod pogoji zgorevanja s plamenom in tlenjem je mogoče uporabiti kot način primerjave različnih kablov ali kot preverjanje skladnosti s posebnimi zahtevami.

General Information

• Status: Published
• Publication Date: 29-May-2014
• ICS: 13.220.40 - Ignitability and burning behaviour of materials and products
• ICS: 29.060.20 - Cables
• Technical Committee: IEKA - Electric cables
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 13-May-2014
• Due Date: 18-Jul-2014
• Completion Date: 30-May-2014
• Directive: 2006/95/EC - Directive 2006/95/EC of the European Parliament and of the Council of 12 December 2006 on the harmonisation of the laws of Member States relating to electrical equipment designed for use within certain voltage limits (codified version)
• Directive: 2014/35/EU - Directive 2014/35/EU of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to the making available on the market of electrical equipment designed for use within certain voltage limits
• Ref Project: EN 61034-1:2005/A1:2014 - Measurement of smoke density of cables burning under defined conditions - Part 1: Test apparatus

Relations

• Amends: SIST EN 61034-1:2005 - Measurement of smoke density of cables burning under defined conditions -- Part 1: Test apparatus
• Effective Date: 07-Feb-2012

Overview

SIST EN 61034-1:2005/A1:2014 is a European standard focused on the measurement of smoke density produced by cables burning under defined conditions. Developed and maintained by the CLC (European Committee for Electrotechnical Standardization), this standard specifies the test apparatus requirements used to evaluate smoke emission due to cable combustion. It supports safety objectives related to fire hazards in electrical installations by providing a consistent methodology to assess cable smoke density.

This amendment (A1) to the original EN 61034-1:2005 was approved in 2013 and published in 2014, ensuring alignment with the latest technical and regulatory needs. Although the standard is maintained as a supporting document, its application remains essential for manufacturers, testers, and regulatory bodies concerned with fire safety and product compliance in the electrical cables industry.

---

Key Topics

• Test Apparatus Design
  SIST EN 61034-1:2005/A1:2014 outlines the technical specifications for the testing apparatus used to measure smoke density. The standard ensures the device's optical and mechanical components meet stringent accuracy and reproducibility criteria.

• Smoke Density Measurement
  The methodology involves burning cables under defined controlled conditions and quantifying the smoke density by measuring light transmittance through the smoke. Key parameters such as initial and minimum transmittance levels are used to compute smoke density.

• Qualification of Fire Sources
  The amendment refines preparation of the fire source mixtures using PA toluene and alcohol solutions, specifying proportions and preparation methods to guarantee consistent ignition and flame behavior during tests.

• Test Procedure and Data Calculation
  Detailed instructions for conducting the smoke density test and how to record the minimum measured transmittance for accurate evaluation. The amendment clarifies formulae used to calculate smoke density from transmittance readings.

• Optical System Corrections
  Minor corrections and clarifications on the wording related to the optical system components-critical for test reliability.

---

Applications

• Cable Fire Safety Testing
  SIST EN 61034-1:2005/A1:2014 is essential for manufacturers and testing laboratories conducting compliance evaluations of electrical cables against fire safety standards. It helps assess the hazards related to smoke obscuration during cable fires.

• Product Development and Certification
  Cable producers use this standard to optimize formulations and construction techniques for low smoke emission cables. Compliance supports product certification and market approval within the EU and other regions referencing CENELEC standards.

• Building and Electrical Codes Compliance
  Regulatory bodies reference this standard in electrical installation codes where fire safety and smoke emission performance of cables are critical to occupant safety and emergency response.

• Risk Assessment in Fire Situations
  Facilities management and safety engineers utilize test data based on this standard to evaluate building fire risks and plan mitigation strategies involving cable routing and materials.

---

Related Standards

• EN 61034-2
  Specifies the measurement procedures related to smoke density testing of burning cables, complementing the apparatus requirements set out in Part 1.

• IEC 60332 Series
  Address tests on the flame retardant properties of cables to assess fire propagation prevention.

• EN 50575
  Covers construction products and cables intended for permanent installation in buildings, emphasizing fire performance and smoke emissions in electrical installations.

• Low Voltage Directive (LVD 2006/95/EC)
  EN 61034-1 supports the safety objectives of electrical equipment compliance under this directive ensuring cables meet essential safety criteria including fire behavior.

---

Keywords: EN 61034-1, smoke density measurement, cable fire safety, test apparatus, electrical cables, CENELEC standard, fire hazard assessment, smoke emission testing, electrical cable testing, fire safety in cables, fire retardant cables, cable combustion test, low smoke cables, European cable standards.

Standards Content (Sample)

SLOVENSKI STANDARD
01-julij-2014
0HUMHQMHJRVWRWHGLPDSULJRUHQMXNDEORYSULGRORþHQLKSRJRMLKGHO3UHVNXVQL
DSDUDW'RSROQLOR$,(&$
Measurement of smoke density of cables burning under defined conditions - Part 1: Test
apparatus
Messung der Rauchdichte von Kabeln und isolierten Leitungen beim Brennen unter
definierten Bedingungen - Teil 1: Prüfeinrichtung
Mesure de la densité de fumées dégagées par des câbles brûlant dans des conditions
définies - Partie 1: Appareillage d'essai
Ta slovenski standard je istoveten z: EN 61034-1:2005/A1:2014
ICS:
13.220.40 Sposobnost vžiga in Ignitability and burning
obnašanje materialov in behaviour of materials and
proizvodov pri gorenju products
29.060.20 Kabli Cables
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 61034-1/A1
NORME EUROPÉENNE
April 2014
EUROPÄISCHE NORM
ICS 13.220.40; 29.020; 29.060.20

English version
Measurement of smoke density of cables burning
under defined conditions -
Part 1: Test apparatus
(IEC 61034-1:2005/A1:2013)
Mesure de la densité de fumées Messung der Rauchdichte von Kabeln und
dégagées par des câbles brûlant isolierten Leitungen beim Brennen unter
dans des conditions définies - definierten Bedingungen -
Partie 1: Appareillage d'essai Teil 1: Prüfeinrichtung
(CEI 61034-1:2005/A1:2013) (IEC 61034-1:2005/A1:2013)

This amendment A1 modifies the European Standard EN 61034-1:2005; it was approved by CENELEC on 2013-
07-26. CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate
the conditions for giving this amendment the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the CEN-CENELEC Management Centre or to any CENELEC member.

This amendment exists in three official versions (English, French, German). A version in any other language
made by translation under the responsibility of a CENELEC member into its own language and notified to the
CEN-CENELEC Management Centre has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany,
Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland,
Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

CEN-CENELEC Management Centre: Avenue Marnix 17, B - 1000 Brussels

© 2014 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 61034-1:2005/A1:2014 E

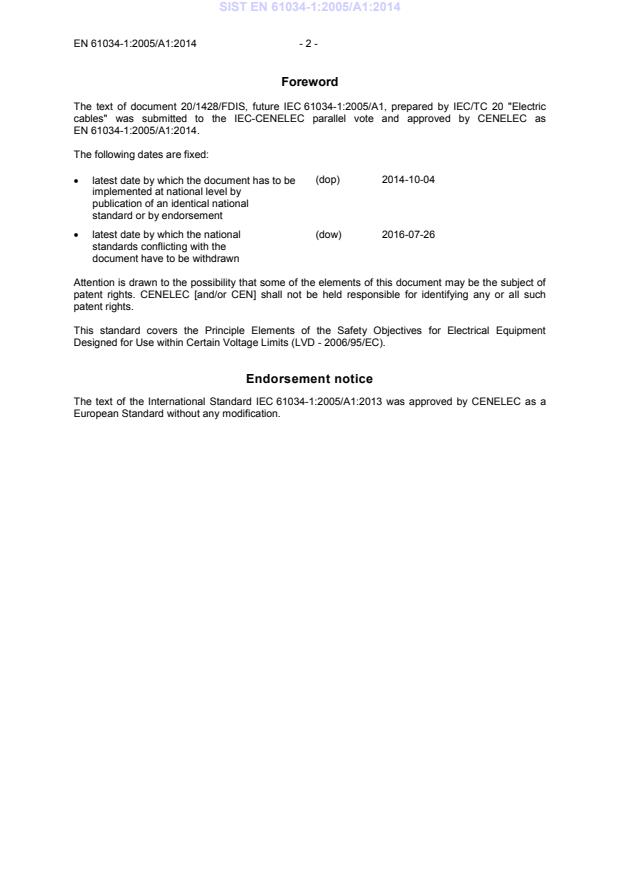

Foreword
The text of document 20/1428/FDIS, future IEC 61034-1:2005/A1, prepared by IEC/TC 20 "Electric
cables" was submitted to the IEC-CENELEC parallel vote and approved by CENELEC as
The following dates are fixed:
(dop) 2014-10-04
• latest date by which the document has to be
implemented at national level by
publication of an identical national
standard or by endorsement
• latest date by whi
...
