SIST EN 60843-4:2005

Helical-scan video tape cassette system using 8 mm magnetic tape (8 mm video) -- Part 4: Video subcode (VSC)

IEC 60843-4:2000 specifies a method of auxiliary data recording and playback with the IEC 60843 8 mm video system. This part is applicable to both 525 line - 60 field and 625 line - 50 field television systems

Videoband-Kassettensystem mit Schrägspuraufzeichnung auf Magnetband 8 mm (8 mm Video) -- Teil 4: Video-Subcode (VSC)

Système de magnétoscope à cassette à balayage hélicoïdal utilisant la bande magnétique de 8 mm (vidéo 8 mm) -- Partie 4: Sous-code vidéo (VSC)

IEC 60843-4:2000 spécifie une méthode d’enregistrement et de lecture des données auxiliaires avec le système vidéo 8 mm de l'IEC 60843. Cette partie s’applique à la fois aux systèmes de télévision 525 lignes - 60 trames et 625 lignes - 50 trames

Videokasetni snemalni sistem z zapisovanjem s poševnimi sledmi na magnetnem traku, širokem 8 mm (8 mm video) – 4. del: Video subkoda (VSC) (IEC 60843-4:2000)

General Information

• Status: Published
• Publication Date: 31-Dec-2004
• ICS: 33.160.40 - Video systems
• Technical Committee: AVM - Audio, video and multimedia systems and equipment
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 01-Jan-2005
• Due Date: 01-Jan-2005
• Completion Date: 01-Jan-2005
• Ref Project: EN 60843-4:2000 - Helical-scan video tape cassette system using 8 mm magnetic tape (8 mm video) - Part 4: Video subcode (VSC)

Overview - EN 60843-4:2000 (Video subcode, VSC)

EN 60843-4:2000 (identical to IEC 60843-4:2000) defines the video subcode (VSC) method for auxiliary data recording and playback on helical‑scan video cassette systems using 8 mm magnetic tape (commonly called 8 mm video). The standard specifies how auxiliary or ancillary data is encoded, recorded and retrieved in the IEC 60843 8 mm video system and is applicable to both 525 line – 60 field (NTSC-like) and 625 line – 50 field (PAL/SECAM-like) television systems. EN 60843-4:2000 is adopted under the CLC/EN framework and supports interoperability of VSC implementations across compliant recorders and players.

Key Topics and technical requirements

The standard focuses on practical, implementation‑level rules for VSC auxiliary data; key topics typically addressed include:

• Definition and scope of Video Subcode (VSC) - purpose and types of auxiliary data carried (indexing, identification, user metadata).
• Data structure and coding rules - format conventions for encoding subcode information so devices can interpret recorded data consistently.
• Recording and playback timing - synchronization of VSC with helical scan tracks and with video field timing for both 525/60 and 625/50 systems.
• Physical placement on tape - rules for where VSC data is written relative to video tracks to ensure robust retrieval.
• Error detection and robustness - required mechanisms (e.g., parity/check fields) to detect corruption and improve reliability during playback.
• Device interoperability and compliance - requirements for recorders/players to read and write VSC to achieve cross‑device compatibility. Note: EN 60843-4:2000 sets method and conformance requirements; implementers should consult the full text for exact bit/field definitions and timing parameters.

Applications and who uses this standard

EN 60843-4:2000 is relevant for organizations working with 8 mm video tape systems and legacy video content:

• Recorder and player manufacturers building compliant 8 mm video equipment with VSC support.
• Broadcast and video production facilities maintaining or migrating archives recorded on 8 mm cassette formats.
• Media asset management and archiving teams that need reliable auxiliary metadata (indexing, time references) tied to tape media.
• Forensics, restoration and preservation specialists recovering or digitizing legacy 8 mm recordings.
• Test labs and certification bodies validating device compliance and interoperability.

Related standards

• IEC 60843 series / EN 60843 series (core 8 mm video specifications) - consult other parts for mechanical, electrical and track format details.
• EN 60843-4:2000 is the European adoption of IEC 60843-4:2000 and may be included in national adoptions (e.g., SIST EN 60843-4).

Keywords: EN 60843-4:2000, IEC 60843-4:2000, video subcode, VSC, 8 mm video, helical-scan, 8 mm magnetic tape, 525/60, 625/50, auxiliary data, video cassette standard.

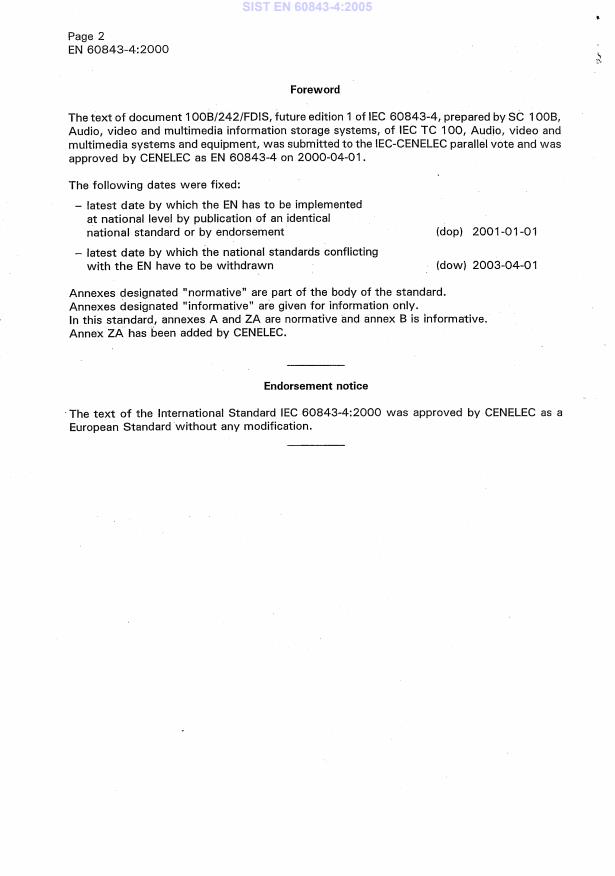

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Videokasetni snemalni sistem z zapisovanjem s poševnimi sledmi na magnetnem traku, širokem 8 mm (8 mm video) – 4. del: Video subkoda (VSC) (IEC 60843-4:2000)Videoband-Kassettensystem mit Schrägspuraufzeichnung auf Magnetband 8 mm (8 mm Video) -- Teil 4: Video-Subcode (VSC)Système de magnétoscope à cassette à balayage hélicoïdal utilisant la bande magnétique de 8 mm (vidéo 8 mm) -- Partie 4: Sous-code vidéo (VSC)Helical-scan video tape cassette system using 8 mm magnetic tape (8 mm video) -- Part 4: Video subcode (VSC)33.160.40Video sistemiVideo systemsICS:Ta slovenski standard je istoveten z:EN 60843-4:2000SIST EN 60843-4:2005en01-januar-2005
...
