Road vehicles - Dimethyl Ether (DME) refuelling connector (ISO 21058:2019)

This document applies only to Dimethyl Ether refuelling connectors hereinafter referred to as devices, constructed entirely of new, unused parts and materials. Dimethyl Ether refuelling connectors consist of the following components, as applicable:
a) Nozzle (mounted on dispenser side).
b) Receptacle (mounted on vehicle).
This document applies to devices which use Dimethyl Ether as fuel, hereinafter referred to in this document as D15 [see 9.1 c)].
This document applies to devices with standardised mating components.
This document applies to connectors which prevent Dimethyl Ether vehicles from being fuelled by fuel station dispensers for other gaseous fuels.
This document is applicable to: Dimethyl Ether in accordance with ISO 16861.
NOTE All references to pressures (kPa) throughout this document are considered gauge pressures unless otherwise specified.

Straßenfahrzeuge - Dimethylether (DME) Nachfüllstutzen (ISO 21058:2019)

Véhicules routiers - Connecteur de remplissage en Dimethyl Ether (DME) (ISO 21058:2019)

Cestna vozila - Priključek za polnjenje dimetilnega etra (DME) (ISO 21058:2019)

General Information

Status
Published
Public Enquiry End Date
30-Jul-2021
Publication Date
14-Oct-2021
Technical Committee
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
13-Oct-2021
Due Date
18-Dec-2021
Completion Date
15-Oct-2021

Buy Standard

Standard
SIST EN ISO 21058:2021
English language
28 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day
Draft
oSIST prEN ISO 21058:2021
English language
25 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (sample)

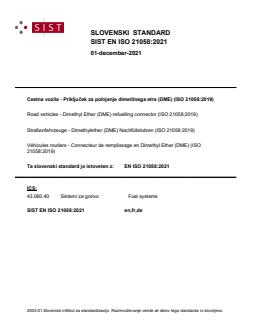

SLOVENSKI STANDARD
SIST EN ISO 21058:2021
01-december-2021
Cestna vozila - Priključek za polnjenje dimetilnega etra (DME) (ISO 21058:2019)
Road vehicles - Dimethyl Ether (DME) refuelling connector (ISO 21058:2019)
Straßenfahrzeuge - Dimethylether (DME) Nachfüllstutzen (ISO 21058:2019)
Véhicules routiers - Connecteur de remplissage en Dimethyl Ether (DME) (ISO
21058:2019)
Ta slovenski standard je istoveten z: EN ISO 21058:2021
ICS:
43.060.40 Sistemi za gorivo Fuel systems
SIST EN ISO 21058:2021 en,fr,de

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN ISO 21058:2021
---------------------- Page: 2 ----------------------
SIST EN ISO 21058:2021

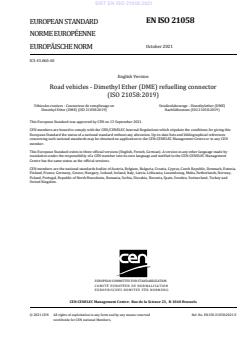

EN ISO 21058
EUROPEAN STANDARD
NORME EUROPÉENNE
October 2021
EUROPÄISCHE NORM
ICS 43.060.40
English Version
Road vehicles - Dimethyl Ether (DME) refuelling connector
(ISO 21058:2019)

Véhicules routiers - Connecteur de remplissage en Straßenfahrzeuge - Dimethylether (DME)

Dimethyl Ether (DME) (ISO 21058:2019) Nachfüllstutzen (ISO 21058:2019)
This European Standard was approved by CEN on 13 September 2021.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this

European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references

concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN

member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by

translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management

Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,

Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,

Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and

United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels

© 2021 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 21058:2021 E

worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
SIST EN ISO 21058:2021
EN ISO 21058:2021 (E)
Contents Page

European foreword ....................................................................................................................................................... 3

---------------------- Page: 4 ----------------------
SIST EN ISO 21058:2021
EN ISO 21058:2021 (E)
European foreword

The text of ISO 21058:2019 has been prepared by Technical Committee ISO/TC 22 "Road vehicles” of

the International Organization for Standardization (ISO) and has been taken over as EN ISO 21058:2021

by Technical Committee CEN/TC 301 “Road vehicles” the secretariat of which is held by AFNOR.

This European Standard shall be given the status of a national standard, either by publication of an

identical text or by endorsement, at the latest by April 2022, and conflicting national standards shall be

withdrawn at the latest by April 2022.

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. CEN shall not be held responsible for identifying any or all such patent rights.

This document has been prepared under a Standardization Request given to CEN by the European

Commission and the European Free Trade Association.

Any feedback and questions on this document should be directed to the users’ national standards body.

A complete listing of these bodies can be found on the CEN website.

According to the CEN-CENELEC Internal Regulations, the national standards organizations of the

following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,

Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,

Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of

North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the

United Kingdom.
Endorsement notice

The text of ISO 21058:2019 has been approved by CEN as EN ISO 21058:2021 without any modification.

---------------------- Page: 5 ----------------------
SIST EN ISO 21058:2021
---------------------- Page: 6 ----------------------
SIST EN ISO 21058:2021
INTERNATIONAL ISO
STANDARD 21058
First edition
2019-12
Road vehicles — Dimethyl Ether
(DME) refuelling connector
Véhicules routiers — Connecteur de remplissage en Dimethyl Ether
(DME)
Reference number
ISO 21058:2019(E)
ISO 2019
---------------------- Page: 7 ----------------------
SIST EN ISO 21058:2021
ISO 21058:2019(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2019

All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may

be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting

on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address

below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2019 – All rights reserved
---------------------- Page: 8 ----------------------
SIST EN ISO 21058:2021
ISO 21058:2019(E)
Contents Page

Foreword ........................................................................................................................................................................................................................................iv

Introduction ..................................................................................................................................................................................................................................v

1 Scope ................................................................................................................................................................................................................................. 1

2 Normative References ..................................................................................................................................................................................... 1

3 Terms and definitions ..................................................................................................................................................................................... 1

4 General construction requirements ................................................................................................................................................. 3

5 Nozzles ............................................................................................................................................................................................................................ 4

6 Standard receptacle dimensions ......................................................................................................................................................... 4

7 Receptacles ................................................................................................................................................................................................................. 5

8 Instructions ................................................................................................................................................................................................................ 6

9 Marking .......................................................................................................................................................................................................................... 6

10 Tests ................................................................................................................................................................................................................................... 7

10.1 General requirements ....................................................................................................................................................................... 7

10.2 Impact resistance .................................................................................................................................................................................. 7

10.2.1 Nozzle test ............................................................................................................................................................................. 7

10.2.2 Receptacle test ................................................................................................................................................................... 7

10.3 Leakage at room temperature ................................................................................................................................................... 8

10.4 Abnormal loads ...................................................................................................................................................................................... 8

10.4.1 Test in unpressurised condition ......................................................................................................................... 9

10.4.2 Test in pressurised condition ................................................................................................................................ 9

10.5 Mounting hardware torque .......................................................................................................................................................10

10.6 Leakage at low and high temperatures ...........................................................................................................................10

10.7 Nozzle freezing .....................................................................................................................................................................................10

10.8 Durability ..................................................................................................................................................................................................10

10.8.1 Endurance ...........................................................................................................................................................................10

10.8.2 Corrosion resistance ..................................................................................................................................................12

10.8.3 Brass material compatibility ..............................................................................................................................13

10.8.4 Resistance to dry heat ..............................................................................................................................................13

10.8.5 Ozone ageing ....................................................................................................................................................................13

10.8.6 Temperature cycle .......................................................................................................................................................14

10.8.7 Compatibility to Dimethyl Ether .....................................................................................................................14

10.8.8 Electrical continuity ...................................................................................................................................................14

10.9 Hydrostatic strength .......................................................................................................................................................................14

10.10 Oxygen ageing .......................................................................................................................................................................................15

10.11 Non-metallic material immersion .......................................................................................................................................15

10.12 Vibration resistance .........................................................................................................................................................................16

10.13 Creep .............................................................................................................................................................................................................16

10.14 Automotive fluid exposure.........................................................................................................................................................16

10.14.1 General...................................................................................................................................................................................16

10.14.2 Test method .......................................................................................................................................................................16

10.14.3 Fluids .................. .................................................... .................................................................................................................17

10.14.4 Pass criteria .......................................................................................................................................................................17

Annex A (normative) Critical dimensions of the nozzle ................................................................................................................18

Annex B (informative) Manufacturing and production test plan ........................................................................................19

Bibliography .............................................................................................................................................................................................................................20

© ISO 2019 – All rights reserved iii
---------------------- Page: 9 ----------------------
SIST EN ISO 21058:2021
ISO 21058:2019(E)
Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards

bodies (ISO member bodies). The work of preparing International Standards is normally carried out

through ISO technical committees. Each member body interested in a subject for which a technical

committee has been established has the right to be represented on that committee. International

organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.

ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of

electrotechnical standardization.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the

different types of ISO documents should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of

any patent rights identified during the development of the document will be in the Introduction and/or

on the ISO list of patent declarations received (see www .iso .org/ patents).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and

expressions related to conformity assessment, as well as information about ISO's adherence to the

World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see www .iso .org/

iso/ foreword .html.

This document was prepared by Technical Committee ISO/TC 22, Road vehicles, Subcommittee SC 41,

Specific aspects for gaseous fuels.

Any feedback or questions on this document should be directed to the user’s national standards body. A

complete listing of these bodies can be found at www .iso .org/ members .html.
iv © ISO 2019 – All rights reserved
---------------------- Page: 10 ----------------------
SIST EN ISO 21058:2021
ISO 21058:2019(E)
Introduction

This document was developed to use for the newly produced Dimethyl Ether vehicle fuelling nozzles

and receptacles only. As such, it applies to nozzles and receptacles used in the Dimethyl Ether fuelling

system and not to the system.

A nozzle meeting the requirements of this document will be functionally compatible from a safety

and performance perspective with all listed receptacles of compatible profile and system pressure.

Similarly, a receptacle meeting the requirements of this document will be functionally compatible from

a safety and performance perspective with all listed nozzles of compatible profile and system pressure.

As there may eventually be many different kinds of nozzles and receptacles available from a variety

of manufacturers which, for safety reasons, should all be compatible with each other, this document

specifies one standardized receptacle profile. This standard profile incorporates the design

specifications (mating materials, geometry and tolerances) which may be considered when evaluating

if a submitted nozzle or receptacle meets the requirement of this document.
© ISO 2019 – All rights reserved v
---------------------- Page: 11 ----------------------
SIST EN ISO 21058:2021
---------------------- Page: 12 ----------------------
SIST EN ISO 21058:2021
INTERNATIONAL STANDARD ISO 21058:2019(E)
Road vehicles — Dimethyl Ether (DME) refuelling
connector
1 Scope

This document applies only to Dimethyl Ether refuelling connectors hereinafter referred to as devices,

constructed entirely of new, unused parts and materials. Dimethyl Ether refuelling connectors consist

of the following components, as applicable:
a) Nozzle (mounted on dispenser side).
b) Receptacle (mounted on vehicle).

This document applies to devices which use Dimethyl Ether as fuel, hereinafter referred to in this

document as D15 [see 9.1 c)].
This document applies to devices with standardised mating components.

This document applies to connectors which prevent Dimethyl Ether vehicles from being fuelled by fuel

station dispensers for other gaseous fuels.
This document is applicable to: Dimethyl Ether in accordance with ISO 16861.

NOTE All references to pressures (kPa) throughout this document are considered gauge pressures unless

otherwise specified.
2 Normative References

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

ISO 188, Rubber, vulcanized or thermoplastic — Accelerated ageing and heat resistance tests

ISO 1431-1, Rubber, vulcanized or thermoplastic — Resistance to ozone cracking — Part 1: Static and

dynamic strain testing

ISO 1817, Rubber, vulcanized or thermoplastic — Determination of the effect of liquids

ISO 9227, Corrosion tests in artificial atmospheres — Salt spray tests

ISO 16861, Petroleum products — Fuels (class F) — Specifications of dimethyl ether (DME)

ASTM D4814Standard Specification for Automotive Spark-Ignition Engine Fuel
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at http:// www .electropedia .org/
© ISO 2019 – All rights reserved 1
---------------------- Page: 13 ----------------------
SIST EN ISO 21058:2021
ISO 21058:2019(E)
3.1
dry air

air with moisture content such that the dew point of the air at the required test pressure is at least

11 °C below the ambient test temperature
3.2
working pressure
maximum pressure that a connector can be expected to withstand in actual service
3.3
Dimethyl Ether
DME
methoxymethane
organic compound with the formula CH OCH , simplified to C H O
3 3 2 6
Note 1 to entry: Dimethyl Ether is liquid below −25 °C.
3.4
Dimethyl Ether refuelling nozzle

device which permits quick connection and disconnection of fuel supply hose to the Dimethyl Ether

receptacle (3.5) in a safe manner
Note 1 to entry: This term is hereafter referred to as nozzle.
3.5
Dimethyl Ether refuelling receptacle

device connected to a vehicle or storage system which receives the Dimethyl Ether nozzle (3.4) and

permits safe transfer of fuel
Note 1 to entry: This term is hereafter referred to as receptacle.
3.6
Dimethyl Ether refuelling connector
joined assembly of Dimethyl Ether nozzle and receptacle
Note 1 to entry: This term is hereafter referred to as connector.
3.7
non-sparking materials

materials that do not contain, by mass, more than 7,5 % in total of magnesium, titanium and zirconium

[SOURCE: IEC EN 60079-0:2011, 8.3]
3.8
service gasket

replaceable gasket ensuring tightness of the connection between the nozzle outlet and the receptacle inlet

3.9
cycle life

number of connections and disconnections between the nozzle (3.4) and the receptacle (3.5) required

for testing purposes
3.10
service life
number of operations of the check valve in the receptacle for testing purposes
2 © ISO 2019 – All rights reserved
---------------------- Page: 14 ----------------------
SIST EN ISO 21058:2021
ISO 21058:2019(E)
4 General construction requirements

4.1 Nozzles and receptacles shall be designed in accordance with reasonable concepts of safety,

durability and maintainability.

1) Working pressure. All nozzles and receptacles are designed to have a working pressure defined by

the manufacturer and clearly marked on the device [see 9.1 d)].

2) Design life. All nozzles will be tested at 100 000 connect/disconnect cycles and all receptacles at

20 000 connect/disconnect cycles for conformity with this document. The service gasket may be

changed after minimum of 20 000 cycles.

4.2 Nozzles and receptacles shall be well fitted and manufactured in accordance with good engineering

practice. All construction requirements may be met by either the construction specified in this document

or another construction that gives at least equivalent performance.
4.3 Nozzles and receptacles shall be:
— designed to minimise the possibility of incorrect assembly;

— designed to be secure against displacement, distortion, warping or other damage under normal and

anticipated abnormal conditions of handling and use;
— designed to release less than 1 cm of liquid DME during disconnection;

— constructed to maintain operational integrity under normal and reasonable conditions of handling

and usage;
— manufactured and produced according to the test plan in Annex B.

4.4 Nozzles and receptacles shall be manufactured of materials suitable and compatible for use with

Dimethyl Ether, in accordance with ISO 16861, at the pressure and the temperature ranges to which it

will be subjected.
4.4.1 The temperature range shall be for:
For the receptacle:
— Moderate operating conditions: −20 °C to +85 °C
— Cold operating conditions: −40 °C to +85 °C
For the nozzle:
— Moderate operating conditions: −20 °C to +65 °C
— Cold operating conditions: −40 °C to +65 °C

For specific regions, the temperature range specified may not be sufficient. In such a case, a wider

temperature range, representative of that specific region, shall be considered.

4.5 Nozzles and receptacles shall be operated either to connect or disconnect without the use of tools

and with one hand operation.
4.6 Jointing components shall provide gas-tight sealing performance.
© ISO 2019 – All rights reserved 3
---------------------- Page: 15 ----------------------
SIST EN ISO 21058:2021
ISO 21058:2019(E)
5 Nozzles
The design of the nozzle shall ensure that:
a) it is compatible with the receptacle as specified in Clause 6;
b) entrapment of fingers and/or cold burns are not possible;

c) the maximum push-on force during connection is 100 N at any pressure up to 1 500 kPa in the nozzle;

d) the maximum pull-off force during disconnection is 50 N at 1 500 kPa;

e) the force to operate the lever, if any, applied at the centre of the grip area of the lever, is 100 N

maximum at any pressure up to 1 500 kPa in the nozzle;

f) if a latch is provided and in use, it shall be capable of being normally disarmed by the user;

g) provision is made to enable the lever or the whole nozzle to freely rotate over an angle of 360°

around the longitudinal axis of the nozzle or the filling hose;

h) it is not possible to open the valve in the nozzle if the nozzle is not properly locked and sealed on

the receptacle;
i) a locking mechanism is incorporated that locks in the connected position;

j) it is not possible to unlock the nozzle from the receptacle unless the nozzle valve is closed;

k) internal blocking due to freezing does not occur under intended operating conditions;

l) it will withstand a torque of 150 % of the mounting torque specified by the manufacturer

without damage;

m) the external surfaces of the filling nozzle are corrosion resistant or protected against corrosion

and are made of materials (non-sparking materials) that do not cause sparks when dropped on a

surface;
n) changing the service gasket shall not result in any Dimethyl Ether release;
o) the minimum cycle life of the service gasket is 20 000 cycles;

p) the nozzle is provided with a means to securely attach it to the delivery hose;

q) the nozzle shall comply with the performance requirements of Clause 10 to ensure

interchangeability.
6 Standard receptacle dimensions
A receptacle shall comply with the design specifications detailed in Figure 1.
4 © ISO 2019 – All rights reserved
---------------------- Page: 16 ----------------------
SIST EN ISO 21058:2021
ISO 21058:2019(E)
Dimensions in millimetres
Figure 1 — D15 receptacle
7 Receptacles

7.1 Receptacles shall comply with Clauses 4 and 6 to 10 and shall be evaluated with a test nozzle

meeting the requirements of this document.

The failure of any test conducted with the receptacle and nozzle test samples shall constitute a failure of

the submitted receptacle, unless the manufacturer can prove the problem was caused by the test nozzle.

7.2 The receptacle shall be equipped with an internal check valve to prevent the escape of gas.

Regardless of whether the check valve is opened mechanically or by differential pressure, the flow through

the receptacle, when tested with water, at a differential pressure of 30 kPa, shall be at least 3 l/min.

The check valve shall be dimensioned to be leak-tight for the complete temperature range, also when

the tank pressure is lower than the ambient pressure.

The dead volume between the front sealing surface and the front of the internal check valve shall not

exceed 0,1 cm .

7.3 The method for attaching the receptacle to the vehicle fuel system shall not rely on the joint

between the male and female threads for sealing, such as conical threads.

7.4 The interfacing surface of the receptacle shall be constructed of material that does not cause spark

(non-sparking) and ensures electrical continuity (see 10.8.8).
© ISO 2019 – All rights reserved 5
---------------------- Page: 17 ----------------------
SIST EN ISO 21058:2021
ISO 21058:2019(E)

7.5 The receptacle shall have provisions to be firmly attached to the vehicle and shall comply with

applicable abnormal load tests (see 10.4).
7.6 The receptacle shall be mounted on the vehicle in compliance with Annex A.

7.7 The receptacle shall not be installed in an area that exceeds a temperature of 85 °C.

7.8 Receptacles shall have a cycle life of more than 20 000 cycles and a service life of more than

100 000 cycles.
8 Instructions

Information required for instructions and provisions shall be in an easily understood form.

Special tools required for connection of receptacles to tubing shall be clearly identified in the

instructions.

Manufacturers of receptacles and nozzles shall provide clear and concise printed instruction and

diagrams in a form that can be easily understood and adequate for:
— proper field assembly,
— installation,
— maintenance,
— replacement of components as appropriate,
— for safe operation by all users,
— suitability and use, and
— storage and handling.
9 Marking

Information required for marking and provisions shall be in an easily understood form. Marking should

be embossed, cast, stamped or otherwise formed in the part. This includes markings baked into an

enamelled surface.
9.1 Nozzles and receptacles shall bear the following infor
...

SLOVENSKI STANDARD
oSIST prEN ISO 21058:2021
01-julij-2021
Cestna vozila - Priključek za polnjenje dimetilnega etra (DME) (ISO 21058:2019)
Road vehicles - Dimethyl Ether (DME) refuelling connector (ISO 21058:2019)
Straßenfahrzeuge - Dimethylether (DME) Nachfüllstutzen (ISO 21058:2019)
Véhicules routiers - Connecteur de remplissage en Dimethyl Ether (DME) (ISO
21058:2019)
Ta slovenski standard je istoveten z: prEN ISO 21058
ICS:
43.060.40 Sistemi za gorivo Fuel systems
oSIST prEN ISO 21058:2021 en,fr,de

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
oSIST prEN ISO 21058:2021
---------------------- Page: 2 ----------------------
oSIST prEN ISO 21058:2021
INTERNATIONAL ISO
STANDARD 21058
First edition
2019-12
Road vehicles — Dimethyl Ether
(DME) refuelling connector
Véhicules routiers — Connecteur de remplissage en Dimethyl Ether
(DME)
Reference number
ISO 21058:2019(E)
ISO 2019
---------------------- Page: 3 ----------------------
oSIST prEN ISO 21058:2021
ISO 21058:2019(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2019

All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may

be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting

on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address

below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2019 – All rights reserved
---------------------- Page: 4 ----------------------
oSIST prEN ISO 21058:2021
ISO 21058:2019(E)
Contents Page

Foreword ........................................................................................................................................................................................................................................iv

Introduction ..................................................................................................................................................................................................................................v

1 Scope ................................................................................................................................................................................................................................. 1

2 Normative References ..................................................................................................................................................................................... 1

3 Terms and definitions ..................................................................................................................................................................................... 1

4 General construction requirements ................................................................................................................................................. 3

5 Nozzles ............................................................................................................................................................................................................................ 4

6 Standard receptacle dimensions ......................................................................................................................................................... 4

7 Receptacles ................................................................................................................................................................................................................. 5

8 Instructions ................................................................................................................................................................................................................ 6

9 Marking .......................................................................................................................................................................................................................... 6

10 Tests ................................................................................................................................................................................................................................... 7

10.1 General requirements ....................................................................................................................................................................... 7

10.2 Impact resistance .................................................................................................................................................................................. 7

10.2.1 Nozzle test ............................................................................................................................................................................. 7

10.2.2 Receptacle test ................................................................................................................................................................... 7

10.3 Leakage at room temperature ................................................................................................................................................... 8

10.4 Abnormal loads ...................................................................................................................................................................................... 8

10.4.1 Test in unpressurised condition ......................................................................................................................... 9

10.4.2 Test in pressurised condition ................................................................................................................................ 9

10.5 Mounting hardware torque .......................................................................................................................................................10

10.6 Leakage at low and high temperatures ...........................................................................................................................10

10.7 Nozzle freezing .....................................................................................................................................................................................10

10.8 Durability ..................................................................................................................................................................................................10

10.8.1 Endurance ...........................................................................................................................................................................10

10.8.2 Corrosion resistance ..................................................................................................................................................12

10.8.3 Brass material compatibility ..............................................................................................................................13

10.8.4 Resistance to dry heat ..............................................................................................................................................13

10.8.5 Ozone ageing ....................................................................................................................................................................13

10.8.6 Temperature cycle .......................................................................................................................................................14

10.8.7 Compatibility to Dimethyl Ether .....................................................................................................................14

10.8.8 Electrical continuity ...................................................................................................................................................14

10.9 Hydrostatic strength .......................................................................................................................................................................14

10.10 Oxygen ageing .......................................................................................................................................................................................15

10.11 Non-metallic material immersion .......................................................................................................................................15

10.12 Vibration resistance .........................................................................................................................................................................16

10.13 Creep .............................................................................................................................................................................................................16

10.14 Automotive fluid exposure.........................................................................................................................................................16

10.14.1 General...................................................................................................................................................................................16

10.14.2 Test method .......................................................................................................................................................................16

10.14.3 Fluids .................. .................................................... .................................................................................................................17

10.14.4 Pass criteria .......................................................................................................................................................................17

Annex A (normative) Critical dimensions of the nozzle ................................................................................................................18

Annex B (informative) Manufacturing and production test plan ........................................................................................19

Bibliography .............................................................................................................................................................................................................................20

© ISO 2019 – All rights reserved iii
---------------------- Page: 5 ----------------------
oSIST prEN ISO 21058:2021
ISO 21058:2019(E)
Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards

bodies (ISO member bodies). The work of preparing International Standards is normally carried out

through ISO technical committees. Each member body interested in a subject for which a technical

committee has been established has the right to be represented on that committee. International

organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.

ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of

electrotechnical standardization.

The procedures used to develop this document and those intended for its further maintenance are

described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the

different types of ISO documents should be noted. This document was drafted in accordance with the

editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of

any patent rights identified during the development of the document will be in the Introduction and/or

on the ISO list of patent declarations received (see www .iso .org/ patents).

Any trade name used in this document is information given for the convenience of users and does not

constitute an endorsement.

For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and

expressions related to conformity assessment, as well as information about ISO's adherence to the

World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see www .iso .org/

iso/ foreword .html.

This document was prepared by Technical Committee ISO/TC 22, Road vehicles, Subcommittee SC 41,

Specific aspects for gaseous fuels.

Any feedback or questions on this document should be directed to the user’s national standards body. A

complete listing of these bodies can be found at www .iso .org/ members .html.
iv © ISO 2019 – All rights reserved
---------------------- Page: 6 ----------------------
oSIST prEN ISO 21058:2021
ISO 21058:2019(E)
Introduction

This document was developed to use for the newly produced Dimethyl Ether vehicle fuelling nozzles

and receptacles only. As such, it applies to nozzles and receptacles used in the Dimethyl Ether fuelling

system and not to the system.

A nozzle meeting the requirements of this document will be functionally compatible from a safety

and performance perspective with all listed receptacles of compatible profile and system pressure.

Similarly, a receptacle meeting the requirements of this document will be functionally compatible from

a safety and performance perspective with all listed nozzles of compatible profile and system pressure.

As there may eventually be many different kinds of nozzles and receptacles available from a variety

of manufacturers which, for safety reasons, should all be compatible with each other, this document

specifies one standardized receptacle profile. This standard profile incorporates the design

specifications (mating materials, geometry and tolerances) which may be considered when evaluating

if a submitted nozzle or receptacle meets the requirement of this document.
© ISO 2019 – All rights reserved v
---------------------- Page: 7 ----------------------
oSIST prEN ISO 21058:2021
---------------------- Page: 8 ----------------------
oSIST prEN ISO 21058:2021
INTERNATIONAL STANDARD ISO 21058:2019(E)
Road vehicles — Dimethyl Ether (DME) refuelling
connector
1 Scope

This document applies only to Dimethyl Ether refuelling connectors hereinafter referred to as devices,

constructed entirely of new, unused parts and materials. Dimethyl Ether refuelling connectors consist

of the following components, as applicable:
a) Nozzle (mounted on dispenser side).
b) Receptacle (mounted on vehicle).

This document applies to devices which use Dimethyl Ether as fuel, hereinafter referred to in this

document as D15 [see 9.1 c)].
This document applies to devices with standardised mating components.

This document applies to connectors which prevent Dimethyl Ether vehicles from being fuelled by fuel

station dispensers for other gaseous fuels.
This document is applicable to: Dimethyl Ether in accordance with ISO 16861.

NOTE All references to pressures (kPa) throughout this document are considered gauge pressures unless

otherwise specified.
2 Normative References

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

ISO 188, Rubber, vulcanized or thermoplastic — Accelerated ageing and heat resistance tests

ISO 1431-1, Rubber, vulcanized or thermoplastic — Resistance to ozone cracking — Part 1: Static and

dynamic strain testing

ISO 1817, Rubber, vulcanized or thermoplastic — Determination of the effect of liquids

ISO 9227, Corrosion tests in artificial atmospheres — Salt spray tests

ISO 16861, Petroleum products — Fuels (class F) — Specifications of dimethyl ether (DME)

ASTM D4814Standard Specification for Automotive Spark-Ignition Engine Fuel
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at http:// www .electropedia .org/
© ISO 2019 – All rights reserved 1
---------------------- Page: 9 ----------------------
oSIST prEN ISO 21058:2021
ISO 21058:2019(E)
3.1
dry air

air with moisture content such that the dew point of the air at the required test pressure is at least

11 °C below the ambient test temperature
3.2
working pressure
maximum pressure that a connector can be expected to withstand in actual service
3.3
Dimethyl Ether
DME
methoxymethane
organic compound with the formula CH OCH , simplified to C H O
3 3 2 6
Note 1 to entry: Dimethyl Ether is liquid below −25 °C.
3.4
Dimethyl Ether refuelling nozzle

device which permits quick connection and disconnection of fuel supply hose to the Dimethyl Ether

receptacle (3.5) in a safe manner
Note 1 to entry: This term is hereafter referred to as nozzle.
3.5
Dimethyl Ether refuelling receptacle

device connected to a vehicle or storage system which receives the Dimethyl Ether nozzle (3.4) and

permits safe transfer of fuel
Note 1 to entry: This term is hereafter referred to as receptacle.
3.6
Dimethyl Ether refuelling connector
joined assembly of Dimethyl Ether nozzle and receptacle
Note 1 to entry: This term is hereafter referred to as connector.
3.7
non-sparking materials

materials that do not contain, by mass, more than 7,5 % in total of magnesium, titanium and zirconium

[SOURCE: IEC EN 60079-0:2011, 8.3]
3.8
service gasket

replaceable gasket ensuring tightness of the connection between the nozzle outlet and the receptacle inlet

3.9
cycle life

number of connections and disconnections between the nozzle (3.4) and the receptacle (3.5) required

for testing purposes
3.10
service life
number of operations of the check valve in the receptacle for testing purposes
2 © ISO 2019 – All rights reserved
---------------------- Page: 10 ----------------------
oSIST prEN ISO 21058:2021
ISO 21058:2019(E)
4 General construction requirements

4.1 Nozzles and receptacles shall be designed in accordance with reasonable concepts of safety,

durability and maintainability.

1) Working pressure. All nozzles and receptacles are designed to have a working pressure defined by

the manufacturer and clearly marked on the device [see 9.1 d)].

2) Design life. All nozzles will be tested at 100 000 connect/disconnect cycles and all receptacles at

20 000 connect/disconnect cycles for conformity with this document. The service gasket may be

changed after minimum of 20 000 cycles.

4.2 Nozzles and receptacles shall be well fitted and manufactured in accordance with good engineering

practice. All construction requirements may be met by either the construction specified in this document

or another construction that gives at least equivalent performance.
4.3 Nozzles and receptacles shall be:
— designed to minimise the possibility of incorrect assembly;

— designed to be secure against displacement, distortion, warping or other damage under normal and

anticipated abnormal conditions of handling and use;
— designed to release less than 1 cm of liquid DME during disconnection;

— constructed to maintain operational integrity under normal and reasonable conditions of handling

and usage;
— manufactured and produced according to the test plan in Annex B.

4.4 Nozzles and receptacles shall be manufactured of materials suitable and compatible for use with

Dimethyl Ether, in accordance with ISO 16861, at the pressure and the temperature ranges to which it

will be subjected.
4.4.1 The temperature range shall be for:
For the receptacle:
— Moderate operating conditions: −20 °C to +85 °C
— Cold operating conditions: −40 °C to +85 °C
For the nozzle:
— Moderate operating conditions: −20 °C to +65 °C
— Cold operating conditions: −40 °C to +65 °C

For specific regions, the temperature range specified may not be sufficient. In such a case, a wider

temperature range, representative of that specific region, shall be considered.

4.5 Nozzles and receptacles shall be operated either to connect or disconnect without the use of tools

and with one hand operation.
4.6 Jointing components shall provide gas-tight sealing performance.
© ISO 2019 – All rights reserved 3
---------------------- Page: 11 ----------------------
oSIST prEN ISO 21058:2021
ISO 21058:2019(E)
5 Nozzles
The design of the nozzle shall ensure that:
a) it is compatible with the receptacle as specified in Clause 6;
b) entrapment of fingers and/or cold burns are not possible;

c) the maximum push-on force during connection is 100 N at any pressure up to 1 500 kPa in the nozzle;

d) the maximum pull-off force during disconnection is 50 N at 1 500 kPa;

e) the force to operate the lever, if any, applied at the centre of the grip area of the lever, is 100 N

maximum at any pressure up to 1 500 kPa in the nozzle;

f) if a latch is provided and in use, it shall be capable of being normally disarmed by the user;

g) provision is made to enable the lever or the whole nozzle to freely rotate over an angle of 360°

around the longitudinal axis of the nozzle or the filling hose;

h) it is not possible to open the valve in the nozzle if the nozzle is not properly locked and sealed on

the receptacle;
i) a locking mechanism is incorporated that locks in the connected position;

j) it is not possible to unlock the nozzle from the receptacle unless the nozzle valve is closed;

k) internal blocking due to freezing does not occur under intended operating conditions;

l) it will withstand a torque of 150 % of the mounting torque specified by the manufacturer

without damage;

m) the external surfaces of the filling nozzle are corrosion resistant or protected against corrosion

and are made of materials (non-sparking materials) that do not cause sparks when dropped on a

surface;
n) changing the service gasket shall not result in any Dimethyl Ether release;
o) the minimum cycle life of the service gasket is 20 000 cycles;

p) the nozzle is provided with a means to securely attach it to the delivery hose;

q) the nozzle shall comply with the performance requirements of Clause 10 to ensure

interchangeability.
6 Standard receptacle dimensions
A receptacle shall comply with the design specifications detailed in Figure 1.
4 © ISO 2019 – All rights reserved
---------------------- Page: 12 ----------------------
oSIST prEN ISO 21058:2021
ISO 21058:2019(E)
Dimensions in millimetres
Figure 1 — D15 receptacle
7 Receptacles

7.1 Receptacles shall comply with Clauses 4 and 6 to 10 and shall be evaluated with a test nozzle

meeting the requirements of this document.

The failure of any test conducted with the receptacle and nozzle test samples shall constitute a failure of

the submitted receptacle, unless the manufacturer can prove the problem was caused by the test nozzle.

7.2 The receptacle shall be equipped with an internal check valve to prevent the escape of gas.

Regardless of whether the check valve is opened mechanically or by differential pressure, the flow through

the receptacle, when tested with water, at a differential pressure of 30 kPa, shall be at least 3 l/min.

The check valve shall be dimensioned to be leak-tight for the complete temperature range, also when

the tank pressure is lower than the ambient pressure.

The dead volume between the front sealing surface and the front of the internal check valve shall not

exceed 0,1 cm .

7.3 The method for attaching the receptacle to the vehicle fuel system shall not rely on the joint

between the male and female threads for sealing, such as conical threads.

7.4 The interfacing surface of the receptacle shall be constructed of material that does not cause spark

(non-sparking) and ensures electrical continuity (see 10.8.8).
© ISO 2019 – All rights reserved 5
---------------------- Page: 13 ----------------------
oSIST prEN ISO 21058:2021
ISO 21058:2019(E)

7.5 The receptacle shall have provisions to be firmly attached to the vehicle and shall comply with

applicable abnormal load tests (see 10.4).
7.6 The receptacle shall be mounted on the vehicle in compliance with Annex A.

7.7 The receptacle shall not be installed in an area that exceeds a temperature of 85 °C.

7.8 Receptacles shall have a cycle life of more than 20 000 cycles and a service life of more than

100 000 cycles.
8 Instructions

Information required for instructions and provisions shall be in an easily understood form.

Special tools required for connection of receptacles to tubing shall be clearly identified in the

instructions.

Manufacturers of receptacles and nozzles shall provide clear and concise printed instruction and

diagrams in a form that can be easily understood and adequate for:
— proper field assembly,
— installation,
— maintenance,
— replacement of components as appropriate,
— for safe operation by all users,
— suitability and use, and
— storage and handling.
9 Marking

Information required for marking and provisions shall be in an easily understood form. Marking should

be embossed, cast, stamped or otherwise formed in the part. This includes markings baked into an

enamelled surface.
9.1 Nozzles and receptacles shall bear the following information:
a) the manufacturer's or dealer's name, trademark or symbol,
b) the model designation,
c) D15,
d) the working pressure,
e) the minimum design temperature,
f) manufacturer code to ensure traceability, and
g) a certification mark (if required).

9.2 A marking to identify this document shall be provided for each system. This marking may be

located on the package or on a notice placed inside the package in which the device is shipped.

6 © ISO 2019 – All rights reserved
---------------------- Page: 14 ----------------------
oSIST prEN ISO 21058:2021
ISO 21058:2019(E)
10 Tests
10.1 General requirements

A nozzle and receptacle shall be tested with receptacle and nozzle designs specified in Clauses 4 to 9.

Unless otherwise stated:
a) tests shall be conducted at room temperature (20 ± 5 °C);

b) all pressure or leak tests shall be conducted with dry air or any other suitable gas; and

c) devices shall be conditioned to attain equilibrium conditions.
The tolerances for test temperatures and pressures shall be:
— for low temperatures: (+0 °C / −5 °C);
— for high temperatures: (+5 °C / −0 °C);
— test pressures: ±10 % of the stated value with a maximum of 100 kPa.
10.2 Impact resistance
10.2.1 Nozzle test

A nozzle conditioned for 4 h at −20 °C for moderate operating conditions or −40 °C for cold operating

conditions shall be connected within 2 min to a 5 m length of 19 mm internal diameter refuelling hose at

room temperature, and then dropped 1,3 m onto a concrete floor as shown in Figure 2. The nozzle shall

be dropped ten times at room temperature, then pressurised at the working pressure and subjected to

ten additional drops. Following the above drops, the nozzle shall be capable of normal connection and

disconnection to the receptacle. In addition, the nozzle shall comply with leakage tests specified in 10.3.

Dimensions in metres
Key
1 horizontal concrete floor
2 solid fixing point
3 Hose
4 nozzle
Figure 2 — Impact resistance test arrangement
10.2.2 Receptacle test

The receptacle shall be subjected to an impact test of 10 J. A hardened steel mass of 1 kg shall be dropped

from a height of 1 m so as to deliver the impact velocity 4,4 m/s. This shall be achieved by mounting

the mass in a pendulum. The receptacle shall be installed horizontally on a solid object. The impact of

© ISO 2019 – All rights reserved 7
---------------------- Page: 15 ----------------------
oSIST prEN ISO 21058:2021
ISO 21058:2019(E)

the mass shall be on the centre of the protruding part of the receptacle (see Figure A.1). Following the

above impact test, the receptacle shall comply with leakage tests specified in 10.3.

10.3 Leakage at room temperature

Tests shall be conducted at two different pressures: 20 kPa and 1,5 times working pressure.

Pressurised air or nitrogen shall be applied to the coupled (and uncoupled) device. The external body

shall then be checked for bubble leakage using immersion in room temperature water.

Nozzles and receptacles, coupled and uncoupled, shall be either bubble free on the leak test for 2 min

or have a leak rate less than 15 cm /h at a room temperature of 20 °C ± 5 °C. The leak rate shall be

determined according to the following method or any other equivalent method.

A graduated cylinder that is calibrated in cubic centimetres, filled with the test liquid, shall be placed

inverted above the component.

At the end of the test period, the liquid displacement in the graduated cylinder is recorded.

The leakage rate is then calculated using Formula (1):
60 273P
 
(1)
VV=
 
t 101,3T 
where
V is the leakage rate, cm /h of air or nitrogen;
V is the liquid displacement during the test in cm ;
t is the time of test, minutes;
P is the atmospheric pressure during test in kPa;
T is the ambient temperature during test in K.
10.4 Abnormal loads

The connected nozzle and receptacle shall be subjected to the following abnormal loads for a period of

5 min in service. These tests shall be conducted separately:
a) Pulls a along the nozzle or receptacle longitudinal axis;
b) Moments b applied in
...
