SIST EN 13448:2002+A1:2010

Agricultural and forestry machinery - Inter-row mowing units - Safety

This European Standard specifies the safety requirements and test methods for the design and construction of inter-row mowing units with vertical spindles mounted on grass cutting machines such as flail mowers, used in agriculture, forestry and landscaping to cut the grass in the area between two successive obstruction.
It describes methods for elimination or reduction of risks arising from their use.
In addition, it specifies the type of information on safe working practices to be provided by the manufacturer.
This standard is not applicable to rotary mowers and flail-mowers which are covered by EN 745.
Environmental aspects have not been considered in this standard.
This European Standard is not applicable to inter-row mowing units which are manufactured before the date of publication of this document by CEN.

Land- und forstwirtschaftliche Maschinen - Zwischenreihenmäher - Sicherheit

Diese Europäische Norm enthält sicherheitstechnische Anforderungen und deren Überprüfung für die Gestaltung und Konstruktion von Zwischenreihenmähern mit senkrechten Spindeln, die an Grasmäh-maschinen wie Schlegel¬mähern angebaut sind. Sie werden in der Land- und Forstwirtschaft und in der Landschaftspflege verwendet zum Gras schneiden im Bereich von zwei aufeinander folgenden Hindernissen.
Sie beschreibt Maßnahmen zur Vermeidung oder Verminderung der sich aus dem Gebrauch ergebenden Gefährdungen.
Außerdem legt sie fest, welche Hinweise zum sicheren Arbeiten vom Hersteller zu geben sind.
Diese Norm gilt nicht für Kreiselmähwerke und Schlegelmäher, die in EN 745 behandelt werden.
Die Umweltaspekte wurden in dieser Norm nicht in Betracht gezogen.
Diese Europäische Norm gilt nicht für Zwischenreihenmäher, die hergestellt wurden vor der Veröffentlichung dieses Dokumentes durch CEN.

Matériel agricole et forestier - Faucheuses interlignes - Sécurité

La présente Norme européenne détermine les prescriptions de sécurité et les vérifications pour la conception et la
construction des faucheuses interlignes à axes verticaux montées sur des machines pour couper l’herbe telles que
des faucheuses-broyeuses, utilisées en agriculture, en sylviculture et pour l'entretien des espaces verts pour couper
l'herbe dans la zone comprise entre deux obstacles successifs.
Elle décrit les méthodes pour l'élimination et la réduction des risques inhérents à leur utilisation.
En outre, elle spécifie le type d'informations que le fabricant doit donner sur les pratiques d'utilisation sûre.
Cette norme n'est pas applicable aux faucheuses rotatives ni aux faucheuses-broyeuses traitées dans l’EN 745.
Les aspects liés à l'environnement n'ont pas été pris en compte dans cette norme.
La présente Norme européenne n'est pas applicable aux faucheuses interlignes qui ont été fabriquées avant la date
de publication de ce document par le CEN.

Kmetijski in gozdarski stroji - Medvrstne zastiralne kosilnice - Varnost

Ta evropski standard opredeljuje varnostne zahteve in preskusne metode za načrtovanje in izdelavo medvrstnih zastiralnih kosilnic z navpičnimi osmi, ki so montirane na stroje za košnjo trave, kot so mulčerji, ki se uporabljajo v kmetijstvu, gozdarstvu in krajinskem oblikovanju za košnjo trave v območju med dvema zaporednima ovirama. Opisuje metode za odpravo ali zmanjševanje tveganj, ki izvirajo iz njihove uporabe. Poleg tega opredeljuje vrste podatkov glede varnih delovnih praks, ki jih mora zagotoviti proizvajalec. Ta standard ne velja za rotorske mulčerje in mulčerje, ki jih zajema EN 745. Okoljski vidiki v tem standardu niso obravnavani. Ta evropski standard se ne uporablja za medvrstne zastiralne kosilnice,  ki so izdelane pred datumom, ko je CEN objavil ta dokument.

General Information

• Status: Published
• Publication Date: 18-Jan-2010
• ICS: 65.060.50 - Harvesting equipment
• Technical Committee: IMKG - Machinery for agriculture and forestry
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 04-Jan-2010
• Due Date: 11-Mar-2010
• Completion Date: 19-Jan-2010
• Directive: 2006/42/EC - Directive 2006/42/EC of the European Parliament and of the Council of 17 May 2006 on machinery, and amending Directive 95/16/EC (recast)
• Directive: 98/37/EC - Machinery
• Mandate: M/079 - Mandate to CEN and CENELEC for standardization in the field of machines
• Mandate: M/396 - Mandate to CEN and Cenelec for standardisation in the field of machinery
• Ref Project: EN 13448:2001+A1:2009 - Agricultural and forestry machinery - Inter-row mowing units - Safety

Relations

• Consolidates: SIST EN 13448:2002 - Agricultural and forestry machinery - Inter-row mowing units - Safety
• Effective Date: 18-Jul-2009

Overview

EN 13448:2001+A1:2009 (CEN) defines safety requirements and test methods for inter‑row mowing units - rotary mowers with vertical spindles and pivoting booms mounted on grass‑cutting machines (for example on flail mowers) used in agriculture, forestry and landscaping to cut grass between successive obstructions (trees, posts, etc.). The standard describes risk reduction measures, required manufacturer information (instruction handbook, marking) and specific test procedures (notably the thrown‑object test). It excludes rotary mowers and flail‑mowers covered by EN 745, environmental aspects, and machines manufactured before the CEN publication date.

Key topics and technical requirements

• Scope and terminology: Type C standard (per EN 1070) covering hazards specific to inter‑row mowing units; general hazards addressed by EN 1553 and EN 292 series.
• Blade enclosure: An imperforate guard covering cutting elements, providing at least 50 mm beyond the external cutting trajectory and at least 3 mm below the blade tip circle. Enclosure must be free of sharp edges.
• Structural strength: Blade enclosure shall resist a 1200 N vertical downwards load and horizontal loads of 600 N (machines for tractors ≤ 37 kW) or 1 000 N (other machines), verified by referenced test procedures.
• Hose protection: Hydraulic/pneumatic hoses must be routed and retained to minimize damage; hoses >5 MPa (50 bar) or >50 °C within 1 m of the operator must be guarded in accordance with EN ISO 3457.
• Thrown‑object test: Defined target panels (kraft paper on frames), specified test material (50% sand, 25% gravel 8–16 mm, 25% gravel 16–31.5 mm), pile placement and run procedures. Acceptance: limited impacts in the middle zone (≤2 per 1 000 mm sector), no impacts in the upper zone or operator zone.
• Noise: Measurement method referenced to EN 1553:1999 (annex D); fuller noise provisions reserved for future revision.
• Information for use: Required instruction handbook content and marking to inform safe working practices.

Applications

• Ensures safe design, manufacture and testing of inter‑row mowing units used in:
  • Vineyard and orchard maintenance
  • Landscaping between posts, hedges or tree rows
  • Forestry understorey and strip mowing
• Useful for OEM design teams, safety engineers, test laboratories, conformity assessors and procurement/specification authors aiming to meet European safety requirements.

Who should use this standard

• Agricultural machinery manufacturers and designers
• Test houses conducting thrown‑object and structural tests
• Compliance and CE‑marking specialists
• Farm machinery safety officers and equipment buyers

Related standards

• EN 745 (rotary mowers and flail mowers)
• EN 1553 (common safety requirements for agricultural machines)
• EN 292‑1 / EN 292‑2, EN 294, EN 1070, EN ISO 3457
• Informative alignment with EU Directives (98/37/EC, 2006/42/EC) via annexes ZA/ZB

Keywords: EN 13448, inter‑row mowing units, safety standard, thrown‑object test, blade enclosure, agricultural machinery, CEN.

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Kmetijski in gozdarski stroji - Medvrstne zastiralne kosilnice - VarnostLand- und forstwirtschaftliche Maschinen - Zwischenreihenmäher - SicherheitMatériel agricole et forestier - Faucheuses interlignes - SécuritéAgricultural and forestry machinery - Inter-row mowing units - Safety65.060.50Oprema za spravilo pridelkovHarvesting equipmentICS:Ta slovenski standard je istoveten z:EN 13448:2001+A1:2009SIST EN 13448:2002+A1:2010en,fr,de01-februar-2010SIST EN 13448:2002+A1:2010SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 13448:2001+A1
September 2009 ICS 65.060.50 Supersedes EN 13448:2001English Version
Agricultural and forestry machinery - Inter-row mowing units - Safety
Matériel agricole et forestier - Faucheuses interlignes - Sécurité
Land- und forstwirtschaftliche Maschinen - Zwischenreihenmäher - Sicherheit This European Standard was approved by CEN on 3 October 2001 and includes Amendment 1 approved by CEN on 10 August 2009.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2009 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 13448:2001+A1:2009: ESIST EN 13448:2002+A1:2010

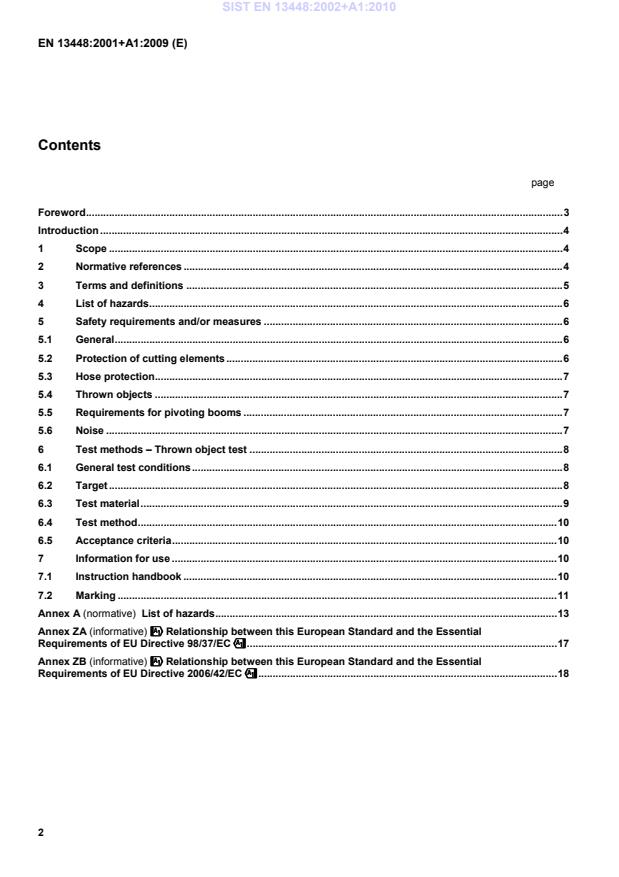

Foreword . 3Introduction . 41Scope . 42Normative references . 43Terms and definitions . 54List of hazards . 65Safety requirements and/or measures . 65.1General . 65.2Protection of cutting elements . 65.3Hose protection . 75.4Thrown objects . 75.5Requirements for pivoting booms . 75.6Noise . 76Test methods – Thrown object test . 86.1General test conditions . 86.2Target . 86.3Test material . 96.4Test method . 106.5Acceptance criteria . 107Information for use . 107.1Instruction handbook . 107.2Marking . 11Annex A (normative)
