SIST EN 15269-20:2020
(Main)Extended application of test results for fire resistance and/or smoke control for door, shutter and openable window assemblies, including their elements of building hardware - Part 20: Smoke control for doors, shutters, operable fabric curtains and openable windows
Extended application of test results for fire resistance and/or smoke control for door, shutter and openable window assemblies, including their elements of building hardware - Part 20: Smoke control for doors, shutters, operable fabric curtains and openable windows
This Part of (pr/Fpr)EN 15269, which should be read in conjunction with FprEN 15269-1, covers hinged and pivoted steel doorsets, hinged and pivoted timber doorsets (including timber framed glazed doorsets) and hinged and pivoted metal framed glazed doorsets of single or double-leaf construction.
The document prescribes the methodology for extending the application of test results obtained from test(s) conducted in accordance with EN 1634-3.
NOTE It is anticipated that the above scope will be extended to cover other product types when the relevant test information and expertise become available.
Subject to the completion of the appropriate test or tests, the extended application may cover Ambient Temperature Smoke Control (Sa) and Medium Temperature Smoke Control (Sm) classifications and all or some of the following variations:
- glazed elements, louvres and/or vents;
- side, transom or overpanels;
- items of building hardware;
- decorative finishes;
- intumescent, smoke, draught or acoustic seals;
- alternative supporting construction(s).
Erweiterter Anwendungsbereich von Prüfergebnissen zur Feuerwiderstandsfähigkeit und/oder Rauchdichtigkeit von Türen, Toren und Fenstern einschließlich ihrer Baubeschläge - Teil 20: Rauchdichtigkeit von Türen, Toren, Abschlüssen und Fenstern
Dieser Europäische Norm-Entwurf, der in Verbindung mit EN 15269 1 gelesen werden sollte, behandelt Türen, Tore, Abschlüsse, Fenster und Feuerschutzvorhänge aus beliebigem Werkstoff und der folgenden Bauarten:
- Drehflügeltüren (z. B. aus Metall, Holz, mit Verglasung), einflügelig oder zweiflügelig, mit Ausnahme von Ganzglastüren (Tabelle A.1);
- einflügelige oder zweiflügelige Horizontal- und Vertikal-Schiebetüren/ tore mit und ohne Schlupftüren, einschließlich Teleskoptüren/ toren (Tabelle A.2);
- Metall-Rolltore und Feuerschutzvorhänge (mit Ausnahme überlappender Systeme) (Tabelle A.3).
ANMERKUNG 1 Die Tabellen/Regeln für die folgenden Bauarten werden Gegenstand künftiger Arbeiten sein:
- Ganzglastüren;
- Sektionaltüren/ tore (einschließlich Hubtore);
- Vertikal- und Horizontal-Falttüren.
Wenn in dieser Norm der Begriff "Türen" verwendet wird, ist die gesamte Spanne von Türen, Toren, Abschlüssen, Fenstern und Feuerschutzvorhängen oder weiteren genannten Produkten eingeschlossen.
Dieses Dokument schreibt die Methodik zur Erweiterung der Anwendung von Prüfergebnissen vor, die anhand einer Prüfung/von Prüfungen nach EN 1634 3 erhalten wurden.
ANMERKUNG 2 Diese Norm behandelt auch Türen/Tore, die aus einer Kombination von Werkstoffen hergestellt wurden.
In Abhängigkeit von der Durchführung der entsprechenden Prüfung oder Prüfungen darf der erweiterte Anwendungsbereich die Klassifizierungen der Rauchdichtheit bei Umgebungstemperatur (Sa) und der Rauchdichtheit bei erhöhter Temperatur (S200) sowie einige oder alle der folgenden nicht erschöpfenden Liste abdecken:
- Flügel;
- an der Wand/Decke befestigte Bauteile;
- verglaste Bauteile, Lüftungsgitter und/oder Lüftungssöffnungen;
- Seitenteile, Oberteile oder obere Türblenden;
- Türbeschläge;
- dekorative Beschichtungen;
- dämmschichtbildende Dichtungen, sowie Dichtungen zur Behinderung von Rauchdurchtritt (Rauchschutzdichtungen), Durchzug oder der Schallübertragung (Schallschutzdichtungen);
- alternative Tragkonstruktion(en).
Application étendue des résultats d’essais en matière de résistance au feu et/ou d’étanchéité à la fumée des blocs-portes, blocs-fermetures et ouvrants de fenêtre, y compris leurs éléments de quincaillerie intégrés - Partie 20 : Étanchéité à la fumée des portes, fermetures, rideaux en toile manœuvrables et ouvrants de fenêtre
Le présent projet de Norme européenne, qu'il convient de lire conjointement avec l'EN 15269-1, traite des portes, fermetures, fenêtres et rideaux en toile réalisés en tout matériau et des types suivants :
- blocs-portes battants et pivotants (par exemple blocs-portes vitrés à ossature métallique ou en bois) à simple ou à double vantail, à l'exclusion des portes vitrées sans cadre (Tableau A.1) ;
- portes coulissant horizontalement et verticalement à simple ou à double vantail avec et sans portillons, y compris les blocs-portes télescopiques (Tableau A.2) ;
- rideaux à enroulement métalliques et rideaux en toile manœuvrables (à l'exclusion des systèmes de recouvrement (Tableau A.3).
NOTE 1 Pour les constructions suivantes, les tableaux/règles feront l'objet de travaux ultérieurs :
- portes vitrées sans cadre ;
- portes sectionnelles (y compris les portes escamotables) ;
- portes en accordéon verticales et horizontales.
Dans la présente norme, lorsque le terme « portes » est mentionné, il inclut ou indique l'ensemble de la gamme de portes, fermetures, fenêtres et rideaux en toile manœuvrables.
Le présent document prescrit la méthodologie permettant d'étendre l'application des résultats d'essai obtenus suite à un (des) essai(s) réalisés conformément à l'EN 1634-3.
NOTE 2 La présente norme traite également des blocs-portes constitués d'une combinaison de matériaux.
En fonction de l'exécution du ou des essais appropriés, l'application étendue peut couvrir les classifications d'étanchéité à la fumée à température ambiante (Sa) et d'étanchéité à la fumée à température moyenne (S200), ainsi que la totalité ou une partie de la liste suivante :
- vantail/vantaux ;
- éléments fixés au mur/plafond ;
- éléments vitrés, grilles de ventilation et/ou évents ;
- panneaux latéraux, panneaux d'imposte avec ou sans traverse intermédiaire ;
- éléments de quincaillerie de bâtiment ;
- finitions décoratives ;
- joints intumescents, d'étanchéité à la fumée, à l'air ou acoustiques ;
- autre(s) construction(s) support.
Razširjena uporaba rezultatov preskusov požarne odpornosti in/ali dimotesnosti za vrata, zapore in okna, ki se odpirajo, vključno z njihovim okovjem - 20. del: Požarna odpornost vrat, zapor, ognjevarnih zaves in oken, ki se odpirajo
General Information
Relations
Standards Content (Sample)
SLOVENSKI STANDARD
SIST EN 15269-20:2020
01-november-2020
Nadomešča:
SIST EN 15269-20:2009
Razširjena uporaba rezultatov preskusov požarne odpornosti in/ali dimotesnosti
za vrata, zapore in okna, ki se odpirajo, vključno z njihovim okovjem - 20. del:
Požarna odpornost vrat, zapor, ognjevarnih zaves in oken, ki se odpirajo
Extended application of test results for fire resistance and/or smoke control for door,
shutter and openable window assemblies, including their elements of building hardware -
Part 20: Smoke control for doors, shutters, operable fabric curtains and openable
windows
Erweiterter Anwendungsbereich von Prüfergebnissen zur Feuerwiderstandsfähigkeit
und/oder Rauchdichtigkeit von Türen, Toren und Fenstern einschließlich ihrer
Baubeschläge - Teil 20: Rauchdichtigkeit von Türen, Toren, Abschlüssen und Fenstern
Application étendue des résultats d’essais en matière de résistance au feu et/ou
d’étanchéité à la fumée des blocs-portes, blocs-fermetures et ouvrants de fenêtre, y
compris leurs éléments de quincaillerie intégrés - Partie 20 : Étanchéité à la fumée des
portes, fermetures, rideaux en toile manœuvrables et ouvrants de fenêtre
Ta slovenski standard je istoveten z: EN 15269-20:2020
ICS:
13.220.50 Požarna odpornost Fire-resistance of building
gradbenih materialov in materials and elements
elementov
91.060.50 Vrata in okna Doors and windows
SIST EN 15269-20:2020 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
SIST EN 15269-20:2020
---------------------- Page: 2 ----------------------
SIST EN 15269-20:2020
EN 15269-20
EUROPEAN STANDARD
NORME EUROPÉENNE
September 2020
EUROPÄISCHE NORM
ICS 13.220.50; 91.060.50 Supersedes EN 15269-20:2009
English Version
Extended application of test results for fire resistance
and/or smoke control for door, shutter and openable
window assemblies, including their elements of building
hardware - Part 20: Smoke control for doors, shutters,
operable fabric curtains and openable windows
Application étendue des résultats d'essais en matière Erweiterter Anwendungsbereich von Prüfergebnissen
de résistance au feu et/ou d'étanchéité à la fumée des zur Feuerwiderstandsfähigkeit und/oder
blocs-portes, blocs-fermetures et ouvrants de fenêtre, y Rauchdichtigkeit von Türen, Toren und Fenstern
compris leurs éléments de quincaillerie intégrés - einschließlich ihrer Baubeschläge - Teil 20:
Partie 20 : Étanchéité à la fumée des portes, Rauchdichtigkeit von Türen, Toren, Abschlüssen und
fermetures, rideaux en toile manœuvrables et ouvrants Fenstern
de fenêtre
This European Standard was approved by CEN on 27 April 2020.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2020 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 15269-20:2020 E
worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
SIST EN 15269-20:2020
EN 15269-20:2020 (E)

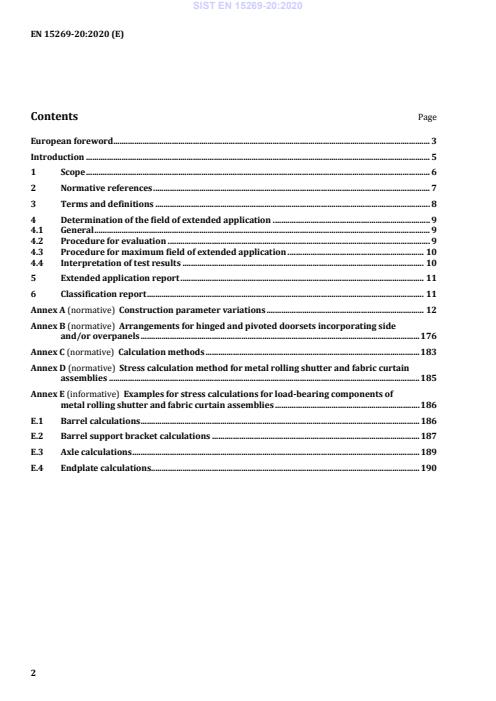

Contents Page
European foreword . 3
Introduction . 5
1 Scope . 6
2 Normative references . 7
3 Terms and definitions . 8
4 Determination of the field of extended application . 9
4.1 General . 9
4.2 Procedure for evaluation . 9
4.3 Procedure for maximum field of extended application . 10
4.4 Interpretation of test results . 10
5 Extended application report . 11
6 Classification report . 11
Annex A (normative) Construction parameter variations . 12
Annex B (normative) Arrangements for hinged and pivoted doorsets incorporating side
and/or overpanels . 176
Annex C (normative) Calculation methods . 183
Annex D (normative) Stress calculation method for metal rolling shutter and fabric curtain
assemblies . 185
Annex E (informative) Examples for stress calculations for load-bearing components of
metal rolling shutter and fabric curtain assemblies . 186
E.1 Barrel calculations . 186
E.2 Barrel support bracket calculations . 187
E.3 Axle calculations . 189
E.4 Endplate calculations. 190
2
---------------------- Page: 4 ----------------------
SIST EN 15269-20:2020
EN 15269-20:2020 (E)
European foreword
This document (EN 15269-20:2020) has been prepared by Technical Committee CEN/TC 127 “Fire
safety in buildings”, the secretariat of which is held by BSI.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by March 2021, and conflicting national standards shall
be withdrawn at the latest by March 2021.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 15269-20:2009.
This document has been prepared under a standardization request given to CEN and CENELEC by the
European Commission and the European Free Trade Association.
In comparison with EN 15269-20:2009, the following changes have been made:
— Clause 1, "Scope":
— revised,
— hinged and pivoted (e.g. metal, timber, framed glazed) doors and openable windows of single
or double leaf, added,
— metal rolling shutters and operable fabric curtains (excluding overlapping systems), added;
— Clause 2, "Normative references" updated;
— Clause 3, "Terms and definitions" revised;
— Clause 4, "Determination of the field of extended application" revised;
— Annex A (normative) "Construction parameter variations":
— introduction revised,
— Table A.1 and figure to Table A.1 revised,
— new Table A.2 and figure to Table A.2 added,
— new Table A.3 and figure to Table A.3 added;
— new Annex B (normative) "Arrangements for hinged and pivoted doorsets incorporating side
and/or overpanels" added;
— new Annex C (normative),"Calculation methods" added;
— new Annex D (normative) "Stress calculation method for metal rolling shutter and fabric curtain
assemblies" added;
3
---------------------- Page: 5 ----------------------
SIST EN 15269-20:2020
EN 15269-20:2020 (E)
— new Annex E (informative) "Examples for stress calculations for load-bearing components of metal
rolling shutter and fabric curtain assemblies" added;
— complete editorial and contented revision.
The EN 15269 series of standards Extended application of test results for fire resistance and/or smoke
control for door, shutter and openable window assemblies, including their elements of building hardware
currently consists of:
— Part 1: General requirements;
— Part 2: Fire resistance of hinged and pivoted steel doorsets;
— Part 3: Fire resistance of hinged and pivoted timber doorsets and openable timber framed windows;
— Part 5: Fire resistance of hinged and pivoted metal framed glazed doorsets and openable windows;
— Part 6: Fire resistance of sliding timber doorsets [in preparation];
— Part 7: Fire resistance for steel sliding doorsets;
— Part 10: Fire resistance of steel rolling shutter assemblies;
— Part 11: Fire resistance for operable fabric curtains;
— Part 20: Smoke control for doors, shutters and openable windows [the present document].
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,
Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of
North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the
United Kingdom.
4
---------------------- Page: 6 ----------------------
SIST EN 15269-20:2020
EN 15269-20:2020 (E)
Introduction
This document is one of a series of standards listed above and is intended to be used for the purpose of
producing an extended application report based on the evaluation of one or more fire resistance and/or
smoke control tests. These standards may also be used to identify the best selection of test specimens
required to cover a wide range of product variations.
A review of the doorset construction parameters can indicate that one or more characteristics may be
improved by a particular parameter variation. All evaluations need to be made on the basis of retaining
the smoke control classifications obtainable from testing to EN 1634-3. However, this will never lead to
an increased classification for any specific smoke performance parameter beyond that achieved during
any one test unless specifically identified in the relevant Construction Parameter Variation tables within
this series of standards.
Issued extended application reports after prior versions of the series EN 15269 (e.g.
EN 15269-20:2009) stay valid as long as there is no change in the construction(s) described in the
report.
5
---------------------- Page: 7 ----------------------
SIST EN 15269-20:2020
EN 15269-20:2020 (E)
1 Scope
This document, which is intended to be read in conjunction with EN 15269-1, covers doors, shutters,
openable windows and fabric curtains of any material and of the following types:
— hinged and pivoted (e.g. metal, timber, framed glazed) doors and openable windows of single or
double leaf (Table A.1);
— horizontally and vertically moving steel sliding doors of single or double leaf with and without pass
doors, including telescopic doorsets (Table A.2);
— metal rolling shutters and operable fabric curtains (excluding overlapping systems) (Table A.3).
The following construction products are not covered by this standard:
— unframed glass doors and openable windows;
— sectional doors (including stacking doors);
— vertically and horizontally folding doors;
— horizontally and vertically moving timber sliding doors;
— horizontally and vertically moving framed sliding doors (metal or timber).
In this document, whenever doors are mentioned, the whole range of doors, shutters, openable
windows and operable fabric curtains is included or otherwise mentioned.
This document prescribes the methodology for extending the application of test results obtained from
test(s) conducted in accordance with EN 1634-3.
Subject to the completion of the appropriate test or tests, the extended application can cover all or some
of the following examples:
— Ambient Temperature Smoke Control (S ) and Medium Temperature Smoke Control (S )
a 200
classifications;
— leaf/leaves;
— wall/ceiling fixed elements;
— glazed elements, louvres and/or vents;
— side, transom or overpanels;
— items of building hardware;
— decorative finishes;
— intumescent, smoke, draught or acoustic seals;
— alternative supporting construction(s).
6
---------------------- Page: 8 ----------------------
SIST EN 15269-20:2020
EN 15269-20:2020 (E)
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 179, Building hardware - Emergency exit devices operated by a lever handle or push pad, for use on
escape routes - Requirements and test methods
EN 1125, Building hardware - Panic exit devices operated by a horizontal bar, for use on escape routes -
Requirements and test methods
EN 1303, Building hardware - Cylinders for locks - Requirements and test methods
EN 1363-1, Fire resistance tests - Part 1: General Requirements
EN 1634-1, Fire resistance and smoke control tests for door and shutter assemblies, openable windows and
elements of building hardware - Part 1: Fire resistance test for door and shutter assemblies and openable
windows
EN 1634-3, Fire resistance and smoke control tests for door and shutter assemblies, openable windows and
elements of building hardware - Part 3: Smoke control test for door and shutter assemblies
EN 1993-1-2, Eurocode 3: Design of steel structures - Part 1-2: General rules - Structural fire design
EN 12101-1, Smoke and heat control systems - Part 1: Specification for smoke barriers
EN 13501-2, Fire classification of construction products and building elements - Part 2: Classification
using data from fire resistance tests, excluding ventilation services
EN 15269-1, Extended application of test results for fire resistance and/or smoke control for door, shutter
and openable window assemblies, including their elements of building hardware - Part 1: General
requirements
EN 15269-11:2018+AC:2019, Extended application of test results for fire resistance and/or smoke control
for door, shutter and openable window assemblies, including their elements of building hardware -
Part 11: Fire resistance for operable fabric curtains
EN 15684, Building hardware - Mechatronic cylinders - Requirements and test methods
EN ISO 75-1, Plastics - Determination of temperature of deflection under load - Part 1: General test
method (ISO 75-1)
EN ISO 75-2, Plastics - Determination of temperature of deflection under load - Part 2: Plastics and ebonite
(ISO 75-2)
EN ISO 75-3, Plastics - Determination of temperature of deflection under load - Part 3: High-strength
thermosetting laminates (ISO 75-3)
EN ISO 13943, Fire safety - Vocabulary (ISO 13943)
7
---------------------- Page: 9 ----------------------
SIST EN 15269-20:2020
EN 15269-20:2020 (E)
3 Terms and definitions
For the purposes of this document, the terms and definitions given in EN 1363-1, EN ISO 13943,
EN 1634-1, EN 1634-3 and EN 15269-1 and the following apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
• ISO Online browsing platform: available at https://www.iso.org/obp
• IEC Electropedia: available at http://www.electropedia.org/
3.1
core
material fitted centrally within the thickness of a door leaf which may consist of a single sheet of
material or a combination either of sheets of the same material or layers of different materials
3.2
leaf/element/panel
different parts of a sliding doorset as indicated in Figures 1 and 2 below
Key
1 panel
2 leaf
3 element
Figure 1 — Double leaf telescopic door
Key
1 panel
2 leaf
Figure 2 — Double leaf sliding door
3.3
glazed aperture
cut-out in a solid flush door filled with glass
8
---------------------- Page: 10 ----------------------
SIST EN 15269-20:2020
EN 15269-20:2020 (E)
3.4
glazed panel
glass infill in a framed door or a joinery door
3.5
properly sealed
continuous and tight sealing of any joints or gaps with a gasket or permanently elastic sealing material
or a tight constructional joint
3.6
element of building hardware
synonym to “item of building hardware”, means one piece of building hardware, e.g. a lock or a lever-
handle
3.7
flexible supporting construction
constructions with studs made of metal or timber with a full-faced lining at least on one side including
constructions with structural steel work or timber structure in the core
4 Determination of the field of extended application
4.1 General
In Clause 4, “doorset” stands for doors, shutters, operable fabric curtains and openable windows as well
(which means for any kind of products mentioned in the scope).
4.1.1 Before there can be any consideration for extended application the doorset shall have been
tested in accordance with EN 1634-3 to achieve a test result which could generate a classification in
accordance with EN 13501-2 at least equal to the classification subsequently required from extended
application consideration.
4.1.2 A review of the doorset construction parameters can indicate that one or more characteristics
may be improved by a particular parameter variation. All evaluations shall be made on the basis of
retaining the classifications obtainable from testing to EN 1634-3. However, this shall never lead to an
increased classification for any specific parameter beyond that achieved during any one test.
4.1.3 All evaluations shall be made on the basis of retaining the classification obtained from testing to
EN 1634-3.
4.1.4 If, by following the ensuing procedure, any part of the classification cannot be achieved by
extended application rules that part of classification shall be omitted from the subsequent extended
application report and classification report, if not tested. The test shall be performed from both sides
Test scenario F.
4.1.5 Arrangements for hinged and pivoted doorsets incorporating side and/or overpanels are given
in Annex B.
4.2 Procedure for evaluation
4.2.1 Identify the variations from the original test specimen(s) which are required to be covered by
an extended application report.
4.2.2 Locate the variations in the appropriate parameter variation by reference to columns (1) and
(2) of Tables A.1, A.2 or A.3.
9
---------------------- Page: 11 ----------------------
SIST EN 15269-20:2020
EN 15269-20:2020 (E)
4.2.3 Establish from the contents of column (3) of Tables A.1, A.2 or A.3, whether any extended
application is available without the need for further testing.
4.2.4 Where this is deemed to be possible this can be recorded in the extended application report
together with any appropriate restrictions and the stated rules from column (3) in Tables A.1, A.2 or
A.3.
4.2.5 Where the variations required can only be achieved from additional testing according to column
(4), the additional test can be made on a similar specimen type to the original test against which the
extended application is sought. Alternatively, column (3) in Tables A.1, A.2 or A.3 identifies an option
for alternative testing and relevant test parameters.
4.3 Procedure for maximum field of extended application
4.3.1 It is possible to provide a limited field of extended application from the results of a single test.
However, where a manufacturer intends to produce a range of doors incorporating single doors and
also double doors with or without glazing, with alternative elements of building hardware, etc., it is
recommended that careful consideration is given to the complete range of doorset designs and options
in order to minimize the testing required before testing commences.
4.3.2 Establish all the parameter variations which are required to be part of the product range.
4.3.3 Select specimens for the first tests in the series to ensure that the most important parameter
variations for the manufactured products are covered.
4.3.4 Complete the first test or a series of tests and prepare a field of direct application and possibly a
classification report from the results of the test(s).
4.3.5 Establish which of the original desired parameter variations have not been covered by the direct
application and classification report.
4.3.6 Identify these parameter variations in Annex A and establish where an extended application is
possible without further testing.
4.3.7 Record this for the extended application report together with any restrictions and rules given in
column (4) in Tables A.1, A.2 or A.3.
4.3.8 Evaluate which, if any, of the desired parameter variations have not been covered by the field of
direct application or the initial field of extended application derived from 4.3.7 above.
4.3.9 Select the required outstanding parameter variations from column (1) and column (2) of
Tables A.1, A.2 or A.3and observe from column (3) in Tables A.1, A.2 or A.3 which are the most
appropriate weakest specimen options for further testing.
4.3.10 If the complete selection of required parameter variations has not been covered by the tests
completed in accordance with 4.3.9 above, an appropriate test or tests may be carried out with the
additional product variations incorporated.
4.4 Interpretation of test results
4.4.1 In order to maximize the field of extended application, it is important that the test reports shall
record details of any failure throughout the duration of the test.
10
---------------------- Page: 12 ----------------------
SIST EN 15269-20:2020
EN 15269-20:2020 (E)
4.4.2 Where a series of tests have been conducted, the field of extended application shall be based on
the lowest performance achieved from the complete series of tests unless excessive leakage has been
attributed to one or more specific construction parameter variation.
4.4.3 Where it has been possible, to identify leakage due to a specific parameter, the extended
application for all other construction parameter variations can be based on the performance achieved
after isolating the parameter with excessive leakage.
5 Extended application report
Prepare an extended application report in accordance with the requirements of EN 15269-1 based on
the results of evaluations in accordance with the above.
6 Classification report
The classification report shall be determined from the results of the extended application report and
shall be presented in accordance with EN 13501-2.
11
---------------------- Page: 13 ----------------------
SIST EN 15269-20:2020
EN 15269-20:2020 (E)
Annex A
(normative)
Construction parameter variations
The tables are designed to provide rules for the creation of extended application reports by experts in
the field of smoke control testing of:
— Table A.1: hinged and pivoted doorsets.
— Table A.2: horizontally sliding doorsets (single leaf and double leaf), telescopic doorsets, (single leaf
and double leaf) and single leaf vertically sliding doorsets.
— Table A.3: metal rolling shutters and operable fabric curtains (excluding overlapping systems).
The Tables A.1, A.2 or A.3 shall only be used to evaluate a field of extended application when at least one
positive smoke control test to EN 1634-3 has resulted in a classification according to EN 13501-2.
The first two columns of Tables A.1, A.2 or A.3 identify possible variations to the construction details of
the specimen tested.
Column (3) of Tables A.1, A.2 or A.3 gives the possibility of extending the field of application.
Where additional tests are deemed to be necessary, column (4) of Tables A.1, A.2 or A.3 defines the test
scenario to be used. Where it is possible to use information from tests performed on one configuration
for evidence on a different configuration, this allowance has been made in order to reduce the overall
number of tests required for extended application evaluation (e.g. single action doorsets to double
action doorsets).
The following test scenarios are defined and referred to in column (4) of Tables A.1, A.2 or A.3:
Test scenario A: Test shall be performed with a single or double leaf door
Test scenario B: Tests shall be performed from both sides with a single leaf door.
Test scenario C: Tests shall be performed from both sides with a double leaf door.
Test scenario D: Test shall be performed from the worst side with a double leaf door for single or
double leaf doors or with a single leaf door for single leaf doors
Test scenario E: Test shall be performed from the worst side with a single leaf door for single leaf
doors or a double leaf door for double leaf doors respectively
Test scenario F: Tests shall be performed from both sides with a single leaf door for single leaf doors
or a double leaf door for double leaf doors respectively. If the double leaf door test
3
leads to a leakage of ≤ 20 m /h, this test is sufficient for single leaf doors as well.
Test scenario G: Tests shall be performed from both sides with a single or double leaf sliding door.
Test scenario H: If the hardware does interfere with the smoke seal more than tested: Tests shall be
performed from both sides with a single leaf door for single leaf doors or a double
leaf door for double leaf doors respectively. If the double leaf door test leads to a
3
leakage of ≤ 20 m /h, this test is sufficient for single leaf doors as well.
Otherwise: Test shall be performed on the opening face with a double leaf door for
single or double leaf doors or with a single leaf door for single leaf doors
Test scenario I: Test shall be performed from one side with the part(s) changed faced to the furnace.
12
---------------------- Page: 14 ----------------------
SIST EN 15269-20:2020
EN 15269-20:2020 (E)
Where an additional test is required in column 4, the test shall be a full scale test according to
EN 1634-3 at least with the size of the initial test described in 4.1.1., unless it is otherwise specified by
the notified product certification body, or the details changed are limited to the tested size. The test
shall be performed with the specimen tested from the side with the higher leakage achieved in the tests
mentioned in 4.1.1 (worst side) unless it is otherwise specified.
Where additional tests from both sides are required, it is defined in Annex A explicitly (test scenarios B,
C, F, G and H). In this case one specimen can be used for both tests. If the specimen shall be tested
without a specific hardware, the hardware can be installed in the specimen, but set disengaged.
The rules for increase of the maximum size of Annex C are to be considered to all variations of
Tables A.1, A.2 or A.3, if they shall be applied to a larger size. A variation must not lead to an overload or
an improper deformation of any component (which might e.g. prevent to close fully). For rolling
shutters and operable fabric curtains stability and limitation of deformations are crucial for the leakage.
Calculation principles for stresses and strains are given in Annex D and examples for calculations for
relevant parts in Annex E.
Interpolations between minimum and maximum size tested of any measure is possible if not otherwise
specified in Tables A.1, A.2 or A.3. The influence of parameter variations on the statics of a doorset or
curtain assembly always shall be considered by the manufacturer.
Solid timber can be replaced by other solid timber of the same or higher density. Glued timber with
solid pieces of min. 10 mm thickness may be used as solid timber. Composit
...
SLOVENSKI STANDARD
oSIST prEN 15269-20:2017
01-oktober-2017
5D]ãLUMHQDXSRUDEDUH]XOWDWRYSUHVNXVRYSRåDUQHRGSRUQRVWLLQDOLGLPRWHVQRVWL
]DYUDWD]DSRUHLQRNQDNLVHRGSLUDMRYNOMXþQR]QMLKRYLPRNRYMHPGHO
3RåDUQDRGSRUQRVWYUDW]DSRULQRNHQNLVHRGSLUDMR
Extended application of test results for fire resistance and/or smoke control for door,
shutter and openable window assemblies, including their elements of building hardware -
Part 20: Smoke control for doors, shutters and openable windows
Erweiterter Anwendungsbereich von Prüfergebnissen zur Feuerwiderstandsfähigkeit
und/oder Rauchdichtigkeit von Türen, Toren und Fenstern einschließlich ihrer
Baubeschläge - Teil 20: Rauchdichtigkeit von Türen, Toren, Abschlüssen und Fenstern
Application étendue des résultats d'essais en matière de résistance au feu et/ou
d'étanchéité à la fumée des blocs-portes, blocs-fermetures et ouvrants de fenêtre, y
compris leurs éléments de quincaillerie intégrés - Partie 20 : Étanchéité à la fumée des
blocs-portes battants et pivotants en acier, en bois et vitrés à ossature métallique
Ta slovenski standard je istoveten z: prEN 15269-20
ICS:
13.220.50 Požarna odpornost Fire-resistance of building
gradbenih materialov in materials and elements
elementov
91.060.50 Vrata in okna Doors and windows
oSIST prEN 15269-20:2017 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
oSIST prEN 15269-20:2017
---------------------- Page: 2 ----------------------
oSIST prEN 15269-20:2017
DRAFT
EUROPEAN STANDARD
prEN 15269-20
NORME EUROPÉENNE
EUROPÄISCHE NORM
July 2017
ICS 13.220.50; 91.060.50 Will supersede EN 15269-20:2009
English Version
Extended application of test results for fire resistance
and/or smoke control for door, shutter and openable
window assemblies, including their elements of building
hardware - Part 20: Smoke control for doors, shutters and
openable windows
This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee
CEN/TC 127.
If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations
which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC
Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.
Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without
notice and shall not be referred to as a European Standard.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2017 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 15269-20:2017 E
worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
oSIST prEN 15269-20:2017
prEN 15269-20:2017 (E)
Contents Page
European foreword . 3
Introduction . 4
1 Scope . 5
2 Normative references . 6
3 Terms and definitions . 7
4 Determination of the field of extended application . 8
4.1 General . 8
4.2 Procedure for evaluation . 8
4.3 Procedure for maximum field of extended application . 8
4.4 Interpretation of test results . 9
5 Extended application report . 9
6 Classification report . 9
Annex A (normative) Construction parameter variations . 10
Annex B (normative) Arrangements for hinged and pivoted doorsets incorporating side
and/or overpanels . 169
Annex C (normative) Calculation methods . 173
Annex D (normative) Stress calculation method for metal rolling shutter and fabric curtain
assemblies . 175
Annex E (informative) Examples for stress calculations for load-bearing components of
metal rolling shutter and fabric curtain assemblies . 176
E.1 Barrel calculations . 176
E.2 Barrel support bracket calculations . 177
E.3 Axle calculations . 178
E.4 Endplate calculations. 179
Bibliography . 183
2
---------------------- Page: 4 ----------------------
oSIST prEN 15269-20:2017
prEN 15269-20:2017 (E)
European foreword
This document (prEN 15269-20:2017) has been prepared by Technical Committee CEN/TC 127 “Fire
safety in buildings”, the secretariat of which is held by BSI.
This document is currently submitted to the CEN Enquiry.
This document will supersede EN 15269-20:2009.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association.
The EN 15269 series of standards Extended application of test results for fire resistance and/or smoke
control for door, shutter and openable window assemblies, including their elements of building hardware
currently consists of:
— Part 1: General requirements;
— Part 2: Fire resistance of hinged and pivoted steel doorsets;
— Part 3: Fire resistance of hinged and pivoted timber doorsets and openable timber framed windows;
— Part 5: Fire resistance of hinged and pivoted metal framed glazed doorsets and openable windows;
— Part 6: Fire resistance of sliding timber doorsets [currently at Enquiry stage];
— Part 7: Fire resistance for steel sliding doorsets;
— Part 10: Fire resistance of steel rolling shutter assemblies;
— Part 11: Fire resistance for operable fabric curtains [currently at Enquiry stage];
— Part 20: Smoke control for doors, shutters and openable windows [the present document; currently
at Enquiry stage].
3
---------------------- Page: 5 ----------------------
oSIST prEN 15269-20:2017
prEN 15269-20:2017 (E)
Introduction
This document is one of a series of standards listed above and is intended to be used for the purpose of
producing an extended application report based on the evaluation of one or more fire resistance and/or
smoke control tests. These standards may also be used to identify the best selection of test specimens
required to cover a wide range of product variations.
Before there can be any consideration for extended application the doorset needs to be tested in
accordance with EN 1634-3 to achieve a test result which could generate a classification in accordance
with EN 13501-2 at least equal to the classification subsequently required from extended application
considerations.
A review of the doorset construction parameters can indicate that one or more characteristics may be
improved by a particular parameter variation. All evaluations needs to be made on the basis of retaining
the smoke control classifications obtainable from testing to EN 1634-3. However, this will never lead to
an increased classification for any specific smoke performance parameter beyond that achieved during
any one test unless specifically identified in the relevant Construction Parameter Variation tables within
this series of standards.
4
---------------------- Page: 6 ----------------------
oSIST prEN 15269-20:2017
prEN 15269-20:2017 (E)
1 Scope
This draft European Standard, which should be read in conjunction with EN 15269-1, covers doors,
shutters, openable windows and fabric curtains of any material and of the following types:
• hinged and pivoted (e.g. metal, timber, framed glazed doors) of single or double leaf, excluding
frameless glass doors (Table A.1);
• horizontally and vertically moving sliding doors of single or double leaf with and without pass
doors, including telescopic doorsets (Table A.2);
• metal rolling shutters and operable fabric curtains (excluding overlapping systems) (Table A.3).
NOTE 1 For the following constructions the tables/rules will be subject to future work:
• frameless glass doors;
• sectional doors (including stacking doors);
• vertically and horizontally folding doors.
In this standard whenever doors are mentioned, the whole range of doors, shutters, openable windows
and operable fabric curtains is included or otherwise mentioned.
This document prescribes the methodology for extending the application of test results obtained from
test(s) conducted in accordance with EN 1634-3.
NOTE 2 This standard covers doorsets made of a combination of materials as well.
Subject to the completion of the appropriate test or tests, the extended application may cover Ambient
Temperature Smoke Control (S ) and Medium Temperature Smoke Control (S ) classifications and all
a 200
or some of the following non-exhaustive list:
— leaf/leaves;
— wall/ceiling fixed elements
— glazed elements, louvres and/or vents;
— side, transom or overpanels;
— items of building hardware;
— decorative finishes;
— intumescent, smoke, draught or acoustic seals;
— alternative supporting construction(s).
5
---------------------- Page: 7 ----------------------
oSIST prEN 15269-20:2017
prEN 15269-20:2017 (E)
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
EN 179, Building hardware — Emergency exit devices operated by a lever handle or push pad, for use on
escape routes — Requirements and test methods
EN 1125, Building hardware — Panic exit devices operated by a horizontal bar, for use on escape
routes —Requirements and test methods
EN 1303, Building hardware — Cylinders for locks — Requirements and test methods
EN 1363-1, Fire resistance tests — Part 1: General Requirements
EN 1634-1, Fire resistance and smoke control tests for door and shutter assemblies, openable windows and
elements of building hardware — Part 1: Fire resistance test for door and shutter assemblies and openable
windows
EN 1634-3, Fire resistance and smoke control tests for door and shutter assemblies, openable windows and
elements of building hardware — Part 3: Smoke control test for door and shutter assemblies
EN 1993-1-2, Eurocode 3: Design of steel structures — Part 1-2: General rules — Structural fire design
EN 12101-1:2005, Smoke and heat control systems — Part 1: Specification for smoke barriers
EN 13501-2:2016, Fire classification of construction products and building elements — Part 2:
Classification using data from fire resistance tests, excluding ventilation services
EN 15269-1:2010, Extended application of test results for fire resistance and/or smoke control for door,
shutter and openable window assemblies, including their elements of building hardware — Part 1: General
requirements
prEN 15269-11:2016, Extended application of test results for fire resistance and/or smoke control for
door, shutter and openable window assemblies, including their elements of building hardware — Part 11:
Fire resistance for operable fabric curtains
EN ISO 75-1, Plastics - Determination of temperature of deflection under load — Part 1: General test
method (ISO 75-1)
EN ISO 75-2, Plastics - Determination of temperature of deflection under load — Part 2: Plastics and
ebonite (ISO 75-2)
EN ISO 75-3, Plastics - Determination of temperature of deflection under load — Part 3: High-strength
thermosetting laminates (ISO 75-3)
EN ISO 13943:2010, Fire safety — Vocabulary (ISO 13943:2008)
6
---------------------- Page: 8 ----------------------
oSIST prEN 15269-20:2017
prEN 15269-20:2017 (E)
3 Terms and definitions
For the purposes of this document, the terms and definitions given in EN 1363-1, EN ISO 13943:2010,
EN 1634-1, EN 1634-3 and EN 15269-1 and the following apply.
3.1
core
material fitted centrally within the thickness of a door leaf which may consist of a single sheet of
material or a combination either of sheets of the same material or layers of different materials
3.2
leaf/element/panel
different parts of a sliding doorset as indicated in Figures 1 and 2 below
Key
1 panel
2 leaf
3 element
Figure 1 — Double leaf telescopic door
Key
1 panel
2 leaf
Figure 2 — Double leaf sliding door
3.3
glazed aperture
cut-out in a solid flush door filled with glass
3.4
glazed panel
glass infill in a framed door or a joinery door
7
---------------------- Page: 9 ----------------------
oSIST prEN 15269-20:2017
prEN 15269-20:2017 (E)
4 Determination of the field of extended application
4.1 General
In Clause 4 “doorset” stands for doors, shutters, operable fabric curtains and openable windows as well
(which means for any kind of products mentioned in the scope).
4.1.1 Before there can be any consideration for extended application the doorset shall have been
tested in accordance with EN 1634-3 to achieve a test result which could generate a classification in
accordance with EN 13501-2 at least equal to the classification subsequently required from extended
application consideration.
4.1.2 A review of the doorset construction parameters can indicate that one or more characteristics
may be improved by a particular parameter variation. All evaluations shall be made on the basis of
retaining the classifications obtainable from testing to EN 1634-3. However, this shall never lead to an
increased classification for any specific parameter beyond that achieved during any one test unless
specifically identified in the relevant Construction Parameter Variation tables.
4.1.3 All evaluations shall be made on the basis of retaining the classification obtained from testing to
EN 1634-3.
4.1.4 If, by following the ensuing procedure, any part of the classification cannot be achieved by
extended application rules that part of classification shall be omitted from the subsequent extended
application report and classification report, if not tested. The test shall be performed from both sides
Test scenario F
4.2 Procedure for evaluation
4.2.1 Identify the variations from the original test specimen(s) which are required to be covered by
an extended application report.
4.2.2 Locate the variations in the appropriate parameter variation by reference to columns (1) and
(2) of Tables A.1, A.2 or A.3.
4.2.3 Establish from the contents of column (3) of Tables A.1, A.2 or A.3, whether any extended
application is available without the need for further testing.
4.2.4 Where this is deemed to be possible this can be recorded in the extended application report
together with any appropriate restrictions and the stated rules from column (3) in Tables A.1, A.2 or
A.3.
4.2.5 Where the variations required can only be achieved from additional testing according to column
(4), the additional test can be made on a similar specimen type to the original test against which the
extended application is sought. Alternatively, column (3) in Tables A.1, A.2 or A.3 identifies an option
for alternative testing and relevant test parameters.
4.3 Procedure for maximum field of extended application
4.3.1 It is possible to provide a limited field of extended application from the results of a single test.
However, where a manufacturer intends to produce a range of doors incorporating single doors and
also double doors with or without glazing, with alternative elements of building hardware, etc., it is
recommended that careful consideration is given to the complete range of doorset designs and options
in order to minimize the testing required before testing commences.
8
---------------------- Page: 10 ----------------------
oSIST prEN 15269-20:2017
prEN 15269-20:2017 (E)
4.3.2 Establish all the parameter variations which are required to be part of the product range.
4.3.3 Select specimens for the first tests in the series to ensure that the most important parameter
variations for the manufactured products are covered.
4.3.4 Complete the first test or a series of tests and prepare a field of direct application and possibly a
classification report from the results of the test(s).
4.3.5 Establish which of the original desired parameter variations have not been covered by the direct
application and classification report.
4.3.6 Identify these parameter variations in Annex A and establish where an extended application is
possible without further testing.
4.3.7 Record this for the extended application report together with any restrictions and rules given in
column (4) in Tables A.1, A.2 or A.3.
4.3.8 Evaluate which, if any, of the desired parameter variations have not been covered by the field of
direct application or the initial field of extended application derived from 4.3.7 above.
4.3.9 Select the required outstanding parameter variations from column (1) and column (2) of
Tables A.1, A.2 or A.3and observe from column (3) in Tables A.1, A.2 or A.3 which are the most
appropriate weakest specimen options for further testing.
4.3.10 If the complete selection of required parameter variations has not been covered by the tests
completed in accordance with 4.3.9 above, an appropriate test or tests may be carried out with the
additional product variations incorporated.
4.4 Interpretation of test results
4.4.1 In order to maximize the field of extended application, it is important that the test reports shall
record details of any failure throughout the duration of the test.
4.4.2 Where a series of tests have been conducted, the field of extended application shall be based on
the lowest performance achieved from the complete series of tests unless excessive leakage has been
attributed to one or more specific construction parameter variation.
4.4.3 Where it has been possible, to identify leakage due to a specific parameter, the extended
application for all other construction parameter variations can be based on the performance achieved
after isolating the parameter with excessive leakage.
5 Extended application report
Prepare an extended application report in accordance with the requirements of EN 15269-1:2010,
Clause 6 based on the results of evaluations in accordance with the above.
6 Classification report
The classification report shall be determined from the results of the extended application report and
shall be presented in accordance with EN 13501-2:2016, Annex A.
9
---------------------- Page: 11 ----------------------
oSIST prEN 15269-20:2017
prEN 15269-20:2017 (E)
Annex A
(normative)
Construction parameter variations
The Tables are designed to provide rules for the creation of extended application reports by experts in
the field of smoke control testing of:
— Table A.1: hinged and pivoted doorsets.
— Table A.2: horizontally sliding doorsets (single leaf and double leaf), telescopic doorsets, (single leaf
and double leaf) and single leaf vertically sliding doorsets.
— Table A.3: metal rolling shutters and operable fabric curtains (excluding overlapping systems).
The Tables A.1, A.2 or A.3 shall only be used to evaluate a field of extended application when at least one
positive smoke control test to EN 1634-3 has resulted in a classification according to EN 13501-2.
The first two columns of Tables A.1, A.2 or A.3 identify possible variations to the construction details of
the specimen tested.
Column (3) of Tables A.1, A.2 or A.3 gives the possibility of extending the field of application.
Where additional tests are deemed to be necessary the type of specimen approved for incorporation of
the changed parameter is defined in column (4) of Tables A.1, A.2 or A.3. Where it is possible to use
information from tests performed on one configuration for evidence on a different configuration, this
allowance has been made in order to reduce the overall number of tests required for extended
application evaluation (e.g. single action doorsets to double action doorsets).
The following test scenarios are defined and referred to in column (4) of Tables A.1, A.2 or A.3:
Test scenario A: Test shall be performed with a single or double leaf door
Test scenario B: Tests shall be performed from both sides with a single leaf door.
Test scenario C: Tests shall be performed from both sides with a double leaf door.
Test scenario D: Test shall be performed from the worst side with a double leaf door for single or
double leaf doors or with a single leaf door for single leaf doors
Test scenario E: Test shall be performed from the worst side with a single leaf door for single leaf
doors or a double leaf door for double leaf doors respectively
Test scenario F: Tests shall be performed from both sides with a single leaf door for single leaf doors
or a double leaf door for double leaf doors respectively. If the double leaf door test
3
leads to a leakage of ≤ 20 m /h, this test is sufficient for single leaf doors as well.
Test scenario G: Tests shall be performed from both sides with a single or double leaf sliding door.
Test scenario H: If the hardware does interfere with the smoke seal more than tested: Tests shall be
performed from both sides with a single leaf door for single leaf doors or a double
leaf door for double leaf doors respectively. If the double leaf door test leads to a
3
leakage of ≤ 20 m /h, this test is sufficient for single leaf doors as well.
Otherwise: Test shall be performed on the opening face with a double leaf door for
single or double leaf doors or with a single leaf door for single leaf doors
Test scenario I: Test shall be performed from one side with the part(s) changed faced to the furnace.
10
---------------------- Page: 12 ----------------------
oSIST prEN 15269-20:2017
prEN 15269-20:2017 (E)
Where an additional test is required in column 4, the test shall be a full scale test according to
EN 1634-3 at least with the size of the initial test described in 4.1.1., unless it is otherwise specified by
the notified product certification body, or the details changed are limited to the tested size. The test
shall be performed with the specimen tested from the side with the higher leakage achieved in the tests
mentioned in 4.1.1 (worst side) unless it is otherwise specified.
Where additional tests from both sides are required, it is defined in Annex A explicitly (test scenarios B,
C, F, G and H). In this case one specimen can be used for both tests. If the specimen shall be tested
without a specific hardware, the hardware can be installed in the specimen, but set disengaged.
The rules for increase of the maximum size of Annex C are to be considered to all variations of
Tables A.1, A.2 or A.3, if they shall be applied to a larger size. For rolling shutters and operable fabric
curtains stability and limitation of deformations are crucial for the leakage. Calculation principles for
stresses and strains are given in Annex D and examples for calculations for relevant parts in Annex E.
Interpolations between minimum and maximum size tested of any measure is possible if not otherwise
specified in Tables A.1, A.2 or A.3. The influence of parameter variations on the statics of a doorset or
curtain assembly always shall be considered by the manufacturer.
Solid timber can be replaced by other solid timber of the same or higher density. Glued timber with
solid pieces of min. 10 mm thickness may be used as solid timber. Composite wood products (e.g.
Medium Density Fibreboard) may not be replaced with other materials or composites. Timber doors
with metal inlays shall follow the rules for metal doors. Test results achieved with a timber door with
metal inlays may not be used to evaluate the extended field of application of a timber doors without
metal inlays and vice versa.
If after consideration of a specific variation, additional changes are required to be made to the
specimen, these may be made providing the implications on other variations are also taken into
account. If two or more variations should be tested within the same specimen, those variations should
not interfere (negative or positive) with each other, unless the variations are always used together.
11
---------------------- Page: 13 ----------------------
oSIST prEN 15269-20:2017
prEN 15269-20:2017 (E)
Table A.1 — Construction parameter variations for hinged and pivoted doors (metal, timber, framed glazed doors) of single or double
leaf, excluding frameless glass doors
Construction parameter Variation Possibility of extension Additional evidence
required
(1) (2) (3)
(4)
A Door leaf
In certain cases, the rules given in Section A are also appropriate to side and overpanels or the door frame; where this is the case it is clearly indicated in column (1). For
double leaf doorsets, both leafs shall be of the same basic construction.
A.1 General
A.1.1 Number of leafs Single leaf from double leaf Possible for Sa if the sealing system on the lock side is already tested Test scenario B
3
doorset on the double leaf door and the leakage is not more than 20m /h.
Otherwise not possible without an additional test.
Not possible for S200 without an additional test
A.1.2 Number of leafs Double leaf from single leaf Not possible without additional test Test scenario C
doorset
A.1.3 Smoke seals (fitted at leaf to Location towards the frame Not possible without additional test Test scenario F
frame interface) – rebate
see Figure A.1
A.1.4 Smoke seals (fitted at leaf to Location away from the Not possible without additional test Test scenario F
frame interface) – frame rebate
see Figure A.2
A.1.5 Smoke seals (fitted in meeting Location change Not possible without additional test Test scenario F
edges)
A.1.6 Smoke seals (fitted in leaf or Add/Remove Not possible without additional test Test scenario F
frame)
A.1.7 Intumescent seals (fitted in leaf Add / Remove / Location Possible providing the smoke sealing system is not interfered Test scenario F
or frame) which are separate change / Alternative
Otherwise not possible without additional test
from the smoke seal
A.1.8 Louvres in door leaf or panel Add Not possible without additional test Test scenario F
12
---------------------- Page: 14 ----------------------
oSIST prEN 15269-20:2017
prEN 15269-20:2017 (E)
Construction parameter Variation Possibility of extension Additional evidence
required
(1) (2) (3)
(4)
A.1.9 Louvres in door leaf or panel Remove Possible
A.1.10 Louvres in door leaf or panel Fitting higher or lower in the Possible
tested with louvre leaf
