SLOVENSKI STANDARD
SIST EN 50136-3:2014
01-junij-2014

Alarmni sistemi - Sistemi in oprema za prenos alarma - 3. del: Zahteve za oddajnik

sprejemnega centra (RCT)

Alarm systems - Alarm transmission systems and equipment - Part 3: Requirements for

Receiving Centre Transceiver (RCT)
Systèmes d'alarme - Systèmes et équipements de transmission d'alarme - Partie 3:
Exigences pour les transmetteurs du centre de réception (RCT)
Ta slovenski standard je istoveten z: EN 50136-3:2013
ICS:
13.320 Alarmni in opozorilni sistemi Alarm and warning systems
SIST EN 50136-3:2014 en,fr

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN 50136-3:2014
---------------------- Page: 2 ----------------------
SIST EN 50136-3:2014
EUROPEAN STANDARD
EN 50136-3
NORME EUROPÉENNE
August 2013
EUROPÄISCHE NORM
ICS 13.320
English version
Alarm systems -
Alarm transmission systems and equipment -
Part 3: Requirements for Receiving Centre Transceiver (RCT)
Systèmes d'alarme - Alarmanlagen -
Systèmes et équipements de transmission Alarmübertragungsanlagen und -
d'alarme - einrichtungen -
Partie 3: Exigences pour les transmetteurs Teil 3: Anforderungen an
du centre de réception (RCT) Übertragungszentralen (ÜZ)

This European Standard was approved by CENELEC on 2013-08-12. CENELEC members are bound to comply

with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard

the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on

application to the CEN-CENELEC Management Centre or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other

language made by translation under the responsibility of a CENELEC member into its own language and notified

to the CEN-CENELEC Management Centre has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,

the Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany,

Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland,

Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B - 1000 Brussels

© 2013 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.

Ref. No. EN 50136-3:2013 E
---------------------- Page: 3 ----------------------
SIST EN 50136-3:2014
EN 50136-3:2013 - 2 -

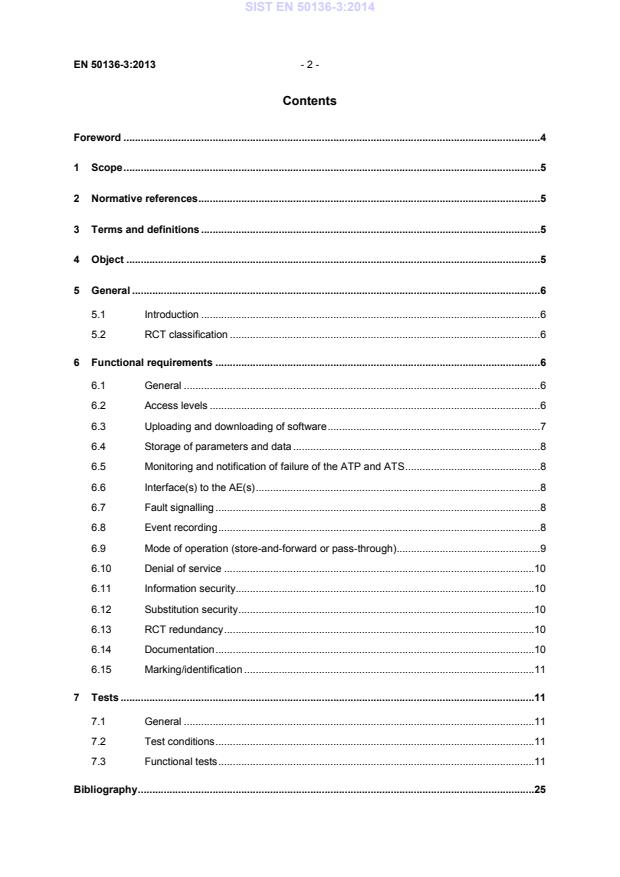

Contents

Foreword ................................................................................................................................................. 4

1 Scope ................................................................................................................................................. 5

2 Normative references ....................................................................................................................... 5

3 Terms and definitions ...................................................................................................................... 5

4 Object ................................................................................................................................................ 5

5 General .............................................................................................................................................. 6

5.1 Introduction ...................................................................................................................... 6

5.2 RCT classification ............................................................................................................ 6

6 Functional requirements ................................................................................................................. 6

6.1 General ............................................................................................................................ 6

6.2 Access levels ................................................................................................................... 6

6.3 Uploading and downloading of software .......................................................................... 7

6.4 Storage of parameters and data ...................................................................................... 8

6.5 Monitoring and notification of failure of the ATP and ATS ............................................... 8

6.6 Interface(s) to the AE(s) ................................................................................................... 8

6.7 Fault signalling ................................................................................................................. 8

6.8 Event recording ................................................................................................................ 8

6.9 Mode of operation (store-and-forward or pass-through) .................................................. 9

6.10 Denial of service ............................................................................................................10

6.11 Information security ........................................................................................................10

6.12 Substitution security .......................................................................................................10

6.13 RCT redundancy ............................................................................................................10

6.14 Documentation ...............................................................................................................10

6.15 Marking/identification .....................................................................................................11

7 Tests ................................................................................................................................................11

7.1 General ..........................................................................................................................11

7.2 Test conditions ...............................................................................................................11

7.3 Functional tests ..............................................................................................................11

Bibliography ..........................................................................................................................................25

---------------------- Page: 4 ----------------------
SIST EN 50136-3:2014
- 3 - EN 50136-3:2013
Tables

Table 1 — Access levels – Logical access to functions .......................................................................... 7

Table 2 — Event recording classification – Events to be recorded ......................................................... 9

Table 4 — Test of access levels ........................................................................................................... 14

Table 5 — Test of upload and download of software ............................................................................ 15

Table 6 — Test of parameter storage ................................................................................................... 16

Table 8 — Fault signalling ..................................................................................................................... 19

Table 9 — Test of event recording ........................................................................................................ 20

Table 10 — Test of clock resolution and synchronisation ..................................................................... 21

Table 11 — Test of log optimisation ...................................................................................................... 21

Table 12 — Test of user identification logging ...................................................................................... 22

Table 13 — Test of mode of operation .................................................................................................. 23

Table 14 — Test of RCT redundancy .................................................................................................... 24

---------------------- Page: 5 ----------------------
SIST EN 50136-3:2014
EN 50136-3:2013 - 4 -
Foreword
This document (EN 50136-3:2013) has been prepared by CLC/TC 79 "Alarm systems".
The following dates are proposed:
• latest date by which this document has to be
(dop) 2014-08-12
implemented at national level by publication of
an identical national standard or by
endorsement
• latest date by which the national standards
(dow) 2016-08-12
conflicting with this document have to
be withdrawn

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such

patent rights.

EN 50136 consists of the following parts, under the general title, Alarm systems — Alarm transmission

systems and equipment:
- Part 1: General requirements for alarm transmission systems;
- Part 2: Requirements for Supervised Premises Transceiver (SPT);
- Part 3: Requirements for Receiving Centre Transceiver (RCT);

- Part 4: Annunciation equipment used in alarm receiving centres (Technical Specification);

- Part 7: Application guidelines (Technical Specification);

- Part 9: Requirements for common protocol for alarm transmission using the Internet protocol

(Technical Specification).
---------------------- Page: 6 ----------------------
SIST EN 50136-3:2014
- 5 - EN 50136-3:2013
1 Scope

This European Standard specifies the minimum equipment requirements for the performance,

reliability, resilience, security and safety characteristics of the receiving centre transceiver (RCT)

installed in ARC and used in alarm transmission systems.

The alarm transmission system requirements and classifications are defined within EN 50136-1.

Different types of alarm systems may in addition to alarm messages also send other types of

messages, e.g. fault messages and status messages. These messages are also considered to be

alarm messages. The term alarm message is used in this broad sense throughout the document.

Where application specific standards exist, the RCT should comply with relevant standards called up

by that application.

The RCT can be either an integrated element of any receiving/annunciation equipment, or a stand-

alone device. In either case, the requirements of this European Standard should apply.

The function of the RCT is to monitor the ATPs, receive alarm messages, forward alarm messages to

one or more AEs and send acknowledgements to the SPTs.

Management of the transmission network is not in the scope of this European Standard.

2 Normative references

The following documents, in whole or in part, are normatively referenced in this document and are

indispensable for its application. For dated references, only the edition cited applies. For undated

references, the latest edition of the referenced document (including any amendments) applies.

EN 50130-4, Alarm systems — Part 4: Electromagnetic compatibility — Product family standard:

Immunity requirements for components of fire, intruder, hold up, CCTV, access control and social

alarm systems
EN 50130-5, Alarm systems — Part 5: Environmental test methods

EN 50136-1:2012, Alarm systems — Alarm transmission systems and equipment — Part 1: General

requirements for alarm transmission systems
3 Terms and definitions

For the purposes of this document, the terms and definitions given in EN 50136-1:2012 and the

following apply.
3.1
remote access

access to the equipment from any location that is outside the protected premises in which the

equipment is located
4 Object

This European Standard specifies the minimum equipment requirements for the performance,

reliability, resilience, security and safety characteristics of the Receiving Centre Transceiver (RCT)

installed in alarm receiving centres and to define parameters that shall be tested to ensure its

compatibility with ATS categories.
---------------------- Page: 7 ----------------------
SIST EN 50136-3:2014
EN 50136-3:2013 - 6 -
5 General
5.1 Introduction

Where appropriate, equipment shall comply with local, national and European requirements and

regulations for connection and transmission via public or private networks.

Requirements in this European Standard shall be considered as a minimum. As the RCT is used together

with or integrated receiving/annunciation equipment, the requirements of the specific applications or

related standards shall apply.
5.2 RCT classification

This European Standard defines RCT requirements. For the purpose of RCT classification reference is

made to the ATS categories in EN 50136-1. The RCT documentation shall describe for which ATS

categories the RCT complies with the requirements.
6 Functional requirements
6.1 General

The RCT shall provide communication between one or more AEs and one or more SPTs and monitor

the interface(s) to one or more AEs.
The RCT shall monitor the ATSs.
6.2 Access levels

This European Standard specifies four levels of access that categorise the ability of users to access

the RCT functions.
Access levels are defined as following:
- Level 1 Access to indications;
- Level 2 Access to the operational status and commissioning functions;

- Level 3 Maintenance functions, access to affect the RCT configuration including site-specific data

and other operations that directly, or indirectly, may adversely influence the functions of

the RCT;
- Level 4 Access to software updates and read-only parameters.

These access levels apply only for logical access (i.e. not physical access). Access to all functions

shall require authorisation with a key.

Access levels 2, 3 and 4 shall use personalised accounts to achieve traceability.

A level 4 user shall be authorised by a user with level 3 access. This authorisation may be permanent

or time limited.

Access at all levels shall require authorisation with a key. The key mechanism shall be able to provide

at least 1 000 000 different keys.
---------------------- Page: 8 ----------------------
SIST EN 50136-3:2014
- 7 - EN 50136-3:2013

Where it is possible to attempt to gain access more than 3 times in a 60-second period the RCT shall

have the ability to delay repeated attempts. After the third attempt, each further attempt shall be

prevented for a minimum of 90 s.

Where factory default keys are provided, it shall not be possible to complete the RCT commissioning

without first, changing these keys during installation.

Remote access shall require a secure connection and meet the data security requirements of

EN 50136-1.

Automatic logout of remote access sessions shall be activated after a period of inactivity. The inactivity

period shall be configurable.
Table 1 — Access levels – Logical access to functions
Access Level Level 1 Level 2 Level 3 Level 4
View RCT
P P P P
indications
Change RCT
NP NP P NP
configuration
View RCT
NP P P P
configuration
Commission/De-
NP P P NP
Commission SPT
View RCT
NP P P P
Event/Alarm Log
Change RCT
NP NP NP P
Software
Change users
NP NP P NP
and/or user rights
Change and/or
delete entries in NP NP NP NP
the event log
Key
P = Permitted
NP = Not Permitted

NOTE The requirement to restrict or permit access to a certain function does not imply that implementation of the function

is required.
6.3 Uploading and downloading of software

The upload and download of software in/out of an RCT is only allowed at appropriate access level as

defined in 6.3.
---------------------- Page: 9 ----------------------
SIST EN 50136-3:2014
EN 50136-3:2013 - 8 -
6.4 Storage of parameters and data

Power cycle or a software restart shall not result in the loss of any configuration, log and secured

alarm messages. The RCT shall return to normal operation automatically after such power cycle or

software restart.
6.5 Monitoring and notification of failure of the ATP and ATS

For compliance to the relevant standards of the application, the RCT shall monitor ATP and ATS and

report failures to the AE as defined in EN 50136-1:2012, 6.6, Table 4.

The documentation supplied by the manufacturer shall describe the notification signal.

6.6 Interface(s) to the AE(s)

The interface(s) to the AE(s) shall be monitored in accordance with EN 50136-1. The reporting time of

the connection failure shall be less or equal to the reporting time of the ATS with the highest category

or 60 s whichever is shorter. In the event of an interface failure, a fault signal shall be generated, and

an event logged.

The manufacturer shall state in their product documentation the specifications of the interface(s) to the

AE and how the fault signal is presented and logged.
An alternative AE interface may be provided.
6.7 Fault signalling

The RCT shall have a means to signal faults when any of the following faults occur:

- AE interface failure;
- transmission network interface failure;
- RCT system failure.

The manufacturer shall specify in the RCT documentation how these faults are signalled.

6.8 Event recording

For an RCT supporting and meeting any category of EN 50136-1:2012 other than SP1, SP2 and DP1

a logging function shall be provided for the purposes of providing an audit trail and problem resolution.

The events specified in Table 2 shall be recorded.
The event log may be stored outside of the RCT.

The means of recording events shall be non-volatile. The log entries shall be kept for no less than 3

years. The manufacturer shall specify in their documentation how this is achieved.

Events older than 3 years may be deleted.

The log shall record, in addition to the event, the time and date at which the event occurred. The

timing resolution shall be a minimum of 1 s and it shall be accurate to the coordinated universal time

within ± 5 s.

The RCT shall provide a means to synchronise the UTC date and time. The manufacturer shall specify

in their documentation how time synchronisation with UTC is achieved.
---------------------- Page: 10 ----------------------
SIST EN 50136-3:2014
- 9 - EN 50136-3:2013
The RCT may use local time-zones.

To optimise storage of events, where identical sequentially repeated events occur within any 12-h

period, then only the first and last event need to be recorded. Where this is done then the number of

identical events shall be recorded.

When required by the requirements of Table 2, the logging of access to the RCT shall include user

identification.
Table 2 — Event recording classification – Events to be recorded
Events to be recorded
Event User identification
1 Alarm messages from ATS n/a
2 AE interface(s) failure and restore n/a
3 Transmission network Interface(s) failure and restore n/a
4 Changes to the configuration of the RCT M
5 Power-up or reset M
6 Any change to software M
7 Changes to the date and time M
8 Access to the RCT M
9 Changes to users and/of user rights M
Key
n/a = Not applicable
M = Mandatory

NOTE Recording the user identification is only mandatory if the event is triggered by user intervention.

6.9 Mode of operation (store-and-forward or pass-through)
6.9.1 General
Two modes of operation are permitted:
a) store-and-forward;
b) pass-through.

The manufacturer shall declare in the product documentation which modes are supported.

6.9.2 Store-and-forward operation requirements

When an alarm is received from the SPT, the RCT shall secure the alarm and provide

acknowledgement of the correct receipt of the alarm to the SPT.

If the store-and-forward operation is used, all alarm messages shall include the date and time stamp

when the alarm was received by the SPT.

The RCT may also log the date and time stamp when the alarm was forwarded to the AE and/or when

the acknowledgement was received from the AE.

Securing the alarm shall be achieved by storing the alarm in the RCT’s non-volatile memory (data

base), this is to secure acknowledged alarms whilst there is an AE interface failure or during a power

failure. Stored alarms shall be transmitted when the fault condition clears.
The secured alarm shall be transmitted from the RCT to the AE(s).
---------------------- Page: 11 ----------------------
SIST EN 50136-3:2014
EN 50136-3:2013 - 10 -

The reception of an acknowledgement from the AE(s) shall not be forwarded to the SPT, since the

SPT has already received an acknowledgement from the RCT.

NOTE The loss of an alarm message is regarded as a worse situation than sending a delayed message.

6.9.3 Pass-through operation requirements

When an alarm is received from the SPT the RCT shall forward the alarm to the AE(s).

The RCT shall not acknowledge the alarm to the SPT before receiving an acknowledgement from at

least one AE. When the RCT receives an acknowledgement from the AE(s) the acknowledgement

shall be forwarded to the SPT.
6.10 Denial of service

The manufacturer of the RCT shall declare in their documentation how compliance with the

requirements of EN 50136-1:2012, 6.2.5 is achieved.
6.11 Information security

The manufacturer shall provide their stated methodology used to achieve compliance with

EN 50136-1:2012, 6.8.3 (Information security) for both SPT communication and remote access.

6.12 Substitution security

The manufacturer shall provide their stated methodology used to achieve compliance with

EN 50136-1:2012, 6.8.2 (Substitution security).
6.13 RCT redundancy

If the RCT supports Dual Path category ATS (DP1 – DP4) the RCT shall comply with the redundancy

requirements of EN 50136-1:2012, Table 1. The manufacturer shall specify and demonstrate how

compliance is achieved.
6.14 Documentation

Documentation relating to an RCT shall be concise, complete and unambiguous. Information shall be

provided sufficient to install, put into operation, operate and maintain an RCT.

Instructions relating to the operation of an RCT shall be designed to minimise the possibility of

incorrect operation and be structured to reflect the access level of the user.

Where there are user serviceable parts (e.g. fuses) their type and values shall be given.

The documentation shall include:
- name of manufacturer or supplier,
- description of equipment,
- standard to which component claims compliance,
- name or mark of the certification body,
- the maximum number of SPTs that can be connected for each category,
- the maximum number of AEs that can be connected,
- the maximum number of transmission network interfaces,
- the maximum number of alarms that can be processed per second,
- a list of supported ATS categories,
---------------------- Page: 12 ----------------------
SIST EN 50136-3:2014
- 11 - EN 50136-3:2013
- power requirements.
6.15 Marking/identification
The RCT shall be marked with the following:
- name of manufacturer;
- ATS categories for which the RCT is suitable.

The marking shall be legible, durable and unambiguous. If the RCT does not use dedicated hardware

(i.e. the RCT is a software solution), the software shall be able to display the required

markings/identifications.
7 Tests
7.1 General

Specific applications may require additional testing of the RCT. If such characteristics are provided

and are submitted for testing, they shall be specified by the manufacturer at the time of testing.

7.2 Test conditions
7.2.1 Laboratory conditions and tolerance

Testing conditions shall be in accordance with EN 50130-4 and EN 50130-5, as follows:

1) temperature: 15 °C to 35 °C;
2) relative humidity: 25 % to 75 %;
3) air pressure: 86 kPa to 106 kPa.
7.2.2 Mounting

The RCT shall be mounted in accordance with the manufacturer’s installation instructions. Any

additional equipment necessary to carry out the tests (EXAMPLE: simulation of the ATS and SPT)

shall be supplied by the manufacturer in agreement with the test house.
7.2.3 Documentation
The product documentation (as required in 6.14) shall be provided with the RCT.
7.2.4 Power supply

Unless otherwise required, the RCT shall be powered by a power supply that meets the performance

as specified by the manufacturer.
7.3 Functional tests
7.3.1 General

The purpose of the functional tests is to demonstrate that RCT performs its required functions. The

manufacturer shall provide a fully functional test setup. Other ATS components such as AS, SPT, and

network may be provided as simulating equipment and/or network(s).

If more than one single and/or dual path category is supported for testing only the most demanding

supported single and/or dual path categories shall be tested. The maximum reporting time

requirement shall be tested for each individual supported category.
---------------------- Page: 13 ----------------------
SIST EN 50136-3:2014
EN 50136-3:2013 - 12 -
All network interfaces shall be tested.
All AE interfaces shall be tested.
Table 3 — Summary of functional tests (1 of 2)
Section Validate
Requirement to test Test/validation objective
reference or test
Demonstrate the ability of the RCT to receive,
Processing of alarm Test
6.1 process and forward a signal or message from the
signals (7.3.9)
ATS.
Test
6.2 Access levels Demonstrate that all access levels exist.
(7.3.2)
Upload and download of Demonstrate that the RCT will recover after an Test
6.3
software unsuccessful software upload/download. (7.3.3)
Demonstrate that the RCT will not lose any
Storage of parameters and Test
6.4 parameters or customer specific data after a reset
customer specific data (7.3.4)
or power cycle.
Notification of an ATS
Demonstrate that the RCT signals an ATS failure to Test
6.5 failure for a single path
the AE as defined in EN 50136-1:2012, Table 4. (7.3.5)
ATS
Notification of an ATS Demonstrate that the RCT signals an ATS failure to Test
6.5

failure for a dual path ATS the AE as defined in EN 50136-1:2012, Table 4. (7.3.6)

Demonstrate that the interface(s) to the AE(s) are Test
6.6 Interface(s) to the AE(s)
monitored. (7.3.7)
Demonstrate that faults are signalled according to Test
6.7 Fault signalling
the manufacturer RCT documentation. (7.3.8)
Demonstrate that all mandatory events are recorded Test
6.8 Event recording
as required in Table 2. (7.3.10)
Demonstrate that the accuracy of the timestamps as
Clock resolution and Test
6.8 attached to events in the log complies with the
synchronisation (7.3.11)
requirements of 6.9.
Verify that the manufacturer documentation
Validate
6.8 Endurance of the log specifies how 3-year endurance of log entries is
(7.3.12)
achieved.
(only if implemented) Demonstrate that event
Optimising methods of Test
6.8 storage by grouping them as described in 6.9 is
storage of events (7.3.13)
implemented and compliant with the requirements.

User identification of log Demonstrate that user identification for log entries is Test

6.8
entries logged according to the requirements of Table 2. (7.3.14)
Demonstrate that the implemented modes of Test
6.9 Mode of operation
operation comply with the requirements of 6.10. (7.3.15)
Validate
6.10 Denial of service Verify the manufacturer RCT documentation.
(7.3.16)
---------------------- Page: 14 ----------------------
SIST EN 50136-3:2014
- 13 - EN 50136-3:2013
Table 3 (2 of 2)
Section Validate
Requirement to test Test/validation objective
reference or test
Verify the manufacturer declaration how information
Validate
6.11 Information security security is implemented and complies with the
(7.3.17)
requirements of this section.
Verify the manufacturer declaration how substitution
Validate
6.12 Substitution security security is implemented and complies with the
(7.3.17)
requirements of this section.
Verify where a RCT can be used in a Dual Path
ATS configuration a failure of one RCT shall not Test
6.13 RCT Redundancy
compromise the ATS according to (7.3.18)
EN 50136-1:2012, Table 1.
Verify the manufacturer documentation against the Validate
6.14 Documentation
requirements of 6.14. (7.3.19)
Verify the marking and identification against the
6.15 Marking/identification Validate
requirements of 6.15.
7.3.2 Access levels
a) Object of the test:

To demonstrate the ability of the RCT to comply with 6.2 to provide up to 4 levels of access and verify

the relevant access to the functions and controls.
b) Principle:

The test consists of attempting to use the functions and the controls required by 6.2, operating the

RCT at each access level and verifying that access is granted for permitted functions and is denied for

non-permitted functions.
---------------------- Page: 15 ----------------------
SIST EN 50136-3:2014
EN 50136-3:2013 - 14 -
Table 4 — Test of access levels
Step Test condition Test procedure Measurement Pass criteria
(c) (d) (e) (f)
1 The RCT and any At access level 1 Record whether Access is in accordance
necessary attempt to operate access is with 6.3.
equipment to allow all the functions permitted.
the RCT to perform and controls for
as required shall access level 1.
be installed and in
a functional state
2 As above Repeat as step 1 As above
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
