SIST ETS 300 198/A1 E1:2003

• Abstract:

  This together with ETS 300 385 is intended to become a harmonised standard, the reference of which is intended to be published in the Official Journal of the European Communities referencing the EMC Directive. This amendment implements the changes necessary to convert ETS 300 198 into a harmonised standard.

• Status: Published
• Publication Date: 30-Nov-2003
• Withdrawal Date: 30-Sep-2003
• ICS: 33.040.20 - Transmission systems
• ICS: 33.060.30 - Radio relay and fixed satellite communications systems
• Technical Committee: RES - Radio equipment and systems
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 01-Dec-2003
• Due Date: 01-Dec-2003
• Completion Date: 01-Dec-2003
• Mandate: T-353
• Ref Project: ETSI ETS 300 198/A1 ed.1 (1997-03) - Transmission and Multiplexing (TM); Parameters for radio relay systems for the transmission of digital signals and analogue video signals operating at 23 GHz

Overview

SIST ETS 300 198/A1 E1:2003 is a Slovenian standard that amends ETS 300 198 and aligns it for harmonization across Europe. Developed by SIST and based on the work of ETSI, this standard defines the essential parameters for radio relay systems operating at 23 GHz, specifically for the transmission of digital signals and analogue video signals. It complements ETS 300 385 and is designed to support the publication of harmonized standards in the Official Journal of the European Communities, particularly in reference to the EMC Directive (89/336/EEC).

This amendment facilitates the alignment of national regulations, ensuring interoperability, market access, and compliance for manufacturers and telecommunications operators deploying radio relay equipment in the fixed service within the 21.2 GHz to 23.6 GHz frequency range.

Key Topics

• Transmission and Multiplexing (TM):

  • Defines requirements for the transmission of both digital and analogue signals over point-to-point radio links.
  • Outlines parameters for effective channel separation and spectrum management.

• Frequency Bands and Channel Options:

  • Specifies operation in the 21.2 GHz to 23.6 GHz frequency range.
  • Supports channel spacings of 3.5, 7, 14, 28, 56, and 112 MHz for digital systems; 28 and 56 MHz for analogue systems.

• Compliance and Approval:

  • Details parameter limits and measurement methods for equipment approval.
  • Addresses transmitter and receiver spurious emission limits, receiver immunity tests, system performance benchmarks, and channel interference parameters.
  • Directs manufacturers to declare compliance for transmission capacity and environmental conditions.

• Harmonization for the EMC Directive:

  • Ensures that equipment meets essential electromagnetic compatibility requirements.
  • Facilitates unified spectrum management across multiple European countries.

Applications

SIST ETS 300 198/A1 E1:2003 is vital for organizations involved in:

• Telecommunications Infrastructure:

  • Deploying high-capacity radio relay links for backbone and distribution networks.
  • Providing reliable transmission of digital data and high-quality analogue video, suitable for both urban and rural telecom extensions.

• Network Operators and Service Providers:

  • Meeting regulatory approval for equipment to ensure interoperability across European networks.
  • Facilitating cross-border wireless services and supporting Europe-wide telecommunications strategies.

• Manufacturers of Radio Equipment:

  • Designing and certifying equipment in compliance with harmonized technical requirements.
  • Streamlining product access to multiple national markets by adhering to unified standards.

• Regulatory and Spectrum Authorities:

  • Referencing consistent technical requirements for type approval, licensing, and frequency management.
  • Supporting the withdrawal of conflicting national standards to achieve spectrum harmonization.

Related Standards

• ETS 300 198: Original European Telecommunications Standard for 23 GHz radio relay systems, detailing core technical parameters.
• ETS 300 385: Companion standard addressing additional requirements for harmonized radio equipment approval.
• CEPT/ERC/DEC/(96)09: European Radiocommunications Committee Decision on adopting harmonized regulations for radio relay systems in this frequency range.
• Council Directive 89/336/EEC (EMC Directive): European directive on electromagnetic compatibility, referenced for essential compliance.
• ERC Report 25: European Table of Frequency Allocations, detailing the regulatory environment for frequency bands.

By adhering to SIST ETS 300 198/A1 E1:2003, stakeholders streamline compliance, ensure interoperability, and support the growth and reliability of radio transmission systems across European markets. This drives innovation and competitive services in fixed wireless telecommunications.

SLOVENSKI STANDARD
01-december-2003
3UHQRVLQPXOWLSOHNVLUDQMH70±3DUDPHWULUDGLRUHOHMQLKVLVWHPRY]DSUHQRV
GLJLWDOQLKVLJQDORYLQDQDORJQLKYLGHRVLJQDORYNLGHOXMHMRYIUHNYHQþQHP
SRGURþMX*+]
Transmission and Multiplexing (TM); Parameters for radio relay systems for the
transmission of digital signals and analogue video signals operating at 23 GHz
Ta slovenski standard je istoveten z: ETS 300 198/A1 Edition 1
ICS:
33.040.20 Prenosni sistem Transmission systems
33.060.30 Radiorelejni in fiksni satelitski Radio relay and fixed satellite
komunikacijski sistemi communications systems
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

ETS 300 198
AMENDMENT A1
March 1997
Source: ETSI TC-RES Reference: RE/TM-04054
ICS: 33.020
Key words: Transmission, radio, video
This amendment A1 modifies
the European Telecommunication Standard ETS 300 198 (1994)
Transmission and Multiplexing (TM);
Parameters for radio relay systems for the transmission of
digital signals and analogue video signals operating at 23 GHz
ETSI
European Telecommunications Standards Institute
ETSI Secretariat
Postal address: F-06921 Sophia Antipolis CEDEX - FRANCE
Office address: 650 Route des Lucioles - Sophia Antipolis - Valbonne - FRANCE
X.400: c=fr, a=atlas, p=etsi, s=secretariat - Internet: [e-mail]
Tel.: [phone] - Fax: [phone]
Copyright Notification: No part may be reproduced except as authorized by written permission. The copyright and the
foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 1997. All rights reserved.

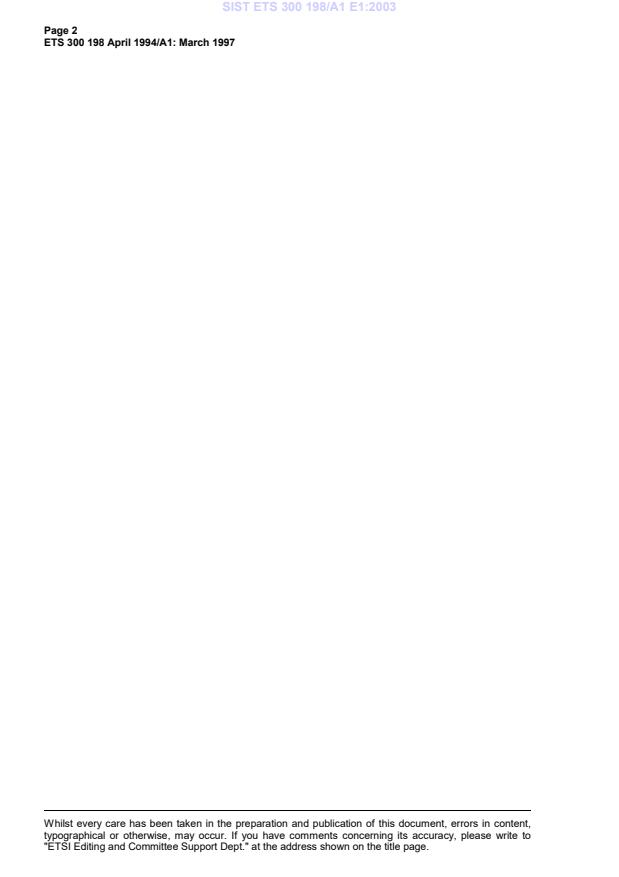

Page 2
ETS 300 198 April 1994/A1: March 1997
Whilst every care has been taken in the preparation and publication of this document, errors in content,
typographical or otherwise, may occur. If you have comments concerning its accuracy, please write to
"ETSI Editing and Committee Support Dept." at the address shown on the title page.

Page 3
ETS 300 198 April 1994/A1: March 1997
Foreword
This amendment to ETS 300 198 (1994) has been produced by the Radio Equipment and Systems (RES)
Technical Committee of the European Telecommunications Standards Institute (ETSI).
ETS 300 198, as amended by this amendment, together with ETS 300 385 is intended to become a
Harmonized Standard, the reference of which is intended to be published in the Official Journal of the
European Communities, referencing Council Directive 89/336/EEC (EMC Directive).
Annex C contains the ERC Decision which references the technical specifications in this ETS for inclusion
in national approval regulations.
Transposition dates
Date of adoption: 21 March 1997
Date of latest announcement of this ETS (doa): 31 July 1997
Date of latest publication of new National Standard
or endorsement of this ETS (dop/e): 31 January 1998
Date of withdrawal of any conflicting National Standard (dow): 31 January 1998

Page 4
ETS 300 198 April 1994/A1: March 1997
Amendments
Foreword:
Replace first paragraph with the following:
This European Telecommunications Standard (ETS) has been prepared by the Radio Equipment and
Systems (RES) Technical Committee of the European Telecommunications Standards Institute (ETSI).
This ETS, together with ETS 300 385 is intended to become a Harmonized Standard, the reference of
which is intended to be published in the Official Journal of the European Communities, referencing
Council Directive 89/336/EEC (EMC Directive).
Insert the following after the last paragraph:
The technical specifications relevant to the EMC Directive are listed in annex B.
Annex C contains the ERC Decision which references the technical specifications in this ETS for inclusion
in national approval regulations.

Page 5
ETS 300 198 April 1994/A1: March 1997
Insert normative annexes B and C:
Annex B (normative): ETS 300 198, Transmission and Multiplexing (TM);
Parameters for radio relay systems for the
transmission of digital signals and analogue video
signals operating at 23 GHz
Table B.1: Subclauses of this ETS relevant for compliance with the essential requirements of the
EC Council Directives
Clause/ Title Corresponding Qualifying remarks
subclause article of Council
number, or Directive
annex 89/336/EEC
reference
Spurious emission tests
5.4.4 Transmitter Spurious emissions 4(a)
(digital systems)
6.4.4 Transmitter Spurious emissions 4(a)
(wide band analogue systems)
5.5.2 Receiver Spurious emissions 4(a)
(digital systems)
6.5.2 Receiver Spurious emissions (wide 4(a)
band analogue systems)
Receiver Immunity tests
5.6.3 (c) CW spurious interference (digital 4(b)
systems)
6.6.2 (c) CW spurious interference (wide 4(b)
band analogue systems)
Page 6
ETS 300 198 April 1994/A1: March 1997
Annex C (normative): ERC Decision on the adoption of approval regulations
for equipment to be used for radio relay systems
operating in the fixed service for the transmission of
digital signals and analogue video signals operating
between 21,2 GHz and 23,6 GHz based on the European
Telecommunications Standard (ETS) 300 198
This annex contains the ERC Decision which references the technical specifications in ETS 300 198 for
inclusion in national approval regulations.

ERC/DEC/(96)09
EUROPEAN RADIOCOMMUNICATIONS COMMITTEE
ERC Decision
of 1 November 1996
on the adoption of approval regulations for equipment
to be used for radio relay systems operating in
the fixed service for the transmission of
digital signals and analogue video signals operating
between 21.2 GHz and 23.6 GHz
based on the European Telecommunications Standard
(ETS) 300 198
(ERC/DEC/(96)09)
EUROPEAN CONFERENCE OF POSTAL AND TELECOMMUNICATIONS ADMINISTRATIONS

Copyright 1996 the European Conference of Postal and Telecommunications Administrations (CEPT)

ERC/DEC/(96)09
Page 1
EXPLANATORY MEMORANDUM
1. INTRODUCTION
The free movement of radiocommunications goods and the provision of Europe-wide services for
radiocommunications are only achievable if there exist common regulations throughout Europe regarding availability
of frequency bands, approval requirements and border crossing procedures. A basic requirement to fulfil these
objectives is the Europe-wide implementation of national regulations based on the European Telecommunications
Standards (ETSs) developed by the European Telecommunications Standards Institute (ETSI).
This Decision (ERC/DEC/(96)09) provides the necessary mechanism for CEPT Administrations to commit
themselves to implement, within their national regimes, European Telecommunications Standard 300 198 and
withdraw any conflicting national standard.
2. BACKGROUND
Both the ERC and ETSI are involved in the development of common regulations, as described in (1) above. The
Memorandum of Understanding between ERC and ETSI explains the respective responsibilities of the two
organisations and its annex describes the principles of co-operation. The ERC, for its part, should, inter alia, adopt
Decisions on the introduction of ETSI standards into approval regimes.
ETS 300 198 has been prepared by the Transmission and Multiplexing (TM) Technical Committee of ETSI. The
standard has undergone the ETSI standards approval procedure and is now published as an ETS.
The ETS is based on CEPT Recommendation T/R 13-02.
The use of the frequency range (21.2 to 23.6 GHz ) covered by ETS 300 198 is not harmonised within CEPT.
Administrations have adopted different arrangements, to meet national requirements, for frequency bands and
channel separations (3.5, 7, 14, 28, 56 and 112 MHz). Further, the equipment used in this frequency range is subject
to national licensing and frequency planning which requires specification of, inter alia, frequency of operation and
equivalent isotropically radiated power (e.i.r.p.).
Nevertheless, there are a number of parameters, in particular those considered by the ERC as essential for spectrum
management purposes , which can be harmonised by adopting within approval regulations the limit values and
measurement methods provided in ETS 300 198.
In the European Table of Frequency allocations for the year 2008 (ERC Repor
...
