SIST ETS 300 630 E1:2003

• Abstract:

  Standardisation of digital systems with bit rate up to 4 x 2/8 Mbit/s suitable for use on long and partially obstructed paths, for use in the bands around 1,5 GHz.

• Status: Published
• Publication Date: 30-Nov-2003
• Withdrawal Date: 30-Sep-2003
• ICS: 33.040.20 - Transmission systems
• ICS: 33.060.30 - Radio relay and fixed satellite communications systems
• Technical Committee: RES - Radio equipment and systems
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 01-Dec-2003
• Due Date: 01-Dec-2003
• Completion Date: 01-Dec-2003
• Ref Project: ETSI ETS 300 630 ed.1 (1997-03) - Transmission and Multiplexing (TM); Digital Radio Relay Systems (DRRS); Low capacity point-to-point DRRS operating in the 1,4 GHz frequency band

Overview

SIST ETS 300 630 E1:2003 is a European standard focused on the transmission and multiplexing of digital radio relay systems (DRRS), specifically for low capacity point-to-point systems operating in the 1.4 GHz frequency band. Developed by the Slovenski inštitut za standardizacijo (SIST) and based on ETSI guidance, this standard ensures interoperability, quality, and reliable performance of terrestrial digital fixed service communication systems with bit rates up to 4 x 2/8 Mbit/s.

Intended for long or partially obstructed radio paths, these systems are deployed in local and regional networks, addressing key communication needs such as customer connectivity, ISDN extensions, base station links, and telecontrol operations within the frequency bands around 1.5 GHz.

Key Topics

• Frequency Bands and Channel Arrangements

  • Covers operation in 1,350-1,375 MHz paired with 1,492-1,517 MHz and 1,375-1,400 MHz paired with 1,427-1,452 MHz, as per CEPT T/R 13-01.
  • Defines a 0.5 MHz homogeneous channel plan, supporting channel spacings from 25 kHz up to 3.5 MHz.

• Performance and Compatibility

  • Specifies minimum performance metrics (BER, power levels, spurious emissions, receiver sensitivity).
  • Ensures compatibility between equipment from different sources within the same system route using standardized interfaces and frequency/channel arrangements.

• Environmental and EMC Requirements

  • Mandates compliance with ETS 300 019 for environmental robustness (weather protected and non-weather protected installations).
  • Stipulates electromagnetic compatibility per ETS 300 385 for systems at >2 Mbit/s data rates.

• Baseband and RF Interface

  • Details standard ITU-T and CCITT physical interfaces for digital and analog signal transmission.
  • Specifies 50 Ω coaxial RF connectors and standardized measurement points for system validation.

• Classes of Equipment

  • Defines three equipment classes based on modulation scheme: 2-level (FSK/GMSK), 4-level (4-FSK, 4-QAM), and 16-level (16-QAM).

Applications

Digital radio relay systems standardized by SIST ETS 300 630 E1:2003 are crucial in:

• Telecommunications Infrastructure

  • Providing low-capacity links for extending fixed networks, particularly in areas where cable installation is impractical.

• Mobile Networks

  • Interconnecting mobile base stations and supporting ISDN/leased line services in rural or hard-to-reach sites.

• Telemetry and SCADA

  • Facilitating industrial control and monitoring applications, including utility network management, pipeline monitoring, and off-shore communications.

• Disaster Recovery and Temporary Links

  • Enabling rapid deployment of communication links in emergencies or for temporary network expansion.

Organizations benefit from robust, standardized, and interoperable solutions, allowing for vendor diversity and streamlined network planning.

Related Standards

For comprehensive implementation and regulatory alignment, consider the following related standards:

• CEPT Recommendation T/R 13-01: Preferred channel arrangements in 1-3 GHz bands.
• ETS 300 385 / ETS 300 339: Electromagnetic compatibility for radio equipment.
• CCITT G.703 / ITU-T V.11, V.24, I.430: Standardized digital and analog interface specifications.
• EN 300 631: Antenna requirements for point-to-point radio links.
• ETS 300 019: Environmental testing requirements.
• ITU-T Recommendations (G.821, G.826, G.773, X.21): Performance objectives and protocol support.

These standards, referenced within SIST ETS 300 630 E1:2003, ensure seamless integration and regulatory compliance for digital radio relay systems operating in the 1.4 GHz band.

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.*+]Transmission and Multiplexing (TM); Digital Radio Relay Systems (DRRS); Low capacity point-to-point DRRS operating in the 1,4 GHz frequency band33.060.30Radiorelejni in fiksni satelitski komunikacijski sistemiRadio relay and fixed satellite communications systems33.040.20Prenosni sistemTransmission systemsICS:Ta slovenski standard je istoveten z:ETS 300 630 Edition 1SIST ETS 300 630 E1:2003en01-december-2003SIST ETS 300 630 E1:2003SLOVENSKI
STANDARD
EUROPEANETS 300 630TELECOMMUNICATIONMarch 1997STANDARDSource: ETSI TC-TMReference: DE/TM-04014ICS:33.020Key words:DRRS, radio, relay, transmission, point-to-pointTransmission and Multiplexing (TM);Low capacity point-to-point Digital Radio Relay Systems (DRRS)operating in the 1,4 GHz frequency bandETSIEuropean Telecommunications Standards InstituteETSI SecretariatPostal address: F-06921 Sophia Antipolis CEDEX - FRANCEOffice address: 650 Route des Lucioles - Sophia Antipolis - Valbonne - FRANCEX.400: c=fr, a=atlas, p=etsi, s=secretariat - Internet: [e-mail].: [phone] - Fax: [phone]Copyright Notification: No part may be reproduced except as authorized by written permission. The copyright and theforegoing restriction extend to reproduction in all media.© European Telecommunications Standards Institute 1997. All rights reserved.SIST ETS 300 630 E1:2003

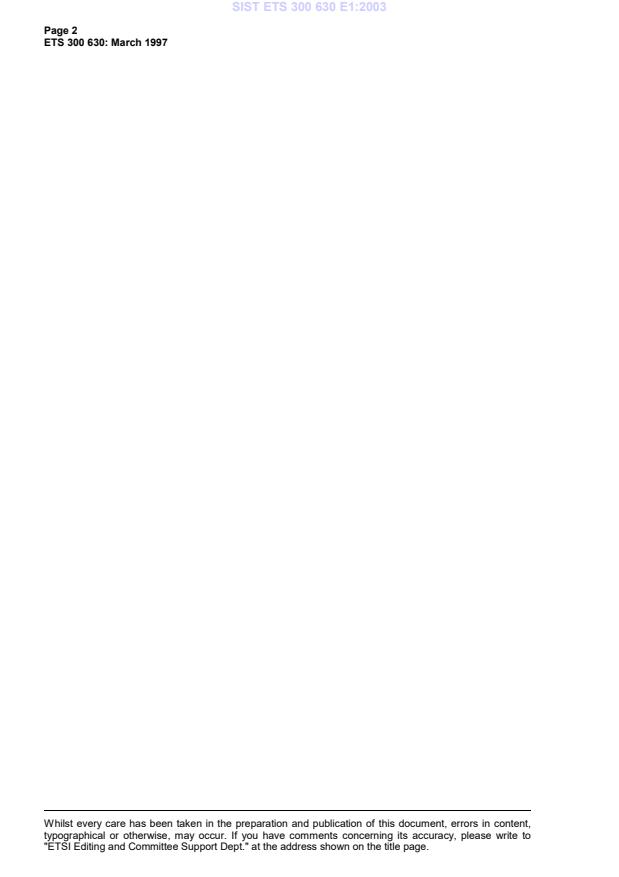

Page 2ETS 300 630: March 1997Whilst every care has been taken in the preparation and publication of this document, errors in content,typographical or otherwise, may occur. If you have comments concerning its accuracy, please write to"ETSI Editing and Committee Support Dept." at the address shown on the title page.SIST ETS 300 630 E1:2003

Page 3ETS 300 630: March 1997ContentsForeword.51Scope.72Normative references.83Abbreviations and symbols.93.1Abbreviations.93.2Symbols.94General characteristics.104.1Frequency bands and channels arrangements.104.2Modes of operation.104.2.1Channel spacing.104.2.2Transmit/receive duplex frequency separation.104.3Installation.104.3.1Environmental conditions.104.3.1.1Equipment within weather protected locations.104.3.1.2Equipment for non-weather protected locations.104.3.2Electromagnetic compatibility conditions.104.3.3Power supply.114.4TMN requirements.114.5Block diagram.114.6RF interfaces.125Baseband characteristics.125.1Plesiochronous Digital Hierarchy (PDH) interfaces.125.2Analogue interfaces.126Transmitter characteristics.126.1Output power.126.2RF spectrum masks.136.3Spectral lines at the symbol rate.146.4Spurious emissions.146.5Radio frequency tolerance.146.6Return loss.147Receiver characteristics.157.1Receiver image rejection(s).157.2Receiver spurious emissions.157.3Input level range.157.4Return loss.158System characteristics.158.1BER as a function of receiver input level.158.2Equipment background BER.168.3Interference sensitivity.168.3.1Co-channel interference.168.3.2Adjacent channel interference.168.3.3CW Spurious interference.179Feeder/antenna requirements.17Annex A (informative):Indicative channel capacities.18History.19SIST ETS 300 630 E1:2003

Page 4ETS 300 630: March 1997Blank pageSIST ETS 300 630 E1:2003

Page 5ETS 300 630: March 1997ForewordThis European Telecommunication Standard (ETS) has been prepared by the Transmission andMultiplexing (TM) Technical Committee of the European Telecommunications Standards Institute (ETSI).Transposition datesDate of adoption:21 February 1997Date of latest announcement of this ETS (doa):30 June 1997Date of latest publication of new National Standardor endorsement of this ETS (dop/e):31 December 1997Date of withdrawal of any conflicting National Standard (dow):31 December 1997SIST ETS 300 630 E1:2003

Page 6ETS 300 630: March 1997Blank pageSIST ETS 300 630 E1:2003

Page 7ETS 300 630: March 19971ScopeThis ETS specifies the minimum performance parameters for terrestrial digital fixed service radiocommunications equipment operating in the 1,4 GHz frequency bands. The requirements and limits givenin this ETS are relevant to all environmental conditions for the chosen climatic class. The test methods tobe used are currently under study in ETSI STC TM4.Digital systems are intended to be used for point-to-point connections in local and regional networks atdata rates between 9,6 kbit/s and 4x2 Mbit/s. Other data rates may also be foreseen. Typical applicationsinclude:a)customer connections;b)Integrated Services Digital Network (ISDN) extension;c)mobile base station connections;d)telemetry and telecontrol, including transportable and off-shore use.CCIR high, medium and local grade performance objectives, i.e. CCIR Recommendations F.634 [14],F.696 [4], F.697 [5], CCITT Recommendation G.821 [7] and the forthcoming performance objectivesdetailed in ITU-T Recommendation G.826 [8] should be realizable using systems considered in this ETS.The parameters to be specified fall into two categories:a)Those that are required to provide compatibility between channels from different sources ofequipment on the same route, connected either to:-separate antennas; or to-separate polarizations of the same antenna.b)Parameters defining the transmission quality of the proposed system.The ETS deals with Intermediate Frequency (IF), Radio Frequency (RF) and baseband characteristicsrelevant to low capacity Plesiochronous Digital Hierarchy (PDH) transmission. Antenna/feeder systemrequirements are covered in EN 300 631 [12].Due to the wide spread of applications and corresponding system rates, parameters such as RF spectrummasks and receiver sensitivity are related to standardized channel spacings rather than to minimumsystem rates. This allows individual countries to allocate a bandwidth and therefore a standard channelspacing in accordance with the foreseen services and their own frequency management and radionetwork planning.As the maximum bit rate in a given bandwidth depends on the system spectral efficiency, differentequipment classes are defined:Class 1:equipment based on a minimum of 2-level modulation scheme (e.g. 2-FSK,GMSK with discriminator detection, or equivalent);Class 2:equipment based on a minimum 4-level modulation scheme (e.g. 4-FSK,4-QAM, or equivalent);Class 3:equipment based on a minimum 16-level modulation scheme (e.g. 16-QAM, orequivalent).Safety aspects are outside the mandate of ETSI and they will not be considered in this ETS.SIST ETS 300 630 E1:2003

Page 8ETS 300 630: March 19972Normative referencesThis ETS incorporates, by dated or undated reference, provisions from other publications. Thesenormative references are cited at the appropriate place in the text and the publications are listed hereafter.For dated references, subsequent amendments to, or revisions of, any of these publications apply to thisETS only when incorporated in it by amendment or revision. For undated references, the latest edition ofthe publication referred to applies.[1]CEPT Recommendation T/R 13-01: "Preferred channel arrangements for fixedservices in the range 1 - 3 GHz".[2]ETS 300 019 Parts 1 and 2 (1994): "Equipment Engineering (EE);Environmental conditions and environmental tests for telecommunicationsequipment Part 1-1 to 1-7: Classification of environmental conditions, Part 2-1 to2-7: Specification of environmental tests".[3]CCITT Recommendation G.703 (1988): "Physical/electrical characteristics ofhierarchical digital interfaces".[4]CCIR Recommendation F.696 (1992): "Error performance and availabilityobjectives for hypothetical reference digital sections utilizing digital radio-relaysystems forming part or all of the medium grade portion of an ISDN connection".[5]CCIR Recommendation F.697 (1992): "Error performance and availabilityobjectives for the local grade portion at each end of an ISDN connection utilizingdigital radio-relay systems".[6]ITU-T Recommendation G.773 (1993): "Protocol suites for Q interfaces formanagement of transmission systems".[7]CCITT Recommendation G.821 (1988): "Error performance of a digitalinternational connection".[8]ITU-T draft Recommendation G.826 (1993): "Error performance objectives forconstant bit-rate digital paths".[9]ETS 300 385: "Radio Equipment and Systems (RES); EMC standard for digitalfixed radio links and ancillary equipment with data rates at around 2 Mbit/s andabove".[10]ITU-T Recommendation V.11 (1993): "Electrical characteristics for balanceddouble current interchange circuits operating at data signalling rates up to 10Mbit/s".[11]CCITT Recommendation G.712 (1992): "Transmission PerformanceCharacteristics of Pulse Code Modulation".[12]prEN 300 631: "Transmission and Multiplexing (TM); Radio relay equipment;Antennas for point-to-point radio links in bands 1 to 3 GHz Essentialrequirements on electrical characteristics".[13]ITU-T Recommendation V.24 (1993): "List of definitions for interchange circuitsbetween data terminal equipment (DTE) and data circuit-terminating equipment(DCE)".[14]CCIR Recommendation F.634 (1992): "Error performance objectives for realdigital radio-relay links forming part of a high grade circuit within an ISDNnetwork".[15]ETS 300 132 Parts 1 and 2: "Equipment Engineering (EE); Power supplyinterface at the input to telecommunications equipment interface".SIST ETS 300 630 E1:2003

Page 9ETS 300 630: March 1997[16]ETR 080: "Transmission and Multiplexing (TM); Integrated Services DigitalNetwork (ISDN) basic rate access; Digital transmission system on metallic locallines".[17]ITU-T Recommendation I.430 (1993): "Basic user-network interface - Layer 1specification".[18]CCITT Recommendation X.21 (1992): "Interface between data terminalequipment and data circuit-terminating equipment for synchronous operation onpublic data networks".[19]prETS 300 339: "Radio Equipment and Systems (RES); General Electro-Magnetic Compatibility (EMC) for radio equipment".3Abbreviations and symbols3.1AbbreviationsFor the purposes of this ETS, the following abbreviations apply:ACAlternating CurrentBERBit Error RatioCEPTConférence des Administrations Européennes des Postes etTélécommunicationsCWContinuous WaveDCDirect CurrentEMCElectroMagnetic CompatibilityFSKFrequency Shift KeyingGMSKGaussian Minimum Shift KeyingIFIntermediate FrequencyIF/RFIntermediate Frequency/Radio FrequencyISDNIntegrated Services Digital NetworkNRZNon return to ZeroPDHPlesiochronous Digital HierarchyQAMQuadrature Amplitude ModulationRFRadio FrequencyRXReceiverS/ISignal to Interference ratioTMNTelecommunications Management NetworkTXTransmitterW/UWanted to Unwanted signal ratio3.2SymbolsFor the purposes of this ETS, the following symbols apply:dBdecibeldBmdecibel relative to 1 mWGHzgigahertzkHzkilohertzHzHertzkbit/skilobits per secondMbit/smegabits per secondMHzmegahertzSIST ETS 300 630 E1:2003

Page 10ETS 300 630: March 19974General characteristics4.1Frequency bands and channels arrangementsThe systems are required to operate in the 1,4 GHz frequency bands as shown below, in accordance withthe CEPT Recommendation T/R 13-01 [1]:-1 350 MHz to 1 375 MHz
...
