SIST ETS 300 197/A2 E1:2000

• Abstract:

  This together with ETS 300 385 is intended to become a harmonised standard, the reference of which is intended to be published in the Official Journal of the European Communities referencing the EMC Directive. This amendment implements the changes necessary to convert ETS 300 197 into a harmonised standard.

• Status: Published
• Publication Date: 30-Jun-2000
• ICS: 33.040.20 - Transmission systems
• ICS: 33.060.30 - Radio relay and fixed satellite communications systems
• Technical Committee: RES - Radio equipment and systems
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 01-Jul-2000
• Due Date: 01-Jul-2000
• Completion Date: 01-Jul-2000
• Mandate: T-353
• Ref Project: ETSI ETS 300 197/A2 ed.1 (1997-03) - Transmission and Multiplexing (TM); Parameters for radio relay systems for the transmission of digital signals and analogue video signals operating at 38 GHz

Overview

SIST ETS 300 197/A2 E1:2000 is a standard published by the Slovenian Institute for Standardization (SIST), aligned with ETSI standards, covering transmission and multiplexing (TM) parameters for radio relay systems. These systems support the transmission of digital signals and analogue video signals over the 38 GHz frequency range. This amendment updates the original ETS 300 197 standard to assist its harmonization under the EMC Directive 89/336/EEC and facilitate its inclusion in national regulations across Europe.

The document ensures consistent technical criteria for manufacturers, network operators, and regulatory authorities deploying high-frequency radio relay technology, supporting seamless operation and regulatory approval across European countries.

Key Topics

• Radio Relay Systems at 38 GHz: Parameters for systems operating in the 37 to 39.5 GHz band, essential for high-capacity digital and analogue video transmission.
• Transmission and Multiplexing Parameters: Specifications for channel capacity, modulation, transmitter and receiver characteristics, including spurious emissions and spectrum masks for both digital and analogue systems.
• Compliance with EMC Directive: Lists the technical requirements relevant to the European EMC Directive, ensuring proper electromagnetic compatibility.
• Harmonization: Supports a unified regulatory approach across Europe, enabling equipment approval and free movement within EU and CEPT countries.
• National Adoption: Allows for national variations in channel spacings and environmental specifications to suit specific country requirements, while maintaining a harmonized core standard.

Applications

SIST ETS 300 197/A2 E1:2000 is highly relevant for organizations involved with:

• Telecommunications Operators: Enables deployment of reliable point-to-point radio links, facilitating broadband data and video transfer in urban, suburban, and rural environments.
• Network Equipment Manufacturers: Provides clear requirements to design and test radio relay equipment compatible with harmonized European regulations.
• System Integrators: Supports multi-vendor interoperability by establishing standardized performance and interface parameters.
• National Regulators and Licensing Bodies: Offers a consistent framework for approving equipment, supporting spectrum management and minimizing cross-border interference.
• Broadcasters and Content Providers: Ensures that high-quality analogue video and high-capacity digital signals can be transmitted over microwave backbone links with minimal risk of signal degradation or regulatory conflict.

Related Standards

• ETS 300 197 (Original Edition): The foundational standard for radio relay systems, upon which this amendment is based.
• ETS 300 385: Provides complementary parameters and requirements, and together with ETS 300 197 forms the basis for harmonization.
• Council Directive 89/336/EEC (EMC Directive): European directive on electromagnetic compatibility, referenced for compliance.
• CEPT Recommendation T/R 12-01: Basis for technical recommendations reflected in this standard.
• ERC/DEC/(96)08: CEPT Decision supporting the adoption of ETS 300 197 parameters into national approval schemes for radio systems in the 37-39.5 GHz range.

---

By adopting SIST ETS 300 197/A2 E1:2000, stakeholders benefit from enhanced interoperability, simplified equipment approval, and reliable deployment of high-frequency radio relay systems, supporting Europe's digital infrastructure and broadcast distribution networks. This harmonized standard is central to the future-proof expansion of high-capacity wireless communication solutions across the continent.

SLOVENSKI STANDARD
01-julij-2000
3UHQRVLQPXOWLSOHNVLUDQMH703DUDPHWULUDGLRUHOHMQLKVLVWHPRY]DSUHQRV
GLJLWDOQLKVLJQDORYLQDQDORJQLKYLGHRVLJQDORYNLGHOXMHMRYIUHNYHQþQHP
SRGURþMX*+]
Transmission and Multiplexing (TM); Parameters for radio relay systems for the
transmission of digital signals and analogue video signals operating at 38 GHz
Ta slovenski standard je istoveten z: ETS 300 197/A2 Edition 1
ICS:
33.040.20 Prenosni sistem Transmission systems
33.060.30 Radiorelejni in fiksni satelitski Radio relay and fixed satellite
komunikacijski sistemi communications systems
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

ETS 300 197
AMENDMENT A2
March 1997
Source: ETSI TC-RES Reference: RE/TM-04053
ICS: 33.020
Key words: Transmission, radio, video
This amendment A2 modifies
the European Telecommunication Standard ETS 300 197 (1994)
Transmission and Multiplexing (TM);
Parameters for radio relay systems for the transmission of
digital signals and analogue video signals operating at 38 GHz
ETSI
European Telecommunications Standards Institute
ETSI Secretariat
Postal address: F-06921 Sophia Antipolis CEDEX - FRANCE
Office address: 650 Route des Lucioles - Sophia Antipolis - Valbonne - FRANCE
X.400: c=fr, a=atlas, p=etsi, s=secretariat - Internet: [e-mail]
Tel.: [phone] - Fax: [phone]
Copyright Notification: No part may be reproduced except as authorized by written permission. The copyright and the
foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 1997. All rights reserved.

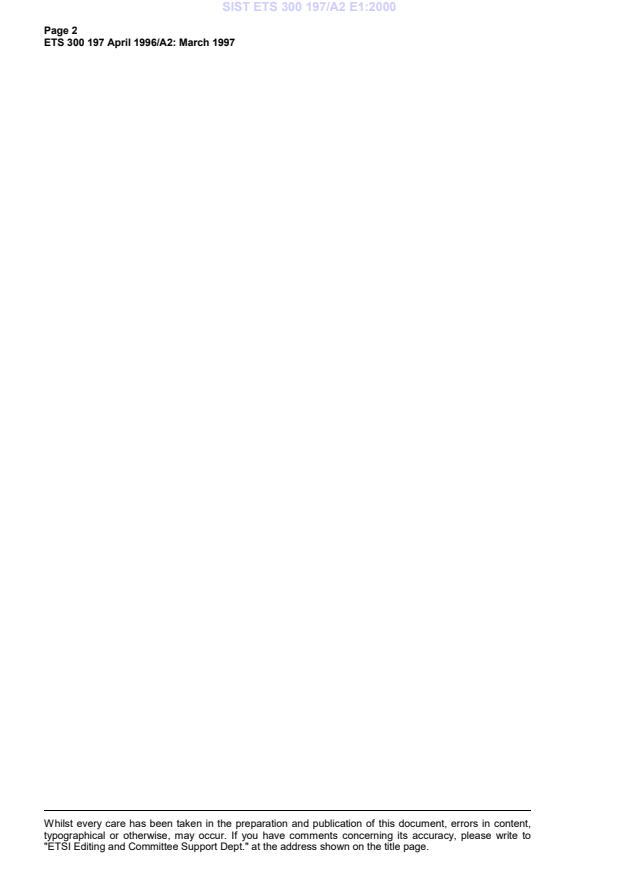

Page 2
ETS 300 197 April 1996/A2: March 1997
Whilst every care has been taken in the preparation and publication of this document, errors in content,
typographical or otherwise, may occur. If you have comments concerning its accuracy, please write to
"ETSI Editing and Committee Support Dept." at the address shown on the title page.

Page 3
ETS 300 197 April 1996/A2: March 1997
Foreword
This amendment to ETS 300 197 (1994) has been produced by the Radio Equipment and Systems (RES)
Technical Committee of the European Telecommunications Standards Institute (ETSI).
ETS 300 197, as amended by this amendment, together with ETS 300 385 is intended to become a
Harmonized Standard, the reference of which is intended to be published in the Official Journal of the
European Communities, referencing Council Directive 89/336/EEC (EMC Directive).
Annex C contains the ERC Decision which references the technical specifications in this ETS for inclusion
in national approval regulations.
Transposition dates
Date of adoption: 7 March 1997
Date of latest announcement of this ETS (doa): 30 June 1997
Date of latest publication of new National Standard
or endorsement of this ETS (dop/e): 31 December 1997
Date of withdrawal of any conflicting National Standard (dow): 31 December 1997

Page 4
ETS 300 197 April 1996/A2: March 1997
Amendments
Foreword:
Replace first paragraph with the following:
This European Telecommunications Standard (ETS) has been prepared by the Radio Equipment and
Systems (RES) Technical Committee of the European Telecommunications Standards Institute (ETSI).
This ETS, together with ETS 300 385 is intended to become a Harmonized Standard, the reference of
which is intended to be published in the Official Journal of the European Communities, referencing
Council Directive 89/336/EEC (EMC Directive).
Insert the following after the last paragraph:
The technical specifications relevant to the EMC Directive are listed in annex B.
Annex C contains the ERC Decision which references the technical specifications in this ETS for inclusion
in national approval regulations.

Page 5
ETS 300 197 April 1996/A2: March 1997
Insert normative annexes B and C:
Annex B (normative): ETS 300 197, Transmission and Multiplexing (TM);
Parameters for radio relay systems for the
transmission of digital signals and analogue video
signals operating at 38 GHz
Table B.1: Subclauses of this ETS relevant for compliance with the essential requirements of the
EC Council Directives
Clause/ Title Corresponding Qualifying remarks
subclause article of Council
number, or Directive
annex 89/336/EEC
reference
Spurious emission tests
5.4.4 Transmitter Spurious emissions 4(a)
(digital systems)
6.4.4 Transmitter Spurious emissions 4(a)
(wide band analogue systems)
5.5.2 Receiver Spurious emissions 4(a)
(digital systems)
6.5.2 Receiver Spurious emissions (wide 4(a)
band analogue systems)
Receiver Immunity tests
5.6.3 (c) CW spurious interference (digital 4(b)
systems)
6.6.2 (c) CW spurious interference (wide 4(b)
band analogue systems)
Page 6
ETS 300 197 April 1996/A2: March 1997
Annex C (normative): ERC Decision on the adoption of approval regulations
for equipment to be used for radio relay systems
operating in the fixed service for the transmission of
digital signals and analogue video signals operating
between 37 GHz and 39,5 GHz, based on the European
Telecommunications Standard (ETS) 300 197
This annex contains the ERC Decision which references the technical specifications in ETS 300 197 for
inclusion in national approval regulations.

ERC/DEC/(96)08
EUROPEAN RADIOCOMMUNICATIONS COMMITTEE
ERC Decision
of 1 November 1996
on the adoption of approval regulations for equipment
to be used for radio relay systems operating in
the fixed service for the transmission of
digital signals and analogue video signals operating
between 37 GHz and 39.5 GHz,
based on the European Telecommunications
Standard (ETS) 300 197
(ERC/DEC/(96)08)
EUROPEAN CONFERENCE OF POSTAL AND TELECOMMUNICATIONS ADMINISTRATIONS

Copyright 1996 the European Conference of Postal and Telecommunications Administrations (CEPT)

ERC/DEC/(96)08
Page 1
EXPLANATORY MEMORANDUM
1. INTRODUCTION
The free movement of radiocommunications goods and the provision of Europe-wide services for
radiocommunications are only achievable if there exist common regulations throughout Europe regarding availability
of frequency bands, approval requirements and border crossing procedures. A basic requirement to fulfil these
objectives is the Europe-wide implementation of regulations based on the European Telecommunications Standards
(ETSs) developed by the European Telecommunications Standards Institute (ETSI).
This Decision (ERC/DEC/(96)08) provides the necessary mechanism for CEPT Administrations to commit
themselves to implement, within their national regimes, European Telecommunications Standard 300 197 and
withdraw any conflicting national standard.
2. BACKGROUND
Both the ERC and ETSI are involved in the development of common regulations, as described in (1) above. The
Memorandum of Understanding between ERC and ETSI explains the respective responsibilities of the two
organisations and its annex describes the principles of co-operation. The ERC, for its part, should, inter alia, adopt
Decisions on the introduction of ETSI standards into approval regimes.
ETS 300 197 has been prepared by the Transmission and Multiplexing (TM) Technical Committee of ETSI. The
standard has undergone the ETSI standards approval procedure and is now published as an ETS.
The ETS is based on CEPT Recommendation T/R 12-01.
The use of the frequency range (37 to 39.5 GHz ) covered by ETS 300 197 is not harmonised within CEPT.
Administrations have adopted different arrangements, to meet national requirements, for channel separations (3.5, 7,
14, 28, 56 and 140 MHz). Further, the equipment used in this frequency range is subject to national licensing and
frequency planning which requires specification of, inter alia, frequency of operation and equivalent isotropically
radiated power (e.i.r.p.).
Nevertheless, there are a number of parameters, in particular those considered by the ERC as essential for spectrum
management purposes , which can be harmonised by adopting within
...
