SIST ETS 300 632 E1:2003

• Abstract:

  This ETs specifies the point-to-point and point-to-multipoint radio relay systems for transmitting analogue video signals in the band 24,25 to 29,5 GHz

• Status: Published
• Publication Date: 30-Nov-2003
• Withdrawal Date: 30-Sep-2003
• ICS: 33.040.20 - Transmission systems
• ICS: 33.060.30 - Radio relay and fixed satellite communications systems
• Technical Committee: RES - Radio equipment and systems
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 01-Dec-2003
• Due Date: 01-Dec-2003
• Completion Date: 01-Dec-2003
• Ref Project: ETSI ETS 300 632 ed.1 (1997-03) - Transmission and Multiplexing (TM); Fixed radio link equipment for the transmission of analogue video signals operating in the frequency range 24,25 GHz to 29,50 GHz

Overview

SIST ETS 300 632 E1:2003 is a Slovenian standard, harmonized with the European ETS 300 632 standard, which defines the technical requirements for fixed radio link equipment used for transmitting analogue video signals in the frequency range 24.25 GHz to 29.50 GHz. Published by the Slovenian Institute for Standardization (SIST), this standard ensures the consistent performance, compatibility, and interoperability of point-to-point (P-P) and point-to-multipoint (P-MP) radio relay systems operating in these high-frequency bands. The document covers minimum performance parameters for analogue video transmission, targeting broadcast, distribution, and surveillance applications.

Key Topics

• Frequency Range & Channel Arrangements: The equipment operates in the 24.25 GHz to 29.50 GHz band, with channel plans and arrangements aligned with CEPT and ITU-R recommendations for optimal use and minimal interference.
• Transmission Applications: Designed for reliable transmission of analogue video, including television (both contribution and distribution quality), surveillance feeds, and radar remoting.
• System Types: Supports both point-to-point (P-P) and point-to-multipoint (P-MP) architectures for flexible deployment scenarios.
• Environmental Suitability: Equipment is specified for both weather protected and non-weather protected installations, complying with environmental standards for diverse operating conditions across Europe.
• Antenna Requirements: Antenna types and their radiation patterns are defined based on application (high capacity, distribution, etc.), alongside cross-polar discrimination (XPD) values and waveguide flange compatibility per IEC 154.
• Power and Electromagnetic Compatibility: Stipulates power supply interface requirements and adherence to electromagnetic compatibility (EMC) standards for radio equipment.

Applications

Equipment conforming to SIST ETS 300 632 E1:2003 is used in several demanding telecommunications and media environments:

• Broadcasting: Facilitates high-quality analogue video signal transmission for TV contribution and distribution, supporting broadcasters in delivering content between studios, transmission sites, and distribution networks.
• Video Surveillance: Used for transporting surveillance video feeds over fixed wireless links, offering reliable, real-time monitoring in security-sensitive areas.
• Event Coverage: Supports temporary or permanent links for live events, where cable deployment is impractical or rapid setup is required.
• Radar Remoting: Enables remote radar installations to send processed analogue video signals to control centers without the need for extensive cabling.
• Rural and Urban Connectivity: Useful for extending video and broadcast services to remote, underserved, or difficult-to-cable locations.

Related Standards

For comprehensive compliance and optimal performance, systems referencing SIST ETS 300 632 E1:2003 should consider the following related standards:

• ETS 300 431: Covers digital fixed point-to-point radio link equipment in the same frequency range, suitable for deployments transitioning from analogue to digital transmission.
• CEPT Recommendation T/R 13-02: Defines preferred channel arrangements for fixed services in the 22.0 - 29.5 GHz band.
• ITU-R Recommendation F.748-1: Provides radio-frequency channel arrangements for radio-relay systems operating in the 25, 26, and 28 GHz bands.
• ETS 300 019: Specifies environmental conditions and tests for telecommunications equipment.
• ETS 300 339: Addresses electromagnetic compatibility (EMC) for fixed radio links.
• IEC 154: Focuses on waveguide flanges for consistent interconnection.
• ITU-T Recommendations J.61 and J.21: Outline video and audio interface requirements, ensuring interoperability across international connections.

By adhering to SIST ETS 300 632 E1:2003, manufacturers, network operators, and service providers can ensure reliable, interference-free transmission of analogue video in high-frequency bands, supporting modern broadcast and telecommunications infrastructure needs.

SLOVENSKI STANDARD
01-december-2003
3UHQRVLQPXOWLSOHNVLUDQMH70±2SUHPD]DILNVQHUDGLMVNHSRYH]DYH]DSUHQRV
DQDORJQHJDYLGHRVLJQDODNLGHOXMHYIUHNYHQþQHPREPRþMXRG*+]GR
*+]
Transmission and Multiplexing (TM); Fixed radio link equipment for the transmission of
analogue video signals operating in the frequency range 24,25 GHz to 29,50 GHz
Ta slovenski standard je istoveten z: ETS 300 632 Edition 1
ICS:
33.040.20 Prenosni sistem Transmission systems
33.060.30 Radiorelejni in fiksni satelitski Radio relay and fixed satellite
komunikacijski sistemi communications systems
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN ETS 300 632
TELECOMMUNICATION March 1997
STANDARD
Source: ETSI TC-TM Reference: DE/TM-04025
ICS: 33.020
Key words: Analogue, radio, relay, transmission, video
Transmission and Multiplexing (TM);
Fixed radio link equipment for the transmission of
analogue video signals operating in the
frequency range 24,25 GHz to 29,50 GHz
ETSI
European Telecommunications Standards Institute
ETSI Secretariat
Postal address: F-06921 Sophia Antipolis CEDEX - FRANCE
Office address: 650 Route des Lucioles - Sophia Antipolis - Valbonne - FRANCE
X.400: c=fr, a=atlas, p=etsi, s=secretariat - Internet: [e-mail]
Tel.: [phone] - Fax: [phone]
Copyright Notification: No part may be reproduced except as authorized by written permission. The copyright and the
foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 1997. All rights reserved.

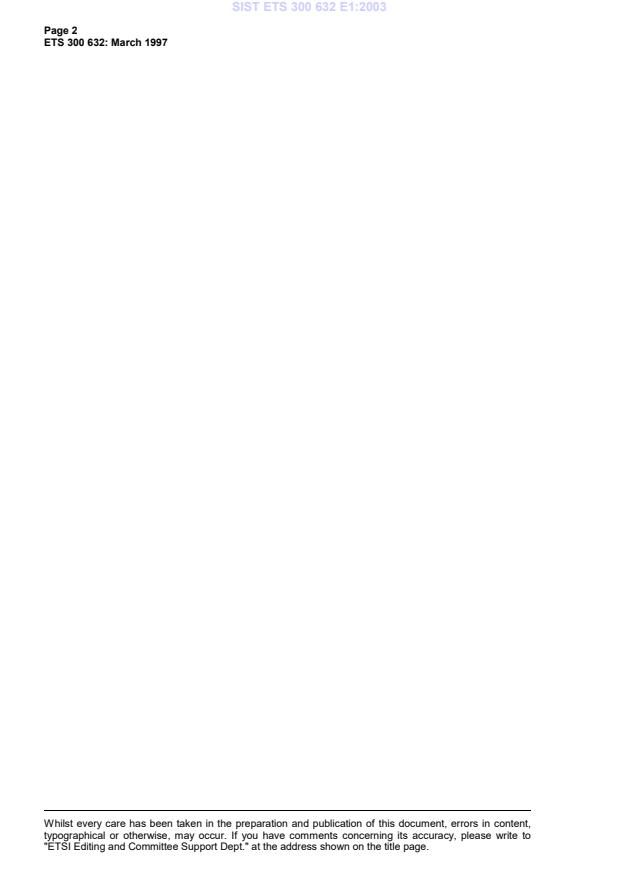

Page 2
ETS 300 632: March 1997
Whilst every care has been taken in the preparation and publication of this document, errors in content,
typographical or otherwise, may occur. If you have comments concerning its accuracy, please write to
"ETSI Editing and Committee Support Dept." at the address shown on the title page.

Page 3
ETS 300 632: March 1997
Contents
Foreword .5
1 Scope .7
2 Normative references.7
3 Abbreviations and symbols .8
3.1 Abbreviations .8
3.2 Symbols .8
4 General characteristics .8
4.1 Frequency bands and channel arrangements .8
4.1.1 Channel plan .8
4.1.2 Co-polar channel spacing.8
4.2 Compatibility requirements between systems.8
4.3 Environmental conditions.8
4.3.1 Equipment within weather protected locations .9
4.3.2 Equipment for non-weather protected locations.9
4.4 Electromagnetic compatibility .9
4.5 System block diagram .9
4.6 Branching/feeder/antenna requirements .9
4.6.1 Antenna radiation patterns .9
4.6.2 Waveguide flanges.9
4.6.3 Cross-Polar Discrimination (XPD).10
4.7 Power supply.10
5 Baseband characteristics .12
5.1 Transmit/receive capacity .12
5.2 Baseband parameters .12
5.2.1 Video interfaces.12
5.2.2 Audio interface .12
5.2.3 IF interface .12
6 Transmitter characteristics.13
6.1 Transmitter power range.13
6.2 Transmitter output power tolerance.13
6.3 Radiated spectrum.13
6.3.1 Frequency deviation .13
6.3.2 Spectrum masks .13
6.4 Spurious emissions.15
6.5 Radio frequency tolerance.15
7 Receiver characteristics .15
7.1 Input level range .15
7.2 Spurious emissions.16
7.3 Noise figure.16
7.4 Receiver sensitivity .16
8 System performance .16
8.1 Performance characteristics .16
8.2 Interference sensitivity .16
History.18

Page 4
ETS 300 632: March 1997
Blank page
Page 5
ETS 300 632: March 1997
Foreword
This European Telecommunication Standard (ETS) has been prepared by the Transmission and
Multiplexing (TM) Technical Committee of the European Telecommunications Standards Institute (ETSI).
This ETS specifies the minimum performance parameters for analogue radio relay equipment operating in
the frequency range 24,25 GHz to 29,50 GHz. The minimum performance parameters for digital radio
relay equipment operating in the frequency range 24,25 GHz to 29,50 GHz are given in ETS 300 431 [10].
Transposition dates
Date of adoption: 21 February 1997
Date of latest announcement of this ETS (doa): 30 June 1997
Date of latest publication of new National Standard
or endorsement of this ETS (dop/e): 31 December 1997
Date of withdrawal of any conflicting National Standard (dow): 31 December 1997

Page 6
ETS 300 632: March 1997
Blank page
Page 7
ETS 300 632: March 1997
1 Scope
This ETS covers the minimum technical requirements for terrestrial analogue radio relay systems
operating in bands in the frequency range 24,25 GHz to 29,50 GHz.
Such systems are intended to be used for Point-to-Point (P-P) connections and video distribution
(Point-to-Multipoint (P-MP)).
Typical applications include:
a) TV of contribution quality;
b) TV of distribution quality;
c) TV of surveillance quality;
d) Radar remoting.
Safety aspects are outside the mandate of ETSI and they will not be considered in this ETS.
The requirements and limits given in this ETS are relevant to all environmental conditions for the chosen
climatic class.
2 Normative references
This ETS incorporates by dated or undated reference, provisions from other publications. These
normative references are cited at the appropriate place in the text and the publications are listed hereafter.
For dated references, subsequent amendments to, or revisions of, any of these publications apply to this
ETS only when incorporated in it by amendment or revision. For undated references, the latest edition of
the publication referred to applies.
[1] CEPT Recommendation T/R 13-02: "Preferred channel arrangements for fixed
services in the range 22,0 - 29,5 GHz".
[2] ITU-R Recommendation F 748-1: "Radio-frequency channel arrangements for
radio-relay systems operating in the 25, 26 and 28 GHz bands".
[3] ETS 300 019: "Electrical Equipment (EE); Environmental conditions and
environmental tests for telecommunications equipment".
[4] prETS 300 339: "Radio Equipment and Systems (RES); General
Electro-Magnetic Compatibility (EMC) for radio equipment".
[5] IEC 154: "Flanges for Waveguides".
[6] ETS 300 132: "Equipment Engineering (EE); Power supply interface at the input
to telecommunications equipment".
[7] ITU-T Recommendation J.61 (1990): "Transmission performance of television
circuits designed for use in international connections".
[8] ITU-T Recommendation J.21 (1994): "Performance characteristics of
15 kHz-type sound-programme circuits – Circuits for high quality monophonic
and stereophonic transmissions".
[9] CCIR Recommendation F.403-3 (1990): "Intermediate frequency characteristics
for the interconnection of analogue radio-relay systems".
[10] ETS 300 431: "Transmission and Multiplexing (TM); Digital fixed point-to-point
radio link equipment operating in the frequency range 24,25 GHz to 29,50 GHz".

Page 8
ETS 300 632: March 1997
3 Abbreviations and symbols
3.1 Abbreviations
For the purposes of this ETS, the following abbreviations apply:
C/N Carrier to Noise ratio
CW Continuous Wave
FM Frequency Modulation
IF Intermediate Frequency
PAL Phase Alternation Line
P-MP Point-to-Multipoint
P-P Point-to-Point
RF Radio Frequency
RSL Receive Signal Level
S/N Signal to Noise ratio
XPD Cross-Polar Discrimination
3.2 Symbols
For the purposes of this ETS, the following symbols apply:
dB decibel
dBc decibel relative to mean carrier power
dBi decibel relative to an isotropic radiator
dBm decibel relative to 1 mW
dBW decibel relative to 1 W
GHz gigahertz
km kilometre
Mbit/s Mega-bits per second
MHz megahertz
ppm parts per million
ns nanosecond
mW milliwatt
W Watt
4 General characteristics
4.1 Frequency bands and channel arrangements
4.1.1 Channel plan
The frequency range is 24,25 GHz to 29,50 GHz. The channel arrangements shall align with those given
in CEPT Recommendation T/R 13-02 [1] which is in accordance with ITU-R Recommendation F.748-1 [2].
4.1.2 Co-polar channel spacing
Table 1
Video baseband up to 10 MHz up to 10 MHz
(standard frequency deviation) (wide frequency deviation)
Channel spacing 35 MHz 42 MHz
4.2 Compatibility requirements between systems
Equipment conforming with this ETS is not guaranteed to operate together across the radio interface
(mid-air compatibility) with similar equipment provided by another manufacturer.
4.3 Environmental conditions
The equipment shall meet the environmental conditions set out in ETS 300 019 [3] which defines weather
protected and non-weather protected locations, classes and test severities.

SIST ETS 300 6
...
