SIST EN ISO 9241-940:2022
(Main)Ergonomics of human-system interaction - Part 940: Evaluation of tactile and haptic interactions (ISO 9241-940:2017)
Ergonomics of human-system interaction - Part 940: Evaluation of tactile and haptic interactions (ISO 9241-940:2017)
This document:
- describes the types of methods that can be used for the evaluation of haptic devices and of systems that include haptic devices,
- specifies a procedure for the evaluation of haptic interactions by a usability walkthrough or usability test (see Annex J), and
- provides guidance on the types of methods that are appropriate for the evaluation of specific attributes of haptic systems, cross-referenced to the guidance in the relevant clauses of other International Standards (see Annexes A, B, C, D, E, F and G).
It applies to the following types of interaction :
- augmented reality — information overlaid on a real scene, e.g. vibrating belt indicating distance;
- gesture control of a device or a virtual scenario;
- unidirectional interaction such as a vibrating phone or a vibrating belt;
- virtual environment — virtual space with which a user can interact with the aid of a haptic device.
ISO 9241-940 applies to the following types of devices:
- gesture sensor, e.g. video that discerns 3D hand movements, touch screens that sense 2D touches;
- kinaesthetic haptic device e.g. desktop haptic interface;
- tactile display e.g. vibrating phone.
ISO 9241-940 is not applicable to standard input devices such as keyboards, mice or track balls.
NOTE The ISO 9241-400 subseries covers standard input devices, and ISO 9241-411 applies to the evaluation of input devices such as keyboards and mice.
ISO 9241-940 can be used to identify the types of methods and measures for
- establishing benchmarks,
- establishing requirements for haptic interaction,
- identifying problems with haptic interaction (formative evaluation), and
- use of the criteria to establish whether a haptic system meets requirements (summative evaluation).
Ergonomie der Mensch-System-Interaktion - Teil 940: Evaluation taktiler und haptischer Interaktionen (ISO 9241-940:2017)
Ergonomie de l'interaction homme-système - Partie 940: Évaluation des interactions tactiles et haptiques (ISO 9241-940:2017)
ISO 9241-940:2017
- décrit les types de méthodes pouvant être utilisés pour l'évaluation de dispositifs haptiques et de systèmes comprenant des dispositifs haptiques;
- spécifie une procédure pour l'évaluation des interactions haptiques par une révision structurée de l'utilisabilité ou par un essai de l'utilisabilité (voir l'Annexe J); et
- fournit des lignes directrices concernant les types de méthodes qui sont appropriés pour l'évaluation d'attributs spécifiques des systèmes haptiques, ayant fait l'objet de références croisées par rapport aux lignes directrices des articles correspondants d'autres Normes internationales (voir les Annexes A, B, C, D, E, F et G).
ISO 9241-940:2017 s'applique aux types d'interaction suivants:
- réalité augmentée ? informations superposées à une scène réelle, par exemple ceinture vibrante indiquant la distance;
- commande gestuelle d'un dispositif ou d'un scénario virtuel;
- interaction unidirectionnelle telle qu'un téléphone vibrant ou une ceinture vibrante;
- environnement virtuel ? espace virtuel avec lequel un utilisateur peut interagir à l'aide d'un dispositif haptique.
ISO 9241-940:2017 s'applique aux types suivants de dispositifs:
- capteur de gestes, par exemple vidéo discernant les mouvements de la main en 3D, écrans tactiles captant les touches en 2D;
- dispositif haptique kinesthésique, par exemple interface haptique de bureau;
- écran tactile, par exemple téléphone vibrant.
ISO 9241-940:2017 ne s'applique pas aux dispositifs d'entrée standard tels que claviers, souris ou boules de commande.
NOTE L'ISO 9241-400 traite des dispositifs d'entrée standard, et l'ISO 9241-411 s'applique à l'évaluation des dispositifs d'entrée tels que les claviers et les souris.
ISO 9241-940:2017 peut être utilisé pour identifier les types de méthodes et de mesures pour
- établir des références,
- établir les exigences relatives à une interaction haptique,
- identifier les problèmes associés à une interaction haptique (évaluation formative), et
- utiliser des critères pour déterminer si un système haptique satisfait aux exigences (évaluation sommative).
Ergonomija medsebojnega vpliva človek-sistem - 940. del: Vrednotenje taktilnih in haptičnih interakcij (ISO 9241-940:2017)
Ta dokument:
– opisuje vrste metod, ki se lahko uporabljajo za vrednotenje haptičnih naprav in sistemov, ki vključujejo haptične naprave;
– določa postopek za vrednotenje haptičnih interakcij z natančnim pregledom uporabnosti ali preskusom uporabnosti (glej dodatek J); in
– podaja smernice v zvezi z vrstami metod, ki so primerne za vrednotenje določenih atributov haptičnih sistemov, ki se navzkrižno sklicujejo na smernice iz ustreznih točk drugih mednarodnih standardov (glej dodatke A, B, C, D, E, F in G).
Uporablja se za naslednje vrste interakcij:
– obogatena resničnost (informacije prek prizora iz resničnega sveta, npr. varnostni pas, ki z vibriranjem označuje oddaljenost);
– upravljanje kretenj v napravi ali scenariju navidezne resničnosti;
– enosmerna interakcija, na primer vibrirajoči telefon ali vibrirajoči pas;
– navidezno okolje (navidezni prostor, na katerega lahko uporabnik vpliva s pomočjo haptične naprave).
Standard ISO 9241-940 se uporablja za naslednje vrste naprav:
– tipalo za zaznavanje gibov, npr. video sistem, ki prepoznava 3D-poteze rok, zasloni na dotik, ki zaznavajo 2D-dotike;
– kinestetična haptična naprava, npr. namizni haptični vmesnik;
– tipni prikazovalnik, npr. vibrirajoči telefon.
Standard ISO 9241-940 se ne uporablja za standardne vhodne naprave, kot so tipkovnice, miške ali sledilne kroglice.
OPOMBA: Podskupina standardov ISO 9241-400 obravnava standardne vhodne naprave, pri čemer se standard ISO 9241-411 uporablja za vrednotenje vhodnih naprav, kot so tipkovnice in miške.
Standard ISO 9241-940 se lahko uporablja za določanje vrst metod in ukrepov za:
– določitev meril;
– določitev zahtev za haptično interakcijo;
– prepoznavanje težav pri haptični interakciji (formativno vrednotenje); in
– uporabo meril za ugotavljanje, ali haptični sistem izpolnjuje zahteve (sumativno vrednotenje).
General Information
Standards Content (Sample)

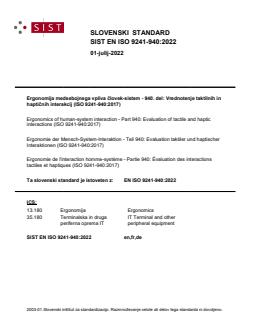

SLOVENSKI STANDARD
SIST EN ISO 9241-940:2022
01-julij-2022
Ergonomija medsebojnega vpliva človek-sistem - 940. del: Vrednotenje taktilnih in
haptičnih interakcij (ISO 9241-940:2017)
Ergonomics of human-system interaction - Part 940: Evaluation of tactile and haptic
interactions (ISO 9241-940:2017)
Ergonomie der Mensch-System-Interaktion - Teil 940: Evaluation taktiler und haptischer
Interaktionen (ISO 9241-940:2017)
Ergonomie de l'interaction homme-système - Partie 940: Évaluation des interactions
tactiles et haptiques (ISO 9241-940:2017)
Ta slovenski standard je istoveten z: EN ISO 9241-940:2022
ICS:
13.180 Ergonomija Ergonomics
35.180 Terminalska in druga IT Terminal and other
periferna oprema IT peripheral equipment
SIST EN ISO 9241-940:2022 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
SIST EN ISO 9241-940:2022
---------------------- Page: 2 ----------------------
SIST EN ISO 9241-940:2022

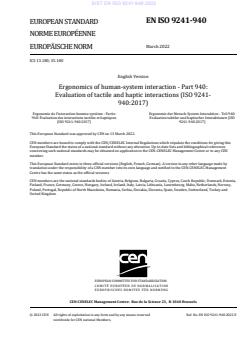

EN ISO 9241-940
EUROPEAN STANDARD
NORME EUROPÉENNE
March 2022
EUROPÄISCHE NORM
ICS 13.180; 35.180
English Version
Ergonomics of human-system interaction - Part 940:
Evaluation of tactile and haptic interactions (ISO 9241-
940:2017)
Ergonomie de l'interaction homme-système - Partie Ergonomie der Mensch-System-Interaktion - Teil 940:
940: Évaluation des interactions tactiles et haptiques Evaluation taktiler und haptischer Interaktionen (ISO
(ISO 9241-940:2017) 9241-940:2017)
This European Standard was approved by CEN on 13 March 2022.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2022 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 9241-940:2022 E
worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
SIST EN ISO 9241-940:2022
EN ISO 9241-940:2022 (E)

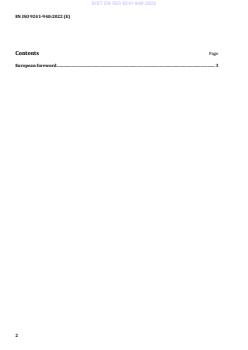

Contents Page
European foreword . 3
2
---------------------- Page: 4 ----------------------
SIST EN ISO 9241-940:2022
EN ISO 9241-940:2022 (E)
European foreword
The text of ISO 9241-940:2017 has been prepared by Technical Committee ISO/TC 159 "Ergonomics” of
the International Organization for Standardization (ISO) and has been taken over as EN ISO 9241-
940:2022 by Technical Committee CEN/TC 122 “Ergonomics” the secretariat of which is held by DIN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by September 2022, and conflicting national standards
shall be withdrawn at the latest by September 2022.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,
Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of
North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the
United Kingdom.
Endorsement notice
The text of ISO 9241-940:2017 has been approved by CEN as EN ISO 9241-940:2022 without any
modification.
3
---------------------- Page: 5 ----------------------
SIST EN ISO 9241-940:2022
---------------------- Page: 6 ----------------------
SIST EN ISO 9241-940:2022
INTERNATIONAL ISO
STANDARD 9241-940
First edition
2017-11
Ergonomics of human-system
interaction —
Part 940:
Evaluation of tactile and haptic
interactions
Ergonomie de l'interaction homme-système —
Partie 940: Évaluation des interactions tactiles et haptiques
Reference number
ISO 9241-940:2017(E)
©
ISO 2017
---------------------- Page: 7 ----------------------
SIST EN ISO 9241-940:2022
ISO 9241-940:2017(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2017, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO 2017 – All rights reserved
---------------------- Page: 8 ----------------------
SIST EN ISO 9241-940:2022
ISO 9241-940:2017(E)
Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 2
4 Conformance . 4
5 How to use ISO 9241-940 . 4
5.1 Structure . 4
5.2 Uses of this document . 5
5.3 Evaluation in the design and development lifecycle . 5
5.4 Planning activities . 6
5.5 Initial assessment . 6
5.6 Unique aspects of haptic interaction. 7
6 Types of evaluation methods . 8
6.1 General . 8
6.2 Physical measurements against requirements . 8
6.3 Inspection by an expert . 8
6.4 Usability test . 8
6.4.1 General. 8
6.4.2 Measurement context . 8
6.4.3 Evaluation data . 9
7 Quality of haptic interaction .10
7.1 Quality model .10
7.2 Haptic system attributes . .11
7.2.1 Quality attributes .11
7.2.2 Haptic device attributes (see Annex A) .11
7.2.3 Haptic user interface attributes .12
7.3 Usability attributes .12
7.3.1 Context of use (see Annex D) .12
7.3.2 Specific usage qualities (see Annex E) .13
7.3.3 Human-centred quality (see Annex F) .14
7.4 Evaluation matrix .14
7.4.1 Types of attributes .14
7.4.2 Measures of haptic quality .14
8 Guide to the annexes .17
Annex A (informative) Haptic device attributes .19
Annex B (informative) Haptic effect design principles .27
Annex C (informative) Haptic effect task elements .32
Annex D (informative) Context of use .37
Annex E (informative) Specific usage qualities .39
Annex F (informative) Human-centred quality .46
Annex G (informative) Gesture attributes.55
Annex H (informative) Examples of evaluation of device attributes .65
Annex I (informative) Unique aspects of haptic interaction .77
Annex J (normative) Evaluation by usability walkthrough or usability task test .79
Bibliography .100
© ISO 2017 – All rights reserved iii
---------------------- Page: 9 ----------------------
SIST EN ISO 9241-940:2022
ISO 9241-940:2017(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see the following
URL: www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 159, Ergonomics, Subcommittee SC 4,
Ergonomics of human–system interaction.
A list of all parts in the ISO 9241 series can be found on the ISO website.
iv © ISO 2017 – All rights reserved
---------------------- Page: 10 ----------------------
SIST EN ISO 9241-940:2022
ISO 9241-940:2017(E)
Introduction
Tactile and haptic interactions are becoming increasingly important as interaction modalities in special
purpose computing environments and assistive technologies. This document explains how to evaluate
attributes of the haptic device and the user interface, and the outcomes of interaction with a haptic
device, along with an assessment of human-centred quality and other and more specific usage qualities.
This document can be used to identify the measures to be used when establishing requirements for
haptic interaction, and to evaluate haptic interactions to identify problems, to establish benchmarks or
to evaluate whether a haptic system meets requirements.
A haptic interaction involves sensory or motor activity in the skin, muscles, joints and tendons; a tactile
interaction refers specifically to touch (sensory activity in the skin).
In a haptic interaction, a user typically employs a device to manipulate objects in the virtual world
of the computer and also to feel the result of the manipulation through sensors in the skin and joints.
This is the bidirectional sense of haptics. Haptics is important in the design of switches in traditional
keyboards and mice, but here, we consider computer interaction by means other than keyboard, mouse
and passive joysticks.
Haptic interactions can also work in a passive unidirectional sense, conveying information to the skin
without active motion or exploration on the part of the user. A cell phone on vibration mode is one such
unidirectional tactile device. They can also work in an active unidirectional sense, as the user makes
gestures that send commands or data to a device.
Tactile and kinaesthetic haptic interactions are being developed in university and industrial
laboratories in many countries, and a variety of commercial products exist that incorporate tactile
and kinaesthetic interactions. Both the developer and the prospective purchaser of such interactions
and their associated devices and software need a means of making comparisons between competing
choices.
Other International Standards are cross-referenced in order to understand and point out the specific
differences in evaluating haptic interactions. The nature of these interactions, whether bidirectional,
unidirectional from the device to the skin or body of the user, or unidirectional as gestures from the
body of the user to the device, sets them apart as a group of interactions that needs special consideration
in relation to the forms of evaluation which are appropriate.
ISO 9241-910 provides a common set of terms, definitions, and descriptions of the various concepts
involved in designing and using haptic interactions. It provides an overview of the range of haptic
applications, objects, attributes, and interactions.
ISO 9241-920 provides basic guidance in the design of haptic interactions.
ISO 9241-960 provides guidance for the definition of gestures in human-machine interactions. It
explains how to describe their features and what factors to take into account when defining gestures.
This document provides evaluation processes specific to haptic interactions and the devices that
enable them. It shows how requirements set out in ISO 9241-910, ISO 9241-920 and other International
Standards can be applied to actual haptic systems and specific interactions. In a parallel way, it shows
how the usability of a haptic system can be evaluated, taking into account quality attributes such as
effectiveness, efficiency, user satisfaction and avoidance of harm from use.
© ISO 2017 – All rights reserved v
---------------------- Page: 11 ----------------------
SIST EN ISO 9241-940:2022
---------------------- Page: 12 ----------------------
SIST EN ISO 9241-940:2022
INTERNATIONAL STANDARD ISO 9241-940:2017(E)
Ergonomics of human-system interaction —
Part 940:
Evaluation of tactile and haptic interactions
1 Scope
This document
— describes the types of methods that can be used for the evaluation of haptic devices and of systems
that include haptic devices,
— specifies a procedure for the evaluation of haptic interactions by a usability walkthrough or usability
test (see Annex J), and
— provides guidance on the types of methods that are appropriate for the evaluation of specific
attributes of haptic systems, cross-referenced to the guidance in the relevant clauses of other
International Standards (see Annexes A, B, C, D, E, F and G).
It applies to the following types of interaction:
— augmented reality — information overlaid on a real scene, e.g. vibrating belt indicating distance;
— gesture control of a device or a virtual scenario;
— unidirectional interaction such as a vibrating phone or a vibrating belt;
— virtual environment — virtual space with which a user can interact with the aid of a haptic device.
This document applies to the following types of devices:
— gesture sensor, e.g. video that discerns 3D hand movements, touch screens that sense 2D touches;
— kinaesthetic haptic device, e.g. desktop haptic interface;
— tactile display, e.g. vibrating phone.
This document is not applicable to standard input devices such as keyboards, mice or track balls.
NOTE ISO 9241-400 covers standard input devices, and ISO 9241-411 applies to the evaluation of input
devices such as keyboards and mice.
This document can be used to identify the types of methods and measures for
— establishing benchmarks,
— establishing requirements for haptic interaction,
— identifying problems with haptic interaction (formative evaluation), and
— use of the criteria to establish whether a haptic system meets requirements (summative evaluation).
2 Normative references
There are no normative references in this document.
© ISO 2017 – All rights reserved 1
---------------------- Page: 13 ----------------------
SIST EN ISO 9241-940:2022
ISO 9241-940:2017(E)
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at http://www.iso.org/obp
— IEC Electropedia: available at http://www.electropedia.org/
3.1
accessibility
extent to which products, systems, services, environments and facilities can be used by people from a
population with the widest range of user needs, characteristics and capabilities to achieve identified
goals in identified contexts of use
Note 1 to entry: Context of use includes direct use or use supported by assistive technologies.
[SOURCE: ISO 9241-112:2017, 3.15]
3.2
formative evaluation
evaluation designed and used to improve the object of evaluation, especially when it is still being
developed
[SOURCE: ISO/TS 18152:2010, 4.6]
3.3
haptics
sensory and/or motor activity based in the skin, muscles, joints and tendons
Note 1 to entry: Haptics consists of two parts: touch and kinaesthesis.
[SOURCE: ISO 9241-910:2011, 2.1]
3.4
haptic
appertaining to haptics
Note 1 to entry: In this document, “haptics” includes all touch sensations; “tactile” is used more specifically to
refer to skin stimulation without kinaesthetic stimulus.
[SOURCE: ISO 9241-910:2011, 2.2, modified]
3.5
haptic interaction
sensory or motor activity in the skin, muscles, joints and/or tendons as part of human-computer
interaction
3.6
haptic user interface
HUI
one or more haptic effects that are designed in software to allow a user to experience a haptic interaction
3.7
requirement
condition or capability that must be met or possessed by a system, system component, product, or
service to satisfy an agreement, standard, specification, or other formally imposed documents
Note 1 to entry: Requirements include the quantified and documented needs, wants, and expectations of the
sponsor, customer, and other stakeholders.
[SOURCE: ISO/IEC/IEEE 24765:2010, 3.2506, modified]
2 © ISO 2017 – All rights reserved
---------------------- Page: 14 ----------------------
SIST EN ISO 9241-940:2022
ISO 9241-940:2017(E)
3.8
summative evaluation
evaluation designed to present conclusions about the merit or worth of the object of evaluation
Note 1 to entry: The results can be used to produce recommendations about whether it should be retained,
altered, or eliminated.
Note 2 to entry: It is possible to design a method to provide a combined formative and summative evaluation.
Note 3 to entry: A summative test method is used to perform a summative evaluation.
[SOURCE: ISO/TS 20282-2:2013, 4.17]
3.9
usability
extent to which a system, product, or service can be used by specified users to achieve specified goals
with effectiveness, efficiency, and satisfaction in a specified context of use
[SOURCE: ISO 9241-210:2010, 2.13]
3.10
usability requirement
required level of usability expressed in terms of measures of effectiveness, efficiency, and satisfaction
in a specified context of use
[SOURCE: ISO/TS 20282-2:2013, 4.20]
3.11
user
person who interacts with a system, product, or service
Note 1 to entry: The person who uses a service provided by a work system, such as a customer in a shop or
passenger on a train, can be considered a user.
[SOURCE: ISO/TS 20282-2:2013, 4.22]
3.12
user experience
person's perceptions and responses that result from the use and/or anticipated use of a system, product
or service
Note 1 to entry: User experience includes the user’s emotions, beliefs, preferences, perceptions, comfort,
behaviours and accomplishments that occur before, during and after use.
Note 2 to entry: User experience is a consequence of brand image, presentation, functionality, system
performance, interactive behaviour, and assistive capabilities of a system, product or service. It also results from
the user’s internal and physical state resulting from prior experiences, attitudes, skills and personality, and from
the context of use.
Note 3 to entry: Usability, when interpreted from the perspective of the users’ personal goals, can include the
kind of perceptual and emotional aspects typically associated with user experience. Usability criteria can be
established to assess aspects of user experience.
[SOURCE: ISO 9241-210:2010, 2.15, modified — Reworded for clarification.]
3.13
user group
group of users differentiated by characteristics of the users, tasks, or environments that
are expected to influence usability
[SOURCE: ISO/TS 20282-2:2013, 4.24, modified — Note removed.]
© ISO 2017 – All rights reserved 3
---------------------- Page: 15 ----------------------
SIST EN ISO 9241-940:2022
ISO 9241-940:2017(E)
3.14
workload
physical and cognitive demands placed on the system user(s) and/or staff
[SOURCE: ISO 11064-7:2006, 3.9]
4 Conformance
The evaluation of a haptic system is in conformance with this document if the report of the evaluation
explains
a) which quality attributes in Table 2 have been evaluated and why these were chosen,
b) the reason that any recommendations for the selected quality attribute have not been evaluated,
c) whether the recommendations on haptics in the related annex clauses have been implemented, and
d) which type of method(s) were used.
If a usability task test or usability walkthrough was used, it shall conform to Annex J.
The recommendations and requirements from ISO 9241-910, ISO 9241-920 and ISO 9241-960 that are
summarized in Annexes A to G shall be considered for potential inclusion in the evaluation.
NOTE The terms “recommendations” and “requirements” refer to the guidance and stipulations provided
in the referenced standards and as applied to the system under evaluation. Conformance to this document is
stipulated by this clause and the guidance contained in the main body of this document.
5 How to use ISO 9241-940
5.1 Structure
This clause describes the potential reasons for evaluating haptics and how these relate to the system
development lifecycle.
Table 2 can be used in conjunction with the explanatory material in Clauses 5, 6 and 7 to decide which
haptic qualities are to be evaluated and which type of method is going to be used.
Refer to the indicated clauses in the annexes for more information on evaluation of specific attributes
of haptic interaction and to Annex J for how to carry out a usability task test or usability walkthrough.
Table 1 summarizes the content of this document.
Table 1 — Content of ISO 9241-940
Clause/annex Content
5 How to use ISO 9241-940 Summarizes the instances where evaluation can be used, the planning
of evalua
...
SLOVENSKI STANDARD
oSIST prEN ISO 9241-940:2022
01-januar-2022
Ergonomija medsebojnega vpliva človek-sistem - 940. del: Vrednotenje taktilnih in
haptičnih interakcij (ISO 9241-940:2017)
Ergonomics of human-system interaction - Part 940: Evaluation of tactile and haptic
interactions (ISO 9241-940:2017)
Ergonomie der Mensch-System-Interaktion - Teil 940: Evaluation taktiler und haptischer
Interaktionen (ISO 9241-940:2017)
Ergonomie de l'interaction homme-système - Partie 940: Évaluation des interactions
tactiles et haptiques (ISO 9241-940:2017)
Ta slovenski standard je istoveten z: prEN ISO 9241-940
ICS:
13.180 Ergonomija Ergonomics
35.180 Terminalska in druga IT Terminal and other
periferna oprema IT peripheral equipment
oSIST prEN ISO 9241-940:2022 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
oSIST prEN ISO 9241-940:2022
---------------------- Page: 2 ----------------------
oSIST prEN ISO 9241-940:2022
INTERNATIONAL ISO
STANDARD 9241-940
First edition
2017-11
Ergonomics of human-system
interaction —
Part 940:
Evaluation of tactile and haptic
interactions
Ergonomie de l'interaction homme-système —
Partie 940: Évaluation des interactions tactiles et haptiques
Reference number
ISO 9241-940:2017(E)
©
ISO 2017
---------------------- Page: 3 ----------------------
oSIST prEN ISO 9241-940:2022
ISO 9241-940:2017(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2017, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO 2017 – All rights reserved
---------------------- Page: 4 ----------------------
oSIST prEN ISO 9241-940:2022
ISO 9241-940:2017(E)
Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 2
4 Conformance . 4
5 How to use ISO 9241-940 . 4
5.1 Structure . 4
5.2 Uses of this document . 5
5.3 Evaluation in the design and development lifecycle . 5
5.4 Planning activities . 6
5.5 Initial assessment . 6
5.6 Unique aspects of haptic interaction. 7
6 Types of evaluation methods . 8
6.1 General . 8
6.2 Physical measurements against requirements . 8
6.3 Inspection by an expert . 8
6.4 Usability test . 8
6.4.1 General. 8
6.4.2 Measurement context . 8
6.4.3 Evaluation data . 9
7 Quality of haptic interaction .10
7.1 Quality model .10
7.2 Haptic system attributes . .11
7.2.1 Quality attributes .11
7.2.2 Haptic device attributes (see Annex A) .11
7.2.3 Haptic user interface attributes .12
7.3 Usability attributes .12
7.3.1 Context of use (see Annex D) .12
7.3.2 Specific usage qualities (see Annex E) .13
7.3.3 Human-centred quality (see Annex F) .14
7.4 Evaluation matrix .14
7.4.1 Types of attributes .14
7.4.2 Measures of haptic quality .14
8 Guide to the annexes .17
Annex A (informative) Haptic device attributes .19
Annex B (informative) Haptic effect design principles .27
Annex C (informative) Haptic effect task elements .32
Annex D (informative) Context of use .37
Annex E (informative) Specific usage qualities .39
Annex F (informative) Human-centred quality .46
Annex G (informative) Gesture attributes.55
Annex H (informative) Examples of evaluation of device attributes .65
Annex I (informative) Unique aspects of haptic interaction .77
Annex J (normative) Evaluation by usability walkthrough or usability task test .79
Bibliography .100
© ISO 2017 – All rights reserved iii
---------------------- Page: 5 ----------------------
oSIST prEN ISO 9241-940:2022
ISO 9241-940:2017(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see the following
URL: www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 159, Ergonomics, Subcommittee SC 4,
Ergonomics of human–system interaction.
A list of all parts in the ISO 9241 series can be found on the ISO website.
iv © ISO 2017 – All rights reserved
---------------------- Page: 6 ----------------------
oSIST prEN ISO 9241-940:2022
ISO 9241-940:2017(E)
Introduction
Tactile and haptic interactions are becoming increasingly important as interaction modalities in special
purpose computing environments and assistive technologies. This document explains how to evaluate
attributes of the haptic device and the user interface, and the outcomes of interaction with a haptic
device, along with an assessment of human-centred quality and other and more specific usage qualities.
This document can be used to identify the measures to be used when establishing requirements for
haptic interaction, and to evaluate haptic interactions to identify problems, to establish benchmarks or
to evaluate whether a haptic system meets requirements.
A haptic interaction involves sensory or motor activity in the skin, muscles, joints and tendons; a tactile
interaction refers specifically to touch (sensory activity in the skin).
In a haptic interaction, a user typically employs a device to manipulate objects in the virtual world
of the computer and also to feel the result of the manipulation through sensors in the skin and joints.
This is the bidirectional sense of haptics. Haptics is important in the design of switches in traditional
keyboards and mice, but here, we consider computer interaction by means other than keyboard, mouse
and passive joysticks.
Haptic interactions can also work in a passive unidirectional sense, conveying information to the skin
without active motion or exploration on the part of the user. A cell phone on vibration mode is one such
unidirectional tactile device. They can also work in an active unidirectional sense, as the user makes
gestures that send commands or data to a device.
Tactile and kinaesthetic haptic interactions are being developed in university and industrial
laboratories in many countries, and a variety of commercial products exist that incorporate tactile
and kinaesthetic interactions. Both the developer and the prospective purchaser of such interactions
and their associated devices and software need a means of making comparisons between competing
choices.
Other International Standards are cross-referenced in order to understand and point out the specific
differences in evaluating haptic interactions. The nature of these interactions, whether bidirectional,
unidirectional from the device to the skin or body of the user, or unidirectional as gestures from the
body of the user to the device, sets them apart as a group of interactions that needs special consideration
in relation to the forms of evaluation which are appropriate.
ISO 9241-910 provides a common set of terms, definitions, and descriptions of the various concepts
involved in designing and using haptic interactions. It provides an overview of the range of haptic
applications, objects, attributes, and interactions.
ISO 9241-920 provides basic guidance in the design of haptic interactions.
ISO 9241-960 provides guidance for the definition of gestures in human-machine interactions. It
explains how to describe their features and what factors to take into account when defining gestures.
This document provides evaluation processes specific to haptic interactions and the devices that
enable them. It shows how requirements set out in ISO 9241-910, ISO 9241-920 and other International
Standards can be applied to actual haptic systems and specific interactions. In a parallel way, it shows
how the usability of a haptic system can be evaluated, taking into account quality attributes such as
effectiveness, efficiency, user satisfaction and avoidance of harm from use.
© ISO 2017 – All rights reserved v
---------------------- Page: 7 ----------------------
oSIST prEN ISO 9241-940:2022
---------------------- Page: 8 ----------------------
oSIST prEN ISO 9241-940:2022
INTERNATIONAL STANDARD ISO 9241-940:2017(E)
Ergonomics of human-system interaction —
Part 940:
Evaluation of tactile and haptic interactions
1 Scope
This document
— describes the types of methods that can be used for the evaluation of haptic devices and of systems
that include haptic devices,
— specifies a procedure for the evaluation of haptic interactions by a usability walkthrough or usability
test (see Annex J), and
— provides guidance on the types of methods that are appropriate for the evaluation of specific
attributes of haptic systems, cross-referenced to the guidance in the relevant clauses of other
International Standards (see Annexes A, B, C, D, E, F and G).
It applies to the following types of interaction:
— augmented reality — information overlaid on a real scene, e.g. vibrating belt indicating distance;
— gesture control of a device or a virtual scenario;
— unidirectional interaction such as a vibrating phone or a vibrating belt;
— virtual environment — virtual space with which a user can interact with the aid of a haptic device.
This document applies to the following types of devices:
— gesture sensor, e.g. video that discerns 3D hand movements, touch screens that sense 2D touches;
— kinaesthetic haptic device, e.g. desktop haptic interface;
— tactile display, e.g. vibrating phone.
This document is not applicable to standard input devices such as keyboards, mice or track balls.
NOTE ISO 9241-400 covers standard input devices, and ISO 9241-411 applies to the evaluation of input
devices such as keyboards and mice.
This document can be used to identify the types of methods and measures for
— establishing benchmarks,
— establishing requirements for haptic interaction,
— identifying problems with haptic interaction (formative evaluation), and
— use of the criteria to establish whether a haptic system meets requirements (summative evaluation).
2 Normative references
There are no normative references in this document.
© ISO 2017 – All rights reserved 1
---------------------- Page: 9 ----------------------
oSIST prEN ISO 9241-940:2022
ISO 9241-940:2017(E)
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at http://www.iso.org/obp
— IEC Electropedia: available at http://www.electropedia.org/
3.1
accessibility
extent to which products, systems, services, environments and facilities can be used by people from a
population with the widest range of user needs, characteristics and capabilities to achieve identified
goals in identified contexts of use
Note 1 to entry: Context of use includes direct use or use supported by assistive technologies.
[SOURCE: ISO 9241-112:2017, 3.15]
3.2
formative evaluation
evaluation designed and used to improve the object of evaluation, especially when it is still being
developed
[SOURCE: ISO/TS 18152:2010, 4.6]
3.3
haptics
sensory and/or motor activity based in the skin, muscles, joints and tendons
Note 1 to entry: Haptics consists of two parts: touch and kinaesthesis.
[SOURCE: ISO 9241-910:2011, 2.1]
3.4
haptic
appertaining to haptics
Note 1 to entry: In this document, “haptics” includes all touch sensations; “tactile” is used more specifically to
refer to skin stimulation without kinaesthetic stimulus.
[SOURCE: ISO 9241-910:2011, 2.2, modified]
3.5
haptic interaction
sensory or motor activity in the skin, muscles, joints and/or tendons as part of human-computer
interaction
3.6
haptic user interface
HUI
one or more haptic effects that are designed in software to allow a user to experience a haptic interaction
3.7
requirement
condition or capability that must be met or possessed by a system, system component, product, or
service to satisfy an agreement, standard, specification, or other formally imposed documents
Note 1 to entry: Requirements include the quantified and documented needs, wants, and expectations of the
sponsor, customer, and other stakeholders.
[SOURCE: ISO/IEC/IEEE 24765:2010, 3.2506, modified]
2 © ISO 2017 – All rights reserved
---------------------- Page: 10 ----------------------
oSIST prEN ISO 9241-940:2022
ISO 9241-940:2017(E)
3.8
summative evaluation
evaluation designed to present conclusions about the merit or worth of the object of evaluation
Note 1 to entry: The results can be used to produce recommendations about whether it should be retained,
altered, or eliminated.
Note 2 to entry: It is possible to design a method to provide a combined formative and summative evaluation.
Note 3 to entry: A summative test method is used to perform a summative evaluation.
[SOURCE: ISO/TS 20282-2:2013, 4.17]
3.9
usability
extent to which a system, product, or service can be used by specified users to achieve specified goals
with effectiveness, efficiency, and satisfaction in a specified context of use
[SOURCE: ISO 9241-210:2010, 2.13]
3.10
usability requirement
required level of usability expressed in terms of measures of effectiveness, efficiency, and satisfaction
in a specified context of use
[SOURCE: ISO/TS 20282-2:2013, 4.20]
3.11
user
person who interacts with a system, product, or service
Note 1 to entry: The person who uses a service provided by a work system, such as a customer in a shop or
passenger on a train, can be considered a user.
[SOURCE: ISO/TS 20282-2:2013, 4.22]
3.12
user experience
person's perceptions and responses that result from the use and/or anticipated use of a system, product
or service
Note 1 to entry: User experience includes the user’s emotions, beliefs, preferences, perceptions, comfort,
behaviours and accomplishments that occur before, during and after use.
Note 2 to entry: User experience is a consequence of brand image, presentation, functionality, system
performance, interactive behaviour, and assistive capabilities of a system, product or service. It also results from
the user’s internal and physical state resulting from prior experiences, attitudes, skills and personality, and from
the context of use.
Note 3 to entry: Usability, when interpreted from the perspective of the users’ personal goals, can include the
kind of perceptual and emotional aspects typically associated with user experience. Usability criteria can be
established to assess aspects of user experience.
[SOURCE: ISO 9241-210:2010, 2.15, modified — Reworded for clarification.]
3.13
user group
group of users differentiated by characteristics of the users, tasks, or environments that
are expected to influence usability
[SOURCE: ISO/TS 20282-2:2013, 4.24, modified — Note removed.]
© ISO 2017 – All rights reserved 3
---------------------- Page: 11 ----------------------
oSIST prEN ISO 9241-940:2022
ISO 9241-940:2017(E)
3.14
workload
physical and cognitive demands placed on the system user(s) and/or staff
[SOURCE: ISO 11064-7:2006, 3.9]
4 Conformance
The evaluation of a haptic system is in conformance with this document if the report of the evaluation
explains
a) which quality attributes in Table 2 have been evaluated and why these were chosen,
b) the reason that any recommendations for the selected quality attribute have not been evaluated,
c) whether the recommendations on haptics in the related annex clauses have been implemented, and
d) which type of method(s) were used.
If a usability task test or usability walkthrough was used, it shall conform to Annex J.
The recommendations and requirements from ISO 9241-910, ISO 9241-920 and ISO 9241-960 that are
summarized in Annexes A to G shall be considered for potential inclusion in the evaluation.
NOTE The terms “recommendations” and “requirements” refer to the guidance and stipulations provided
in the referenced standards and as applied to the system under evaluation. Conformance to this document is
stipulated by this clause and the guidance contained in the main body of this document.
5 How to use ISO 9241-940
5.1 Structure
This clause describes the potential reasons for evaluating haptics and how these relate to the system
development lifecycle.
Table 2 can be used in conjunction with the explanatory material in Clauses 5, 6 and 7 to decide which
haptic qualities are to be evaluated and which type of method is going to be used.
Refer to the indicated clauses in the annexes for more information on evaluation of specific attributes
of haptic interaction and to Annex J for how to carry out a usability task test or usability walkthrough.
Table 1 summarizes the content of this document.
Table 1 — Content of ISO 9241-940
Clause/annex Content
5 How to use ISO 9241-940 Summarizes the instances where evaluation can be used, the planning
of evaluation and the unique aspects of haptics evaluation
6 Types of evaluation methods Summarizes the different types of methods that can be used to eval-
uate haptics
7 Quality of haptic interaction Summarizes the quality characteristics of haptic interaction that can
be evaluated
Annexes A to G Provides guidance on evaluating detailed aspects of each quality at-
tribute; Clause 7 provides an overview of Annexes A to G.
4 © ISO 2017 – All rights reserved
---------------------- Page: 12 ----------------------
oSIST prEN ISO 9241-940:2022
ISO 9241-940:2017(E)
Table 1 (continued)
Clause/annex Content
Annex H Provides examples of evaluation of device attributes
Annex I Describes the unique aspects of haptic interaction to keep in mind
while planning and conducting an evaluation
Annex J Specifies the method to be used for evaluation by usability walkthrough
or usability task test
5.2 Uses of this document
This document provides guidance on the methods that are appropriate for establishing criteria and the
associated means of evaluation against which requirements are judged.
The types of methods and measures recommended in this document can be used to
— identify problems (formative evaluation),
— establish benchmarks, and
— establish suitability of the haptic system for its application (summative evaluation).
These uses apply to the following circumstances:
a) Design and development of haptic devices to support the evaluation of:
— design concepts and prototypes in order to refine the requirements for the system;
— prototypes in order to check that design guidelines have been followed;
— prototypes and working systems to check that the user and the stakeholder requirements have
been met;
— prototypes and working systems in order to improve the design by identifying problems;
— working systems to establish a baseline level for subsequent comparison;
— systems in use in order to ensure that they continue to satisfy stakeholder and user needs.
b) Acquisition of haptic devices:
— to check that candidate devices meet requirements;
— to compare haptic devices and systems for possible operation in specified contexts of use.
5.3 Evaluation in the design and development lifecycle
Evaluation of haptic devices should take account of the intended or actual context of use of the device
– the types of users (for example, casual or regular users), the types of tasks that it will be used for and
the environments that it will be used in (for example, with vibrations or extreme temperatures).
Figure 1 shows a typical design and development lifecycle, running from feasibility through
requirements to detailed design and realization of the product. Evaluation is integral to each phase – a
feasibility concept is evaluated, leading to requirements and a design to meet those requirements. A
prototype could be evaluated during the detailed design stage, while the final product can be evaluated
against the design requirements and also when it is in actual use.
NOTE The inputs to the process are business and user needs that initiated the project, together with the
intended context of use, which inform the initial design concept in the feasibility phase.
© ISO 2017 – All rights reserved 5
---------------------- Page: 13 ----------------------
oSIST prEN ISO 9241-940:2022
ISO 9241-940:2017(E)
Initial design concepts can be evaluated by an expert to identify potential problems, to determine if
the device is consistent with the identified business and user needs, and if necessary, to refine the
requirements.
Prototypes can be evaluated by testing the device with users and observing their behaviour to identify
any problems or new needs that could lead to modification of the requirements. Prototypes should be
evaluated in as realistic a context of use as possible.
The final system can be evaluated for conformance with requirements. More information on
human-centred design can be found in ISO 9241-210. ISO/IEC 25063 explains the context of use and
ISO/IEC 25064 explains how user needs can be identified. Requirements engineering is described in
ISO/IEC/IEEE 2
...
