SIST-TS CEN/TS 1329-2:2021

Plastics piping systems for soil and waste discharge (low and high temperature) within the building structure - Unplasticized poly(vinyl chloride) (PVC-U) - Part 2: Guidance for the assessment of conformity

This document gives requirements and guidance for the assessment of conformity of formulations, products and assemblies in accordance with EN 1329-1 intended to be included in the manufacturer’s quality plan as part of the quality management system and for the establishment of third-party certification procedures.
NOTE 1   The quality management system is expected to conform to or is no less stringent than the relevant requirements to EN ISO 9001 [1].
NOTE 2   If third party certification is involved, the certification body is expected to be compliant with either EN ISO/IEC 17065 [2] or EN ISO/IEC 17021-series [3], as applicable.
NOTE 3   In order to help the reader, a basic test matrix is given in Annex A.
In conjunction with EN 1329-1, this document is applicable to piping systems made of unplasticized poly(vinyl chloride) (PVC-U) intended for soil and waste discharge systems (low and high temperature):
-   inside buildings (application area code "B");
-   both inside buildings and buried in ground within the building structure (application area code "BD").

Kunststoff-Rohrleitungssysteme zum Ableiten von Abwasser (niedriger und hoher Temperatur) innerhalb der Gebäudestruktur - Weichmacherfreies Polyvinylchlorid (PVC-U) - Teil 2: Empfehlungen für die Beurteilung der Konformität

Dieses Dokument enthält Anforderungen und Empfehlungen für die Bewertung der Konformität von Zusammensetzungen, Erzeugnissen und Bauteilkombinationen nach EN 1329 1, die als Teil des Qualitätsmanagementsystems im Qualitätssicherungsplan des Herstellers und für die Einführung von Verfahren zur Drittstellenzertifizierung vorgesehen sind.
ANMERKUNG 1   Es wird davon ausgegangen, dass das Qualitätsmanagementsystem EN ISO 9001 [1] oder mindestens ebenso strengen Anforderungen entspricht.
ANMERKUNG 2   Bei Drittstellenzertifizierung wird davon ausgegangen, dass die Zertifizierungsstelle in Abhängigkeit der Anwendung entweder EN ISO/IEC 17065 [2] oder der Reihe EN ISO/IEC 17021 [3] entspricht.
ANMERKUNG 3   Zur Unterstützung des Anwenders enthält Anhang A einen Überblick über das Prüfsystem.
Dieses Dokument ist in Verbindung mit EN 1329 1 anwendbar für Rohrleitungssysteme aus weichmacherfreiem Polyvinylchlorid (PVC U), die zum Ableiten von Abwasser (niedriger und hoher Temperatur) vorgesehen sind
   innerhalb von Gebäuden (Anwendungskennzeichen „B“);
   sowohl innerhalb von Gebäuden als auch erdverlegt innerhalb der Gebäudestruktur (Anwendungskennzeichen „BD“).

Systèmes de canalisations en plastique pour l'évacuation des eaux-vannes et des eaux usées (à basse et à haute température) à l'intérieur de la structure des bâtiments - Poly(chlorure de vinyle) non plastifié (PVC-U) - Partie 2 : Guide pour l'évaluation de la conformité

Cevni sistemi iz polimernih materialov za (nizko- in visokotemperaturne) odvodne sisteme v zgradbah - Nemehčan polivinilklorid (PVC-U) - 2. del: Navodilo za ugotavljanje skladnosti

General Information

• Status: Published
• Public Enquiry End Date: 14-Oct-2020
• Publication Date: 11-Feb-2021
• ICS: 23.040.20 - Plastics pipes
• ICS: 91.140.80 - Drainage systems
• Technical Committee: PCV - Plastic pipes, fittings and valves
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 28-Jan-2021
• Due Date: 04-Apr-2021
• Completion Date: 12-Feb-2021
• Ref Project: CEN/TS 1329-2:2021 - Plastics piping systems for soil and waste discharge (low and high temperature) within the building structure - Unplasticized poly(vinyl chloride) (PVC-U) - Part 2: Guidance for the assessment of conformity

Relations

• Replaces: SIST-TS CEN/TS 1329-2:2018 - Plastics piping systems for soil and waste discharge (low and high temperature) within the building structure - Unplasticized poly(vinyl chloride) (PVC-U) - Part 2: Guidance for the assessment of conformity
• Effective Date: 01-Mar-2021

Overview

CEN/TS 1329-2:2021 provides guidance for the assessment of conformity of formulations, products and assemblies of unplasticized poly(vinyl chloride) (PVC‑U) piping systems used for soil and waste discharge (low and high temperature) within the building structure. It is intended to be used in conjunction with EN 1329-1 (specifications for pipes, fittings and the system) and to be incorporated into the manufacturer’s quality plan as part of the quality management system or used to establish third‑party certification procedures.

This Technical Specification applies to PVC‑U systems for:

• internal building drainage (application area code B); and
• internal plus buried-in-building-structure applications (application area code BD).

Key topics and technical requirements

• Scope of conformity assessment: Requirements and guidance for assessing formulations, product batches, joints and assemblies per EN 1329-1.
• Material specification: Definition of a formulation that identifies PVC resin, additives, any non‑virgin (recycled) material and their dosage levels.
• Testing framework: Detailed description of test types and their role:
  • Type testing (TT) - to demonstrate product/formulation capability.
  • Batch release tests (BRT) - to permit release of production batches.
  • Process verification tests (PVT) - periodic checks of ongoing production capability.
  • Audit tests (AT) - independent checks by inspection/certification bodies.
  • Indirect tests (IT) and witness tests (WT) where applicable.
• Grouping and sampling: Rules for grouping products (size, fittings) and selecting samples for testing.
• Quality management expectations: Manufacturer QMS should be at least as stringent as EN ISO 9001 and include a documented quality plan.
• Third‑party certification: Certification bodies involved are expected to comply with EN ISO/IEC 17065 or EN ISO/IEC 17021-series; testing laboratories and inspection bodies are expected to follow relevant ISO/IEC standards (e.g., EN ISO/IEC 17025, EN ISO/IEC 17020).
• Recycled material control: Enhanced guidance to manage non‑virgin material use, test matrix (Annex A) and higher testing frequencies when recycled feedstock is used.

Applications and practical use

• Ensures PVC‑U soil and waste discharge systems placed on the market meet EN 1329‑1 performance and safety requirements.
• Used by manufacturers to design and document a conformity assessment plan and production control regime.
• Supports product certification and harmonizes manufacturer procedures for internal QA and third‑party assessment.
• Useful for specifiers, building engineers, regulatory authorities and certifiers verifying compliance of drainage systems in buildings.

Related standards

• EN 1329-1:2020 - Specifications for PVC‑U pipes, fittings and the system
• EN ISO 9001 - Quality management systems
• EN ISO/IEC 17065, EN ISO/IEC 17021-series - Requirements for certification bodies
• EN ISO/IEC 17025, EN ISO/IEC 17020 - Testing and inspection body competence

Keywords: CEN/TS 1329-2:2021, PVC‑U, plastics piping systems, soil and waste discharge, conformity assessment, EN 1329-1, type testing, batch release, process verification, audit testing.

Standards Content (Sample)

SLOVENSKI STANDARD
01-marec-2021
Nadomešča:
SIST-TS CEN/TS 1329-2:2018
Cevni sistemi iz polimernih materialov za (nizko- in visokotemperaturne) odvodne
sisteme v zgradbah - Nemehčan polivinilklorid (PVC-U) - 2. del: Navodilo za
ugotavljanje skladnosti
Plastics piping systems for soil and waste discharge (low and high temperature) within
the building structure - Unplasticized poly(vinyl chloride) (PVC-U) - Part 2: Guidance for
the assessment of conformity
Kunststoff-Rohrleitungssysteme zum Ableiten von Abwasser (niedriger und hoher
Temperatur) innerhalb der Gebäudestruktur - Weichmacherfreies Polyvinylchlorid (PVC-
U) - Teil 2: Empfehlungen für die Beurteilung der Konformität
Systèmes de canalisations en plastique pour l'évacuation des eaux-vannes et des eaux
usées (à basse et à haute température) à l'intérieur de la structure des bâtiments - Poly
(chlorure de vinyle) non plastifié (PVC-U) - Partie 2 : Guide pour l'évaluation de la
conformité
Ta slovenski standard je istoveten z: CEN/TS 1329-2:2021
ICS:
23.040.20 Cevi iz polimernih materialov Plastics pipes
91.140.80 Drenažni sistemi Drainage systems
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

CEN/TS 1329-2
TECHNICAL SPECIFICATION
SPÉCIFICATION TECHNIQUE
January 2021
TECHNISCHE SPEZIFIKATION
ICS 23.040.20; 91.140.80 Supersedes CEN/TS 1329-2:2018
English Version
Plastics piping systems for soil and waste discharge (low
and high temperature) within the building structure -
Unplasticized poly(vinyl chloride) (PVC-U) - Part 2:
Guidance for the assessment of conformity
Systèmes de canalisations en plastique pour Kunststoff-Rohrleitungssysteme zum Ableiten von
l'évacuation des eaux-vannes et des eaux usées (à Abwasser (niedriger und hoher Temperatur) innerhalb
basse et à haute température) à l'intérieur de la der Gebäudestruktur - Weichmacherfreies
structure des bâtiments - Poly(chlorure de vinyle) non Polyvinylchlorid (PVC-U) - Teil 2: Empfehlungen für
plastifié (PVC-U) - Partie 2 : Guide pour l'évaluation de die Beurteilung der Konformität
la conformité
This Technical Specification (CEN/TS) was approved by CEN on 30 November 2020 for provisional application.

The period of validity of this CEN/TS is limited initially to three years. After two years the members of CEN will be requested to
submit their comments, particularly on the question whether the CEN/TS can be converted into a European Standard.

CEN members are required to announce the existence of this CEN/TS in the same way as for an EN and to make the CEN/TS
available promptly at national level in an appropriate form. It is permissible to keep conflicting national standards in force (in
parallel to the CEN/TS) until the final decision about the possible conversion of the CEN/TS into an EN is reached.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2021 CEN All rights of exploitation in any form and by any means reserved Ref. No. CEN/TS 1329-2:2021 E
worldwide for CEN national Members.

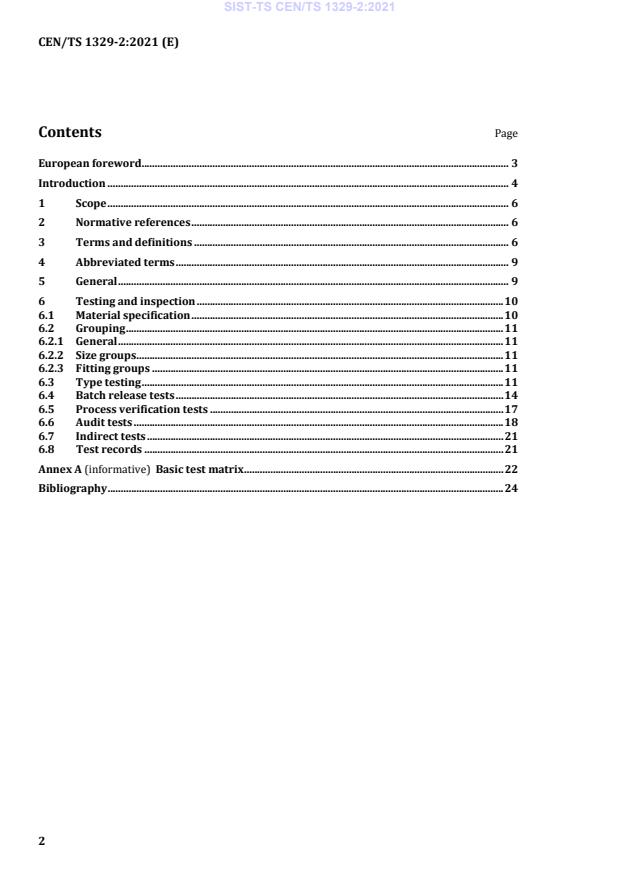

Contents Page
European foreword . 3
Introduction . 4
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 6
4 Abbreviated terms . 9
5 General . 9
6 Testing and inspection . 10
6.1 Material specification . 10
6.2 Grouping . 11
6.2.1 General . 11
6.2.2 Size groups . 11
6.2.3 Fitting groups . 11
6.3 Type testing . 11
6.4 Batch release tests . 14
6.5 Process verification tests . 17
6.6 Audit tests . 18
6.7 Indirect tests . 21
6.8 Test records . 21
Annex A (informative) Basic test matrix . 22
Bibliography . 24

European foreword
This document (CEN/TS 1329-2:2021) has been prepared by Technical Committee CEN/TC 155
“Plastics piping systems and ducting systems”, the secretariat of which is held by NEN.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes CEN/TS 1329-2:2018.
Compared with CEN/TS 1329-2:2018, the following changes have been made:
— merging of Table 1 and Table 2 to have the new Table 1 “Formulation tolerances”;
— clarification that a lower content of non-virgin material in the formulation which has already been
Type tested and which is fulfilling the agreed specification is not considered as a material change;
— increase of minimum testing frequencies if a non-virgin material is used.
EN 1329 consists of the following parts, under the general title “Plastics piping systems for soil and waste
discharge (low and high temperature) within the building structure — Unplasticized poly(vinyl chloride)
(PVC-U)”:
— Part 1: Specifications for pipes, fittings and the system;
— Part 2: Guidance for the assessment of conformity.
According to the CEN/CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to announce this Technical Specification: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,
Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of
North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the
United Kingdom.
Introduction
This revision of the EN 1329 series is proposed in order to improve the 'level of sustainability' and the
'environmental impact' of PVC piping systems, whilst improving the recommendations and safe use of
recycled material. Recycled material is categorized as non-virgin material in this document.
Regarding this specific target, more focus was given to the control of applied material formulation and
to the final characteristics and performance of products.
This document is based on the template prepared in CEN/TC 155/WG21 version V.5.
Figures 1 and 2 are intended to provide general information on the concept of testing and organization
of those tests used for the purpose of the assessment of conformity. For each type of test, i.e. type
testing (TT), batch release test (BRT), process verification test (PVT) and audit test (AT), this document
details the applicable characteristics to be assessed and the frequency and sampling of testing.
A typical scheme for the assessment of conformity of formulations, pipes, fittings, valves or assemblies
by manufacturers is given in Figure 1.

Figure 1 — Typical scheme for the assessment of conformity by a manufacturer
A typical scheme for the assessment of conformity of formulations, pipes, fittings, valves or assemblies
by manufacturers, including certification, is given in Figure 2.
Figure 2 — Typical scheme for the assessment of conformity by a manufacturer, including third
party certification
1 Scope
This document gives requirements and guidance for the assessment of conformity of formulations,
products and assemblies in accordance with EN 1329-1 intended to be included in the manufacturer’s
quality plan as part of the quality management system and for the establishment of third-party
certification procedures.
NOTE 1 The quality management system is expected to conform to or is no less stringent than the relevant
requirements to EN ISO 9001 [1].
NOTE 2 If third party certification is involved, the certification body is expected to be compliant with either
EN ISO/IEC 17065 [2] or EN ISO/IEC 17021-series [3], as applicable.
NOTE 3 In order to help the reader, a basic test matrix is given in Annex A.
In conjunction with EN 1329-1, this document is applicable to piping systems made of unplasticized
poly(vinyl chloride) (PVC-U) intended for soil and waste discharge systems (low and high
temperature):
— inside buildings (application area code “B”);
— both inside buildings and buried in ground within the building structure (application area
code “BD”).
2 Normative references
The following documents are referred to in the text in such a way that some of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.
EN 1329-1:2020, Plastics piping systems for soil and waste discharge (low and high temperature) within
the building structure — Unplasticized poly(vinyl chloride) (PVC-U) — Part 1: Specifications for pipes,
fittings and the system
3 Terms and definitions
For the purposes of this document, the terms and definitions given in EN 1329-1 and the following
apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at http://www.electropedia.org/
— ISO Online browsing platform: available at https://www.iso.org/obp
3.1
certification body
impartial body, governmental or non-governmental, possessing the necessary competence and
responsibility to carry out certification of conformity according to given rules of procedure and
management
Note 1 to entry: A certification body is preferably compliant with EN ISO/IEC 17065 [2].
3.2
inspection body
body that performs inspection
Note 1 to entry: An inspection body can be an organization or part of an organization.
Note 2 to entry: An inspection body is preferably compliant with EN ISO/IEC 17020 [4].
3.3
testing laboratory
laboratory which measures, tests, calibrates or otherwise determines the characteristics of the
performance of materials and products
Note 1 to entry: In the context of this document, the materials and products can be subjected to type testing,
batch release testing, process verification testing, audit testing and witness testing, as applicable.
Note 2 to entry: A testing laboratory is preferably compliant with EN ISO/IEC 17025 [5].
3.4
quality management system
part of a management system with regard to quality
Note 1 to entry: Requirements for quality management systems are given in EN ISO 9001 [1].
[SOURCE: EN ISO 9000:2015 [6], 3.5.4, modified — Note 1 to entry is introduced here]
3.5
quality plan
document setting out the specific quality practices, resources and sequence of activities relevant to a
particular product or range of products
3.6
type testing
TT
testing performed to prove that the formulation, product, joint or assembly is capable of conforming to
the requirements given in the relevant standard
Note 1 to entry: The type test results remain valid until there is a change in the formulation or product or
assembly provided that the process verification tests are done regularly.
3.7
batch release test
BRT
test performed by or on behalf of the manufacturer on a batch of materials or products, which has to be
satisfactorily completed before the batch can be released
3.8
process verification test
PVT
test performed by, or on behalf of the manufacturer on formulation, products or joints or assemblies at
specific intervals to confirm that the process continues to be capable of producing products which
conform to the requirements given in the relevant standard
Note 1 to entry: Such tests are not required to release batches of formulation or products; but they are carried
out as a measure of process control.
3.9
audit test
AT
test performed by a test laboratory on behalf of an inspection body or certification body to confirm that
the formulation, product, joint or assembly continues to conform to the requirements given in the
relevant standard and to provide information to assess the effectiveness of the quality management
system
3.10
indirect test
IT
test performed by or on behalf of the manufacturer, different from that specified test for that particular
characteristic, having previously verified its correlation with the specified test
3.11
witness test
WT
test accepted by an inspection or a certification body for type testing and/or audit testing, which is
carried out by or on behalf of the manufacturer and supervised by a representative of the inspection or
certification body, qualified in testing
3.12
material
generic term for formulations grouped by families, expressed by generic names, e.g. poly(vinyl
chloride), stainless steel, brass or EPDM
3.13
formulation
clearly defined homogenous mixture of base polymer with additives, i.e. anti-oxidants, pigments,
stabilizers and others, at a dosage level necessary for the processing and the intended use of the final
product
Note 1 to entry: The term “compound” is sometime used with similar meaning as “formulation”.
Note 2 to entry: A formulation may contain virgin and/or non-virgin material.
3.14
material batch
clearly identified quantity of a given homogeneous formulation manufactured under uniform conditions
and defined and identified by the formulation manufacturer
3.15
product
pipe or fitting of a clearly identified type intended to be a part of a piping system which the
manufacturer puts on the market
3.16
product batch
clearly identified collection of products, manufactured consecutively or continuously under the same
conditions, using the same formulation conforming to the same specification
Note 1 to entry: The production batch is defined and identified by the product manufacturer.
3.17
sample
one or more products drawn from the same production batch, selected at random without regard to
their quality
Note 1 to entry: The number of products in the sample is the sample size.
3.18
group
defined collection of similar products from which samples are selected for testing purposes
Note 1 to entry: Similar products may have different shapes or diameter or functions (see Table 2 and Table 3).
3.19
component
product manufactured out of a specific formulation, brought to the market as part of another product or
as a spare part
3.20
joint
connection between two products
3.21
assembly
product that can be dismantled into a set of components
3.22
cavity
part of the injection mould which gives the form to the injection moulded product
4 Abbreviated terms
To avoid misunderstanding, the abbreviations in this Clause are defined as being the same in each
language. For the same reason, the terms are given in the three languages, English, French and German.
EN FR DE
AT audit test essai d’audit Überwachungsprüfung
BRT batch release test essai de libération de campagne de fabrication Freigabeprüfung einer Charge
IT indirect test essai indirect indirekte Prüfung
PVT process verification test essai de vérification du procédé de fabrication Prozessüberprüfung
TT type testing essai de type Typprüfung
WT witness test essai en présence de témoin Prüfung unter Aufsicht
5 General
Formulations, products, joints and assemblies shall conform to the requirements given in EN 1329-1.
Products shall be produced by the manufacturer under a quality management system which includes a
quality plan (including specifications on joints and assemblies).
NOTE It is expected that the quality management system conforms to or is no less stringent than the relevant
requirements in EN ISO 9001 [1].
6 Testing and inspection
6.1 Material specification
For the purposes of this document, the material specification consists of a formulation which defines
PVC resin, additives, non-virgin material (if applicable) and their dosage levels.
The dosage level of ingredients of a formulation shall not exceed the tolerance given in Table 1. If any
dosage level exceeds the tolerance or if a type is changed, this variation constitutes a change in material
(it is referred to as “M” in Tables 4 to 6).
In Table 1, the values of the parts X added to 100 parts by mass of PVC shall be specified by the
manufacturer in the quality plan.
Table 1 — Formulation tolerances
a
Ingredients Type
Tolerance
Virgin part of the formulation
PVC resin Nominal K-value as specified by ±3 units
the manufacturer
Type of stabilizer or master batch 1) OBS (Organic Based Stabilizers) X : ± 25 %
2) Ca-Zn
3) Sn
4) Ca-Sn
5) Others
Lubricants All for X ≤ 0,2: X : ± 50 %
2 2
for X > 0,2: X : ± 0,1 phr
2 2
Fillers 1) CaCO X : ± 3 phr
3 3
2) Others X : ± 25 %
Impact modifiers All X : ± 1 phr
Flow agents All for X ≤ 2: X : ± 25 %
6 6
for X > 2: X : ± 0,5 phr
6 6
Pigments No requirements -
Non-virgin part of the formulation
b c
No requirement
Own reprocessed material ≤ X
c
External reprocessed and/or See EN 1329-1:2020, Table A.1
≤ X
recycled material with a defined
agreed specification
NOTE A change of the supplier does not necessarily constitute a change in formulation.
a
phr means parts per hundred resin.
b
The manufacturer quality plan shall allow the source and content of own reprocessed material in the formulation
to be demonstrated.
c
X and X shall not exceed the declared values as required in EN 1329-1:2020, A.1, which means that a lower
7 8
content of own reprocessed and external reprocessed and/or recycled material in the formulation which has
already been Type Tested and which is fulfilling the agreed specification is not considered as a material change.
6.2 Grouping
6.2.1 General
For the purposes of this document, the groups specified in 6.2.2 and 6.2.3 apply.
6.2.2 Size groups
Three size groups are defined for pipes and fittings, as given in Table 2.
For testing purposes, one individual nominal diameter, d , shall be selected from each group.
n
Table 2 — Size groups
Size group Nominal diameter
d
n
mm
1 d < 75
n
2 75 ≤ d < 200
n
3 200 ≤ d ≤ 315
n
6.2.3 Fitting groups
Fittings having a similar design are divided into three groups, as given in Table 3.
For testing purposes, one individual fitting shall be selected from each group.
Table 3 — Fitting groups
Fitting group Type of fitting
1 Bends
2 Branches
3 Other fittings
6.3 Type testing
Relevant TTs shall be carried out whenever there is a change in design or formulation or production
method (other than routine in-process adjustments), or wh
...
