SIST EN 934-3:2009+A1:2012
(Main)Admixtures for concrete, mortar and grout - Part 3: Admixtures for masonry mortar - Definitions, requirements, conformity and marking and labelling
Admixtures for concrete, mortar and grout - Part 3: Admixtures for masonry mortar - Definitions, requirements, conformity and marking and labelling
This European Standard defines and specifies the requirements and conformity criteria for admixtures for use in cement based masonry mortar. It covers two types of admixtures, long term retarding and air entraining/plasticising which are used in ready-mixed and site made masonry mortars. Provisions for the use of admixtures for masonry mortar are not part of this European Standard but are covered by EN 998-1 and EN 998-2.
Zusatzmittel für Beton, Mörtel und Einpressmörtel - Teil 3: Zusatzmittel für Mauermörtel - Definitionen, Anforderungen, Konformität, Kennzeichnung und Beschriftung
Diese Europäische Norm definiert und legt Anforderungen und Konformitätskriterien für Zusatzmittel für zementgebundenen Mauermörtel fest.
Sie gilt für zwei Arten von Zusatzmitteln, Erstarrungsverzögerer für langzeitverzögerte Mauermörtel und Luftporenbildner/Betonverflüssiger, die sowohl für Mörtel, der fertig gemischt auf die Baustelle geliefert wird, als auch für Mörtel, der auf der Baustelle hergestellt wird, verwendet werden.
Festlegungen zur praktischen Anwendung von Zusatzmitteln für Mauermörtel sind nicht Bestandteil dieser Europäischen Norm, sondern werden durch EN 998-1 und EN 998-2 erfasst.
Adjuvants pour béton, mortier et coulis - Partie 3: Adjuvants pour mortier de montage - Définitions, exigences, conformité, marquage et étiquetage
La présente Norme européenne définit et précise les exigences et les critères de conformité pour les adjuvants utilisés dans le mortier à maçonner à base de ciments.
Il s'applique à deux types d'adjuvants, les adjuvants fortement retardateurs de prise et les adjuvants entraîneurs d'air / plastifiants utilisés dans le mortier prêt à l'emploi ainsi que dans le mortier fabriqué sur chantier.
Les dispositions relatives à l’utilisation d'adjuvants de mortier à maçonner ne font pas partie de la présente norme européenne, mais de l’EN 998-1 et de l'EN 998-2.
Kemijski dodatki za beton, malto in injekcijsko maso - 3. del: Kemijski dodatki za malto za zidanje - Definicije, zahteve, skladnost, označevanje in etiketiranje
Ta evropski standard določa ter opredeljuje zahteve in merila za skladnost za dodatke pri uporabi v zidarski malti, ki temelji na cementu. Pokriva dve vrsti dodatkov, dolgoobstojne in aerirane dodatke/plastifikatorje, ki se uporabljajo v svežih mešanicah in zidarski malti, pripravljeni na mestu samem. Določbe za uporabo dodatkov za zidarsko malto niso del tega evropskega standarda; vključene so v standarda EN 998-1 in EN 998-2.
General Information
Relations
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Zusatzmittel für Beton, Mörtel und Einpressmörtel - Teil 3: Zusatzmittel für Mauermörtel - Definitionen, Anforderungen, Konformität, Kennzeichnung und BeschriftungAdjuvants pour béton, mortier et coulis - Partie 3: Adjuvants pour mortier de montage - Définitions, exigences, conformité, marquage et étiquetageAdmixtures for concrete, mortar and grout - Part 3: Admixtures for masonry mortar - Definitions, requirements, conformity and marking and labelling91.100.30Beton in betonski izdelkiConcrete and concrete products91.100.10Cement. Mavec. Apno. MaltaCement. Gypsum. Lime. MortarICS:Ta slovenski standard je istoveten z:EN 934-3:2009+A1:2012SIST EN 934-3:2009+A1:2012en,fr,de01-december-2012SIST EN 934-3:2009+A1:2012SLOVENSKI
STANDARDSIST EN 934-3:20091DGRPHãþD
SIST EN 934-3:2009+A1:2012
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 934-3:2009+A1
July 2012 ICS 91.100.10; 91.100.30 Supersedes EN 934-3:2009English Version
Admixtures for concrete, mortar and grout - Part 3: Admixtures for masonry mortar - Definitions, requirements, conformity and marking and labelling
Adjuvants pour béton, mortier et coulis - Partie 3: Adjuvants pour mortier de montage - Définitions, exigences, conformité, marquage et étiquetage
Zusatzmittel für Beton, Mörtel und Einpressmörtel - Teil 3: Zusatzmittel für Mauermörtel - Definitionen, Anforderungen, Konformität, Kennzeichnung und Beschriftung This European Standard was approved by CEN on 16 July 2009 and includes Amendment 1 approved by CEN on 25 May 2012.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2012 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 934-3:2009+A1:2012: ESIST EN 934-3:2009+A1:2012

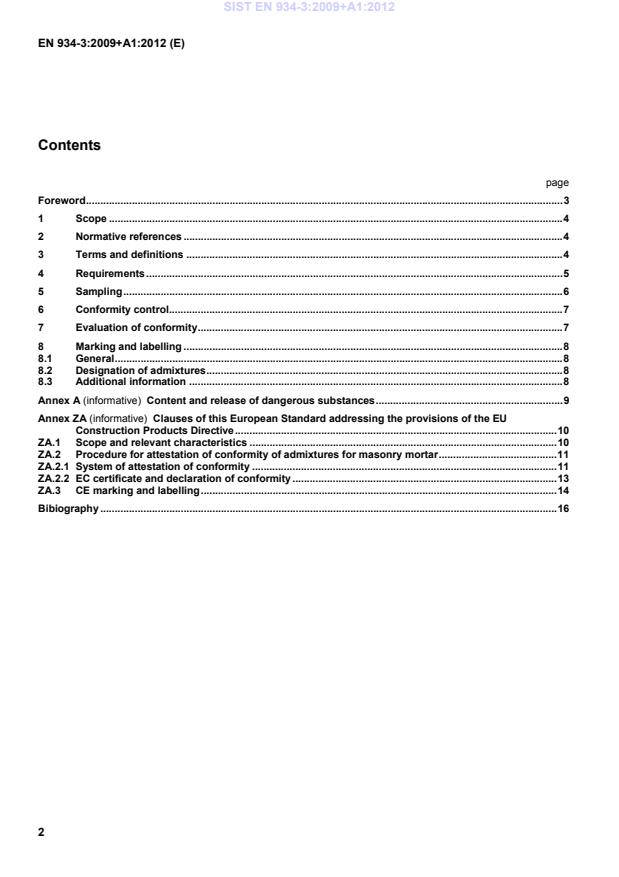

EN 934-3:2009+A1:2012 (E) 2 Contents page Foreword . 31 Scope . 42 Normative references . 43 Terms and definitions . 44 Requirements . 55 Sampling . 66 Conformity control. 77 Evaluation of conformity . 78 Marking and labelling . 88.1 General . 88.2 Designation of admixtures . 88.3 Additional information . 8Annex A (informative)
Content and release of dangerous substances . 9Annex ZA (informative)
Clauses of this European Standard addressing the provisions of the EU Construction Products Directive . 10ZA.1 Scope and relevant characteristics . 10ZA.2 Procedure for attestation of conformity of admixtures for masonry mortar . 11ZA.2.1 System of attestation of conformity . 11ZA.2.2 EC certificate and declaration of conformity . 13ZA.3 CE marking and labelling . 14Bibiography . 16
SIST EN 934-3:2009+A1:2012
EN 934-3:2009+A1:2012 (E) 3 Foreword This document (EN 934-3:2009+A1:2012) has been prepared by Technical Committee CEN/TC 104 “Concrete and related products”, the secretariat of which is held by DIN. This European Standard shall be given the status of a national standard, either by publication of an identical text or by endorsement, at the latest by January 2013, and conflicting national standards shall be withdrawn at the latest by January 2013.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights. This document supersedes !EN 934-3:2009". This document includes Amendment 1 approved by CEN on 2012-05-25. The start and finish of text introduced or altered by amendment is indicated in the text by tags !". This European Standard has been prepared under a mandate given to CEN by the European Commission and the European Free Trade Association, and supports essential requirements of EU Directive 89/106/EEC. For relationship with EU Directive 89/106/EEC, see informative Annex ZA, which is an integral part of this document. This European Standard is a part of the series EN 934 "Admixtures for concrete, mortar and grout" which additionally comprises the following parts Part 1: Common requirements Part 2: Concrete admixtures — Definitions, requirements, conformity, marking and labelling
Part 4: Admixtures for grout for prestressing tendons — Definitions, requirements, conformity, marking and labelling Part 5: Admixtures for sprayed concrete — Definitions, requirements, conformity, marking and labelling Part 6: Sampling, conformity control, evaluation of conformity This European Standard is used with the standards of the EN 480 series which comprise test methods for admixtures. According to the CEN/CENELEC Internal Regulations, the national standards organisations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.
SIST EN 934-3:2009+A1:2012
EN 934-3:2009+A1:2012 (E) 4 1 Scope This European Standard defines and specifies the requirements and conformity criteria for admixtures for use in cement based masonry mortar. It covers two types of admixtures, long term retarding and air entraining/plasticising which are used in ready-mixed and site made masonry mortars. Provisions for the use of admixtures for masonry mortar are not part of this European Standard but are covered by EN 998-1 and EN 998-2. 2 Normative references The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 480-13:2009, Admixtures for concrete, mortar and grout — Test methods — Part 13: Reference masonry mortar for testing mortar admixtures EN 934-1:2008, Admixtures for concrete, mortar and grout — Part 1: Common requirements EN 934-2, Admixtures for concrete, mortar and grout — Part 2: Concrete admixtures — Definitions, requirements, conformity, marking and labelling EN 934-6:2001, Admixtures for concrete, mortar and grout - Part 6: Sampling, conformity control and evaluation of conformity EN 934-6:2001/A1:2005, Admixtures for concrete, mortar and grout — Part 6: Sampling, conformity control and evaluation of conformity EN 1015-4, Methods of test for mortar for masonry — Part 4: Determination of consistence of fresh mortar (by plunger penetration) EN 1015-7, Methods of test for mortar for masonry — Part 7: Determination of air content of fresh mortar EN 1015-9, Methods of test for mortar for masonry — Part 9: Determination of workable life and correction time of fresh mortar EN 1015-11, Methods of test for mortar for masonry — Part 11: Determination of flexural and compressive strength of hardened mortar 3 Terms and definitions For the purposes of this document, the definitions in EN 934-1:2008 and the following apply. 3.1 air entraining/plasticizing admixture admixture which increases workability, or allows water reduction, by incorporating during mixing a controlled quantity of small, uniformly distributed air bubbles which remain after hardening 3.2 set retarding admixture for long term retarded masonry mortar set retarding admixture as defined in EN 934-2 but specifically intended for use in long term retarded mortar incorporating entrained air SIST EN 934-3:2009+A1:2012
EN 934-3:2009+A1:2012 (E) 5 3.3 performance ability of an admixture to be effective in its intended use without detrimental effect 3.4 compliance dosage dosage of an admixture, expressed in % by mass of cement, stated by the manufacturer, which will meet the requirements of this European Standard. The compliance dosage is within the recommended range of dosage 3.5 recommended range of dosage dosages between limits, expressed in % by mass of cement, which the manufacturer recommends for the product based on experience on site NOTE The use of the recommended dosage does not imply that compliance with this standard will be achieved over the whole range. Trial tests should be carried out with the materials to be used on site, to find the dosage necessary to achieve the required result. 3.6 maximum recommended dosage upper limit of the recommended range of dosage 4 Requirements Masonry mortar admixtures, when sampled in accordance with !EN 934-6:2001 and EN 934-6/A1:2005", shall comply with the requirements in EN 934-1:2008, Table 1 using the test methods listed therein and the additional requirements specific to different types of admixture listed in Table 1 !below". NOTE 1 Tests should be carried out with the admixtures and other materials intended to be used in the mortar to check whether the desired effect can be obtained. For content of substances and release of substances from the hardened mortar which are dangerous to health, hygiene and the environment see Annex A (informative). NOTE 2 For requirements necessary for CE-marking see Annex ZA. Table 1 — Additional requirements for specific types of admixture Definition Name of admixtureAdditional requirements3.1 Air entraining/plasticizing mixture Table 2 3.2 Set retarding admixture for long term retarded masonry mortar Table 3 SIST EN 934-3:2009+A1:2012
EN 934-3:2009+A1:2012 (E) 6 Table 2 — Additional requirements for air entraining/plasticizing admixtures at equal consistence
Property Reference mortarTest methodRequirement a 1 Air content after standard mixing EN 480-13 EN 1015-7 method A Total air content A1 = (17 ± 3) % by volume 2 Air content after 1 h standing EN 480-13 EN 1015-7 method A ≥ A1 – 3 % 3 Air content after extended mixing EN 480-13 EN 1015-7 method A ≤ A1 + 5 % and ≥ A1 – 5 % 4 Reduction in water requirement for standard consistence EN 480-13 EN 480-13 ≥ 8 % by mass 5 Compressive strength at 28 days EN 480-13 EN 1015-11 Test mix ≥ 70 % of control mix a All requirements apply to the same test mix.
Table 3 — Additional requirements for admixtures for long term retarded, ready to use mortar at equal consistence d
Property Reference mortarTest methodRequirement a 1 Air content after standard mixing EN 480-13 EN 1015-7 method A Total air content A2 = (17 ± 3) % by volume 2 Air content after extended mixing EN 480-13 EN 1015-7 method A ≤ A2 + 5 % and ≥ A2 – 5 % 3 Consistence after 28 h
standing b EN 480-13 EN 1015-4 Within 15 mm of initial value 4 Air content after 28 h standing EN 480-13 EN 1015-7 method A ≥ 0,70A2 % 5 Resistance to penetration after 72 h c EN 480-13 EN 1015-9 Test mix ≥ 1,0 N/mm2 6 Compressive strength at
28 days EN 480-13 EN 1015-11 Test mix ≥ 70 % of control mixa All requirements apply to the same test mix. b When stored and remixed in accordance with EN 480-13:2009, 5.3, as for determination of air content, after 28 h standing.c When stored in a covered mould for 28 h to prevent evaporation of water and then stored in an uncovered penetration
resistance mould for further 44 h at (65 ± 5) % RH. d The air entrainment may be as a result of the admixture containing both retarding and air entraining properties or by the
separate addition of an air entraining admixture complying with Table 2. 5 Sampling !Requirements for sampling are given in EN 934-6:2001 and EN 934-6:2001/A1:2005, Clause 4." SIST EN 934-3:2009+A1:2012
EN 934-3:2009+A1:2012 (E) 7 6 Conformity control Requirements for conformity control are given in EN 934-6:2001/A1:2005, 5.3 and 5.4 !deleted text". The frequency of testing in connection with the factory production control is given in Table 4. Table 4 — Minimum frequency of test for factory production control Tests Air entraining/ plasticizing admixture Admixture for long term retarded, ready to use mortar Homogeneity, colour B B Relative density (for liquids only) B B Conventional dry material content B B pH value (for liquids only) B B Chloride content (CI) a 4 4 Compressive strength at 28 days 1 1 Air content after standard mixing
...
