SIST EN ISO 9100-6:2005

Glass containers - Vacuum lug finishes - Part 6: 53 and 58 regular (ISO 9100-6:2005)

ISO 9100-6:2005 specifies the dimensions of vacuum lug finishes with nominal sizes of 53 mm and 58 mm regular for wide-mouth glass containers.

Glasbehälter - Vakuum-Nockenverschluss-Mündungen - Teil 6: 53 und 58 regular (ISO 9100-6:2005)

Récipients en verre - Bagues a crans pour bouchage sous vide - Partie 6: 53 et 58 regular (ISO 9100-6:2005)

L'ISO 9100-6:2005 spécifie les dimensions des bagues à crans pour bouchage sous vide de cote nominale 53 mm et 58 mm regular, destinées aux récipients en verre à col large.

Steklena embalaža – Grla za vakuumsko zapiranje - 6. del: 53 in 58, standardno (ISO 9100-6:2005)

General Information

• Status: Published
• Publication Date: 28-Feb-2005
• ICS: 55.100 - Bottles. Pots. Jars
• Technical Committee: EPO - Packaging - sales and grouped
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 01-Mar-2005
• Due Date: 01-Mar-2005
• Completion Date: 01-Mar-2005
• Directive: 80/232/EEC - Ranges of nominal quantities and nominal capacities permitted for certain pre-packaged products
• Directive: 87/356/EEC - Ranges of nominal quantities and nominal capacities permitted for certain pre-packged products (Dir. 80/232/EEC amendment)
• Ref Project: EN ISO 9100-6:2005 - Glass containers - Vacuum lug finishes - Part 6: 53 and 58 regular (ISO 9100-6:2005)

Overview

SIST EN ISO 9100-6:2005 is an international standard developed by CEN and ISO that specifies the precise dimensions and design requirements for vacuum lug finishes on wide-mouth glass containers. This part of the ISO 9100 series focuses specifically on vacuum lug finishes with nominal sizes of 53 mm and 58 mm regular. The standard ensures uniformity and compatibility in the manufacturing of glass containers used in packaging, particularly where vacuum sealing is involved.

The standard plays a critical role in packaging safety and effectiveness by defining the finish geometry to guarantee reliable vacuum sealing, cap removal, and overall container integrity. It complies with the CEN/CENELEC Internal Regulations and is mandatory for national standards bodies across many European countries.

---

Key Topics

• Scope: Specifies dimensions for vacuum lug finishes on 53 mm and 58 mm wide-mouth glass container finishes.
• Design Parameters: Details the finish geometry including thread profiles, cutter angles, diameters, and thread pitch.
• Vacuum Lug Finish Geometry:
  • Defined by dimensions such as diameters "E" and "T", cutter angle (α), and thread parameters.
  • Cutter profile and thread construction ensure proper vacuum sealing and cap engagement.
• Quality Requirements:
  • Sealing surfaces must be free of defects like cracks, dips, or crizzles.
  • Ovality of finish diameters should be minimized to maintain sealing efficiency.
  • Concentricity between critical diameters for accurate closure function.
• Compatibility Guidance:
  • Theoretical cam-off points to facilitate cap removal.
  • Clear specifications for closure positions and minimum clearance for beads or other design features.

---

Applications

SIST EN ISO 9100-6:2005 applies primarily to the glass packaging industry, focusing on containers such as jars and wide-mouth bottles that require vacuum sealing for food preservation, pharmaceuticals, cosmetics, and chemical products. Practical applications include:

• Packaging design and manufacturing: Ensures consistent production of glass containers with precise vacuum lug finishes that match closure systems.
• Quality control: Facilitates inspection and acceptance criteria during container fabrication.
• Supply chain compatibility: Harmonizes dimensions and sealing performance across manufacturers and end users.
• Vacuum sealing systems: Supports applications that depend on airtight seals to maintain product freshness and safety, including canned foods and beverages.
• Standardization in Europe: Mandatory harmonization for glass container producers ensures smooth cross-border trade and product reliability.

---

Related Standards

• EN 22768-1 (ISO 2768-1:1989) – General tolerances for linear and angular dimensions without individual tolerance indications. This standard complements SIST EN ISO 9100-6:2005 by providing tolerance guidelines applicable to the glass container dimensions.
• Other parts of ISO 9100 series – Cover additional sizes and types of vacuum lug finishes to provide a comprehensive framework for various container and closure configurations.
• CEN/TC 261 Packaging standards – Broader packaging standards under which this standard falls, addressing materials and performance for diverse packaging applications.

---

Keywords: SIST EN ISO 9100-6:2005, vacuum lug finishes, glass containers, wide-mouth jars, vacuum sealing, packaging standards, glass packaging, container dimensions, thread profile, sealing surface quality, cutter profile, European packaging standard, glass container manufacturing.

Standards Content (Sample)

SLOVENSKI STANDARD
01-marec-2005
Steklena embalaža – Grla za vakuumsko zapiranje - 6. del: 53 in 58, standardno
(ISO 9100-6:2005)
Glass containers - Vacuum lug finishes - Part 6: 53 and 58 regular (ISO 9100-6:2005)
Glasbehälter - Vakuum-Nockenverschluss-Mündungen - Teil 6: 53 und 58 regular (ISO
9100-6:2005)
Récipients en verre - Bagues a crans pour bouchage sous vide - Partie 6: 53 et 58
regular (ISO 9100-6:2005)
Ta slovenski standard je istoveten z: EN ISO 9100-6:2005
ICS:
55.100 Steklenice. Lonci. Kozarci Bottles. Pots. Jars
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN ISO 9100-6
NORME EUROPÉENNE
EUROPÄISCHE NORM
January 2005
ICS 55.100
English version
Glass containers - Vacuum lug finishes - Part 6: 53 and 58
regular (ISO 9100-6:2005)
Récipients en verre - Bagues à crans pour bouchage sous Glasbehälter - Vakuum-Nockenverschluss-Mündungen -
vide - Partie 6: 53 et 58 regular (ISO 9100-6:2005) Teil 6: 53 und 58 regular (ISO 9100-6:2005)
This European Standard was approved by CEN on 23 September 2004.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the Central Secretariat or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the official
versions.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia,
Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2005 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 9100-6:2005: E
worldwide for CEN national Members.

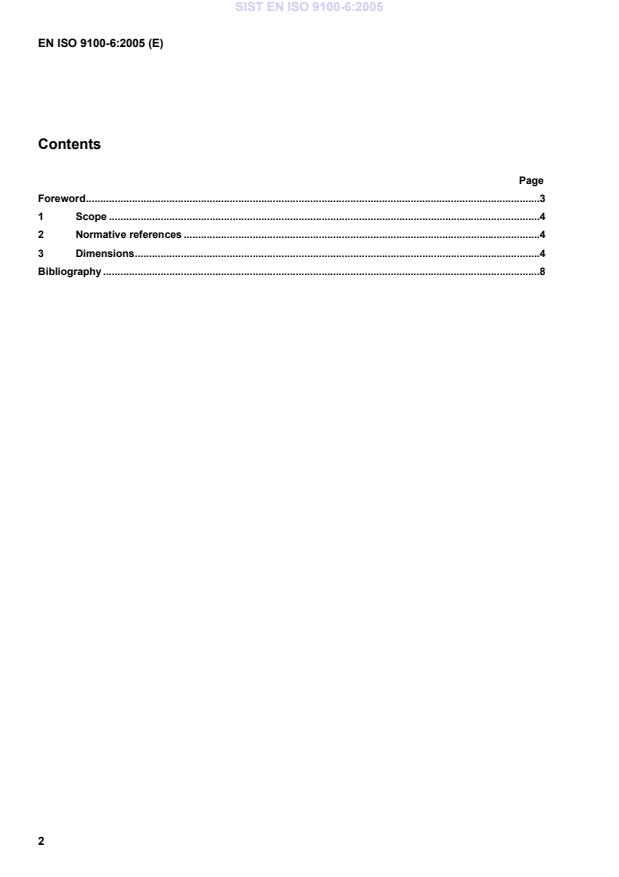

Contents
Page
Foreword.3
1 Scope .4
2 Normative references .4
3 Dimensions.4
Bibliography .8
Foreword
This document (EN ISO 9100-6:2005) has been prepared by Technical Committee CEN/TC 261 “Packaging”,
the secretariat of which is held by AFNOR, in collaboration with Technical Committee ISO/TC 63 “Glass
containers”.
Thi
...
