Rigid precision coaxial lines and their associated precision connectors - Part 2: 50 ohm 7 mm rigid precision coaxial line and associated hermaphroditic precision coaxial connector (IEC 60457-2:1974)

Describes the mechanical, electrical and environmental specifications of the 7 mm precision connector, the reflection coefficient and attenuation of which has to be measured up to 18 GHz.

Präzisionsrohrleitungen und zugehörige Präzisionssteckverbinder - Teil 2: 7 mm Präzisionskoaxialleitungen (50 Ohm) mit zugehöriger Präzisions-Zwittersteckverbindung (IEC 60457-2:1974)

Lignes coaxiales rigides de précision et leurs connecteurs de précision associés - Partie 2: 50 ohm 7 mm - Ligne coaxiale rigide de précision et connecteur coaxial de précision hermaphrodite associé (CEI 60457-2:1974)

Décrit les spécifications mécaniques, électriques et climatiques du connecteur de précision de 7 mm dont le coefficient de réflexion et l'affaiblissement doivent être mesurés jusqu'à 18 GHz.

[Not translated]

General Information

Status
Published
Publication Date
07-Nov-2010
Technical Committee
Current Stage
6660 - Retro National Implementation/Publication (Adopted Project)
Start Date
26-Oct-2010
Due Date
31-Dec-2010
Completion Date
08-Nov-2010

Buy Standard

Standardization document
HD 351.2 S1:2004
English language
10 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)

SLOVENSKI STANDARD
SIST HD 351.2 S1:2004
01-januar-2004
[Not translated]
Rigid precision coaxial lines and their associated precision connectors - Part 2: 50 ohm 7
mm rigid precision coaxial line and associated hermaphroditic precision coaxial
connector (IEC 60457-2:1974)
Präzisionsrohrleitungen und zugehörige Präzisionssteckverbinder - Teil 2: 7 mm
Präzisionskoaxialleitungen (50 Ohm) mit zugehöriger Präzisions-Zwittersteckverbindung
(IEC 60457-2:1974)
Lignes coaxiales rigides de précision et leurs connecteurs de précision associés - Partie
2: 50 ohm 7 mm - Ligne coaxiale rigide de précision et connecteur coaxial de précision
hermaphrodite associé (CEI 60457-2:1974)
Ta slovenski standard je istoveten z: HD 351.2 S1:1977
ICS:
33.120.10 Koaksialni kabli. Valovodi Coaxial cables. Waveguides
SIST HD 351.2 S1:2004 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------

SIST HD 351.2 S1:2004

---------------------- Page: 2 ----------------------

SIST HD 351.2 S1:2004

---------------------- Page: 3 ----------------------

SIST HD 351.2 S1:2004

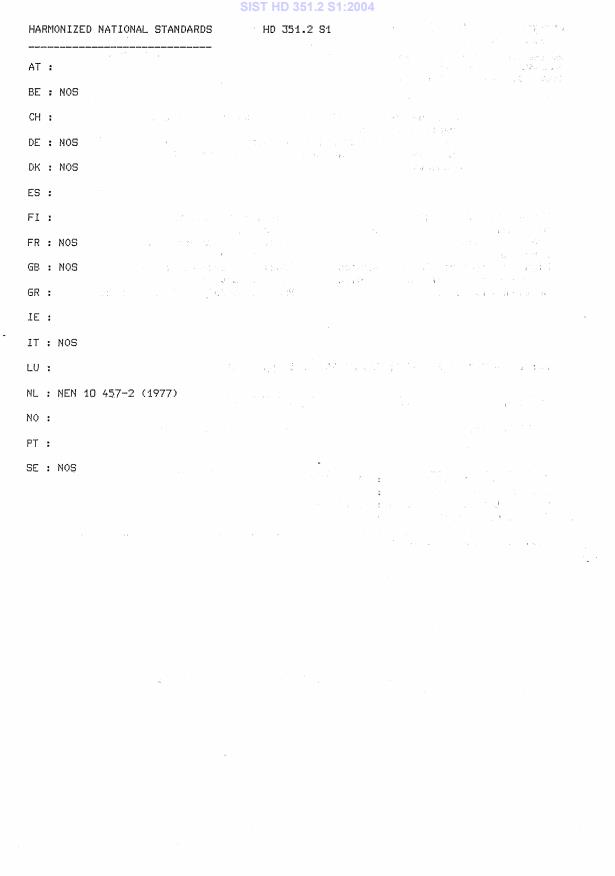

---------------------- Page: 4 ----------------------

SIST HD 351.2 S1:2004
NORME CE"
INTERNATIONALE IEC
60457-2
INTERNATIONAL
Première édition
STANDARD
First edition
1974-01
Lignes coaxiales rigides de précision
et leurs connecteurs de précision associés
Deuxième partie:
50 ohms 7 mm — Ligne coaxiale rigide de
précision et connecteur coaxial de précision
hermaphrodite associé
Rigid precision coaxial lines
and their associated precision connectors
Part 2:
50 ohm 7 mm rigid precision coaxial line
and associated hermaphroditic precision
coaxial connector
© IEC 1974 Droits de reproduction réservés — Copyright - all rights reserved
Aucune partie de cette publication ne peut être reproduite ni No part of this publication may be reproduced or utilized in
utilisée sous quelque forme que ce soit et par aucun any form or by any means, electronic or mechanical,
procédé, électronique ou mécanique, y compris la photo- including photocopying and microfilm, without permission in
copie et les microfilms, sans l'accord écrit de l'éditeur. writing from the publisher.
International Electrotechnical Commission 3, rue de Varembé Geneva, Switzerland
Telefax: +41 22 919 0300 e-mail: inmail@iec.ch IEC web site http: //www.iec.ch
CODE PRIX
Commission Electrotechnique Internationale
F
PRICE CODE
International Electrotechnical Commission
IEC
Me»iayHapoaHaR 3fneKTporexHH4ectiaR HOMHCCHp
Pour prix, voir catalogue en vigueur
• • For price, see current catalogue

---------------------- Page: 5 ----------------------

SIST HD 351.2 S1:2004
INTERNATIONAL ELECTROTECHNICAL COMMISSION
COAXIAL LINES
RIGID PRECISION
AND THEIR ASSOCIATED PRECISION CONNECTORS
Part 2 : 50 ohm 7 mm rigid precision coaxial line
and associated hermaphroditic precision coaxial connector
FOREWORD
I) The formal decisions or agreements of the I E C on technical matters, prepared by Technical Committees on which all the
National Committees having a special interest therein are represented, express, as nearly as possible, an international
consensus of opinion on the subjects dealt with.
2) They have the form of recommendations for international use and they are accepted by the National Committees in that
sense.
3) In order to promote international unification, the I E C expresses the wish that all National Committees should adopt
the text of the I E C recommendation for their national rules in so far as national conditions will permit. Any divergence
between the I E C recommendations and the corresponding national rules should, as far as possible, be clearly
indicated in the latter.
PREFACE
This recommendation has been prepared by Sub-Committee 46D, Connectors for R.F. Cables, of I EC
Technical Committee No. 46, Cables, Wires and Waveguides for Telecommunication Equipment.
A first draft was discussed at the meeting held in The Hague in 1970. As a result of this meeting, a final
draft, document 46D(Central Office)2, was submitted to the National Committees for approval under the
Six Months' Rule in July 1971. Amendments, document 46D(Central Ofiîce)11, were submitted to the
National Committees for approval under the Two Months' Procedure in September 1972.
The following countries voted explicitly in favour of publication:
Australia Korea (Democratic People's
Belgium Republic of)
Czechoslovakia Netherlands
Denmark Poland
France Sweden
Germany Switzerland
Hungary Turkey
Israel United Kingdom
Italy United States of America
Japan

---------------------- Page: 6 ----------------------

SIST HD 351.2 S1:2004
RIGID PRECISION COAXIAL LINES
AND THEIR ASSOCIATED PRECISION CONNECTORS
Part 2 : 50 ohm 7 mm rigid precision coaxial line
and associated hermaphroditic precision coaxial connector
Clause and
Sub-clause
Item
of IEC
Publication
457-1
3.1.7.2 Maximum frequency
The maximum frequency at which the reflection coefficient and attenuation are
measured is 18 GHz.
3.1.15 Electrical length
The electrical length, expressed in millimetres, of a connector pair shall be specified
by the manufacturer. The inaccuracy of the measurement shall be not more than
0.05 mm (0.002 in).
4. Type designation
Under consideration.
5. Standard atmospheric conditions for testing
Operating
The performance of the assemblies shall comply with the specified electrical require-
ments over the range of environmental conditions specified in I E C Publication
68-1, Basic Environmental Testing Procedures, Part 1: General, Sub-clause 4.3.
Environmental requirements
22.
Dry heat
23.
Cold
Non-operating
The performance of the assemblies shall remain within the electrical and mechanical
specifications when tested under normal operating conditions, after having been
exposed to the environmental conditions specified in I E C Publication 457-1, Rigid
Precision Coaxial Lines and their Associated Precision Connectors, Part 1: General
Requirements and Measuring Methods.
The following severities apply: Test A: — 55 °C; Test B: + 70 °C.
8. Dimensions
The inch dimensions are derived from the original millimetre dimensions.
The nominal inside diameter of the outer conductor shall be 7 mm (0.275 590 in).
Maximum deviations on the inner and outer diameters shall limit the uncertainty in
0.2 % or less, with a maximum deviation on the inside
the characteristic impedance to

---------------------- Page: 7 ----------------------

SIST HD 351.2 S1:2004
7
Clause and
Sub-clause
of I EC
Item
Publication
457-1
diameter of the outer conductor of ± 0.005 mm (± 0.0002 in). The nominal outside
diameter of the centre conductor shall be 3.040 mm (0.119 685 in).
Dimensions shall also be checked after the tests according to I E C Publication 457-1,
Section Four, have been carried out.
For the critical dimensions of the mating faces, coupling attachment or coupling
means, refer to Figures 1, 2 and 3, pages 10, 11 and 12, respectively.
10.1 Centre contact force of mated hermaphroditic connectors
When two connectors are mated, the axial force exerted by the contact mechanism on
the centre conductor of a connector shall be max. 9.0 N and min. 4.0 N.
When a force of 18 N is applied for a least 12 h, the centre conductor of a connector
shall be displaced axially less th
...
