SIST EN ISO 10325:2026

• Abstract:

  This document specifies requirements for 8-strand braided ropes, for 12-strand braided ropes, and for covered rope constructions (single braid, double braid and multi-core construction) for general purpose made of high modulus polyethylene (HMPE), and gives rules for their designation.; Many different types and grades of HMPE fibre exist which are commonly used to produce rope products. This document does not apply to all variations in strength or product performance.

• Status: Published
• Public Enquiry End Date: 30-Oct-2025
• Publication Date: 13-Jul-2026
• ICS: 59.080.50 - Ropes
• Technical Committee: ITEK - Textile and textile products
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 09-Jul-2026
• Due Date: 13-Sep-2026
• Completion Date: 14-Jul-2026
• Ref Project: EN ISO 10325:2026 - Fibre ropes - High modulus polyethylene - 8-strand braided ropes, 12-strand braided ropes and covered ropes (ISO 10325:2026)

• Revises: SIST EN ISO 10325:2018 - Fibre ropes - High modulus polyethylene - 8-strand braided ropes, 12-strand braided ropes and covered ropes (ISO 10325:2018)
• Effective Date: 04-Sep-2024

SIST EN ISO 10325:2026 is the Slovenian adoption of EN ISO 10325:2026, aligned with ISO 10325:2026. It covers general-purpose high modulus polyethylene (HMPE) fibre ropes, specifically 8-strand braided ropes, 12-strand braided ropes and covered ropes, and it sets out how to designate and identify them.

What does SIST EN ISO 10325:2026 specify?

SIST EN ISO 10325:2026 specifies the requirements for HMPE rope constructions used for general purpose applications and gives the designation rules for those ropes. It is focused on 8-strand braided ropes, 12-strand braided ropes, and covered rope constructions such as single braid, double braid and multi-core construction.

The document is organized into:

• Clause 1, Scope
• Clause 2, Normative references
• Clause 3, Terms and definitions
• Clause 4, Designation
• Clause 5, Material
• Clause 6, General requirements
• Clause 7, Physical properties
• Clause 8, Marking

The scope also makes clear that HMPE exists in many grades and performance levels, so the standard is not a catch-all for every HMPE fibre rope variant. In practice, that means a buyer or engineer should use it when the rope is a general-purpose HMPE product and the construction matches the rope types named in the standard.

What are the key requirements of SIST EN ISO 10325:2026?

SIST EN ISO 10325:2026 starts with a safety warning: rope and cordage use carries inherent risk, and compliance with the document does not by itself guarantee safe use. If the application is uncertain, the document calls for consultation with a competent person.

• Designation, Clause 4: The rope designation shall include the words “fibre rope”, the document number, the rope construction or type, the reference number, the material, and the stabilization type. This matters because the designation is the compact description used in purchase specifications, inspection records and product labels.
• Stabilization type, Clause 4: HMPE ropes that are heat set are designated as type 1, while ropes that are not heat set are type 2. This tells the user whether the rope has been thermally stabilized, which affects how the rope is identified and compared.
• Material, Clause 5: The rope, or the load-bearing core, shall be made of filament HMPE fibres. Covered ropes may use different cover materials, and the document notes that the cover can change protection and floating behavior.
• Construction, Clause 6: HMPE ropes shall be type L, type T or type K, meaning 8-strand braided, 12-strand braided or covered ropes. The construction, manufacture and braid pitch or lay length shall conform to ISO 9554, so the rope is made and described in a controlled way.
• Covered ropes, Clause 6.2: The cover is non-load-bearing, and strand interchanges in the cover are permitted if they are properly staggered. For users, that means the cover is for protection rather than strength, and construction details still need to be checked against the core design.
• Physical properties, Clause 7: Tables 1 and 2 give indicative linear density and minimum breaking strength for general purpose ropes. The values are typical only, and the standard points users to ISO 2307 for measuring linear density and for physical and mechanical property determination.
• Supplier information, Clause 5 and Clause 7: If requested, the manufacturer shall provide creep and fatigue information, and the supplier shall provide instructions for use and maintenance. This is important where the rope sees long-term loading or repeated service.
• Marking, Clause 8: The manufacturer may use coloured synthetic yarns for identification, and printed marker tape shall follow ISO 9554. This helps with traceability and product recognition in the field.

What terms does SIST EN ISO 10325:2026 define?

SIST EN ISO 10325:2026 uses a short set of terms that matter for rope selection and identification.

• HMPE: High modulus polyethylene, the fibre material used for the ropes covered by the standard.
• Cover / jacket: A braided cover or other protective layer placed over the rope core; the document notes that it does not significantly contribute to rope strength.
• Heat-set rope: A rope whose properties have been changed by applying heat while it is under controlled tensile load.
• General purpose use: Use where a conservative approach gives enough safety margin for foreseeable use and reasonably foreseeable misuse.
• Reference number: The number used with the rope designation and linked to the approximate rope diameter.
• Linear density: The mass per unit length of the rope, measured under reference tension as specified through ISO 2307.
• Minimum breaking strength: The strength value used in the tables for rope comparison and selection.

Who uses SIST EN ISO 10325:2026?

SIST EN ISO 10325:2026 is used by rope manufacturers, suppliers, buyers, quality managers, test laboratories and technical specifiers who work with HMPE fibre ropes. It is relevant whenever a team needs to choose a rope construction, write a purchase specification, check delivered marking, or compare declared physical properties with test results.

What changed in SIST EN ISO 10325:2026 from the previous edition?

SIST EN ISO 10325:2026 supersedes EN ISO 10325:2018. The main changes stated in the document are:

• a safety and risk warning was added before the Scope
• Clause 3 adds a definition of general purpose use
• Clause 5 revises the material description
• Clause 6 revises Figure 1 and aligns the figure layout
• Clause 7 revises the physical properties description and the linear density values in Tables 1 and 2, with clarified footnotes

Which standards are used with SIST EN ISO 10325:2026?

SIST EN ISO 10325:2026 cites three normative references:

• ISO 1968 - provides the vocabulary for fibre ropes and cordage
• ISO 2307 - provides the test methods for certain physical and mechanical properties, including linear density measurement
• ISO 9554 - provides general specifications for fibre ropes, including construction, manufacture, labelling, packaging, invoicing and delivered lengths

What does the SIST EN ISO 10325:2026 document contain?

SIST EN ISO 10325:2026 contains a designation system, material rules, construction requirements, property tables and marking provisions for HMPE ropes. Figures 1 to 3 show the rope constructions covered by the standard, including the two braided types and the covered-rope forms.

Tables 1 and 2 provide the indicative linear density and minimum breaking strength data used for selecting type L, type T and type K ropes. The text around those tables explains that terminations, bends, prior loading and coating can change performance in service.

The document also gives practical instructions on how rope characteristics should be described, measured and marked. For users, that supports procurement, receiving inspection, test planning and specification writing for general purpose HMPE ropes.

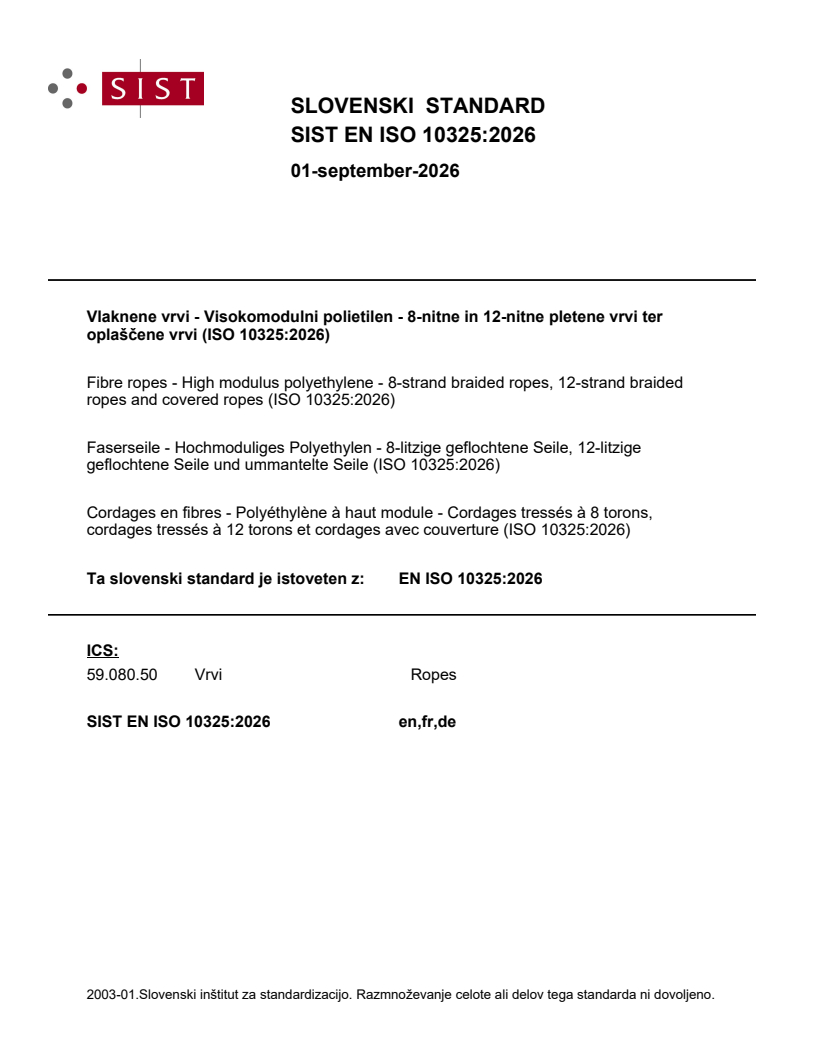

SLOVENSKI STANDARD
01-september-2026
Vlaknene vrvi - Visokomodulni polietilen - 8-nitne in 12-nitne pletene vrvi ter
oplaščene vrvi (ISO 10325:2026)
Fibre ropes - High modulus polyethylene - 8-strand braided ropes, 12-strand braided
ropes and covered ropes (ISO 10325:2026)
Faserseile - Hochmoduliges Polyethylen - 8-litzige geflochtene Seile, 12-litzige
geflochtene Seile und ummantelte Seile (ISO 10325:2026)
Cordages en fibres - Polyéthylène à haut module - Cordages tressés à 8 torons,
cordages tressés à 12 torons et cordages avec couverture (ISO 10325:2026)
Ta slovenski standard je istoveten z: EN ISO 10325:2026
ICS:
59.080.50 Vrvi Ropes
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

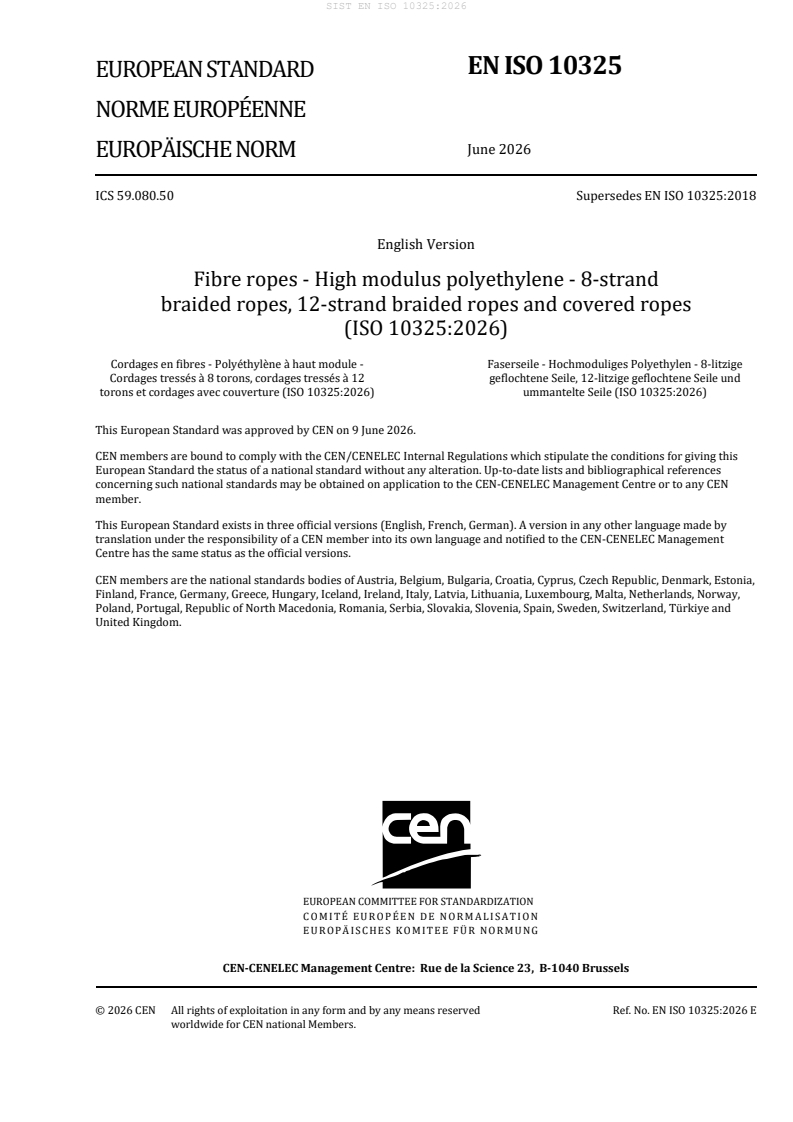

EN ISO 10325
EUROPEAN STANDARD
NORME EUROPÉENNE
June 2026
EUROPÄISCHE NORM
ICS 59.080.50 Supersedes EN ISO 10325:2018
English Version
Fibre ropes - High modulus polyethylene - 8-strand
braided ropes, 12-strand braided ropes and covered ropes
(ISO 10325:2026)
Cordages en fibres - Polyéthylène à haut module - Faserseile - Hochmoduliges Polyethylen - 8-litzige
Cordages tressés à 8 torons, cordages tressés à 12 geflochtene Seile, 12-litzige geflochtene Seile und
torons et cordages avec couverture (ISO 10325:2026) ummantelte Seile (ISO 10325:2026)
This European Standard was approved by CEN on 9 June 2026.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2026 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 10325:2026 E
worldwide for CEN national Members.

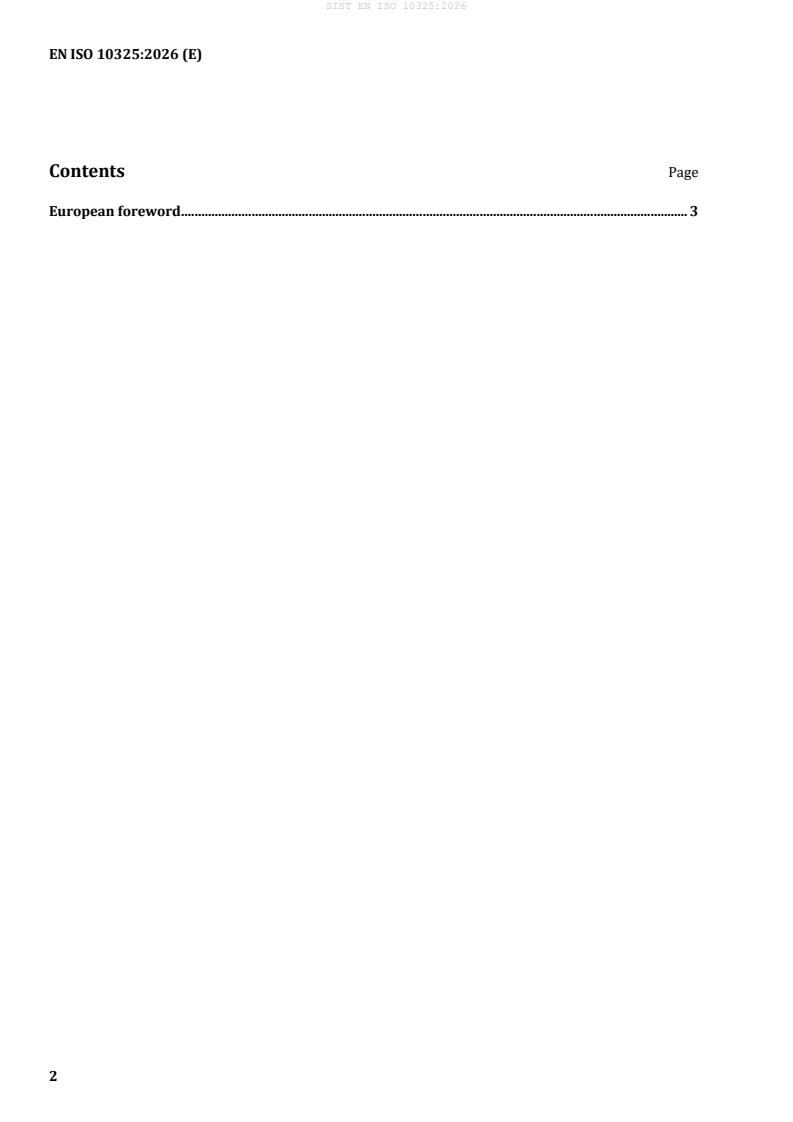

Contents Page
European foreword . 3

European foreword
This document (EN ISO 10325:2026) has been prepared by Technical Committee ISO/TC 38 "Textiles"
in collaboration with Technical Committee CEN/TC 248 “Textiles and textile products” the secretariat of
which is held by BSI.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by December 2026, and conflicting national standards
shall be withdrawn at the latest by December 2026.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN ISO 10325:2018.
Any feedback and questions on this document should be directed to the users’ national standards
body/national committee. A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,
Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of
North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the
United Kingdom.
Endorsement notice
The text of ISO 10325:2026 has been approved by CEN as EN ISO 10325:2026 without any modification.

International
Standard
ISO 10325
Third edition
Fibre ropes — High modulus
2026-06
polyethylene — 8-strand braided
ropes, 12-strand braided ropes and
covered ropes
Cordages en fibres — Polyéthylène à haut module — Cordages
tressés à 8 torons, cordages tressés à 12 torons et cordages avec
couverture
Reference number
ISO 10325:2026(en) © ISO 2026
ISO 10325:2026(en)
© ISO 2026
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: [phone]
Email: [e-mail]
Website: www.iso.org
Published in Switzerland
ii
ISO 10325:2026(en)
Contents Page
Foreword .iv
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Designation . 2
5 Material. 2
6 General requirements . 3
6.1 General .3
6.2 Construction, manufacture and lay length or braid pitch .3
6.3 Labelling, packaging, invoicing and delivered lengths .4
7 Physical properties . 4
8 Marking . . 7

iii
ISO 10325:2026(en)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee
has been established has the right to be represented on that committee. International organizations,
governmental and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely
with the International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types
of ISO document should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent
rights in respect thereof. As of the date of publication of this document, ISO had not received notice of (a)
patent(s) which may be required to implement this document. However, implementers are cautioned that
this may not represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 38, Textiles, in collaboration with the European
Committee for Standardization (CEN) Technical Committee CEN/TC 248, Textiles and textile products, in
accordance with the Agreement on technical cooperation between ISO and CEN (Vienna Agreement).
This third edition cancels and replaces the second edition (ISO 10325:2018), which has been technically
revised.
The main changes are as follows:
— a warning text regarding safety and risk has been added in the document before the Scope;
— Clause 3: a definition of general purpose use has been added;
— Clause 5: the description of material has been revised;
— Clause 6: Figure 1 has been revised, and the layout of the figures have been aligned;
— Clause 7: the description of physical properties and the liner density in Table 1 and Table 2 have been
revised, and footnotes accordingly to clarify values presented in the tables.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.

iv
International Standard ISO 10325:2026(en)
Fibre ropes — High modulus polyethylene — 8-strand
braided ropes, 12-strand braided ropes and covered ropes
WARNING — The use of rope and cordage products has inherent safety risks which are subject to
highly variable conditions, and which may change over time. Conformance with this document does
not guarantee safe use under all circumstances. If the user has any questions or uncertainties about
the proper use of rope or cordage, or about safe practices for general purpose use, a competent
person shall be consulted.
1 Scope
This document specifies requirements for 8-strand braided ropes, for 12-strand braided ropes, and for
covered rope constructions (single braid, double braid and multi-core construction) for general purpose
made of high modulus polyethylene (HMPE), and gives rules for their designation.
Many different types and grades of HMPE fibre exist which are commonly used to produce rope products.
This document does
...
