Flat pallets for materials handling - Principal dimensions

This European Standard specifies the principal dimensions and tolerances for new single-deck and double-deck non-reversible flat pallets of all entry types related to their transportation and handling by pallet trucks, fork lift trucks and other appropriate equipment.
NOTE   Depending on end use and the meeting of tests specified in ISO 8611, such pallets are intended to be stacked:
a) in store up to 4-high;
b) in transit up to 2-high.

Flachpaletten für die Handhabung von Gütern - Hauptmaße

Diese Europäische Norm legt die Hauptmaße und Toleranzen für neue Eindeck- und nicht umkehrbare Doppeldeck-Flachpaletten mit allen Arten von Einfahröffnungen, im Hinblick auf Transport und Handhabung durch Handhubwagen, Gabelstapler, Gabelhubwagen und andere geeignete Vorrichtungen fest.
ANMERKUNG   In Abhängigkeit vom Gebrauch und den in ISO 8611 festgelegten Prüfungen können solche Paletten:
a)   bei Lagerung bis zu vierfach,
b)   bei Transport bis zu zweifach gestapelt werden.

Palettes plates pour la manutention et le transport de marchandises - Dimensions principales

La présente norme européenne spécifie les dimensions et tolérances principales des palettes plates neuves non réversibles a un seul plancher ou a double plancher de tout type d'entrée, liées au transport et la manutention par transpalettes, chariots élévateurs ou tout autre équipement approprié. Ces palettes sont conçues de façon a pouvoir etre utilisées: - dans des piles comprenant au maximum 4 palettes lors de l'entreposage, - dans des piles comprenant au maximum 2 palettes lors du transport, - sur une hauteur (en fonction de leur utilisation prévue et de leur conformité aux essais appropriés).

Ravne palete za ravnanje z materiali - Osnovne mere

General Information

Status
Published
Publication Date
31-Aug-2002
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
01-Sep-2002
Due Date
01-Sep-2002
Completion Date
01-Sep-2002

Buy Standard

Standard
SIST EN 13382:2002
English language
13 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Ravne palete za ravnanje z materiali - Osnovne mereFlachpaletten für die Handhabung von Gütern - HauptmaßePalettes plates pour la manutention et le transport de marchandises - Dimensions principalesFlat pallets for materials handling - Principal dimensions55.180.20General purpose palletsICS:Ta slovenski standard je istoveten z:EN 13382:2002SIST EN 13382:2002en01-september-2002SIST EN 13382:2002SLOVENSKI

STANDARD
SIST EN 13382:2002

EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 13382April 2002ICS 55.180.20English versionFlat pallets for materials handling - Principal dimensionsPalettes plates pour la manutention et le transport demarchandises - Dimensions principalesFlachpaletten für die Handhabung von Gütern - HauptmaßeThis European Standard was approved by CEN on 15 November 2001.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the Management Centre has the same status as the officialversions.CEN members are the national standards bodies of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece,Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36

B-1050 Brussels© 2002 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 13382:2002 ESIST EN 13382:2002

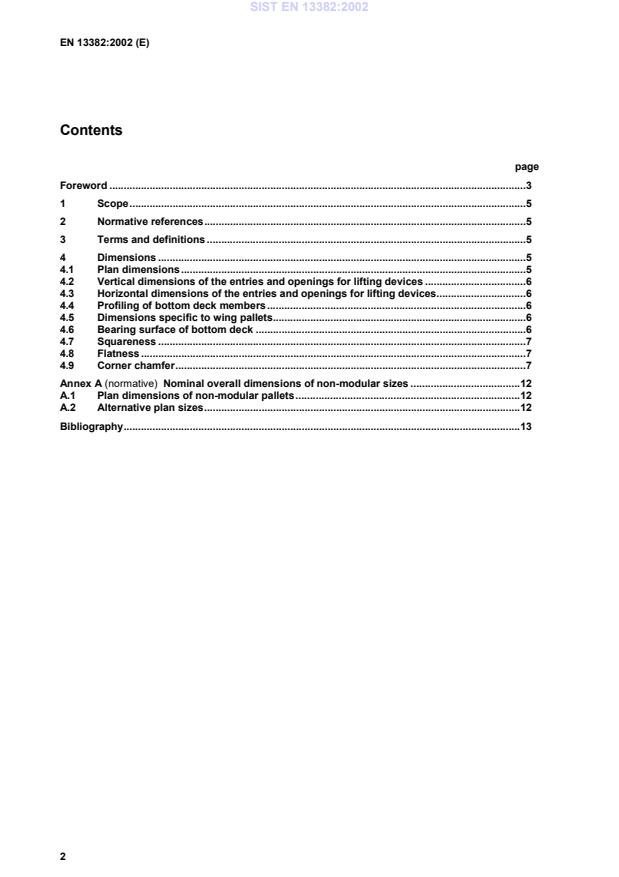

EN 13382:2002 (E)2ContentspageForeword.................................................................................................................................................31Scope..........................................................................................................................................52Normative references................................................................................................................53Terms and definitions...............................................................................................................54Dimensions................................................................................................................................54.1Plan dimensions........................................................................................................................54.2Vertical dimensions of the entries and openings for lifting devices...................................64.3Horizontal dimensions of the entries and openings for lifting devices...............................64.4Profiling of bottom deck members..........................................................................................64.5Dimensions specific to wing pallets........................................................................................64.6Bearing surface of bottom deck..............................................................................................64.7Squareness................................................................................................................................74.8Flatness......................................................................................................................................74.9Corner chamfer..........................................................................................................................7Annex A (normative)

Nominal overall dimensions of non-modular sizes......................................12A.1Plan dimensions of non-modular pallets..............................................................................12A.2Alternative plan sizes..............................................................................................................12Bibliography..........................................................................................................................................13SIST EN 13382:2002

EN 13382:2002 (E)3ForewordThis document (EN 13382:2002) has been prepared by Technical Committee CEN /TC 261 "Packaging",the secretariat of which is held by AFNOR.This European Standard shall be given the status of a national standard, either by publication of anidentical text or by endorsement, at the latest by October 2002, and conflicting national standards shallbe withdrawn at the latest by October 2002.According to the CEN/CENELEC Internal Regulations, the national standards organizations of thefollowing countries are bound to implement this European Standard: Austria, Belgium, Czech Republic,Denmark, Finland, France, Germany, Greece, Iceland, Ireland, Italy, Luxembourg, Malta, Netherlands,Norway, Portugal, Spain, Sweden, Switzerland and the United Kingdom.Annex A is normative.SIST EN 13382:2002

EN 13382:2002 (E)4IntroductionISO 6780 was primarily written for pallets for through transit only.

This European Standard is basedupon, but not identical to ISO 6780:1988, “General purpose flat pallets for through transit of goods —Principal dimensions and tolerances”, with special changes to suit European handling systems.

It isanticipated that these changes will be proposed to ISO/TC 51 for possible adoption in due course.

Inparticular, the entry height changes made to ISO 509, “Pallet trucks — Principal dimensions”, assumechanges to ISO 6780, including a minimum height of entry of 95 mm.An increasing number of standardized pallets are used in automatic storage retrieval machines or onautomatic production lines, roller conveyers and wrapping devices.

The minimum height of access forlifting devices as given in this European Standard may not be sufficient in all circumstances.

Thedimensional requirements should take into account the requirements for fork lift and hand, pallet trucks,automatic storage retrieval machines and special telescopic fork system requirements.

For thesesystems, the most commonly used pallets are those with 100 mm entry height.Widening of the scope of this European Standard has necessitated a removal of the normativerequirement for stacking up to 4-high allowing for the widespread use of racking systems which permitsingle or 2-high stacking.

The specifier can choose the appropriate level of stacking ability of 2- or 4-high.With regard to tolerances, this document allows for manufacture from all materials and the need for botha manufacturing and a material movement tolerance.SIST EN 13382:2002

prEN 13382:2001 (E)51

ScopeThis European Standard specifies the principal dimensions and tolerances for new single-deck and double-decknon-reversible flat pallets of all entry types related to their transportation and handling by pallet trucks, fork lifttrucks and other appropriate equipment.NOTEDepending on end use and the meeting of tests specified in ISO 8611, such pallets are intended to be stacked:a) in store up to 4-high;b) in transit up to 2-high.2

Normative referencesThis European Standard incorporates by dated or undated reference, provisions from other publications.

Thesenormative references are cited at the appropriate places in the text and the publications are listed hereafter.

Fordated references, subsequent amendments to or revisions of any of these publications apply to this EuropeanStandard only when incorporated in it by amendment or revision.

For undated references the latest edition of thepublication referred to applies (including amendments).EN ISO 445:1998, Pallets for materials handling – Vocabulary (ISO 445:1996)ISO 3394, Dimensions of rigid rectangular packages — Transport packagesISO 8611, General-purpose flat pallets for through transit of goods — Test methods3

Terms and definitionsFor the purposes of this European Standard, the terms and definitions in EN ISO 445:1998 and the following apply.3.1through transitpallet usage cycle which

...
