Environmental Engineering (EE) - Environmental conditions and environmental tests for telecommunications equipment - Part 2-4: Specification of environmental tests - Stationary use at non-weatherprotected locations

The present document specifies test methods and severities for verification of the required resistibility of equipment
according to the relevant environmental class.
The tests defined in the present document apply to stationary use of equipment at non-weatherprotected locations
covering the environmental conditions stated in ETSI EN 300 019-1-4 [1].

Okoljski inženiring (EE) - Okoljski pogoji in preskusi vplivov okolja na telekomunikacijsko opremo - 2-4. del: Specifikacija preskusov vplivov okolja - Stacionarna uporaba na lokacijah, ki niso zaščitene pred vremenskimi vplivi

Ta dokument določa preskusne metode in stopnje zahtevnosti za preverjanje zahtevane odpornosti opreme glede na ustrezen okoljski razred.
Preskusi, določeni v tem dokumentu, se uporabljajo za fiksno uporabo opreme na lokacijah, ki niso zaščitene pred vremenskimi vplivi, kot določajo okoljski pogoji, določeni v standardu ETSI EN 300 019-1-4 [1].

General Information

Status
Published
Public Enquiry End Date
27-Jun-2018
Publication Date
26-Jul-2018
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
25-Jul-2018
Due Date
29-Sep-2018
Completion Date
27-Jul-2018

Buy Standard

Standard
SIST EN 300 019-2-4 V2.5.1:2018
English language
22 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day
Standard
ETSI EN 300 019-2-4 V2.5.1 (2018-07) - Environmental Engineering (EE); Environmental conditions and environmental tests for telecommunications equipment; Part 2-4: Specification of environmental tests; Stationary use at non-weatherprotected locations
English language
22 pages
sale 15% off
Preview
sale 15% off
Preview
Standard
ETSI EN 300 019-2-4 V2.4.6 (2018-03) - Environmental Engineering (EE); Environmental conditions and environmental tests for telecommunications equipment; Part 2-4: Specification of environmental tests; Stationary use at non-weatherprotected locations
English language
22 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Environmental Engineering (EE) - Environmental conditions and environmental tests for telecommunications equipment - Part 2-4: Specification of environmental tests - Stationary use at non-weatherprotected locations33.050.01Telekomunikacijska terminalska oprema na splošnoTelecommunication terminal equipment in general19.040Preskušanje v zvezi z okoljemEnvironmental testingICS:Ta slovenski standard je istoveten z:ETSI EN 300 019-2-4 V2.5.1 (2018-07)SIST EN 300 019-2-4 V2.5.1:2018en01-september-2018SIST EN 300 019-2-4 V2.5.1:2018SLOVENSKI

STANDARD
SIST EN 300 019-2-4 V2.5.1:2018

ETSI EN 300 019-2-4 V2.5.1 (2018-07) Environmental Engineering (EE); Environmental conditions and environmental tests for telecommunications equipment; Part 2-4: Specification of environmental tests; Stationary use at non-weatherprotected locations

EUROPEAN STANDARD SIST EN 300 019-2-4 V2.5.1:2018
ETSI ETSI EN 300 019-2-4 V2.5.1 (2018-07)2

Reference REN/EE-017002 Keywords environment, testing ETSI 650 Route des Lucioles F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: +33 4 92 94 42 00
Fax: +33 4 93 65 47 16

Siret N° 348 623 562 00017 - NAF 742 C Association à but non lucratif enregistrée à la Sous-Préfecture de Grasse (06) N° 7803/88

Important notice The present document can be downloaded from: http://www.etsi.org/standards-search The present document may be made available in electronic versions and/or in print. The content of any electronic and/or print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any existing or perceived difference in contents between such versions and/or in print, the only prevailing document is the print of the Portable Document Format (PDF) version kept on a specific network drive within ETSI Secretariat. Users of the present document should be aware that the document may be subject to revision or change of status. Information on the current status of this and other ETSI documents is available at https://portal.etsi.org/TB/ETSIDeliverableStatus.aspx If you find errors in the present document, please send your comment to one of the following services: https://portal.etsi.org/People/CommiteeSupportStaff.aspx Copyright Notification No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying and microfilm except as authorized by written permission of ETSI. The content of the PDF version shall not be modified without the written authorization of ETSI. The copyright and the foregoing restriction extend to reproduction in all media.

© ETSI 2018. All rights reserved.

DECTTM, PLUGTESTSTM, UMTSTM and the ETSI logo are trademarks of ETSI registered for the benefit of its Members. 3GPPTM and LTETM are trademarks of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners. oneM2M logo is protected for the benefit of its Members. GSM® and the GSM logo are trademarks registered and owned by the GSM Association. SIST EN 300 019-2-4 V2.5.1:2018

ETSI ETSI EN 300 019-2-4 V2.5.1 (2018-07)3 Contents Intellectual Property Rights ................................................................................................................................ 4 Foreword ............................................................................................................................................................. 4 Modal verbs terminology .................................................................................................................................... 4 1 Scope ........................................................................................................................................................ 5 2 References ................................................................................................................................................ 5 2.1 Normative references ......................................................................................................................................... 5 2.2 Informative references ........................................................................................................................................ 6 3 Definitions ................................................................................................................................................ 6 4 Environmental test specifications ............................................................................................................. 6 4.0 General ............................................................................................................................................................... 6 4.1 Equipment setup and configuration .................................................................................................................... 6 4.2 Performance criteria ........................................................................................................................................... 7 4.3 Specification T 4.1: non-weatherprotected locations, climatic tests ................................................................... 8 4.4 Specification T 4.1E: non-weatherprotected locations - extended, climatic tests ............................................. 10 4.5 Specification T 4.2L: non-weatherprotected locations - extremely cold, climatic tests ................................... 12 4.6 Specification T 4.2H: non-weatherprotected locations - extremely warm dry, climatic tests .......................... 14 4.7 Specification T 4.1, 4.1E, 4.2L and 4.2H: non-weatherprotected locations - mechanical tests ........................ 16 5 Earthquake test specification .................................................................................................................. 18 5.0 General ............................................................................................................................................................. 18 5.1 Vibration response investigation ...................................................................................................................... 18 5.2 Test conditioning .............................................................................................................................................. 18 Annex A (informative): Bibliography ................................................................................................... 21 History .............................................................................................................................................................. 22

SIST EN 300 019-2-4 V2.5.1:2018

ETSI ETSI EN 300 019-2-4 V2.5.1 (2018-07)4 Intellectual Property Rights Essential patents IPRs essential or potentially essential to normative deliverables may have been declared to ETSI. The information pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web server (https://ipr.etsi.org/). Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become, essential to the present document. Trademarks The present document may include trademarks and/or tradenames which are asserted and/or registered by their owners. ETSI claims no ownership of these except for any which are indicated as being the property of ETSI, and conveys no right to use or reproduce any trademark and/or tradename. Mention of those trademarks in the present document does not constitute an endorsement by ETSI of products, services or organizations associated with those trademarks. Foreword This European Standard (EN) has been produced by ETSI Technical Committee Environmental Engineering (EE). The present document is part 2, sub-part 4 of a multi-part deliverable. Full details of the entire series can be found in part 2, sub-part 0 [i.1].

National transposition dates Date of adoption of this EN: 28 June 2018 Date of latest announcement of this EN (doa): 30 September 2018 Date of latest publication of new National Standard or endorsement of this EN (dop/e):

31 March 2019 Date of withdrawal of any conflicting National Standard (dow): 31 March 2019

Modal verbs terminology In the present document "shall", "shall not", "should", "should not", "may", "need not", "will", "will not", "can" and "cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of provisions). "must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation. SIST EN 300 019-2-4 V2.5.1:2018

ETSI ETSI EN 300 019-2-4 V2.5.1 (2018-07)5 1 Scope The present document specifies test methods and severities for verification of the required resistibility of equipment according to the relevant environmental class. The tests defined in the present document apply to stationary use of equipment at non-weatherprotected locations covering the environmental conditions stated in ETSI EN 300 019-1-4 [1]. 2 References 2.1 Normative references References are either specific (identified by date of publication and/or edition number or version number) or non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the referenced document (including any amendments) applies. Referenced documents which are not found to be publicly available in the expected location might be found at http://docbox.etsi.org/Reference. NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee their long term validity. The following referenced documents are necessary for the application of the present document. [1] ETSI EN 300 019-1-4 (04-2014): "Environmental Engineering (EE); Environmental conditions and environmental tests for telecommunications equipment; Part 1-4: Classification of environmental conditions; Stationary use at non-weatherprotected locations". [2] IEC 60068-2-1 (03-2007): "Environmental testing - Part 2-1: Tests - Test A: Cold". [3] Void. [4] Void. [5] ATIS T1.0600329 (2014): "Network Equipment - Earthquake Resistance". [6] Void. [7] IEC 60068-2-2 (07-2007): "Environmental testing - Part 2-2: Tests - Test B: Dry heat". [8] IEC 60068-2-14 (01-2009): "Environmental testing - Part 2-14: Tests - Test N: Change of temperature". [9] IEC 60068-2-30 (08-2005): "Environmental testing - Part 2-30: Tests - Test Db: Damp heat, cyclic (12 h + 12 h cycle)". [10] IEC 60068-2-64 (04-2008): "Environmental testing - Part 2-64: Tests - Test Fh: Vibration, broadband random and guidance". [11] IEC 60068-2-27 (02-2008): "Environmental testing - Part 2-27: Tests - Test Ea and guidance: Shock". [12] IEC 60068-2-6 (12-2007): "Environmental testing - Part 2-6: Tests - Test Fc: Vibration (sinusoidal)". [13] IEC 60068-2-57 (04-2013): "Environmental testing - Part 2-57: Tests - Test Ff: Vibration - Time-history and sine-beat method". [14] Void. [15] IEC 60068-2-18 (03-2017): "Environmental testing - Part 2-18: Tests - Test R and guidance: Water". SIST EN 300 019-2-4 V2.5.1:2018

ETSI ETSI EN 300 019-2-4 V2.5.1 (2018-07)6 [16] IEC 60068-2-78 (10-2012): "Environmental testing - Part 2-78: Tests - Test Cab: Damp heat, steady state". [17] IEC 60068-2-11 (01-1981): "Basic environmental testing procedures - Part 2-11: Tests - Test Ka: Salt mist". 2.2 Informative references References are either specific (identified by date of publication and/or edition number or version number) or non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the referenced document (including any amendments) applies. NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee their long term validity. The following referenced documents are not necessary for the application of the present document but they assist the user with regard to a particular subject area. [i.1] ETSI EN 300 019-2-0: "Environmental Engineering (EE); Environmental conditions and environmental tests for telecommunications equipment; Part 2-0: Specification of environmental tests; Introduction". [i.2] IEC 60068-2-68 (08-1994): "Environmental testing - Part 2-68: Tests - Test L: Dust and sand". [i.3] IEC 60068-2 (all parts): "Environmental testing - Part 2: Tests". [i.4] ETSI EN 300 019-1-0: "Environmental Engineering (EE); Environmental conditions and environmental tests for telecommunications equipment; Part 1-0: Classification of environmental conditions; Introduction". 3 Definitions For the purposes of the present document, the terms and definitions given in ETSI EN 300 019-1-0 [i.4] apply. 4 Environmental test specifications 4.0 General The equipment shall be tested in its operational state throughout the test conditions described in the present document. The detailed descriptions of the environmental conditions are given in clauses 4 and 5 of ETSI EN 300 019-1-4 [1]. ETSI EN 300 019-2-0 [i.1] forms a general overview of part 2 of this multi-part deliverable. 4.1 Equipment setup and configuration The equipment shall be tested in its operational state throughout the test conditions described in the present document unless otherwise stated. Input and load conditions of the equipment shall be chosen to obtain full utilization of the equipment under test. The heat dissipation shall be maximized, except for the steady state, low temperature test, where it shall be minimized. SIST EN 300 019-2-4 V2.5.1:2018

ETSI ETSI EN 300 019-2-4 V2.5.1 (2018-07)7 4.2 Performance criteria The following performance criteria shall apply in the tests defined by the present document. Performance criterion A: The equipment shall function according to the manufacturer specifications before, during and after the tests. No degradation of performance or loss of function is allowed below the performance level specified by the manufacturer when the apparatus is used as intended. If the minimum performance level is not specified by the manufacturer, then this may be deduced from the product description and documentation and what the user may reasonably expect from the apparatus if used as intended. Performance criterion B: The equipment shall function according to the manufacturer specifications before and after the tests. During the test it is not required to monitor the equipment functionality. No degradation of performance or loss of function is allowed below the performance level specified by the manufacturer when the apparatus is used as intended. If the minimum performance level is not specified by the manufacturer, then this may be deduced from the product description and documentation and what the user may reasonably expect from the apparatus if used as intended. Performance criterion C: The equipment shall function according to the manufacturer specifications before and after the tests. No degradation of performance or loss of function is allowed below the performance level specified by the manufacturer when the apparatus is used as intended. If the minimum performance level is not specified by the manufacturer, then this may be deduced from the product description and documentation and what the user may reasonably expect from the apparatus if used as intended. During the application of the test, temporary loss of function is allowed but after the test the equipment shall restore to the normal functionality without replacement of components, manual rebooting or human intervention. The equipment shall sustain the test without permanent structural or mechanical damage. Performance criterion D: This performance criterion applies to the enclosure of the equipment. No corrosion traces (e.g. rust) or deterioration of the enclosure shall occur at the end of the test. SIST EN 300 019-2-4 V2.5.1:2018

ETSI ETSI EN 300 019-2-4 V2.5.1 (2018-07)8 4.3 Specification T 4.1: non-weatherprotected locations, climatic tests The specification in table 1 shall apply to non-weatherprotected locations described in ETSI EN 300 019-1-4 [1]. Table 1: Test specification T 4.1: Stationary use at non-weatherprotected locations - climatic tests Environmental parameter Environmental Class 4.1

Environmental test specification T 4.1: Stationary use, Non-weatherprotected locations Type Parameter Detail parameter Characteristic severity Test severity Duration Reference Method Performance criterion Notes Air temperature Low

(°C) -33 -33 or -45 16 h IEC 60068-2-1 [2] Ab/Ad/Ae: Cold A 1 High
(°C) +40 +40 or +55 16 h IEC 60068-2-2 [7] Bb/Bd/Be: Dry heat A 2 Change
(°C)
(°C/min)

0,5 -10 to +40 0,5 2 cycles t1 = 3 h IEC 60068-2-14 [8] Nb: Change of temperature A 3 Humidity Relative Low (%) 15 None

8 High (%)

(°C) 100 93 +30 10 d IEC 60068-2-78 [16] Cab: Damp heat steady state A 4 Condensation

(%)
(°C) Yes
90 to 100 +30
2 cycles
IEC 60068-2-30 [9]
Db: Damp heat, cyclic Variant 1
A 5 Absolute Low (g/m3) 0,26 None
High (g/m3) 25 None
6 Air Pressure Low (kPa) 70 None
7 High (kPa) 106 None
7 Speed
(m/s) 50 None

8 Water Rain Intensity 6 mm/min 0,01 m3/min 90 kPa 3 min/m2 or 15 min IEC 60068-2-18 [15] Rb: Impacting water, method 1.2 "spray nozzle"

B 9 Low temperature (°C) +5 None
Other sources
Splashing water None
10 Icing & frosting
Yes None
8 Radiation Solar
(W/m2) 1 120 None
11 Heat
(W/m2) Negligible None
Chemically active substances Sulphur SO2 (mg/m3) 0,3 to 1,0 None
12 H2S (mg/m3) 0,1 to 0,5 None

12 Chlorine Salt mist Sea and road salt 35 °C, 5 % NaCl solution 10 d IEC 60068-2-11 [17] Ka: Salt mist

D 12 Cl (mg/m3) 0,1 to 0,3 None
12 HCI (mg/m3) 0,1 to 0,5 None
12 Nitrogen NOx (mg/m3) 0,5 to 1,0 None
12 SIST EN 300 019-2-4 V2.5.1:2018

ETSI ETSI EN 300 019-2-4 V2.5.1 (2018-07)9 Environmental parameter Environmental Class 4.1

Environmental test specification T 4.1: Stationary use, Non-weatherprotected locations Type Parameter Detail parameter Characteristic severity Test severity Duration Reference Method Performance criterion Notes NH3 (mg/m3) 1,0 to 3,0 None

12 Hydrogen fluoride HF
(mg/m3) 0,01 to 0,03 None
12 Ozone O3
(mg/m3) 0,05 to 0,1 None
12 Mechanically
active substances Dust Sedimentation (mg/(m2h)) 20 None
13 Suspension (mg/m3) 5 None
13 Sand
(mg/m3) 300 None
13 Flora and fauna Micro organisms Mould, fungus, etc. None
14 Rodents, insects Rodents, etc. None

14 NOTE 1: (Air temperature, low). Two test temperatures are given, the lower test temperature shall apply if the equipment is protected against solar irradiation. The higher test temperature includes heat irradiation emitted from the equipment. The temperature cold start up test shall be performed according to the characteristic severity temperature, but it may be modified (within the class characteristic severity range) by the product specification. In this case, the cold start up test shall commence once low temperature stability is achieved. NOTE 2: (Air temperature, high). Two test temperatures are given, the lower test temperature shall apply if the equipment is protected against solar radiation or the equipment is ventilated (natural or forced). The higher test temperature includes the heating effects of solar radiation. The temperature start up test shall be performed according to the characteristic severity temperature, but it may be modified (within the class characteristic severity range) by the product specification. In this case, the high temperature start up test shall commence once high temperature stability is achieved. NOTE 3: (Air temperature, change). This test is intended for specimen with large thermal time constant. For equipment where the rapid change of temperature of the surface has a significant effect on internal components, the values of the change of temperature up to 5 °C/min can be applied. NOTE 4: (Humidity, relative high). IEC 60068-2-78 [16] Test Cab shall be used with test severities not higher than climatogram limits for this class. NOTE 5: (Condensation). IEC 60068-2-30 [9] Test Db shall be used with test severities not higher than climatogram limits for this class. NOTE 6: (Humidity, absolute, high). This effect is considered to be partly included in the damp heat test IEC 60068-2-78 [16] Test Cab. NOTE 7: (Air pressure, low and high). No test is required for normal applications, because the effect of air pressure is evaluated at the component level. NOTE 8: There is no IEC 60068-2 [i.3] series test for this parameter. NOTE 9: (Water, rain). IEC 60068-2-18 [15] Test Rb method 1.2 "Spay nozzle" has been chosen even if it does not imitate normal rain. It is a simple hand held shower test, easy to perform and can demonstrate that the specimen design is adequately toleranced to survive this condition. The cooling effect of the low temperature of the rain is included in IEC 60068-2-14 [8] Test Nb. Two durations are given, whichever is the greatest should be chosen. NOTE 10: (Water, other sources). No test is required because the effect is already included in IEC 60068-2-18 [15] Test Rb. NOTE 11: (Radiation). The heating effect of solar radiation is included in the higher test temperature in IEC 60068-2-2 [7] Test Bb as described in note 2. Photochemical tests can be performed separately for component and materials. NOTE 12: (Chemically active substances). Characteristic severities are mean/maximum values. The characteristic severities should be considered when designing the equipment and when choosing components and materials. No test is required in the present document, except for the mechanical enclosures, where the salt mist test is required to be performed. The execution of this test can be performed on the entire enclosure or subparts of the enclosure if the results are not affected. NOTE 13: (Mechanically active substances). The characteristic severities are much lower than the lowest test severity in IEC 60068-2-68 [i.2] Test L and therefore no test is required. This condition should be considered when designing the equipment and choosing components and materials.

NOTE 14: (Flora and fauna). The characteristic severities should be considered when choosing components and materials.

SIST EN 300 019-2-4 V2.5.1:2018

ETSI ETSI EN 300 019-2-4 V2.5.1 (2018-07)10 4.4 Specification T 4.1E: non-weatherprotected locations - extended, climatic tests The specification in table 2 shall apply to non-weatherprotected locations - extended as described in ETSI EN 300 019-1-4 [1]. Table 2: Test specification T 4.1E: Stationary use at non-weatherprotected locations, extended - climatic tests Environmental parameter Environmental Class 4.1E

Environmental test specification T 4.1E: Stationary use Non-weatherprotected locations - extended Type Parameter Detail parameter Characteristic severity Test severity Duration Reference Method Performance criterion Notes Air temperature Low

(°C) -45 -45 or -55 16 h IEC 60068-2-1 [2] Ab/Ad/Ae: Cold A 1 High
(°C) +45 +45 or +60 16 h IEC 60068-2-2 [7] Bb/Bd/Be: Dry heat A 2 Change
(°C)
(°C/min)

0,5 -10 to +45 0,5 2 cycles t1 = 3 h IEC 60068-2-14 [8] Nb: Change of temperature A 3 Humidity Relative Low (%) 8 None

8 High (%)
(°C) 100 93 +30 10 d
IEC 60068-2-78 [16] Cab: Damp heat steady state A 4 Condensation
(%)
(°C) Yes

90 to 100 +30 2 cycles IEC 60068-2-30 [9] Db: Damp heat cyclic Variant 1 A 5 Absolute Low (g/m3) 0,03 None

6 High (g/m3) 30 None
Air Pressure Low (kPa) 70 None
7 High (kPa) 106 None
7 Speed
(m/s) 50 None

8 Water Rain Intensity 15 mm/min 0,01 m3/min 90 kPa 6 min/m2 or 30 min IEC 60068-2-18 [15] Rb: Impacting water, method 1.2 "spray nozzle" B 9 Low temperature (°C) +5 None

Other sources
Splashing water None
10 Icing & frosting
Yes None
8 Radiation Solar
(W/m2) 1 120 None
11 Heat
(W/m2) Negligible None
Chemically active substances Sulphur SO2 (mg/m3) 0,3 to 1,0 None
12 H2S (mg/m3) 0,1 to 0,5 None

12 Chlorine Salt mist Sea and road salt 35 °C, 5 % NaCl solution 10 d IEC 60068-2-11 [17] Ka: Salt mist D 12 Cl (mg/m3) 0,1 to 0,3 None

12 HCI (mg/m3) 0,1 to 0,5 None
12 Nitrogen NOx (mg/m3) 0,5 to 1,0 None
12 NH3 (mg/m3) 1,0 to 3,0 None
12 SIST EN 300 019-2-4 V2.5.1:2018

ETSI ETSI EN 300 019-2-4 V2.5.1 (2018-07)11 Environmental parameter Environmental Class 4.1E

Environmental test specification T 4.1E: Stationary use Non-weatherprotected locations - extended Type Parameter Detail parameter Characteristic severity Test severity Duration Reference Method Performance criterion Notes Hydrogen fluoride HF

(mg/m3) 0,01 to 0,03 None
12 Ozone O3
(mg/m3) 0,05 to 0,1 None
12 Mechanically
active substances Dust Sedimentation (mg/(m2h)) 20 None
13 Suspension (mg/m3) 5 None
13 Sand
(mg/m3) 300 None
13 Flora and fauna Micro organisms Mould, fungus, etc. None
14 Rodents, insects Rodents, etc. None

14 NOTE 1: (Air temperature, low). Two test temperatures are given, the lower test temperature shall apply if the equipment is protected against solar irradiation. The higher test temperature includes heat irradiation emitted from the equipment. The temperature cold start up test shall be performed according to the characteristic severity temperature, but it may be modified (within the class characteristic severity range) by the product specification. In this case, the cold start up test shall commence once low temperature stability is achieved. NOTE 2: (Air temperature, high). Two test temperatures are given, the lower test temperature shall apply if the equipment is protected against solar radiation or the equipment is ventilated (natural or forced). The higher test temperature includes the heating effects of solar radiation. The temperature start up test shall be performed according to the characteristic severity temperature, but it may be modified (within the class characteristic severity range) by the product specification. In this case, the high temperature start up test shall commence once high temperature stability is achieved. NOTE 3: (Air temperature, change). This test is intended for specimen with large thermal time constant. For equipment where the rapid change of temperature of the surface has a significant effect on internal components, the values of the change of temperature up to 5 °C/min can be applied. NOTE 4: (Humidity, relative high). IEC 60068-2-78 [16] Test Cab is shall be used with test severities not higher than climatogram limits for this class. NOTE 5: (Condensation). IEC 60068-2-30 [9] Test Db shall be used with test severities not higher than climatogram limits for this class. NOTE 6: (Humidity, absolute, high). This effect is considered to be partly included in the damp heat test IEC 60068-2-78 [16] Test Cab. NOTE 7:

(Air pressure, low and high). No test is required for normal applications, because the effect of air pressure is evaluated at the component level. NOTE 8: There is no IEC 60068-2 [i.3] series test for this parameter. NOTE 9: (Water, rain). IEC 60068-2-18 [15] Test Rb method 1.2 "Spray nozzle" has been chosen even if it does not imitate normal rain. It is a simple hand held shower test, easy to perform and can demonstrate that the specimen design is adequately toleranced to survive this condition. The cooling effect of the low temperature of the rain is included in IEC 60068-2-14 [8] Test Nb. Two durations are given, whichever is the greatest should be chosen. NOTE 10: (Water, other sources). No test is required because the effect is already included in IEC 60068-2-18 [15] Test Rb. NOTE 11: (Radiation). The heating effect of solar radiation is included in the higher test temperature in IEC 60068-2-2 [7] Test Bb as described in note 2. Photochemical tests can be performed separately for component and materials. NOTE 12: (Chemically active substances). Characteristic severities are mean/maximum values. The characteristic severities should be considered when designing the equipment and when choosing components and materials. No test is required in the present document, except for the mechanical enclosures, where the salt mist test is required to be performed. The execution of this test can be performed on the entire enclosure or subparts of the enclosure if the results are not affected. NOTE 13: (Mechanically active substances). The characteristic severities are much lower than the lowest test severity in IEC 60068-2-68 [i.2] Test L and therefore no test is required. This condition should be considered when designing the equipment and choosing components and materials.

NOTE 14: (Flora and fauna). The characteristic severities should be considered when choosing components and materials.

SIST EN 300 019-2-4 V2.5.1:2018

ETSI ETSI EN 300 019-2-4 V2.5.1 (2018-07)12 4.5 Specification T 4.2L: non-weatherprotected locations - extremely cold, climatic tests The specification in table 3 shall apply to non-weatherprotected locations - extremely cold as described in ETSI EN 300 019-1-4 [1] (see table 3). Table 3: Test specification T 4.2L: Stationary use at non-weatherprotected locations, extremely cold - climatic tests Environmental parameter Environmental Class 4.2L

Environmental test specification T 4.2L: Stationary use Non-weatherprotected locations - extremely cold Type Parameter Detail parameter Characteristic severity Test severity Duration Reference Method Performance criterion Notes Air temperature Low

(°C) -65 -65 or -75 16 h IEC 60068-2-1 [2] Ab/Ad/Ae: Cold A 1 High
(°C) +35 +35 or +50 16 h IEC 60068-2-2 [7] Bb/Bd/Be: Dry heat A 2 Change
(°C)
(°C/min)
0,5 -10 to +45 0,5 2 cycles t1 = 3 h IEC 60068-2-14 [8] Nb: Change of temperatur
...

ETSI EN 300 019-2-4 V2.5.1 (2018-07)
EUROPEAN STANDARD
Environmental Engineering (EE);
Environmental conditions and environmental tests
for telecommunications equipment;
Part 2-4: Specification of environmental tests;
Stationary use at non-weatherprotected locations
---------------------- Page: 1 ----------------------

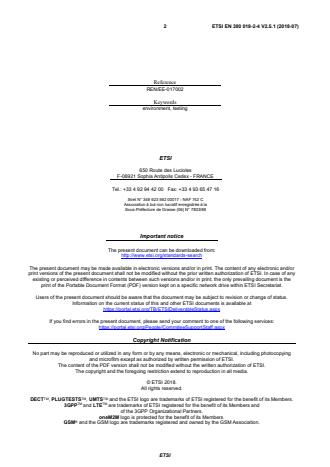

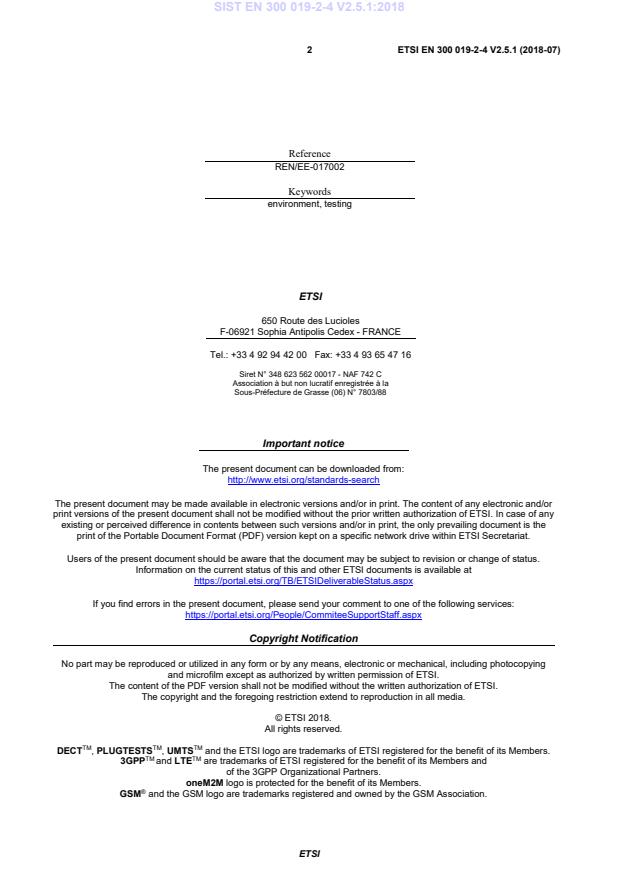

2 ETSI EN 300 019-2-4 V2.5.1 (2018-07)
Reference
REN/EE-017002
Keywords
environment, testing
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88
Important notice
The present document can be downloaded from:
http://www.etsi.org/standards-search

The present document may be made available in electronic versions and/or in print. The content of any electronic and/or

print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any

existing or perceived difference in contents between such versions and/or in print, the only prevailing document is the

print of the Portable Document Format (PDF) version kept on a specific network drive within ETSI Secretariat.

Users of the present document should be aware that the document may be subject to revision or change of status.

Information on the current status of this and other ETSI documents is available at

https://portal.etsi.org/TB/ETSIDeliverableStatus.aspx

If you find errors in the present document, please send your comment to one of the following services:

https://portal.etsi.org/People/CommiteeSupportStaff.aspx
Copyright Notification

No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying

and microfilm except as authorized by written permission of ETSI.

The content of the PDF version shall not be modified without the written authorization of ETSI.

The copyright and the foregoing restriction extend to reproduction in all media.
© ETSI 2018.
All rights reserved.
TM TM TM

DECT , PLUGTESTS , UMTS and the ETSI logo are trademarks of ETSI registered for the benefit of its Members.

TM TM

3GPP and LTE are trademarks of ETSI registered for the benefit of its Members and

of the 3GPP Organizational Partners.
oneM2M logo is protected for the benefit of its Members.
GSM and the GSM logo are trademarks registered and owned by the GSM Association.
ETSI
---------------------- Page: 2 ----------------------
3 ETSI EN 300 019-2-4 V2.5.1 (2018-07)
Contents

Intellectual Property Rights ................................................................................................................................ 4

Foreword ............................................................................................................................................................. 4

Modal verbs terminology .................................................................................................................................... 4

1 Scope ........................................................................................................................................................ 5

2 References ................................................................................................................................................ 5

2.1 Normative references ......................................................................................................................................... 5

2.2 Informative references ........................................................................................................................................ 6

3 Definitions ................................................................................................................................................ 6

4 Environmental test specifications ............................................................................................................. 6

4.0 General ............................................................................................................................................................... 6

4.1 Equipment setup and configuration .................................................................................................................... 6

4.2 Performance criteria ........................................................................................................................................... 7

4.3 Specification T 4.1: non-weatherprotected locations, climatic tests ................................................................... 8

4.4 Specification T 4.1E: non-weatherprotected locations - extended, climatic tests ............................................. 10

4.5 Specification T 4.2L: non-weatherprotected locations - extremely cold, climatic tests ................................... 12

4.6 Specification T 4.2H: non-weatherprotected locations - extremely warm dry, climatic tests .......................... 14

4.7 Specification T 4.1, 4.1E, 4.2L and 4.2H: non-weatherprotected locations - mechanical tests ........................ 16

5 Earthquake test specification .................................................................................................................. 18

5.0 General ............................................................................................................................................................. 18

5.1 Vibration response investigation ...................................................................................................................... 18

5.2 Test conditioning .............................................................................................................................................. 18

Annex A (informative): Bibliography ................................................................................................... 21

History .............................................................................................................................................................. 22

ETSI
---------------------- Page: 3 ----------------------

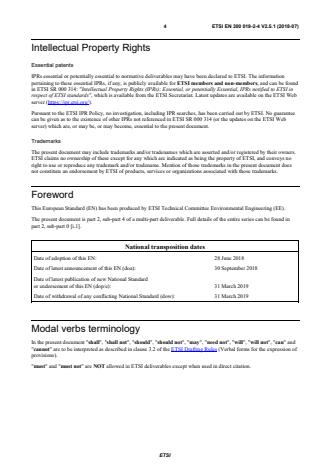

4 ETSI EN 300 019-2-4 V2.5.1 (2018-07)

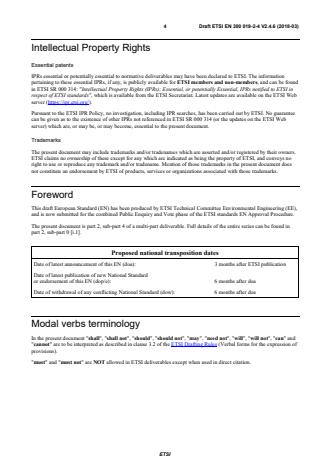

Intellectual Property Rights
Essential patents

IPRs essential or potentially essential to normative deliverables may have been declared to ETSI. The information

pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found

in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in

respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web

server (https://ipr.etsi.org/).

Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee

can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web

server) which are, or may be, or may become, essential to the present document.
Trademarks

The present document may include trademarks and/or tradenames which are asserted and/or registered by their owners.

ETSI claims no ownership of these except for any which are indicated as being the property of ETSI, and conveys no

right to use or reproduce any trademark and/or tradename. Mention of those trademarks in the present document does

not constitute an endorsement by ETSI of products, services or organizations associated with those trademarks.

Foreword

This European Standard (EN) has been produced by ETSI Technical Committee Environmental Engineering (EE).

The present document is part 2, sub-part 4 of a multi-part deliverable. Full details of the entire series can be found in

part 2, sub-part 0 [i.1].
National transposition dates
Date of adoption of this EN: 28 June 2018
Date of latest announcement of this EN (doa): 30 September 2018
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 31 March 2019
Date of withdrawal of any conflicting National Standard (dow): 31 March 2019
Modal verbs terminology

In the present document "shall", "shall not", "should", "should not", "may", "need not", "will", "will not", "can" and

"cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of

provisions).

"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.

ETSI
---------------------- Page: 4 ----------------------
5 ETSI EN 300 019-2-4 V2.5.1 (2018-07)
1 Scope

The present document specifies test methods and severities for verification of the required resistibility of equipment

according to the relevant environmental class.

The tests defined in the present document apply to stationary use of equipment at non-weatherprotected locations

covering the environmental conditions stated in ETSI EN 300 019-1-4 [1].
2 References
2.1 Normative references

References are either specific (identified by date of publication and/or edition number or version number) or

non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the

referenced document (including any amendments) applies.

Referenced documents which are not found to be publicly available in the expected location might be found at

http://docbox.etsi.org/Reference.

NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee

their long term validity.

The following referenced documents are necessary for the application of the present document.

[1] ETSI EN 300 019-1-4 (04-2014): "Environmental Engineering (EE); Environmental conditions

and environmental tests for telecommunications equipment; Part 1-4: Classification of

environmental conditions; Stationary use at non-weatherprotected locations".

[2] IEC 60068-2-1 (03-2007): "Environmental testing - Part 2-1: Tests - Test A: Cold".

[3] Void.
[4] Void.
[5] ATIS T1.0600329 (2014): "Network Equipment - Earthquake Resistance".
[6] Void.

[7] IEC 60068-2-2 (07-2007): "Environmental testing - Part 2-2: Tests - Test B: Dry heat".

[8] IEC 60068-2-14 (01-2009): "Environmental testing - Part 2-14: Tests - Test N: Change of

temperature".

[9] IEC 60068-2-30 (08-2005): "Environmental testing - Part 2-30: Tests - Test Db: Damp heat, cyclic

(12 h + 12 h cycle)".

[10] IEC 60068-2-64 (04-2008): "Environmental testing - Part 2-64: Tests - Test Fh: Vibration,

broadband random and guidance".

[11] IEC 60068-2-27 (02-2008): "Environmental testing - Part 2-27: Tests - Test Ea and guidance:

Shock".

[12] IEC 60068-2-6 (12-2007): "Environmental testing - Part 2-6: Tests - Test Fc: Vibration

(sinusoidal)".

[13] IEC 60068-2-57 (04-2013): "Environmental testing - Part 2-57: Tests - Test Ff: Vibration -

Time-history and sine-beat method".
[14] Void.

[15] IEC 60068-2-18 (03-2017): "Environmental testing - Part 2-18: Tests - Test R and guidance:

Water".
ETSI
---------------------- Page: 5 ----------------------
6 ETSI EN 300 019-2-4 V2.5.1 (2018-07)

[16] IEC 60068-2-78 (10-2012): "Environmental testing - Part 2-78: Tests - Test Cab: Damp heat,

steady state".

[17] IEC 60068-2-11 (01-1981): "Basic environmental testing procedures - Part 2-11: Tests - Test Ka:

Salt mist".
2.2 Informative references

References are either specific (identified by date of publication and/or edition number or version number) or

non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the

referenced document (including any amendments) applies.

NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee

their long term validity.

The following referenced documents are not necessary for the application of the present document but they assist the

user with regard to a particular subject area.

[i.1] ETSI EN 300 019-2-0: "Environmental Engineering (EE); Environmental conditions and

environmental tests for telecommunications equipment; Part 2-0: Specification of environmental

tests; Introduction".

[i.2] IEC 60068-2-68 (08-1994): "Environmental testing - Part 2-68: Tests - Test L: Dust and sand".

[i.3] IEC 60068-2 (all parts): "Environmental testing - Part 2: Tests".

[i.4] ETSI EN 300 019-1-0: "Environmental Engineering (EE); Environmental conditions and

environmental tests for telecommunications equipment; Part 1-0: Classification of environmental

conditions; Introduction".
3 Definitions

For the purposes of the present document, the terms and definitions given in ETSI EN 300 019-1-0 [i.4] apply.

4 Environmental test specifications
4.0 General

The equipment shall be tested in its operational state throughout the test conditions described in the present document.

The detailed descriptions of the environmental conditions are given in clauses 4 and 5 of ETSI EN 300 019-1-4 [1].

ETSI EN 300 019-2-0 [i.1] forms a general overview of part 2 of this multi-part deliverable.

4.1 Equipment setup and configuration

The equipment shall be tested in its operational state throughout the test conditions described in the present document

unless otherwise stated. Input and load conditions of the equipment shall be chosen to obtain full utilization of the

equipment under test. The heat dissipation shall be maximized, except for the steady state, low temperature test, where

it shall be minimized.
ETSI
---------------------- Page: 6 ----------------------
7 ETSI EN 300 019-2-4 V2.5.1 (2018-07)
4.2 Performance criteria

The following performance criteria shall apply in the tests defined by the present document.

Performance criterion A:

The equipment shall function according to the manufacturer specifications before, during and after the tests. No

degradation of performance or loss of function is allowed below the performance level specified by the manufacturer

when the apparatus is used as intended. If the minimum performance level is not specified by the manufacturer, then

this may be deduced from the product description and documentation and what the user may reasonably expect from the

apparatus if used as intended.
Performance criterion B:

The equipment shall function according to the manufacturer specifications before and after the tests. During the test it is

not required to monitor the equipment functionality. No degradation of performance or loss of function is allowed

below the performance level specified by the manufacturer when the apparatus is used as intended. If the minimum

performance level is not specified by the manufacturer, then this may be deduced from the product description and

documentation and what the user may reasonably expect from the apparatus if used as intended.

Performance criterion C:

The equipment shall function according to the manufacturer specifications before and after the tests. No degradation of

performance or loss of function is allowed below the performance level specified by the manufacturer when the

apparatus is used as intended. If the minimum performance level is not specified by the manufacturer, then this may be

deduced from the product description and documentation and what the user may reasonably expect from the apparatus if

used as intended.

During the application of the test, temporary loss of function is allowed but after the test the equipment shall restore to

the normal functionality without replacement of components, manual rebooting or human intervention.

The equipment shall sustain the test without permanent structural or mechanical damage.

Performance criterion D:

This performance criterion applies to the enclosure of the equipment. No corrosion traces (e.g. rust) or deterioration of

the enclosure shall occur at the end of the test.
ETSI
---------------------- Page: 7 ----------------------
8 ETSI EN 300 019-2-4 V2.5.1 (2018-07)
4.3 Specification T 4.1: non-weatherprotected locations, climatic tests

The specification in table 1 shall apply to non-weatherprotected locations described in ETSI EN 300 019-1-4 [1].

Table 1: Test specification T 4.1: Stationary use at non-weatherprotected locations - climatic tests

Environmental parameter Environmental Environmental test specification T 4.1: Stationary use,

Class 4.1 Non-weatherprotected locations

Type Parameter Detail parameter Characteristic Test Duration Reference Method Performance Notes

severity severity criterion
Low (°C) -33 -33 or -45 16 h IEC 60068-2-1 [2] Ab/Ad/Ae: Cold A 1
High (°C) +40 +40 or +55 16 h IEC 60068-2-2 [7] Bb/Bd/Be: Dry heat A 2
Air
temperature (°C) -10 to +40 2 cycles IEC 60068-2-14 [8] Nb: Change of A 3
Change
(°C/min) 0,5 0,5 t = 3 h temperature
Low (%) 15 None 8
High (%) 100 93 10 d IEC 60068-2-78 [16] Cab: Damp heat A 4
(°C) +30 steady state
Relative
Condensation Yes 5
Humidity
(%) 90 to 100 2 cycles IEC 60068-2-30 [9] Db: Damp heat, cyclic A
(°C) +30 Variant 1
0,26 None
Low (g/m )
Absolute
25 None 6
High (g/m )
Low (kPa) 70 None 7
Pressure
Air High (kPa) 106 None 7
Speed (m/s) 50 None 8
3 2
Intensity 6 mm/min IEC 60068-2-18 [15] Rb: Impacting water, 9
0,01 m /min 3 min/m
method 1.2 "spray B
90 kPa or 15 min
Rain
nozzle"
Low temperature (°C) +5 None
Water
Other Splashing water None 10
sources
Icing & Yes None 8
frosting
Solar 1 120 None 11
(W/m )
Radiation
Heat Negligible None
(W/m )
0,3 to 1,0 None 12
SO (mg/m )
Sulphur
0,1 to 0,5 None 12
HS (mg/m )
Chemically

Salt mist Sea and road salt 35 °C, 5 % 10 d IEC 60068-2-11 [17] Ka: Salt mist 12

active NaCl solution D
Chlorine
substances
0,1 to 0,3 None 12
Cl (mg/m )
0,1 to 0,5 None 12
HCI (mg/m )
0,5 to 1,0 None 12
NO (mg/m )
Nitrogen
ETSI
---------------------- Page: 8 ----------------------
9 ETSI EN 300 019-2-4 V2.5.1 (2018-07)

Environmental parameter Environmental Environmental test specification T 4.1: Stationary use,

Class 4.1 Non-weatherprotected locations

Type Parameter Detail parameter Characteristic Test Duration Reference Method Performance Notes

severity severity criterion
1,0 to 3,0 None 12
NH (mg/m )
Hydrogen 0,01 to 0,03 None 12
(mg/m )
fluoride HF
0,05 to 0,1 None 12
Ozone O
(mg/m )
Sedimentation 20 None 13
Mechanically
Dust (mg/(m h))
active
5 None 13
Suspension (mg/m )
substances
300 None 13
Sand (mg/m )
Micro organisms Mould, fungus, etc. None 14
Flora and
fauna Rodents, insects Rodents, etc. None 14

NOTE 1: (Air temperature, low). Two test temperatures are given, the lower test temperature shall apply if the equipment is protected against solar irradiation. The higher

test temperature includes heat irradiation emitted from the equipment. The temperature cold start up test shall be performed according to the characteristic severity

temperature, but it may be modified (within the class characteristic severity range) by the product specification. In this case, the cold start up test shall commence

once low temperature stability is achieved.

NOTE 2: (Air temperature, high). Two test temperatures are given, the lower test temperature shall apply if the equipment is protected against solar radiation or the

equipment is ventilated (natural or forced). The higher test temperature includes the heating effects of solar radiation. The temperature start up test shall be

performed according to the characteristic severity temperature, but it may be modified (within the class characteristic severity range) by the product specification. In

this case, the high temperature start up test shall commence once high temperature stability is achieved.

NOTE 3: (Air temperature, change). This test is intended for specimen with large thermal time constant. For equipment where the rapid change of temperature of the surface

has a significant effect on internal components, the values of the change of temperature up to 5 °C/min can be applied.

NOTE 4: (Humidity, relative high). IEC 60068-2-78 [16] Test Cab shall be used with test severities not higher than climatogram limits for this class.

NOTE 5: (Condensation). IEC 60068-2-30 [9] Test Db shall be used with test severities not higher than climatogram limits for this class.

NOTE 6: (Humidity, absolute, high). This effect is considered to be partly included in the damp heat test IEC 60068-2-78 [16] Test Cab.

NOTE 7: (Air pressure, low and high). No test is required for normal applications, because the effect of air pressure is evaluated at the component level.

NOTE 8: There is no IEC 60068-2 [i.3] series test for this parameter.

NOTE 9: (Water, rain). IEC 60068-2-18 [15] Test Rb method 1.2 "Spay nozzle" has been chosen even if it does not imitate normal rain. It is a simple hand held shower test,

easy to perform and can demonstrate that the specimen design is adequately toleranced to survive this condition. The cooling effect of the low temperature of the

rain is included in IEC 60068-2-14 [8] Test Nb. Two durations are given, whichever is the greatest should be chosen.

NOTE 10: (Water, other sources). No test is required because the effect is already included in IEC 60068-2-18 [15] Test Rb.

NOTE 11: (Radiation). The heating effect of solar radiation is included in the higher test temperature in IEC 60068-2-2 [7] Test Bb as described in note 2. Photochemical tests

can be performed separately for component and materials.

NOTE 12: (Chemically active substances). Characteristic severities are mean/maximum values. The characteristic severities should be considered when designing the

equipment and when choosing components and materials. No test is required in the present document, except for the mechanical enclosures, where the salt mist

test is required to be performed. The execution of this test can be performed on the entire enclosure or subparts of the enclosure if the results are not affected.

NOTE 13: (Mechanically active substances). The characteristic severities are much lower than the lowest test severity in IEC 60068-2-68 [i.2] Test L and therefore no test is

required. This condition should be considered when designing the equipment and choosing components and materials.

NOTE 14: (Flora and fauna). The characteristic severities should be considered when choosing components and materials.

ETSI
---------------------- Page: 9 ----------------------
10 ETSI EN 300 019-2-4 V2.5.1 (2018-07)

4.4 Specification T 4.1E: non-weatherprotected locations - extended, climatic tests

The specification in table 2 shall apply to non-weatherprotected locations - extended as described in ETSI EN 300 019-1-4 [1].

Table 2: Test specification T 4.1E: Stationary use at non-weatherprotected locations, extended - climatic tests

Environmental parameter Environmental Environmental test specification T 4.1E: Stationary use

Class 4.1E Non-weatherprotected locations - extended

Type Parameter Detail parameter Characteristic Test severity Duration Reference Method Performance Notes

severity criterion
Low (°C) -45 -45 or -55 16 h IEC 60068-2-1 [2] Ab/Ad/Ae: Cold A 1
Air High (°C) +45 +45 or +60 16 h IEC 60068-2-2 [7] Bb/Bd/Be: Dry heat A 2
temperature
(°C) -10 to +45 2 cycles IEC 60068-2-14 [8] Nb: Change of A 3
Change
(°C/min) 0,5 0,5 t1 = 3 h temperature
Low (%) 8 None 8
High (%) 100 93 10 d IEC 60068-2-78 [16] Cab: Damp heat A 4
(°C) +30 steady state
Relative
Condensation Yes 2 cycles IEC 60068-2-30 [9] Db: Damp heat cyclic A 5
Humidity
(%) 90 to 100 Variant 1
(°C) +30
0,03 None 6
Low (g/m )
Absolute
30 None
High (g/m )
Low (kPa) 70 None 7
Pressure
Air High (kPa) 106 None 7
Speed (m/s) 50 None 8
3 2
Intensity 15 mm/min IEC 60068-2-18 [15] Rb: Impacting water, B 9
0,01 m
/min 90 kPa 6 min/m or 30 min
method 1.2 "spray
Rain
nozzle"
Water
Low temperature (°C) +5 None
Other sources Splashing water None 10
Icing & frosting Yes None 8
1 120 None 11
Solar
(W/m )
Radiation
Heat Negligible None
(W/m )
0,3 to 1,0 None 12
SO (mg/m )
Sulphur
0,1 to 0,5 None 12
HS (mg/m )

Salt mist Sea and road 35 °C, 5 % NaCl 10 d IEC 60068-2-11 [17] Ka: Salt mist D 12

Chemically
salt solution
active Chlorine
0,1 to 0,3 None 12
Cl (mg/m )
substances
0,1 to 0,5 None 12
HCI (mg/m )
0,5 to 1,0 None 12
NO (mg/m )
Nitrogen
1,0 to 3,0 None 12
NH (mg/m )
ETSI
---------------------- Page: 10 ----------------------
11 ETSI EN 300 019-2-4 V2.5.1 (2018-07)

Environmental parameter Environmental Environmental test specification T 4.1E: Stationary use

Class 4.1E Non-weatherprotected locations - extended

Type Parameter Detail parameter Characteristic Test severity Duration Reference Method Performance Notes

severity criterion
Hydrogen 0,01 to 0,03 None 12
(mg/m )
fluoride HF
Ozone O 0,05 to 0,1 None 12
(mg/m )
Sedimentation 20 None 13
Mechanically
Dust (mg/(m h))
active
5 None 13
Suspension (mg/m )
substances
300 None 13
Sand (mg/m )
Micro organisms Mould, fungus, None 14
Flora and
etc.
fauna
Rodents, insects Rodents, etc. None 14

NOTE 1: (Air temperature, low). Two test temperatures are given, the lower test temperature shall apply if the equipment is protected against solar irradiation. The higher test temperature

includes heat irradiation emitted from the equipment. The temperature cold start up test shall be performed according to the characteristic severity temperature, but it may be

modified (within the class characteristic severity range) by the product specification. In this case, the cold start up test shall commence once low temperature stability is achieved.

NOTE 2: (Air temperature, high). Two test temperatures are given, the lower test temperature shall apply if the equipment is protected against solar radiation or the equipment is ventilated

(natural or forced). The higher test temperature includes the heating effects of solar radiation. The temperature start up test shall be performed according to the characteristic

severity temperature, but it may be modified (within the class characteristic severity range) by the product specification. In this case, the high temperature start up test shall

commence once high temperature stability is achieved.

NOTE 3: (Air temperature, change). This test is intended for specimen with large thermal time constant. For equipment where the rapid change of temperature of the surface has a

significant effect on internal components, the values of the change of temperature up to 5 °C/min can be applied.

NOTE 4: (Humidity, relative high). IEC 60068-2-78 [16] Test Cab is shall be used with test severities not higher than climatogram limits for this class.

NOTE 5: (Condensation). IEC 60068-2-30 [9] Test Db shall be used with test severities not higher than climatogram limits for this class.

NOTE 6: (Humidity, absolute, high). This effect is considered to be partly included in the damp heat test IEC 60068-2-78 [16] Test Cab.

NOTE 7: (Air pressure, low and high). No test is required for normal applications, because the effect of air pressure is evaluated at the component level.

NOTE 8: There is no IEC 60068-2 [i.3] series test for this parameter.

NOTE 9: (Water, rain). IEC 60068-2-18 [15] Test Rb method 1.2 "Spray nozzle" has been chosen even if it does not imitate normal rain. It is a simple hand held shower test, easy to

perform and can demonstrate that the specimen design is adequately toleranced to survive this condition. The cooling effect of the low temperature of the rain is included in

IEC 60068-2-14 [8] Test Nb. Two durations are given, whichever is the greatest should be chosen.

NOTE 10: (Water, other sources). No test is required because the effect is already included in IEC 60068-2-18 [15] Test Rb.

NOTE 11: (Radiation). The heating effect of solar radiation is included in the higher test temperature in IEC 60068-2-2 [7] Test Bb as described in note 2. Photochemical tests can be

performed separately for component and materials.

NOTE 12: (Chemically active substances). Characteristic severities are mean/maximum values. The characteristic severities should be considered when designing the equipment and

when choosing components and materials. No test is required in the present document, except for the mechanical enclosures, where the salt mist test is required to be

performed. The execution of this test can be performed on the entire enclosure or subparts of the enclosure if the results are not affected.

NOTE 13: (Mechanically active substances). The characteristic severities are much lower than the lowest test severity in IEC 60068-2-68 [i.2] Test L and therefore no test is required. This

condition should be considered when designing the equipment and choosing components and materials.

NOTE 14: (Flora and fauna). The characteristic severities should be considered when choosing components and materials.

ETSI
---------------------- Page: 11 ----------------------
12 ETSI EN 300 019-2-4 V2.5.1 (2018-07)

4.5 Specification T 4.2L: non-weatherprotected locations - extremely cold, climatic tests

The specification in table 3 shall apply to non-weatherprotected locations - extremely cold as described in ETSI EN 300 019-1-4 [1] (see table 3).

Table 3: Test specification T 4.2L: Stationary use at non-weatherprotected locations, extremely cold - climatic tests

Environmental parameter Environmental Environmental test specification T 4.2L: Stationary use

Class 4.2L Non-weatherprotected locations - extremely cold
Type Pa
...

Draft ETSI EN 300 019-2-4 V2.4.6 (2018-03)
EUROPEAN STANDARD
Environmental Engineering (EE);
Environmental conditions and environmental tests
for telecommunications equipment;
Part 2-4: Specification of environmental tests;
Stationary use at non-weatherprotected locations
---------------------- Page: 1 ----------------------
2 Draft ETSI EN 300 019-2-4 V2.4.6 (2018-03)
Reference
REN/EE-017002
Keywords
environment, testing
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88
Important notice
The present document can be downloaded from:
http://www.etsi.org/standards-search

The present document may be made available in electronic versions and/or in print. The content of any electronic and/or

print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any

existing or perceived difference in contents between such versions and/or in print, the only prevailing document is the

print of the Portable Document Format (PDF) version kept on a specific network drive within ETSI Secretariat.

Users of the present document should be aware that the document may be subject to revision or change of status.

Information on the current status of this and other ETSI documents is available at

https://portal.etsi.org/TB/ETSIDeliverableStatus.aspx

If you find errors in the present document, please send your comment to one of the following services:

https://portal.etsi.org/People/CommiteeSupportStaff.aspx
Copyright Notification

No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying

and microfilm except as authorized by written permission of ETSI.

The content of the PDF version shall not be modified without the written authorization of ETSI.

The copyright and the foregoing restriction extend to reproduction in all media.
© ETSI 2018.
All rights reserved.
TM TM TM

DECT , PLUGTESTS , UMTS and the ETSI logo are trademarks of ETSI registered for the benefit of its Members.

TM TM

3GPP and LTE are trademarks of ETSI registered for the benefit of its Members and

of the 3GPP Organizational Partners.
oneM2M logo is protected for the benefit of its Members.
GSM and the GSM logo are trademarks registered and owned by the GSM Association.
ETSI
---------------------- Page: 2 ----------------------
3 Draft ETSI EN 300 019-2-4 V2.4.6 (2018-03)
Contents

Intellectual Property Rights ................................................................................................................................ 4

Foreword ............................................................................................................................................................. 4

Modal verbs terminology .................................................................................................................................... 4

1 Scope ........................................................................................................................................................ 5

2 References ................................................................................................................................................ 5

2.1 Normative references ......................................................................................................................................... 5

2.2 Informative references ........................................................................................................................................ 6

3 Definitions ................................................................................................................................................ 6

4 Environmental test specifications ............................................................................................................. 6

4.0 General ............................................................................................................................................................... 6

4.1 Equipment setup and configuration .................................................................................................................... 6

4.2 Performance criteria ........................................................................................................................................... 7

4.3 Specification T 4.1: Non-weatherprotected locations, climatic tests .................................................................. 8

4.4 Specification T 4.1E: Non-weatherprotected locations - extended, climatic tests ............................................ 10

4.5 Specification T 4.2L: Non-weatherprotected locations - extremely cold, climatic tests .................................. 12

4.6 Specification T 4.2H: Non-weatherprotected locations - extremely warm dry, climatic tests ......................... 14

4.7 Specification T 4.1, 4.1E, 4.2L and 4.2H: Non-weatherprotected locations - mechanical tests ....................... 16

5 Earthquake test specification .................................................................................................................. 18

5.0 General ............................................................................................................................................................. 18

5.1 Vibration response investigation ...................................................................................................................... 18

5.2 Test conditioning .............................................................................................................................................. 18

Annex A (informative): Bibliography ................................................................................................... 21

History .............................................................................................................................................................. 22

ETSI
---------------------- Page: 3 ----------------------
4 Draft ETSI EN 300 019-2-4 V2.4.6 (2018-03)
Intellectual Property Rights
Essential patents

IPRs essential or potentially essential to normative deliverables may have been declared to ETSI. The information

pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found

in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in

respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web

server (https://ipr.etsi.org/).

Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee

can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web

server) which are, or may be, or may become, essential to the present document.
Trademarks

The present document may include trademarks and/or tradenames which are asserted and/or registered by their owners.

ETSI claims no ownership of these except for any which are indicated as being the property of ETSI, and conveys no

right to use or reproduce any trademark and/or tradename. Mention of those trademarks in the present document does

not constitute an endorsement by ETSI of products, services or organizations associated with those trademarks.

Foreword

This draft European Standard (EN) has been produced by ETSI Technical Committee Environmental Engineering (EE),

and is now submitted for the combined Public Enquiry and Vote phase of the ETSI standards EN Approval Procedure.

The present document is part 2, sub-part 4 of a multi-part deliverable. Full details of the entire series can be found in

part 2, sub-part 0 [i.1].
Proposed national transposition dates
Date of latest announcement of this EN (doa): 3 months after ETSI publication
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 6 months after doa

Date of withdrawal of any conflicting National Standard (dow): 6 months after doa

Modal verbs terminology

In the present document "shall", "shall not", "should", "should not", "may", "need not", "will", "will not", "can" and

"cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of

provisions).

"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.

ETSI
---------------------- Page: 4 ----------------------
5 Draft ETSI EN 300 019-2-4 V2.4.6 (2018-03)
1 Scope

The present document specifies test methods and severities for verification of the required resistibility of equipment

according to the relevant environmental class.

The tests defined in the present document apply to stationary use of equipment at non-weatherprotected locations

covering the environmental conditions stated in ETSI EN 300 019-1-4 [1].
2 References
2.1 Normative references

References are either specific (identified by date of publication and/or edition number or version number) or

non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the

referenced document (including any amendments) applies.

Referenced documents which are not found to be publicly available in the expected location might be found at

http://docbox.etsi.org/Reference.

NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee

their long term validity.

The following referenced documents are necessary for the application of the present document.

[1] ETSI EN 300 019-1-4 (04-2014): "Environmental Engineering (EE); Environmental conditions

and environmental tests for telecommunications equipment; Part 1-4: Classification of

environmental conditions; Stationary use at non-weatherprotected locations".

[2] IEC 60068-2-1 (03-2007): "Environmental testing - Part 2-1: Tests - Test A: Cold".

[3] Void.
[4] Void.
[5] ATIS T1.0600329 (2014): "Network Equipment - Earthquake Resistance".
[6] Void.

[7] IEC 60068-2-2 (07-2007): "Environmental testing - Part 2-2: Tests - Test B: Dry heat".

[8] IEC 60068-2-14 (01-2009): "Environmental testing - Part 2-14: Tests - Test N: Change of

temperature".

[9] IEC 60068-2-30 (08-2005): "Environmental testing - Part 2-30: Tests - Test Db: Damp heat, cyclic

(12 h + 12 h cycle)".

[10] IEC 60068-2-64 (04-2008): "Environmental testing - Part 2-64: Tests - Test Fh: Vibration,

broadband random and guidance".

[11] IEC 60068-2-27 (02-2008): "Environmental testing - Part 2-27: Tests - Test Ea and guidance:

Shock".

[12] IEC 60068-2-6 (12-2007): "Environmental testing - Part 2-6: Tests - Test Fc: Vibration

(sinusoidal)".

[13] IEC 60068-2-57 (04-2013): "Environmental testing - Part 2-57: Tests - Test Ff:

Vibration - Time-history and sine-beat method".
[14] Void.

[15] IEC 60068-2-18 (03-2017): "Environmental testing - Part 2-18: Tests - Test R and guidance:

Water".
ETSI
---------------------- Page: 5 ----------------------
6 Draft ETSI EN 300 019-2-4 V2.4.6 (2018-03)

[16] IEC 60068-2-78 (10-2012): "Environmental testing - Part 2-78: Tests - Test Cab: Damp heat,

steady state".

[17] IEC 60068-2-11 (01-1981): "Basic environmental testing procedures - Part 2-11: Tests - Test Ka:

Salt mist".
2.2 Informative references

References are either specific (identified by date of publication and/or edition number or version number) or

non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the

referenced document (including any amendments) applies.

NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee

their long term validity.

The following referenced documents are not necessary for the application of the present document but they assist the

user with regard to a particular subject area.

[i.1] ETSI EN 300 019-2-0: "Environmental Engineering (EE); Environmental conditions and

environmental tests for telecommunications equipment; Part 2-0: Specification of environmental

tests; Introduction".

[i.2] IEC 60068-2-68 (8-1994): "Environmental testing - Part 2: Tests - Test L: Dust and sand".

[i.3] IEC 60068-2 (all parts): "Environmental testing - Part 2: Tests".

[i.4] ETSI EN 300 019-1-0: "Environmental Engineering (EE); Environmental conditions and

environmental tests for telecommunications equipment; Part 1-0: Classification of environmental

conditions; Introduction".
3 Definitions

For the purposes of the present document, the terms and definitions given in ETSI EN 300 019-1-0 [i.4] apply.

4 Environmental test specifications
4.0 General

The equipment shall be tested in its operational state throughout the test conditions described in the present document.

The detailed descriptions of the environmental conditions are given in clauses 4 and 5 of ETSI EN 300 019-1-4 [1].

ETSI EN 300 019-2-0 [i.1] forms a general overview of part 2 of this multi-part deliverable.

4.1 Equipment setup and configuration

The equipment shall be tested in its operational state throughout the test conditions described in the present document

unless otherwise stated. Input and load conditions of the equipment shall be chosen to obtain full utilization of the

equipment under test. The heat dissipation shall be maximized, except for the steady state, low temperature test, where

it shall be minimized.
ETSI
---------------------- Page: 6 ----------------------
7 Draft ETSI EN 300 019-2-4 V2.4.6 (2018-03)
4.2 Performance criteria

The following performance criteria shall apply in the tests defined by the present document.

Performance criterion A:

The equipment shall function according to the manufacturer specifications before, during and after the tests. No

degradation of performance or loss of function is allowed below the performance level specified by the manufacturer

when the apparatus is used as intended. If the minimum performance level is not specified by the manufacturer, then

this may be deduced from the product description and documentation and what the user may reasonably expect from the

apparatus if used as intended.
Performance criterion B:

The equipment shall function according to the manufacturer specifications before and after the tests. During the test it is

not required to monitor the equipment functionality. No degradation of performance or loss of function is allowed

below the performance level specified by the manufacturer when the apparatus is used as intended. If the minimum

performance level is not specified by the manufacturer, then this may be deduced from the product description and

documentation and what the user may reasonably expect from the apparatus if used as intended.

Performance criterion C:

The equipment shall function according to the manufacturer specifications before and after the tests. No degradation of

performance or loss of function is allowed below the performance level specified by the manufacturer when the

apparatus is used as intended. If the minimum performance level is not specified by the manufacturer, then this may be

deduced from the product description and documentation and what the user may reasonably expect from the apparatus if

used as intended.

During the application of the test, temporary loss of function is allowed but after the test the equipment shall restore to

the normal functionality without replacement of components, manual rebooting or human intervention.

The equipment shall sustain the test without permanent structural or mechanical damage.

Performance criterion D:

This performance criterion applies to the enclosure of the equipment. No corrosion traces (e.g. rust) or deterioration of

the enclosure shall occur at the end of the test.
ETSI
---------------------- Page: 7 ----------------------
8 Draft ETSI EN 300 019-2-4 V2.4.6 (2018-03)
4.3 Specification T 4.1: non-weatherprotected locations, climatic tests

The specification in table 1 shall apply to non-weatherprotected locations described in ETSI EN 300 019-1-4 [1].

Table 1: Test specification T 4.1: Stationary use at non-weatherprotected locations - climatic tests

Environmental parameter Environmental Environmental test specification T 4.1: Stationary use,

Class 4.1 Non-weatherprotected locations

Type Parameter Detail parameter Characteristic Test Duration Reference Method Performance Notes

severity severity criterion
Low (°C) -33 -33 or -45 16 h IEC 60068-2-1 [2] Ab/Ad/Ae: Cold A 1
High (°C) +40 +40 or +55 16 h IEC 60068-2-2 [7] Bb/Bd/Be: Dry heat A 2
Air
(°C) -10 to +40 2 cycles IEC 60068-2-14 [8] Nb: Change of A 3
temperature Change
(°C/min) 0,5 0,5 t = 3 h temperature
Low (%) 15 None 8
High (%) 100 93 10 d IEC 60068-2-78 [16] Cab: Damp heat A 4
Relative (°C) +30 steady state
Condensation Yes 5
Humidity
(%) 90 to 100 2 cycles IEC 60068-2-30 [9] Db: Damp heat, cyclic A
(°C) +30 Variant 1
0,26 None
Low (g/m )
Absolute
25 None 6
High (g/m )
Low (kPa) 70 None 7
Pressure
Air High (kPa) 106 None 7
Speed (m/s) 50 None 8
3 2
Intensity 6 mm/min IEC 60068-2-18 [15] Rb: Impacting water, 9
0,01 m /min 3 min/m
method 1.2 "spray B
90 kPa or 15 min
Rain
nozzle"
Low temperature (°C) +5 None
Water
Other Splashing water None 10
sources
Icing & Yes None 8
frosting
1 120 None 11
Solar
(W/m )
Radiation
Negligible None
Heat
(W/m )
0,3 to 1,0 None 12
SO (mg/m )
Sulphur
0,1 to 0,5 None 12
HS (mg/m )
Chemically

Salt mist Sea and road salt 35 °C, 5 % 10 d IEC 60068-2-11 [17] Ka: Salt mist 12

active
NaCl solution D
substances
Chlorine
3 0,1 to 0,3 None 12
Cl (mg/m )
0,1 to 0,5 None 12
HCI (mg/m )
ETSI
---------------------- Page: 8 ----------------------
9 Draft ETSI EN 300 019-2-4 V2.4.6 (2018-03)

Environmental parameter Environmental Environmental test specification T 4.1: Stationary use,

Class 4.1 Non-weatherprotected locations

Type Parameter Detail parameter Characteristic Test Duration Reference Method Performance Notes

severity severity criterion
0,5 to 1,0 None 12
NO (mg/m )
Nitrogen
1,0 to 3,0 None 12
NH (mg/m )
Hydrogen 0,01 to 0,03 None 12
(mg/m )
fluoride HF
Ozone O 3
0,05 to 0,1 None 12
3 (mg/m )
Sedimentation 20 None 13
Mechanically 2
Dust (mg/(m h))
active
5 None 13
Suspension (mg/m )
substances
300 None 13
Sand
(mg/m )
Micro organisms Mould, fungus, etc. None 14
Flora and
fauna Rodents, insects Rodents, etc. None 14

NOTE 1: (Air temperature, low). Two test temperatures are given, the lower test temperature shall apply if the equipment is protected against solar irradiation. The higher

test temperature includes heat irradiation emitted from the equipment. The temperature cold start up test shall be performed according to the characteristic severity

temperature, but it may be modified (within the class characteristic severity range) by the product specification. In this case, the cold start up test shall commence

once low temperature stability is achieved.

NOTE 2: (Air temperature, high). Two test temperatures are given, the lower test temperature shall apply if the equipment is protected against solar radiation or the

equipment is ventilated (natural or forced). The higher test temperature includes the heating effects of solar radiation. The temperature start up test shall be

performed according to the characteristic severity temperature, but it may be modified (within the class characteristic severity range) by the product specification. In

this case, the high temperature start up test shall commence once high temperature stability is achieved.

NOTE 3: (Air temperature, change). This test is intended for specimen with large thermal time constant. For equipment where the rapid change of temperature of the surface

has a significant effect on internal components, the values of the change of temperature up to 5 °C/min can be applied.

NOTE 4: (Humidity, relative high). IEC 60068-2-78 [16] Test Cab shall be used with test severities not higher than climatogram limits for this class.

NOTE 5: (Condensation). IEC 60068-2-30 [9] Test Db shall be used with test severities not higher than climatogram limits for this class.

NOTE 6: (Humidity, absolute, high). This effect is considered to be partly included in the damp heat test IEC 60068-2-78 [16] Test Cab.

NOTE 7: (Air pressure, low and high). No test is required for normal applications, because the effect of air pressure is evaluated at the component level.

NOTE 8: There is no IEC 60068-2 [i.3] series test for this parameter.

NOTE 9: (Water, rain). IEC 60068-2-18 [15] Test Rb method 1.2 "Spay nozzle" has been chosen even if it does not imitate normal rain. It is a simple hand held shower test,

easy to perform and can demonstrate that the specimen design is adequately toleranced to survive this condition. The cooling effect of the low temperature of the

rain is included in IEC 60068-2-14 [8] Test Nb. Two durations are given, whichever is the greatest should be chosen.

NOTE 10: (Water, other sources). No test is required because the effect is already included in IEC 60068-2-18 [15] Test Rb.

NOTE 11: (Radiation). The heating effect of solar radiation is included in the higher test temperature in IEC 60068-2-2 [7] Test Bb as described in note 2. Photochemical tests

can be performed separately for component and materials.

NOTE 12: (Chemically active substances). Characteristic severities are mean/maximum values. The characteristic severities should be considered when designing the

equipment and when choosing components and materials. No test is required in the present document, except for the mechanical enclosures, where the salt mist

test is required to be performed. The execution of this test can be performed on the entire enclosure or subparts of the enclosure if the results are not affected.

NOTE 13: (Mechanically active substances). The characteristic severities are much lower than the lowest test severity in IEC 60068-2-68 [i.2] Test L and therefore no test is

required. This condition should be considered when designing the equipment and choosing components and materials.

NOTE 14: (Flora and fauna). The characteristic severities should be considered when choosing components and materials.

ETSI
---------------------- Page: 9 ----------------------
10 Draft ETSI EN 300 019-2-4 V2.4.6 (2018-03)

4.4 Specification T 4.1E: non-weatherprotected locations - extended, climatic tests

The specification in table 2 shall apply to non-weatherprotected locations - extended as described in ETSI EN 300 019-1-4 [1].

Table 2: Test specification T 4.1E: Stationary use at non-weatherprotected locations, extended - climatic tests

Environmental parameter Environmental Environmental test specification T 4.1E: Stationary use

Class 4.1E Non-weatherprotected locations - extended

Type Parameter Detail parameter Characteristic Test severity Duration Reference Method Performance Notes

severity criterion
Low (°C) -45 -45 or -55 16 h IEC 60068-2-1 [2] Ab/Ad/Ae: Cold A 1
Air High (°C) +45 +45 or +60 16 h IEC 60068-2-2 [7] Bb/Bd/Be: Dry heat A 2
temperature
(°C) -10 to +45 2 cycles IEC 60068-2-14 [8] Nb: Change of A 3
Change
(°C/min) 0,5 0,5 t1 = 3 h temperature
Low (%) 8 None 8
High (%) 100 93 10 d IEC 60068-2-78 [16] Cab: Damp heat A 4
(°C) +30 steady state
Relative
Condensation Yes 2 cycles IEC 60068-2-30 [9] Db: Damp heat cyclic A 5
Humidity
(%) 90 to 100 Variant 1
(°C) +30
0,03 None 6
Low (g/m )
Absolute
30 None
High (g/m )
Low (kPa) 70 None 7
Pressure
High (kPa) 106 None 7
Air
(m/s) 50 None 8
Speed
3 2
Intensity 15 mm/min IEC 60068-2-18 [15] Rb: Impacting water, B 9
0,01 m /min 90 kPa 6 min/m or 30 min
method 1.2 "spray
Rain
nozzle"
Water
Low temperature (°C) +5 None
Other sources Splashing water None 10
Icing & frosting Yes None 8
1 120 None 11
Solar
(W/m )
Radiation
Negligible None
Heat
(W/m )
0,3 to 1,0 None 12
SO (mg/m )
Sulphur
0,1 to 0,5 None 12
HS (mg/m )

Salt mist Sea and road 35 °C, 5 % NaCl 10 d IEC 60068-2-11 [17] Ka: Salt mist D 12

Chemically
salt solution
active Chlorine
0,1 to 0,3 None 12
Cl (mg/m )
substances
30,1 to 0,5 None 12
HCI (mg/m )
0,5 to 1,0 None 12
NO (mg/m )
Nitrogen
1,0 to 3,0 None 12
NH (mg/m )
ETSI
---------------------- Page: 10 ----------------------
11 Draft ETSI EN 300 019-2-4 V2.4.6 (2018-03)

Environmental parameter Environmental Environmental test specification T 4.1E: Stationary use

Class 4.1E Non-weatherprotected locations - extended

Type Parameter Detail parameter Characteristic Test severity Duration Reference Method Performance Notes

severity criterion
Hydrogen 0,01 to 0,03 None 12
(mg/m )
fluoride HF
Ozone O 0,05 to 0,1 None 12
(mg/m )
Sedimentation 20 None 13
Mechanically 2
Dust (mg/(m h))
active
5 None 13
Suspension (mg/m )
substances
300 None 13
Sand
(mg/m )
Micro organisms Mould, fungus, None 14
Flora and
etc.
fauna
Rodents, insects Rodents, etc. None 14

NOTE 1: (Air temperature, low). Two test temperatures are given, the lower test temperature shall apply if the equipment is protected against solar irradiation. The higher test temperature

includes heat irradiation emitted from the equipment. The temperature cold start up test shall be performed according to the characteristic severity temperature, but it may be

modified (within the class characteristic severity range) by the product specification. In this case, the cold start up test shall commence once low temperature stability is achieved.

NOTE 2: (Air temperature, high). Two test temperatures are given, the lower test temperature shall apply if the equipment is protected against solar radiation or the equipment is ventilated

(natural or forced). The higher test temperature includes the heating effects of solar radiation. The temperature start up test shall be performed according to the characteristic

severity temperature, but it may be modified (within the class characteristic severity range) by the product specification. In this case, the high temperature start up test shall

commence once high temperature stability is achieved.

NOTE 3: (Air temperature, change). This test is intended for specimen with large thermal time constant. For equipment where the rapid change of temperature of the surface has a

significant effect on internal components, the values of the change of temperature up to 5 °C/min can be applied.

NOTE 4: (Humidity, relative high). IEC 60068-2-78 [16] Test Cab is shall be used with test severities not higher than climatogram limits for this class.

NOTE 5: (Condensation). IEC 60068-2-30 [9] Test Db shall be used with test severities not higher than climatogram limits for this class.

NOTE 6: (Humidity, absolute, high). This effect is considered to be partly included in the damp heat test IEC 60068-2-78 [16] Test Cab.

NOTE 7: (Air pressure, low and high). No test is required for normal applications, because the effect of air pressure is evaluated at the component level.

NOTE 8: There is no IEC 60068-2 [i.3] series test for this parameter.

NOTE 9: (Water, rain). IEC 60068-2-18 [15] Test Rb method 1.2 "Spray nozzle" has been chosen even if it does not imitate normal rain. It is a simple hand held shower test, easy to

perform and can demonstrate that the specimen design is adequately toleranced to survive this condition. The cooling effect of the low temperature of the rain is included in

IEC 60068-2-14 [8] Test Nb. Two durations are given, whichever is the greatest should be chosen.

NOTE 10: (Water, other sources). No test is required because the effect is already included in IEC 60068-2-18 [15] Test Rb.

NOTE 11: (Radiation). The heating effect of solar radiation is included in the higher test temperature in IEC 60068-2-2 [7] Test Bb as described in note 2. Photochemical tests can be

performed separately for component and materials.

NOTE 12: (Chemically active substances). Characteristic severities are mean/maximum values. The characteristic severities should be considered when designing the equipment and

when choosing components and materials. No test is required in the present document, except for the mechanical enclosures, where the salt mist test is required to be

performed. The execution of this test can be performed on the entire enclosure or subparts of the enclosure if the results are not affected.

NOTE 13: (Mechanically active substances). The characteristic severities are much lower than the lowest test severity in IEC 60068-2-68 [i.2] Test L and therefore no test is required. This

condition should be considered when designing the equipment and choosing components and materials.

NOTE 14: (Flora and fauna). The characteristic severities should be considered when choosing components and materials.

ETSI
---------------------- Page: 11 ----------------------
12 Draft ETSI EN 300 019-2-4 V2.4.6 (2018-03)

4.5 Specification T 4.2L: non-weatherprotected locations - extremely cold, climatic tests

The specification in table 3 shall apply to non-weatherprotected locations - extremely cold as described in ETSI EN 300 019-1-4 [1] (see table 3).

Table 3: Test specification T 4.2L: Stationary use at non-weatherprotected locations, extremely cold

...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
