SIST EN 50636-2-107:2015/A1:2018

Safety of household and similar appliances - Part 2-107: Particular requirements for robotic battery powered electrical lawnmowers

This clause of Part 1 is replaced by the following:
This European Standard specifies safety requirements and their verification for the design and construction of robotic battery powered electrical rotary lawnmowers and their peripherals with the rated voltage of the battery being not more than 75 V d.c. charged by mains electrical and/or alternative energies, e.g. solar power.
This European Standard does not apply to non-robotic machines such as lawn trimmers, lawn edge trimmers, lawn edgers, ride-on lawnmowers or pedestrian controlled lawnmowers.
This European Standard is not applicable to EMC and environmental hazards (except noise).
This European Standard does not apply to internal combustion engine(s), hybrid and fuel cell powered machines and associated charging systems.
This European Standard deals with all the significant hazards presented by battery powered robotic lawnmowers and their peripherals when they are used as intended and under conditions of misuse which are reasonably foreseeable.
This European Standard is not applicable to machines, which are manufactured before the date of publication of this document by CENELEC.
NOTE   This European Standard does not apply to battery chargers (EN 60335-2-29:2004).

Sicherheit elektrischer Geräte für den Hausgebrauch und ähnliche Zwecke - Teil 2-107: Besondere Anforderungen für batteriebetriebene Roboter-Rasenmäher

Appareils électrodomestiques et analogues - Partie 2-107: Exigences particulières relatives aux tondeuses à gazon électriques robotisées alimentées par batteries

Le présent article de la Partie 1 est remplacé par l'article ci-après.
La présente Norme européenne spécifie les exigences de sécurité et leur vérification pour la conception et la construction de tondeuses à axe vertical électriques robotisées alimentées par batterie et leurs périphériques, la tension assignée de la batterie dont le chargement est effectué par le biais du réseau électrique et/ou d'énergies alternatives, par exemple l'énergie solaire, ladite charge n'étant pas supérieure à une tension continue de 75 V.
La présente Norme européenne ne s'applique pas aux machines non robotisées telles que les coupe-gazon, coupe-bordures de gazon, coupe-bordures, tondeuses à gazon à conducteur à pied ou tondeuses à gazon à conducteur à pied.
La présente Norme européenne ne s'applique pas aux dangers CEM et environnementaux, excepté le bruit.
La présente Norme européenne ne s'applique pas aux moteurs à combustion interne, aux machines hybrides et aux machines à pile à combustible ou aux systèmes de charge associés.
La présente Norme européenne traite de tous les dangers significatifs que présentent les tondeuses à gazon robotisées alimentées par batterie et leurs périphériques pour leur utilisation prévue et lorsqu'ils sont utilisés dans des conditions de mauvais usage raisonnablement prévisible.
La présente Norme européenne ne s'applique pas aux machines fabriquées avant la date de publication du présent document par le CENELEC.
NOTE   La présente Norme européenne ne s'applique pas aux chargeurs de batterie (EN 60335-2-29:2004).

Varnost gospodinjskih in podobnih električnih aparatov - 2-107. del: Posebne zahteve za baterijske robotsko vodene električne vrtne kosilnice - Dopolnilo A1

General Information

• Status: Published
• Public Enquiry End Date: 30-Apr-2017
• Publication Date: 22-Jan-2018
• ICS: 13.120 - Domestic safety
• ICS: 65.060.70 - Horticultural equipment
• Technical Committee: VGA - Safety of household and similar electrical appliances
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 19-Jan-2018
• Due Date: 26-Mar-2018
• Completion Date: 23-Jan-2018
• Directive: 2006/42/EC - Directive 2006/42/EC of the European Parliament and of the Council of 17 May 2006 on machinery, and amending Directive 95/16/EC (recast)
• Mandate: M/396 - Mandate to CEN and Cenelec for standardisation in the field of machinery
• Ref Project: EN 50636-2-107:2015/A1:2018 - Safety of household and similar appliances - Part 2-107: Particular requirements for robotic battery powered electrical lawnmowers

Relations

• Amends: SIST EN 50636-2-107:2015 - Safety of household and similar appliances - Part 2-107: Particular requirements for robotic battery powered electrical lawnmowers
• Effective Date: 12-Jul-2016

Overview

EN 50636-2-107:2015/A1:2018 is a CENELEC European standard that defines safety requirements and verification for robotic, battery-powered rotary lawnmowers and their peripherals. It applies to machines with a battery rated voltage of not more than 75 V d.c., charged from mains and/or alternative energy sources (e.g., solar). The amendment A1 (2018) updates the original 2015 standard, notably adding a child foot-probe test and new information requirements for machines used in public areas.

Key topics and requirements

• Scope and exclusions
  • Covers robotic battery-powered rotary lawnmowers and peripherals.
  • Excludes non-robotic machines (lawn trimmers, edgers, ride-on and pedestrian-controlled mowers), internal combustion, hybrid or fuel-cell powered machines, and EMC/environmental hazards (except noise).
  • Does not cover battery chargers (see EN 60335-2-29:2004) or machines manufactured before the document’s publication date.
• Design and construction safety
  • Addresses hazards arising during intended use and reasonably foreseeable misuse.
  • Requires manufacturers to consider cutting means position, enclosure integrity and guarding to prevent access to the cutting path.
• Verification and test methods
  • Requires testing with the cutting means in the most unfavourable position; if cutting height varies with speed, extremes must be included.
  • Foot probe tests:
    • Adult foot probe: probe inserted around the external enclosure; base held horizontally and may be inclined up to 15°; applied until a maximum horizontal force of 20 N, enclosure movement, or contact with the cutting path - probe must not enter the cutting path.
    • New child foot probe: amendment A1 adds a dedicated foot probe and test procedure for a standing child, following the same force and angle rules.
• Warnings and information
  • For machines used in public areas, visible warning signs are required: e.g., “Warning! Automatic lawnmower! Keep away from the machine! Supervise children!”

Applications and who uses this standard

• Intended users:
  • Manufacturers and designers of robotic lawnmowers and related peripherals
  • Safety and compliance engineers, notified bodies, and test laboratories
  • Product safety assessors, installers, and facility managers (public parks, grounds maintenance)
• Practical uses:
  • Product design validation and risk assessment
  • Type testing and conformity demonstration for CE marking and EU directive compliance
  • Instruction and labelling content, especially for public-use deployments

Related standards

• EN 50636-2-107 is a Part 2 document linked to the broader household appliance safety framework and references battery charger standard EN 60335-2-29:2004 (not applicable here). See Annex ZZ in the standard for relationships to EU directives.

Keywords: EN 50636-2-107, robotic lawnmower safety, battery powered lawnmowers, foot probe test, CENELEC, safety requirements, 75 V d.c., robotic mower compliance.

Standards Content (Sample)

SLOVENSKI STANDARD
01-marec-2018
9DUQRVWJRVSRGLQMVNLKLQSRGREQLKHOHNWULþQLKDSDUDWRYGHO3RVHEQH
]DKWHYH]DEDWHULMVNHURERWVNRYRGHQHHOHNWULþQHYUWQHNRVLOQLFH'RSROQLOR$
Safety of household and similar appliances - Part 2-107: Particular requirements for
robotic battery powered electrical lawnmowers
Sicherheit elektrischer Geräte für den Hausgebrauch und ähnliche Zwecke - Teil 2-107:
Besondere Anforderungen für batteriebetriebene Roboter-Rasenmäher
Appareils électrodomestiques et analogues - Partie 2-107: Exigences particulières
relatives aux tondeuses à gazon électriques robotisées alimentées par batteries
Ta slovenski standard je istoveten z: EN 50636-2-107:2015/A1:2018
ICS:
13.120 Varnost na domu Domestic safety
65.060.70 Vrtnarska oprema Horticultural equipment
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN 50636-2-107:2015/A1

NORME EUROPÉENNE
EUROPÄISCHE NORM
January 2018
ICS 65.060.70
English Version
Safety of household and similar appliances - Part 2-107:
Particular requirements for robotic battery powered electrical
lawnmowers
Appareils électrodomestiques et analogues - Partie 2-107: Sicherheit elektrischer Geräte für den Hausgebrauch und
Exigences particulières relatives aux tondeuses à gazon ähnliche Zwecke - Teil 2-107: Besondere Anforderungen für
électriques robotisées alimentées par batteries batteriebetriebene Roboter-Rasenmäher
This amendment A1 modifies the European Standard EN 50636-2-107:2015; it was approved by CENELEC on 2017-08-09. CENELEC
members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this amendment the
status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This amendment exists in three official versions (English, French, German). A version in any other language made by translation under the
responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the same status as
the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden,
Switzerland, Turkey and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2018 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 50636-2-107:2015/A1:2018 E

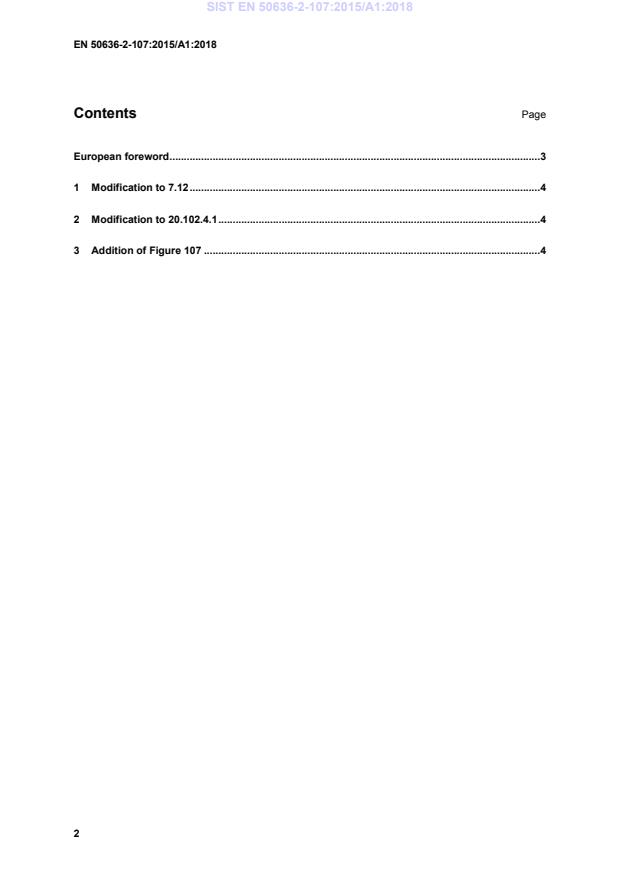

Contents Page
European foreword . 3
1 Modification to 7.12 . 4
2 Modification to 20.102.4.1 .
...
