SIST EN 15536:2007
(Main)Derivatives from coal pyrolysis - Coal tar based oils: wash oils - Specifications and test methods
Derivatives from coal pyrolysis - Coal tar based oils: wash oils - Specifications and test methods
This European Standard specifies and defines test methods for coal tar wash oils. Annex A specifies usage warnings for industrial purposes. The main purposes of these oils are to dissolve hydrocarbon derivatives in coke oven gas to clean greasy metal pieces.
Derivate der Kohlenpyrolyse - Steinkohlenteeröle: Waschöle - Anforderungen und Prüfverfahren
Diese Europäische Norm legt Prüfverfahren für Steinkohlenteerwaschöle fest. Anhang A gibt die Anwendungswarnungen für industrielle Anwendungen an. Der Hauptanwendungsbereich liegt in der Lösung von einigen in Hochofengasen enthaltenen Kohlenwasserstoffen und in der Reinigung von beschmutzten Metallpartikeln.
Produits dérivés de la pyrolyse de la houille - Huiles de goudron de houille : Huiles de lavage - Spécifications et méthodes d'essai
La présente Norme européenne spécifie et définit des méthodes d’essai des huiles de lavage des goudrons de houille. L’annexe A spécifie des avertissements pour l’utilisation de ces méthodes à des fins industrielles. L’objet principal de ces huiles est de dissoudre les dérivés d’hydrocarbures dans les gaz de four à coke utilisés pour nettoyer les pièces métalliques graisseuses.
Derivati pri pirolizi premoga - Olja iz premogovega katrana - Specifikacije in preskusne metode
General Information
Overview
SIST EN 15536:2007 is a European Standard developed by CEN that specifies the specifications and test methods for coal tar based wash oils, which are derivatives from coal pyrolysis. These wash oils primarily serve the industrial purpose of dissolving hydrocarbon derivatives found in coke oven gas, facilitating the cleaning of greasy metal components. The standard includes detailed procedures for sampling, testing, and handling to ensure product quality and safety. It also includes guidance on usage warnings tailored for industrial applications.
This standard is critical for manufacturers, users, and regulators involved in the production and application of coal tar wash oils across multiple European countries, ensuring uniform quality and safety compliance.
Key Topics
- Scope and Application
Defines coal tar wash oils and their key industrial use to dissolve hydrocarbons in coke oven gas for cleaning greasy metals. - Sampling Methods
Sampling must adhere to EN 1014-1 standards, guaranteeing representative samples for accurate testing. - Specifications and Test Methods
Key parameters include:- Water content (max 1% m/m) measured by Karl Fischer method (ISO 760).
- Distillation range with a starting point above 90% m/m, between 150°C and 360°C (EN ISO 3405).
- Crystallization temperature and naphthalene content, to control freezing and performance characteristics.
- Density between 1000 and 1080 kg/m³ at 20°C (EN ISO 3675).
Gas chromatography and other standardized lab methods are utilized to ensure precise analysis.
- Safety and Handling Information (Annex A)
- Composition includes complex mixtures of polynuclear aromatic and heterocyclic hydrocarbons.
- First aid measures emphasize quick response to inhalation, skin, eye contact, or ingestion.
- Handling precautions focus on avoiding electrostatic charging and maintaining sealed containers.
- Disposal guidelines align with European Waste Catalogue regulations, supporting environmental compliance.
Applications
SIST EN 15536:2007 wash oils are primarily applied in industries that:
- Clean greasy metal parts by dissolving hydrocarbon residues derived from coke oven gas.
- Require consistent quality and safety standards for coal tar based products in manufacturing or maintenance processes.
- Need precise testing protocols to verify product purity, composition, and effectiveness in hydrocarbon dissolution.
- Operate in sectors such as steel production, foundries, and other heavy industries where exposure to coal tar derivatives occurs.
This standard facilitates industrial efficiency and workplace safety by providing thorough specifications to evaluate, handle, and dispose of coal tar wash oils responsibly.
Related Standards
- EN 1014-1: Sampling and analysis methods for wood preservatives including creosote.
- EN 13991:2003: Specifications and test methods for coal tar based creosotes closely related to coal tar wash oils.
- EN ISO 3405: Distillation characteristics determination at atmospheric pressure for petroleum products.
- EN ISO 3675: Density measurement of crude and liquid petroleum products using hydrometer methods.
- ISO 760: General method for water determination using Karl Fischer titration.
- DIN 51405: Gas chromatography analysis principles for mineral oils and related solvents.
- ASTM E260: Standard practices for gas chromatography, offering alternative testing methods.
These standards complement SIST EN 15536:2007 by covering broader aspects of coal tar derivatives and petroleum product testing, important for producers and testing laboratories involved in quality assurance and regulatory compliance.
Keywords: SIST EN 15536:2007, coal tar wash oils, coal pyrolysis derivatives, coal tar based oils, industrial cleaning oils, coke oven gas, hydrocarbon dissolution, test methods, coal tar specifications, CEN standards, European Standard, handling coal tar wash oils, industrial safety, hazardous materials handling, petroleum product testing.
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Derivatives from coal pyrolysis - Coal tar based oils: wash oils - Specifications and test methodsDerivati pri pirolizi premoga - Olja iz premogovega katrana - Specifikacije in preskusne metodeProduits dérivés de la pyrolyse de la houille - Huiles de goudron de houille : Huiles de lavage - Spécifications et méthodes d'essaiDerivate der Kohlenpyrolyse - Steinkohlenteeröle: Waschöle - Anforderungen und PrüfverfahrenTa slovenski standard je istoveten z:EN 15536:2007SIST EN 15536:2007en,fr,de75.160.10Trda gorivaSolid fuelsICS:SLOVENSKI
STANDARDSIST EN 15536:200701-september-2007
EUROPEAN STANDARDNORME EUROPÉENNEEUROPÄISCHE NORMEN 15536March 2007ICS 75.160.10 English VersionDerivatives from coal pyrolysis - Coal tar based oils: wash oils -Specifications and test methodsProduits dérivés de la pyrolyse de la houille - Huiles degoudron de houille: huiles de lavage - Caractéristiques etméthodes d'essaisDerivate der Kohlenpyrolyse - Steinkohlenteeröle:Waschöle - Anforderungen und PrüfverfahrenThis European Standard was approved by CEN on 4 February 2007.CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this EuropeanStandard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such nationalstandards may be obtained on application to the CEN Management Centre or to any CEN member.This European Standard exists in three official versions (English, French, German). A version in any other language made by translationunder the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as theofficial versions.CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.EUROPEAN COMMITTEE FOR STANDARDIZATIONCOMITÉ EUROPÉEN DE NORMALISATIONEUROPÄISCHES KOMITEE FÜR NORMUNGManagement Centre: rue de Stassart, 36
B-1050 Brussels© 2007 CENAll rights of exploitation in any form and by any means reservedworldwide for CEN national Members.Ref. No. EN 15536:2007: E

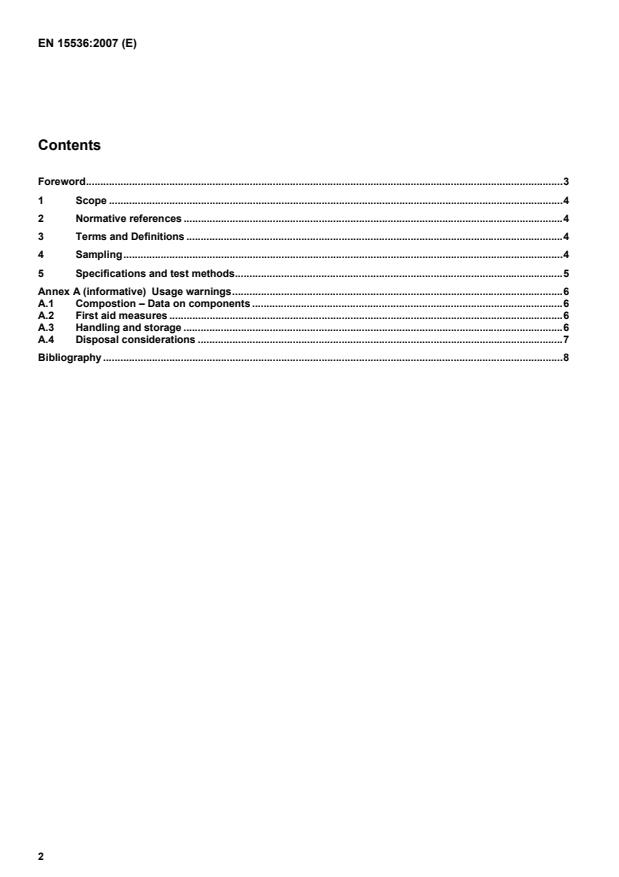

Usage warnings.6 A.1 Compostion – Data on components.6 A.2 First aid measures.6 A.3 Handling and storage.6 A.4 Disposal considerations.7 Bibliography.8
...
Frequently Asked Questions
SIST EN 15536:2007 is a standard published by the Slovenian Institute for Standardization (SIST). Its full title is "Derivatives from coal pyrolysis - Coal tar based oils: wash oils - Specifications and test methods". This standard covers: This European Standard specifies and defines test methods for coal tar wash oils. Annex A specifies usage warnings for industrial purposes. The main purposes of these oils are to dissolve hydrocarbon derivatives in coke oven gas to clean greasy metal pieces.
This European Standard specifies and defines test methods for coal tar wash oils. Annex A specifies usage warnings for industrial purposes. The main purposes of these oils are to dissolve hydrocarbon derivatives in coke oven gas to clean greasy metal pieces.
SIST EN 15536:2007 is classified under the following ICS (International Classification for Standards) categories: 75.160.10 - Solid fuels. The ICS classification helps identify the subject area and facilitates finding related standards.
You can purchase SIST EN 15536:2007 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of SIST standards.
