Optical fibre cables - Part 3-12: Outdoor cables - Detailed specification for duct and directly buried optical telecommunication cables for use in premises cabling (IEC 60794-3-12:2021)

This part of IEC 60794 is a detailed specification for duct and directly buried optical
telecommunication cables for use in premises cabling to ensure compatibility with
ISO/IEC 11801-1. This document's requirements ensure that the ISO/IEC 11801-1 models work
for generic cabling and system performances. Values in this document support these models.
The requirements of the family specification IEC 60794-3-10 are applicable to cables covered
by this document. Particular requirements detailed in Clause 5 either define a specific option
relative to the requirements of IEC 60794-3-10 or define additional requirements.

Lichtwellenleiterkabel - Teil 3-12: LWL-Außenkabel - Produktspezifikation für LWL-Fernmelde-Erd- und Röhrenkabel für anwendungsneutrale Standortverkabelung (IEC 60794-3-12:2021)

Câbles à fibres optiques - Partie 3-12: Câbles extérieurs - Spécification particulière pour les câbles optiques de télécommunication destinés à être installés dans des conduites ou à être directement enterrés et utilisés dans le câblage de locaux (IEC 60794-3-12:2021)

IEC 60794-3-12:2021 est disponible sous forme de IEC 60794-3-12:2021 RLV qui contient la Norme internationale et sa version Redline, illustrant les modifications du contenu technique depuis l'�dition pr�c�dente.IEC 60794-3-12:2021 est une spécification particulière de câbles optiques de télécommunication destinés à être installés dans des conduites ou à être directement enterrés et utilisés dans les câblages de locaux. Le but est d’assurer la compatibilité avec l’ISO/IEC 11801‑1. Le présent document contient des exigences destinées à assurer le fonctionnement des modèles selon ISO/IEC 11801-1 concernant le câblage générique et les performances du système. Les valeurs indiquées du présent document sont compatibles avec ces modèles. Les exigences contenues dans la spécification de famille IEC 60794-3-10 sont applicables aux câbles couverts par le présent document. Les exigences particulières figurant à l’Article 5 définissent soit une option spécifique relative aux exigences de l’IEC 60794‑3‑10, soit des exigences supplémentaires. Cette troisième édition annule et remplace la deuxième édition parue en 2012. Cette édition constitue une révision technique. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente: - ajouts de références à l’ISO/IEC 11801-1; - suppression des références à l’ISO/IEC 24702; - intégration de la catégorie de performance de fibres câblées OM5; - intégration de la catégorie de performance de fibres câblées OS1a; - les catégories de performances des fibres câblées OM1, OM2 et OS1 ne sont plus normatives; elles sont conservées à titre d’information.

Optični kabli - 3-12. del: Zunanji kabli - Podrobna specifikacija za optične telekomunikacijske kable v kanalih ali neposredno zakopane za okablenje prostorov (IEC 60794-3-12:2021)

General Information

Status
Published
Publication Date
13-Apr-2021
Technical Committee
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
19-Mar-2021
Due Date
24-May-2021
Completion Date
14-Apr-2021

RELATIONS

Buy Standard

Standard
SIST EN IEC 60794-3-12:2021
English language
11 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

SLOVENSKI STANDARD
SIST EN IEC 60794-3-12:2021
01-maj-2021
Nadomešča:
SIST EN 60794-3-12:2013
Optični kabli - 3-12. del: Zunanji kabli - Podrobna specifikacija za optične
telekomunikacijske kable v kanalih ali neposredno zakopane za okablenje
prostorov (IEC 60794-3-12:2021)

Optical fibre cables - Part 3-12: Outdoor cables - Detailed specification for duct and

directly buried optical telecommunication cables for use in premises cabling (IEC 60794-

3-12:2021)

Lichtwellenleiterkabel - Teil 3-12: LWL-Außenkabel - Produktspezifikation für LWL-

Fernmelde-Erd- und Röhrenkabel für anwendungsneutrale Standortverkabelung (IEC
60794-3-12:2021)

Câbles à fibres optiques - Partie 3-12: Câbles extérieurs - Spécification particulière pour

les câbles optiques de télécommunication destinés à être installés dans des conduites

ou à être directement enterrés et utilisés dans le câblage de locaux (IEC 60794-3-

12:2021)
Ta slovenski standard je istoveten z: EN IEC 60794-3-12:2021
ICS:
33.180.10 (Optična) vlakna in kabli Fibres and cables
SIST EN IEC 60794-3-12:2021 en

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN IEC 60794-3-12:2021
---------------------- Page: 2 ----------------------
SIST EN IEC 60794-3-12:2021
EUROPEAN STANDARD EN IEC 60794-3-12
NORME EUROPÉENNE
EUROPÄISCHE NORM
March 2021
ICS 33.180.10 Supersedes EN 60794-3-12:2013 and all of its
amendments and corrigenda (if any)
English Version
Optical fibre cables - Part 3-12: Outdoor cables - Detailed
specification for duct and directly buried optical
telecommunication cables for use in premises cabling
(IEC 60794-3-12:2021)

Câbles à fibres optiques - Partie 3-12: Câbles extérieurs - Lichtwellenleiterkabel - Teil 3-12: LWL-Außenkabel -

Spécification particulière pour les câbles optiques de Produktspezifikation für LWL-Fernmelde-Erd- und

télécommunication destinés à être installés dans des Röhrenkabel für anwendungsneutrale Standortverkabelung

conduites ou à être directement enterrés et utilisés dans le (IEC 60794-3-12:2021)

câblage de locaux
(IEC 60794-3-12:2021)

This European Standard was approved by CENELEC on 2021-03-03. CENELEC members are bound to comply with the CEN/CENELEC

Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC

Management Centre or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation

under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the

same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,

Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the

Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,

Turkey and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels

© 2021 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.

Ref. No. EN IEC 60794-3-12:2021 E
---------------------- Page: 3 ----------------------
SIST EN IEC 60794-3-12:2021
EN IEC 60794-3-12:2021 (E)

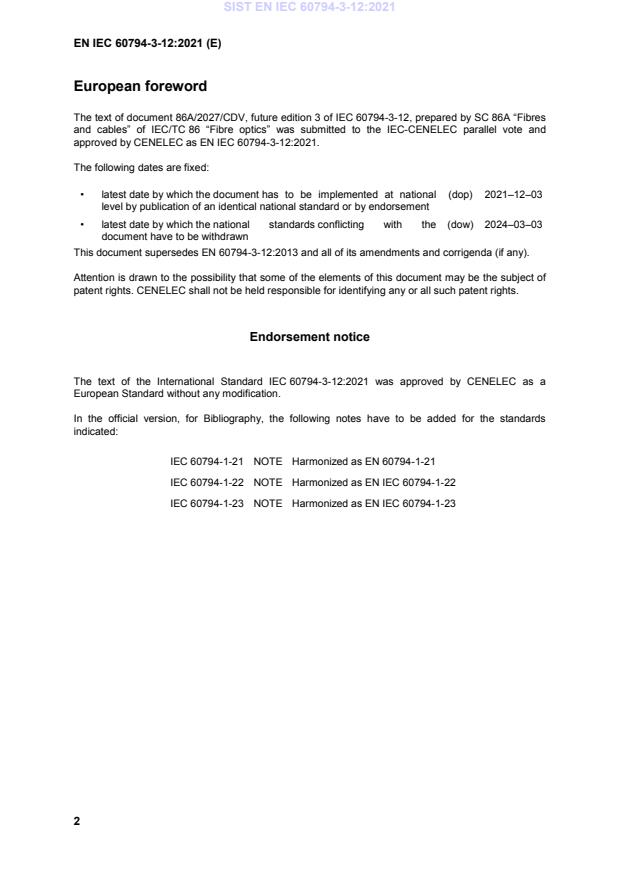

European foreword
