SIST EN 16951-2:2018
(Main)Railway applications - Track - Noise barriers and related devices acting on airborne sound propagation - Procedures for assessing long term performance - Part 2: Non-acoustic characteristics
Railway applications - Track - Noise barriers and related devices acting on airborne sound propagation - Procedures for assessing long term performance - Part 2: Non-acoustic characteristics
This draft European Standard specifies requirements for assessing the working life and provides the relevant exposure conditions.
Standards of construction and any material tests conducted should provide evidence of resistance to specified conditions selected from the following:
I. Chemical Agents Location
dependent
II. De-icing salt Location/climate
dependent
III. Dirty water/dust Location/
Climate
dependent
IV. Dew Climate
dependent
V. Freeze/thaw Climate
dependent
VI. Cold Climate
dependent
VII. Heat Climate
dependent
VIII. UV Radiation Climate
dependent
IX. Traffic Vibration Location
dependent
X. Biological Process Climate
dependent
XI. Ozone Location
dependent
XII. Water Climate
dependent
XIII. Water spray
Wet/dry Location
dependent
NOTE Special care needs to be taken for combinations of different materials, whether inside a single device or in combination with other devices (for example: a combination of different acoustic elements or another combination of acoustic and structural elements).
Bahnanwendungen - Oberbau - Lärmschutzwände und verwandte Vorrichtungen zur Beeinflussung der Luftschallausbreitung - Bewertungsverfahren für das Langzeitverhalten - Teil 2: Nicht akustische Merkmale
In diesem Europäischen Normentwurf werden die Anforderungen zur Bewertung der Lebensdauer festgelegt und die maßgeblichen Expositionsbedingungen aufgeführt.
Baunormen und alle Werkstoffprüfungen, die durchgeführt werden, sollten den Nachweis der Beständigkeit gegenüber festgelegten Bedingungen liefern, die aus nachfolgender Auflistung ausgewählt worden sind:
I. Chemische Arbeitsstoffe Standortabhängig
II. Streusalz Standort-/Klimaabhängig
III. Schmutzwasser/Staub Standort-/Klimaabhängig
IV. Tau Klimaabhängig
V. Frost/Tauwetter Klimaabhängig
VI. Kälte Klimaabhängig
VII. Hitze Klimaabhängig
VIII. UV-Strahlung Klimaabhängig
IX. Erschütterungen durch Verkehr Standortabhängig
X. Biologischer Prozess Klimaabhängig
XI. Ozon Standortabhängig
XII. Wasser Klimaabhängig
XIII. Wassernebel
Feucht/trocken Standortabhängig
ANMERKUNG In besonderer Weise berücksichtigt werden müssen Kombinationen verschiedener Werkstoffe, sowohl innerhalb einer einzigen Vorrichtung oder in Kombination mit anderen Vorrichtungen (zum Beispiel: eine Kombination von verschiedenen akustischen Elementen oder aber eine Kombination von akustischen und Strukturelementen).
Applications ferroviaires - Voie - Dispositifs de réduction du bruit - Méthodes d'évaluation des performances à long terme - Partie 2 : Caractéristiques non acoustiques
Le présent document spécifie les exigences pour l'évaluation de la durée de vie et définit les conditions d'exposition applicables.
Il convient que les normes de construction et tous les essais de matériaux réalisés apportent la preuve de la résistance aux conditions spécifiées et choisies parmi les suivantes :
I. Agents chimiques Fonction de l’emplacement
II. Sels de déverglaçage Fonction de l’emplacement ou du climat
III. Eau sale/poussière Fonction de l’emplacement ou du climat
IV. Rosée Fonction du climat
V. Gel/dégel Fonction du climat
VI. Froid Fonction du climat
VII. Chaleur Fonction du climat
VIII. Rayons U.V. Fonction du climat
IX. Vibrations dues à la circulation Fonction de l’emplacement
X. Processus biologique Fonction du climat
XI. Ozone Fonction de l’emplacement
XII. Eau Fonction du climat
XIII. Projection d’eau (humide/sec) Fonction de l’emplacement
NOTE Des précautions particulières doivent être prises pour les combinaisons de différents matériaux, que ce soit pour un dispositif unique ou en association avec d'autres dispositifs (par exemple, une combinaison de différents éléments acoustiques ou une autre combinaison d'éléments acoustiques et d'éléments structuraux).
Železniške naprave - Zgornji ustroj proge - Protihrupne ovire in pripadajoče naprave, ki vplivajo na širjenje zvoka po zraku - Postopki za ocenjevanje dolgoročne učinkovitosti - 2. del: Neakustične karakteristike
Ta evropski standard določa zahteve za ocenjevanje življenjske dobe in podaja pomembne pogoje izpostavljenosti.
General Information
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.SULSDGDMRþHQMHYDQMHBahnanwendungen - Oberbau - Lärmschutzwände und verwandte Vorrichtungen zur Beeinflussung der Luftschallausbreitung - Bewertungsverfahren für das Langzeitverhalten - Teil 2: Nicht akustische MerkmaleApplications ferroviaires - Voie - Dispositifs de réduction du bruit - Méthodes d'évaluation des performances à long terme - Partie 2 : Caractéristiques non acoustiquesRailway applications - Track - Noise barriers and related devices acting on airborne sound propagation - Procedures for assessing long term performance - Part 2: Non-acoustic characteristics93.100Gradnja železnicConstruction of railways17.140.30Emisija hrupa transportnih sredstevNoise emitted by means of transportICS:Ta slovenski standard je istoveten z:EN 16951-2:2018SIST EN 16951-2:2018en,fr,de01-oktober-2018SIST EN 16951-2:2018SLOVENSKI
STANDARD
SIST EN 16951-2:2018
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 16951-2
June
t r s z ICS
{ uä s r r English Version
Railway applications æ Track æ Noise barriers and related devices acting on airborne sound propagation æ Procedures for assessing long term performance æ Part
tã Nonæacoustic characteristics Applications ferroviaires æ Voie æ Écrans antibruit et dispositifs connexes influant sur la propagation aérienne du son æ Méthodes d 5évaluation des performances à long terme æ Partie
t ã Caractéristiques non acoustiques
Bahnanwendungen æ Oberbau æ Lärmschutzwände und verwandte Vorrichtungen zur Beeinflussung der Luftschallausbreitung æ Bewertungsverfahren für das Langzeitverhalten æ Teil
tã Nicht akustische MerkmaleThis European Standard was approved by CEN on
t February
t r s zä
egulations which stipulate the conditions for giving this European Standard the status of a national standard without any alterationä Upætoædate lists and bibliographical references concerning such national standards may be obtained on application to the CENæCENELEC Management Centre or to any CEN memberä
translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä
CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Serbiaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey and United Kingdomä
EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Rue de la Science 23,
B-1040 Brussels
9
t r s z CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä EN
s x { w sæ tã t r s z ESIST EN 16951-2:2018

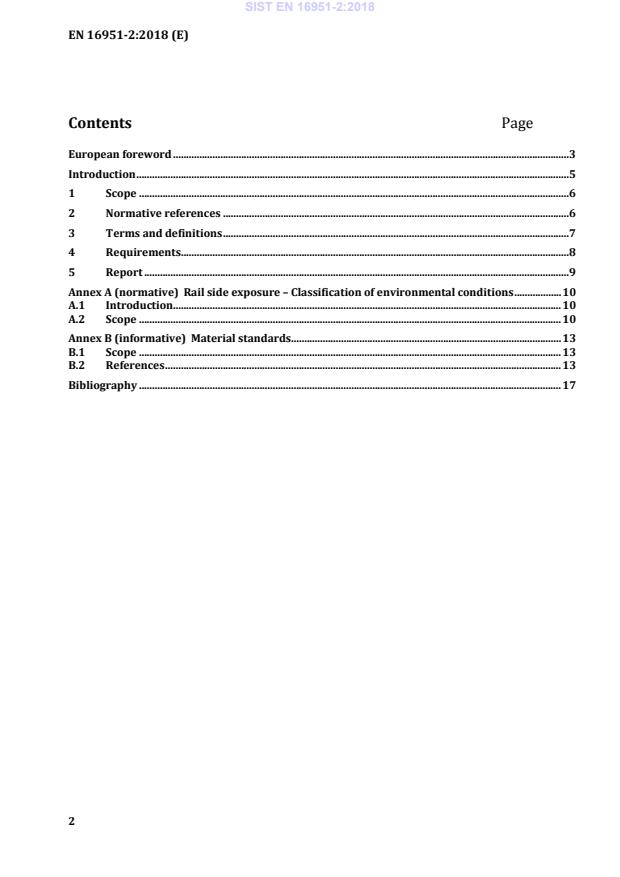

EN 16951-2:2018 (E) 2 Contents Page European foreword .3 Introduction .5 1 Scope .6 2 Normative references .6 3 Terms and definitions .7 4 Requirements .8 5 Report .9 Annex A (normative)
Rail side exposure – Classification of environmental conditions . 10 A.1 Introduction. 10 A.2 Scope . 10 Annex B (informative)
Material standards . 13 B.1 Scope . 13 B.2 References . 13 Bibliography . 17
SIST EN 16951-2:2018
EN 16951-2:2018 (E) 3 European foreword This document (EN 16951-2:2018) has been prepared by Technical Committee CEN/TC 256 “Railway applications”, the secretariat of which is held by DIN. This European Standard shall be given the status of a national standard, either by publication of an identical text or by endorsement, at the latest by December 2018, and conflicting national standards shall be withdrawn at the latest by December 2018. Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CEN shall not be held responsible for identifying any or all such patent rights. This European Standard is one of the series EN 16951, Railway applications - Track - Noise barriers and related devices acting on airborne sound propagation - Procedures for assessing long term performance, as listed below: — Part 1: Acoustic characteristics; — Part 2: Non-acoustic characteristics [this document]. This part of EN 16951 is concerned with long-term durability. It should be read in conjunction with: — EN 16272-1, Railway applications - Track - Noise barriers and related devices acting on airborne sound propagation - Test method for determining the acoustic performance - Part 1: Intrinsic characteristics - Sound absorption in the laboratory under diffuse sound field conditions; — EN 16272-2, Railway applications - Track - Noise barriers and related devices acting on airborne sound propagation - Test method for determining the acoustic performance - Part 2: Intrinsic characteristics - Airborne sound insulation in the laboratory under diffuse sound field conditions; — EN 16272-3-1, Railway applications - Track - Noise barriers and related devices acting on airborne sound propagation - Test method for determining the acoustic performance - Part 3-1: Normalized railway noise spectrum and single number ratings for diffuse field applications; — EN 16272-3-2, Railway applications - Track - Noise barriers and related devices acting on airborne sound propagation - Test method for determining the acoustic performance - Part 3-2: Normalized railway noise spectrum and single number ratings for direct field applications; — CEN/TS 16272-5, Railway applications - Track - Noise barriers and related devices acting on airborne sound propagation - Test method for determining the acoustic performance - Part 5: Intrinsic characteristics - In situ values of sound reflection under direct sound field conditions; — EN 16272-6, Railway applications - Track - Noise barriers and related devices acting on airborne sound propagation - Test method for determining the acoustic performance - Part 6: Intrinsic characteristics - In situ values of airborne sound insulation under direct sound field conditions; — EN 16727-1, Railway applications - Track - Noise barriers and related devices acting on airborne sound propagation - Non-acoustic performance - Part 1: Mechanical performance under static loadings - Calculation and test method; SIST EN 16951-2:2018
EN 16951-2:2018 (E) 4 — EN 16727-2-1, Railway applications - Track - Noise barriers and related devices acting on airborne sound propagation - Non-acoustic performance - Part 2-1: Mechanical performance under dynamic loadings due to passing trains - Resistance to fatigue; — EN 16727-2-2, Railway applications - Track - Noise barriers and related devices acting on airborne sound propagation - Non-acoustic performance - Part 2-2: Mechanical performance under dynamic loadings caused by passing trains - Calculation method; — EN 16727-3, Railway applications - Track - Noise barriers and related devices acting on airborne sound propagation - Non-acoustic performance - Part 3: General safety and environmental requirements; — EN 16951-1, Railway applications - Track - Noise barriers and related devices acting on airborne sound propagation - Procedures for assessing long term performance - Part 1: Acoustic characteristics; — EN 60721-3-4, Classification of environmental conditions - Part 3: Classification of groups of environmental parameters and their severities - Section 4: Stationary use at non-weatherprotected locations (IEC 60721-3-4). According to the CEN-CENELEC Internal Regulations, the national standards organisations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom. SIST EN 16951-2:2018
EN 16951-2:2018 (E) 5 Introduction Noise barriers and related devices acting on sound propagation alongside railways should not only fulfil their acoustic function and structural design requirements in accordance with appropriate documents, but also maintain their performance during the required working life. The structural elements need to retain acceptable minimum safety factors at the end of their working life and the acoustic elements do not only have to remain effective structurally but provide the specified acoustic performance. All elements in the construction of noise barriers and related devices acting on sound propagation should be resistant to electrolytic or/and chemical corrosion and embrittlement, be dimensionally stable and have generally a high ageing resistance in many differing conditions. SIST EN 16951-2:2018
EN 16951-2:2018 (E) 6 1 Scope This European Standard specifies requirements for assessing the working life and provides the relevant exposure conditions. Standards of construction and any material tests conducted should provide evidence of resistance to specified conditions selected from the following: I. Chemical Agents Location dependent II. De-icing salt Location/climate dependent III. Dirty water/dust Location/ Climate dependent IV. Dew Climate dependent V. Freeze/thaw Climate dependent VI. Cold Climate dependent VII. Heat Climate dependent VIII. Ultra-Violet (UV) Radiation Climate dependent IX. Traffic Vibration Location dependent X. Biological Process Climate dependent XI. Ozone Location dependent XII. Water Climate dependent XIII. Water spray Wet/dry Location dependent 2 Normative references The following documents, in whole or in part, are normatively referenced in this document and are indispensable for its application. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 60721-3-4:1995, Classification of environmental conditions - Part 3: Classification of groups of environmental parameters and their severities - Section 4: Stationary use at non-weatherprotected locations (IEC 60721-3-4:1995) SIST EN 16951-2:2018
EN 16951-2:2018 (E) 7 3 Terms and definitions For the purposes of this document, the following terms and definitions apply. 3.1 noise barrier noise reducing device, which obstructs the direct transmission of airborne sound emanating from railways, and which will typically span between posts and also may overhang the railway Note 1 to entry: Noise barriers are generally made of acoustic and structural elements (see 3.3 and 3.4). 3.2 cladding noise reducing device, which is attached to a wall or other structure and reduces the amount of sound reflected Note 1 to entry: Claddings are generally made of acoustic and structural elements (see 3.3 and 3.4). 3.3 acoustic element element whose primary function is to provide the acoustic performance of the device 3.4 structural element element whose primary function is to support or hold in place acoustic elements 3.5 added device added component that influences the acoustic performance of the original noise-reducing device (acting primarily on the diffracted energy) Note 1 to entry: In some noise barriers, the acoustic function and the structural function cannot be clearly separated and attributed to different components. 3.6 rail side exposure use of the product as a noise barrier or cladding installed alongside railways 3.7 acoustic working life period of time during which the declared acoustic performance(s) [DL (from EN 16272-3-1) and/or DLR (from EN 16272-3-1) and/or DLRI (from EN 16272-3-2) and/or DLSI (from EN 16272-3-2)] of the device will be maintained 3.8 non-acoustic working life period of time during which the performance of the device will be sustained which enables it to fulfil the performance characteristics as identified in EN 16727-1, EN 16727-2-1, EN 16727-2-2 and EN 16727-3 SIST EN 16951-2:2018
EN 16951-2:2018 (E) 8 4 Requirements The structural design shall comply with the requirements of the appropriate Eurocode (see B.2). Standard environmental categories selected for noise barriers and related devices acting on sound propagation with possible variations are given in Annex A of this document. The manufacturer shall list the measures taken to limit the effects of ageing on his product following the list of ageing agents I to XIII (see Clause 1) and the adverse effects of combining different materials. The manufacturer shall define the working life under all the exposure classes listed in the Table 1. In all cases, the working life of the noise barrier or related device acting on sound propagation is the minimum of the working lives of its components. Adverse effects on the long-term performance of contact with the ground shall be taken into account. If water is likely to degrade the required working life, the design shall ensure that contact with water and water retention are controlled through design or that protection from the influence of water is provided. The working life of structural and acoustic elements can be different; therefore, they shall be assessed under the same exposure conditions when installed on the same site. If a change in humidity and/or temperature and/or UV affects the dimensional stability of materials used in the construction, then the design shall allow for such changes and ensure that the performance conti
...
