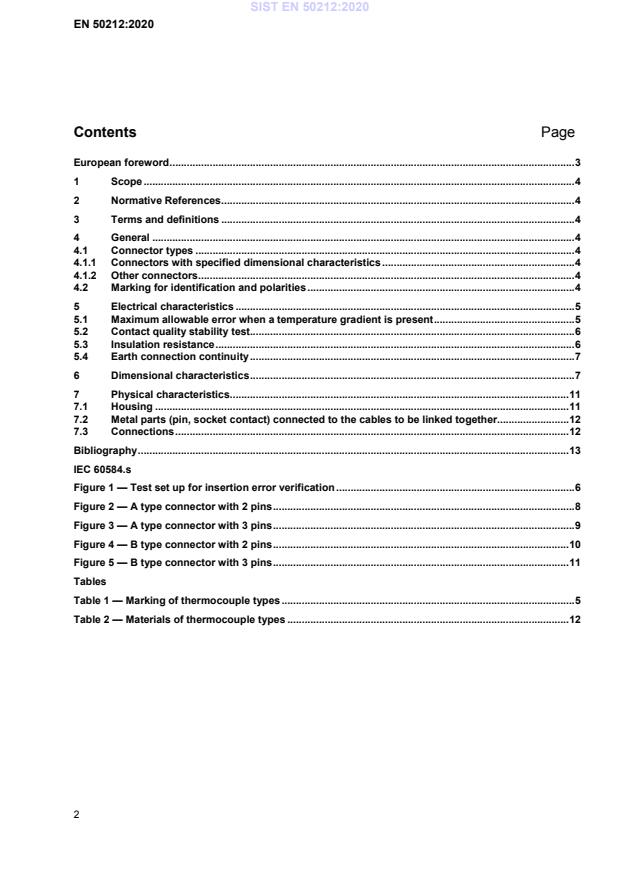

Contents Page

European foreword ............................................................................................................................................. 3

1 Scope ...................................................................................................................................................... 4

2 Normative References ........................................................................................................................... 4

3 Terms and definitions ........................................................................................................................... 4

4 General ................................................................................................................................................... 4

4.1 Connector types .................................................................................................................................... 4

4.1.1 Connectors with specified dimensional characteristics ................................................................... 4

4.1.2 Other connectors ................................................................................................................................... 4

4.2 Marking for identification and polarities ............................................................................................. 4

5 Electrical characteristics ...................................................................................................................... 5

5.1 Maximum allowable error when a temperature gradient is present ................................................. 5

5.2 Contact quality stability test................................................................................................................. 6

5.3 Insulation resistance ............................................................................................................................. 6

5.4 Earth connection continuity ................................................................................................................. 7

6 Dimensional characteristics ................................................................................................................. 7

7 Physical characteristics...................................................................................................................... 11

7.1 Housing ................................................................................................................................................ 11

7.2 Metal parts (pin, socket contact) connected to the cables to be linked together......................... 12

7.3 Connections ......................................................................................................................................... 12

Bibliography ...................................................................................................................................................... 13

IEC 60584.s

Figure 1 — Test set up for insertion error verification ................................................................................... 6

Figure 2 — A type connector with 2 pins ......................................................................................................... 8

Figure 3 — A type connector with 3 pins ......................................................................................................... 9

Figure 4 — B type connector with 2 pins ....................................................................................................... 10

Figure 5 — B type connector with 3 pins ....................................................................................................... 11

Tables

Table 1 — Marking of thermocouple types ...................................................................................................... 5

Table 2 — Materials of thermocouple types .................................................................................................. 12

---------------------- Page: 4 ----------------------
SIST EN 50212:2020
EN 50212:2020
European foreword

This document (EN 50212:2020) has been prepared by CLC/TC 65X “Industrial-process measurement,

control and automation”.
The following dates are fixed:
• latest date by which this document has (dop) 2021-03-09
to be implemented at national level by
publication of an identical national
standard or by endorsement
• latest date by which the national (dow) 2023-03-09
standards conflicting with this document
have to be withdrawn

This document supersedes EN 50212:1996 and all of its amendments and corrigenda (if any).

Attention is drawn to the possibility that some of the elements of this document may be the subject of patent

rights. CENELEC shall not be held responsible for identifying any or all such patent rights.

---------------------- Page: 5 ----------------------
SIST EN 50212:2020
EN 50212:2020
1 Scope

The object of this document is to determine the composition, nature of materials, manufacturing tests and

thermoelectronic behaviour of connectors for sensors using thermocouples according to EN 60584-3:2008.

This document does not cover such special thermocouples as U, L and W types; nevertheless, the user of

such special thermocouples can use the connectors described hereafter with some restrictions mentioned in

the relevant paragraphs.
2 Normative References

The following documents are referred to in the text in such a way that some or all of their content constitutes

requirements of this document. For dated references, only the edition cited applies. For undated references,

the latest edition of the referenced document (including any amendments) applies.

IEC 60584 (series), Thermocouples
3 Terms and definitions
No terms and definitions are listed in this document.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— IEC Electropedia: available at http://www.electropedia.org/
— ISO Online browsing platform: available at http://www.iso.org/obp
4 General
4.1 Connector types
4.1.1 Connectors with specified dimensional characteristics

They are defined in this standard by their dimensional, physical, electrical and chemical characteristics.

The types retained in this standard are:
— A type: connectors with cylindrical pins and cylindrical sockets;
— B type: connec
...
