SIST EN 50525-2-22:2011

Electric cables - Low voltage energy cables of rated voltages up to and including 450/750 V (U0/U) - Part 2-22: Cables for general applications - High flexibility braided cables with crosslinked elastomeric insulation

EN 50525-2-22 applies to crosslinked EPR insulated and textile braided flexible cables. The cables are of rated voltage U0/U 300/300 V. The cables are intended for the connection of domestic appliances to the fixed supply, where an extra flexible connection is required. The maximum conductor operating temperature for the cables in this standard is 60 °C. NOTE   HD 516 contains extensive guidance on the safe use of cables in this standard. This EN 50525-2-22 should be read in conjunction with EN 50525-1, which specifies general requirements.

Kabel und Leitungen - Starkstromleitungen mit Nennspannungen bis 450/750 V (U0/U) - Teil 2-22: Starkstromleitungen für allgemeine Anwendungen - Hochflexible umflochtene Leitungen mit vernetzter Elastomer-Isolierung

Câbles électriques - Câbles d’énergie basse tension de tension assignée au plus égale à 450/750 V (U0/U) - Partie 2-22: Câbles pour applications générales - Câbles sous tresse à flexibilité élevée isolés en matériau élastomère réticulé

Električni kabli - Nizkonapetostni energetski kabli z nazivno napetostjo do vključno 450/750 V (U0/U) - 2-22. del: Kabli za splošno uporabo - Pleteni kabli visoke stopnje zvijavosti z zamrežno elastomerno izolacijo

EN 50525-2-22 velja za zvijave kable z zamreženo elastomreno izolacijo, pletene iz tkanine. Ti kabli imajo nazivno napetost 300/300 V (UO/U). Kabli so namenjeni povezavi gospodinjskih aparatov s fiksnim napajanjem, kjer je potrebna dodatna fleksibilna povezava. Maksimalna delovna temperatura pretvornika za kable iz tega standarda je 60 °C.

General Information

• Status: Published
• Public Enquiry End Date: 28-Feb-2009
• Publication Date: 09-Jun-2011
• ICS: 29.060.20 - Cables
• Technical Committee: IEKA - Electric cables
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 07-Jun-2011
• Due Date: 12-Aug-2011
• Completion Date: 10-Jun-2011
• Directive: 2006/95/EC - Directive 2006/95/EC of the European Parliament and of the Council of 12 December 2006 on the harmonisation of the laws of Member States relating to electrical equipment designed for use within certain voltage limits (codified version)
• Directive: 2014/35/EU - Directive 2014/35/EU of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to the making available on the market of electrical equipment designed for use within certain voltage limits
• Ref Project: EN 50525-2-22:2011 - Electric cables - Low voltage energy cables of rated voltages up to and including 450/750 V (U0/U) - Part 2-22: Cables for general applications - High flexibility braided cables with crosslinked elastomeric insulation

Relations

• Replaces: SIST HD 22.14 S3:2007 - Cables of rated voltages up to and including 450/750 V and having cross-linked insulation -- Part 14: Cords for applications requiring high flexibility
• Effective Date: 28-Jan-2023
• Revised: SIST HD 22.14 S3:2007 - Cables of rated voltages up to and including 450/750 V and having cross-linked insulation -- Part 14: Cords for applications requiring high flexibility
• Effective Date: 07-Jun-2022
• Revised: SIST HD 22.14 S3:2007 - Cables of rated voltages up to and including 450/750 V and having cross-linked insulation -- Part 14: Cords for applications requiring high flexibility
• Effective Date: 06-Jan-2009

Standards Content (Sample)

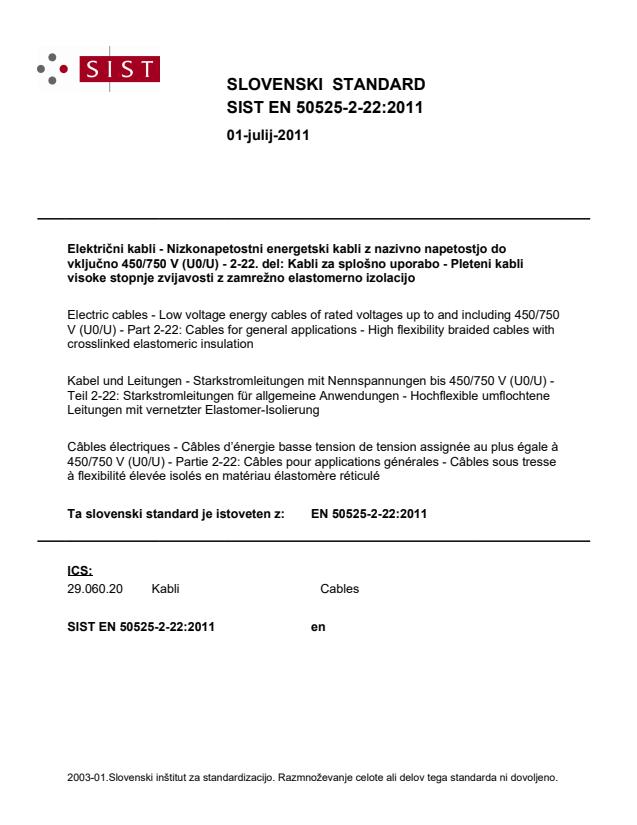

SLOVENSKI STANDARD
01-julij-2011
(OHNWULþQLNDEOL1L]NRQDSHWRVWQLHQHUJHWVNLNDEOL]QD]LYQRQDSHWRVWMRGR
YNOMXþQR988GHO.DEOL]DVSORãQRXSRUDER3OHWHQLNDEOL
YLVRNHVWRSQMH]YLMDYRVWL]]DPUHåQRHODVWRPHUQRL]RODFLMR
Electric cables - Low voltage energy cables of rated voltages up to and including 450/750
V (U0/U) - Part 2-22: Cables for general applications - High flexibility braided cables with
crosslinked elastomeric insulation
Kabel und Leitungen - Starkstromleitungen mit Nennspannungen bis 450/750 V (U0/U) -
Teil 2-22: Starkstromleitungen für allgemeine Anwendungen - Hochflexible umflochtene
Leitungen mit vernetzter Elastomer-Isolierung
Câbles électriques - Câbles d’énergie basse tension de tension assignée au plus égale à
450/750 V (U0/U) - Partie 2-22: Câbles pour applications générales - Câbles sous tresse
à flexibilité élevée isolés en matériau élastomère réticulé
Ta slovenski standard je istoveten z: EN 50525-2-22:2011
ICS:
29.060.20 Kabli Cables
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 50525-2-22
NORME EUROPÉENNE
May 2011
EUROPÄISCHE NORM
ICS 29.060.20 Supersedes HD 22.14 S3:2007 (partially)

English version
Electric cables -
Low voltage energy cables of rated voltages up to and including 450/750 V
(U /U) -
Part 2-22: Cables for general applications -
High flexibility braided cables with crosslinked elastomeric insulation

Câbles électriques -  Kabel und Leitungen -
Câbles d’énergie basse tension de tension Starkstromleitungen mit Nennspannungen
assignée au plus égale à 450/750 V bis 450/750 V (U /U) -
(U /U) -
Teil 2-22: Starkstromleitungen für
Partie 2-22: Câbles pour applications allgemeine Anwendungen -
générales - Hochflexible umflochtene Leitungen mit
Câbles sous tresse à flexibilité élevée vernetzter Elastomer-Isolierung
isolés en matériau élastomère réticulé

This European Standard was approved by CENELEC on 2011-01-17. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy,
Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia,
Spain, Sweden, Switzerland and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Management Centre: Avenue Marnix 17, B - 1000 Brussels

© 2011 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 50525-2-22:2011 E
Foreword
This European Standard was prepared by the Technical Committee CENELEC TC 20, Electric cables.
The text of the draft was submitted to the formal vote and was approved by CENELEC as
EN 50525-2-22 on 2011-01-17.
This document, which is one of a multipart series, partially supersedes HD 22.14 S3:2007.
Attention is drawn to the possibility that some of the elements of this document may be the
subject of patent rights. CEN and CENELEC shall not be held responsible for identifying any
or all such patent rights.
The following dates were fixed:
– latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement (dop) 2012-01-17
– latest date by which the national standards conflicting
with the EN have to be withdrawn (dow) 2014-01-17

________________
- 3 - EN 50525-2-22:2011
Contents
Page
1 Scope . 4
2 Normative references . 4
3 Terms and definitions . 4
4 Flexible cables - H03RT-H . 4
4.1 Construction . 4
4.2 Requirements . 5
Annex A (normative) Tests for cables to EN 50525-2-22 . 6
Annex B (normative) . 7
General data . 7
Annex C (normative) . 8
Measurement of coverage by textile braid. 8
C.1 Terms and definitions . 8
C.2 Test methods . 8
Bibliography . 10

Figures
Figure C.1 ― Textile braid . 9
Tables
Table A.1 . 6
Table B.1 . 7

1 Scope
EN 50525-2-22 applies to crosslinked EPR insulated and textile braided flexi
...
