SIST EN 16245-3:2013
(Main)Fibre-reinforced plastic composites - Declaration of raw material characteristics - Part 3: Specific requirements for fibre
Fibre-reinforced plastic composites - Declaration of raw material characteristics - Part 3: Specific requirements for fibre
This European Standard specifies the minimum information to be declared for fibre material to be used for the manufacturing of composites products. These specific declaration requirements are given in addition to the general requirements given in EN 16245-1. This document includes requirements for the Certificate of Analysis (CoA). The purpose of the CoA is to verify that material properties and quality conforms to the declared values. This part of the standard is applicable to carbon and glass fibre material.
Faserverstärkte Verbundwerkstoffe - Angabe von Werkstoffeigenschaften - Teil 3: Spezifische Anforderungen an Fasern
Dieser Teil der Norm legt die Mindestangaben für Faserwerkstoffe fest, die zur Herstellung von Produkten aus Verbundwerkstoffen verwendet werden.
Diese spezifischen Anforderungen an die Deklaration ergänzen die in Teil 1 dieser Norm (prEN 16245 1) angegebenen allgemeinen Anforderungen.
Dieses Dokument enthält Anforderungen an das Analysenzertifikat (CoA). Zweck des CoA ist es zu verifizieren, dass die Werkstoffeigenschaften und die Qualität den angegebenen Werten entsprechen.
Dieser Teil der Norm gilt für Kohlenstoff und Glasfaserwerkstoffe.
Composites plastiques renforcés de fibres - Déclaration des caractéristiques des matières premières - Partie 3: Exigences particulières pour les fibres
La présente partie de la norme spécifie les informations minimales devant être déclarées pour le matériau fibreux destiné à être utilisé pour la fabrication de produits en composites.
Ces exigences particulières de déclaration viennent en complément des exigences générales spécifiées dans la partie 1 de la présente norme (prEN 16245-1).
Le présent document contient les exigences relatives au certificat d'analyse (CA). Le CA a pour but de confirmer que les propriétés et la qualité des matériaux sont conformes aux valeurs déclarées.
La présente partie de la norme est applicable aux matériaux à base de fibres de carbone et de fibres de verre.
Z vlakni ojačeni kompozitni polimerni materiali - Navajanje karakteristik surovin - 3. del: Posebne zahteve za vlakna
Ta evropski standard podaja minimalne informacije, ki morajo biti navedene za vlakna, ki se uporabljajo za izdelavo kompozitnih izdelkov. Te posebne zahteve za navajanje so dodatek splošnim zahtevam iz standarda EN 16245-1. Ta dokument vključuje zahteve za potrdilo o analizi (CoA). Namen potrdila o analizi je overitev, da so lastnosti materialov in kakovost skladni z deklariranimi vrednostmi. Ta del standarda se uporablja za material iz karbonskih in steklenih vlaken.
General Information
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Faserverstärkte Verbundwerkstoffe - Angabe von Werkstoffeigenschaften - Teil 3: Spezifische Anforderungen an FasernComposites plastiques renforcés de fibres - Déclaration des caractéristiques des matières premières - Partie 3: Exigences particulières pour les fibresFibre-reinforced plastic composites - Declaration of raw material characteristics - Part 3: Specific requirements for fibre83.120Reinforced plasticsICS:Ta slovenski standard je istoveten z:EN 16245-3:2013SIST EN 16245-3:2013en,fr,de01-julij-2013SIST EN 16245-3:2013SLOVENSKI
STANDARD
SIST EN 16245-3:2013
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 16245-3
May 2013 ICS 83.120 English Version
Fibre-reinforced plastic composites - Declaration of raw material characteristics - Part 3: Specific requirements for fibre
Composites plastiques renforcés de fibres - Déclaration des caractéristiques des matières premières - Partie 3: Exigences particulières pour les fibres
Faserverstärkte Verbundwerkstoffe - Angabe von Werkstoffeigenschaften - Teil 3: Spezifische Anforderungen an Fasern This European Standard was approved by CEN on 21 March 2013.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2013 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 16245-3:2013: ESIST EN 16245-3:2013

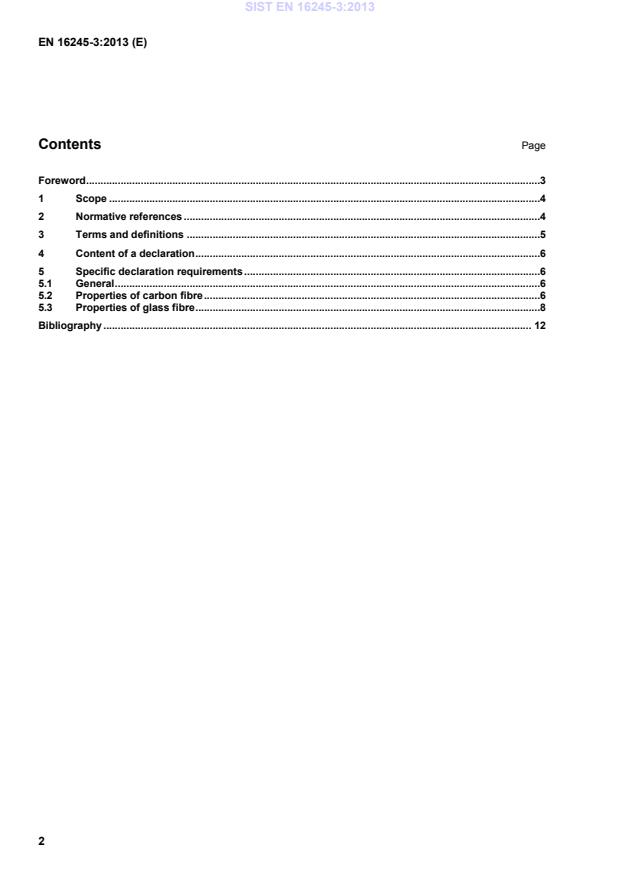

EN 16245-3:2013 (E) 2 Contents Page Foreword .3 1 Scope .4 2 Normative references .4 3 Terms and definitions .5 4 Content of a declaration .6 5 Specific declaration requirements .6 5.1 General .6 5.2 Properties of carbon fibre .6 5.3 Properties of glass fibre .8 Bibliography . 12
SIST EN 16245-3:2013
EN 16245-3:2013 (E) 3 Foreword This document (EN 16245-3:2013) has been prepared by Technical Committee CEN/TC 249 “Plastics”, the secretariat of which is held by NBN. This European Standard shall be given the status of a national standard, either by publication of an identical text or by endorsement, at the latest by November 2013, and conflicting national standards shall be withdrawn at the latest by November 2013. Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights. EN 16245 consists of the following parts, under the general title Fibre-reinforced plastic composites — Declaration of raw material characteristics: Part 1: General requirements Part 2: Specific requirements for resin, curing systems, additives and modifiers Part 3: Specific requirements for fibre (the present document) Part 4: Specific requirements for fabrics
Part 5: Specific requirements for core materials
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom. SIST EN 16245-3:2013
EN 16245-3:2013 (E) 4 1 Scope This European Standard specifies the minimum information to be declared for fibre material to be used for the manufacturing of composites products.
These specific declaration requirements are given in addition to the general requirements given in EN 16245-1. This document includes requirements for the Certificate of Analysis (CoA). The purpose of the CoA is to verify that material properties and quality conforms to the declared values.
This part of the standard is applicable to carbon and glass fibre material. 2 Normative references The following documents, in whole or in part, are normatively referenced in this document and are indispensable for its application. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 16245-1:2013, Fibre-reinforced plastics composites — Declaration of raw material characteristics — Part 1: General requirements EN ISO 291, Plastics — Standard atmospheres for conditioning and testing (ISO 291) EN ISO 1889, Reinforcement yarns — Determination of linear density (ISO 1889) EN ISO 1890, Reinforcement yarns — Determination of twist (ISO 1890) EN ISO 3344, Reinforcement products — Determination of moisture content (ISO 3344) EN ISO 9163, Textile glass — Rovings — Manufacture of test specimens and determination of tensile strength of impregnated rovings (ISO 9163) EN ISO 10548:2003, Carbon fibre — Determination of size content (ISO 10548:2002) EN ISO 10618, Carbon fibre — Determination of tensile properties of resin-impregnated yarn (ISO 10618) ISO 1887, Textile glass — Determination of combustible-matter content ISO 1888, Textile glass — Staple fibres or filaments — Determination of average diameter ISO 10119:2002, Carbon fibre — Determination of density ISO 15100, Plastics — Reinforcement fibres — Chopped strands — Determination of bulk density ASTM D150-11, Standard Test Methods for AC Loss Characteristics and Permittivity (Dielectric Constant) of Solid Electrical Insulation ASTM D578-05, Standard Specification for Glass Fiber Strands ASTM D2970-04, Standard Test Method for Testing Tire Cords, Tire Cord Fabrics, and Industrial Yarns Made From Glass Filaments SIST EN 16245-3:2013
EN 16245-3:2013 (E) 5 3 Terms and definitions For the purposes of this document, the following terms and definitions apply. 3.1 carbon fibre fibre produced by the pyrolysis of organic precursor fibres such as rayon, polyacrylonitrile (PAN), and pitch in an inert atmosphere
Note 1 to entry: The term is often used interchangeably with graphite, however carbon fibres and graphite fibres differ in the temperature at which the fibres are made and heat-treated, and the amount of carbon produced. Carbon fibres typically are carbonised at about 1 300 °C and assay at 93 % to 95 % carbon, while graphite fibres are graphitised at 1 900 °C to 3 000 °C and assay at more than 99 % elemental carbon. 3.2 glass fibre fibre made under highly controlled conditions from molten minerals and other inorganic materials where the resulting silica content normally is above 50 % 3.3 fibre unit of matter characterised by a high ratio of length to thickness or diameter
3.4 filament variety of fibres characterised by extreme length, such that there are normally no filament ends within a part except at geometric discontinuities
Note 1 to entry: Fibre and filament are often interchanged. Note 2 to entry: Filaments can be formed into roving or yarn with low twist. 3.5 twist number of turns per unit length about the axis, in a yarn or other textile strand 3.6 sizing agent/coupling agent chemical substance applied to filaments/fibres for protection, processability and influence on mechanical and chemical properties 3.7 fibre strand bundle of filaments
3.8 yarn twisted strands Note 1 to entry: For carbon fibre, yarn can be used on filament bundle with 0 twist. 3.9 roving number of strands, tows or ends collected into a parallel bundle with little or no twist
SIST EN 16245-3:2013
EN 16245-3:2013 (E) 6 4 Content of a declaration A declaration for the fibre material shall consist of information according to EN 16245-1:2013, Clause 5 and Clause 5 of this standard. 5 Specific declaration requirements 5.1 General The specific requirements for fibre are given below.
All declaration requirements, i.e. the general information a
...
