SIST EN 50288-11-1:2013

Multi-element metallic cables used in analogue and digital communication and control - Part 11: Sectional specification for un-screened cables, characterised up to 500 MHz, for horizontal and building backbone wiring

EN 50288-11-1 is a sectional specification for un-screened cables, characterised from 1 MHz up to 500 MHz, to be used in horizontal and building backbone wiring for Information Technology generic-cabling systems. This sectional specification contains the electrical, mechanical, transmission and environmental performance characteristics and requirements of the cables when tested in accordance with the referenced test methods. This sectional specification is to be read in conjunction with EN 50288-1, which contains the essential provisions for its application. The cables covered in this sectional specification are intended to operate with voltages and currents normally encountered in communications systems. These cables are not intended to be used in conjunction with lowimpedance sources, for example the electrical power supplies of public utility mains.

Mehradrige metallische Daten- und Kontrollkabel für analoge und digitale Übertragung - Teil 11: Rahmenspezifikation für ungeschirmte Kabel bis 500 MHz - Kabel für den Horizontal- und Steigbereich

Câbles métalliques à éléments multiples utilisés pour les transmissions et les commandes analogiques et numériques - Partie 11: Spécification intermédiaire pour câbles non-blindés, pour applications jusqu'à 500 MHz - Câbles horizontaux et verticaux de bâtiment

Večelementni kovinski kabli za analogne in digitalne komunikacije in krmiljenje - 11-1. del: Področna specifikacija za nezaslonjene kable s karakteristikami do 500 MHz za vodoravno (etažno) in stavbno hrbtenično (medetažno) ožičenje

Standard EN 50288-11-1 je področna specifikacija za nezaslonjene kable, ki se lahko uporabljajo za pasovne širine od 1 MHz do 500 MHz v vodoravnem (etažnem) in stavbnem hrbteničnem (medetažnem) ožičenju za splošne sisteme okablenja v informacijski tehnologiji. Ta področna specifikacija vsebuje električne, mehanske, prenosne in okoljske karakteristike delovanja ter zahteve za kable pri preskušanju v skladu z navedenimi preskusnimi metodami. Ta področna specifikacija se uporablja skupaj s standardom EN 50288-1, ki vsebuje bistvene določbe za njeno uporabo. Kabli, zajeti v tej področni specifikaciji, so namenjeni za delovanje pri napetostih in tokovih, ki so običajni v komunikacijskih sistemih. Ti kabli niso namenjeni za uporabo z viri z nizko impedanco, na primer z električnim napajanjem javnih omrežij.

General Information

• Status: Published
• Public Enquiry End Date: 24-Jun-2010
• Publication Date: 20-Jan-2013
• ICS: 33.120.20 - Wires and symmetrical cables
• Technical Committee: iTEL - Communication cables
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 08-Jan-2013
• Due Date: 15-Mar-2013
• Completion Date: 21-Jan-2013
• Directive: 2006/95/EC - Directive 2006/95/EC of the European Parliament and of the Council of 12 December 2006 on the harmonisation of the laws of Member States relating to electrical equipment designed for use within certain voltage limits (codified version)
• Directive: 2014/35/EU - Directive 2014/35/EU of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to the making available on the market of electrical equipment designed for use within certain voltage limits
• Mandate: M/212 - ICT - metallic and optical cables and cabling systems
• Ref Project: EN 50288-11-1:2012 - Multi-element metallic cables used in analogue and digital communication and control - Part 11-1: Sectional specification for un-screened cables characterised up to 500 MHz - Horizontal and building backbone cables

Standards Content (Sample)

SLOVENSKI STANDARD
SIST EN 50288-11-1:2013
01-marec-2013
9HþHOHPHQWQLNRYLQVNLNDEOL]DDQDORJQHLQGLJLWDOQHNRPXQLNDFLMHLQNUPLOMHQMH
GHO3RGURþQDVSHFLILNDFLMD]DQH]DVORQMHQHNDEOHVNDUDNWHULVWLNDPLGR
0+]]DYRGRUDYQRHWDåQRLQVWDYEQRKUEWHQLþQRPHGHWDåQRRåLþHQMH
Multi-element metallic cables used in analogue and digital communication and control -
Part 11: Sectional specification for un-screened cables, characterised up to 500 MHz, for
horizontal and building backbone wiring
Mehradrige metallische Daten- und Kontrollkabel für analoge und digitale Übertragung -
Teil 11: Rahmenspezifikation für ungeschirmte Kabel bis 500 MHz - Kabel für den
Horizontal- und Steigbereich
Câbles métalliques à éléments multiples utilisés pour les transmissions et les
commandes analogiques et numériques - Partie 11: Spécification intermédiaire pour
câbles non-blindés, pour applications jusqu'à 500 MHz - Câbles horizontaux et verticaux
de bâtiment
Ta slovenski standard je istoveten z: EN 50288-11-1:2012
ICS:
33.120.20 äLFHLQVLPHWULþQLNDEOL Wires and symmetrical
cables
SIST EN 50288-11-1:2013 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------

SIST EN 50288-11-1:2013

---------------------- Page: 2 ----------------------

SIST EN 50288-11-1:2013

EUROPEAN STANDARD
EN 50288-11-1

NORME EUROPÉENNE
December 2012
EUROPÄISCHE NORM

ICS 33.120.10


English version


Multi-element metallic cables used in analogue and digital communication
and control -
Part 11-1: Sectional specification for un-screened cables characterised
up to 500 MHz -
Horizontal and building backbone cables



Câbles métalliques à éléments multiples Mehradrige metallische Daten- und
utilisés pour les transmissions et les Kontrollkabel für analoge und digitale
commandes analogiques et numériques - Übertragung -
Partie 11-1: Spécification intermédiaire Teil 11-1: Rahmenspezifikation für
pour câbles non-blindés, pour applications ungeschirmte Kabel bis 500 MHz -
jusqu'à 500 MHz - Kabel für den Horizontal- und
Câbles horizontaux et verticaux de Steigbereich
bâtiment



This European Standard was approved by CENELEC on 2012-11-12. CENELEC members are bound to comply
with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard
the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the CEN-CENELEC Management Centre or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CENELEC member into its own language and notified
to the CEN-CENELEC Management Centre has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany,
Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland,
Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

Management Centre: Avenue Marnix 17, B - 1000 Brussels


© 2012 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 50288-11-1:2012 E

---------------------- Page: 3 ----------------------

SIST EN 50288-11-1:2013
EN 50288-11-1:2012 – 2 –

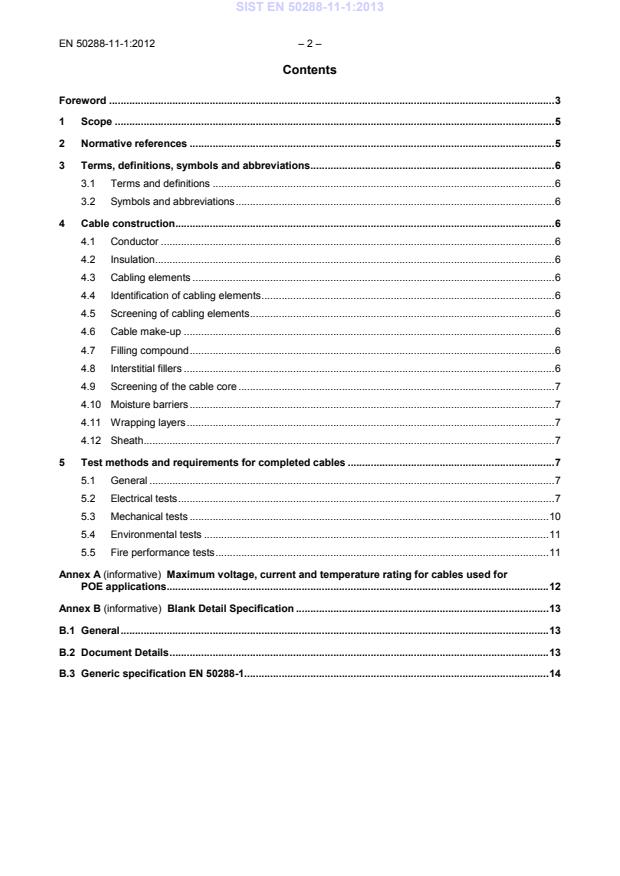

Contents
Foreword . 3
1 Scope . 5
2 Normative references . 5
3 Terms, definitions, symbols and abbreviations. 6
3.1 Terms and definitions . 6
3.2 Symbols and abbreviations . 6
4 Cable construction. 6
4.1 Conductor . 6
4.2 Insulation . 6
4.3 Cabling elements . 6
4.4 Identification of cabling elements . 6
4.5 Screening of cabling elements . 6
4.6 Cable make-up . 6
4.7 Filling compound . 6
4.8 Interstitial fillers . 6
4.9 Screening of the cable core . 7
4.10 Moisture barriers . 7
4.11 Wrapping layers . 7
4.12 Sheath . 7
5 Test methods and requirements for completed cables . 7
5.1 General . 7
5.2 Electrical tests . 7
5.3 Mechanical tests . 10
5.4 Environmental tests . 11
5.5 Fire performance tests . 11
Annex A (informative) Maximum voltage, current and temperature rating for cables used for
POE applications . 12
Annex B (informative) Blank Detail Specification . 13
B.1 General . 13
B.2 Document Details . 13
B.3 Generic specification EN 50288-1. 14

---------------------- Page: 4 ----------------------

SIST EN 50288-11-1:2013
– 3 – EN 50288-11-1:2012

Foreword
This document (EN 50288-11-1:2012) has been prepared by CLC/SC 46XC, "Multicore, multipair and quad
data communication cables".
The following dates are fixed:
• latest date by which this document has to be
(dop) 2013-11-12
implemented at national level by publication of
an identical national standard or by
endorsement
• latest date by which the national standards
(dow) 2015-11-12
conflicting with this document have to
be withdrawn
This document has been prepared under a mandate given to CENELEC by the European Commission and
the European Free Trade Association.
This standard covers the Principle Elements of the Safety Objectives for Electrical Equipment Designed for
Use within Certain Voltage Limits (LVD - 2006/95/EC).
The EN 50288 series is divided into the following parts:
− EN 50288-1, Multi-element metallic cables used in analogue and digital communication and control 
Part 1: Generic specification;
− EN 50288-2-1, Multi-element metallic cables used in analogue and digital communication and control 
Part 2-1: Sectional specification for screened cables characterised up to 100 MHz  Horizontal and
building backbone cables;
− EN 50288-2-2, Multi-element metallic cables used in analogue and digital communication and control 
Part 2-2: Sectional specification for screened cables characterised up to 100 MHz  Work area and
patch cord cables;
− EN 50288-3-1, Multi-element metallic cables used in analogue and digital communication and control 
Part 3-1: Sectional specification for unscreened cables characterised up to 100 MHz  Horizontal and
building backbone cables;
− EN 50288-3-2, Multi-element metallic cables used in analogue and digital communication and control 
Part 3-2: Sectional specification for unscreened cables characterised up to 100 MHz  Work area and
patch cord cables;
− EN 50288-4-1, Multi-element metallic cables used in analogue and digital communication and control 
Part 4-1: Sectional specification for screened cables characterised up to 600 MHz  Horizontal and
building backbone cables;
− EN 50288-4-2, Multi-element metallic cables used in analogue and digital communication and control 
Part 4-2: Sectional specification for screened cables characterised up to 600 MHz  Work area and
patch cord cables;
− EN 50288-5-1, Multi-element metallic cables used in analogue and digital communication and control 
Part 5-1: Sectional specification for screened cables characterized up to 250 MHz  Horizontal and
building backbone cables;
− EN 50288-5-2, Multi-element metallic cables used in analogue and digital communication and control 
Part 5-2: Sectional specification for screened cables characterized up to 250 MHz  Work area and
patch cord cables;

---------------------- Page: 5 ----------------------

SIST EN 50288-11-1:2013
EN 50288-11-1:2012 – 4 –

− EN 50288-6-1, Multi-element metallic cables used in analogue and digital communication and control
Part 6-1: Sectional specification for unscreened cables characterised up to 250 MHz  Horizontal and
building backbone cables;

− EN 50288-6-2, Multi-element metallic cables used in analogue and digital communication and control
Part 6-2: Sectional specification for unscreened cables characterised up to 250 MHz  Work area and
patch cord cables;

− EN 50288-7, Multi-element metallic cables used in analogue and digital communication and control
Part 7: Sectional specification for instrumentation and control cables;
− EN 50288-8, Multi-element metallic cables used in analogue and digital communication and control 
Part 8: Specification for type 1 cables characterised up to 2 MHz;
− EN 50288-9-1, Multi-element metallic cables used in analogue and digital communications and control 
Part 9-1: Sectional specification for screened cables characterized from 1 MHz up to 1 000 MHz 
Horizontal and building backbone cables (the present document);
− EN 50288-10-1, Multi-element metallic cables used in analogue and digital communications and control
 Part 10-1: Sectional specification for screened cables characterized from 1 MHz up to 500 MHz 
Horizontal and building backbone cables;
− EN 50288-11-1, Multi-element metallic cables used in analogue and digital communication and control
 Part 11-1: Sectional specification for un-screened cables characterised from 1 MHz up to 500 MHz 
Horizontal and building backbone cables (the present document).
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such patent rights.

---------------------- Page: 6 ----------------------

SIST EN 50288-11-1:2013
– 5 – EN 50288-11-1:2012

1 Scope
EN 50288-11-1 is a sectional specification for un-screened cables, characterised from 1 MHz up to 500 MHz,
to be used in horizontal and building backbone wiring for Information Technology generic-cabling systems.
This sectional specification contains the electrical, mechanical, transmission and environmental performance
characteristics and requirements of the cables when tested in accordance with the referenced test methods.
This sectional specification is to be read in conjunction with EN 50288-1, which contains the essential
provisions for its application.
The cables covered in this sectional specification are intended to operate with voltages and currents normally
encountered in communications systems. These cables are not intended to be used in conjunction with low
impedance sources, for example the electrical power supplies of public utility mains.
2 Normative references
The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
EN 50288-1 Multi-element metallic cables used in analogue and digital communication and
control  Part 1: Generic specification
EN 50289-1-4 Communication cables  Specifications for test methods  Part 1-4: Electrical test
methods  Insulation resistance
EN 50289-3-2
Communication cables – Specifications for test methods  Part 3-2: Mechanical test
methods  Tensile strength and elongation for conductor
EN 50289-3-4
Communication cables – Specifications for test methods  Part 3-4: Mechanical test
methods  Tensile strength, elongation and shrinkage of insulation and sheath
EN 50289-3-5
Communication cables  Specifications for test methods  Part 3-5: Mechanical test
methods  Crush resistance of the cable
EN 50289-3-6
Communication cables  Specifications for test methods  Part 3-6: Mechanical test
methods  Impact resistance of the cable
EN 50289-3-8 Communication cables  Specifications for test methods  Part 3-8: Mechanical test
methods  Abrasion resistance of cable sheath markings
EN 50289-3-9:2001
Communication cables  Specifications for test methods  Part 3-9: Mechanical test
methods  Bending tests
EN 50289-3-16 Communication cables  Specifications for test methods  Part 3-16: Mechanical test
methods  Cable tensile performance
EN 50289-4-6
Communication cables  Specifications for test methods  Part 4-6: Environmental
test methods  Temperature cycling
EN 50290-2
Communication cables  Part 2: Common design rules and construction
(all parts)
EN 60708 Low-frequency cables with polyolefin insulation and moisture barrier polyolefin sheath
(IEC 60708)

---------------------- Page: 7 ----------------------

SIST EN 50288-11-1:2013
EN 50288-11-1:2012 – 6 –
IEC 60189-2
Low-frequency cables and wires with PVC insulation and PVC sheath  Part 2: Cables
in pairs, triples, quads and quintuples for inside installations
3 Terms, definitions, symbols and abbreviations
3.1 Terms and definitions
For the purposes of this document, the terms and definitions of EN 50288-1, Clause 3 apply.
3.2 Symbols and abbreviations
For the purposes of this document, the following abbreviations apply.
EX Exogenous (derived or originating externally)
POE Power Over Ethernet
4 Cable construction
4.1 Conductor
The conductor shall be solid annealed copper and comply with the requirements of EN 50288-1, 4.1.
The nominal conductor diameter shall be ≥ 0,5
...
