SIST EN 302 288-1 V1.6.1:2012

Electromagnetic compatibility and Radio spectrum Matters (ERM) - Short Range Devices - Road Transport and Traffic Telematics (RTTT) - Short range radar equipment operating in the 24 GHz range - Part 1: Technical requirements and methods of measurement

The present document specifies the technical requirements and methods of measurement for Short Range Devices (SRD) working as UWBdevices with at least 500 MHz bandwidth in the 22,000 GHz to 26,65 GHz frequency range intended for Road Transport and Traffic Telematics (RTTT) applications, such as automotive 24 GHz Short Range Radar (SRR) for e.g. obstacle detection, stop and go, blind spot detection, parking aid, back up aid, precrash and other automotive applications.
The present document covers transmitters intended to operate in a temporary frequency designation under the 24 GHz ECC decision CEPT/ECC/DEC/(04)10 [i.7], the EU Commission decision on 24 GHz SRR 2005/50/EC [i.1] and the amendment as presented in RSCOM11-07 21 [i.8].
The operating frequency range for intentional UWB emissions with at least 500 MHz bandwidth in the 22,000 GHz to 26,65 GHz range until 30th June 2013 as given in annex D and from 24,25 GHz to 26,65 GHz until 1st January 2018 as given in annex E. However, the date of 1 January 2018 will be extended by 4 years for automotive short-range radar equipment mounted on motor vehicles for which a type approval application has been submitted pursuant to Article 6(6) of Directive 2007/46/EC [6] and has been granted before 1 January 2018.
The present document applies to:
a) Transmitters in the range from 22,000 GHz to 26,65 GHz operating as UWB devices over the specific bandwidth defined for the individual devices.
b) Receivers operating in the range from 22,000 GHz to 26,65 GHz.
c) Integrated transceivers.
The present document contains the technical characteristics and test methods for short range radar equipment fitted with integral antennas.
The present document does not necessarily include all the characteristics which may be required by a user, nor does it necessarily represent the optimum performance achievable.
The present document covers short range radar mobile applications. The present document covers only SRR equipment for road vehicles.
The present document complies with field limits for human exposure to electromagnetic fields as provided by the EC Recommendation 1999/519/EC [i.2] and the methods for compliance demonstration in EN 50371 [i.3].

Elektromagnetna združljivost in zadeve v zvezi z radijskim spektrom (ERM) - Naprave kratkega dosega - Cestna transportna in prometna telematika (RTTT) - Oprema za radar kratkega dosega, ki deluje v frekvenčnem območju 24 GHz - 1. del: Tehnične zahteve in merilne metode

Ta dokument določa tehnične zahteve in merilne metode za naprave kratkega dosega (SRD), ki delujejo kot ultra širokopasovne naprave s pasovno širino vsaj 500 MHz v frekvenčnem območju od 22,000 GHz do 26,65 GHz, ki je namenjen napravam za cestno transportno in prometno telematiko (RTTT), kot je avtomobilski radar kratkega dosega (SRR) s frekvenco 24 GHz, na primer za zaznavanje ovir, zagotavljanje funkcije »ustavi in spelji«, zaznavanje mrtvih točk, pomoč pri parkiranju, podporo, opozarjanje na nesreče in druge avtomobilske naprave.
Ta dokument zajema oddajnike, ki so namenjeni delovanju pri začasno določeni frekvenci 24 GHz v skladu s sklepom Odbora za elektronske komunikacije CEPT/ECC/DEC/(04)10 [i.7], Odločbo Komisije 2005/50/ES [i.1] o uporabi radarjev kratkega dosega 24 GHz in spremembo iz dokumenta RSCOM11-07 21 [i.8].
Frekvenčno območje delovanja za namerne emisije UWB s pasovno širino vsaj 500 MHz v območju od 22,000 GHz do 26,65 GHz se uporablja do 30. junija 2013, kot je navedeno v dodatku D, v območju od 24,25 GHz do 26,65 GHz pa do 1. januarja 2018, kot je navedeno v dodatku E. Vendar bo datum 1. januar 2018, ki velja za avtomobilsko radarsko opremo kratkega dosega, nameščeno na motorna vozila, za katera je bila vloga za homologacijo vložena v skladu s členom 6(6) Direktive 2007/46/ES [6], pri čemer je bila vloga odobrena pred 1. januarjem 2018, podaljšan za 4 leta.
Ta dokument se uporablja za:
a) Oddajnike v območju od 22,000 GHz do 26,65 GHz, ki delujejo kot ultra širokopasovne naprave v določeni pasovni širini, opredeljeni za posamezne naprave.
b) Sprejemnike, ki delujejo v območju od 22,000 GHz do 26,65 GHz.
c) Integrirane oddajnike in sprejemnike.
Ta dokument vsebuje tehnične karakteristike in preskusne metode za radarsko opremo kratkega dosega, opremljeno z vgrajenimi antenami.
Ta dokument ne vključuje nujno vseh karakteristik, ki bi jih lahko potreboval uporabnik, in ne predstavlja nujno najboljšega mogočega delovanja.
Ta dokument zajema mobilne aplikacije za radar kratkega dosega. Ta dokument zajema le radarsko opremo kratkega dosega za cestna vozila.
Ta dokument je skladen s terenskimi omejitvami izpostavljenosti elektromagnetnim poljem, kot je določeno v priporočilu Sveta 1999/519/ES [i.2], in z metodami za dokazovanje skladnosti iz standarda EN 50371 [i.3].

General Information

• Status: Published
• Public Enquiry End Date: 31-Jul-2011
• Publication Date: 22-Apr-2012
• ICS: 33.060.99 - Other equipment for radiocommunications
• ICS: 33.100.01 - Electromagnetic compatibility in general
• ICS: 35.240.60 - IT applications in transport
• Technical Committee: MOC - Mobile Communications
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 04-Apr-2012
• Due Date: 09-Jun-2012
• Completion Date: 23-Apr-2012
• Ref Project: ETSI EN 302 288-1 V1.6.1 (2012-03) - Electromagnetic compatibility and Radio spectrum Matters (ERM); Short Range Devices; Road Transport and Traffic Telematics (RTTT); Short range radar equipment operating in the 24 GHz range; Part 1: Technical requirements and methods of measurement

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Electromagnetic compatibility and Radio spectrum Matters (ERM) - Short Range Devices - Road Transport and Traffic Telematics (RTTT) - Short range radar equipment operating in the 24 GHz range - Part 1: Technical requirements and methods of measurement35.240.60Uporabniške rešitve IT v transportu in trgoviniIT applications in transport and trade33.100.01Elektromagnetna združljivost na splošnoElectromagnetic compatibility in general33.060.99Druga oprema za radijske komunikacijeOther equipment for radiocommunicationsICS:Ta slovenski standard je istoveten z:EN 302 288-1 Version 1.6.1SIST EN 302 288-1 V1.6.1:2012en01-maj-2012SIST EN 302 288-1 V1.6.1:2012SLOVENSKI
STANDARD



SIST EN 302 288-1 V1.6.1:2012



ETSI EN 302 288-1 V1.6.1 (2012-03) Electromagnetic compatibility and Radio spectrum Matters (ERM); Short Range Devices; Road Transport and Traffic Telematics (RTTT); Short range radar equipment operating in the 24 GHz range; Part 1: Technical requirements and methods of measurement
European Standard SIST EN 302 288-1 V1.6.1:2012

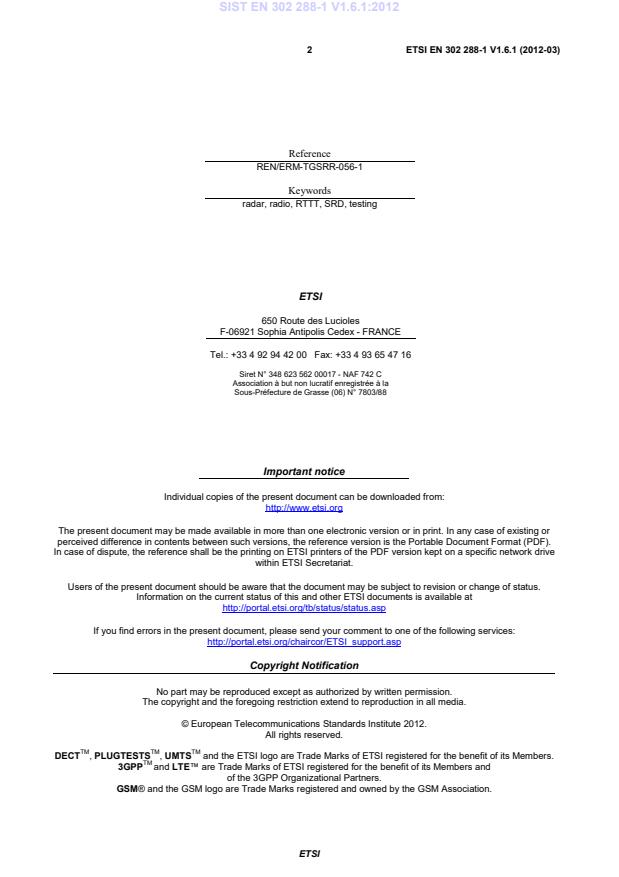

ETSI ETSI EN 302 288-1 V1.6.1 (2012-03) 2
Reference REN/ERM-TGSRR-056-1 Keywords radar, radio, RTTT, SRD, testing ETSI 650 Route des Lucioles F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: [phone]
Fax: [phone]
Siret N° 348 623 562 00017 - NAF 742 C Association à but non lucratif enregistrée à la Sous-Préfecture de Grasse (06) N° 7803/88
Important notice Individual copies of the present document can be downloaded from: http://www.etsi.org The present document may be made available in more than one electronic version or in print. In any case of existing or perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF). In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive within ETSI Secretariat. Users of the present document should be aware that the document may be subject to revision or change of status. Information on the current status of this and other ETSI documents is available at http://portal.etsi.org/tb/status/status.asp If you find errors in the present document, please send your comment to one of the following services: http://portal.etsi.org/chaircor/ETSI_support.asp Copyright Notification No part may be reproduced except as authorized by written permission. The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2012. All rights reserved.
DECTTM, PLUGTESTSTM, UMTSTM and the ETSI logo are Trade Marks of ETSI registered for the benefit of its Members. 3GPPTM and LTE™ are Trade Marks of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners. GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association. SIST EN 302 288-1 V1.6.1:2012

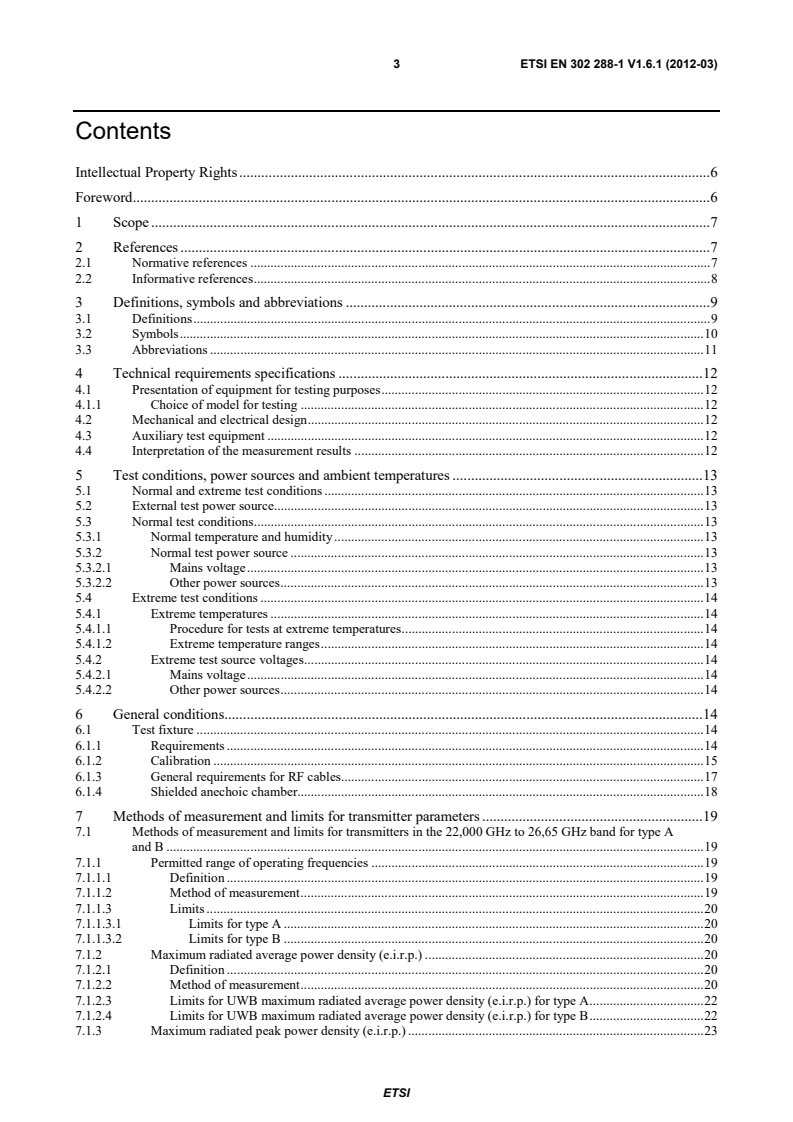

ETSI ETSI EN 302 288-1 V1.6.1 (2012-03) 3 Contents Intellectual Property Rights . 6 Foreword . 6 1 Scope . 7 2 References . 7 2.1 Normative references . 7 2.2 Informative references . 8 3 Definitions, symbols and abbreviations . 9 3.1 Definitions . 9 3.2 Symbols . 10 3.3 Abbreviations . 11 4 Technical requirements specifications . 12 4.1 Presentation of equipment for testing purposes . 12 4.1.1 Choice of model for testing . 12 4.2 Mechanical and electrical design . 12 4.3 Auxiliary test equipment . 12 4.4 Interpretation of the measurement results . 12 5 Test conditions, power sources and ambient temperatures . 13 5.1 Normal and extreme test conditions . 13 5.2 External test power source. 13 5.3 Normal test conditions . 13 5.3.1 Normal temperature and humidity . 13 5.3.2 Normal test power source . 13 5.3.2.1 Mains voltage . 13 5.3.2.2 Other power sources . 13 5.4 Extreme test conditions . 14 5.4.1 Extreme temperatures . 14 5.4.1.1 Procedure for tests at extreme temperatures . 14 5.4.1.2 Extreme temperature ranges . 14 5.4.2 Extreme test source voltages . 14 5.4.2.1 Mains voltage . 14 5.4.2.2 Other power sources . 14 6 General conditions . 14 6.1 Test fixture . 14 6.1.1 Requirements . 14 6.1.2 Calibration . 15 6.1.3 General requirements for RF cables. 17 6.1.4 Shielded anechoic chamber. 18 7 Methods of measurement and limits for transmitter parameters . 19 7.1 Methods of measurement and limits for transmitters in the 22,000 GHz to 26,65 GHz band for type A and B . 19 7.1.1 Permitted range of operating frequencies . 19 7.1.1.1 Definition . 19 7.1.1.2 Method of measurement . 19 7.1.1.3 Limits . 20 7.1.1.3.1 Limits for type A . 20 7.1.1.3.2 Limits for type B . 20 7.1.2 Maximum radiated average power density (e.i.r.p.) . 20 7.1.2.1 Definition . 20 7.1.2.2 Method of measurement . 20 7.1.2.3 Limits for UWB maximum radiated average power density (e.i.r.p.) for type A . 22 7.1.2.4 Limits for UWB maximum radiated average power density (e.i.r.p.) for type B . 22 7.1.3 Maximum radiated peak power density (e.i.r.p.) . 23 SIST EN 302 288-1 V1.6.1:2012

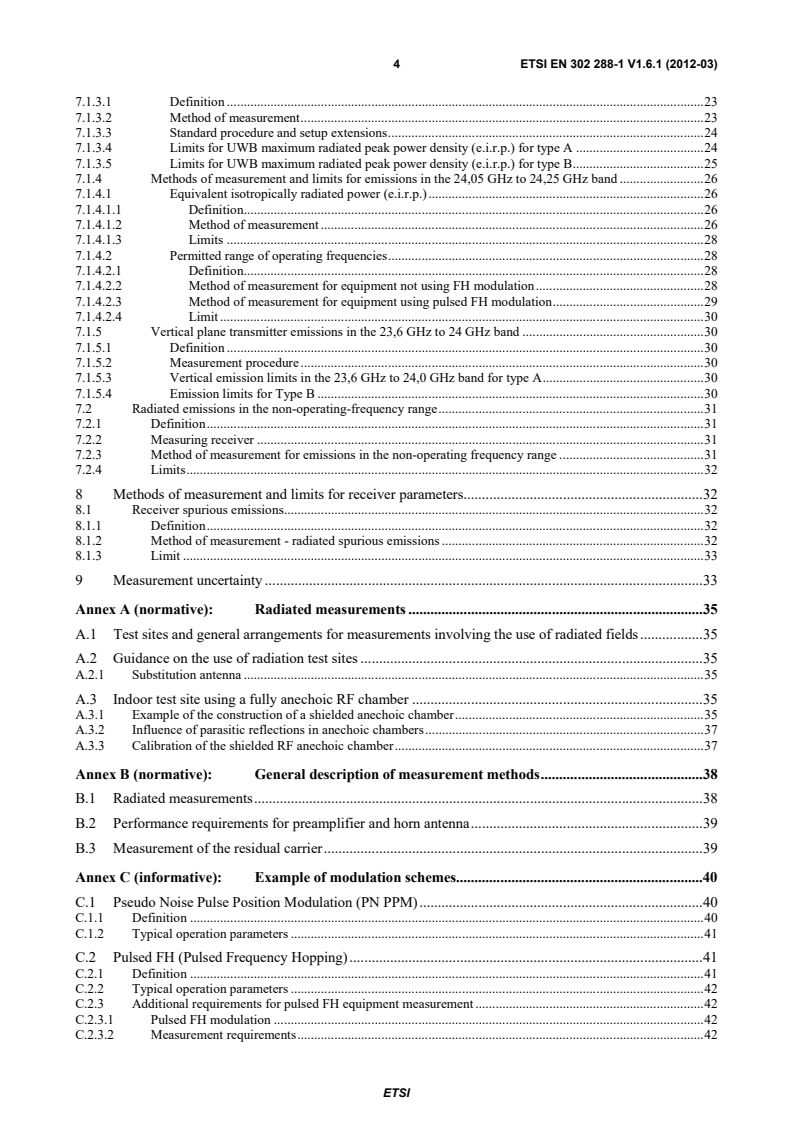

ETSI ETSI EN 302 288-1 V1.6.1 (2012-03) 4 7.1.3.1 Definition . 23 7.1.3.2 Method of measurement . 23 7.1.3.3 Standard procedure and setup extensions . 24 7.1.3.4 Limits for UWB maximum radiated peak power density (e.i.r.p.) for type A . 24 7.1.3.5 Limits for UWB maximum radiated peak power density (e.i.r.p.) for type B . 25 7.1.4 Methods of measurement and limits for emissions in the 24,05 GHz to 24,25 GHz band . 26 7.1.4.1 Equivalent isotropically radiated power (e.i.r.p.) . 26 7.1.4.1.1 Definition. 26 7.1.4.1.2 Method of measurement . 26 7.1.4.1.3 Limits . 28 7.1.4.2 Permitted range of operating frequencies . 28 7.1.4.2.1 Definition. 28 7.1.4.2.2 Method of measurement for equipment not using FH modulation . 28 7.1.4.2.3 Method of measurement for equipment using pulsed FH modulation . 29 7.1.4.2.4 Limit . 30 7.1.5 Vertical plane transmitter emissions in the 23,6 GHz to 24 GHz band . 30 7.1.5.1 Definition . 30 7.1.5.2 Measurement procedure . 30 7.1.5.3 Vertical emission limits in the 23,6 GHz to 24,0 GHz band for type A . 30 7.1.5.4 Emission limits for Type B . 30 7.2 Radiated emissions in the non-operating-frequency range . 31 7.2.1 Definition . 31 7.2.2 Measuring receiver . 31 7.2.3 Method of measurement for emissions in the non-operating frequency range . 31 7.2.4 Limits . 32 8 Methods of measurement and limits for receiver parameters . 32 8.1 Receiver spurious emissions. 32 8.1.1 Definition . 32 8.1.2 Method of measurement - radiated spurious emissions . 32 8.1.3 Limit . 33 9 Measurement uncertainty . 33 Annex A (normative): Radiated measurements . 35 A.1 Test sites and general arrangements for measurements involving the use of radiated fields . 35 A.2 Guidance on the use of radiation test sites . 35 A.2.1 Substitution antenna . 35 A.3 Indoor test site using a fully anechoic RF chamber . 35 A.3.1 Example of the construction of a shielded anechoic chamber . 35 A.3.2 Influence of parasitic reflections in anechoic chambers . 37 A.3.3 Calibration of the shielded RF anechoic chamber . 37 Annex B (normative): General description of measurement methods . 38 B.1 Radiated measurements . 38 B.2 Performance requirements for preamplifier and horn antenna . 39 B.3 Measurement of the residual carrier . 39 Annex C (informative): Example of modulation schemes. 40 C.1 Pseudo Noise Pulse Position Modulation (PN PPM) . 40 C.1.1 Definition . 40 C.1.2 Typical operation parameters . 41 C.2 Pulsed FH (Pulsed Frequency Hopping) . 41 C.2.1 Definition . 41 C.2.2 Typical operation parameters . 42 C.2.3 Additional requirements for pulsed FH equipment measurement . 42 C.2.3.1 Pulsed FH modulation . 42 C.2.3.2 Measurement requirements . 42 SIST EN 302 288-1 V1.6.1:2012



ETSI ETSI EN 302 288-1 V1.6.1 (2012-03) 5 C.3 PN-2-PSK (Pseudo noise binary coded phase shift keying). 43 C.3.1 Definition . 43 C.3.2 Typical operation parameters . 44 Annex D (normative): General description of Type A: Short range radar equipment operating in the range from 22,000 GHz to 26,65 GHz . 45 Annex E (normative): General description of Type B: Short range radar equipment operating in the range from 24,25 GHz to 26,65 GHz . 46 Annex F (informative): Typical antenna elevation pattern for a 26 GHz SRR in the passive band and the averaged elevation pattern above 30° . 47 Annex G (normative): Installation requirements of 24 GHz Short Range Radar (SRR) systems . 48 G.1 Installation requirements for type A . 48 G.2 Installation requirements for Type B . 49 Annex H (informative): Conversion of power density to e.i.r.p. 50 H.1 Assumptions . 50 H.2 Example . 50 Annex I (informative): Bibliography . 51 History . 52
SIST EN 302 288-1 V1.6.1:2012



ETSI ETSI EN 302 288-1 V1.6.1 (2012-03) 6 Intellectual Property Rights IPRs essential or potentially essential to the present document may have been declared to ETSI. The information pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web server (http://ipr.etsi.org). Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become, essential to the present document. Foreword This European Standard (EN) has been produced by ETSI Technical Committee Electromagnetic compatibility and Radio spectrum Matters (ERM). For non EU countries the present document may be used for regulatory (Type Approval) purposes. Equipment compliant with the present document is intended for fitment into road vehicles, therefore it is subject to automotive EMC type approval and has to comply with Directive 95/54/EC [4]. For use on vehicles outside the scope of Directive 95/54/EC [4] compliance with an EMC directive/standard appropriate for that use is required. The present document is part 1 of a multi-part deliverable covering Electromagnetic compatibility and Radio spectrum Matters (ERM); Short Range Devices, Road Transport and Traffic Telematics (RTTT); Short range radar equipment operating in the 24 GHz range, as identified below: Part 1: "Technical requirements and methods of measurement"; Part 2: "Harmonized EN covering the essential requirements of article 3.2 of the R&TTE Directive".
National transposition dates Date of adoption of this EN: 19 March 2012 Date of latest announcement of this EN (doa): 30 June 2012 Date of latest publication of new National Standard or endorsement of this EN (dop/e):
31 December 2012 Date of withdrawal of any conflicting National Standard (dow): 31 December 2012
SIST EN 302 288-1 V1.6.1:2012



ETSI ETSI EN 302 288-1 V1.6.1 (2012-03) 7 1 Scope The present document specifies the technical requirements and methods of measurement for Short Range Devices (SRD) working as UWBdevices with at least 500 MHz bandwidth in the 22,000 GHz to 26,65 GHz frequency range intended for Road Transport and Traffic Telematics (RTTT) applications, such as automotive 24 GHz Short Range Radar (SRR) for e.g. obstacle detection, stop and go, blind spot detection, parking aid, backup aid, precrash and other automotive applications. The present document covers transmitters intended to operate in a temporary frequency designation under the 24 GHz ECC decision CEPT/ECC/DEC/(04)10 [i.7], the EU Commission decision on 24 GHz SRR 2005/50/EC [i.1] and the amendment as presented in RSCOM11-07 21 [i.8]. The operating frequency range for intentional UWB emissions with at least 500 MHz bandwidth in the 22,000 GHz to 26,65 GHz range until 30th June 2013 as given in annex D and from 24,25 GHz to 26,65 GHz until 1st January 2018 as given in annex E. However, the date of 1 January 2018 will be extended by 4 years for automotive short-range radar equipment mounted on motor vehicles for which a type approval application has been submitted pursuant to Article 6(6) of Directive 2007/46/EC [6] and has been granted before 1 January 2018. The present document applies to: a) Transmitters in the range from 22,000 GHz to 26,65 GHz operating as UWB devices over the specific bandwidth defined for the individual devices. b) Receivers operating in the range from 22,000 GHz to 26,65 GHz. c) Integrated transceivers. The present document contains the technical characteristics and test methods for short range radar equipment fitted with integral antennas. The present document does not necessarily include all the characteristics which may be required by a user, nor does it necessarily represent the optimum performance achievable. The present document covers short range radar mobile applications. The present document covers only SRR equipment for road vehicles. The present document complies with field limits for human exposure to electromagnetic fields as provided by the EC Recommendation 1999/519/EC [i.2] and the methods for compliance demonstration in EN 50371 [i.3]. 2 References References are either specific (identified by date of publication and/or edition number or version number) or non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the reference document (including any amendments) applies. Referenced documents which are not found to be publicly available in the expected location might be found at http://docbox.etsi.org/Reference. NOTE: While any hyperlinks included in this clause were valid at the time of publication ETSI cannot guarantee their long term validity. 2.1 Normative references The following referenced documents are necessary for the application of the present document. [1] CISPR 16 (parts 1-1, 1-4 and 1-5): "Specification for radio disturbance and immunity measuring apparatus and methods; Part 1: Radio disturbance and immunity measuring apparatus". [2] CEPT/ERC/REC 01-06: "Procedure for mutual recognition of type testing and type approval for radio equipment". SIST EN 302 288-1 V1.6.1:2012



ETSI ETSI EN 302 288-1 V1.6.1 (2012-03) 8 [3] ETSI TR 100 028 (V1.4.1) (all parts): "Electromagnetic compatibility and Radio spectrum Matters (ERM); Uncertainties in the measurement of mobile radio equipment characteristics". [4] Commission Directive 95/54/EC of 31 October 1995 adapting to technical progress Council Directive 72/245/EEC on the approximation of the laws of the Member States relating to the suppression of radio interference produced by spark-ignition engines fitted to motor vehicles and amending Directive 70/156/EEC on the approximation of the laws of the Member States relating to the type-approval of motor vehicles and their trailers. [5] ETSI EN 302 288-2 (V1.3.2): "Electromagnetic compatibility and Radio spectrum Matters (ERM); Short Range Devices; Road Transport and Traffic Telematics (RTTT); Short range radar equipment operating in the 24 GHz range; Part 2: Harmonized EN covering the essential requirements of article 3.2 of the R&TTE Directive". [6] Directive 2007/46/EC of the European Parliament and of the Council of 5 September 2007, establishing a framework for the approval of motor vehicles and their trailers, and of systems, components and separate technical units intended for such vehicles. NOTE: See http://eur-lex.europa.eu/LexUriServ/LexUriServ.do?uri=OJ:L:2007:263:0001:0001:EN:PDF. 2.2 Informative references The following referenced documents are not necessary for the application of the present document but they assist the user with regard to a particular subject area. [i.1] Commission Decision 2005/50/EC of 17 January 2005 on the harmonization of the 24 GHz range radio spectrum band for the time-limited use by automotive short-range radar equipment in the Community. [i.2] Council Recommendation 1999/519/EC of 12 July 1999 on the limitation of exposure of the general public to electromagnetic fields (0 Hz to 300 GHz). [i.3] CENELEC EN 50371 (2002): "Generic standard to demonstrate the compliance of low power electronic and electrical apparatus with the basic restrictions related to human exposure to electromagnetic fields (10 MHz - 300 GHz) - General public". [i.4] ETSI TR 102 273-2 (V1.2.1): "Electromagnetic compatibility and Radio spectrum Matters (ERM); Improvement on Radiated Methods of Measurement (using test site) and evaluation of the corresponding measurement uncertainties; Part 2: Anechoic chamber". [i.5] CEPT/ERC/REC 70-03: "Relating to the use of Short Range Devices (SRD)". [i.6] CEPT/ERC/REC 74-01: "Unwanted emissions in the spurious domain". [i.7] CEPT/ECC/DEC/(04)10: "ECC Decision of 12 November 2004 on the frequency bands to be designated for the temporary introduction of Automotive Short Range Radars (SRR)", (Amended 2005). [i.8] RSCOM11-21, Amending Decision 2005/50/EC on the harmonisation of the 24 GHz range radio spectrum band for the time-limited use by automotive short-range radar equipment in the Community. [i.9] ECC Report 158: "The impact of 26 GHz SRR applicatiosn using ultra-wideband (UWB) technology on radio services". SIST EN 302 288-1 V1.6.1:2012



ETSI ETSI EN 302 288-1 V1.6.1 (2012-03) 9 3 Definitions, symbols and abbrevi
...

SLOVENSKI STANDARD
oSIST prEN 302 288-1 V1.5.1:2011
01-julij-2011
(OHNWURPDJQHWQD]GUXåOMLYRVWLQ]DGHYHY]YH]L]UDGLMVNLPVSHNWURP(50
1DSUDYHNUDWNHJDGRVHJD&HVWQDWUDQVSRUWQDLQSURPHWQDWHOHPDWLND5777
2SUHPD]DUDGDUNUDWNHJDGRVHJDNLGHOXMHYIUHNYHQþQHPREPRþMX*+]
GHO7HKQLþQH]DKWHYHLQPHULOQHPHWRGH
Electromagnetic compatibility and Radio spectrum Matters (ERM) - Short Range Devices
- Road Transport and Traffic Telematics (RTTT) - Short range radar equipment operating
in the 24 GHz range - Part 1: Technical requirements and methods of measurement
Ta slovenski standard je istoveten z: EN 302 288-1 Version 1.5.1
ICS:
33.060.99 Druga oprema za radijske Other equipment for
komunikacije radiocommunications
33.100.01 Elektromagnetna združljivost Electromagnetic compatibility
na splošno in general
35.240.60 Uporabniške rešitve IT v IT applications in transport
transportu in trgovini and trade
oSIST prEN 302 288-1 V1.5.1:2011 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
oSIST prEN 302 288-1 V1.5.1:2011

---------------------- Page: 2 ----------------------
oSIST prEN 302 288-1 V1.5.1:2011

Draft ETSI EN 302 288-1 V1.5.1 (2011-05)
European Standard

Electromagnetic compatibility
and Radio spectrum Matters (ERM);
Short Range Devices;
Road Transport and Traffic Telematics (RTTT);
Short range radar equipment operating in the 24 GHz range;
Part 1: Technical requirements and
methods of measurement

---------------------- Page: 3 ----------------------
oSIST prEN 302 288-1 V1.5.1:2011
 2 Draft ETSI EN 302 288-1 V1.5.1 (2011-05)



Reference
REN/ERM-TGSRR-056-1
Keywords
radar, radio, RTTT, SRD, testing
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: [phone]  Fax: [phone]

Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88

Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org
The present document may be made available in more than one electronic version or in print. In any case of existing or
perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).
In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive
within ETSI Secretariat.
Users of the present document should be aware that the document may be subject to revision or change of status.
Information on the current status of this and other ETSI documents is available at
http://portal.etsi.org/tb/status/status.asp
If you find errors in the present document, please send your comment to one of the following services:
http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.

© European Telecommunications Standards Institute 2011.
All rights reserved.

TM TM TM TM
DECT , PLUGTESTS , UMTS , TIPHON , the TIPHON logo and the ETSI logo are Trade Marks of ETSI registered
for the benefit of its Members.
TM
3GPP is a Trade Mark of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners.
LTE™ is a Trade Mark of ETSI currently being registered
for the benefit of its Members and of the 3GPP Organizational Partners.
GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.
ETSI

---------------------- Page: 4 ----------------------
oSIST prEN 302 288-1 V1.5.1:2011
 3 Draft ETSI EN 302 288-1 V1.5.1 (2011-05)

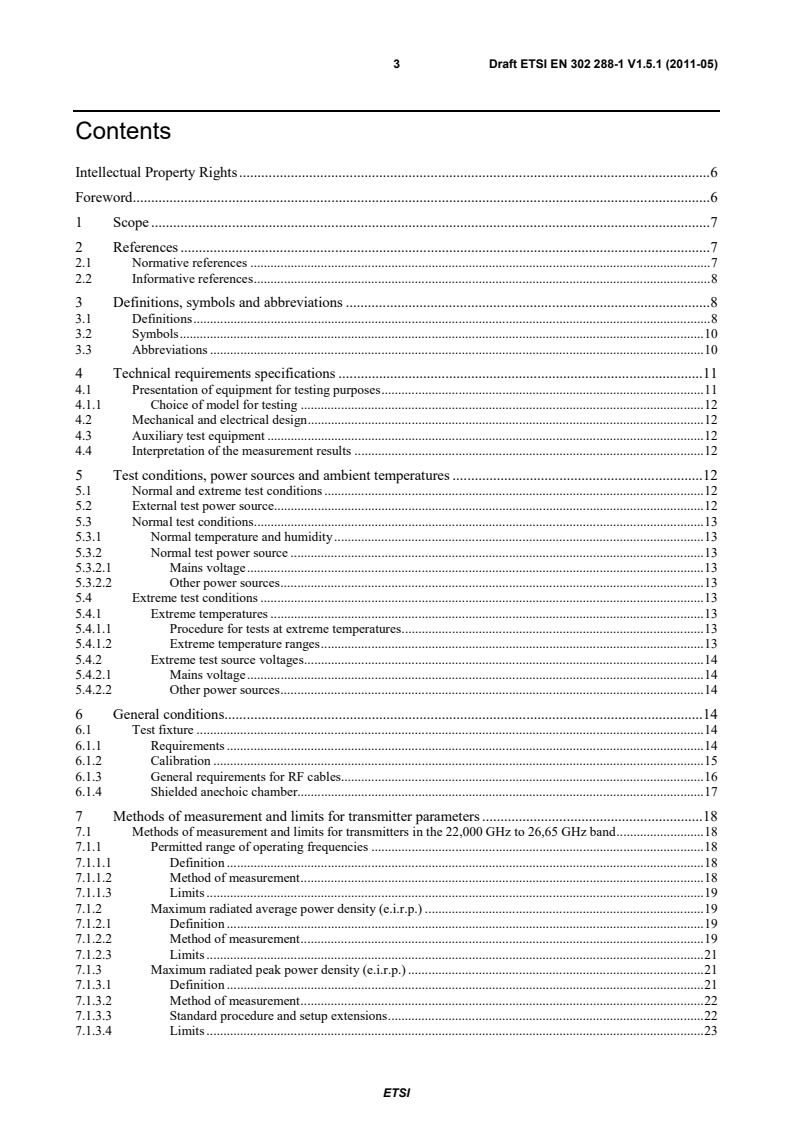

Contents
Intellectual Property Rights . 6
Foreword . 6
1 Scope . 7
2 References . 7
2.1 Normative references . 7
2.2 Informative references . 8
3 Definitions, symbols and abbreviations . 8
3.1 Definitions . 8
3.2 Symbols . 10
3.3 Abbreviations . 10
4 Technical requirements specifications . 11
4.1 Presentation of equipment for testing purposes . 11
4.1.1 Choice of model for testing . 12
4.2 Mechanical and electrical design . 12
4.3 Auxiliary test equipment . 12
4.4 Interpretation of the measurement results . 12
5 Test conditions, power sources and ambient temperatures . 12
5.1 Normal and extreme test conditions . 12
5.2 External test power source. 12
5.3 Normal test conditions . 13
5.3.1 Normal temperature and humidity . 13
5.3.2 Normal test power source . 13
5.3.2.1 Mains voltage . 13
5.3.2.2 Other power sources . 13
5.4 Extreme test conditions . 13
5.4.1 Extreme temperatures . 13
5.4.1.1 Procedure for tests at extreme temperatures . 13
5.4.1.2 Extreme temperature ranges . 13
5.4.2 Extreme test source voltages . 14
5.4.2.1 Mains voltage . 14
5.4.2.2 Other power sources . 14
6 General conditions . 14
6.1 Test fixture . 14
6.1.1 Requirements . 14
6.1.2 Calibration . 15
6.1.3 General requirements for RF cables. 16
6.1.4 Shielded anechoic chamber. 17
7 Methods of measurement and limits for transmitter parameters . 18
7.1 Methods of measurement and limits for transmitters in the 22,000 GHz to 26,65 GHz band . 18
7.1.1 Permitted range of operating frequencies . 18
7.1.1.1 Definition . 18
7.1.1.2 Method of measurement . 18
7.1.1.3 Limits . 19
7.1.2 Maximum radiated average power density (e.i.r.p.) . 19
7.1.2.1 Definition . 19
7.1.2.2 Method of measurement . 19
7.1.2.3 Limits . 21
7.1.3 Maximum radiated peak power density (e.i.r.p.) . 21
7.1.3.1 Definition . 21
7.1.3.2 Method of measurement . 22
7.1.3.3 Standard procedure and setup extensions . 22
7.1.3.4 Limits . 23
ETSI

---------------------- Page: 5 ----------------------
oSIST prEN 302 288-1 V1.5.1:2011

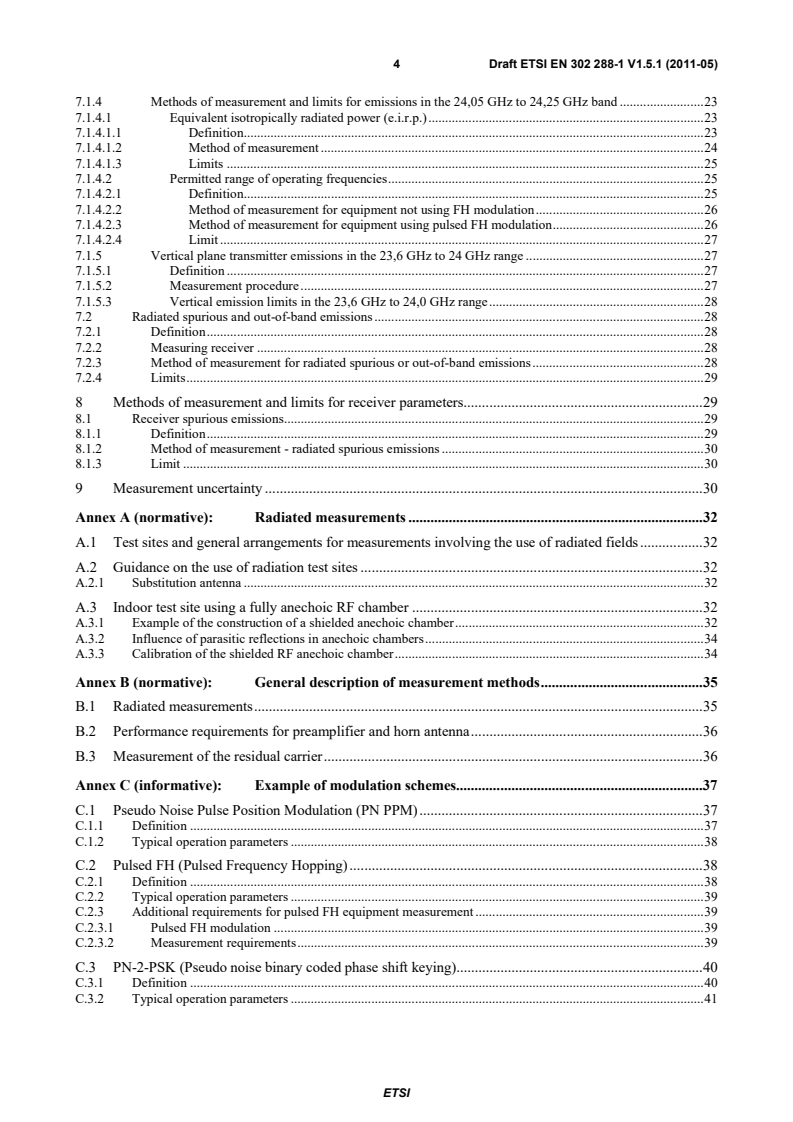

 4 Draft ETSI EN 302 288-1 V1.5.1 (2011-05)
7.1.4 Methods of measurement and limits for emissions in the 24,05 GHz to 24,25 GHz band . 23
7.1.4.1 Equivalent isotropically radiated power (e.i.r.p.) . 23
7.1.4.1.1 Definition. 23
7.1.4.1.2 Method of measurement . 24
7.1.4.1.3 Limits . 25
7.1.4.2 Permitted range of operating frequencies . 25
7.1.4.2.1 Definition. 25
7.1.4.2.2 Method of measurement for equipment not using FH modulation . 26
7.1.4.2.3 Method of measurement for equipment using pulsed FH modulation . 26
7.1.4.2.4 Limit . 27
7.1.5 Vertical plane transmitter emissions in the 23,6 GHz to 24 GHz range . 27
7.1.5.1 Definition . 27
7.1.5.2 Measurement procedure . 27
7.1.5.3 Vertical emission limits in the 23,6 GHz to 24,0 GHz range . 28
7.2 Radiated spurious and out-of-band emissions . 28
7.2.1 Definition . 28
7.2.2 Measuring receiver . 28
7.2.3 Method of measurement for radiated spurious or out-of-band emissions . 28
7.2.4 Limits . 29
8 Methods of measurement and limits for receiver parameters . 29
8.1 Receiver spurious emissions. 29
8.1.1 Definition . 29
8.1.2 Method of measurement - radiated spurious emissions . 30
8.1.3 Limit . 30
9 Measurement uncertainty . 30
Annex A (normative): Radiated measurements . 32
A.1 Test sites and general arrangements for measurements involving the use of radiated fields . 32
A.2 Guidance on the use of radiation test sites . 32
A.2.1 Substitution antenna . 32
A.3 Indoor test site using a fully anechoic RF chamber . 32
A.3.1 Example of the construction of a shielded anechoic chamber . 32
A.3.2 Influence of parasitic reflections in anechoic chambers . 34
A.3.3 Calibration of the shielded RF anechoic chamber . 34
Annex B (normative): General description of measurement methods . 35
B.1 Radiated measurements . 35
B.2 Performance requirements for preamplifier and horn antenna . 36
B.3 Measurement of the residual carrier . 36
Annex C (informative): Example of modulation schemes. 37
C.1 Pseudo Noise Pulse Position Modulation (PN PPM) . 37
C.1.1 Definition . 37
C.1.2 Typical operation parameters . 38
C.2 Pulsed FH (Pulsed Frequency Hopping) . 38
C.2.1 Definition . 38
C.2.2 Typical operation parameters . 39
C.2.3 Additional requirements for pulsed FH equipment measurement . 39
C.2.3.1 Pulsed FH modulation . 39
C.2.3.2 Measurement requirements . 39
C.3 PN-2-PSK (Pseudo noise binary coded phase shift keying). 40
C.3.1 Definition . 40
C.3.2 Typical operation parameters . 41
ETSI

---------------------- Page: 6 ----------------------
oSIST prEN 302 288-1 V1.5.1:2011
 5 Draft ETSI EN 302 288-1 V1.5.1 (2011-05)
Annex D (normative): Installation requirements of 24 GHz Short Range Radar (SRR)
systems . 42
Annex E (informative): Conversion of power density to e.i.r.p. 43
E.1 Assumptions . 43
E.2 Example . 43
Annex F (informative): Bibliography . 44
History . 45

ETSI

---------------------- Page: 7 ----------------------
oSIST prEN 302 288-1 V1.5.1:2011
 6 Draft ETSI EN 302 288-1 V1.5.1 (2011-05)
Intellectual Property Rights
IPRs essential or potentially essential to the present document may have been declared to ETSI. The information
pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found
in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in
respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web
server (http://webapp.etsi.org/IPR/home.asp).
Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee
can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web
server) which are, or may be, or may become, essential to the present document.
Foreword
This draft European Standard (EN) has been produced by ETSI Technical Committee Electromagnetic compatibility
and Radio spectrum Matters (ERM), and is now submitted for the Public Enquiry phase of the ETSI standards Two-step
Approval Procedure.
For non EU countries the present document may be used for regulatory (Type Approval) purposes.
Equipment compliant with the present document is intended for fitment into road vehicles, therefore it is subject to
automotive EMC type approval and has to comply with Directive 95/54/EC [4]. For use on vehicles outside the scope of
Directive 95/54/EC [4] compliance with an EMC directive/standard appropriate for that use is required.
The present document is part 1 of a multi-part deliverable covering Electromagnetic compatibility and Radio spectrum
Matters (ERM); Short Range Devices, Road Transport and Traffic Telematics (RTTT); Short range radar equipment
operating in the 24 GHz range, as identified below:
Part 1: "Technical requirements and methods of measurement";
Part 2: "Harmonized EN covering the essential requirements of article 3.2 of the R&TTE Directive".

Proposed national transposition dates
Date of latest announcement of this EN (doa): 3 months after ETSI publication
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 6 months after doa
Date of withdrawal of any conflicting National Standard (dow): 6 months after doa

ETSI

---------------------- Page: 8 ----------------------
oSIST prEN 302 288-1 V1.5.1:2011
 7 Draft ETSI EN 302 288-1 V1.5.1 (2011-05)
1 Scope
The present document specifies the technical requirements and methods of measurement for Short Range Devices
(SRD) working as broadband devices with at least 500 MHz bandwidth in the 22,000 GHz to 26,65 GHz frequency
range intended for Road Transport and Traffic Telematics (RTTT) applications, such as automotive 24 GHz
Short Range Radar (SRR) for e.g. obstacle detection, stop and go, blind spot detection, parking aid, backup aid,
precrash and other automotive applications.
The present document covers transmitters intended to operate in a temporary frequency designation under the 24 GHz
ECC decision CEPT/ECC/DEC/(04)10 [i.7], the EU Commission decision on 24 GHz SRR 2005/50/EC [i.1] and the
amendment as presented in RSCOM11-07 [i.8].
The operating frequency range for intentional UWB emissions shall be from 22,000 GHz to 26,65 GHz until
30th June 2013 and from 24,25 GHz to 26,65 GHz until 1st January 2022.
The present document applies to:
a) Transmitters in the range from 22,000 GHz to 26,65 GHz operating as broadband devices over the specific
bandwidth defined for the individual devices.
b) Receivers operating in the range from 22,000 GHz to 26,65 GHz.
c) Integrated transceivers.
The present document contains the technical characteristics and test methods for short range radar equipment fitted with
integral antennas.
The present document does not necessarily include all the characteristics which may be required by a user, nor does it
necessarily represent the optimum performance achievable.
The present document covers short range radar mobile applications. The present document covers only SRR equipment
for road vehicles.
The present document complies with field limits for human exposure to electromagnetic fields as provided by the
EC Recommendation 1999/519/EC [i.2] and the methods for compliance demonstration in EN 50371 [i.3].
2 References
References are either specific (identified by date of publication and/or edition number or version number) or
non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the
reference document (including any amendments) applies.
Referenced documents which are not found to be publicly available in the expected location might be found at
http://docbox.etsi.org/Reference.
NOTE: While any hyperlinks included in this clause were valid at the time of publication ETSI cannot guarantee
their long term validity.
2.1 Normative references
The following referenced documents are necessary for the application of the present document.
[1] CISPR 16 (parts 1-1, 1-4 and 1-5): "Specification for radio disturbance and immunity measuring
apparatus and methods; Part 1: Radio disturbance and immunity measuring apparatus".
[2] CEPT/ERC/REC 01-06: "Procedure for mutual recognition of type testing and type approval for
radio equipment".
[3] ETSI TR 100 028 (V1.4.1) (all parts): "Electromagnetic compatibility and Radio spectrum Matters
(ERM); Uncertainties in the measurement of mobile radio equipment characteristics".
ETSI

---------------------- Page: 9 ----------------------
oSIST prEN 302 288-1 V1.5.1:2011
 8 Draft ETSI EN 302 288-1 V1.5.1 (2011-05)
[4] Commission Directive 95/54/EC of 31 October 1995 adapting to technical progress Council
Directive 72/245/EEC on the approximation of the laws of the Member States relating to the
suppression of radio interference produced by spark-ignition engines fitted to motor vehicles and
amending Directive 70/156/EEC on the approximation of the laws of the Member States relating
to the type-approval of motor vehicles and their trailers.
[5] ETSI EN 302 288-2 (V1.2.2): "Electromagnetic compatibility and Radio spectrum Matters (ERM);
Short Range Devices; Road Transport and Traffic Telematics (RTTT); Short range radar
equipment operating in the 24 GHz range; Part 2: Harmonized EN covering the essential
requirements of article 3.2 of the R&TTE Directive".
2.2 Informative references
The following referenced documents are not necessary for the application of the present document but they assist the
user with regard to a particular subject area.
[i.1] Commission Decision 2005/50/EC of 17 January 2005 on the harmonization of the 24 GHz range
radio spectrum band for the time-limited use by automotive short-range radar equipment in the
Community.
[i.2] Council Recommendation 1999/519/EC of 12 July 1999 on the limitation of exposure of the
general public to electromagnetic fields (0 Hz to 300 GHz).
[i.3] CENELEC EN 50371 (2002): "Generic standard to demonstrate the compliance of low power
electronic and electrical apparatus with the basic restrictions related to human exposure to
electromagnetic fields (10 MHz - 300 GHz) - General public".
[i.4] ETSI TR 102 273-2 (V1.2.1): "Electromagnetic compatibility and Radio spectrum Matters (ERM);
Improvement on Radiated Methods of Measurement (using test site) and evaluation of the
corresponding measurement uncertainties; Part 2: Anechoic chamber".
[i.5] CEPT/ERC/REC 70-03: "Relating to the use of Short Range Devices (SRD)".
[i.6] CEPT/ERC/REC 74-01: "Unwanted emissions in the spurious domain".
[i.7] CEPT/ECC/DEC/(04)10: "ECC Decision of 12 November 2004 on the frequency bands to be
designated for the temporary introduction of Automotive Short Range Radars (SRR)".
(Amended 2005).
[i.8] RSCOM11-07, Amending Decision 2005/50/EC on the harmonisation of the 24 GHz range radio
spectrum band for the time-limited use by automotive short-range radar equipment in the
Community.
3 Definitions, symbols and abbreviations
3.1 Definitions
For the purposes of the present document, the following terms and definitions apply:
activity factor: actual on-the-air time divided by active session time or actual on-the-air emission time within a given
time window
antenna scan duty factor: ratio of the area of the beam (measured at its -3 dB point) to the total area scanned by the
antenna (as measured at its -3 dB point)
assigned frequency band: frequency band within which the device is authorized to operate
associated antenna: antenna and all its associated components which are designed as an indispensable part of the
equipment
average time: time interval on which a mean measurement is integrated
ETSI

---------------------- Page: 10 ----------------------
oSIST prEN 302 288-1 V1.5.1:2011
 9 Draft ETSI EN 302 288-1 V1.5.1 (2011-05)
blanking period: time period where either no waveform or a constant waveform within the 24 GHz SRD band occurs
boresight: axis of the main beam in a directional antenna
...
