SIST EN 15681-1:2016

Glass in building - Basic alumino silicate glass products - Part 1: Definitions and general physical and mechanical properties

This Part of this European Standard specifies and classifies basic alumino silicate glass products, indicates their chemical composition, their main physical and mechanical characteristics, their dimensional and their minimum quality requirements (in respect of optical and visual faults).
This European Standard applies to basic alumino silicate glasses supplied in stock sizes, supplied sizes or in cut sizes for final end use.
This European Standard does not apply to final cut sizes having a dimension less than 100 mm or a surface area less than 0,05 m2.

Glas im Bauwesen - Basiserzeugnisse aus Alumo-Silicatglas - Teil 1: Definitionen und allgemeine physikalische und mechanische Eigenschaften

Dieser Teil der Europäischen Norm legt Basiserzeugnisse aus Alumo-Silicatglas fest, klassifiziert sie und gibt deren chemische Zusammensetzung, deren wichtigste physikalischen und mechanischen Eigenschaften sowie deren Maße und Mindestanforderungen an die Qualität (in Hinsicht auf optische und sichtbare Fehler) an.
Die vorliegende Europäische Norm gilt für Basiserzeugnisse aus Alumo-Silicatglas in Standardabmessungen, Liefermaßen oder in Festmaßen für die Endanwendung.
Diese Europäische Norm gilt nicht für Festmaße mit einem Maß kleiner als 100 mm oder mit einer Oberfläche von weniger als 0,05 m2.

Verre dans la construction - Produits de base : verre aluminosilicate - Partie 1 : Définitions et propriétés physiques et mécaniques générales

La présente partie de cette Norme européenne spécifie et classe les produits verriers aluminosilicate de base et indique leur composition chimique, leurs principales caractéristiques physiques et mécaniques, ainsi que les exigences dimensionnelles et les exigences de qualité minimales (au regard des défauts optiques et visuels) qui s’y appliquent.
La présente Norme européenne s’applique aux verres aluminosilicates de base fournis aux mesures de stockage, aux mesures livrées ou aux mesures découpées pour l’utilisation finale.
La présente Norme européenne ne s’applique pas aux mesures découpées finales inférieures à 100 mm, ni aux superficies inférieures à 0,05 m2.

Steklo v gradbeništvu - Osnovni proizvodi iz aluminij-silikatnega stekla - 1. del: Definicije in splošne fizikalne in mehanske lastnosti

Ta del tega evropskega standarda določa in razvršča osnovne proizvode iz aluminij-silikatnega stekla, navaja njihovo kemično sestavo, njihove glavne fizikalne in mehanske lastnosti ter določa zahteve glede njihovih mer in minimalne kakovosti (v zvezi z optičnimi in vizualnimi napakami).
Ta evropski standard se uporablja za osnovne proizvode iz aluminij-silikatnega stekla, dobavljene v velikostih na zalogi, dobavljenih velikostih in velikostih razreza za končno uporabo.
Ta evropski standard ne zajema končnih velikosti razreza z merami manj kot 100 mm ali površino, manjšo od 0,05 m².

General Information

• Status: Published
• Public Enquiry End Date: 29-Sep-2015
• Publication Date: 19-May-2016
• ICS: 81.040.20 - Glass in building
• Technical Committee: STV - Steklo, svetloba in razsvetljava v gradbeništvu
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 05-Feb-2016
• Due Date: 11-Apr-2016
• Completion Date: 20-May-2016
• Directive: 305/2011 - Regulation (eu) No 305/2011 of the European Parliament and of the Council of 9 march 2011 laying down harmonised conditions for the marketing of construction products and repealing council directive 89/106/eec
• Directive: 88/609/EEC - Limitation of emissions of certain pollutants into the air from large combustion plants
• Mandate: M/135 - Mandate to CEN/CENELEC concerning the execution of standardization work for harmonized standards on flat glass, profiled glass and glass block products
• Mandate: M/135_AM1 - First amendment to mandate M/135 - Mandate to CEN/CENELEC concerning the execution of standardisation work for harmonised standards on glass
• Ref Project: EN 15681-1:2016 - Glass in building - Basic alumino silicate glass products - Part 1: Definitions and general physical and mechanical properties

Overview

EN 15681-1:2016 - Glass in building: Basic alumino silicate glass products - Part 1 defines and classifies alumino silicate glass used in building applications. It specifies chemical composition ranges, general physical and mechanical properties, dimensional requirements and minimum quality criteria (optical and visual faults). The standard applies to glass supplied in stock sizes, supplied sizes or final cut sizes for end use, but does not apply to final cut sizes smaller than 100 mm in any dimension or with a surface area less than 0.05 m².

Key Topics

• Definitions and classification: clear definitions for alumino silicate float, drawn sheet and rolled glass and terms such as stock size, supplied size and final cut size.
• Chemical composition: sets ranges for major constituents (for example Si and Al percentages are specified) and allows certain alkali/earth/metal components within defined limits.
• Physical and mechanical characteristics: conventional values for density (≈2300–2600 kg/m³), Knoop hardness (≈400–700), Young’s modulus (≈70–90 GPa), Poisson’s ratio (≈0.20–0.25), thermal expansion, conductivity and refractive index (≈1.50–1.55). These values are guidance for general calculations where high accuracy is not required.
• Characteristic bending strength: specified as 45 MPa for alumino silicate float glass and 25 MPa for drawn sheet and rolled glass (for quasi‑static loads).
• Dimensional requirements: manufacturing dimensions, thickness tolerances, length/width/squareness and permitted deviations for stock/supplied/final sizes.
• Quality requirements: definitions and acceptance levels for optical faults (distortions seen through glass), visual faults (spot and linear/extended faults), and edge defects (entrant/emergent faults, bevels). Methods of observation and measurement are described.
• Stability and compliance: notes on long‑term stability of physical/chemical properties and complementary information related to REACH.

Applications

• Specification and procurement of alumino silicate glass for facades, windows, partitions and architectural glazing.
• Production control and quality assurance in glass manufacturing and processing.
• Input data for structural and thermal design where conventional material values are acceptable.
• Basis for acceptance/rejection criteria for delivered glass panes and inspection at glazing/assembly stages.

Who uses this standard?

• Glass manufacturers and suppliers
• Architects, façade and structural engineers
• Glazing contractors and installers
• Product certifiers, testing laboratories and regulatory bodies
• Specifiers preparing material schedules and procurement documents

Related standards

• EN 15681-2 (Evaluation of conformity / Product standard)
• EN 410 (luminous and solar characteristics)
• ISO 9385 (Knoop hardness)
• EN 1288 series (bending strength test methods)
• prEN 16612 (design of glass panes)

Keywords: EN 15681-1:2016, alumino silicate glass, glass in building, physical properties, mechanical properties, optical faults, dimensional requirements, glazing quality.

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Steklo v gradbeništvu - Osnovni proizvodi iz aluminij-silikatnega stekla - 1. del: Definicije in splošne fizikalne in mehanske lastnostiGlas im Bauwesen - Basiserzeugnisse aus Alumo-Silicatglas - Teil 1: Definitionen und allgemeine physikalische und mechanische EigenschaftenVerre dans la construction - Produits de base : verre aluminosilicate - Partie 1 : Définitions et propriétés physiques et mécaniques généralesGlass in building - Basic alumino silicate glass products - Part 1: Definitions and general physical and mechanical properties81.040.20Steklo v gradbeništvuGlass in buildingICS:Ta slovenski standard je istoveten z:EN 15681-1:2016SIST EN 15681-1:2016en,fr,de01-junij-2016SIST EN 15681-1:2016SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 15681-1
January
t r s x ICS
z sä r v rä t r English Version
Glass in building æ Basic alumino silicate glass products æ Part
sã Definitions and general physical and mechanical properties Verre dans la construction æ Produits de base ã verre aluminosilicate æ Partie
s ã Définitions et propriétés physiques et mécaniques générales
Glas im Bauwesen æ Basiserzeugnisse aus AlumoæSilicatglas æ Teil
sã Definitionen und allgemeine physikalische und mechanische Eigenschaften This European Standard was approved by CEN on
u r November
t r s wä
egulations which stipulate the conditions for giving this European Standard the status of a national standard without any alterationä Upætoædate lists and bibliographical references concerning such national standards may be obtained on application to the CENæCENELEC Management Centre or to any CEN memberä
translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä
CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey andUnited Kingdomä
EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels
t r s x CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä EN
s w x z sæ sã t r s x ESIST EN 15681-1:2016

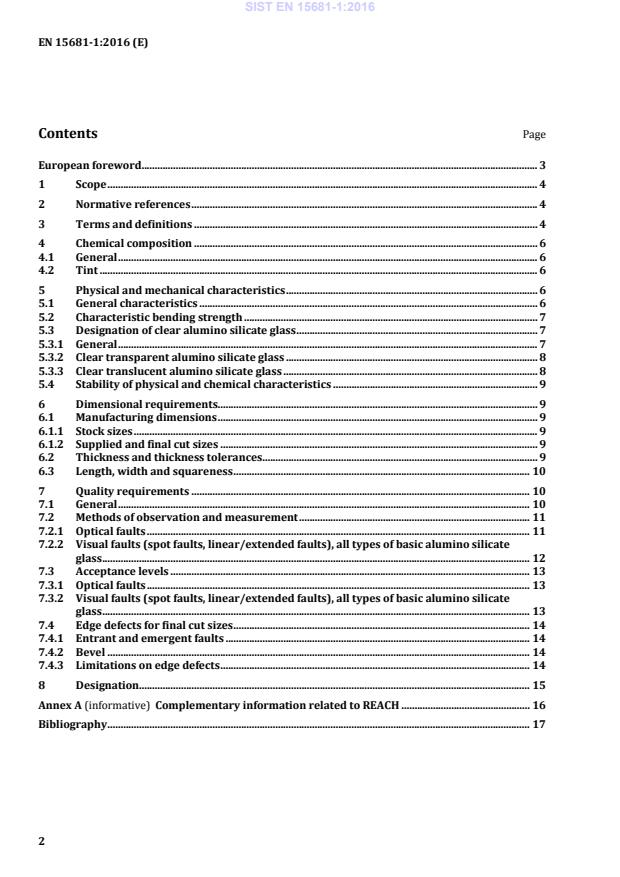

Complementary information related to REACH . 16 Bibliography . 17
1 Standard under development. SIST EN 15681-1:2016

Key I direction of draw H length B width Figure 1 — Relationship between length, width and direction of draw 3.6 stock sizes glass delivered in manufacturers standard stock sizes 3.7 supplied size pane of glass that has been supplied either as raw material for further processing and/or cutting down to a size for installation Note 1 to entry: This is a size that is outside the stock size. 3.8 final cut size pane of glass that has been cut down to the dimensions being required either for installation or processing into a final product Note 1 to entry: Examples of processed final products are insulating glass units and thermally toughened safety glass of those dimensions. 3.9 optical fault fault which leads to distortions in the appearance of objects observed through the glass 3.10 visual fault fault which alters the visual quality of the glass Note 1 to entry: Visual faults include spot faults and linear / extended faults. 3.11 spot fault spherical or quasi spherical fault which is produced by differing mechanisms, e.g. gaseous inclusion, solid inclusion, mark or deposit of small size 3.12 linear / extended faults fault which can be on or in the glass, in the form of deposits, reams, marks or scratches that occupy an extended length or area SIST EN 15681-1:2016

32,1 % to 51,3 % Lithium (Li) 0 % to 3,7 % Sodium (Na) 0 % to 10,5 % Calcium (Ca) 0 % to 2,1 % Magnesium (Mg) 0 % to 5 % Zinc (Zn) 0 % to 2,4 % Potassium (K) 0 % to 7 % Zirconium (Zr) 0 % to 3,0 % Strontium (Sr) 0 % to 2,5 % Barium (Ba) 0 % to 3,6 % Other componentsa 0 % to 5 % a Properties other than photometric characteristics shall not be significantly altered by these other components 4.2 Tint Body tinted glass is obtained by the addition of suitable materials. 5 Physical and mechanical characteristics 5.1 General characteristics Conventional numerical values for the physical and mechanical characteristics of basic alumino silicate glass products excluding ‘Characteristic bending strength’ (fg;k) are given in Table 2. These values, for SIST EN 15681-1:2016

2300 to 2600 kg/m3 Hardness (Knoop) HK0,1/20 400 to 700 a Young's modulus (modulus of elasticity)
E 70 to 90 x GPa Poisson's ratio
0,2 to 0,25 Specific heat capacity Cp 0,7 to 0,9 × 103 J/(kg*K) Nominal value of average coefficient of linear expansion between 20 °C and 300 °C
3,5 to 9,8 × 10 «6/K Resistance against temperature differential and sudden temperature change
60 K b Thermal conductivity
0,8 to 1,7 W/(m*K) Mean refractive index to visible radiation (at 589,3 nm) n 1,5 to 1,55 Emissivity (corrected)
0,837 a Knoop Hardness in accordance with ISO 9385 b Generally accepted value that is influenced by edge quality and glass type 5.2 Characteristic bending strength The characteristic bending strength value applies to quasi-static loading over a short time, e.g. wind loading, and relate to a 5 % probability of breakage at the lower limit of the 95 % confidence interval. The value of the characte
...
