This European Standard specifies requirements for in-situ formed dispensed rigid polyurethane (PUR) and polyisocyanurate (PIR) foam products for the insulation of building equipment and industrial installations, for example industrial storage vessels, pipes and ducts used for the supply of fuels, oil, other liquids, hot and cold water, air and other gases. Depending on the type of foam products complying with this standard, they may have service temperature ranges which lie within the limits of ± 200 °C. This Part 1 of this European Standard is a specification for the rigid foam system before installation. Part 1 of this European Standard describes the product characteristics and it includes procedures for testing, marking and labelling and the rules for evaluation of conformity. This European Standard does not specify the required levels of all properties to be achieved by a product to demonstrate fitness for purpose in a particular end-use application. The required levels are to be found in regulations or non-conflicting standards. This European Standard does not cover factory made rigid polyurethane or polyisocyanurate foam insulation products or in-situ products intended to be used for the insulation of buildings. This European Standard does not specify performance requirements for direct airborne sound insulation and acoustic absorption applications. NOTE Foam products are either called flexible or rigid. The flexible products are used in upholstery and mattresses and are characterised by their ability to deflect, support and recover to their original thickness continually during their inuse phase. Those that are not flexible are termed rigid and do not possess these flexible characteristics. They are mostly used for thermal insulation purposes and vary widely in their compression strength values. Once the cell structure is crushed in a rigid foam, it does not recover its thickness fully. Some of these rigid foams are very low in density with very low compression strengths and are sometimes described “commercially” as “soft foams” or “semi-rigid” foams. This note has been included to clarify that all foams with such descriptions are covered by this standard’s used of the term rigid foam.
Wärmedämmstoffe für die technische Gebäudeausrüstung und für betriebstechnische Anlagen in der Industrie - An der Verwendungsstelle hergestellte Wärmedämmung aus dispensiertem Polyurethan (PUR)- und Polyisocyanurat (PIR)-Hartschaum - Teil 1: Spezifikation für das Schaumsystem vor dem Einbau
Diese Europäische Norm legt Anforderungen an Wärmedämmprodukte aus dispensiertem Poly-urethan(PUR) und Polyisocyanurat(PIR) Hartschaum fest, die an der Verwendungsstelle hergestellt und für die Wärmedämmung von technischen Gebäudeausrüstungen und betriebstechnischen Anlagen, z. B. für Vorratsbehälter, Rohre und Leitungen für die Zufuhr von Brennstoff, Öl, sonstigen Flüssigkeiten, Warm und Kaltwasser, Luft und sonstigen Gasen verwendet werden.
Abhängig vom einzelnen Produkt können die Schaumprodukte nach dieser Europäischen Norm einen Anwendungstemperaturbereich haben, der kleiner als der Bereich 200 °C ist.
Diese Europäische Norm ist eine Spezifikation für das Schaumsystem vor dem Einbau.
Diese Europäische Norm beschreibt die Produktmerkmale und enthält Verfahren für die Prüfung, Kennzeichnung und Etikettierung sowie die Regeln der Konformitätsbewertung.
Diese Europäische Norm legt keine Leistungsstufen für Eigenschaften fest, die ein Produkt erreichen muss, um für eine bestimmte Endanwendung tauglich zu sein. Die erforderlichen Stufen sind Vorschriften oder nicht entgegenstehenden Normen zu entnehmen.
Diese Europäische Norm gilt weder für werkmäßig hergestellte Wärmedämmstoffe aus Poly¬urethan oder Polyisocyanurat Hartschaum noch für an der Verwendungsstelle hergestellten Produkte, die für den Einsatz bei der Dämmung von Gebäuden vorgesehen sind.
Diese Europäische Norm enthält keine Leistungsanforderungen mit Bezug auf den Einsatz zur Luftschall-dämmung oder zur Schallabsorption.
ANMERKUNG Schaumstoffprodukte werden in „Weichschaumstoffe“ und „Hartschaumstoffe“ eingeteilt. Weichschaumstoffe werden in Polstermöbeln oder Matratzen verwendet und werden durch ihre Fähigkeit charakterisiert, kontinuierlich während ihrer Nutzungsdauer sich zu verformen, zu stützen und ihre ursprüngliche Dicke wieder anzunehmen. Hartschaumstoffe dagegen weisen diese flexiblen Eigenschaften nicht auf. Sie werden überwiegend als Wärmedämmstoffe eingesetzt und weisen sehr unterschiedliche Druckfestigkeitswerte auf. Wird die Zellstruktur eines Hartschaumstoffes zusammengedrückt, nimmt sie ihre ursprüngliche Dicke nicht wieder an. Einige Hartschaumstoffe besitzen sowohl eine sehr geringe Dichte als auch eine sehr geringe Druckfestigkeit und werden im Handel manchmal als „halbharte“ Hartschaumstoffe bezeichnet. Diese Anmerkung ist eingefügt worden, um klarzustellen, dass alle derart bezeichneten Hartschaumstoffe von dem in dieser Norm verwendeten Begriff „Hartschaum“ abgedeckt sind.
Produits d'isolation thermique destinés aux applications du bâtiment et aux installations industrielles - Produits en mousse rigide de polyuréthanne (PUR) et de polyisocyanurate (PIR) injectée, formés en place - Partie 1: Spécifications relatives aux systèmes d'injection du polyuréthanne et du polyisocyanurate rigide avant mise en œuvre
La présente Norme européenne spécifie les exigences relatives aux produits en mousse rigide de polyuréthanne (PUR) et de polyisocyanurate (PIR) formés en place destinés à l'isolation des équipements dans les bâtiments et installations industrielles, par exemple les cuves de stockage industrielles, les tuyauteries et conduits utilisés pour l'alimentation en carburant, huile, autres liquides, eau chaude et froide, air et autres gaz.
Selon le type de produits en mousse conformes à la présente norme, leurs plages de températures de service peuvent se trouver dans les limites de ± 200 °C.
La Partie 1 de la présente Norme européenne est une spécification pour le système de mousse rigide avant installation.
La Partie 1 de la présente Norme européenne décrit les caractéristiques du produit et comprend les modes opératoires d'essai, le marquage et l'étiquetage ainsi que les règles d'évaluation de la conformité.
La présente Norme européenne ne spécifie pas les niveaux requis de toutes les propriétés devant être atteints par un produit pour en démontrer l'aptitude à la fonction dans une application finale particulière. Les niveaux requis se trouvent dans les réglementations ou dans les normes non conflictuelles.
La présente Norme européenne ne couvre pas les produits isolants en mousse rigide de polyuréthanne ou de polyisocyanurate manufacturés ou les produits en place conçus pour être utilisés pour l'isolation des bâtiments.
La présente Norme européenne ne spécifie pas les exigences relatives à la performance des applications d'isolation directe des bruits aériens et d'absorption acoustique.
NOTE Les produits en mousse sont dits « souples » ou « rigides ». Les produits souples, utilisés pour les matelas et le rembourrage, se caractérisent par leur capacité de déflexion, de support et de reprise de leur épaisseur initiale au cours de leur phase d'utilisation. Les produits ne présentant pas ces caractéristiques de souplesse sont dits « rigides ». Ils sont principalement utilisés à des fins d'isolation thermique et leur résistance à la compression est très variable. Une fois compressée, la structure alvéolaire d'une mousse rigide ne retrouve pas intégralement son épaisseur initiale. Certaine mousses rigides ont une densité très basse et une force de compression très faible ; elles sont parfois référencées comme « mousses semi-rigides » dans le commerce. Noter que toutes les mousses correspondant à cette description sont désignées par « mousses rigides » dans la présente norme.
Toplotnoizolacijski proizvodi za opremo stavb in industrijske inštalacije - Proizvodi iz trde poliuretanske pene (PUR) in poliizocianuratne pene (PIR), oblikovani na mestu vgradnje - 1. del: Specifikacija penastega sistema pred vgradnjo
Ta evropski standard določa zahteve za proizvode iz brizgane trdne poliuretanske pene (PUR) in poliizocianuratne pene (PIR) za izolacijo opreme stavb in industrijskih inštalacij, na primer industrijske posode za shranjevanje, cevi in vodov, uporabljenih za oskrbo z gorivi, oljem, drugimi tekočinami, vročo in hladno vodo, zrakom in drugimi plini. Glede na vrsto izdelkov iz pene, ki so v skladu s tem standardom, imajo lahko razpon servisne temperature znotraj ±200 °C. Ta 1. del tega evropskega standarda je specifikacija za trdni penasti sitem pred vgradnjo. 1. del tega evropskega standarda opisuje lastnosti proizvoda in vključuje postopke za preskušanje, označevanje in etiketiranje ter pravila za ocenjevanje skladnosti. Ta evropski standard ne določa zahtevanih ravni vseh lastnosti, ki jih mora proizvod doseči, da se dokaže njegova primernost namenu za posamezno vrsto končne uporabe. Zahtevane ravni so določene v uredbah ali standardih, ki niso v nasprotju s tem standardom. Ta evropski standard ne zajema izolacijskih proizvodov iz trde poliuretanske pene in poliizocianuratne pene ali proizvodov, izdelanih na kraju samem, namenjenih za izolacijo stavb. Ta evropski standard ne določa zahtev za delovanje neposredne izolacije pred zvokom v zraku in aplikacij za absorpcijo zvoka. OPOMBA: Penasti izdelki so fleksibilni ali trdni. Fleksibilni izdelki se uporabljajo pri tapetništvu in žimnicah, zanje pa je značilna zmožnost neprekinjenega odvračanja, podpiranja in obnavljanja svoje originalne debeline med fazo neuporabe. Nefleksibilni izdelki veljajo za trdne in nimajo teh fleksibilnih lastnosti. Večinoma se uporabljajo za namene toplotne izolacije in se močno razlikujejo v vrednostih moči stiskanja. Ko je celična zgradba v trdni peni porušena, ni možno več v celoti obnoviti njene debeline. Nekatere od teh pen imajo zelo nizko gostoto z zelo nizkimi močmi stiskanja in so včasih na trgu opisane kot »mehke« ali »srednje trde« pene. Ta opomba je vključena kot pojasnilo, da ta standard opisuje vse pene s takšnim opisom, ki se nanaša na trdne pene.
General Information
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Toplotnoizolacijski proizvodi za opremo stavb in industrijske inštalacije - Proizvodi iz trde poliuretanske pene (PUR) in poliizocianuratne pene (PIR), oblikovani na mestu vgradnje - 1. del: Specifikacija penastega sistema pred vgradnjoWärmedämmstoffe für die technische Gebäudeausrüstung und für betriebstechnische Anlagen in der Industrie - An der Verwendungsstelle hergestellte Wärmedämmung aus dispensiertem Polyurethan (PUR)- und Polyisocyanurat (PIR)-Hartschaum - Teil 1: Spezifikation für das Schaumsystem vor dem EinbauProduits d'isolation thermique destinés aux applications du bâtiment et aux installations industrielles - Produits en mousse rigide de polyuréthanne (PUR) et de polyisocyanurate (PIR) injectée, formés en place - Partie 1: Spécifications relatives aux systèmes d'injection du polyuréthanne et du polyisocyanurate rigide avant mise en œuvreThermal insulating products for building equipment and industrial installations - In-situ formed dispensed rigid polyurethane (PUR) and polyisocyanurate foam (PIR) products - Part 1: Specification for the rigid foam dispensed system before installation91.100.60Thermal and sound insulating materialsICS:Ta slovenski standard je istoveten z:EN 14319-1:2013SIST EN 14319-1:2013en,fr,de01-julij-2013SIST EN 14319-1:2013SLOVENSKI
STANDARD
SIST EN 14319-1:2013
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 14319-1
January 2013 ICS 91.100.60 English Version
Thermal insulating products for building equipment and industrial installations - In-situ formed dispensed rigid polyurethane (PUR) and polyisocyanurate foam (PIR) products - Part 1: Specification for the rigid foam dispensed system before installation
Produits d'isolation thermique destinés aux applications du bâtiment et aux installations industrielles - Produits en mousse rigide de polyuréthanne (PUR) et de polyisocyanurate (PIR) injectée, formés en place - Partie 1: Spécifications relatives aux systèmes d'injection du polyuréthanne et du polyisocyanurate rigide avant mise en œuvre
Wärmedämmstoffe für die technische Gebäudeausrüstung und für betriebstechnische Anlagen in der Industrie - An der Verwendungsstelle hergestellter Wärmedämmstoff aus Polyurethan (PUR)- und Polyisocyanurat (PIR)-Gießschaum - Teil 1: Spezifikation für das Schaumsystem vor dem Einbau This European Standard was approved by CEN on 24 November 2012.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2013 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 14319-1:2013: ESIST EN 14319-1:2013

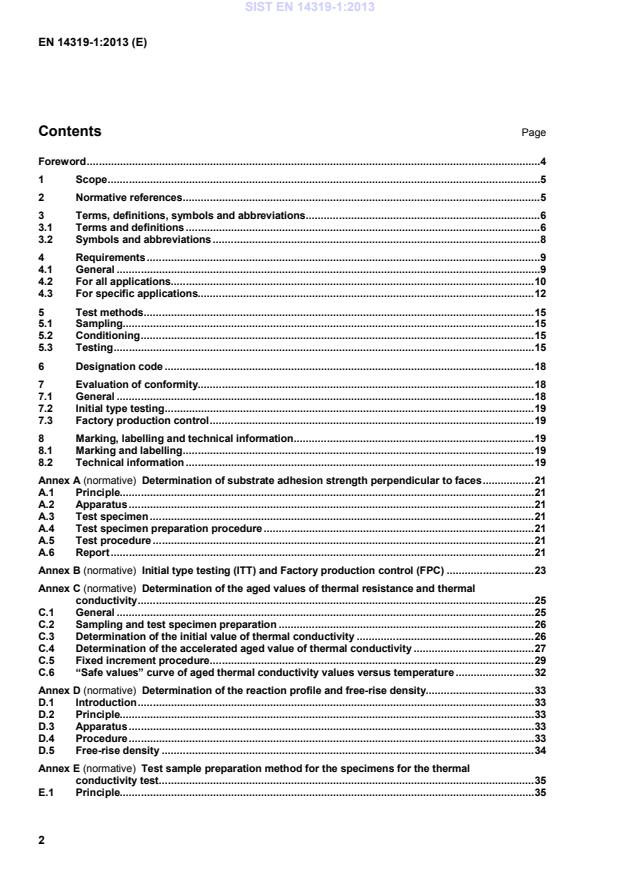

EN 14319-1:2013 (E) 2 Contents Page Foreword . 4 1 Scope . 5 2 Normative references . 5 3 Terms, definitions, symbols and abbreviations . 6 3.1 Terms and definitions . 6 3.2 Symbols and abbreviations . 8 4 Requirements . 9 4.1 General . 9 4.2 For all applications . 10 4.3 For specific applications. 12 5 Test methods . 15 5.1 Sampling . 15 5.2 Conditioning . 15 5.3 Testing . 15 6 Designation code . 18 7 Evaluation of conformity. 18 7.1 General . 18 7.2 Initial type testing . 19 7.3 Factory production control . 19 8 Marking, labelling and technical information . 19 8.1 Marking and labelling . 19 8.2 Technical information . 19 Annex A (normative)
