SIST EN 60811-410:2012

Electric and optical fibre cables - Test methods for non-metallic materials - Part 410: Miscellaneous tests - Test method for copper-catalysed oxidative degradation of polyolefin insulated conductors

IEC 60811-410:2012 gives the procedure for copper-catalyzed oxidative degradation of a polyolefin, which is typically used for insulation in communication cables. IEC 60811-410:2012 cancels and replaces Annex B of IEC 60811-4-2:2004, which is withdrawn. Full details of the replacements are shown in Annex A of IEC 60811-100:2012. There are no specific technical changes with respect to the previous edition, but see the Foreword to IEC 60811-100:2012.   This publication is to be read in conjunction with IEC 60811-100:2012.

Kabel, isolierte Leitungen und Glasfaserkabel - Prüfverfahren für nichtmetallene Werkstoffe - Teil 410: Sonstige Prüfungen - Prüfverfahren für die Sauerstoffalterung unter Kupfereinfluss für polyolefinisolierte Leiter

Câbles électriques et câbles à fibres optiques - Méthodes d'essai pour les matériaux non-métalliques - Partie 410: Essais divers - Méthode d'essai pour la mesure de la dégradation par oxydation catalytique par le cuivre des conducteurs isolés aux polyoléfines

La CEI 60811-410:2012 décrit la procédure de mesure de la dégradation par oxydation catalytique, par le cuivre, d'une polyoléfine, généralement utilisée pour l'isolation des câbles de communication. La CEI 60811-410:2012 annule et remplace l'Annexe B de la CEI 60811-4-2:2004, qui est supprimée. L'ensemble des informations relatives aux remplacements figure dans l'Annexe A de la CEI 60811-100:2012. Aucune modification technique n'a été effectuée par rapport à l'édition précédente; voir cependant l'avant-propos de la CEI 60811-100:2012.   Cette publication doit être lue conjointement avec la CEI 60811-100:2012.

Električni in optični kabli - Preskuševalne metode za nekovinske materiale - 410. del: Drugi preskusi - Preskusna metoda za z bakrom katalizirano oksidativno poslabšanje poliolefinsko izoliranih vodnikov

410. del standarda IEC 60811 navaja preskusno metodo za z bakrom katalizirano oksidativno poslabšanje poliolefina, ki se običajno uporablja za izolacijo komunikacijskih kablov. V tem standardu niso navedeni vsi preskusni pogoji, kot so temperatura, trajanje itd., in vse zahteve preskusa; navedene naj bi bile v standardu, ki obravnava ustrezne vrste kablov.

General Information

• Status: Published
• Publication Date: 05-Jul-2012
• ICS: 29.035.20 - Plastics and rubber insulating materials
• ICS: 29.060.20 - Cables
• Technical Committee: IEKA - Electric cables
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 19-Jun-2012
• Due Date: 24-Aug-2012
• Completion Date: 06-Jul-2012
• Directive: 2006/95/EC - Directive 2006/95/EC of the European Parliament and of the Council of 12 December 2006 on the harmonisation of the laws of Member States relating to electrical equipment designed for use within certain voltage limits (codified version)
• Directive: 2014/35/EU - Directive 2014/35/EU of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to the making available on the market of electrical equipment designed for use within certain voltage limits
• Ref Project: EN 60811-410:2012 - Electric and optical fibre cables - Test methods for non-metallic materials - Part 410: Miscellaneous tests - Test method for copper-catalyzed oxidative degradation of polyolefin insulated conductors

Relations

• Replaces: SIST EN 60811-4-2:2005 - Insulating and sheathing materials of electric and optical cables - Common test methods -- Part 4-2: Methods specific to polyethylene and polypropylene compounds - Tensile strength and elongation at break after conditioning at elevated temperature - Wrapping test after conditioning at elevated temperature - Wrapping test after thermal ageing in air - Measurement of mass increase - Long-term stability test - Test method for copper-catalyzed oxidative degradation
• Effective Date: 29-Jan-2023
• Amended By: SIST EN 60811-410:2012/A1:2018 - Electric and optical fibre cables - Test methods for non-metallic materials - Part 410: Miscellaneous tests - Test method for copper-catalyzed oxidative degradation of polyolefin insulated conductors (IEC 60811-410:2012/A1:2017)
• Effective Date: 01-Dec-2015
• Revised: SIST EN 60811-4-2:2005 - Insulating and sheathing materials of electric and optical cables - Common test methods -- Part 4-2: Methods specific to polyethylene and polypropylene compounds - Tensile strength and elongation at break after conditioning at elevated temperature - Wrapping test after conditioning at elevated temperature - Wrapping test after thermal ageing in air - Measurement of mass increase - Long-term stability test - Test method for copper-catalyzed oxidative degradation
• Effective Date: 07-Jun-2022
• Revised: SIST EN 60811-4-2:2005 - Insulating and sheathing materials of electric and optical cables - Common test methods -- Part 4-2: Methods specific to polyethylene and polypropylene compounds - Tensile strength and elongation at break after conditioning at elevated temperature - Wrapping test after conditioning at elevated temperature - Wrapping test after thermal ageing in air - Measurement of mass increase - Long-term stability test - Test method for copper-catalyzed oxidative degradation
• Effective Date: 23-Jul-2014

Overview

EN 60811-410:2012 (CLC adoption of IEC 60811-410:2012) is a test-method standard for assessing copper‑catalyzed oxidative degradation of polyolefin insulated conductors used in communication cables. It belongs to the IEC/EN 60811 series - test methods for non‑metallic cable materials - and is intended to be read in conjunction with EN/IEC 60811-100:2012 (General). The standard defines the procedure to determine oxidation susceptibility using an Oxidation Induction Time (OIT) approach; it replaces Annex B of EN 60811‑4‑2:2004 without technical change.

Key Topics

• Scope and purpose
  • Procedure for copper‑catalyzed oxidative degradation of polyolefin insulations typically found in communication cables.
  • Full test conditions (acceptance criteria, exact temperature/duration limits) are to be specified by the product or cable standard that references this method.
• Test principle
  • Measurement of Oxidation Induction Time (OIT) by monitoring the exothermic response of an insulated conductor when switched from an inert (N2) to an oxygen atmosphere.
• Apparatus and materials
  • Differential scanning calorimeter (DSC) or differential thermal analyser capable of ~20 K/min heating and isothermal control with automatic heat‑flow recording.
  • Gas‑selector and regulators for high‑purity nitrogen and oxygen, flow ~50 ±5 ml/min.
  • Analytical balance and small aluminium sample holders.
• Sample preparation
  • Small test pieces (~3–5 mg of insulating material) cut from an insulated core; typically four replicates per sample.
• Procedure highlights
  • Pre‑purge with nitrogen, heat to test temperature (a 200 °C test temperature is noted as appropriate for polyethylene), equilibrate isothermally, switch purge to oxygen (time zero), record thermogram and determine OIT by extrapolating the exotherm to the baseline.
• Measurements & reporting
  • OIT determined from change‑over to oxygen to the intersection of extrapolated exotherm and baseline; measurement resolution not exceeding 1 minute.
  • Instrument calibration and preparation per Annex A.

Applications

• Cable manufacturers - quality control and production monitoring for polyolefin‑insulated communication cables to ensure resistance to copper‑catalyzed oxidation.
• Materials suppliers - batch verification of polymer stabilizer performance and shelf/processing stability when copper exposure is a concern.
• Independent test laboratories - accredited testing to support specifications, failure investigations and compliance testing.
• Standards writers / specifiers - reference method for inclusion in product standards where copper‑catalyzed oxidation is relevant.

Related Standards

• EN/IEC 60811‑100:2012 - General requirements and terms (must be used in conjunction).
• EN 60811‑4‑2:2004 - Earlier part partially superseded (Annex B replaced by this Part 410).
• Other parts of the EN/IEC 60811 series covering test methods for non‑metallic cable materials.

Keywords: EN 60811-410:2012, copper-catalyzed oxidative degradation, polyolefin insulated conductors, oxidation induction time (OIT), DSC, cable test methods, IEC 60811-100.

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.NVLGDWLYQRKabel, isolierte Leitungen und Glasfaserkabel - Prüfverfahren für nichtmetallene Werkstoffe - Teil 410: Sonstige Prüfungen - Prüfverfahren für die Sauerstoffalterung unter Kupfereinfluss für polyolefinisolierte LeiterCâbles électriques et câbles à fibres optiques - Méthodes d'essai pour les matériaux non-métalliques - Partie 410: Essais divers - Méthode d'essai pour la mesure de la dégradation par oxydation catalytique par le cuivre des conducteurs isolés aux polyoléfinesElectric and optical fibre cables - Test methods for non-metallic materials - Part 410: Miscellaneous tests - Test method for copper-catalysed oxidative degradation of polyolefin insulated conductors29.060.20KabliCables29.035.20PDWHULDOLPlastics and rubber insulating materialsICS:Ta slovenski standard je istoveten z:EN 60811-410:2012SIST EN 60811-410:2012en,fr,de01-september-2012SIST EN 60811-410:2012SLOVENSKI
STANDARD
EUROPEAN STANDARD EN 60811-410 NORME EUROPÉENNE
EUROPÄISCHE NORM June 2012
CENELEC European Committee for Electrotechnical Standardization Comité Européen de Normalisation Electrotechnique Europäisches Komitee für Elektrotechnische Normung
Management Centre: Avenue Marnix 17, B - 1000 Brussels
© 2012 CENELEC -
All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 60811-410:2012 E
ICS 29.035.01; 29.060.20 Supersedes EN 60811-4-2:2004 (partially)
English version
Electric and optical fibre cables -
Test methods for non-metallic materials -
Part 410: Miscellaneous tests -
Test method for copper-catalyzed oxidative degradation of polyolefin insulated conductors (IEC 60811-410:2012)
Câbles électriques et à fibres optiques -
Méthodes d'essai pour les matériaux non-métalliques -
Partie 410: Essais divers -
Méthode d'essai pour la mesure de la dégradation par oxydation catalytique par le cuivre des conducteurs isolés aux polyoléfines (CEI 60811-410:2012)
Kabel, isolierte Leitungen und Glasfaserkabel -
Prüfverfahren für nichtmetallene Werkstoffe -
Teil 410: Sonstige Prüfungen -
Prüfverfahren für die Sauerstoffalterung unter Kupfereinfluss für polyolefinisolierte Leiter (IEC 60811-410:2012)
This European Standard was approved by CENELEC on 2012-04-16. CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.

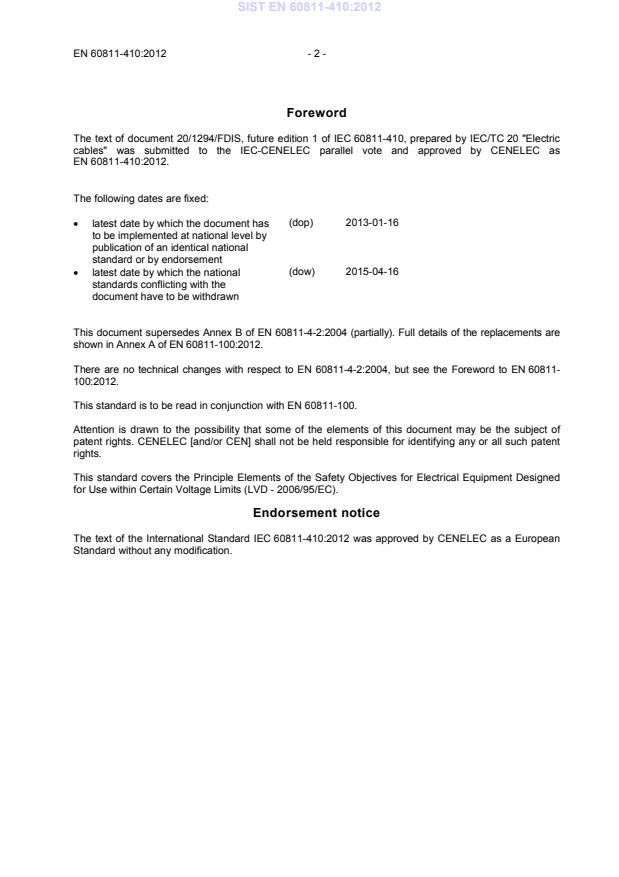

Foreword The text of document 20/1294/FDIS, future edition 1 of IEC 60811-410, prepared by IEC/TC 20 "Electric cables" was submitted to the IEC-CENELEC parallel vote and approved by CENELEC as EN 60811-410:2012.
The following dates are fixed: • latest date by which the document has to be implemented at national level by publication of an identical national standard or by endorsement (dop) 2013-01-16 • latest date by which the national standards conflicting with the document have to be withdrawn (dow) 2015-04-16
This document supersedes Annex B of EN 60811-4-2:2004 (partially). Full details of the replacements are shown in Annex A of EN 60811-100:2012. There are no technical changes with respect to EN 60811-4-2:2004, but see the Foreword to EN 60811-100:2012. This standard is to be read in conjunction with EN 60811-100.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such patent rights.
This standard covers the Principle Elements of the Safety Objectives for Electrical Equipment Designed for Use within Certain Voltage Limits (LVD - 2006/95/EC). Endorsement notice The text of the International Standard IEC 60811-410:2012 was approved by CENELEC as a European Standard without any modification.
- 3 - EN 60811-410:2012
Annex ZA (normative)
Normative references to international publications with their corresponding European publications
The following documents, in whole or in part, are normatively referenced in this document and are indispensable for its application. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies.
NOTE
When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD applies.
Publication Year Title EN/HD Year
IEC 60811-100 2012 Electric and optical fibre cables - Test methods for non-metallic materials -
Part 100: General EN 60811-100 2012
IEC 60811-410 Edition 1.0 2012-03 INTERNATIONAL STANDARD NORME INTERNATIONALE Electric and optical fibre cables – Test methods for non-metallic materials –
Part 410: Miscellaneous tests – Test method for copper-catalyzed oxidative degradation of polyolefin insulated conductors
Câbles électriques et à fibres optiques – Méthodes d’essai pour les matériaux non-métalliques –
Partie 410: Essais divers – Méthode d’essai pour la mesure de la dégradation
par oxydation catalytique par le cuivre des conducteurs isolés aux polyoléfines
INTERNATIONAL ELECTROTECHNICAL COMMISSION COMMISSION ELECTROTECHNIQUE INTERNATIONALE L ICS 29.035.01; 29.060.20 PRICE CODE CODE PRIX ISBN 978-2-88912-972-0
– 2 – 60811-410  IEC:2012 CONTENTS FOREWORD . 3 INTRODUCTION . 5 1 Scope . 6 2 Normative references . 6 3 Terms and definitions . 6 4 Test method . 6 4.1 General . 6 4.2 Apparatus . 6 4.3 Sample and test pieces preparation. 7 4.4 Test procedure . 7 4.5 Measurements . 8 5 Test report. 8 Annex A (normative)
Instrument calibration . 10 Bibliography . 11
Figure 1 – Evaluation of OIT from recorded-time-based thermogram . 9 Figure A.1 – Representative melting endothermic for indium . 10
60811-410  IEC:2012 – 3 – INTERNATIONAL ELECTROTECHNICAL COMMISSION ____________
ELECTRIC AND OPTICAL FIBRE CABLES –
TEST METHODS FOR NON-METALLIC MATERIALS –
Part 410: Miscellaneous tests –
Test method for copper-catalyzed oxidative degradation
of polyolefin insulated conductors
FOREWORD 1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with may participate in this preparatory work. International, governmental and non-governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for Standardization (ISO) in accordance with conditions determined by agreement between the two organizations. 2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international consensus of opinion on the relevant subjects since each technical committee has representation from all interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any misinterpretation by any end user. 4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications transparently to the maximum extent possible in their national and regional publications. Any divergence between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter. 5) IEC it
...
