SIST EN 60079-18:2015/A1:2018

Explosive atmospheres - Part 18: Equipment protection by encapsulation "m"

2017-05-29 - Annex ZZ available - Ensure it is issued with //FDIS

Explosionsgefährdete Bereiche - Teil 18: Geräteschutz durch Vergusskapselung „m“

Atmosphères explosives - Partie 18: Protection du matériel par encapsulage "m"

Eksplozivne atmosfere - 18. del: Zaščita opreme z zalivanjem z zalivno maso "m" - Dopolnilo A1

General Information

• Status: Published
• Publication Date: 15-Feb-2018
• ICS: 29.260.20 - Electrical apparatus for explosive atmospheres
• Technical Committee: EXP - Product for explosive atmospheres
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 14-Dec-2017
• Due Date: 18-Feb-2018
• Completion Date: 16-Feb-2018
• Directive: 2008/68/EC - Directve 2008/68/EC of the European Parliament and of the council of 24 September 2008 on the inland transport of the dangerous goods
• Directive: 2014/34/EU - Directive 2014/34/EU Of The European Parliament And Of The Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to equipment and protective systems intended for use in potentially explosive atmospheres (recast)
• Ref Project: EN 60079-18:2015/A1:2017 - Explosive atmospheres - Part 18: Equipment protection by encapsulation "m"

Relations

• Amends: SIST EN 60079-18:2015 - Explosive atmospheres - Part 18: Equipment protection by encapsulation "m" (IEC 60079-18:2014)
• Effective Date: 27-Dec-2016
• Revised: SIST EN IEC 60079-18:2025 - Explosive atmospheres - Part 18: Equipment protection by encapsulation "m" (IEC 60079-18:2025)
• Effective Date: 13-Dec-2022

Overview

EN 60079-18:2015/A1:2017 (IEC 60079-18:2014/A1:2017) specifies requirements for equipment protection by encapsulation ("m") for use in potentially explosive atmospheres. The amendment A1 (published by CENELEC, approved 2017‑09‑28) supplements the 2015 European Standard and includes a new normative Annex C that provides an alternative dielectric strength test and a batch testing procedure. Annex ZZ (informative) explains the relationship of this standard to Directive 2014/34/EU (ATEX) and the presumption of conformity when cited in the Official Journal of the EU.

Key topics and technical requirements

• Principle of protection "m": encapsulation of parts that could ignite an explosive atmosphere by surrounding them with a compound or non‑metallic enclosure (see Clause 4).
• Dielectric strength testing: Clause 9.2 and the new Annex C describe tests between circuits (external connections) and the non‑metallic surface of the equipment (compound or enclosure surface).
  • Manufacturers can use Annex C for batch testing where routine individual testing is impractical.
  • Material datasheets must specify a breakdown voltage ≥ 1.5× the routine test voltage (accounting for material/compound thickness).
  • The type test voltage must be 1.5× the voltage required by Clause 8.2.4.1.
  • Test arrangement and acceptance criteria refer to 8.2.4.1(c) and 8.2.4.2 respectively.
• Batch sampling sizes (based on ISO 2859‑1):
  • Up to 100 units: test 8 samples (no failures allowed).
  • 101–1 000: test 32 samples (no failures).
  • 1 001–10 000: test 80 samples (no failures).

  • 10 000: divide into smaller batches.

  • If failures occur, remaining units must be 100% routine tested at the standard test voltage.
• Documentation requirement: batch test procedures must be included in the manufacturer’s documentation.

Practical applications

• Use the standard when designing, manufacturing, testing or certifying encapsulated electrical apparatus (sensors, transmitters, connection modules, control electronics) intended for Zone 1/2 or Zone 21/22 hazardous areas where encapsulation is chosen as the protection method.
• Relevant industries: oil & gas, petrochemical, chemical processing, mining, pharmaceuticals, utilities-anywhere explosive gas, vapour or dust atmospheres may occur.
• Helps demonstrate compliance with ATEX / 2014/34/EU and provides test and sampling procedures suitable for high‑volume production.

Who should use this standard

• Product design and compliance engineers, manufacturers of electrical apparatus for explosive atmospheres, testing laboratories, notified/certification bodies, technical procurement and QA teams responsible for hazardous‑area equipment.

Related standards / references

• IEC 60079 series (other parts on protection types)
• ISO 2859‑1 (sampling procedures)
• Directive 2014/34/EU (ATEX) - see Annex ZZ for clause mappings and presumption of conformity.

Keywords: EN 60079-18, IEC 60079-18, encapsulation m, explosive atmospheres, dielectric strength test, Annex C, batch testing, ATEX, 2014/34/EU.

Standards Content (Sample)

SLOVENSKI STANDARD
01-april-2018
(NVSOR]LYQHDWPRVIHUHGHO=DãþLWDRSUHPH]]DOLYDQMHP]]DOLYQRPDVRP
'RSROQLOR$
Explosive atmospheres - Part 18: Equipment protection by encapsulation "m"
Explosionsgefährdete Bereiche - Teil 18: Geräteschutz durch Vergusskapselung „m“
Atmosphères explosives - Partie 18: Protection du matériel par encapsulage "m"
Ta slovenski standard je istoveten z: EN 60079-18:2015/A1:2017
ICS:
29.260.20 (OHNWULþQLDSDUDWL]D Electrical apparatus for
HNVSOR]LYQDR]UDþMD explosive atmospheres
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN 60079-18:2015/A1

NORME EUROPÉENNE
EUROPÄISCHE NORM
December 2017
ICS 29.260.20
English Version
Explosive atmospheres - Part 18: Equipment protection by
encapsulation "m"
(IEC 60079-18:2014/A1:2017)
Atmosphères explosives - Partie 18: Protection du matériel Explosionsgefährdete Bereiche - Teil 18: Geräteschutz
par encapsulage "m" durch Vergusskapselung "m"
(IEC 60079-18:2014/A1:2017) (IEC 60079-18:2014/A1:2017)
This amendment A1 modifies the European Standard EN 60079-18:2015; it was approved by CENELEC on 2017-09-28. CENELEC
members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this amendment the
status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This amendment exists in three official versions (English, French, German). A version in any other language made by translation under the
responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the same status as
the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden,
Switzerland, Turkey and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2017 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 60079-18:2015/A1:2017 E

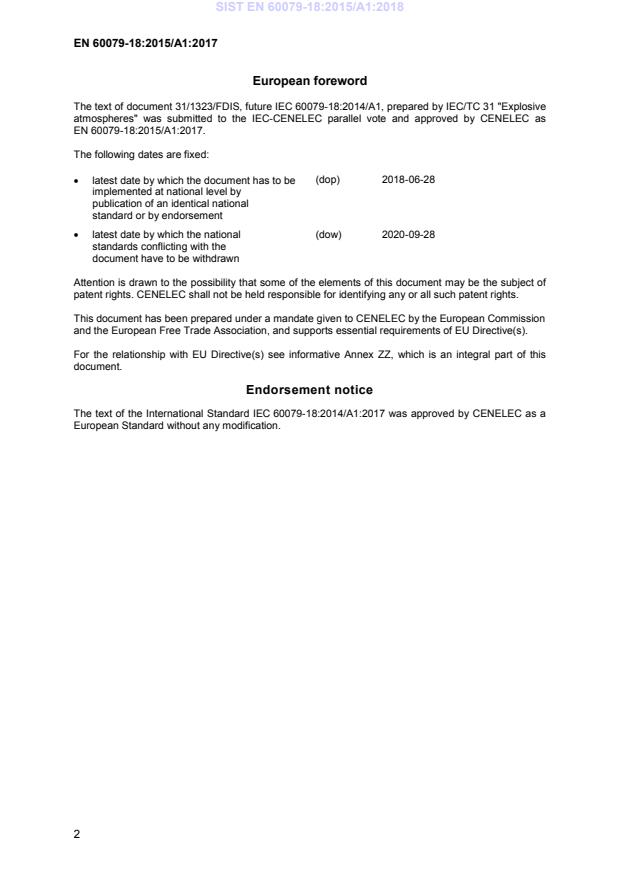

European foreword
The text of document 31/1323/FDIS, future IEC 60079-18:2014/A1, prepared by IEC/TC 31 "Explosive
atmospheres" was submitted to the IEC-CENELEC parallel vote and approved by CENELEC as
The following dates are fixed:
(dop) 2018-06-28
• latest date by which the document has to be
implemented at national level by
publication of an identical national
standard or by endorsement
• latest date by which the national (dow) 2020-09-28
standards conflicting with the
document have to be withdrawn
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.

This document has been prepared under a mandate given to CENELEC by the European Commission
and the European Free Trade Association, and supports essential requirements of EU Directive(s).

For the relationship with EU Directive(s) see informative Annex ZZ, which is an integral part of this
document.
Endorsement notice
The text of the International Standard IEC 60079-18:2014/A1:2017 was approved by CENELEC as a
European Standard without any modification.
Annex ZZ
(informative)
Relationship between this European standard and the essential requirements
of 2014/34/EU [2014 OJ L96] aimed to be covered

This European standard has been prepared under a Commission’s standardisation request
M/BC/CEN/92/46 to provide one voluntary means of conforming to essential requirements of
2014/34/EU of the European Parliament and of the Council of 26 February 2014 on the harmonisation
of the laws of the Member States relating to equipment and protective systems intended for use in
potentially explosive atmospheres (recast).

Once this standard is cited in the Official Journal of the European Union under that Directive,
compliance with the normative clauses of this standard given in Table ZZ.1 confers, within the limits of
the scope of this standard, a presumption of conformity with the corresponding essential requirements
of that Directive, and associated EFTA regulations.

Table ZZ.1 – Correspondence between this European standard and Annex II of Directive
2014/34/EU [2014 OJ L96]
Essential Requirements of Clause(s) / sub-clause(s)
Remarks / Notes
2014/34/EU of this EN
1.0.1. 1 / 3 / 4
1.0.2. 4 / 6 / 7.1 / 7.2
1.0.3. -
1.0.4. 5 / 6 / 7.1 - 7.4
1.0.5. 10
1.0.6. -
1.1.1. 5
1.1.2. 5
1.1.3. 5
1.2.1. -
1.2.2. -
1.2.3. -
1.2.4. 6.2.1
1.2.5. -
1.2.6. -
1.2.7. -
1.2.8. 7.9
1.2.9. -
1.3.1. 4 Principle of the type of
protection “m”
1.3.2. -
1.3.3. 4 Principle of the type of
protection “m” as far as
applicable
1.3.4. 4 Principle of the type of
protecti
...
