SIST EN 3488:2024

Aerospace series - Steel X6CrNiTi18-10 (1.4541) - Air melted - Softened - Sheets and strips - a ≤ 6 mm - 500 MPa ≤ Rm ≤ 700 MPa

This document specifies the requirements relating to:
Steel X6CrNiTi18–10 (1.4541)
Air melted
Softened
Sheets and strips
a ≤ 6 mm
500 MPa ≤ Rm ≤ 700 MPa
for aerospace applications.
W. Nr: 1.4541.
ASD-STAN designation: FE-PA3601.

Luft- und Raumfahrt - Stahl X6CrNiTi18-10 (1.4541) - Lufterschmolzen - Weichgeglüht - Bleche und Bänder - a ≤ 6 mm - 500 MPa ≤ Rm ≤ 700 MPa

No Scope available

Série aérospatiale - Acier X6CrNiTi18-10 (1.4541) - Élaboré à l'air - Adouci - Tôles et bandes - a ≤ 6 mm - 500 MPa ≤ Rm ≤ 700 MPa

Le présent document spécifie les exigences relatives à :
Acier X6CrNiTi18-10 (1.4541)
Élaboré à l’air
Adouci
Tôles et bandes
a ≤ 6 mm
500 MPa ≤ Rm ≤ 700 MPa
pour les applications aérospatiales.
W.nr : 1.4541.
Désignation ASD-STAN : FE-PA3601.

Aeronavtika - Jeklo X6CrNiTi18-10 (1.4541) - Taljeno na zraku - Mehčano - Pločevina in trakovi - a ≤ 6 mm - 500 MPa ≤ Rm ≤ 700 MPa

Ta dokument določa zahteve, ki se navezujejo na:
jeklo X6CrNiTi18-10 (1.4541),
taljeno na zraku,
mehčano,
pločevino in trakove,
a ≤ 6 mm,
500 MPa ≤ Rm ≤ 700 MPa,
za uporabo v aeronavtiki.
W. Nr: 1.4541.
Oznaka ASD-STAN: FE-PA3601.

General Information

• Status: Published
• Public Enquiry End Date: 30-Nov-2020
• Publication Date: 29-Aug-2024
• ICS: 49.025.10 - Steels
• ICS: 77.140.50 - Flat steel products and semi-products
• Technical Committee: I13 - Imaginarni 13
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 28-Aug-2024
• Due Date: 02-Nov-2024
• Completion Date: 30-Aug-2024
• Ref Project: EN 3488:2024 - Aerospace series - Steel X6CrNiTi18-10 (1.4541) - Air melted - Softened - Sheets and strips - a ≤ 6 mm - 500 MPa ≤ Rm ≤ 700 MPa

Relations

• Revised: SIST EN 3488:2007 - Aerospace series - Steel FE-PA3601 (X6CrNiTi18-10) - Air melted - Softened - Sheet and strip - a <= 6 mm - 500 MPa <= Rm <= 700 MPa
• Effective Date: 19-Jan-2023

Overview

SIST EN 3488:2024 is a European standard developed by CEN, specifying the requirements for Steel X6CrNiTi18-10 (1.4541) in aerospace applications. This steel grade is air melted, softened, and supplied as sheets and strips with a thickness up to 6 mm. It targets mechanical properties with tensile strength (Rm) between 500 MPa and 700 MPa, meeting critical performance characteristics required in the aerospace industry. The standard replaces the previous EN 3488:2007 edition, incorporating editorial improvements and updated references.

Key Topics

• Material Specification: Steel X6CrNiTi18-10 (1.4541), also referenced as W. Nr 1.4541 and ASD-STAN designation FE-PA3601.
• Production Method: Air melting process followed by softening heat treatment within 1050 °C to 1100 °C, supplied as rolled sheets and strips.
• Dimensions: Applicable for thickness ≤ 6 mm, with dimensional and mechanical criteria strictly defined.
• Mechanical Properties:
  • Tensile strength (Rm): 500 - 700 MPa
  • Proof stress (Rp0.2): ≥ 220 MPa
  • Elongation (A%): ≥ 40%
  • Hardness (HB): ≤ 207
• Chemical Composition:
  • Chromium: 17.0% - 19.0%
  • Nickel: 9.0% - 12.0%
  • Titanium: Around 5 times carbon content
  • Limits on carbon, silicon, manganese, phosphorus, sulfur, and titanium ensure material integrity.
• Microstructural Requirements: Ferrite content capped at 8%, grain size minimum of 5 according to EN 4700-001 to guarantee performance consistency.
• Quality Assurance: Compliance with visual inspection, inclusion content category 2, and other standardized tests for aerospace-grade steel.
• Delivery Condition: Material supplied softened, ensuring optimal formability and performance.

Applications

SIST EN 3488:2024 steel sheets and strips are primarily designed for aerospace structural components that demand lightweight, corrosion-resistant, and high-strength materials. Typical uses include:

• Aircraft skin panels
• Structural reinforcements and frames
• Aerospace mechanical components requiring precise mechanical property control
• Manufacturing of parts where reliability and safety are paramount due to material consistency and traceability ensured by this standard

The air melted and softened nature of the material ensures excellent weldability and machining characteristics vital for aerospace manufacturing processes.

Related Standards

• EN 4700-001: Technical specification for wrought aerospace steels and heat-resisting alloys, detailing forms, testing, and delivery conditions.
• EN 2951: Focus on micrographic determination of non-metallic inclusions to ensure cleanliness of metallic aerospace materials.
• EN 4436: Methods for steel ferrite content measurement critical for assessing microstructure in aerospace steel products.
• EN 4258: General organization of aerospace metallic materials standardization series, providing context for EN 3488’s structure and use.
• EN 4500-005: Specific rules for drafting steel material standards in aerospace series.

Practical Value

Adopting SIST EN 3488:2024 enables aerospace manufacturers to standardize on a high-quality stainless steel grade with well-defined mechanical and compositional properties. This facilitates consistent performance in demanding applications, reduces risk associated with material variability, and improves supply chain management through compliance with widely accepted European aerospace standards. Furthermore, nickel-chromium-titanium stabilized steel in softened condition offers a balanced combination of strength, corrosion resistance, and formability, making it indispensable for advanced aerospace engineering.

---

Keywords: SIST EN 3488:2024, Aerospace stainless steel, Steel X6CrNiTi18-10, air melted steel, softened steel sheets, aerospace steel strips, 1.4541 steel, tensile strength aerospace steel, aerospace sheet metal standard, CEN aerospace materials

Standards Content (Sample)

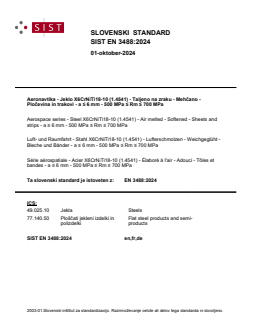

SLOVENSKI STANDARD
01-oktober-2024
Aeronavtika - Jeklo X6CrNiTi18-10 (1.4541) - Taljeno na zraku - Mehčano -
Pločevina in trakovi - a ≤ 6 mm - 500 MPa ≤ Rm ≤ 700 MPa
Aerospace series - Steel X6CrNiTi18-10 (1.4541) - Air melted - Softened - Sheets and
strips - a ≤ 6 mm - 500 MPa ≤ Rm ≤ 700 MPa
Luft- und Raumfahrt - Stahl X6CrNiTi18-10 (1.4541) - Lufterschmolzen - Weichgeglüht -
Bleche und Bänder - a ≤ 6 mm - 500 MPa ≤ Rm ≤ 700 MPa
Série aérospatiale - Acier X6CrNiTi18-10 (1.4541) - Élaboré à l'air - Adouci - Tôles et
bandes - a ≤ 6 mm - 500 MPa ≤ Rm ≤ 700 MPa
Ta slovenski standard je istoveten z: EN 3488:2024
ICS:
49.025.10 Jekla Steels
77.140.50 Ploščati jekleni izdelki in Flat steel products and semi-
polizdelki products
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

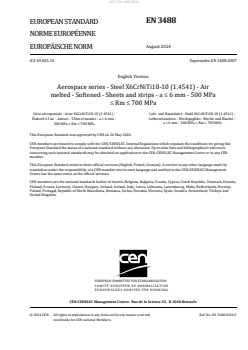

EN 3488
EUROPEAN STANDARD
NORME EUROPÉENNE
August 2024
EUROPÄISCHE NORM
ICS 49.025.10 Supersedes EN 3488:2007
English Version
Aerospace series - Steel X6CrNiTi18-10 (1.4541) - Air
melted - Softened - Sheets and strips - a  6 mm - 500 MPa
 Rm  700 MPa
Série aérospatiale - Acier X6CrNiTi18-10 (1.4541) - Luft- und Raumfahrt - Stahl X6CrNiTi18-10 (1.4541) -
Élaboré à l'air - Adouci - Tôles et bandes - a  6 mm - Lufterschmolzen - Weichgeglüht - Bleche und Bänder -
500 MPa  Rm  700 MPa a  6 mm - 500 MPa  Rm  700 MPa
This European Standard was approved by CEN on 26 May 2024.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2024 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 3488:2024 E
worldwide for CEN national Members.

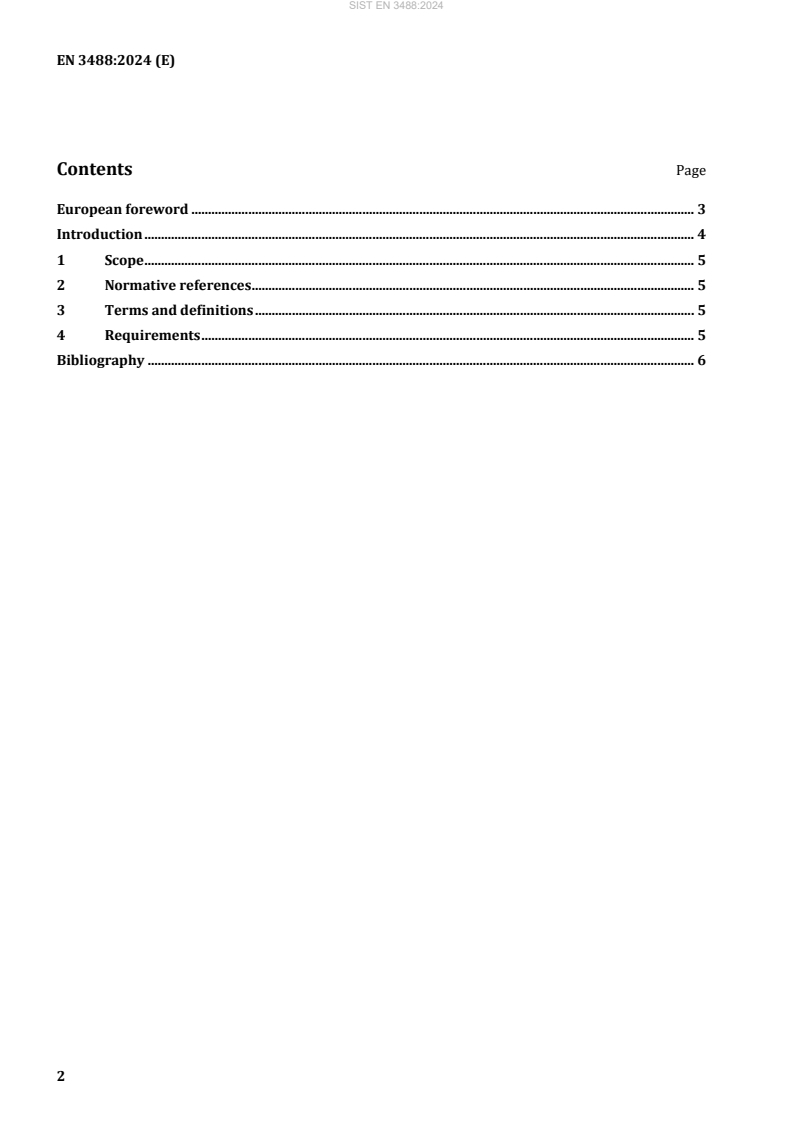

Contents Page
European foreword . 3
Introduction . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Requirements . 5
Bibliography . 6

European foreword
This document (EN 3488:2024) has been prepared by ASD-STAN.
After enquiries and votes carried out in accordance with the rules of this Association, this document has
received the approval of the National Associations and the Official Services of the member countries of
ASD-STAN, prior to its presentation to CEN.
This document shall be given the status of a national standard, either by publication of an identical text
or by endorsement, at the latest by February 2025, and conflicting national standards shall be
withdrawn at the latest by February 2025.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 3488:2007.
The main changes with respect to the previous edition are as follows:
— EN 3488 (P2), 08/2007 — General editorial improvements and upd
...
