SIST EN ISO 9073-11:2005

Textiles - Test methods for nonwovens - Part 11: Run-off (ISO 9073-11:2002)

ISO 9073-11 describes test methods for measuring the quantity of test liquid (simulated urine) which runs down a nonwoven test piece when a specified mass of test liquid is poured on to the nonwoven test piece superimposed on a standard absorbent media and placed on an inclined plane.
This test method is designed to compare run-off of nonwovens. It is not intended to simulate in-use conditions of finished products.
Three alternative methods are described:
Test I -- the basic method for testing hydrophilic nonwovens;
Test III -- the repeated test, with the same test parameters as in I);
Test III -- the modified method for testing hydrophobic nonwovens specifying another table inclination than in I).

Textilien - Prüfverfahren für Vliesstoffe - Teil 11: Bestimmung des Ablaufverhaltens (ISO 9073-11:2002)

Textiles - Méthodes d'essai pour nontissés - Partie 11: Écoulement sur plan incliné (ISO 9073-11:2002)

L'ISO 9073-11 décrit des méthodes d'essai pour mesurer la quantité de liquide d'essai (urine artificielle) s'écoulant d'une éprouvette de nontissé lorsqu'une masse spécifiée de liquide d'essai est versée sur l'éprouvette de nontissé posée sur un élément absorbant normalisé placé sur un plan incliné.
Cette méthode d'essai est conçue pour comparer l'écoulement des nontissés. Elle n'est pas destinée à simuler des conditions d'utilisation de produits finis.
Trois méthodes alternatives sont décrites:
Essai I -- Méthode de base pour l'essai de nontissés hydrophiles.
Essai II -- Essai répété, avec les mêmes paramètres d'essai que pour l'essai I.
Essai III -- Méthode modifiée pour l'essai de nontissés hydrophobes spécifiant un angle du plan incliné différent que pour l'essai I.

Tekstilije - Metode preskušanja vlaknovin - 11. del: Odtekanje (ISO 9073-11:2002)

General Information

• Status: Published
• Publication Date: 28-Feb-2005
• ICS: 59.080.30 - Textile fabrics
• Technical Committee: ITEK - Textile and textile products
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 01-Mar-2005
• Due Date: 01-Mar-2005
• Completion Date: 01-Mar-2005
• Ref Project: EN ISO 9073-11:2004 - Textiles - Test methods for nonwovens - Part 11: Run-off (ISO 9073-11:2002)

Relations

• Revised: kSIST FprEN ISO 9073-11:2025 - Nonwovens - Test methods - Part 11: Run-off (ISO/FDIS 9073-11:2025)
• Effective Date: 17-Jan-2024

Overview

EN ISO 9073-11:2004 - Textiles: Test methods for nonwovens - Part 11: Run-off defines a laboratory run-off test to measure the quantity of liquid (simulated urine) that runs off a nonwoven test piece placed on an inclined plane and superimposed on a standard absorbent medium. The method is intended to compare run-off performance of nonwovens (not to simulate in-use conditions of finished hygiene products). Three alternative procedures are specified: Test I (basic for hydrophilic nonwovens), Test II (repeated-test for performance consistency), and Test III (modified inclination for hydrophobic nonwovens).

Key topics and requirements

• Test principle: A specified mass of simulated urine is dispensed onto a nonwoven sample on a standard absorbent media on an inclined run-off table; excess liquid is collected by a receiver pad and weighed to determine run-off.
• Test liquid: Simulated urine - 9 g/L sodium chloride in grade 3 water, surface tension ≈ 70 ± 2 mN/m at 20 ± 2 °C.
• Typical test parameters:
  • Dose: 25.0 g ± 0.5 g delivered in 4.0 s ± 0.1 s (via a 5 mm internal diameter tube).
  • Table inclination: nominally 25° (Test I); Test III specifies a different inclination for hydrophobic materials.
  • Sample size and orientation: cut pieces (e.g., 140 × 280 mm) with the longer side in machine direction; minimum number of replicates (typically 5).
  • Standard absorbent medium: two layers of reference filter paper with defined mass per unit area and absorptive properties (specified tolerances).
• Results and reporting:
  • Run-off (grams) per specimen = mass after test − mass before test.
  • Average run-off, standard deviation, and optionally percent run-off (relative to delivered dose) are reported.
  • Test report should reference EN ISO 9073-11 and document material type, individual results and any deviations.

Applications and users

• Useful for nonwoven manufacturers, R&D teams, and laboratory test houses evaluating liquid management behavior of nonwovens used in hygiene products (diapers, feminine care, incontinence pads), medical disposables, filtration overlays and other absorbent systems.
• Supports quality control, product benchmarking, formulation or layer-structure optimization, and supplier comparisons where run-off resistance is a performance criterion.
• Not a direct predictor of consumer in-use behavior; best used alongside other tests (strike-through, absorption, demand absorbency) for a fuller liquid handling profile.

Related standards

• ISO 9073 series (other parts): Part 6 - Absorption (ISO 9073-6), Part 8 - Liquid strike-through time (ISO 9073-8), Part 12 - Demand absorbency.
• Conditioning and reference documents: ISO 139 (standard atmospheres), ISO 3696 (water for laboratory use), ISO 186 (sampling).

Keywords: EN ISO 9073-11:2004, run-off test, nonwovens, simulated urine, absorbent media, hydrophilic, hydrophobic, textiles test methods, liquid management.

Standards Content (Sample)

SLOVENSKI STANDARD
01-marec-2005
Tekstilije - Metode preskušanja vlaknovin - 11. del: Odtekanje (ISO 9073-11:2002)
Textiles - Test methods for nonwovens - Part 11: Run-off (ISO 9073-11:2002)
Textilien - Prüfverfahren für Vliesstoffe - Teil 11: Bestimmung des Ablaufverhaltens (ISO
9073-11:2002)
Textiles - Méthodes d'essai pour nontissés - Partie 11: Écoulement sur plan incliné (ISO
9073-11:2002)
Ta slovenski standard je istoveten z: EN ISO 9073-11:2004
ICS:
59.080.30 Tkanine Textile fabrics
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN ISO 9073-11
NORME EUROPÉENNE
EUROPÄISCHE NORM
December 2004
ICS 59.080.30
English version
Textiles - Test methods for nonwovens - Part 11: Run-off (ISO
9073-11:2002)
Textiles - Méthodes d'essai pour nontissés - Partie 11: Textilien - Prüfverfahren für Vliesstoffe - Teil 11:
Écoulement sur plan incliné (ISO 9073-11:2002) Bestimmung des Ablaufverhaltens (ISO 9073-11:2002)
This European Standard was approved by CEN on 21 December 2004.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the Central Secretariat or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the Central Secretariat has the same status as the official
versions.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia,
Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36  B-1050 Brussels
© 2004 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 9073-11:2004: E
worldwide for CEN national Members.

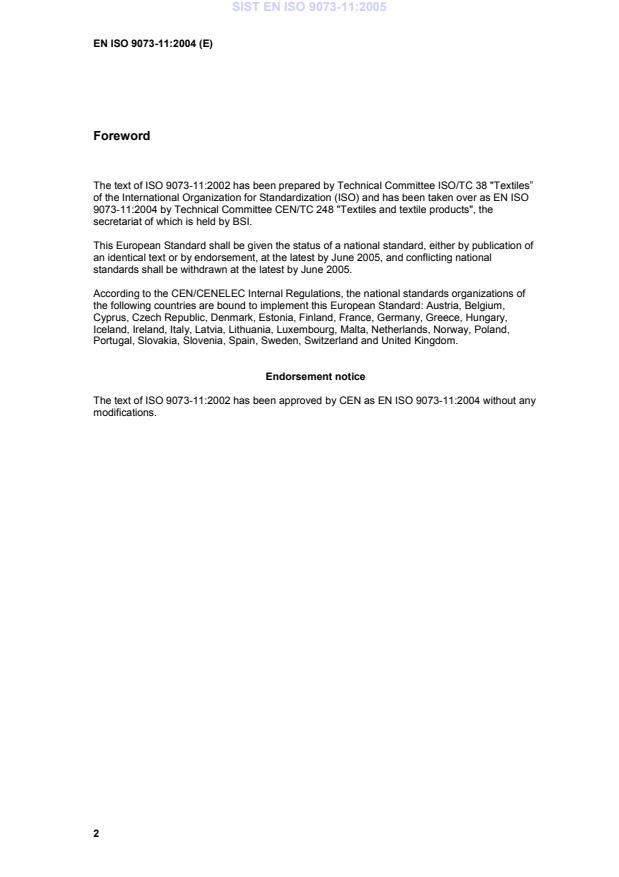

Foreword
The text of ISO 9073-11:2002 has been prepared by Technical Committee ISO/TC 38 "Textiles”
of the International Organization for Standardization (ISO) and has been taken over as EN ISO
9073-11:2004 by Technical Committee CEN/TC 248 "Textiles and textile products", the
secretariat of which is held by BSI.

This European Standard shall be given the status of a national standard, either by publication of
an identical text or by endorsement, at the latest by June 2005, and conflicting national
standards shall be withdrawn at the latest by June 2005.

According to the CEN/CENELEC Internal Regulations, the national standards organizations of
the following countries are bound to implement this European Standard: Austria, Belgium,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary,
Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland,
Portugal, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.

Endorsement notice
The text of ISO 9073-11:2002 has been approved by CEN as EN ISO 9073-11:2004 without any
modifications.
INTERNATIONAL ISO
STANDARD 9073-11
First edition
2002-11-01
Textiles — Test methods for nonwovens —
Part 11:
Run-off
Textiles — Méthodes d'essai pour nontissés —
Partie 11: Écoulement sur plan incliné

Reference number
ISO 9073-11:2002(E)
©
ISO 2002
ISO 9073-11:2002(E)
PDF disclaimer
This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but shall not
be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In downloading this
file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat accepts no liability in this
area.
Adobe is a trademark of Adobe Systems Incorporated.
Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation parameters
were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In the unlikely event
that a problem relating to it is found, please inform the Central Secretariat at the address given below.

©  ISO 2002
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means, electronic
or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or ISO's member body
in the country of the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail [e-mail]
Web www.iso.ch
Printed in Switzerland
ii © ISO 2002 – All rights reserved

ISO 9073-11:2002(E)
Contents Page
Foreword . iv
1 Scope. 1
2 Normative references. 1
3 Terms and definitions. 1
4 Test I – Basic method for testing hydrophilic nonwovens . 2
5 Test II – Repeated test . 6
6 Test III – Modified method for testing hydrophobic nonwovens. 8
Annex A (informative) Other characteristics. 10

ISO 9073-11:2002(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies (ISO
member bodies). The work of preparing International Standards is normally carried out through ISO technical
committees. Each member body interested in a subject for which a technical committee has been established has
the right to be represented on that committee. International organizations, governmental and non-governmental, in
liaison with ISO, also take part in the work. ISO collaborates closely with the International Electrotechnical
Commission (IEC) on all matters of electrotechnical standardization.
International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 3.
The main task of technical committees is to prepare International Standards. Draft International Standards adopted
by the technical committees are circulated to the member bodies for voting. Publication as an International
Standard requires approval by at least 75 % of the member bodies casting a vote.
Attention is drawn to the possibility that some of the elements of this part of ISO 9073 may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights.
ISO 9073-11 was prepared by Technical Committee ISO/TC 38, Textiles.
ISO 9073 consists of the following parts, under the general title Textiles — Test methods for nonwovens:
 Part 1: Determination of mass per unit area
 Part 2: Determination of thickness
 Part 3: Determination of tensile strength and elongation
 Part 4: Determination of tear resistance
 Part 6: Absorption
 Part 7: Determination of bending length
 Part 8: Determination of liquid strike-through time (simulated urine)
 Part 9: Determination of drape coefficient
 Part 10: Generation of lint and other particles in the dry state
 Part 11: Run-off
 Part 12: Demand absorbency
Annex A of this part of ISO 9073 is for information only.

iv © ISO 2002 – All rights reserved

INTERNATIONAL STANDARD ISO 9073-11:2002(E)

Textiles — Test methods for nonwovens —
Part 11:
Run-off
1 Scope
This part of ISO 9073 describes test methods for measuring the quantity of test liquid (simulated urine) which runs
down a nonwoven test piece when a specified mass of test liquid is poured on to the nonwoven test piece
superimposed on a standard absorbent media and placed on an inclined plane.
This test method is designed to compare run-off of nonwovens. It is not intended to simulate in-use conditions of
finished products.
Three alternative methods are described:
a) Test I — the basic method for testing hydrophilic nonwovens;
b) Test II — the repeated test, with the same test parameters as in a);
c) Test III — the modified method for testing hydrophobic nonwovens specifying another table inclination than
in a).
2 Normative references
The following normative documents contain provisions which, through reference in this text, constitute provisions of
this part of ISO 9073. For dated references, subsequent amendments to, or revisions of, any of these publications
do not apply. However, parties to agreements based on this part of ISO 9073 are encouraged to investigate the
possibility of applying the most recent editions of the normative documents indicated below. For undated
references, the latest edition of the normative document referred to applies. Members of ISO and IEC maintain
registers of currently valid International Standards.
ISO 139:1973, Textiles — Standard atmospheres for conditioning and testing
ISO 186:2002, Paper and board — Sampling to determine average quality
ISO 3696:1987, Water for analytical laboratory use — Specification and test methods
ISO 9073-6:2000, Textiles — Test methods for nonwovens — Part 6: Absorption
ISO 9073-8:1995, Textiles — Test methods for nonwovens — Part 8: Determination of liquid strike-through time
(simulated urine)
3 Terms and definitions
For the purposes of this International Standard, the following terms and definitions apply.
ISO 9073-11:2002(E)
3.1
run-off
quantity of excess liquid, in grams, that runs from the test piece
3.2
percent run-off
mass of the run-off liquid, expressed as a percentage of the original mass of liquid delivered
4 Test I – Basic method for testing hydrophilic nonwovens
4.1 Principle
A specified quantity of simulated urine is discharged at a prescribed rate under specified conditions on to a test
piece of nonwoven that is superimposed on a standard absorbent media and placed on an inclined table. Any
excess liquid that runs down the test piece is collected by a standard receiver pad placed below the lower end of
the nonwoven test piece.
The run-off measures the mass of liquid collected by the standard receiver pad.
4.2 Apparatus
4.2.1 Run-off table, of acrylic glass or similar material as shown in Figure 1, the plane of which can be adjusted
to the required angle.
The table is inclined at 25° and marked with two reference black lines at 250,0 mm ± 0,2 mm distance (see
Figure 2).
The lower line (3,0 mm ± 0,2 mm from the lower end of the table) defines the position of the lower end of the
absorbent medium; the upper line (approximately 25 mm from the upper end of the test piece) defines the position
of the discharge tube axis.
4.2.2 Clip, or similar with symmetrical reference marks at 140,0 mm ± 0,2 mm (to adjust the axial position of the
test pieces).
4.2.3 Spirit level, to ensure axial discharge of the tube.
4.2.4 Support, for placing the standard receiver pad below the lower end of the test piece.
4.2.5 Standard absorbent medium, having the characteristics given below and consisting of two layers of
reference filter paper each (140 ± 1) mm × (275 ± 1) mm with the longer side in the machined direction (MD).
2 2
Mass per unit area = 124 g/m ± 6 g/m
LAC = 500 % ± 30 %;
STT = 3,0 s ± 0,5 s.
where
LAC is the liquid absorptive capacity measured in accordance with ISO 9073-6;
STT is the strike-through time measured without the nonwoven test piec
...
