Broadband Radio Access Networks (BRAN) - 60 GHz Multiple-Gigabit WAS/RLAN Systems - Harmonized EN covering the essential requirements of article 3.2 of the R&TTE Directive

The present document applies to radio equipment types for wireless access systems (WAS)/radio local area networks (RLAN) operating at multiple-gigabit data rates in the 60 GHz frequency range. These applications may also be referred to as Wireless Personal Area Network (WPAN) or Wireless Local Area Network (WLAN) systems and are intended for licence-exempt short-rangedevices. Economic benefits of this usage apply to a variety of markets including communications, computing, and consumer electronics by enabling the transfer of large amounts of information in a short amount of time (for example, from a kiosk to a mobile phone) or the continuous streaming of uncompressed data (for example, the external video interfaces of a computer or high definition disc player). These networks operate over a short range with very wideband communications using a variety of directional medium and high gain antennas to enable a high degree of spectrum reuse, and may use a flexible bandwidth scheme under which they normally operate in a wideband mode, and periodically reduce their bandwidth (e.g. for antenna training and other activities). The technical characteristics of these applications are described in TR 102 555 [i.1], where the 60 GHz band is described from 59 GHz to 66 GHz. On the basis of the sharing study in ECC Report 114 [i.2], ECC Report 113 [i.3], and the input of national bodies, the 60 GHz band is now described from 57 GHz to 66 GHz to support harmonization with additional geographies. Equipment in this frequency range intended for outdoor Fixed Local Area Network Extension (FLANE) or Fixed Point-to-Point applications are not in the scope of the present document. The present document is intended to support specifications such as those addressed in IEEE 802.15.3c [i.5], Ecma TC48 [i.6] and other international bodies.

Širokopasovna radijska dostopovna omrežja (BRAN) - Večgigabitni 60 GHz sistemi WAS/RLAN - Harmonizirani EN, ki zajema bistvene zahteve člena 3.2 direktive R&TTE

General Information

Status
Published
Public Enquiry End Date
31-Oct-2008
Publication Date
03-May-2009
Technical Committee
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
06-Apr-2009
Due Date
11-Jun-2009
Completion Date
04-May-2009
Mandate

Buy Standard

Standard
SIST EN 302 567 V1.1.1:2009
English language
29 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day
Standard
ETSI EN 302 567 V1.1.1 (2009-03) - Broadband Radio Access Networks (BRAN); 60 GHz Multiple-Gigabit WAS/RLAN Systems; Harmonized EN covering the essential requirements of article 3.2 of the R&TTE Directive
English language
29 pages
sale 15% off
Preview
sale 15% off
Preview
Standard
ETSI EN 302 567 V1.1.0 (2009-01) - Broadband Radio Access Networks (BRAN); 60 GHz Multiple-Gigabit WAS/RLAN Systems; Harmonized EN covering the essential requirements of article 3.2 of the R&TTE Directive
English language
29 pages
sale 15% off
Preview
sale 15% off
Preview
Standard
ETSI EN 302 567 V0.0.8 (2008-07) - Broadband Radio Access Networks (BRAN); 60 GHz Multiple-Gigabit WAS/RLAN Systems; Harmonized EN covering the essential requirements of article 3.2 of the R&TTE Directive
English language
29 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.577(Broadband Radio Access Networks (BRAN) - 60 GHz Multiple-Gigabit WAS/RLAN Systems - Harmonized EN covering the essential requirements of article 3.2 of the R&TTE Directive35.110OmreževanjeNetworking33.060.01Radijske komunikacije na splošnoRadiocommunications in generalICS:Ta slovenski standard je istoveten z:EN 302 567 Version 1.1.1SIST EN 302 567 V1.1.1:2009en01-junij-2009SIST EN 302 567 V1.1.1:2009SLOVENSKI

STANDARD
SIST EN 302 567 V1.1.1:2009

ETSI EN 302 567 V1.1.1 (2009-03)Harmonized European Standard (Telecommunications series) Broadband Radio Access Networks (BRAN);60 GHz Multiple-Gigabit WAS/RLAN Systems;Harmonized EN covering the essential requirementsof article 3.2 of the R&TTE Directive SIST EN 302 567 V1.1.1:2009

ETSI ETSI EN 302 567 V1.1.1 (2009-03) 2

Reference DEN/BRAN-0070000 Keywords access, broadband, LAN, radio, SRD, testing ETSI 650 Route des Lucioles F-06921 Sophia Antipolis Cedex - FRANCE

Tel.: +33 4 92 94 42 00
Fax: +33 4 93 65 47 16

Siret N° 348 623 562 00017 - NAF 742 C Association à but non lucratif enregistrée à la Sous-Préfecture de Grasse (06) N° 7803/88

Important notice Individual copies of the present document can be downloaded from: http://www.etsi.org The present document may be made available in more than one electronic version or in print. In any case of existing or perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF). In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive within ETSI Secretariat. Users of the present document should be aware that the document may be subject to revision or change of status. Information on the current status of this and other ETSI documents is available at http://portal.etsi.org/tb/status/status.asp If you find errors in the present document, please send your comment to one of the following services: http://portal.etsi.org/chaircor/ETSI_support.asp Copyright Notification No part may be reproduced except as authorized by written permission. The copyright and the foregoing restriction extend to reproduction in all media.

© European Telecommunications Standards Institute 2009. All rights reserved.

DECTTM, PLUGTESTSTM, UMTSTM, TIPHONTM, the TIPHON logo and the ETSI logo are Trade Marks of ETSI registered for the benefit of its Members. 3GPPTM is a Trade Mark of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners. LTE™ is a Trade Mark of ETSI currently being registered for the benefit of its Members and of the 3GPP Organizational Partners. GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association. SIST EN 302 567 V1.1.1:2009

ETSI ETSI EN 302 567 V1.1.1 (2009-03) 3 Contents Intellectual Property Rights ................................................................................................................................ 5 Foreword ............................................................................................................................................................. 5 Introduction ........................................................................................................................................................ 5 1 Scope ........................................................................................................................................................ 6 2 References ................................................................................................................................................ 7 2.1 Normative references ......................................................................................................................................... 7 2.2 Informative references ........................................................................................................................................ 7 3 Definitions, symbols and abbreviations ................................................................................................... 8 3.1 Definitions .......................................................................................................................................................... 8 3.2 Symbols .............................................................................................................................................................. 8 3.3 Abbreviations ..................................................................................................................................................... 9 4 Technical requirements specifications ..................................................................................................... 9 4.1 Environmental profile ......................................................................................................................................... 9 4.2 Conformance requirements ................................................................................................................................ 9 4.2.1 Spectral power density .................................................................................................................................. 9 4.2.1.1 Definition ................................................................................................................................................ 9 4.2.1.2 Limit ........................................................................................................................................................ 9 4.2.1.3 Conformance ......................................................................................................................................... 10 4.2.2 RF output power ......................................................................................................................................... 10 4.2.2.1 Definition .............................................................................................................................................. 10 4.2.2.2 Limit ...................................................................................................................................................... 10 4.2.2.3 Conformance ......................................................................................................................................... 10 4.2.3 Transmitter unwanted emissions ................................................................................................................. 10 4.2.3.1 Definition .............................................................................................................................................. 10 4.2.3.2 Limit ...................................................................................................................................................... 10 4.2.3.3 Conformance ......................................................................................................................................... 10 4.2.4 Receiver unwanted emissions ..................................................................................................................... 11 4.2.4.1 Definition .............................................................................................................................................. 11 4.2.4.2 Limit ...................................................................................................................................................... 11 4.2.4.3 Conformance ......................................................................................................................................... 11 4.2.5 Medium access protocol ............................................................................................................................. 11 4.2.5.1 Definition .............................................................................................................................................. 11 4.2.5.2 Requirement .......................................................................................................................................... 11 4.2.6 Integral antenna .......................................................................................................................................... 11 4.2.6.1 Definition .............................................................................................................................................. 11 4.2.6.2 Requirement .......................................................................................................................................... 11 5 Testing for compliance with technical requirements .............................................................................. 11 5.1 Environmental conditions for testing ............................................................................................................... 11 5.2 Interpretation of the measurement results ........................................................................................................ 12 5.3 Essential radio test suites .................................................................................................................................. 12 5.3.1 Product Information .................................................................................................................................... 12 5.3.2 Test modulation, frequency and configuration ........................................................................................... 13 5.3.3 Spectral power density ................................................................................................................................ 13 5.3.4 RF output power ......................................................................................................................................... 14 5.3.5 Transmitter unwanted emissions ................................................................................................................. 15 5.3.5.1 Pre-scan ................................................................................................................................................. 15 5.3.5.2 Identified emissions .............................................................................................................................. 16 5.3.6 Receiver unwanted emissions ..................................................................................................................... 16 5.3.6.1 Pre-scan ................................................................................................................................................. 17 5.3.6.2 Identified emissions .............................................................................................................................. 17 Annex A (normative): HS Requirements and conformance Test specifications Table (HS-RTT) ................................................................................................................ 18 SIST EN 302 567 V1.1.1:2009

ETSI ETSI EN 302 567 V1.1.1 (2009-03) 4 Annex B (informative): The EN title in the official languages ........................................................... 20 Annex C (normative): Test sites and arrangements for radiated measurements ........................... 21 C.1 Test sites ................................................................................................................................................. 21 C.1.1 Open air test sites ............................................................................................................................................. 21 C.1.2 Anechoic chamber ............................................................................................................................................ 22 C.1.2.1 General ........................................................................................................................................................ 22 C.1.2.2 Description .................................................................................................................................................. 22 C.1.2.3 Influence of parasitic reflections ................................................................................................................. 22 C.1.2.4 Calibration and mode of use ....................................................................................................................... 23 C.2 Test antenna ............................................................................................................................................ 24 C.3 Substitution antenna ............................................................................................................................... 25 Annex D (normative): General description of measurement ........................................................... 26 D.1 Radiated measurements .......................................................................................................................... 26 D.2 Substitution measurement ...................................................................................................................... 27 Annex E (informative): Bibliography ................................................................................................... 28 History .............................................................................................................................................................. 29

SIST EN 302 567 V1.1.1:2009

ETSI ETSI EN 302 567 V1.1.1 (2009-03) 5 Intellectual Property Rights IPRs essential or potentially essential to the present document may have been declared to ETSI. The information pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web server (http://webapp.etsi.org/IPR/home.asp). Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become, essential to the present document. Foreword This Harmonized European Standard (Telecommunications series) has been produced by ETSI Technical Committee Broadband Radio Access Networks (BRAN). The present document has been produced by ETSI in response to a mandate from the European Commission issued under Council Directive 98/34/EC [i.4] (as amended) laying down a procedure for the provision of information in the field of technical standards and regulations. The present document is intended to become a Harmonized Standard, the reference of which will be published in the Official Journal of the European Communities referencing the Directive 1999/5/EC [3] of the European Parliament and of the Council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity ("the R&TTE Directive"). Technical specifications relevant to Directive 1999/5/EC [3] are given in annex A.

National transposition dates Date of adoption of this EN: 18 March 2009 Date of latest announcement of this EN (doa): 30 June 2009 Date of latest publication of new National Standard or endorsement of this EN (dop/e):

31 December 2009 Date of withdrawal of any conflicting National Standard (dow): 31 December 2010

Introduction The present document is part of a set of standards developed by ETSI and is designed to fit in a modular structure to cover all radio and telecommunications terminal equipment within the scope of the R&TTE Directive. The modular structure is shown in EG 201 399 [i.8]. SIST EN 302 567 V1.1.1:2009

ETSI ETSI EN 302 567 V1.1.1 (2009-03) 6 1 Scope The present document applies to radio equipment types for wireless access systems (WAS)/radio local area networks (RLAN) operating at multiple-gigabit data rates in the 60 GHz frequency range. These applications may also be referred to as Wireless Personal Area Network (WPAN) or Wireless Local Area Network (WLAN) systems and are intended for licence-exempt short-rangedevices. Economic benefits of this usage apply to a variety of markets including communications, computing, and consumer electronics by enabling the transfer of large amounts of information in a short amount of time (for example, from a kiosk to a mobile phone) or the continuous streaming of uncompressed data (for example, the external video interfaces of a computer or high definition disc player). These networks operate over a short range with very wideband communications using a variety of directional medium and high gain antennas to enable a high degree of spectrum reuse, and may use a flexible bandwidth scheme under which they normally operate in a wideband mode, and periodically reduce their bandwidth (e.g. for antenna training and other activities). The technical characteristics of these applications are described in TR 102 555 [i.1], where the 60 GHz band is described from 59 GHz to 66 GHz. On the basis of the sharing study in ECC Report 114 [i.2], ECC Report 113 [i.3], and the input of national bodies, the 60 GHz band is now described from 57 GHz to 66 GHz to support harmonization with additional geographies. Equipment in this frequency range intended for outdoor Fixed Local Area Network Extension (FLANE) or Fixed Point-to-Point applications are not in the scope of the present document. The present document is intended to support specifications such as those addressed in IEEE 802.15.3c [i.5], Ecma TC48 [i.6] and other international bodies. These radio equipment types are capable of operating in all or any part of the frequency bands given in table 1. Table 1: Radiocommunications service frequency bands

Radiocommunications service frequency bands Transmit 57 GHz to 66 GHz Receive 57 GHz to 66 GHz

The present document is intended to cover the provisions of Directive 1999/5/EC [3] (R&TTE Directive), article 3.2, which states that "….. radio equipment shall be so constructed that it effectively uses the spectrum allocated to terrestrial/space radio communications and orbital resources so as to avoid harmful interference". In addition to the present document, other ENs that specify technical requirements in respect of essential requirements under other parts of article 3 of the R&TTE Directive may apply to equipment within the scope of the present document. NOTE: A list of such ENs is included on the web site http://www.newapproach.org. SIST EN 302 567 V1.1.1:2009

ETSI ETSI EN 302 567 V1.1.1 (2009-03) 7 2 References References are either specific (identified by date of publication and/or edition number or version number) or non-specific. • For a specific reference, subsequent revisions do not apply. • Non-specific reference may be made only to a complete document or a part thereof and only in the following cases: - if it is accepted that it will be possible to use all future changes of the referenced document for the purposes of the referring document; - for informative references. Referenced documents which are not found to be publicly available in the expected location might be found at http://docbox.etsi.org/Reference. NOTE: While any hyperlinks included in this clause were valid at the time of publication ETSI cannot guarantee their long term validity. 2.1 Normative references The following referenced documents are indispensable for the application of the present document. For dated references, only the edition cited applies. For non-specific references, the latest edition of the referenced document (including any amendments) applies. [1] Void. [2] ERC/REC 74-01 (2005): "Unwanted Emissions in the Spurious Domain". [3] Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity (R&TTE Directive). [4] ETSI TR 100 028 (V1.4.1 - all parts): "Electromagnetic compatibility and Radio spectrum matters (ERM); Uncertainties in the measurement of mobile radio equipment characteristics". [5] Void. [6] ITU-R Recommendation SM.1539-1 (2002): "Variation of the boundary between the out-of-band and spurious domains required for the application of Recommendations ITU-R SM.1541 and ITU-R SM.329". 2.2 Informative references The following referenced documents are not essential to the use of the present document but they assist the user with regard to a particular subject area. For non-specific references, the latest version of the referenced document (including any amendments) applies. [i.1] ETSI TR 102 555: "Electromagnetic compatibility and Radio spectrum Matters (ERM); Technical characteristics of multiple gigabit wireless systems in the 60 GHz range System Reference Document". [i.2] ECC Report 114: "Compatibility studies between Multiple Gigabit Wireless Systems in frequency range 57-66 GHz and other services and systems (except ITS in 63-64 GHz)". [i.3] ECC Report 113: "Compatibility studies around 63 GHz between Intelligent Transportation Systems (ITS) and other systems". [i.4] Directive 98/34/EC of the European Parliament and of the Council of 22 June 1998 laying down a procedure for the provision of information in the field of technical standards and regulations. SIST EN 302 567 V1.1.1:2009

ETSI ETSI EN 302 567 V1.1.1 (2009-03) 8 [i.5] IEEE 802.15.3c: "IEEE Standard for Information Technology - Specific Requirements - Part 15: Wireless Personal Area Networks with Millimeter Wave Alternative Physical Task Group 3c (TG3c)". [i.6] Ecma TC48, High Rate Short Range Wireless Communications. [i.7] ERC/REC 70-03: "Related to the Use of Short Range Devices (SRD)". [i.8] ETSI EG 201 399: "Electromagnetic compatibility and Radio spectrum matters (ERM); A guide to the production of candidate Harmonized Standards for application under the R&TTE Directive". 3 Definitions, symbols and abbreviations 3.1 Definitions For the purposes of the present document, the terms and definitions given in the R&TTE Directive [3] and the following apply: 60 GHz range or 60 GHz band: one of the variously permitted frequencies of operation, typically from 57 GHz to 66 GHz activity factor: percentage over any one minute time period when equipment is operating under a given set of conditions channel separation: minimum separation (in MHz) between the centre frequencies of two adjacent channels in the channel plan of the radio equipment environmental profile: declared range of environmental conditions under which equipment within the scope of the present document is required to be compliant integral antenna: antenna which is declared to be part of the radio equipment by the supplier NOTE 1: In some cases, it may not be possible to remove an integral antenna or expose an antenna connector without changing the output characteristics of the radio equipment. NOTE 2: Even with an integral antenna, it might still be possible to separate the antenna from the equipment using a special tool. mean power: when applied to a modulated signal, this is the power (transmitted or received) in a bandwidth occupied bandwidth: frequency bandwidth of the signal power at the -6 dBc points smart antenna systems: equipment that combines multiple transmit and/or receive antenna elements with a signal processing function to increase its radiation and/or reception capabilities NOTE: This includes techniques such as spatial multiplexing, beam forming, cyclic delay diversity, etc. 3.2 Symbols For the purposes of the present document, the following symbols apply: dBc spectral density relative to the maximum spectral power density of the transmitted signal dBm decibel relative to one milliwatt dBr decibel relative to a given maximum power level GHz thousand millions of cycles kHz thousands of cycles μs millionths of seconds SIST EN 302 567 V1.1.1:2009

ETSI ETSI EN 302 567 V1.1.1 (2009-03) 9 3.3 Abbreviations For the purposes of the present document, the following abbreviations apply: ChS Channel Separation EIRP Equivalent Isotropically Radiated Power FLANE Fixed Local Area Network Extension OBw Occupied Bandwidth PDL spectral Power Density Limit RBw Resolution Bandwidth RF Radio Frequency RLAN Radio Local Area Network R&TTE Radio equipment and Telecommunications Terminal Equipment UUT Unit Under Test WAS Wireless Access System WLAN Wireless Local Area Network WPAN Wireless Personal Area Network 4 Technical requirements specifications 4.1 Environmental profile The technical requirements of the present document apply under the environmental profile for operation of the equipment, which shall be declared by the supplier. The equipment shall comply with all the technical requirements of the present document at all times when operating within the boundary limits of the declared operational environmental profile. 4.2 Conformance requirements 4.2.1 Spectral power density 4.2.1.1 Definition The spectral power density is the mean Equivalent Isotropically Radiated Power (EIRP) density in Watts per Hertz during a transmission burst. 4.2.1.2 Limit The maximum spectral power density is applicable to the system as a whole when operated at the highest stated power level. For a smart antenna system, the limit applies to the configuration that results in the highest EIRP. The maximum spectral power density shall be limited by usage as indicated in table 2. Table 2: Spectral power density limit (PDL) Usage Maximum spectral power density (EIRP) Indoor only 13 dBm / MHz

Indoor and Outdoor -2 dBm / MHz

4.2.1.3 Conformance Conformance tests for this requirement are defined in clause 5.3.3. SIST EN 302 567 V1.1.1:2009

ETSI ETSI EN 302 567 V1.1.1 (2009-03) 10 4.2.2 RF output power 4.2.2.1 Definition The RF output power is the mean equivalent isotropically radiated power (EIRP) for the equipment during a transmission burst. 4.2.2.2 Limit The maximum RF output power is applicable to the system as a whole when operated at the highest stated power level. For a smart antenna system, the limit applies to the configuration that results in the highest EIRP. The maximum RF output power in normal wideband operation shall be limited by usage as indicated in table 3. Table 3: RF output power limit Usage Maximum power level (EIRP) Indoor only 40 dBm Indoor and Outdoor 25 dBm

4.2.2.3 Conformance Conformance tests for this requirement are defined in clause 5.3.4. 4.2.3 Transmitter unwanted emissions 4.2.3.1 Definition These are unwanted emissions in the spurious domain as noted in ERC/REC 74-01 [2] while the equipment is transmitting. The boundary where the spurious domain begins as given by ITU-R Recommendation SM.1539-1 [6] is considered to be the offset from the nominal centre frequency of the transmission by ±250 % of the relevant occupied bandwidth (OBw) for OBw ≤ 500 MHz and ± (500 MHz + 1,5 × OBw) for OBw > 500 MHz. 4.2.3.2 Limit The level of unwanted emissions in the spurious domain shall conform to the ERC/REC 74-01 [2] limits for Land Mobile Services as given in table 4 for radiated measurements with 0 dBi antenna gain. The requirements refer to average power levels measured at distances with respect to the UUT. Table 4: Transmitter spurious emissions Frequency band Measurement bandwidth Field Strength at 3 m (dBμV / m) 30 MHz to 1 GHz 100 kHz 59 1 GHz to 132 GHz 1 MHz 65

4.2.3.3 Conformance Conformance tests for this requirement are defined in clause 5.3.5. 4.2.4 Receiver unwanted emissions 4.2.4.1 Definition These are unwanted emissions in the spurious domain as noted in ERC/REC 74-01 [2] while the equipment is receiving a transmission. SIST EN 302 567 V1.1.1:2009

ETSI ETSI EN 302 567 V1.1.1 (2009-03) 11 4.2.4.2 Limit The level of unwanted emissions in the spurious domain shall conform to ERC/REC 74-01 [2] for Land Mobile Services as given in table 5 for radiated measurements with 0 dBi antenna gain. The requirements refer to average power levels measured at distances with respect to the UUT. Table 5: Receiver spurious emissions Frequency band Measurement bandwidth Field Strength at 3 m (dBμV / m) 30 MHz to 1 GHz 100 kHz 38 1 GHz to 132 GHz 1 MHz 48

4.2.4.3 Conformance Conformance tests for this requirement are defined in clause 5.3.6. 4.2.5 Medium access protocol 4.2.5.1 Definition A medium access protocol is a mechanism designed to facilitate spectrum sharing with other devices in the wireless network. 4.2.5.2 Requirement A medium access protocol shall be implemented by the equipment and shall be active under all circumstances. 4.2.6 Integral antenna 4.2.6.1 Definition An integral antenna is designed as a fixed part of the equipment, without the use of an external connector and as such can not be disconnected from the equipment by a user with the intent to connect another antenna. 4.2.6.2 Requirement As recommended by ECC Report 114 [i.2], an integral antenna shall be used to provide interference protection from these licence-exempt RLAN applications. 5 Testing for compliance with technical requirements 5.1 Environmental conditions for testing Tests defined in the present document shall be carried out at representative points within the boundary limits of the declared operational environmental profile. Where technical performance varies subject to environmental conditions, tests shall be carried out under a sufficient variety of environmental conditions (within the boundary limits of the declared operational environmental profile) to give confidence of compliance for the affected technical requirements. SIST EN 302 567 V1.1.1:2009

ETSI
...

ETSI EN 302 567 V1.1.1 (2009-03)
Harmonized European Standard (Telecommunications series)
Broadband Radio Access Networks (BRAN);
60 GHz Multiple-Gigabit WAS/RLAN Systems;
Harmonized EN covering the essential requirements
of article 3.2 of the R&TTE Directive
---------------------- Page: 1 ----------------------
2 ETSI EN 302 567 V1.1.1 (2009-03)
Reference
DEN/BRAN-0070000
Keywords
access, broadband, LAN, radio, SRD, testing
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88
Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org

The present document may be made available in more than one electronic version or in print. In any case of existing or

perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).

In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive

within ETSI Secretariat.

Users of the present document should be aware that the document may be subject to revision or change of status.

Information on the current status of this and other ETSI documents is available at

http://portal.etsi.org/tb/status/status.asp

If you find errors in the present document, please send your comment to one of the following services:

http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2009.
All rights reserved.
TM TM TM TM

DECT , PLUGTESTS , UMTS , TIPHON , the TIPHON logo and the ETSI logo are Trade Marks of ETSI registered

for the benefit of its Members.

3GPP is a Trade Mark of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners.

LTE™ is a Trade Mark of ETSI currently being registered
for the benefit of its Members and of the 3GPP Organizational Partners.

GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.

ETSI
---------------------- Page: 2 ----------------------
3 ETSI EN 302 567 V1.1.1 (2009-03)
Contents

Intellectual Property Rights ................................................................................................................................ 5

Foreword ............................................................................................................................................................. 5

Introduction ........................................................................................................................................................ 5

1 Scope ........................................................................................................................................................ 6

2 References ................................................................................................................................................ 7

2.1 Normative references ......................................................................................................................................... 7

2.2 Informative references ........................................................................................................................................ 7

3 Definitions, symbols and abbreviations ................................................................................................... 8

3.1 Definitions .......................................................................................................................................................... 8

3.2 Symbols .............................................................................................................................................................. 8

3.3 Abbreviations ..................................................................................................................................................... 9

4 Technical requirements specifications ..................................................................................................... 9

4.1 Environmental profile ......................................................................................................................................... 9

4.2 Conformance requirements ................................................................................................................................ 9

4.2.1 Spectral power density .................................................................................................................................. 9

4.2.1.1 Definition ................................................................................................................................................ 9

4.2.1.2 Limit ........................................................................................................................................................ 9

4.2.1.3 Conformance ......................................................................................................................................... 10

4.2.2 RF output power ......................................................................................................................................... 10

4.2.2.1 Definition .............................................................................................................................................. 10

4.2.2.2 Limit ...................................................................................................................................................... 10

4.2.2.3 Conformance ......................................................................................................................................... 10

4.2.3 Transmitter unwanted emissions ................................................................................................................. 10

4.2.3.1 Definition .............................................................................................................................................. 10

4.2.3.2 Limit ...................................................................................................................................................... 10

4.2.3.3 Conformance ......................................................................................................................................... 10

4.2.4 Receiver unwanted emissions ..................................................................................................................... 11

4.2.4.1 Definition .............................................................................................................................................. 11

4.2.4.2 Limit ...................................................................................................................................................... 11

4.2.4.3 Conformance ......................................................................................................................................... 11

4.2.5 Medium access protocol ............................................................................................................................. 11

4.2.5.1 Definition .............................................................................................................................................. 11

4.2.5.2 Requirement .......................................................................................................................................... 11

4.2.6 Integral antenna .......................................................................................................................................... 11

4.2.6.1 Definition .............................................................................................................................................. 11

4.2.6.2 Requirement .......................................................................................................................................... 11

5 Testing for compliance with technical requirements .............................................................................. 11

5.1 Environmental conditions for testing ............................................................................................................... 11

5.2 Interpretation of the measurement results ........................................................................................................ 12

5.3 Essential radio test suites .................................................................................................................................. 12

5.3.1 Product Information .................................................................................................................................... 12

5.3.2 Test modulation, frequency and configuration ........................................................................................... 13

5.3.3 Spectral power density ................................................................................................................................ 13

5.3.4 RF output power ......................................................................................................................................... 14

5.3.5 Transmitter unwanted emissions ................................................................................................................. 15

5.3.5.1 Pre-scan ................................................................................................................................................. 15

5.3.5.2 Identified emissions .............................................................................................................................. 16

5.3.6 Receiver unwanted emissions ..................................................................................................................... 16

5.3.6.1 Pre-scan ................................................................................................................................................. 17

5.3.6.2 Identified emissions .............................................................................................................................. 17

Annex A (normative): HS Requirements and conformance Test specifications Table (HS-

RTT) ................................................................................................................ 18

ETSI
---------------------- Page: 3 ----------------------
4 ETSI EN 302 567 V1.1.1 (2009-03)

Annex B (informative): The EN title in the official languages ........................................................... 20

Annex C (normative): Test sites and arrangements for radiated measurements ........................... 21

C.1 Test sites ................................................................................................................................................. 21

C.1.1 Open air test sites ............................................................................................................................................. 21

C.1.2 Anechoic chamber ............................................................................................................................................ 22

C.1.2.1 General ........................................................................................................................................................ 22

C.1.2.2 Description .................................................................................................................................................. 22

C.1.2.3 Influence of parasitic reflections ................................................................................................................. 22

C.1.2.4 Calibration and mode of use ....................................................................................................................... 23

C.2 Test antenna ............................................................................................................................................ 24

C.3 Substitution antenna ............................................................................................................................... 25

Annex D (normative): General description of measurement ........................................................... 26

D.1 Radiated measurements .......................................................................................................................... 26

D.2 Substitution measurement ...................................................................................................................... 27

Annex E (informative): Bibliography ................................................................................................... 28

History .............................................................................................................................................................. 29

ETSI
---------------------- Page: 4 ----------------------
5 ETSI EN 302 567 V1.1.1 (2009-03)
Intellectual Property Rights

IPRs essential or potentially essential to the present document may have been declared to ETSI. The information

pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found

in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in

respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web

server (http://webapp.etsi.org/IPR/home.asp).

Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee

can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web

server) which are, or may be, or may become, essential to the present document.
Foreword

This Harmonized European Standard (Telecommunications series) has been produced by ETSI Technical Committee

Broadband Radio Access Networks (BRAN).

The present document has been produced by ETSI in response to a mandate from the European Commission issued

under Council Directive 98/34/EC [i.4] (as amended) laying down a procedure for the provision of information in the

field of technical standards and regulations.

The present document is intended to become a Harmonized Standard, the reference of which will be published in the

Official Journal of the European Communities referencing the Directive 1999/5/EC [3] of the European Parliament and

of the Council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual

recognition of their conformity ("the R&TTE Directive").

Technical specifications relevant to Directive 1999/5/EC [3] are given in annex A.

National transposition dates
Date of adoption of this EN: 18 March 2009
Date of latest announcement of this EN (doa): 30 June 2009
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 31 December 2009
Date of withdrawal of any conflicting National Standard (dow): 31 December 2010
Introduction

The present document is part of a set of standards developed by ETSI and is designed to fit in a modular structure to

cover all radio and telecommunications terminal equipment within the scope of the R&TTE Directive. The modular

structure is shown in EG 201 399 [i.8].
ETSI
---------------------- Page: 5 ----------------------
6 ETSI EN 302 567 V1.1.1 (2009-03)
1 Scope

The present document applies to radio equipment types for wireless access systems (WAS)/radio local area networks

(RLAN) operating at multiple-gigabit data rates in the 60 GHz frequency range. These applications may also be referred

to as Wireless Personal Area Network (WPAN) or Wireless Local Area Network (WLAN) systems and are intended for

licence-exempt short-rangedevices. Economic benefits of this usage apply to a variety of markets including

communications, computing, and consumer electronics by enabling the transfer of large amounts of information in a

short amount of time (for example, from a kiosk to a mobile phone) or the continuous streaming of uncompressed data

(for example, the external video interfaces of a computer or high definition disc player).

These networks operate over a short range with very wideband communications using a variety of directional medium

and high gain antennas to enable a high degree of spectrum reuse, and may use a flexible bandwidth scheme under

which they normally operate in a wideband mode, and periodically reduce their bandwidth (e.g. for antenna training and

other activities).

The technical characteristics of these applications are described in TR 102 555 [i.1], where the 60 GHz band is

described from 59 GHz to 66 GHz. On the basis of the sharing study in ECC Report 114 [i.2], ECC Report 113 [i.3],

and the input of national bodies, the 60 GHz band is now described from 57 GHz to 66 GHz to support harmonization

with additional geographies.

Equipment in this frequency range intended for outdoor Fixed Local Area Network Extension (FLANE) or Fixed

Point-to-Point applications are not in the scope of the present document.

The present document is intended to support specifications such as those addressed in IEEE 802.15.3c [i.5],

Ecma TC48 [i.6] and other international bodies.

These radio equipment types are capable of operating in all or any part of the frequency bands given in table 1.

Table 1: Radiocommunications service frequency bands
Radiocommunications service frequency bands
Transmit 57 GHz to 66 GHz
Receive 57 GHz to 66 GHz

The present document is intended to cover the provisions of Directive 1999/5/EC [3] (R&TTE Directive), article 3.2,

which states that "….. radio equipment shall be so constructed that it effectively uses the spectrum allocated to

terrestrial/space radio communications and orbital resources so as to avoid harmful interference".

In addition to the present document, other ENs that specify technical requirements in respect of essential requirements

under other parts of article 3 of the R&TTE Directive may apply to equipment within the scope of the present

document.
NOTE: A list of such ENs is included on the web site http://www.newapproach.org.
ETSI
---------------------- Page: 6 ----------------------
7 ETSI EN 302 567 V1.1.1 (2009-03)
2 References

References are either specific (identified by date of publication and/or edition number or version number) or

non-specific.
• For a specific reference, subsequent revisions do not apply.

• Non-specific reference may be made only to a complete document or a part thereof and only in the following

cases:

- if it is accepted that it will be possible to use all future changes of the referenced document for the

purposes of the referring document;
- for informative references.

Referenced documents which are not found to be publicly available in the expected location might be found at

http://docbox.etsi.org/Reference.

NOTE: While any hyperlinks included in this clause were valid at the time of publication ETSI cannot guarantee

their long term validity.
2.1 Normative references

The following referenced documents are indispensable for the application of the present document. For dated

references, only the edition cited applies. For non-specific references, the latest edition of the referenced document

(including any amendments) applies.
[1] Void.
[2] ERC/REC 74-01 (2005): "Unwanted Emissions in the Spurious Domain".

[3] Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio

equipment and telecommunications terminal equipment and the mutual recognition of their

conformity (R&TTE Directive).

[4] ETSI TR 100 028 (V1.4.1 - all parts): "Electromagnetic compatibility and Radio spectrum matters

(ERM); Uncertainties in the measurement of mobile radio equipment characteristics".

[5] Void.

[6] ITU-R Recommendation SM.1539-1 (2002): "Variation of the boundary between the out-of-band

and spurious domains required for the application of Recommendations ITU-R SM.1541 and

ITU-R SM.329".
2.2 Informative references

The following referenced documents are not essential to the use of the present document but they assist the user with

regard to a particular subject area. For non-specific references, the latest version of the referenced document (including

any amendments) applies.

[i.1] ETSI TR 102 555: "Electromagnetic compatibility and Radio spectrum Matters (ERM); Technical

characteristics of multiple gigabit wireless systems in the 60 GHz range System Reference

Document".

[i.2] ECC Report 114: "Compatibility studies between Multiple Gigabit Wireless Systems in frequency

range 57-66 GHz and other services and systems (except ITS in 63-64 GHz)".

[i.3] ECC Report 113: "Compatibility studies around 63 GHz between Intelligent Transportation

Systems (ITS) and other systems".

[i.4] Directive 98/34/EC of the European Parliament and of the Council of 22 June 1998 laying down a

procedure for the provision of information in the field of technical standards and regulations.

ETSI
---------------------- Page: 7 ----------------------
8 ETSI EN 302 567 V1.1.1 (2009-03)

[i.5] IEEE 802.15.3c: "IEEE Standard for Information Technology - Specific Requirements -

Part 15: Wireless Personal Area Networks with Millimeter Wave Alternative Physical Task

Group 3c (TG3c)".
[i.6] Ecma TC48, High Rate Short Range Wireless Communications.
[i.7] ERC/REC 70-03: "Related to the Use of Short Range Devices (SRD)".

[i.8] ETSI EG 201 399: "Electromagnetic compatibility and Radio spectrum matters (ERM); A guide to

the production of candidate Harmonized Standards for application under the R&TTE Directive".

3 Definitions, symbols and abbreviations
3.1 Definitions

For the purposes of the present document, the terms and definitions given in the R&TTE Directive [3] and the following

apply:

60 GHz range or 60 GHz band: one of the variously permitted frequencies of operation, typically from 57 GHz to

66 GHz

activity factor: percentage over any one minute time period when equipment is operating under a given set of

conditions

channel separation: minimum separation (in MHz) between the centre frequencies of two adjacent channels in the

channel plan of the radio equipment

environmental profile: declared range of environmental conditions under which equipment within the scope of the

present document is required to be compliant

integral antenna: antenna which is declared to be part of the radio equipment by the supplier

NOTE 1: In some cases, it may not be possible to remove an integral antenna or expose an antenna connector

without changing the output characteristics of the radio equipment.

NOTE 2: Even with an integral antenna, it might still be possible to separate the antenna from the equipment using

a special tool.

mean power: when applied to a modulated signal, this is the power (transmitted or received) in a bandwidth

occupied bandwidth: frequency bandwidth of the signal power at the -6 dBc points

smart antenna systems: equipment that combines multiple transmit and/or receive antenna elements with a signal

processing function to increase its radiation and/or reception capabilities

NOTE: This includes techniques such as spatial multiplexing, beam forming, cyclic delay diversity, etc.

3.2 Symbols
For the purposes of the present document, the following symbols apply:

dBc spectral density relative to the maximum spectral power density of the transmitted signal

dBm decibel relative to one milliwatt
dBr decibel relative to a given maximum power level
GHz thousand millions of cycles
kHz thousands of cycles
μs millionths of seconds
ETSI
---------------------- Page: 8 ----------------------
9 ETSI EN 302 567 V1.1.1 (2009-03)
3.3 Abbreviations
For the purposes of the present document, the following abbreviations apply:
ChS Channel Separation
EIRP Equivalent Isotropically Radiated Power
FLANE Fixed Local Area Network Extension
OBw Occupied Bandwidth
PDL spectral Power Density Limit
RBw Resolution Bandwidth
RF Radio Frequency
RLAN Radio Local Area Network
R&TTE Radio equipment and Telecommunications Terminal Equipment
UUT Unit Under Test
WAS Wireless Access System
WLAN Wireless Local Area Network
WPAN Wireless Personal Area Network
4 Technical requirements specifications
4.1 Environmental profile

The technical requirements of the present document apply under the environmental profile for operation of the

equipment, which shall be declared by the supplier. The equipment shall comply with all the technical requirements of

the present document at all times when operating within the boundary limits of the declared operational environmental

profile.
4.2 Conformance requirements
4.2.1 Spectral power density
4.2.1.1 Definition

The spectral power density is the mean Equivalent Isotropically Radiated Power (EIRP) density in Watts per Hertz

during a transmission burst.
4.2.1.2 Limit

The maximum spectral power density is applicable to the system as a whole when operated at the highest stated power

level. For a smart antenna system, the limit applies to the configuration that results in the highest EIRP.

The maximum spectral power density shall be limited by usage as indicated in table 2.

Table 2: Spectral power density limit (PDL)
Usage Maximum spectral power density (EIRP)
Indoor only 13 dBm / MHz
Indoor and Outdoor -2 dBm / MHz
4.2.1.3 Conformance
Conformance tests for this requirement are defined in clause 5.3.3.
ETSI
---------------------- Page: 9 ----------------------
10 ETSI EN 302 567 V1.1.1 (2009-03)
4.2.2 RF output power
4.2.2.1 Definition

The RF output power is the mean equivalent isotropically radiated power (EIRP) for the equipment during a

transmission burst.
4.2.2.2 Limit

The maximum RF output power is applicable to the system as a whole when operated at the highest stated power level.

For a smart antenna system, the limit applies to the configuration that results in the highest EIRP.

The maximum RF output power in normal wideband operation shall be limited by usage as indicated in table 3.

Table 3: RF output power limit
Usage Maximum power level (EIRP)
Indoor only 40 dBm
Indoor and Outdoor 25 dBm
4.2.2.3 Conformance
Conformance tests for this requirement are defined in clause 5.3.4.
4.2.3 Transmitter unwanted emissions
4.2.3.1 Definition

These are unwanted emissions in the spurious domain as noted in ERC/REC 74-01 [2] while the equipment is

transmitting. The boundary where the spurious domain begins as given by ITU-R Recommendation SM.1539-1 [6] is

considered to be the offset from the nominal centre frequency of the transmission by ±250 % of the relevant occupied

bandwidth (OBw) for OBw ≤ 500 MHz and ± (500 MHz + 1,5 × OBw) for OBw > 500 MHz.
4.2.3.2 Limit

The level of unwanted emissions in the spurious domain shall conform to the ERC/REC 74-01 [2] limits for Land

Mobile Services as given in table 4 for radiated measurements with 0 dBi antenna gain. The requirements refer to

average power levels measured at distances with respect to the UUT.
Table 4: Transmitter spurious emissions
Frequency band Measurement bandwidth Field Strength at 3 m (dBμV / m)
30 MHz to 1 GHz 100 kHz 59
1 GHz to 132 GHz 1 MHz 65
4.2.3.3 Conformance
Conformance tests for this requirement are defined in clause 5.3.5.
4.2.4 Receiver unwanted emissions
4.2.4.1 Definition

These are unwanted emissions in the spurious domain as noted in ERC/REC 74-01 [2] while the equipment is receiving

a transmission.
ETSI
---------------------- Page: 10 ----------------------
11 ETSI EN 302 567 V1.1.1 (2009-03)
4.2.4.2 Limit

The level of unwanted emissions in the spurious domain shall conform to ERC/REC 74-01 [2] for Land Mobile

Services as given in table 5 for radiated measurements with 0 dBi antenna gain. The requirements refer to average

power levels measured at distances with respect to the UUT.
Table 5: Receiver spurious emissions
Frequency band Measurement bandwidth Field Strength at 3 m (dBμV / m)
30 MHz to 1 GHz 100 kHz 38
1 GHz to 132 GHz 1 MHz 48
4.2.4.3 Conformance
Conformance tests for this requirement are defined in clause 5.3.6.
4.2.5 Medium access protocol
4.2.5.1 Definition

A medium access protocol is a mechanism designed to facilitate spectrum sharing with other devices in the wireless

network.
4.2.5.2 Requirement

A medium access protocol shall be implemented by the equipment and shall be active under all circumstances.

4.2.6 Integral antenna
4.2.6.1 Definition

An integral antenna is designed as a fixed part of the equipment, without the use of an external connector and as such

can not be disconnected from the equipment by a user with the intent to connect another antenna.

4.2.6.2 Requirement

As recommended by ECC Report 114 [i.2], an integral antenna shall be used to provide interference protection from

these licence-exempt RLAN applications.
5 Testing for compliance with technical requirements
5.1 Environmental conditions for testing

Tests defined in the present document shall be carried out at representative points within the boundary limits of the

declared operational environmental profile.

Where technical performance varies subject to environmental conditions, tests shall be carried out under a sufficient

variety of environmental conditions (within the boundary limits of the declared operational environmental profile) to

...

Final draft ETSI EN 302 567 V1.1.0 (2009-01)
Harmonized European Standard (Telecommunications series)
Broadband Radio Access Networks (BRAN);
60 GHz Multiple-Gigabit WAS/RLAN Systems;
Harmonized EN covering the essential requirements
of article 3.2 of the R&TTE Directive
---------------------- Page: 1 ----------------------
2 Final draft ETSI EN 302 567 V1.1.0 (2009-01)

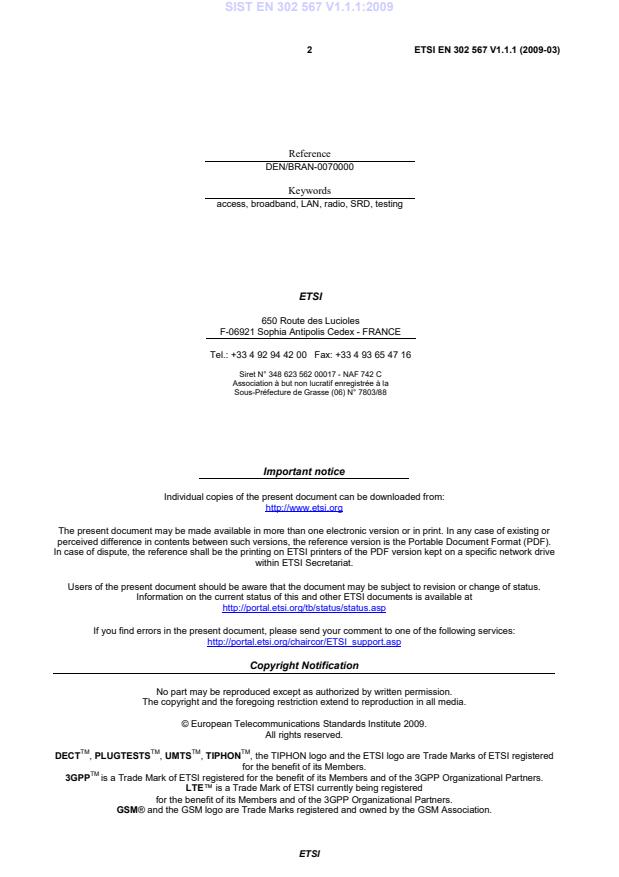

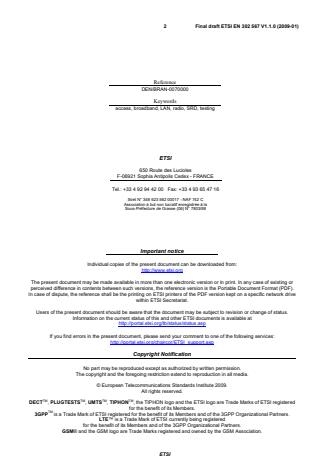

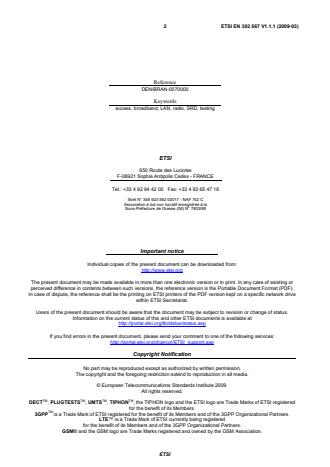

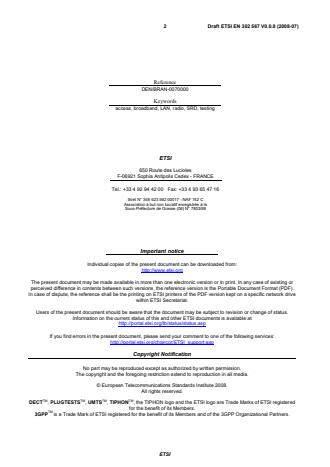

Reference
DEN/BRAN-0070000
Keywords
access, broadband, LAN, radio, SRD, testing
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88
Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org

The present document may be made available in more than one electronic version or in print. In any case of existing or

perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).

In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive

within ETSI Secretariat.

Users of the present document should be aware that the document may be subject to revision or change of status.

Information on the current status of this and other ETSI documents is available at

http://portal.etsi.org/tb/status/status.asp

If you find errors in the present document, please send your comment to one of the following services:

http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2009.
All rights reserved.
TM TM TM TM

DECT , PLUGTESTS , UMTS , TIPHON , the TIPHON logo and the ETSI logo are Trade Marks of ETSI registered

for the benefit of its Members.

3GPP is a Trade Mark of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners.

LTE™ is a Trade Mark of ETSI currently being registered
for the benefit of its Members and of the 3GPP Organizational Partners.

GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association.

ETSI
---------------------- Page: 2 ----------------------
3 Final draft ETSI EN 302 567 V1.1.0 (2009-01)
Contents

Intellectual Property Rights ................................................................................................................................ 5

Foreword ............................................................................................................................................................. 5

Introduction ........................................................................................................................................................ 5

1 Scope ........................................................................................................................................................ 6

2 References ................................................................................................................................................ 7

2.1 Normative references ......................................................................................................................................... 7

2.2 Informative references ........................................................................................................................................ 7

3 Definitions, symbols and abbreviations ................................................................................................... 8

3.1 Definitions .......................................................................................................................................................... 8

3.2 Symbols .............................................................................................................................................................. 8

3.3 Abbreviations ..................................................................................................................................................... 9

4 Technical requirements specifications ..................................................................................................... 9

4.1 Environmental profile ......................................................................................................................................... 9

4.2 Conformance requirements ................................................................................................................................ 9

4.2.1 Spectral power density .................................................................................................................................. 9

4.2.1.1 Definition ................................................................................................................................................ 9

4.2.1.2 Limit ........................................................................................................................................................ 9

4.2.1.3 Conformance ......................................................................................................................................... 10

4.2.2 RF output power ......................................................................................................................................... 10

4.2.2.1 Definition .............................................................................................................................................. 10

4.2.2.2 Limit ...................................................................................................................................................... 10

4.2.2.3 Conformance ......................................................................................................................................... 10

4.2.3 Transmitter unwanted emissions ................................................................................................................. 10

4.2.3.1 Definition .............................................................................................................................................. 10

4.2.3.2 Limit ...................................................................................................................................................... 10

4.2.3.3 Conformance ......................................................................................................................................... 10

4.2.4 Receiver unwanted emissions ..................................................................................................................... 11

4.2.4.1 Definition .............................................................................................................................................. 11

4.2.4.2 Limit ...................................................................................................................................................... 11

4.2.4.3 Conformance ......................................................................................................................................... 11

4.2.5 Medium access protocol ............................................................................................................................. 11

4.2.5.1 Definition .............................................................................................................................................. 11

4.2.5.2 Requirement .......................................................................................................................................... 11

4.2.6 Integral antenna .......................................................................................................................................... 11

4.2.6.1 Definition .............................................................................................................................................. 11

4.2.6.2 Requirement .......................................................................................................................................... 11

5 Testing for compliance with technical requirements .............................................................................. 11

5.1 Environmental conditions for testing ............................................................................................................... 11

5.2 Interpretation of the measurement results ........................................................................................................ 12

5.3 Essential radio test suites .................................................................................................................................. 12

5.3.1 Product Information .................................................................................................................................... 12

5.3.2 Test modulation, frequency and configuration ........................................................................................... 13

5.3.3 Spectral power density ................................................................................................................................ 13

5.3.4 RF output power ......................................................................................................................................... 14

5.3.5 Transmitter unwanted emissions ................................................................................................................. 15

5.3.5.1 Pre-scan ................................................................................................................................................. 15

5.3.5.2 Identified emissions .............................................................................................................................. 16

5.3.6 Receiver unwanted emissions ..................................................................................................................... 16

5.3.6.1 Pre-scan ................................................................................................................................................. 17

5.3.6.2 Identified emissions .............................................................................................................................. 17

Annex A (normative): HS Requirements and conformance Test specifications Table (HS-

RTT) ................................................................................................................ 18

ETSI
---------------------- Page: 3 ----------------------
4 Final draft ETSI EN 302 567 V1.1.0 (2009-01)

Annex B (informative): The EN title in the official languages ........................................................... 20

Annex C (normative): Test sites and arrangements for radiated measurements ........................... 21

C.1 Test sites ................................................................................................................................................. 21

C.1.1 Open air test sites ............................................................................................................................................. 21

C.1.2 Anechoic chamber ............................................................................................................................................ 22

C.1.2.1 General ........................................................................................................................................................ 22

C.1.2.2 Description .................................................................................................................................................. 22

C.1.2.3 Influence of parasitic reflections ................................................................................................................. 22

C.1.2.4 Calibration and mode of use ....................................................................................................................... 23

C.2 Test antenna ............................................................................................................................................ 24

C.3 Substitution antenna ............................................................................................................................... 25

Annex D (normative): General description of measurement ........................................................... 26

D.1 Radiated measurements .......................................................................................................................... 26

D.2 Substitution measurement ...................................................................................................................... 27

Annex E (informative): Bibliography ................................................................................................... 28

History .............................................................................................................................................................. 29

ETSI
---------------------- Page: 4 ----------------------
5 Final draft ETSI EN 302 567 V1.1.0 (2009-01)
Intellectual Property Rights

IPRs essential or potentially essential to the present document may have been declared to ETSI. The information

pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found

in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in

respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web

server (http://webapp.etsi.org/IPR/home.asp).

Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee

can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web

server) which are, or may be, or may become, essential to the present document.
Foreword

This Harmonized European Standard (Telecommunications series) has been produced by ETSI Technical Committee

Broadband Radio Access Networks (BRAN), and is now submitted for the Vote phase of the ETSI standards Two-step

Approval Procedure.

The present document has been produced by ETSI in response to a mandate from the European Commission issued

under Council Directive 98/34/EC [i.4] (as amended) laying down a procedure for the provision of information in the

field of technical standards and regulations.

The present document is intended to become a Harmonized Standard, the reference of which will be published in the

Official Journal of the European Communities referencing the Directive 1999/5/EC [3] of the European Parliament and

of the Council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual

recognition of their conformity ("the R&TTE Directive").

Technical specifications relevant to Directive 1999/5/EC [3] are given in annex A.

Proposed national transposition dates
Date of latest announcement of this EN (doa): 3 months after ETSI publication
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 6 months after doa

Date of withdrawal of any conflicting National Standard (dow): 18 months after doa

Introduction

The present document is part of a set of standards developed by ETSI and is designed to fit in a modular structure to

cover all radio and telecommunications terminal equipment within the scope of the R&TTE Directive. The modular

structure is shown in EG 201 399 [i.8].
ETSI
---------------------- Page: 5 ----------------------
6 Final draft ETSI EN 302 567 V1.1.0 (2009-01)
1 Scope

The present document applies to radio equipment types for wireless access systems (WAS)/radio local area networks

(RLAN) operating at multiple-gigabit data rates in the 60 GHz frequency range. These applications may also be referred

to as Wireless Personal Area Network (WPAN) or Wireless Local Area Network (WLAN) systems and are intended for

licence-exempt short-rangedevices. Economic benefits of this usage apply to a variety of markets including

communications, computing, and consumer electronics by enabling the transfer of large amounts of information in a

short amount of time (for example, from a kiosk to a mobile phone) or the continuous streaming of uncompressed data

(for example, the external video interfaces of a computer or high definition disc player).

These networks operate over a short range with very wideband communications using a variety of directional medium

and high gain antennas to enable a high degree of spectrum reuse, and may use a flexible bandwidth scheme under

which they normally operate in a wideband mode, and periodically reduce their bandwidth (e.g. for antenna training and

other activities).

The technical characteristics of these applications are described in TR 102 555 [i.1], where the 60 GHz band is

described from 59 GHz to 66 GHz. On the basis of the sharing study in ECC Report 114 [i.2], ECC Report 113 [i.3],

and the input of national bodies, the 60 GHz band is now described from 57 GHz to 66 GHz to support harmonization

with additional geographies.

Equipment in this frequency range intended for outdoor Fixed Local Area Network Extension (FLANE) or Fixed

Point-to-Point applications are not in the scope of the present document.

The present document is intended to support specifications such as those addressed in IEEE 802.15.3c [i.5],

Ecma TC48 [i.6] and other international bodies.

These radio equipment types are capable of operating in all or any part of the frequency bands given in table 1.

Table 1: Radiocommunications service frequency bands
Radiocommunications service frequency bands
Transmit 57 GHz to 66 GHz
Receive 57 GHz to 66 GHz

The present document is intended to cover the provisions of Directive 1999/5/EC [3] (R&TTE Directive), article 3.2,

which states that "….. radio equipment shall be so constructed that it effectively uses the spectrum allocated to

terrestrial/space radio communications and orbital resources so as to avoid harmful interference".

In addition to the present document, other ENs that specify technical requirements in respect of essential requirements

under other parts of article 3 of the R&TTE Directive may apply to equipment within the scope of the present

document.
NOTE: A list of such ENs is included on the web site http://www.newapproach.org.
ETSI
---------------------- Page: 6 ----------------------
7 Final draft ETSI EN 302 567 V1.1.0 (2009-01)
2 References

References are either specific (identified by date of publication and/or edition number or version number) or

non-specific.
• For a specific reference, subsequent revisions do not apply.

• Non-specific reference may be made only to a complete document or a part thereof and only in the following

cases:

- if it is accepted that it will be possible to use all future changes of the referenced document for the

purposes of the referring document;
- for informative references.

Referenced documents which are not found to be publicly available in the expected location might be found at

http://docbox.etsi.org/Reference.

For online referenced documents, information sufficient to identify and locate the source shall be provided. Preferably,

the primary source of the referenced document should be cited, in order to ensure traceability. Furthermore, the

reference should, as far as possible, remain valid for the expected life of the document. The reference shall include the

method of access to the referenced document and the full network address, with the same punctuation and use of upper

case and lower case letters.

NOTE: While any hyperlinks included in this clause were valid at the time of publication ETSI cannot guarantee

their long term validity.
2.1 Normative references

The following referenced documents are indispensable for the application of the present document. For dated

references, only the edition cited applies. For non-specific references, the latest edition of the referenced document

(including any amendments) applies.
[1] Void.
[2] ERC/REC 74-01 (2005): "Unwanted Emissions in the Spurious Domain".

[3] Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio

equipment and telecommunications terminal equipment and the mutual recognition of their

conformity (R&TTE Directive).

[4] ETSI TR 100 028 (V1.4.1 - all parts): "Electromagnetic compatibility and Radio spectrum matters

(ERM); Uncertainties in the measurement of mobile radio equipment characteristics".

[5] Void.

[6] ITU-R Recommendation SM.1539-1 (2002): "Variation of the boundary between the out-of-band

and spurious domains required for the application of Recommendations ITU-R SM.1541 and

ITU-R SM.329".
2.2 Informative references

The following referenced documents are not essential to the use of the present document but they assist the user with

regard to a particular subject area. For non-specific references, the latest version of the referenced document (including

any amendments) applies.

[i.1] ETSI TR 102 555: "Electromagnetic compatibility and Radio spectrum Matters (ERM); Technical

characteristics of multiple gigabit wireless systems in the 60 GHz range System Reference

Document".

[i.2] ECC Report 114: "Compatibility studies between Multiple Gigabit Wireless Systems in frequency

range 57-66 GHz and other services and systems (except ITS in 63-64 GHz)".
ETSI
---------------------- Page: 7 ----------------------
8 Final draft ETSI EN 302 567 V1.1.0 (2009-01)

[i.3] ECC Report 113: "Compatibility studies around 63 GHz between Intelligent Transportation

Systems (ITS) and other systems".

[i.4] Directive 98/34/EC of the European Parliament and of the Council of 22 June 1998 laying down a

procedure for the provision of information in the field of technical standards and regulations.

[i.5] IEEE 802.15.3c: "IEEE Standard for Information Technology - Specific Requirements -

Part 15: Wireless Personal Area Networks with Millimeter Wave Alternative Physical Task

Group 3c (TG3c)".
[i.6] Ecma TC48, High Rate Short Range Wireless Communications.
[i.7] ERC/REC 70-03: "Related to the Use of Short Range Devices (SRD)".

[i.8] ETSI EG 201 399: "Electromagnetic compatibility and Radio spectrum matters (ERM); A guide to

the production of candidate Harmonized Standards for application under the R&TTE Directive".

3 Definitions, symbols and abbreviations
3.1 Definitions

For the purposes of the present document, the terms and definitions given in the R&TTE Directive [3] and the following

apply:

60 GHz range or 60 GHz band: one of the variously permitted frequencies of operation, typically from 57 GHz to

66 GHz

activity factor: percentage over any one minute time period when equipment is operating under a given set of

conditions

channel separation: minimum separation (in MHz) between the centre frequencies of two adjacent channels in the

channel plan of the radio equipment

environmental profile: declared range of environmental conditions under which equipment within the scope of the

present document is required to be compliant

integral antenna: antenna which is declared to be part of the radio equipment by the supplier

NOTE 1: In some cases, it may not be possible to remove an integral antenna or expose an antenna connector

without changing the output characteristics of the radio equipment.

NOTE 2: Even with an integral antenna, it might still be possible to separate the antenna from the equipment using

a special tool.

mean power: when applied to a modulated signal, this is the power (transmitted or received) in a bandwidth

occupied bandwidth: frequency bandwidth of the signal power at the -6 dBc points

smart antenna systems: equipment that combines multiple transmit and/or receive antenna elements with a signal

processing function to increase its radiation and/or reception capabilities

NOTE: This includes techniques such as spatial multiplexing, beam forming, cyclic delay diversity, etc.

3.2 Symbols
For the purposes of the present document, the following symbols apply:

dBc spectral density relative to the maximum spectral power density of the transmitted signal

dBm decibel relative to one milliwatt
dBr decibel relative to a given maximum power level
GHz thousand millions of cycles
ETSI
---------------------- Page: 8 ----------------------
9 Final draft ETSI EN 302 567 V1.1.0 (2009-01)
kHz thousands of cycles
μs millionths of seconds
3.3 Abbreviations
For the purposes of the present document, the following abbreviations apply:
BW BandWidth
ChS Channel Separation
EIRP Equivalent Isotropically Radiated Power
FLANE Fixed Local Area Network Extension
OBw Occupied Bandwidth
PDL spectral Power Density Limit
PHY PHYsical networking layer
RBw Resolution Bandwidth
RF Radio Frequency
RLAN Radio Local Area Network
R&TTE Radio equipment and Telecommunications Terminal Equipment
SNR Signal to Noise Ratio
UUT Unit Under Test
WAS Wireless Access System
WLAN Wireless Local Area Network
WPAN Wireless Personal Area Network
4 Technical requirements specifications
4.1 Environmental profile

The technical requirements of the present document apply under the environmental profile for operation of the

equipment, which shall be declared by the supplier. The equipment shall comply with all the technical requirements of

the present document at all times when operating within the boundary limits of the declared operational environmental

profile.
4.2 Conformance requirements
4.2.1 Spectral power density
4.2.1.1 Definition

The spectral power density is the mean Equivalent Isotropically Radiated Power (EIRP) density in Watts per Hertz

during a transmission burst.
4.2.1.2 Limit

The maximum spectral power density is applicable to the system as a whole when operated at the highest stated power

level. For a smart antenna system, the limit applies to the configuration that results in the highest EIRP.

The maximum spectral power density shall be limited by usage as indicated in table 2.

Table 2: Spectral power density limit (PDL)
Usage Maximum spectral power density (EIRP)
Indoor only 13 dBm / MHz
Indoor & Outdoor -2 dBm / MHz
ETSI
---------------------- Page: 9 ----------------------
10 Final draft ETSI EN 302 567 V1.1.0 (2009-01)
4.2.1.3 Conformance
Conformance tests for this requirement are defined in clause 5.3.3.
4.2.2 RF output power
4.2.2.1 Definition

The RF output power is the mean equivalent isotropically radiated power (EIRP) for the equipment during a

transmission burst.
4.2.2.2 Limit

The maximum RF output power is applicable to the system as a whole when operated at the highest stated power level.

For a smart antenna system, the limit applies to the configuration that results in the highest EIRP.

The maximum RF output power in normal wideband operation shall be limited by usage as indicated in table 3.

Table 3: RF output power limit
Usage Maximum power level (EIRP)
Indoor only 40 dBm
Indoor and Outdoor 25 dBm
4.2.2.3 Conformance
Conformance tests for this requirement are defined in clause 5.3.4.
4.2.3 Transmitter unwanted emissions
4.2.3.1 Definition

These are unwanted emissions in the spurious domain as noted in ERC/REC 74-01 [2] while the equipment is

transmitting. The boundary where the spurious domain begins as given by ITU-R Recommendation SM.1539-1 [6] is

considered to be the offset from the nominal centre frequency of the transmission by ±250 % of the relevant occupied

bandwidth (OBw) for OBw ≤ 500 MHz and ± (500 MHz + 1,5 × OBw) for OBw > 500 MHz.
4.2.3.2 Limit

The level of unwanted emissions in the spurious domain shall conform to the ERC/REC 74-01 [2] limits for Land

Mobile Services as given in table 4 for radiated measurements with 0 dBi antenna gain. The requirements refer to

average power levels measured at distances with respect to the UUT.
Table 4: Transmitter spurious emissions
Frequency band Measurement bandwidth Field Strength at 3 m (dBμV / m)
30 MHz to 1 GHz 100 kHz 59
1 GHz to 132 GHz 1 MHz 65
4.2.3.3 Conformance
Conformance tests for this requirement are defined in clause 5.3.5.
ETSI
---------------------- Page: 10 ----------------------
11 Final draft ETSI EN 302 567 V1.1.0 (2009-01)
4.2.4 Receiver unwanted emissions
4.2.4.1 Definition

These are unwanted emissions in the spurious domain as noted in ERC/REC 74-01 [2] while the equipment is receiving

a transmission.
4.2.4.2 Limit

The level of unwanted emissions in the spurious domain shall conform to ERC/REC 74-01 [2] for Land Mobile

Services as given in table 5 for radiated measurements with 0 dBi antenna gain. The requirements refer to average

power levels measured at distances with respect to the UUT.
Table 5: Receiver spurious emissions
Frequency band Measurement bandwidth Field Strength at 3 m (dBμV / m)
30 MHz to 1 GHz 100 kHz 38
1 GHz to 132 GHz 1 MHz 48
4.2.4.3 Conformance
Conformance tests for this requirement are defined in clause 5.3.6.
4.2.5 Medium access protocol
4.2.5.1 Definition

A medium access protocol is a mechanism designed to facilitate spectrum sharing with other devices in the wireless

network.
4.2.5.2 Requirement

A medium access protocol shall be implemented by the equipment and shall be active under all circumstances.

4.2.6 Integral antenna
4.2.6.1 Definition

An integral antenna is designed as a fixed part of the equipment, without the use of an external connector and a

...

Draft ETSI EN 302 567 V0.0.8 (2008-07)
Harmonized European Standard (Telecommunications series)
Broadband Radio Access Networks (BRAN);
60 GHz Multiple-Gigabit WAS/RLAN Systems;
Harmonized EN covering the essential requirements
of article 3.2 of the R&TTE Directive
---------------------- Page: 1 ----------------------
2 Draft ETSI EN 302 567 V0.0.8 (2008-07)
Reference
DEN/BRAN-0070000
Keywords
access, broadband, LAN, radio, SRD, testing
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88
Important notice
Individual copies of the present document can be downloaded from:
http://www.etsi.org

The present document may be made available in more than one electronic version or in print. In any case of existing or

perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF).

In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive

within ETSI Secretariat.

Users of the present document should be aware that the document may be subject to revision or change of status.

Information on the current status of this and other ETSI documents is available at

http://portal.etsi.org/tb/status/status.asp

If you find errors in the present document, please send your comment to one of the following services:

http://portal.etsi.org/chaircor/ETSI_support.asp
Copyright Notification
No part may be reproduced except as authorized by written permission.
The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2008.
All rights reserved.
TM TM TM TM

DECT , PLUGTESTS , UMTS , TIPHON , the TIPHON logo and the ETSI logo are Trade Marks of ETSI registered

for the benefit of its Members.

3GPP is a Trade Mark of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners.

ETSI
---------------------- Page: 2 ----------------------
3 Draft ETSI EN 302 567 V0.0.8 (2008-07)
Contents

Intellectual Property Rights................................................................................................................................5

Foreword.............................................................................................................................................................5

Introduction ........................................................................................................................................................5

1 Scope........................................................................................................................................................6

2 References................................................................................................................................................7

2.1 Normative references.........................................................................................................................................7

2.2 Informative references........................................................................................................................................7

3 Definitions, symbols and abbreviations ...................................................................................................8

3.1 Definitions..........................................................................................................................................................8

3.2 Symbols..............................................................................................................................................................8

3.3 Abbreviations.....................................................................................................................................................9

4 Technical requirements specifications .....................................................................................................9

4.1 Environmental profile.........................................................................................................................................9

4.2 Conformance requirements................................................................................................................................9

4.2.1 Spectral power density..................................................................................................................................9

4.2.1.1 Definition................................................................................................................................................9

4.2.1.2 Limit........................................................................................................................................................9

4.2.2 RF output power .........................................................................................................................................10

4.2.2.1 Definition..............................................................................................................................................10

4.2.2.2 Limit......................................................................................................................................................10

4.2.3 Transmitter unwanted emissions.................................................................................................................10

4.2.3.1 Definition..............................................................................................................................................10

4.2.3.2 Limit......................................................................................................................................................10

4.2.4 Receiver unwanted emissions.....................................................................................................................10

4.2.4.1 Definition..............................................................................................................................................10

4.2.4.2 Limit......................................................................................................................................................10

4.2.5 Medium access protocol .............................................................................................................................11

4.2.5.1 Definition..............................................................................................................................................11

4.2.5.2 Requirement..........................................................................................................................................11

4.2.6 Integral antenna..........................................................................................................................................11

4.2.6.1 Definition..............................................................................................................................................11

4.2.6.2 Requirement..........................................................................................................................................11

5 Testing for compliance with technical requirements..............................................................................11

5.1 Environmental conditions for testing ...............................................................................................................11

5.2 Interpretation of the measurement results ........................................................................................................11

5.3 Essential radio test suites..................................................................................................................................12

5.3.1 Product Information....................................................................................................................................12

5.3.2 Test modulation, frequency and configuration ...........................................................................................12

5.3.3 Spectral power density................................................................................................................................13

5.3.4 RF output power .........................................................................................................................................14

5.3.5 Transmitter unwanted emissions.................................................................................................................14

5.3.5.1 Pre-scan.................................................................................................................................................15

5.3.5.2 Identified emissions..............................................................................................................................15

5.3.6 Receiver unwanted emissions.....................................................................................................................16

5.3.6.1 Pre-scan.................................................................................................................................................16

5.3.6.2 Identified emissions..............................................................................................................................17

Annex A (normative): HS Requirements and conformance Test specifications Table (HS-

RTT)................................................................................................................18

Annex B (informative): The EN title in the official languages ...........................................................20

Annex C (normative): Test sites and arrangements for radiated measurements...........................21

ETSI
---------------------- Page: 3 ----------------------
4 Draft ETSI EN 302 567 V0.0.8 (2008-07)

C.1 Test sites.................................................................................................................................................21

C.1.1 Open air test sites .............................................................................................................................................21

C.1.2 Anechoic chamber............................................................................................................................................22

C.1.2.1 General........................................................................................................................................................22

C.1.2.2 Description..................................................................................................................................................22

C.1.2.3 Influence of parasitic reflections.................................................................................................................22

C.1.2.4 Calibration and mode of use .......................................................................................................................23

C.2 Test antenna............................................................................................................................................24

C.3 Substitution antenna ...............................................................................................................................25

Annex D (normative): General description of measurement ...........................................................26

D.1 Radiated measurements..........................................................................................................................26

D.2 Substitution measurement ......................................................................................................................27

Annex E (informative): Bibliography...................................................................................................28

History ..............................................................................................................................................................29

ETSI
---------------------- Page: 4 ----------------------
5 Draft ETSI EN 302 567 V0.0.8 (2008-07)
Intellectual Property Rights

IPRs essential or potentially essential to the present document may have been declared to ETSI. The information

pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found

in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in

respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web

server (http://webapp.etsi.org/IPR/home.asp).

Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee

can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web

server) which are, or may be, or may become, essential to the present document.
Foreword

This Harmonized European Standard (Telecommunications series) has been produced by ETSI Technical Committee

Broadband Radio Access Networks (BRAN), and is now submitted for the Public Enquiry phase of the ETSI standards

Two-step Approval Procedure.

The present document has been produced by ETSI in response to a mandate from the European Commission issued

under Council Directive 98/34/EC [i.4] (as amended) laying down a procedure for the provision of information in the

field of technical standards and regulations.

The present document is intended to become a Harmonized Standard, the reference of which will be published in the

Official Journal of the European Communities referencing the Directive 1999/5/EC [3] of the European Parliament and

of the Council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual

recognition of their conformity ("the R&TTE Directive").

Technical specifications relevant to Directive 1999/5/EC [3] are given in annex A.

Proposed national transposition dates
Date of latest announcement of this EN (doa): 3 months after ETSI publication
Date of latest publication of new National Standard
or endorsement of this EN (dop/e): 6 months after doa

Date of withdrawal of any conflicting National Standard (dow): 18 months after doa

Introduction

The present document is part of a set of standards developed by ETSI and is designed to fit in a modular structure to

cover all radio and telecommunications terminal equipment within the scope of the R&TTE Directive. The modular

structure is shown in EG 201 399 [i.8].
ETSI
---------------------- Page: 5 ----------------------
6 Draft ETSI EN 302 567 V0.0.8 (2008-07)
1 Scope

The present document applies to radio equipment types for wireless access systems (WAS)/radio local area networks

(RLAN) operating at multiple-gigabit data rates in the 60 GHz frequency range. These applications may also be referred

to as wireless personal area network (WPAN) or wireless local area network (WLAN) systems and are primarily for

short-range, predominantly indoor use by consumer devices operating on license-exempt radio frequencies. Economic

benefits of this usage apply to a variety of markets including communications, computing, and consumer electronics by

enabling the transfer of large amounts of information in a short amount of time (for example, from a kiosk to a mobile

phone) or the continuous streaming of uncompressed data (for example, the external video interfaces of a computer or

high definition disc player).

These networks operate over a short range with very wideband communications using a variety of directional medium

and high gain antennas to enable a high degree of spectrum reuse, and may use a flexible bandwidth scheme under

which they normally operate in a wideband mode, and periodically reduce their bandwidth (e.g. for antenna training and

other activities).

The technical characteristics of these applications are described in TR 102 555 [i.1], where the 60 GHz band is

described from 59 GHz to 66 GHz. On the basis of the sharing study in ECC Report 114 [i.2], ECC Report 113 [i.3],

and the input of national bodies, the 60 GHz band is now described from 57 GHz to 66 GHz to support harmonization

with additional geographies.

Equipment in this frequency range intended for outdoor Fixed Local Area Network Extension (FLANE) are not in the

scope of the present document.

The present document is intended to support specifications such as those addressed in IEEE 802.15.3c [i.5],

Ecma TC48 [i.6], and other international bodies.

These radio equipment types are capable of operating in all or any part of the frequency bands given in table 1.

Table 1: Radiocommunications service frequency bands
Radiocommunications service frequency bands
Transmit 57 GHz to 66 GHz
Receive 57 GHz to 66 GHz

The present document is intended to cover the provisions of Directive 1999/5/EC [3] (R&TTE Directive), article 3.2,

which states that "….. radio equipment shall be so constructed that it effectively uses the spectrum allocated to

terrestrial/space radio communications and orbital resources so as to avoid harmful interference".

In addition to the present document, other ENs that specify technical requirements in respect of essential requirements

under other parts of article 3 of the R&TTE Directive may apply to equipment within the scope of the present

document.
NOTE: A list of such ENs is included on the web site http://www.newapproach.org.
ETSI
---------------------- Page: 6 ----------------------
7 Draft ETSI EN 302 567 V0.0.8 (2008-07)
2 References

References are either specific (identified by date of publication and/or edition number or version number) or

non-specific.
• For a specific reference, subsequent revisions do not apply.

• Non-specific reference may be made only to a complete document or a part thereof and only in the following

cases:

- if it is accepted that it will be possible to use all future changes of the referenced document for the

purposes of the referring document;
- for informative references.

Referenced documents which are not found to be publicly available in the expected location might be found at

http://docbox.etsi.org/Reference.

For online referenced documents, information sufficient to identify and locate the source shall be provided. Preferably,

the primary source of the referenced document should be cited, in order to ensure traceability. Furthermore, the

reference should, as far as possible, remain valid for the expected life of the document. The reference shall include the

method of access to the referenced document and the full network address, with the same punctuation and use of upper

case and lower case letters.

NOTE: While any hyperlinks included in this clause were valid at the time of publication ETSI cannot guarantee

their long term validity.
2.1 Normative references

The following referenced documents are indispensable for the application of the present document. For dated

references, only the edition cited applies. For non-specific references, the latest edition of the referenced document

(including any amendments) applies.
[1] Void.
[2] ERC/REC 74-01 (2005): "Unwanted Emissions in the Spurious Domain".

[3] Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio

equipment and telecommunications terminal equipment and the mutual recognition of their

conformity (R&TTE Directive).

[4] ETSI TR 100 028 (V1.4.1 - all parts): "Electromagnetic compatibility and Radio spectrum matters

(ERM); Uncertainties in the measurement of mobile radio equipment characteristics".

[5] Void.

[6] ITU-R Recommendation SM.1539-1 (2002): "Variation of the boundary between the out-of-band

and spurious domains required for the application of Recommendations ITU-R SM.1541 and

ITU-R SM.329".
2.2 Informative references

The following referenced documents are not essential to the use of the present document but they assist the user with

regard to a particular subject area. For non-specific references, the latest version of the referenced document (including

any amendments) applies.

[i.1] ETSI TR 102 555: "Electromagnetic compatibility and Radio spectrum Matters (ERM); Technical

characteristics of multiple gigabit wireless systems in the 60 GHz range System Reference

Document".

[i.2] ECC Report 114: "Compatibility studies between Multiple Gigabit Wireless Systems in frequency

range 57-66 GHz and other services and systems (except ITS in 63-64 GHz)".
ETSI
---------------------- Page: 7 ----------------------
8 Draft ETSI EN 302 567 V0.0.8 (2008-07)

[i.3] ECC Report 113: "Compatibility studies around 63 GHz between Intelligent Transportation

Systems (ITS) and other systems".

[i.4] Directive 98/34/EC of the European Parliament and of the Council of 22 June 1998 laying down a

procedure for the provision of information in the field of technical standards and regulations.

[i.5] IEEE 802.15.3c: "EEE Standard for Information Technology - Specific Requirements - Part 15:

Wireless Personal Area Networks with Millimeter Wave Alternative Physical Task Group 3c

(TG3c)".
[i.6] Ecma TC48, High Rate Short Range Wireless Communications.
[i.7] ERC/REC 70-03: "Related to the Use of Short Range Devices (SRD)".

[i.8] ETSI EG 201 399: "Electromagnetic compatibility and Radio spectrum matters (ERM); A guide to

the production of candidate Harmonized Standards for application under the R&TTE Directive".

3 Definitions, symbols and abbreviations
3.1 Definitions

For the purposes of the present document, the following terms and definitions given in the R&TTE Directive [3] and the

following apply:

60 GHz range or 60 GHz band: one of the variously permitted frequencies of operation, typically from 57 GHz to

66 GHz

activity factor: percentage over any one minute time period when equipment is operating under a given set of

conditions

channel separation: minimum separation (in MHz) between the centre frequencies of two adjacent channels in the

channel plan of the radio equipment

environmental profile: declared range of environmental conditions under which equipment within the scope of the

present document is required to be compliant

integral antenna: antenna which is declared to be part of the radio equipment by the supplier

NOTE 1: In some cases, it may not be possible to remove an integral antenna or expose an antenna connector

without changing the output characteristics of the radio equipment.

NOTE 2: Even with an integral antenna, it might still be possible to separate the antenna from the equipment using

a special tool.

mean power: when applied to a modulated signal, this is the power (transmitted or received) in a bandwidth

occupied bandwidth: frequency bandwidth of the signal power at the -6 dBc points

smart antenna systems: equipment that combines multiple transmit and/or receive antenna elements with a signal

processing function to increase its radiation and/or reception capabilities

NOTE: This includes techniques such as spatial multiplexing, beam forming, cyclic delay diversity, etc.

3.2 Symbols
For the purposes of the present document, the following symbols apply:

dBc spectral density relative to the maximum spectral power density of the transmitted signal

dBm decibel relative to one milliwatt
dBr decibel relative to a given maximum power level
GHz thousand millions of cycles
ETSI
---------------------- Page: 8 ----------------------
9 Draft ETSI EN 302 567 V0.0.8 (2008-07)
kHz thousands of cycles
μs millionths of seconds
3.3 Abbreviations
For the purposes of the present document, the following abbreviations apply:
BW BandWidth
ChS Channel Separation
EIRP Equivalent Isotropically Radiated Power
FLANE Fixed Local Area Network Extension
OBw Occupied Bandwidth
PHY PHYsical networking layer
RF Radio Frequency
RLAN Radio Local Area Network
R&TTE Radio equipment and Telecommunications Terminal Equipment
SNR Signal to Noise Ratio
UUT Unit Under Test
WAS Wireless Access System
WLAN Wireless Local Area Network
WPAN Wireless Personal Area Network
4 Technical requirements specifications
4.1 Environmental profile

The technical requirements of the present document apply under the environmental profile for operation of the

equipment, which shall be declared by the supplier. The equipment shall comply with all the technical requirements of

the present document at all times when operating within the boundary limits of the declared operational environmental

profile.
4.2 Conformance requirements
4.2.1 Spectral power density
4.2.1.1 Definition

The spectral power density is the mean Equivalent Isotropically Radiated Power (EIRP) density in Watts per Hertz

during a transmission burst.
4.2.1.2 Limit

The maximum spectral power density is applicable to the system as a whole when operated at the highest stated power

level. For a smart antenna system, the limit applies to the configuration that results in the highest EIRP.

The maximum spectral power density for normal wideband (greater than 100 MHz occupied bandwidth) operation shall

be limited to 13 dBm (20 mW) per MHz EIRP.

For narrowband (less than 100 MHz occupied bandwidth) activities (e.g. link setup, device discovery, antenna training),

there shall be no specific spectral power density limit. These narrowband activities shall have an activity factor of less

than 2 %.
ETSI
---------------------- Page: 9 ----------------------
10 Draft ETSI EN 302 567 V0.0.8 (2008-07)
4.2.2 RF output power
4.2.2.1 Definition

The RF output power is the mean equivalent isotropically radiated power (EIRP) for the equipment during a

transmission burst.
4.2.2.2 Limit

The maximum RF output power is applicable to the system as a whole when operated at the highest stated power level.

For a smart antenna system, the limit applies to the configuration that results in the highest EIRP.

The maximum RF output power in normal wideband operation shall be limited to 40 dBm (10 W). This value is

lowered proportionally for transmissions with a nominal channel bandwidth less than 500 MHz.

The maximum output power during narrowband activity shall not exceed that of wideband operation.

4.2.3 Transmitter unwanted emissions
4.2.3.1 Definition

These are unwanted emissions in the spurious domain as noted in ERC/REC 74-01 [2] while the equipment is

transmitting. The boundary where the spurious domain begins as given by ITU-R Recommendation SM.1539-1 [6] is

considered to be the offset from the nominal centre frequency of the transmission by ±250 % of the relevant occupied

bandwidth (OBw) for OBw ≤ 500 MHz and ± (500 MHz + 1,5 × OBw) for OBw > 500 MHz.
4.2.3.2 Limit

The level of unwanted emissions in the spurious domain shall conform to the ERC/REC 74-01 [2] limits for Land

Mobile Services as given in table 2 for radiated measurements with 0dBi antenna gain. The requirements refer to

average power levels measured at distances with respect to the UUT.
Table 2: Transmitter spurious emissions
Frequency band Measurement bandwidth Field Strength at 3 m (dBμV / m)
30 MHz to 1 GHz 100 kHz 59
1 GHz to 132 GHz 1 MHz 65
4.2.4 Receiver unwanted emissions
4.2.4.1 Definition

These are unwanted emissions in the spurious domain as noted in ERC/REC 74-01 [2] while the equipment is receiving

a transmission. The boundary where the spurious domain begins is given by ITU-R Recommendation SM.1539-1 [6]

and in clause 4.2.3.
4.2.4.2 Limit

The level of unwanted emissions in the spurious domain shall conform to ERC/REC 74-01 [2] for Land Mobile

Services as given in table 3 for radiated measurements with 0 dBi antenna gain. The requirements refer to average

power levels measured at distances with respect to the UUT.
Table 3: Receiver spurious emissions
Frequency band Measurement bandwidth Field Strength at 3 m (dBμV / m)
30 MHz to 1 GHz 100 kHz 38
1 GHz to 132 GHz 1 MHz 48
ETSI
---------------------- Page: 10 ----------------------
11 Draft ETSI EN 302 567 V0.0.8 (2008-07)
4.2.5 Medium access protocol
4.2.5.1 Definition

A medium access protocol is a mechanism designed to facilitate spectrum sharing with other devices in the wireless

network.
4.2.5.2 Requirement

A medium access protocol shall be implemented by the equipment and shall be active under all circumstances.

4.2.6 Integral antenna
4.2.6.1 Definition

An integral antenna is designed as a fixed part of the equipment, without the use of an external connector and as such

can not be disconnected from the equipment by a user with the intent to connect another antenna.

4.2.6.2 Requirement

As recommended by ECC Report 114 [i.2], an integral antenna shall be used to provide interference protection from

these license-exempt RLAN applications.
5 Testing for compliance with technical requirements
5.1 Environmental conditions for testing

Tests defined in the present document shall be carried out at representative points within the boundary limits of the

declared operational environmental profile.

Where technical performance varies subject to environmental conditions, tests shall be carried out under a sufficient

variety of environmental conditions (within the boundary limits of the declared operational environmental profile) to

give confidence of compliance for the affected technical requirements.
5.2 Interpretation of the measurement results

The interpretation of the results recorded in a test report for the measurements described in the present document shall

be a
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
