Broadband Radio Access Networks (BRAN) - 60 GHz Multiple-Gigabit WAS/RLAN Systems - Harmonized EN covering the essential requirements of article 3.2 of the R&TTE Directive

Revision to V1.1.1 to align the power limit to ERC Rec 70-03 Annex 3 by specifying a single power limit of +40dBm. Align the spurious emission limit above 40 GHz in line with the FCC limit to enable global regulation and a global product solution. Clarify the measurement method for the spurious emission limit. To consider changes because of the note 1 in Annex 3 of ERC Rec 70.03.

Širokopasovna radijska dostopovna omrežja (BRAN) - Večgigabitni 60 GHz sistemi WAS/RLAN - Harmonizirani EN, ki zajema bistvene zahteve člena 3.2 direktive R&TTE

(WAS)/radijsko lokalno omrežje (RLAN), ki deluje pri večgigabitnih podatkovnih hitrostih na frekvenčnem območju 60 GHz. Te aplikacije se lahko imenujejo tudi sistemi za brezžično osebno omrežje (WPAN) ali brezžično lokalno omrežje (WLAN) in so namenjeni za naprave kratkega dosega, za katere ni potrebno dovoljenje. Ta uporaba prinaša gospodarske koristi različnim trgom, vključno s trgi komunikacij, računalništva in zabavne elektronike, saj omogoča prenos velikih količin informacij v kratkem časovnem obdobju (na primer od kioska do mobilnega telefona) ali neprekinjen pretočni prenos nestisnjenih podatkov (na primer pri zunanjih video vmesnikih ali predvajalnikih visokoločljivostnih plošč).
Ta omrežja imajo kratek doseg in zelo veliko pasovno širino, pri čemer uporabljajo različne usmeritvene antene z veliko ali srednjo ojačitvijo, ki omogočajo ponovno uporabo večjega dela spektra. Poleg tega lahko uporabljajo prožno shemo pasovnih širin, v okviru katere običajno delujejo v širokopasovnem načinu, in periodično zmanjšujejo pasovno širino (npr. pri učenju o antenah in drugih dejavnostih).
Pogoji uporabe spektra za to opremo so določeni v Odločbi Komisije št. 2006/771/ES [i.7], kakor je bila spremenjena s Sklepom Komisije št. 2010/368/EU [i.8] in dodatku 3 k priporočilu ERC 70-03 [i.5].
Tehnične lastnosti teh aplikacij so podrobneje opisane v standardu TR 102 555 [i.1]. Oprema v tem frekvenčnem območju, ki je namenjena za zunanje fiksne podaljške lokalnega omrežja (FLANE) ali fiksne aplikacije točka-točka, ni v področju uporabe tega dokumenta.
Ta dokument je namenjen za podporo specifikacij, kot so specifikacije iz IEEE 802.15.3c [i.3], ECMA TC48 [i.4] in drugih mednarodnih organov.
Ti tipi radijske opreme lahko delujejo v vseh frekvenčnih pasovih iz tabele 1 ali katerem koli njihovem delu.
Ta dokument zajema določbe člena 3.2 Direktive 1999/5/ES [2] (direktive R&TTE), ki navaja, da »/.../ mora biti radijska oprema skonstruirana tako, da učinkovito uporablja spekter, razporejen za prizemne/vesoljske radijske komunikacije in orbitalne vire, tako da ne pride do škodljivega motenja.«
Poleg tega dokumenta se za opremo v področju uporabe tega dokumenta uporabljajo tudi drugi standardi EN, ki določajo tehnične zahteve v zvezi z bistvenimi zahtevami iz drugih delov člena 3 direktive R&TTE [2].

General Information

Status
Published
Public Enquiry End Date
30-Sep-2011
Publication Date
17-Jan-2012
Technical Committee
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
16-Jan-2012
Due Date
22-Mar-2012
Completion Date
18-Jan-2012

Buy Standard

Standard
EN 302 567 V1.2.1:2012
English language
29 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.577(Broadband Radio Access Networks (BRAN) - 60 GHz Multiple-Gigabit WAS/RLAN Systems - Harmonized EN covering the essential requirements of article 3.2 of the R&TTE Directive35.110OmreževanjeNetworking33.060.01Radijske komunikacije na splošnoRadiocommunications in generalICS:Ta slovenski standard je istoveten z:EN 302 567 Version 1.2.1SIST EN 302 567 V1.2.1:2012en01-marec-2012SIST EN 302 567 V1.2.1:2012SLOVENSKI
STANDARD



SIST EN 302 567 V1.2.1:2012



Final draft ETSI EN 302 567 V1.2.1 (2011-11) Broadband Radio Access Networks (BRAN); 60 GHz Multiple-Gigabit WAS/RLAN Systems; Harmonized EN covering the essential requirements of article 3.2 of the R&TTE Directive
Harmonized European Standard SIST EN 302 567 V1.2.1:2012

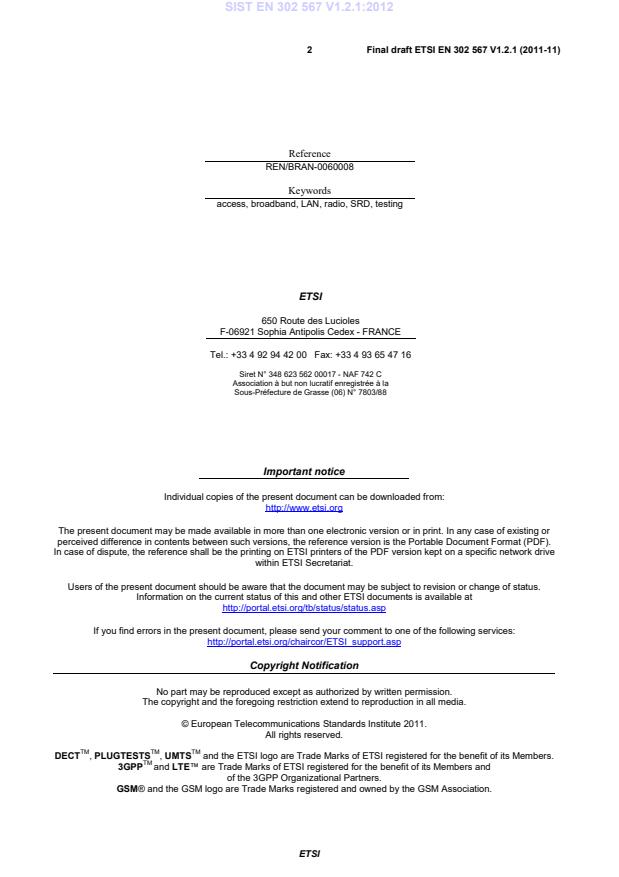

ETSI Final draft ETSI EN 302 567 V1.2.1 (2011-11)2
Reference REN/BRAN-0060008 Keywords access, broadband, LAN, radio, SRD, testing ETSI 650 Route des Lucioles F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00
Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C Association à but non lucratif enregistrée à la Sous-Préfecture de Grasse (06) N° 7803/88
Important notice Individual copies of the present document can be downloaded from: http://www.etsi.org The present document may be made available in more than one electronic version or in print. In any case of existing or perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF). In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive within ETSI Secretariat. Users of the present document should be aware that the document may be subject to revision or change of status. Information on the current status of this and other ETSI documents is available at http://portal.etsi.org/tb/status/status.asp If you find errors in the present document, please send your comment to one of the following services: http://portal.etsi.org/chaircor/ETSI_support.asp Copyright Notification No part may be reproduced except as authorized by written permission. The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2011. All rights reserved.
DECTTM, PLUGTESTSTM, UMTSTM and the ETSI logo are Trade Marks of ETSI registered for the benefit of its Members. 3GPPTM and LTE™ are Trade Marks of ETSI registered for the benefit of its Members and of the 3GPP Organizational Partners. GSM® and the GSM logo are Trade Marks registered and owned by the GSM Association. SIST EN 302 567 V1.2.1:2012

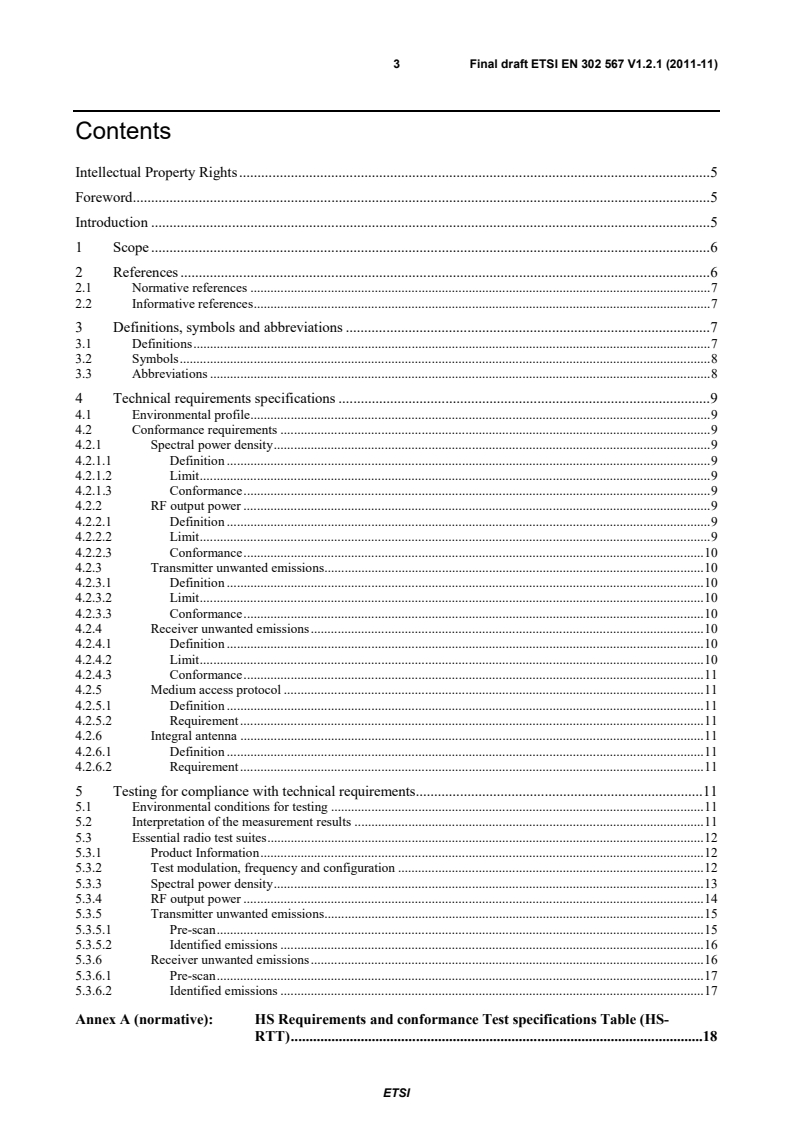

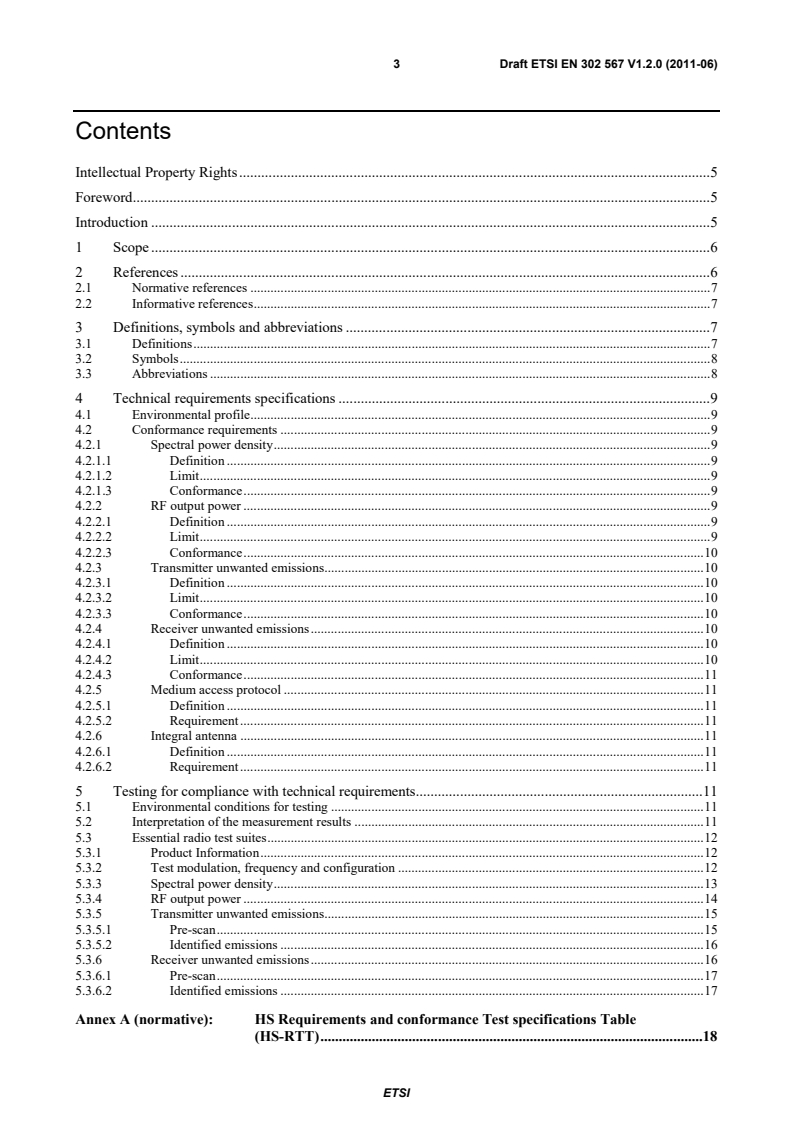

ETSI Final draft ETSI EN 302 567 V1.2.1 (2011-11)3 Contents Intellectual Property Rights . 5 Foreword . 5 Introduction . 5 1 Scope . 6 2 References . 6 2.1 Normative references . 7 2.2 Informative references . 7 3 Definitions, symbols and abbreviations . 7 3.1 Definitions . 7 3.2 Symbols . 8 3.3 Abbreviations . 8 4 Technical requirements specifications . 9 4.1 Environmental profile . 9 4.2 Conformance requirements . 9 4.2.1 Spectral power density . 9 4.2.1.1 Definition . 9 4.2.1.2 Limit . 9 4.2.1.3 Conformance . 9 4.2.2 RF output power . 9 4.2.2.1 Definition . 9 4.2.2.2 Limit . 9 4.2.2.3 Conformance . 10 4.2.3 Transmitter unwanted emissions . 10 4.2.3.1 Definition . 10 4.2.3.2 Limit . 10 4.2.3.3 Conformance . 10 4.2.4 Receiver unwanted emissions . 10 4.2.4.1 Definition . 10 4.2.4.2 Limit . 10 4.2.4.3 Conformance . 11 4.2.5 Medium access protocol . 11 4.2.5.1 Definition . 11 4.2.5.2 Requirement . 11 4.2.6 Integral antenna . 11 4.2.6.1 Definition . 11 4.2.6.2 Requirement . 11 5 Testing for compliance with technical requirements . 11 5.1 Environmental conditions for testing . 11 5.2 Interpretation of the measurement results . 11 5.3 Essential radio test suites . 12 5.3.1 Product Information . 12 5.3.2 Test modulation, frequency and configuration . 12 5.3.3 Spectral power density . 13 5.3.4 RF output power . 14 5.3.5 Transmitter unwanted emissions . 15 5.3.5.1 Pre-scan . 15 5.3.5.2 Identified emissions . 16 5.3.6 Receiver unwanted emissions . 16 5.3.6.1 Pre-scan . 17 5.3.6.2 Identified emissions . 17 Annex A (normative): HS Requirements and conformance Test specifications Table (HS-RTT) . 18 SIST EN 302 567 V1.2.1:2012

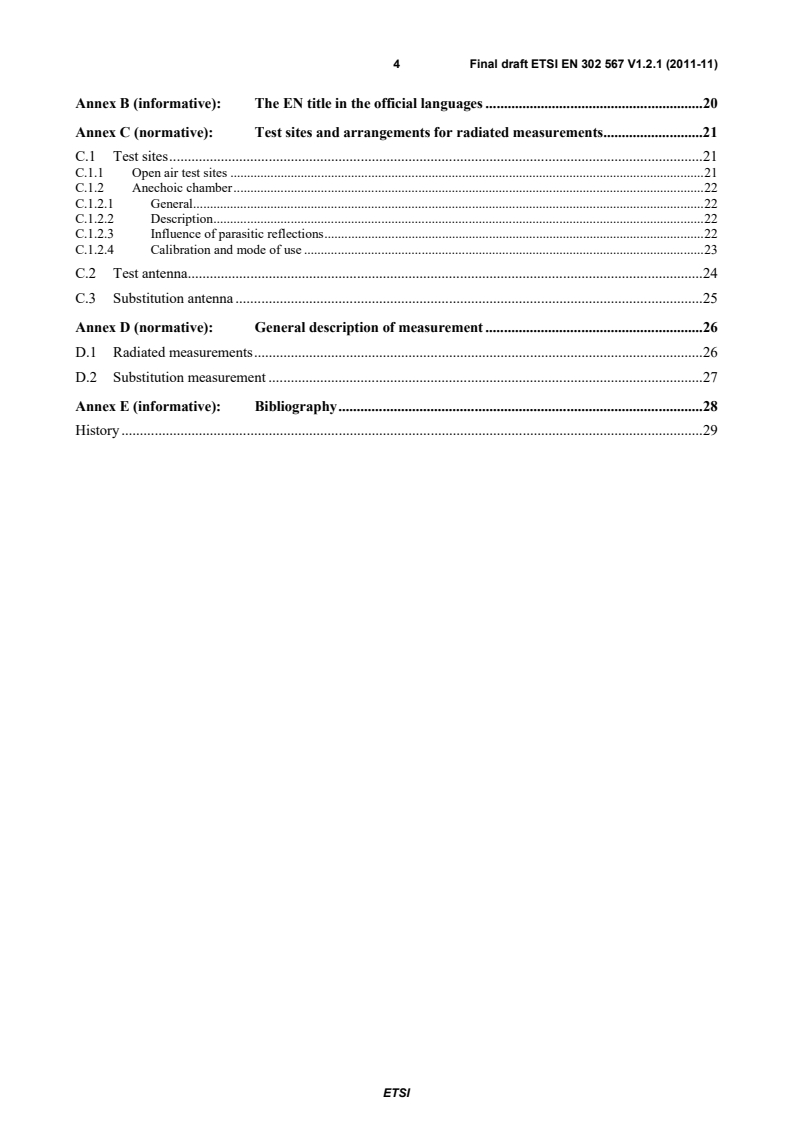

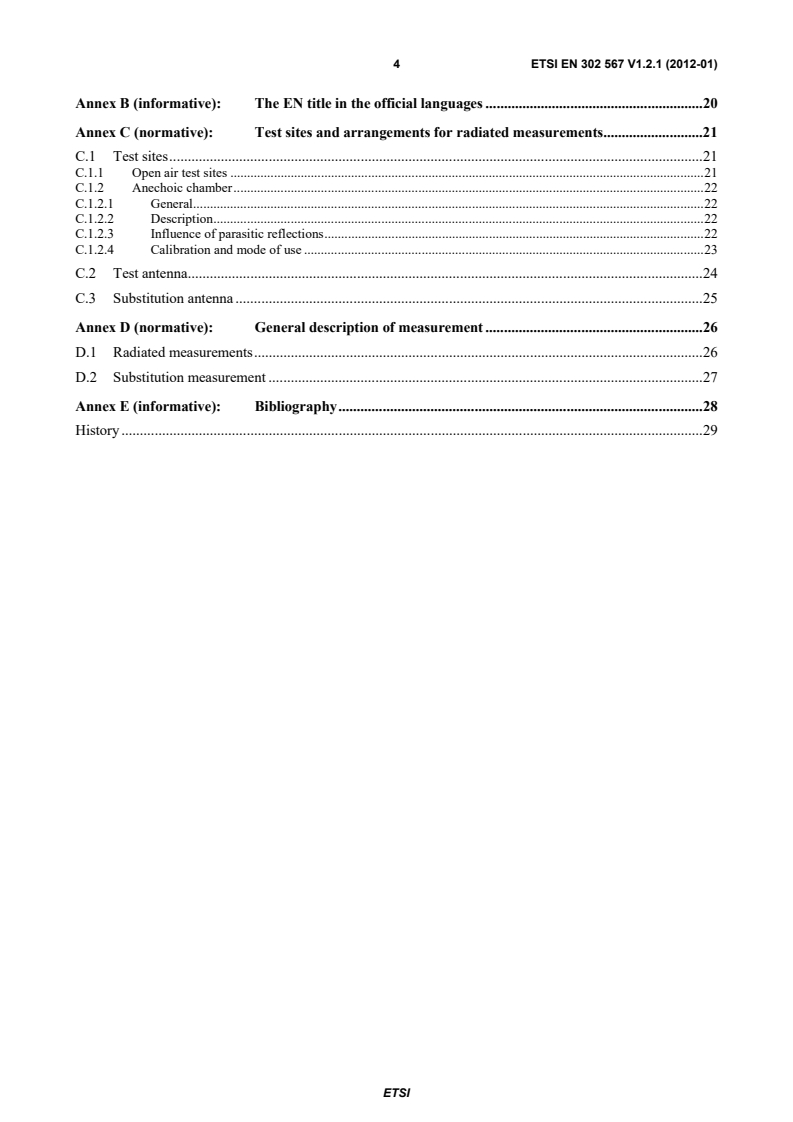

ETSI Final draft ETSI EN 302 567 V1.2.1 (2011-11)4 Annex B (informative): The EN title in the official languages . 20 Annex C (normative): Test sites and arrangements for radiated measurements . 21 C.1 Test sites . 21 C.1.1 Open air test sites . 21 C.1.2 Anechoic chamber . 22 C.1.2.1 General . 22 C.1.2.2 Description . 22 C.1.2.3 Influence of parasitic reflections . 22 C.1.2.4 Calibration and mode of use . 23 C.2 Test antenna . 24 C.3 Substitution antenna . 25 Annex D (normative): General description of measurement . 26 D.1 Radiated measurements . 26 D.2 Substitution measurement . 27 Annex E (informative): Bibliography . 28 History . 29
SIST EN 302 567 V1.2.1:2012



ETSI Final draft ETSI EN 302 567 V1.2.1 (2011-11)5 Intellectual Property Rights IPRs essential or potentially essential to the present document may have been declared to ETSI. The information pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web server (http://ipr.etsi.org). Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become, essential to the present document. Foreword This final draft Harmonized European Standard (EN) has been produced by ETSI Technical Committee Broadband Radio Access Networks (BRAN), and is now submitted for the Vote phase of the ETSI standards Two-step Approval Procedure. The present document has been produced by ETSI in response to a mandate from the European Commission issued under Council Directive 98/34/EC [i.2] (as amended) laying down a procedure for the provision of information in the field of technical standards and regulations. The title and reference to the present document are intended to be included in the publication in the Official Journal of the European Union of titles and references of Harmonized Standard under the Directive 1999/5/EC [2]. See article 5.1 of Directive 1999/5/EC [2] for information on presumption of conformity and Harmonised Standards or parts thereof the references of which have been published in the Official Journal of the European Union. The requirements relevant to Directive 1999/5/EC [2] are summarised in annex A.
Proposed national transposition dates Date of latest announcement of this EN (doa): 3 months after ETSI publication Date of latest publication of new National Standard or endorsement of this EN (dop/e):
6 months after doa Date of withdrawal of any conflicting National Standard (dow): 18 months after doa
Introduction The present document is part of a set of standards developed by ETSI and is designed to fit in a modular structure to cover all radio and telecommunications terminal equipment within the scope of the R&TTE Directive [2]. The modular structure is shown in EG 201 399 [i.6]. SIST EN 302 567 V1.2.1:2012



ETSI Final draft ETSI EN 302 567 V1.2.1 (2011-11)6 1 Scope The present document applies to radio equipment types for wireless access systems (WAS)/Radio Local Area
Networks (RLAN) operating at multiple-gigabit data rates in the 60 GHz frequency range. These applications may also be referred to as Wireless Personal Area Network (WPAN) or Wireless Local Area Network (WLAN) systems and are intended for licence-exempt short-range devices. Economic benefits of this usage apply to a variety of markets including communications, computing, and consumer electronics by enabling the transfer of large amounts of information in a short amount of time (for example, from a kiosk to a mobile phone) or the continuous streaming of uncompressed data (for example, the external video interfaces of a computer or high definition disc player). These networks operate over a short range with very wideband communications using a variety of directional medium and high gain antennas to enable a high degree of spectrum reuse, and may use a flexible bandwidth scheme under which they normally operate in a wideband mode, and periodically reduce their bandwidth (e.g. for antenna training and other activities). The spectrum usage conditions for this equipment are set in Commission Decision 2006/771/EC [i.7] as amended by 2010/368/EU [i.8] and ERC Recommendation 70-03, annex 3 [i.5]. The technical characteristics of these applications are further described in TR 102 555 [i.1]. Equipment in this frequency range intended for outdoor Fixed Local Area Network Extension (FLANE) or Fixed Point-to-Point applications are not in the scope of the present document. The present document is intended to support specifications such as those addressed in IEEE 802.15.3c [i.3], ECMA TC48 [i.4] and other international bodies. These radio equipment types are capable of operating in all or any part of the frequency bands given in table 1. Table 1: Radiocommunications service frequency bands
Radiocommunications service frequency bands Transmit 57 GHz to 66 GHz Receive 57 GHz to 66 GHz
The present document is intended to cover the provisions of Directive 1999/5/EC [2] (R&TTE Directive), article 3.2, which states that "…. radio equipment shall be so constructed that it effectively uses the spectrum allocated to terrestrial/space radio communications and orbital resources so as to avoid harmful interference". In addition to the present document, other ENs that specify technical requirements in respect of essential requirements under other parts of article 3 of the R&TTE Directive [2] may apply to equipment within the scope of the present document. NOTE: A list of such ENs is included on the web site http://www.newapproach.org. 2 References References are either specific (identified by date of publication and/or edition number or version number) or non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the referenced document (including any amendments) applies. Referenced documents which are not found to be publicly available in the expected location might be found at http://docbox.etsi.org/Reference. NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee their long term validity. SIST EN 302 567 V1.2.1:2012



ETSI Final draft ETSI EN 302 567 V1.2.1 (2011-11)7 2.1 Normative references The following referenced documents are necessary for the application of the present document. [1] ERC Recommendation 74-01 (2011): "Unwanted Emissions in the Spurious Domain". [2] Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity (R&TTE Directive). [3] ETSI TR 100 028 (V1.4.1) - (all parts): "Electromagnetic compatibility and Radio spectrum Matters (ERM); Uncertainties in the measurement of mobile radio equipment characteristics". [4] ITU-R Recommendation SM.1539-1 (2002): "Variation of the boundary between the out-of-band and spurious domains required for the application of Recommendations ITU-R SM.1541 and ITU-R SM.329". 2.2 Informative references The following referenced documents are not necessary for the application of the present document but they assist the user with regard to a particular subject area. [i.1] ETSI TR 102 555: "Electromagnetic compatibility and Radio spectrum Matters (ERM); Technical characteristics of multiple gigabit wireless systems in the 60 GHz range System Reference Document". [i.2] Directive 98/34/EC of the European Parliament and of the Council of 22 June 1998 laying down a procedure for the provision of information in the field of technical standards and regulations. [i.3] IEEE 802.15.3c: "IEEE Standard for Information Technology - Specific Requirements - Part 15: Wireless Personal Area Networks with Millimeter Wave Alternative Physical Task Group 3c (TG3c)". [i.4] ECMA TC48, High Rate Short Range Wireless Communications. [i.5] ERC Recommendation 70-03 (Tromsø 1997 and subsequent amendments): "Related to the Use of Short Range Devices (SRD)". [i.6] ETSI EG 201 399: "Electromagnetic compatibility and Radio spectrum Matters (ERM); A guide to the production of Harmonized Standards for application under the R&TTE Directive". [i.7] Commission Decision 2006/771/EC of 9 November 2006 on harmonisation of the radio spectrum for use by short-range devices. [i.8] Commission Decision 2010/368/EU of 30 June 2010 amending Decision 2006/771/EC on harmonisation of the radio spectrum for use by short-range devices. 3 Definitions, symbols and abbreviations 3.1 Definitions For the purposes of the present document, the terms and definitions given in Directive 1999/5/EC [2] and the following apply: 60 GHz range or 60 GHz band: one of the variously permitted frequencies of operation, typically from 57 GHz to 66 GHz activity factor: percentage over any one minute time period when equipment is operating under a given set of conditions SIST EN 302 567 V1.2.1:2012



ETSI Final draft ETSI EN 302 567 V1.2.1 (2011-11)8 channel separation: minimum separation (in MHz) between the centre frequencies of two adjacent channels in the channel plan of the radio equipment environmental profile: range of environmental conditions under which equipment within the scope of the present document is required to comply with the provisions of the present document integral antenna: antenna which is declared to be part of the radio equipment by the supplier NOTE 1: In some cases, it may not be possible to remove an integral antenna or expose an antenna connector without changing the output characteristics of the radio equipment. NOTE 2: Even with an integral antenna, it might still be possible to separate the antenna from the equipment using a special tool. mean power: when applied to a modulated signal, this is the power (transmitted or received) in a bandwidth occupied bandwidth: frequency bandwidth of the signal power at the -6 dBc points smart antenna systems: equipment that combines multiple transmit and/or receive antenna elements with a signal processing function to increase its radiation and/or reception capabilities NOTE: This includes techniques such as spatial multiplexing, beam forming, cyclic delay diversity, etc. 3.2 Symbols For the purposes of the present document, the following symbols apply: dBc spectral density relative to the maximum spectral power density of the transmitted signal dBm decibel relative to one milliwatt dBr decibel relative to a given maximum power level GHz thousand millions of cycles kHz thousands of cycles μs millionths of seconds 3.3 Abbreviations For the purposes of the present document, the following abbreviations apply: ChS Channel Separation EIRP Equivalent Isotropically Radiated Power FLANE Fixed Local Area Network Extension OBw Occupied Bandwidth PDL spectral Power Density Limit RBw Resolution Bandwidth RF Radio Frequency RLAN Radio Local Area Network R&TTE Radio and Telecommunications Terminal Equipment UUT Unit Under Test WAS Wireless Access System WLAN Wireless Local Area Network WPAN Wireless Personal Area Network SIST EN 302 567 V1.2.1:2012



ETSI Final draft ETSI EN 302 567 V1.2.1 (2011-11)9 4 Technical requirements specifications 4.1 Environmental profile The technical requirements of the present document apply under the environmental profile for operation of the equipment, which shall be declared by the supplier. The equipment shall comply with all the technical requirements of the present document at all times when operating within the boundary limits of the declared operational environmental profile. 4.2 Conformance requirements 4.2.1 Spectral power density 4.2.1.1 Definition The spectral power density is the mean Equivalent Isotropically Radiated Power (EIRP) density in Watts per Hertz during a transmission burst. 4.2.1.2 Limit The maximum spectral power density is applicable to the system as a whole when operated at the highest stated power level. For a smart antenna system, the limit applies to the configuration that results in the highest EIRP. The maximum spectral power density shall be as indicated in table 2. Table 2: Spectral power density limit (PDL) Usage Maximum spectral power density (EIRP) Indoor and Outdoor 13 dBm / MHz
4.2.1.3 Conformance Conformance tests for this requirement are defined in clause 5.3.3. 4.2.2 RF output power 4.2.2.1 Definition The RF output power is the mean equivalent isotropically radiated power (EIRP) for the equipment during a transmission burst. 4.2.2.2 Limit The maximum RF output power is applicable to the system as a whole when operated at the highest stated power level. For a smart antenna system, the limit applies to the configuration that results in the highest EIRP. The maximum RF output power in normal wideband operation shall be as indicated in table 3. Table 3: RF output power limit Usage Maximum power level (EIRP) Indoor and Outdoor 40 dBm
SIST EN 302 567 V1.2.1:2012



ETSI Final draft ETSI EN 302 567 V1.2.1 (2011-11)10 4.2.2.3 Conformance Conformance tests for this requirement are defined in clause 5.3.4. 4.2.3 Transmitter unwanted emissions 4.2.3.1 Definition These are unwanted emissions in the spurious domain as noted in ERC Recommendation 74-01 [1] while the equipment is transmitting. The boundary where the spurious domain begins as given by ITU-R Recommendation SM.1539-1 [4] is considered to be the offset from the nominal centre frequency of the transmission by ±250 % of the relevant occupied bandwidth (OBw) for OBw ≤ 500 MHz and ± (500 MHz + 1,5 × OBw) for OBw > 500 MHz. 4.2.3.2 Limit The level of unwanted emissions in the spurious domain shall conform to the limits given in table 4.
NOTE: In line with ERC Recommendation 74-01 [1] these limits apply to the power levels conducted to the antenna connector. Table 4: Transmitter spurious emissions Frequency range Emission Limit
Measurement Bandwidth 30 MHz to 47 MHz -36 dBm 100 kHz 47 MHz to 74 MHz -54 dBm 100 kHz 74 MHz to 87,5 MHz -36 dBm 100 kHz 87,5 MHz to 118 MHz -54 dBm 100 kHz 118 MHz to 174 MHz -36 dBm 100 kHz 174 MHz to 230 MHz -54 dBm 100 kHz 230 MHz to 470 MHz -36 dBm 100 kHz 470 MHz to 862 MHz -54 dBm 100 kHz 862 MHz to 1 GHz -36 dBm 100 kHz 1 GHz to 132 GHz -30 dBm 1 MHz
4.2.3.3 Conformance Conformance tests for this requirement are defined in clause 5.3.5. 4.2.4 Receiver unwanted emissions 4.2.4.1 Definition These are unwanted emissions in the spurious domain as noted in ERC Recommendation 74-01 [1] while the equipment is receiving a transmission. 4.2.4.2 Limit The level of unwanted emissions in the spurious domain shall conform to the limits given in table 5. NOTE: In line with ERC Recommendation 74-01 [1] these limits apply to the power levels conducted to the antenna connector. Table 5: Receiver spurious emissions Frequency band Emission Limit Measurement Bandwidth
30 MHz to 1 GHz -57 dBm 100 kHz 1 GHz to 132 GHz -47 dBm 1 MHz
SIST EN 302 567 V1.2.1:2012



ETSI Final draft ETSI EN 302 567 V1.2.1 (2011-11)11 4.2.4.3 Conformance Conformance tests for this requirement are defined in clause 5.3.6. 4.2.5 Medium access protocol 4.2.5.1 Definition A medium access protocol is a mechanism designed to facilitate spectrum sharing with other devices in the wireless network. 4.2.5.2 Requirement A medium access protocol shall be implemented by the equipment and shall be active under all circumstances. 4.2.6 Integral antenna 4.2.6.1 Definition An integral antenna is designed as a fixed part of the equipment, without the use of an external connector and as such cannot be disconnected from the equipment by a user with the intent to connect another antenna. 4.2.6.2 Requirement An integral antenna shall be used to provide interference protection from these licence-exempt RLAN applications. 5 Testing for compliance with technical requirements 5.1 Environmental conditions for testing Tests defined in the present document shall be carried out at representative points within the boundary limits of the declared operational environmental profile. Where technical performance varies subject to environmental conditions, tests shall be carried out under a sufficient variety of environmental conditions (within the boundary limits of the declared operational environmental profile) to give confidence of compliance for the affected technical requirements. 5.2 Interpretation of the measurement results The interpretation of the results recorded in a test report for the measurements described in the present document shall be as follows: • the measured value related to the corresponding limit will be used to decide whether an equipment meets the requirements of the present document; • the value of the measurement uncertainty for the measurement of each parameter shall be included in the test repo
...
