SIST EN 60079-1:2015/A11:2024

Explosive atmospheres - Part 1: Equipment protection by flameproof enclosures "d"

Creating an amendment on European level to mirror the IEC interpretation sheet of IEC 60079-1:2014/ISH1:2020 which is still active at IEC.

Explosionsgefährdete Bereiche - Teil 1: Geräteschutz durch druckfeste Kapselung „d“

Creating an amendment on European level to mirror the IEC interpretation sheet of IEC 60079-1:2014/ISH1:2020 which is still active at IEC.

Atmosphères explosives - Partie 1: Protection du matériel par enveloppes antidéflagrantes «d»

Eksplozivne atmosfere - 1. del: Zaščita opreme z neprodirnim okrovom "d"

General Information

• Status: Published
• Publication Date: 16-Apr-2024
• ICS: 29.260.20 - Electrical apparatus for explosive atmospheres
• Technical Committee: EXP - Product for explosive atmospheres
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 24-Jan-2024
• Due Date: 30-Mar-2024
• Completion Date: 17-Apr-2024
• Directive: 2008/68/EC - Directve 2008/68/EC of the European Parliament and of the council of 24 September 2008 on the inland transport of the dangerous goods
• Ref Project: EN 60079-1:2014/A11:2024 - Explosive atmospheres - Part 1: Equipment protection by flameproof enclosures "d"

Relations

• Amends: SIST EN 60079-1:2015 - Explosive atmospheres - Part 1: Equipment protection by flameproof enclosures "d"
• Effective Date: 01-Mar-2022

Overview

The SIST EN 60079-1:2015/A11:2024 standard addresses the protection of electrical equipment intended for use in explosive atmospheres by means of flameproof enclosures ("d"). This amendment aligns the European Standard with the International Electrotechnical Commission’s interpretation sheet IEC 60079-1:2014/ISH1:2020, ensuring harmonized requirements across Europe for equipment safety in hazardous environments. Issued by CLC and approved by CENELEC in January 2024, it clarifies technical provisions around flameproof enclosure designs, particularly focusing on threaded entries.

Key Topics

• Flameproof Enclosures "d": Specifies design and testing requirements for enclosures that contain any explosion within and prevent transmission to external atmospheres.
• Threaded Entries Restriction: Introduces a major technical change that limits threaded entries on flameproof enclosures exclusively to metric and NPT (National Pipe Thread) forms. This amendment aims to reduce mismatches and improve the integrity of enclosure entries.
• Thread Adapters and Blanking Elements:
  • Thread adapters fitted as factory-assembled parts may use other thread forms beyond metric and NPT.
  • Blanking elements can be installed in thread adapters that are factory-fitted and assessed as part of the flameproof enclosure.
• Marking Requirements: The amendment mandates clear identification of the thread type and size for threaded entries, including those pertaining to thread adapters assembled on the enclosure for field wiring connections.
• Alignment with IEC Standards: Ensures consistency with IEC 60079-1:2014/ISH1:2020, endorsed by CENELEC without modification, reinforcing a unified international approach.

Applications

SIST EN 60079-1:2015/A11:2024 is particularly relevant for industries operating in hazardous locations where explosive atmospheres may be present, such as:

• Oil and Gas: Equipment used in refineries, drilling sites, and petrochemical plants requiring flameproof enclosures.
• Chemical Processing: Ensuring electrical apparatus can safely operate near volatile substances.
• Mining: Protection of electrical systems in underground and surface mines with potential explosive gases or dust.
• Pharmaceuticals & Manufacturing: Facilities handling flammable powders or vapors benefiting from standardized enclosure protection.

By adhering to this standard, manufacturers can ensure equipment safety compliance, reduce the risk of explosions, and meet European regulatory requirements for devices used in explosive atmospheres.

Related Standards

• IEC 60079-1:2014 – The international standard for equipment protection by flameproof enclosures.
• IEC 60079 Series – Comprehensive safety standards for equipment in explosive atmospheres, including intrinsic safety, increased safety, and more.
• EN 60079-0 – General requirements for electrical apparatus used in explosive atmospheres.
• EN 60079-7 – Equipment protection by increased safety "e", complementing flameproof enclosure protections.

Compliance with SIST EN 60079-1:2015/A11:2024 supports harmonization with these standards, facilitating the certification process and international market access.

---

Keywords: SIST EN 60079-1:2015/A11:2024, flameproof enclosure, explosive atmospheres, equipment protection, hazardous locations, metric and NPT threads, thread adapters, cable glands, electrical apparatus standard, CENELEC amendment, IEC 60079-1 interpretation.

Standards Content (Sample)

SLOVENSKI STANDARD
01-junij-2024
Eksplozivne atmosfere - 1. del: Zaščita opreme z neprodirnim okrovom "d"
Explosive atmospheres - Part 1: Equipment protection by flameproof enclosures "d"
Explosionsgefährdete Bereiche - Teil 1: Geräteschutz durch druckfeste Kapselung „d“
Atmosphères explosives - Partie 1: Protection du matériel par enveloppes
antidéflagrantes «d»
Ta slovenski standard je istoveten z: EN 60079-1:2014/A11:2024
ICS:
29.260.20 Električni aparati za Electrical apparatus for
eksplozivna ozračja explosive atmospheres
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN 60079-1:2014/A11

NORME EUROPÉENNE
EUROPÄISCHE NORM January 2024
ICS 29.260.20
English Version
Explosive atmospheres - Part 1: Equipment protection by
flameproof enclosures "d"
Atmosphères explosives - Partie 1: Protection du matériel Explosionsgefährdete Bereiche - Teil 1: Geräteschutz durch
par enveloppes antidéflagrantes "d" druckfeste Kapselung "d"
This amendment A11 is only for the clarification of the European Standard EN 60079-1:2014; it was approved by CENELEC on 2024-01-16.
CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
amendment the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This amendment exists in three official versions (English, French, German). A version in any other language made by translation under the
responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the same status as
the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2024 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN 60079-1:2014/A11:2024 E

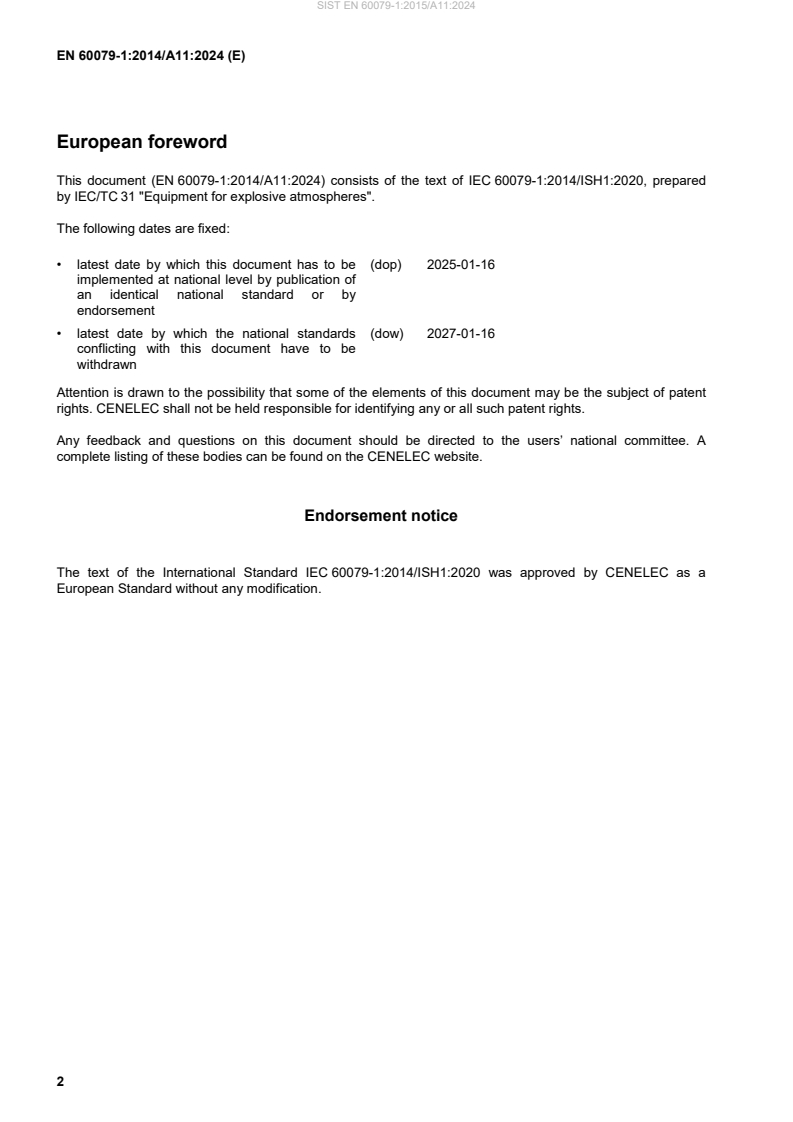

European foreword
This document (EN 60079-1:2014/A11:2024) consists of the text of IEC 60079-1:2014/ISH1:2020, prepared
by IEC/TC 31 "Equipment for explosive atmospheres".
The following dates are fixed:
• latest date by which this document has to be (dop) 2025-01-16
implemented at national level by publication of
an identical national standard or by
endorsement
• latest date by which the national standards (dow) 2027-01-16
conflicting with this document have to be
withdrawn
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national committee. A
complete listing of these bodies can be found on the CENELEC website.
Endorsement notice
The text of the International Standard IEC 60079-1:2014/ISH1:2020 was approved by CENELEC as a
European Standard without any modification.
...
